Makita Spare Parts for Masonry Saw Wet Cutting 4101RH

SKU: Makita 4101RH
€42.06
VAT included

Makita Spare Parts for Masonry Saw Wet Cutting 4101RH

MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for 5" Masonry Saw Wet Cutting Ø 110 mm 4101RH.
Makita Spare Parts for Masonry Saw Wet Cutting 4101RH
  • Makita Spare Parts for Masonry Saw Wet Cutting 4101RH
  • Makita Spare Parts for Masonry Saw Wet Cutting 4101RH

Makita Spare Parts for Masonry Saw Wet Cutting 4101RH

SKU: Makita 4101RH Condition: New
€42.06
VAT included

Makita Spare Parts for Masonry Saw Wet Cutting 4101RH

MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for 5" Masonry Saw Wet Cutting Ø 110 mm 4101RH.
settings 62 spare parts

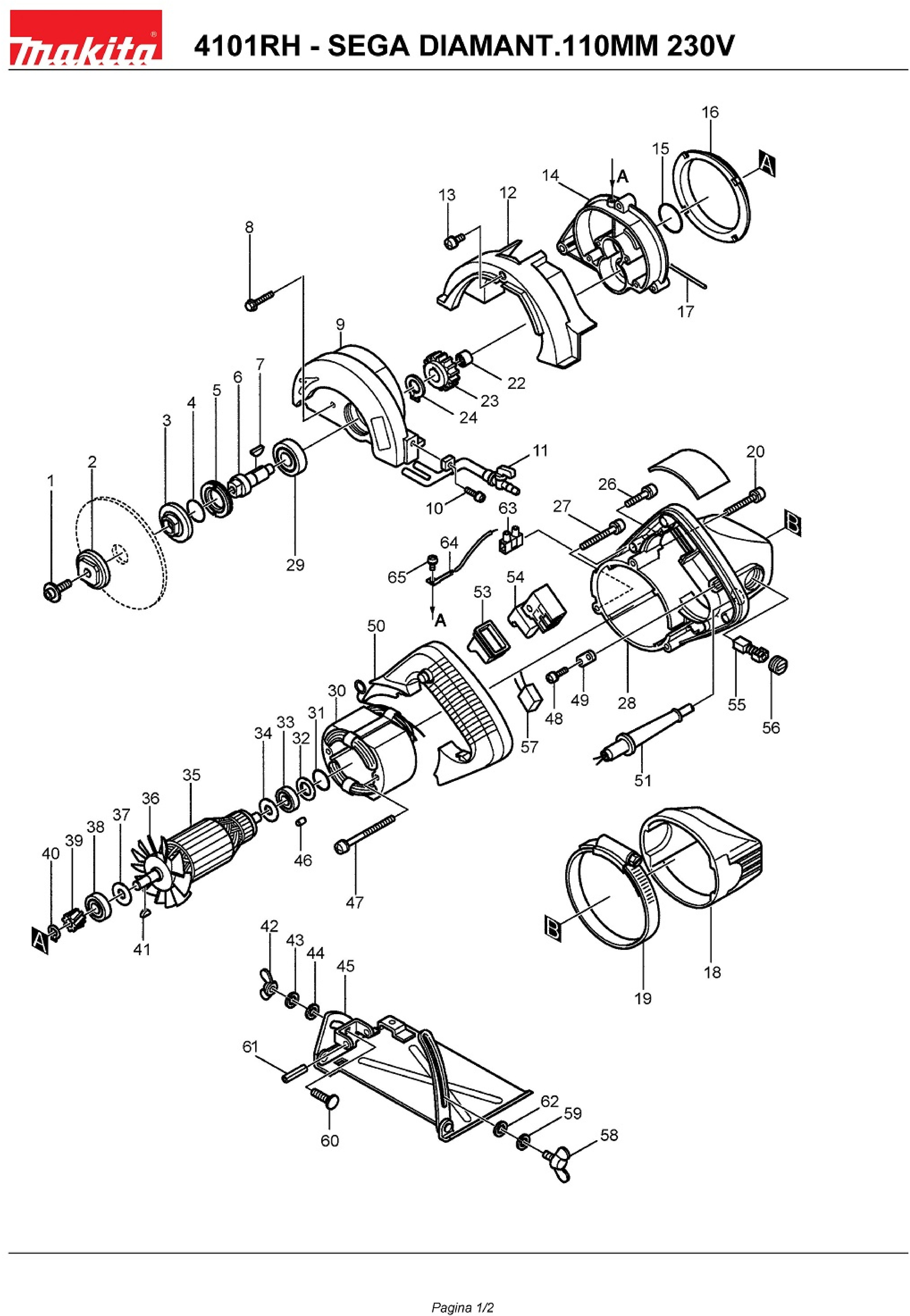

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

54 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
2
photo_cameraImage coming soon 224081-2 EXTERNAL FLANGE €12.97
3
photo_cameraImage coming soon 224080-4 INTERNAL FLANGE 36 €7.66
5
Bearing Retainer 19-33 for Masonry Saw Makita 4101RH 285815-8 Bearing Retainer 19-33 for Masonry Saw Makita 4101RH €3.81
6
photo_cameraImage coming soon 321197-5 TREE €12.97
7
photo_cameraImage coming soon 254001-2 KEY CRESCENT 4 €1.44
9
photo_cameraImage coming soon 151509-6 HEADPHONES DISCO CPL 4101R €43.94
10
photo_cameraImage coming soon 911123-8 HEAD SCREW CILIND. M4x14 €1.29
11
photo_cameraImage coming soon 153409-6 TAP 4101R €19.02
12
photo_cameraImage coming soon 410910-7 COVER B €14.81
13
photo_cameraImage coming soon 911203-0 SCREW M5X8 X 4101R €1.56
14
photo_cameraImage coming soon 150926-7 HOUSING GEAR CPL €31.66
15
photo_cameraImage coming soon 213407-3 SEAL 26 X 3901 €2.18
16
photo_cameraImage coming soon 415403-9 AIR CONVEYOR €1.52
18
photo_cameraImage coming soon 414074-9 COVER €12.97
19
photo_cameraImage coming soon 163282-6 CIRCLIP €7.66
20
photo_cameraImage coming soon 911258-5 SCREW M5x35 4101R €2.58
22
photo_cameraImage coming soon 212004-2 ROLLER 810 X9218S €5.67
23
photo_cameraImage coming soon 226420-2 GEAR €11.14
24
Retaining Ring S12 for Power Tools Makita 961052-5 Retaining Ring S12 for Power Tools Makita €1.40
26
photo_cameraImage coming soon 911546-0 HEAD SCREW CILIND. M4X25 €1.36
27
photo_cameraImage coming soon 911263-2 HEAD SCREW CILIND. €1.47
28
photo_cameraImage coming soon 150927-5 HOUSING MOTOR €39.36
29
Bearing 6201DD NSK for Powertools Makita 211129-9 Bearing 6201DD NSK for Powertools Makita €8.41
30
Stator for Dustless Cutter Makita 4101RH 522843-5 Stator for Dustless Cutter Makita 4101RH €42.09
31
photo_cameraImage coming soon 213262-3 O-RING 18 4100R €2.59
32
photo_cameraImage coming soon 253192-6 FLAT WASHER 14 €1.40
33
photo_cameraImage coming soon 211033-2 BEARING 608LB €9.89
34
photo_cameraImage coming soon 681613-2 INSULATION WASHER €1.29
35
Armature for Dustless Cutter Makita 4101RH 516343-5 Armature for Dustless Cutter Makita 4101RH €79.14
36
photo_cameraImage coming soon 240007-6 FAN 68 €2.35
38
photo_cameraImage coming soon 210042-8 BEARING FOR 629LLB GD0600 €5.93
39
photo_cameraImage coming soon 226419-7 GEAR €8.58
40
photo_cameraImage coming soon 961004-6 RETAINING RING S8 €3.76
41
photo_cameraImage coming soon 254002-0 WOODRUFF KEY 3 €1.43
42
photo_cameraImage coming soon 252623-2 BUTTERFLY SCREW M6 €1.98
43
photo_cameraImage coming soon 942151-2 WASHER 6 €3.66
44
photo_cameraImage coming soon 941151-9 WASHER 6 X HM1303 €3.66
45
photo_cameraImage coming soon 168216-4 ANTIVIBRATION Ø40X30 MF M8X25 65SH €31.66
46
Rubber Pin for Hammer SDS-Max Makita HR4000C 263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C €1.47
48
photo_cameraImage coming soon 911133-5 SCREW M4X18 €1.46
49
photo_cameraImage coming soon 687052-4 CLAMP cable clamp X 6408 €5.40
50
photo_cameraImage coming soon 152597-6 COVER HANDLE €11.14
51
photo_cameraImage coming soon 682504-0 CORD GUARD 10/85 €3.84
53
photo_cameraImage coming soon 421329-5 DUST COVER €3.35
54
photo_cameraImage coming soon 651252-2 SWITCH X 5014-5016 €17.30
55
Carbon Brushes CB-303 for Belt Sander Makita 9920X 191963-2 Carbon Brushes CB-303 for Belt Sander Makita 9920X €9.96
56
Carbon Brush Holder Cap for Hammer Makita HM1100 - HM1100C 643750-0 Carbon Brush Holder Cap for Hammer Makita HM1100 - HM1100C €2.51
57
photo_cameraImage coming soon 645253-0 CAPACITOR X 6408 €5.93
58
photo_cameraImage coming soon 251886-7 BUTTERFLY SCREW M6x10 €1.52
59
photo_cameraImage coming soon 942151-2 WASHER 6 €3.66
60
photo_cameraImage coming soon 251919-8 SCREW M6X20 €1.43
62
photo_cameraImage coming soon 941151-9 WASHER 6 X HM1303 €3.66
63
photo_cameraImage coming soon 654532-5 TERMINAL BLOCK 6E / 1DS €3.76
64
photo_cameraImage coming soon 632829-2 CABLE €2.35

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Masonry Saw Wet Cutting 4101RH

MAKITA Original spare parts

at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for 5" Masonry Saw Wet Cutting Ø 110 mm 4101RH

In the following table, look for the model of Dustless Cutter and the respective parts of the code.
Makita 4101RH

Masonry Saw Wet Cutting 4101RH
# Part Num. Description
1 266133-3 BOLT M6 X 20
2 224081-2 EXTERNAL FLANGE
3 224080-4 INTERNAL FLANGE 36
4 213255-0 SEAL 18
5 285815-8 BEARING RETAINER 19-33
6 321197-5 TREE
7 254001-2 KEY CRESCENT 4
8 925146-0 HEXAGON SCREW M4x25
9 151509-6 HEADPHONES DISCO CPL 4101R
10 911123-8 HEAD SCREW CILIND. M4x14
11 153409-6 TAP 4101R
12 410910-7 COVER B
13 911203-0 SCREW M5X8
14 150926-7 HOUSING GEAR CPL
15 213407-3 SEAL 26
16 415403-9 AIR CONVEYOR
17 423155-8 SEAL RUBBER
18 414074-9 COVER
19 163282-6 CERCHIETTO
20 911258-5 SCREW M5x35
22 212004-2 ROLLER BEARING 810
23 226420-2 GEAR
24 961052-5 RETAINING RING S12
26 911546-0 HEAD SCREW CILIND. M4x25
27 911263-2 HEAD SCREW CILIND.
28 150927-5 HOUSING MOTOR
29 211129-9 BALL BEARING 6201DD
30 522843-5 FIELD - STATOR 220
31 213262-3 SEAL 18
32 253192-6 FLAT WASHER 14
33 211033-2 BEARING 608LB
34 681613-2 INSULATION WASHER
35 516343-5 ARMATURE
36 240007-6 FAN 68
37 253741-9 FLAT WASHER 9
38 210042-8 BEARING FOR 629LLB GD600
39 226419-7 GEAR
40 961004-6 RETAINING RING S8
41 254002-0 KEY CRESCENT 3
42 252623-2 BUTTERFLY SCREW M6
43 942151-2 WASHER 6
44 941151-9 WASHER 6
45 168216-4 BASE
46 263002-9 PIN RUBBER 4
47 911285-2 SCREW M5x60
48 911133-5 SCREW M4X18
49 687052-4 CLAMP cable tie
50 152597-6 COVER HANDLE
51 682504-0 CABLE SLEEVE 10/85
53 421329-5 DUST COVER
54 651252-2 SWITCH X 5014-5016
55 191963-2 CARBON BRUSHES CB-303
56 643750-0 PLUG BRUSH HOLDER
57 645253-0 CAPACITOR
58 251886-7 BUTTERFLY SCREW M6x10
59 942151-2 WASHER 6
60 251919-8 SCREW M6X20
61 951219-3 JACK BAND 6/32
62 941151-9 WASHER 6
63 654532-5 TERMINAL BLOCK 6E / 1DS
64 632829-2 CABLE
65 652014-1 SCREW M4X8
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s MAKITA websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to MAKITA brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
