Makita Spare Parts for Concrete Planer PC5000C
Fix Your Concrete Planer PC5000C. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

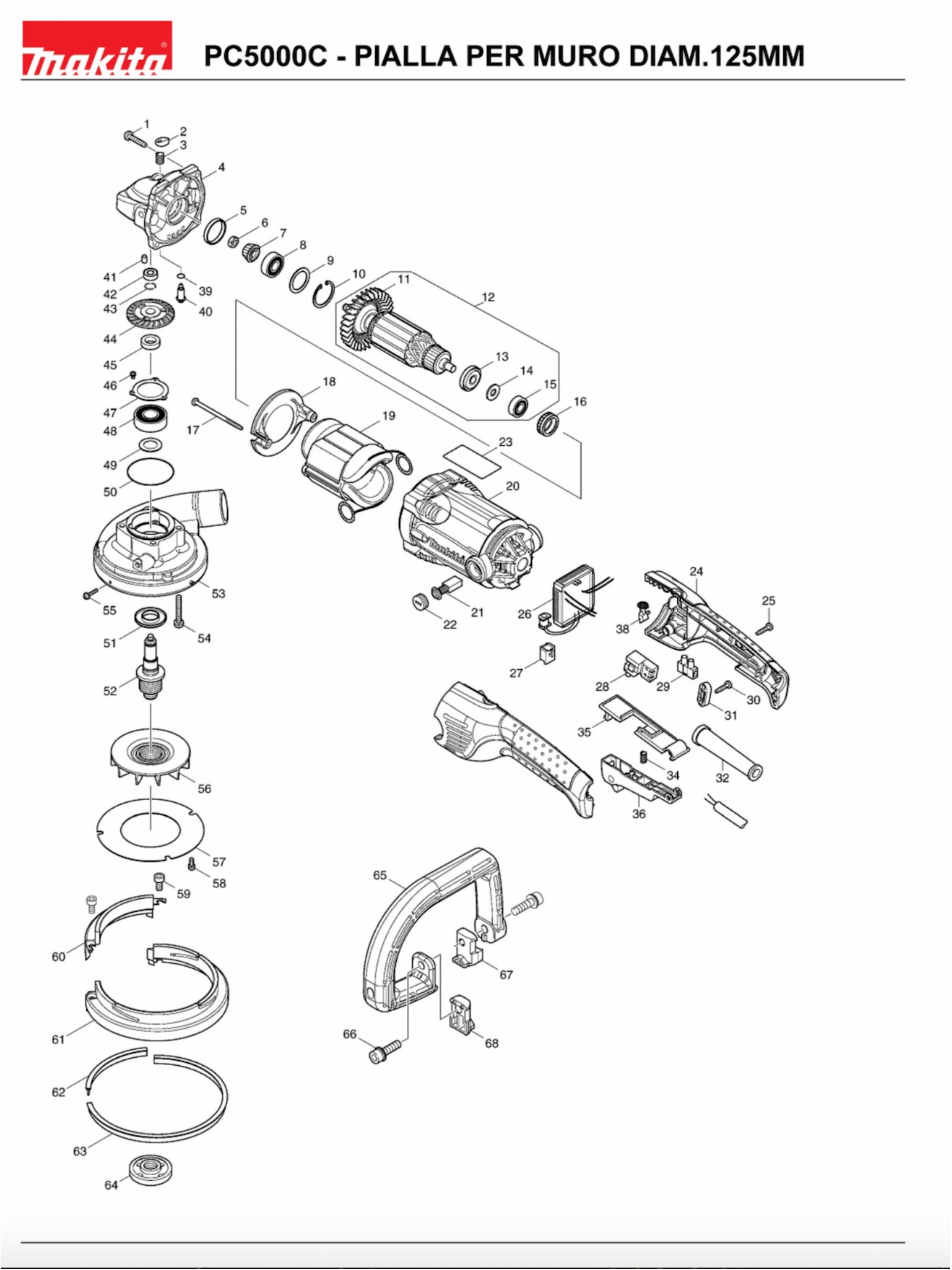

In the following table, look for the model of Concrete Planer and the respective parts of the code.
| Concrete Planer Makita PC5000C |
| # |
Part Num. |
Description |
| 1 |
266459-3 |
SCREW 5x25 PC5000C |
| 2 |
417771-6 |
BUTTON X 9554NB |
| 3 |
234057-1 |
SPRING 6 GA5021C |
| 4 |
318158-4 |
GEAR BOX GA 5010 |
| 5 |
424051-3 |
RING RUBBER 26 GA5021C |
| 6 |
264010-3 |
NUT M7 X GA5010 |
| 7 |
227520-1 |
GEAR 11 PER 9020 |
| 8 |
210059-1 |
BEARING 6000 HR2010 |
| 9 |
267352-4 |
WASHER 22 GA5010 |
| 10 |
962107-9 |
RETAINING RING R-30 X GA5010 |
| 11 |
240094-5 |
FAN 70 GA5010 |
| 12 |
513799-3 |
ARMATURE PC5000C |
| 13 |
681660-3 |
INSULATING WASHER X PV7000C |
| 14 |
267281-1 |
WASHER 8 X GA9010C |
| 15 |
210044-4 |
BEARING 608DDW |
| 16 |
421720-7 |
RING RUBBER 5604R |
| 17 |
266325-4 |
SCREW M 4 X 70 X MT952 |
| 18 |
419961-7 |
BAFFLE GA5010 |
| 19 |
525784-4 |
STATOR GA5021C |
| 20 |
140019-8 |
HOUSING MOTOR PC5000C |
| 21 |
194547-5 |
CARBON BRUSHES CB-253 X GA5021C |
| 22 |
643750-0 |
PLUG BRUSH HOLDER |
| 23 |
866345-4 |
LABEL PC5000C |
| 24 |
188630-8 |
HANDLE REAR PC5000C |
| 25 |
266326-2 |
SCREW 4x18 X MT601 |
| 26 |
631799-2 |
REGULATOR X GA5021C |
| 27 |
418518-1 |
SOCKET X GA9010C |
| 28 |
651922-3 |
SWITCH TG71B |
| 29 |
654575-7 |
CLAMP X 5704R |
| 30 |
266326-2 |
SCREW 4x18 X MT601 |
| 31 |
687124-5 |
Cable tie CLAMP MT953 |
| 32 |
682574-9 |
CABLE SLEEVE 10-90 PC5000C |
| 34 |
233117-6 |
SPRING COMP. 6 X GA7010C |
| 35 |
418519-9 |
SWITCH BASE X X GA9010C |
| 36 |
158401-7 |
LEVER SWITCH GA5021C |
| 38 |
450184-8 |
LENS FOR PC5000C |
| 39 |
213977-2 |
RING 7 X GA5010 |
| 40 |
256505-0 |
PIN 5 GA5010 |
| 41 |
263002-9 |
PIN RUBBER 4 |
| 42 |
210033-9 |
BEARING 696ZZ X 2107FK |
| 43 |
233950-6 |
RING 11 X GA5010 |
| 44 |
227521-9 |
35A GEAR PC5000C |
| 45 |
257171-6 |
RING 12 X PC5000C |
| 46 |
911003-8 |
SCREW M3X6 X 6096DW |
| 47 |
285728-3 |
RETAINING BEARING 39 GA5010 |
| 48 |
211241-5 |
BEARING 6202DDW X MT601 |
| 49 |
253853-8 |
WASHER 15 X HR1800 |
| 50 |
213624-5 |
RING 48 X GA5010 |
| 51 |
345464-4 |
RING DUST X 9554NB |
| 52 |
325625-2 |
POST PC5000C |
| 53 |
141021-4 |
CONVOGLIATORE PC5000C |
| 54 |
911256-9 |
SCREW M5x35 |
| 55 |
911024-0 |
SCREW M3 X 14 X PC5000C |
| 56 |
240114-5 |
FAN 85 PC5000C0 |
| 57 |
346045-7 |
SEPARATOR PC5000C |
| 58 |
911115-7 |
SCREW M4X10 X HR4000C |
| 59 |
922312-0 |
BOLT M6 X 12 |
| 60 |
424526-2 |
COVER ANTIPOL.ANT.PC5000C |
| 61 |
424525-4 |
DUST COVER PC5000C |
| 62 |
743341-8 |
BRUSH B PC5000C |
| 63 |
743340-0 |
BRUSH A PC5000C |
| 64 |
224554-5 |
EXTERNAL FLANGE 14-45 X 9541 |
| 65 |
416256-9 |
GRIP X PC5000C |
| 66 |
922453-2 |
SCREW M8x30 PC5000C |
| 67 |
450189-8 |
SPACER PC5000C |
| 68 |
450190-3 |
DISTANCE B PC5000C |
