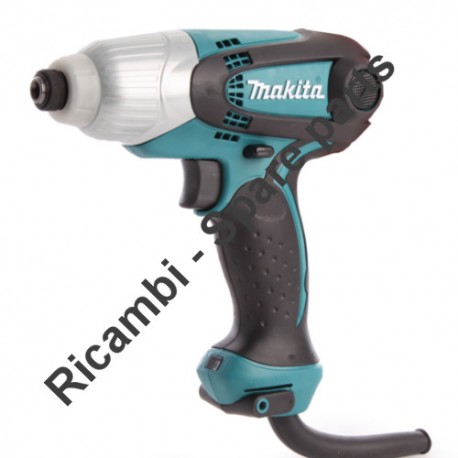

Makita Spare Parts for Impact Wrench TD101F
We are MAKITA original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or rto fix issues for Impact Wrench TD101F.

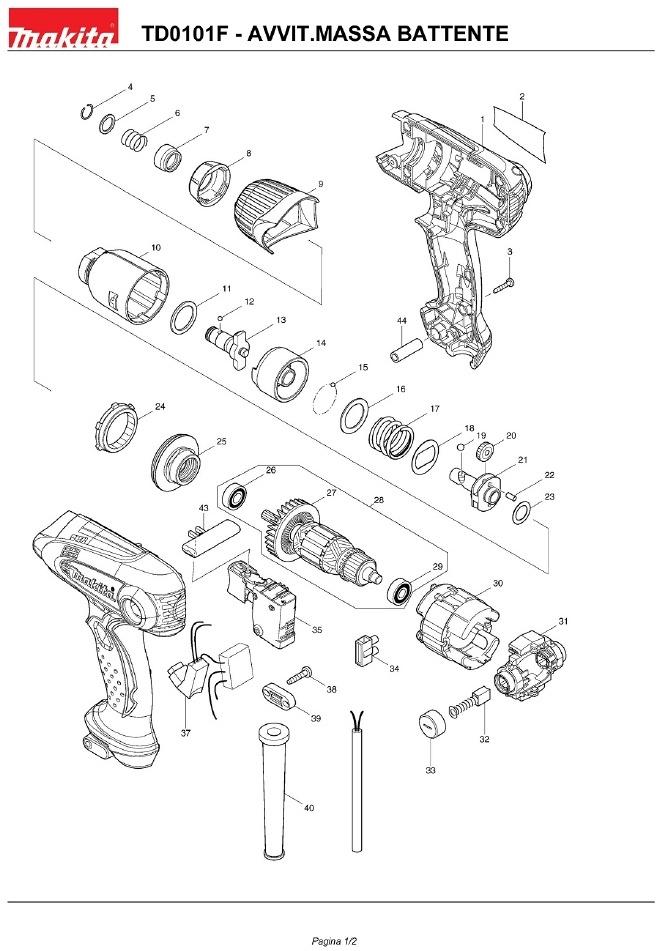

In the following table, look for the model of Impact Wrench and the respective parts of the code.
| Impact Wrench TD101F |
| # |
Part Num. |
Description |
| 1 |
188664-1 |
HOUSING MOTOR for TD0101F |
| 2 |
866417-5 |
LABEL TD0101F |
| 3 |
266429-2 |
SCREW 3X16 FOR TD0101F |
| 4 |
231965-7 |
RETAINING RING for 6960DW |
| 5 |
267143-3 |
WASHER for 6960DW |
| 6 |
233005-7 |
SPRING 13 for 6903VDW / BTD130F |
| 7 |
324711-6 |
SLEEVE for TD020D |
| 8 |
424376-5 |
PROTECT. RUBBER for TD0101F |
| 9 |
452440-2 |
HOUSING COVER ELASTIC RING |
| 10 |
158898-0 |
CARCASS ELASTIC RING TD0101F |
| 11 |
261140-1 |
WASHER NYLON 20 TD090D |
| 12 |
216019-1 |
BALL 3 for 6960DW |
| 13 |
326630-2 |
ANVIL M TD0101F |
| 14 |
324894-2 |
ELASTIC RING TD090D |
| 15 |
216019-1 |
BALL 3 for 6960DW |
| 16 |
267380-9 |
WASHER 20 TD090D |
| 17 |
234096-1 |
SPRING COMPRESSION 21 TD0101F |
| 18 |
267813-4 |
WASHER 21 TD090D |
| 19 |
216002-8 |
BALL 4.8 |
| 20 |
227213-0 |
GEAR 17 TD090D |
| 21 |
324897-6 |
POST TD090D |
| 22 |
268217-3 |
PIN 3.5 TD090D |
| 23 |
253052-2 |
WASHER 12 |
| 24 |
227215-6 |
GEAR 43 TD090D |
| 25 |
158899-8 |
HOLDER BEARING TD0101F |
| 26 |
210013-5 |
BEARING 698VV X SP6000K |
| 27 |
240046-6 |
FAN FOR 46 TD0101F |
| 28 |
517659-1 |
ARMATURE 240V TD0101F |
| 29 |
210062-2 |
BEARING 607ZZ for MT601 |
| 30 |
635109-5 |
STATOR 240V TD0101F |
| 31 |
638643-4 |
BRUSH TD0101F |
| 32 |
191940-4 |
CARBON BRUSHES CB-411 for EX 422/421 |
| 33 |
643928-5 |
PLUG BRUSH for 9524NB |
| 34 |
654532-5 |
TERMINAL BLOCK 6E / 1DS |
| 35 |
650613-3 |
SWITCH C3TA TD0101F |
| 37 |
631873-6 |
CIRCUIT LIGHT TD0101F |
| 38 |
266326-2 |
SCREW 4x18 for MT601 |
| 39 |
687124-5 |
Cable tie CLAMP MT953 |
| 40 |
682566-8 |
PASS CABLE for HR2450 |
| 43 |
419250-0 |
LEVER REVERSIBILITA'X BDF451S |
| 44 |
262560-2 |
SOCKET 5 TD0101F |
