Makita Spare Parts for Drywall Screwdriver FS2300K

SKU: Makita FS2300K
€10.14
VAT included

Makita Spare Parts for Drywall Screwdriver FS2300K

Makita genuine spare parts or replacements parts for to repair Drywall Screwdrivers FS2300K.
Makita Spare Parts for Drywall Screwdriver FS2300K
  • Makita Spare Parts for Drywall Screwdriver FS2300K
  • Makita Spare Parts for Drywall Screwdriver FS2300K - Drawing
Makita

Makita Spare Parts for Drywall Screwdriver FS2300K

SKU: Makita FS2300K Condition: New
€10.14
VAT included

Makita Spare Parts for Drywall Screwdriver FS2300K

Makita genuine spare parts or replacements parts for to repair Drywall Screwdrivers FS2300K.
settings 43 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
43 spare parts

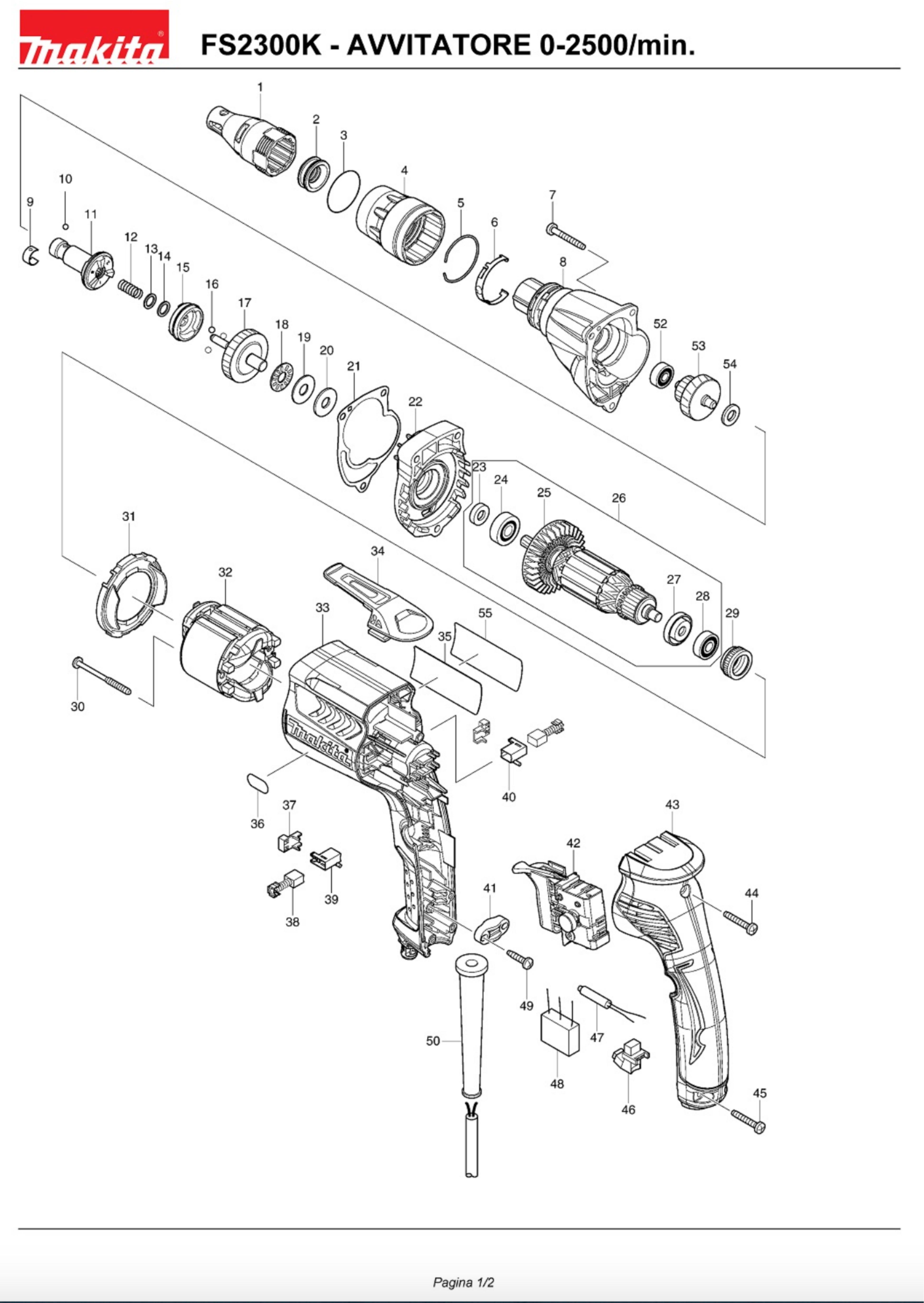

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 158875-2 FRONT HOOD FS4000 €6.69
3
 photo_cameraImage coming soon 424235-3 SEAL 30 FS2500K €1.25
4
 photo_cameraImage coming soon 455591-0 RING RETAINING FS2500K €2.78
5
 photo_cameraImage coming soon 233974-2 CIRCLIP 33 FS2500K €1.92
6
 photo_cameraImage coming soon 232245-4 SPRING BAND BFS440 €3.92
7
 photo_cameraImage coming soon 266361-0 4 SCREW FOR 30 PER 9554NB €2.28
8
 photo_cameraImage coming soon 158895-6 BOX ING. X F2300 €19.31
9
 photo_cameraImage coming soon 232050-9 SPRING BAND €2.49
10
 photo_cameraImage coming soon 216040-0 BALL 3.5 €1.44
11
 photo_cameraImage coming soon 158886-7 POST 125S FS6300R €19.31
12
 photo_cameraImage coming soon 234121-8 SPRING COMPRESSION 8 FS6300R €1.25
13
 photo_cameraImage coming soon 267202-3 FLAT WASHER 8 X 6823 €1.25
14
 photo_cameraImage coming soon 267202-3 FLAT WASHER 8 X 6823 €1.25
15
 photo_cameraImage coming soon 223170-0 CAM 125S FS6300R €9.72
16
 photo_cameraImage coming soon 216008-6 BALL 4 €1.47
17
 photo_cameraImage coming soon 158891-4 GEAR 35S X FS2300 €8.61
18
 photo_cameraImage coming soon 216415-3 ROLLER THRUST X 6823 €3.42
19
 photo_cameraImage coming soon 216212-7 WASHER 821 X 6823 €1.34
21
 photo_cameraImage coming soon 442149-4 SEAL FS2500K €2.06
22
 photo_cameraImage coming soon 158982-1 COVER BOX INGR.FS2500K €4.45
24
 photo_cameraImage coming soon 210007-0 BEARING 608S (LB) X 6931DW €8.61
25
 photo_cameraImage coming soon 240083-0 FAN 52 HR1830 €3.43
26
 photo_cameraImage coming soon 515764-8 ARMATURE FS2500K €30.65
27
 Armature Washer for Angle Grinder Makita GA4530 681636-0 Armature Washer for Angle Grinder Makita GA4530 €2.34
28
 Ball Bearing 607 ZZ for Impact Drill Maktek MT601 210062-2 Ball Bearing 607 ZZ for Impact Drill Maktek MT601 €2.03
29
 Ball Bearing Protection for Angle Grinder Makita GA4530 421868-5 Ball Bearing Protection for Angle Grinder Makita GA4530 €2.00
30
 photo_cameraImage coming soon 266467-4 SCREW 4X50 FS2500K €1.66
32
 photo_cameraImage coming soon 633693-4 STATOR FS2500K €9.72
33
 photo_cameraImage coming soon 450878-5 HOUSING MOTOR FS2500K €7.49
34
 photo_cameraImage coming soon 162272-6 HOOK FS2500K €2.39
37
 photo_cameraImage coming soon 689111-0 DISTANCE X HR2020 €1.40
38
 Carbon Brushes Makita for Sanders BO4555-4556-4565-4566 191962-4 Carbon Brushes Makita for Sanders BO4555-4556-4565-4566 €7.53
41
 photo_cameraImage coming soon 687124-5 CORD CLAMP MT953 €1.47
42
 photo_cameraImage coming soon 650614-1 SWITCH FS2500K €22.34
43
 photo_cameraImage coming soon 158878-6 COVER HANDLE FS2500K €11.32
44
 photo_cameraImage coming soon 266374-1 SCREW 4X25 GA9020 €1.43
45
 photo_cameraImage coming soon 266374-1 SCREW 4X25 GA9020 €1.43
46
 photo_cameraImage coming soon 631939-2 CIRCUIT LIGHT FS2500K €7.49
47
 photo_cameraImage coming soon 646122-8 COIL FS2500K €1.34
48
 photo_cameraImage coming soon 645253-0 CAPACITOR X 6408 €5.93
49
 Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
50
 Power Cord Protection for Angle Grinder Makita 115-125 mm 682559-5 Power Cord Protection for Angle Grinder Makita 115-125 mm €2.07
52
 Bearing for Angle Grinder Makita 9524NB 211012-0 Bearing for Angle Grinder Makita 9524NB €8.23
53
 photo_cameraImage coming soon 226157-1 GEAR 17-39 FS2500K €11.32
54
 photo_cameraImage coming soon 267017-8 WASHER X 8 M / HK1800 €2.47

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Drywall Screwdriver FS2300K

Makita genuine spare parts or replacements parts for to repair Drywall Screwdrivers FS2300K.

In the following table, look for the model of Dry Wall Screwdrivers and the respective parts of the code.
Drywall Screwdrivers FS2300K

Drywall Screwsriver FS2300K
# Part Num. Description
1 158875-2 FRONT HOOD FS4000
2 424163-2 SEAL DUST FS4000
3 424235-3 SEAL 30 FS2500K
4 455591-0 RING RETAINING FS2500K
5 233974-2 CIRCLIP 33 FS2500K
6 232245-4 SPRING BAND BFS440
7 266361-0 SCREW 4 X 30 X 9554NB
8 158895-6 BOX ING. X F2300
9 232050-9 SPRING FASCIA6701B / 10DW / 6801DBV
10 216040-0 BALL 3.5
11 158886-7 POST 125S FS6300R
12 234121-8 SPRING COMPRESSION 8 FS6300R
13 267202-3 FLAT WASHER 8 X 6823
14 267202-3 FLAT WASHER 8 X 6823
15 223170-0 CAM 125S FS6300R
16 216008-6 BALL 4
17 158891-4 GEAR 35S X FS2300
18 216415-3 ROLLER THRUST X 6823
19 216212-7 WASHER 821 X 6823
20 261111-8 WASHER URETHANE 8 X 6807
21 442149-4 SEAL FS2500K
22 158982-1 COVER BOX INGR.FS2500K
23 451099-2 RING 7 FS2500K
24 210007-0 BEARING 608S (LB) X 6931DW
25 240083-0 FAN 52 HR1830
26 515764-8 ARMATURE FS2500K
27 681636-0 INSULATION WASHER
28 210062-2 BEARING 607ZZ X MT601
29 421868-5 RING RUBBER X 9554NB
30 266467-4 SCREW 4X50 FS2500K
31 450880-8 BAFFLE FS2500K
32 633693-4 STATOR FS2500K
33 450878-5 HOUSING MOTOR FS2500K
34 162272-6 HOOK FS2500K
35 867019-0 LABEL FS2300
36 808574-3 LABEL 2500G
37 689111-0 DISTANCE X HR2020
38 191962-4 CARBON BRUSHES CB-419 (406.407) 6408
39 643952-8 BRUSH HOLDER SX
40 643953-6 BRUSH HOLDER DX FS2500K
41 687124-5 Cable tie CLAMP MT953
42 650614-1 SWITCH FS2500K
43 158878-6 COVER HANDLE FS2500K
44 266374-1 SCREW 4X25 FOR GA9020
45 266374-1 SCREW 4X25 FOR GA9020
46 631939-2 CIRCUIT LIGHT FS2500K
47 646122-8 COIL FS2500K
48 645253-0 CAPACITOR X 6408
49 265995-6 SCREW M4X18 X 6408 / 6221DW
50 682559-5 SAVE CABLE X 6822
52 211012-0 BEARING X 9524NB
53 226157-1 GEAR 17-39 FS2500K
54 267017-8 WASHER X 8 M / HK1800
55 819349-5 CLEAR LABEL FS2500K
