Makita Spare Parts for Plate Joiner PJ7000

We are makita original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Plate Joiner PJ7000.
Makita Spare Parts for Plate Joiner PJ7000
  • Makita Spare Parts for Plate Joiner PJ7000
  • Makita Spare Parts for Plate Joiner PJ7000
Makita

Makita Spare Parts for Plate Joiner PJ7000

SKU: Makita PJ7000 Condition: New
€1.42
VAT included

Makita Spare Parts for Plate Joiner PJ7000

We are makita original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Plate Joiner PJ7000.
settings 74 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
74 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

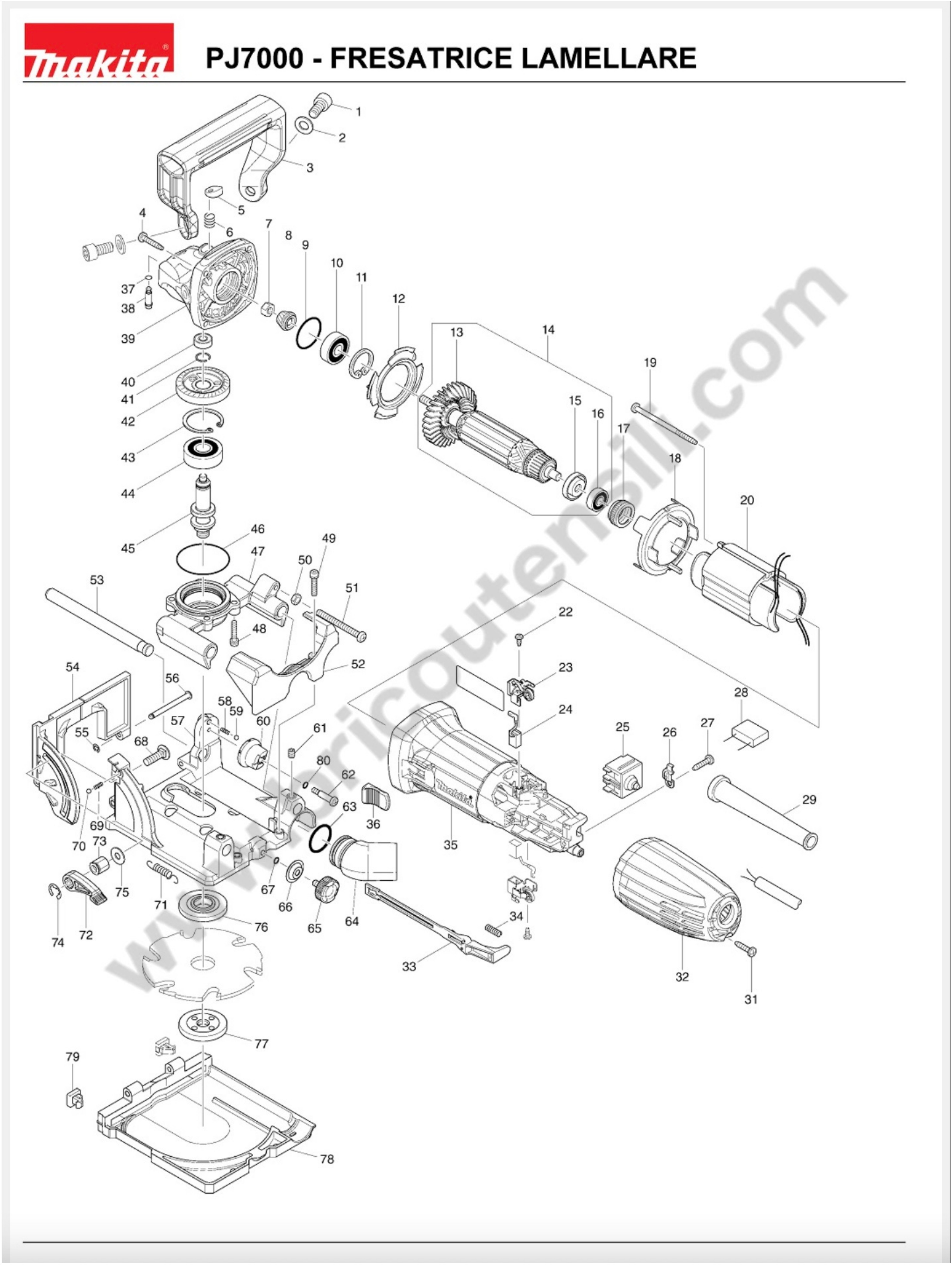

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 922422-3 HEXAGON BOLT M8x16 €1.42
2
 photo_cameraImage coming soon 941202-8 FLAT WASHER 8 €1.43
3
 photo_cameraImage coming soon 453218-6 HANDLE PJ7000 €4.42
4
 photo_cameraImage coming soon 266324-6 SCREW M 4 X 22 X MT601 €2.95
5
 Button Pin Disc Block for Angle Grinder Makita 9554NB 417771-6 Button Pin Disc Block for Angle Grinder Makita 9554NB €3.18
6
 Pin Disc Block Sping for Angle Grinder Makita GA4530 234057-1 Pin Disc Block Sping for Angle Grinder Makita GA4530 €1.83
7
 Armature Nut M6 for Angle Grinder Makita 9554NB 252186-8 Armature Nut M6 for Angle Grinder Makita 9554NB €1.47
8
 Pinion Gear for Makita Angle Grinder GA4530 227545-5 Pinion Gear for Makita Angle Grinder GA4530 €6.55
9
 O-Ring 26 for Powertools Makita 213445-5 O-Ring 26 for Powertools Makita €1.95
10
 Bearing 629DD FOR Angle Grinder Makita GA4530 211092-6 Bearing 629DD FOR Angle Grinder Makita GA4530 €9.01
11
 Retaining Ring R26 for Angle Grinder and Milling Machines Makita 962105-3 Retaining Ring R26 for Angle Grinder and Milling Machines Makita €1.47
12
 Conveyor for Angle Grinder Makita GA4530 413126-3 Conveyor for Angle Grinder Makita GA4530 €1.50
13
 photo_cameraImage coming soon 240107-2 FAN FOR 56 GA4530 €2.34
14
 Armature for Angle Grinder Makita GA4530-4534-5034 517649-4 Armature for Angle Grinder Makita GA4530-4534-5034 €28.43
15
 Armature Washer for Angle Grinder Makita GA4530 681636-0 Armature Washer for Angle Grinder Makita GA4530 €2.34
16
 Ball Bearing 607 LLB for Angle Grinder Makita 9554NB 210034-7 Ball Bearing 607 LLB for Angle Grinder Makita 9554NB €3.34
17
 Ball Bearing Protection for Angle Grinder Makita GA4530 421868-5 Ball Bearing Protection for Angle Grinder Makita GA4530 €2.00
18
 Baffle for Angle Grinder Makita GA4530 450796-7 Baffle for Angle Grinder Makita GA4530 €1.50
19
 photo_cameraImage coming soon 266325-4 SCREW M 4 TO 70 PER MT952 €1.36
20
 Stator for Angle Grinder Makita GA4530-4534 635113-4 Stator for Angle Grinder Makita GA4530-4534 €33.48
22
 photo_cameraImage coming soon 266492-5 SCREW M4X25-9527PB 9528PB €2.47
23
 Carbon Brushe Holder for Angle Grinders Makita GA4530-4534-5034 643839-4 Carbon Brushe Holder for Angle Grinders Makita GA4530-4534-5034 €3.18
24
 Carbon Brushes for Angle Grinders Makita GA4530-4534-5034 194722-3 Carbon Brushes for Angle Grinders Makita GA4530-4534-5034 €5.37
25
 Switch for Angle Grinders Makita GA4530-34-5034 650560-8 Switch for Angle Grinders Makita GA4530-34-5034 €8.23
26
 Strain Relief for Angle Grinder Makita GA4530 687681-3 Strain Relief for Angle Grinder Makita GA4530 €2.51
27
 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 €1.47
28
 photo_cameraImage coming soon 638739-1 CAPACITOR X JS1000 €3.75
29
 photo_cameraImage coming soon 682502-4 CABLE SLEEVE 8/85 €4.09
32
 Rear Cover for Angle Grinder Makita GA4530 450794-1 Rear Cover for Angle Grinder Makita GA4530 €6.55
33
 Switch Lever for Angle Grinder Makita GA4530 450797-5 Switch Lever for Angle Grinder Makita GA4530 €6.55
34
 Lever Switch Spring for Angle Grinder Makita 9554NB 233121-5 Lever Switch Spring for Angle Grinder Makita 9554NB €1.30
35
 photo_cameraImage coming soon 450795-9 HOUSING MOTOR GA4530 €10.14
36
 Switch Lever Button for Angle Grinder Makita 9554-9555 419566-3 Switch Lever Button for Angle Grinder Makita 9554-9555 €2.51
37
 photo_cameraImage coming soon 213032-0 RING 4 X GA4530 €2.34
38
 Pin Disc Block for Angle Grinder Makita GA4530 256510-7 Pin Disc Block for Angle Grinder Makita GA4530 €2.51
39
 photo_cameraImage coming soon 141327-0 GEAR BOX PJ7000 €14.77
40
 Bearing 696ZZ FOR Angle Grinder Makita GA4530 210033-9 Bearing 696ZZ FOR Angle Grinder Makita GA4530 €3.35
41
 Ring 11 for Angle Grinder Makita GA4530 233950-6 Ring 11 for Angle Grinder Makita GA4530 €1.43
42
 Crown Gear for Makita Angle Grinder GA4530 227546-3 Crown Gear for Makita Angle Grinder GA4530 €11.60
43
 Retaining Ring R32 for Powertools Makita 962151-6 Retaining Ring R32 for Powertools Makita €1.43
44
 Bearing 6201DD NSK for Powertools Makita 211129-9 Bearing 6201DD NSK for Powertools Makita €8.41
45
 photo_cameraImage coming soon 326120-5 POST PJ7000 €7.71
46
 O-Ring 42 for Angle Grinder and Milling Machines Makita 213561-3 O-Ring 42 for Angle Grinder and Milling Machines Makita €1.30
47
 photo_cameraImage coming soon 318811-2 BOX BEARING PJ7000 €25.25
48
 photo_cameraImage coming soon 911136-9 HEAD SCREW CILIND. M4x20 €1.47
50
 photo_cameraImage coming soon 931203-4 NUT ESAG. M5-8 XJS3200 €1.98
51
 photo_cameraImage coming soon 266741-0 SCREW M5x50 PJ7000 €1.25
52
 photo_cameraImage coming soon 453406-5 COVER BASE PJ7000 €1.98
53
 photo_cameraImage coming soon 326145-9 PIN 10 PJ7000 €3.08
54
 photo_cameraImage coming soon 141247-8 GUIDE FRONT PJ7000 €22.33
55
 photo_cameraImage coming soon 961017-7 RING E-3 X 4305T €3.76
56
 photo_cameraImage coming soon 256689-4 PIN 4 €4.49
57
 photo_cameraImage coming soon 318813-8 BASE PJ7000 €42.06
58
 photo_cameraImage coming soon 231282-5 SPRING 2.4 X HP1300 €1.28
59
 photo_cameraImage coming soon 216040-0 BALL 3.5 €1.44
60
 photo_cameraImage coming soon 318814-6 STILL PJ7000 €10.14
61
 photo_cameraImage coming soon 266264-8 SCREW M5 X 6 X BSR730 €1.36
62
 photo_cameraImage coming soon 266738-9 SCREW M4 PJ7000 €1.25
63
 photo_cameraImage coming soon 213008-7 RING 26 €1.38
64
 photo_cameraImage coming soon 415252-4 PIPE ELBOW X 3901 €3.91
65
 photo_cameraImage coming soon 265785-7 SCREW M5x10 PJ7000 €1.36
66
 photo_cameraImage coming soon 232131-9 SPRING RETAINING X 3901 €3.91
67
 photo_cameraImage coming soon 213023-1 RING 4 X HR3000C €1.37
68
 photo_cameraImage coming soon 266737-1 SCREW M6X20 PJ7000 €1.25
71
 photo_cameraImage coming soon 231795-6 SPRING TENSION €3.91
72
 photo_cameraImage coming soon 272263-0 LEVER 40 PJ7000 €3.08
73
 photo_cameraImage coming soon 252159-1 HEX NUT XM6 X 5621RDW €3.28
74
 photo_cameraImage coming soon 961014-3 RETAINING RING E-8 €1.46
75
 photo_cameraImage coming soon 253804-1 WASHER 6 X LS1013 €1.40
76
 photo_cameraImage coming soon 224280-6 FLANGE INTERNAL 40 X 3901 €14.77
77
 photo_cameraImage coming soon 224505-8 FLANGE EST. 10-40 €11.36
78
 photo_cameraImage coming soon 318845-5 PROTECTION BLADE PJ7000 €34.02
79
 photo_cameraImage coming soon 424479-5 RUBBER PJ7000 €1.28
500
 photo_cameraImage coming soon 123150-5 DUST BAG ASSY €12.62

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Plate Joiner PJ7000

We are makita original spare parts Worldwide Dealers

 at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Plate Joiner PJ7000.

In the following table, look for the model of Plate Joiner and the respective parts of the code.
Makita PJ7000

Plate Joiner PJ7000
# Part Num. Description
1 922422-3 HEXAGON BOLT M8x16
2 941202-8 FLAT WASHER 8
3 453218-6 HANDLE PJ7000
4 266324-6 SCREW M 4 X 22 X MT601
5 417771-6 BUTTON X 9554NB
6 234057-1 SPRING COMPRRESSIONE 6 GA5021C
7 252186-8 NUT M6 X 9554NB
8 227545-5 GEAR FOR 10 GA4530
9 213445-5 RING 26 X 9554NB
10 211092-6 BALL BEARING 629DD
11 962105-3 RETAINING RING R26
12 413126-3 CONVEYOR FOR GA4530
13 240107-2 FAN FOR 56 GA4530
14 517649-4 ARMATURE FOR GA4530
15 681636-0 INSULATION WASHER
16 210034-7 BEARING 607LLB X 9554NB
17 421868-5 RING RUBBER X 9554NB
18 450796-7 DEFLECTOR FOR GA4530
19 266325-4 SCREW M 4 X 70 X MT952
20 635113-4 STATOR FOR GA4530
22 266492-5 SCREW M4X25-9527PB 9528PB
23 643839-4 BRUSH GA4530
24 194722-3 CARBON BRUSH CB 459 X GA4530
25 650560-8 SWITCH DPX-2110-R 9554NB
26 687681-3 CLAMP cable tie GA4530
27 266326-2 SCREW 4x18 X MT601
28 638739-1 CAPACITOR X JS1000
29 682502-4 CABLE SLEEVE 8/85 6408
31 266326-2 SCREW 4x18 X MT601
32 450794-1 BACK COVER GA4530
33 450797-5 LEVER SWITCH GA4530
34 233121-5 SPRING COMPRESSION 4 X 9554NB
35 450795-9 HOUSING MOTOR GA4530
36 419566-3 BUTTON SWITCH 9554NB
37 213032-0 RING 4 X GA4530
38 256510-7 4 PIN FOR GA4530
39 141327-0 GEAR BOX PJ7000
40 210033-9 BEARING 696ZZ X 2107FK
41 233950-6 RING 11 X GA5010
42 227546-3 GEAR FOR 37 GA4530
43 962151-6 RETAINING RING R32
44 211129-9 BALL BEARING NSK 6201DD
45 326120-5 POST PJ7000
46 213561-3 RING 42 FOR GA4530
47 318811-2 BOX BEARING PJ7000
48 911136-9 HEAD SCREW CILIND. M4x20
49 911136-9 HEAD SCREW CILIND. M4x20
50 931203-4 NUT ESAG. M5-8 XJS3200
51 266741-0 SCREW M5x50 PJ7000
52 453406-5 COVER BASE PJ7000
53 326145-9 PIN 10 PJ7000
54 141247-8 GUIDE FRONT PJ7000
55 961017-7 RING-3 X 4305T
56 256689-4 PIN 4
57 318813-8 BASE PJ7000
58 231282-5 SPRING 2.4 X HP1300
59 216040-0 BALL 3.5
60 318814-6 STILL PJ7000
61 266264-8 SCREW M5 X 6 X BSR730
62 266738-9 SCREW M4 PJ7000
63 213008-7 RING 26
64 415252-4 PIPE ELBOW X 3901
65 265785-7 SCREW M5x10 PJ7000
66 232131-9 SPRING RETAINING X 3901
67 213023-1 RING 4 X HR3000C
68 266737-1 SCREW M6X20 PJ7000
69 231282-5 SPRING 2.4 X HP1300
70 216040-0 BALL 3.5
71 231795-6 SPRING TENSION
72 272263-0 LEVER 40 PJ7000
73 252159-1 HEX NUT XM6 X 5621RDW
74 961014-3 RETAINING RING E-8
75 253804-1 WASHER 6 X LS1013
76 224280-6 FLANGE INTERNAL 40 X 3901
77 224505-8 FLANGE EST. 10-40
78 318845-5 PROTECTION BLADE PJ7000
79 424479-5 RUBBER PJ7000
80 213023-1 RING 4 X HR3000C
500 123150-5 DUST BAG ASSY
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita PJ7000
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita PJ7000

Diagram Makita PJ7000

Download (384.19KB)

You might also like

Carbon Brushes for Angle Grinders Makita GA4530-4534-5034
Makita SKU: 194722-3
Carbon Brushes for Angle Grinders Makita GA4530-4534-5034
Carbon Brushes for Angle Grinders Makita GA4530-4534-5034 Makita genuine spare parts, Carbon Brusches for Angle grinders GA4530 - GA4534 - GA5034. Part for the following products: - GA4530 - GA4534 - GA5034 CUTTERS - JS1000 - JS1602...
AVAILABLE €5.37
Details
Button Pin Disc Block for Angle Grinder Makita 9554NB
Makita SKU: 417771-6
Button Pin Disc Block for Angle Grinder Makita 9554NB
Button Pin Disc Block for Angle Grinder Makita 9554NB Genuine spare part Makita, Button Pin Disc Block for Angle Grinders with disk mm 115-125. Part for the following products: - ANGLE GRINDER 115MM 710W - 9554HN - ANGLE GRINDER 115MM...
Last items in stock €3.18
Details
Switch for Angle Grinders Makita GA4530-34-5034
Makita SKU: 650560-8
Switch for Angle Grinders Makita GA4530-34-5034
Switch for Angle Grinders Makita GA4530-34-5034 Original replacement part MAKITA, Switch for Angle Grinders GA4530 - GA4534 - GA5034. Parts for the following products: - Angle Grinder 720W 115MM GA4530 - Angle Grinder 720W 115MM...
on 7/10 Business Days Approx €8.23
Details
Rear Cover for Angle Grinder Makita GA4530
Makita SKU: 450794-1
Rear Cover for Angle Grinder Makita GA4530
Rear Cover for Angle Grinder Makita GA4530 Genuine part Makita, Motor Housing Rear Cover for Angle Grinder GA4530 - Meta Shears JS1000 - JS1601 - Router PJ7000. Parts for the following products: - GA4530 - ANGLE GRINDER 115 MM 720W -...
AVAILABLE €6.55
Details
Baffle for Angle Grinder Makita GA4530
Makita SKU: 450796-7
Baffle for Angle Grinder Makita GA4530
Baffle for Angle Grinder Makita GA4530 Genuine part Makita, Motor Housing Baffle for Angle Grinder GA4530 - Meta Shears JS1000 - JS1601 - Plate Joiner PJ7000. Parts for the following products: - GA4530 - ANGLE GRINDER - JS1000 - METAL...
AVAILABLE €1.50
Details
Conveyor for Angle Grinder Makita GA4530
Makita SKU: 413126-3
Conveyor for Angle Grinder Makita GA4530
Conveyor for Angle Grinder Makita GA4530 Genuine part Makita, Motor Housing Conveyor for Angle GrinderS GA4530 - GA4530R - GA4534 -  GA5034 - Plate Joiner PJ7000. Parts for the following products: - GA4530 - ANGLE GRINDER 115MM 720W -...
AVAILABLE €1.50
Details
Switch Lever for Angle Grinder Makita GA4530
Makita SKU: 450797-5
Switch Lever for Angle Grinder Makita GA4530
Switch Lever for Angle Grinder Makita GA4530 Genuine replacement part Makita, Switch Lever for Angle Grinder GA4530 - GA4530R - Meta Shears JS1000 - JS1601 - JS1602 - Plate Joiner PJ7000. Part for the following...
Last items in stock €6.55
Details
Lever Switch Spring for Angle Grinder Makita 9554NB
Makita SKU: 233121-5
Lever Switch Spring for Angle Grinder Makita 9554NB
Lever Switch Spring for Angle Grinder Makita 9554NB Genuine part Makita, Lever Switch Compression Spring for Angle Grinders 9554NB - 9554HNG - 9554HN - GA4530 - GA4530R - Metal Shears JS1000 - JS1601 - JS1602 - Plate Joiner PJ7000....
AVAILABLE €1.30
Details
Ball Bearing Protection for Angle Grinder Makita GA4530
Makita SKU: 421868-5
Ball Bearing Protection for Angle Grinder Makita GA4530
Ball Bearing Protection for Angle Grinder Makita GA4530 Genuine part Makita, Rubber Ring Ball Bearing Protection for Angle Grinder GA4530 - GA4530R - GA4534 - GA5034 - 9554HN - 9554HNG - 9554NB - 9555NB. Parts for the following...
AVAILABLE €2.00
Details
Bearing 696ZZ FOR Angle Grinder Makita GA4530
Makita SKU: 210033-9
Bearing 696ZZ FOR Angle Grinder Makita GA4530
Bearing 696ZZ FOR Angle Grinder Makita GA4530 Genuine part Makita, Bearing 696ZZ for Angle Grinders GA4530 - 9554HN - 9554NB - 9555NB - 9557HN - 9558HN - Band Saw 2107FK. Parts for the following products: - 2107FK - BAND SAW - 9554HN...
AVAILABLE €3.35
Details
Bearing 629DD FOR Angle Grinder Makita GA4530
Makita SKU: 211092-6
Bearing 629DD FOR Angle Grinder Makita GA4530
Bearing 629DD FOR Angle Grinder Makita GA4530 Genuine part Makita, Ball Bearing 629DD for Angle Grinders GA4530 - GA4530R - GA4534 - GA5034 - GA9000 - 9541-9542. Parts for the following products: - GA4530 - ANGLE GRINDER 115MM -...
AVAILABLE €9.01
Details
O-Ring 42 for Angle Grinder and Milling Machines Makita Sale
Makita SKU: 213561-3
O-Ring 42 for Angle Grinder and Milling Machines Makita
O-Ring 42 for Angle Grinder and Milling Machines Makita Genuine part Makita, O-Ring 42 for Angle Grinder and Milling Machines Makita. Parts for the following products: - Angle Grinder GA4534 - Angle Grinder GA4530 - Milling Machines...
AVAILABLE €1.30
Details
Pin Disc Block for Angle Grinder Makita GA4530
Makita SKU: 256510-7
Pin Disc Block for Angle Grinder Makita GA4530
Pin Disc Block for Angle Grinder Makita GA4530 Genuine spare Makita, Pin Disc Block for Angle Grinders with disk mm 115-125 GA4530 - GA4530R - GA4534 - GA5034. Parts for the following products: - GA4530 - ANGLE GRINDER 115MM - GA4530R...
AVAILABLE €2.51
Details
Pin Disc Block Sping for Angle Grinder Makita GA4530
Makita SKU: 234057-1
Pin Disc Block Sping for Angle Grinder Makita GA4530
Makita GA4530 Compression Spring 6 Genuine spare Makita, Pin Disc Block Compression Spring for Angle Grinders with disk mm 115-125 GA4530 - GA4530R - GA4534 - GA5034. Parts for the following products: - GA4530 - ANGLE GRINDER 720W...
AVAILABLE €1.83
Details
Crown Gear for Makita Angle Grinder GA4530
Makita SKU: 227546-3
Crown Gear for Makita Angle Grinder GA4530
Crown Gear for Makita Angle Grinder GA4530 Genuine part Makita, Crown Gear for Angle Grinders, GA4530 - GA4530R - GA4534 - GA5030KSP2 - GA5034. Part for the following products: - GA4530 - ANGLE GRINDER...
AVAILABLE €11.60
Details
Pinion Gear for Makita Angle Grinder GA4530
Makita SKU: 227545-5
Pinion Gear for Makita Angle Grinder GA4530
Pinion Gear for Makita Angle Grinder GA4530 Genuine part Makita, Pinion Gear for Angle Grinders, GA4530 - GA4530R - GA4534 - GA5030KSP2 - GA5034. Part for the following products: - GA4530...
AVAILABLE €6.55
Details
Comments (0)
