Makita Spare Parts for Planer KP0810K
Makita original spare parts, at discounted prices, we are a service center with after-sales service able to quickly solve the maintenance and repair any issues for Power Planer KP0810K - 82 mm.
Fix Your Power Planer KP0810K - 82 mm. All Spares can be supplied at discounted price. Our Spares are Genuine Parts and Come with a Full Guarantee.

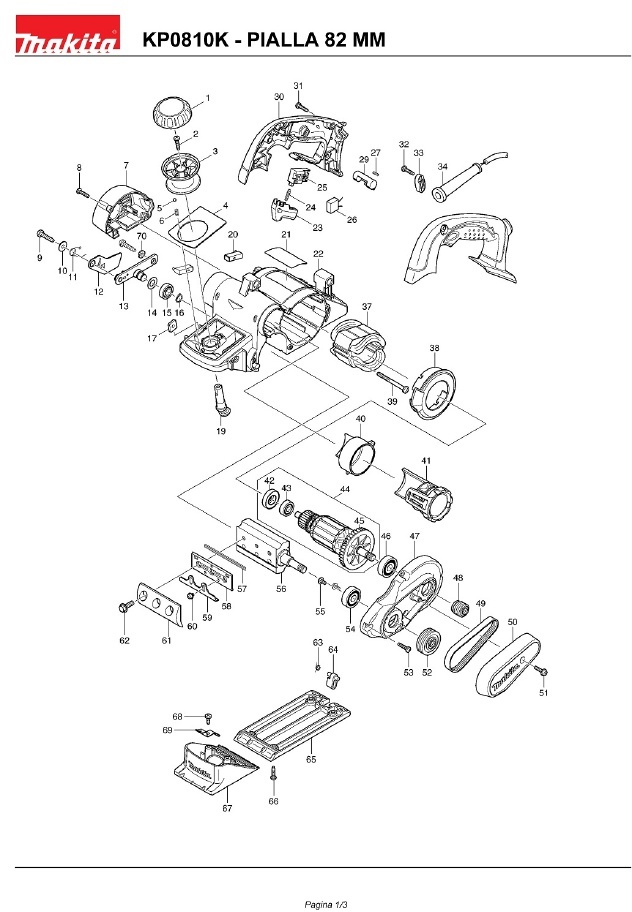

In the following table, look for the model of Power Planer and the respective parts of the code.
| Planer Makita KP0810K |
| # |
Part Num. |
Description |
| 1 |
419700-5 |
COVER KNOB X KP0810K |
| 2 |
265995-6 |
SCREW M4X18 X 6408 / 6221DW |
| 3 |
419699-4 |
KNOB FRONT X KP0810K |
| 4 |
345766-8 |
PANEL FOR KP0810K |
| 5 |
216008-6 |
BALL 4 |
| 6 |
233325-9 |
SPRING COMPRESSION 3 X KP0810K |
| 7 |
419697-8 |
COVER POST. FOR KP0810K |
| 8 |
265995-6 |
SCREW M4X18 X 6408 / 6221DW |
| 9 |
266041-8 |
PT SCREW 5x25 |
| 10 |
253194-2 |
WASHER 5 X HM1303 |
| 11 |
233521-9 |
SPRING TORSION 10 KP0810K |
| 12 |
345765-0 |
COVER ROLLER X KP0810K |
| 13 |
158184-9 |
HOLDER ROLLER X X KP0810K |
| 14 |
253758-2 |
FLAT WASHER 10 |
| 15 |
210057-5 |
BEARING X JR180D |
| 16 |
961006-2 |
RETAINING RING S10 |
| 17 |
264002-2 |
FRAMEWORK FOR NUT M5 BJR181SF |
| 19 |
419702-1 |
PIVOT ADJUSTMENT X KP0810K |
| 20 |
191972-1 |
CARBON BRUSHES CB-132 |
| 21 |
863213-2 |
LABEL MOD. KP0810K |
| 22 |
419694-4 |
HOUSING MOTOR X KP0810K |
| 23 |
419703-9 |
LEVER SWITCH X KP0810K |
| 24 |
233408-5 |
SPRING COMP. 3 X KP0810K |
| 25 |
651922-3 |
SWITCH TG71B |
| 26 |
645006-7 |
CAPACITOR X LS1013 |
| 27 |
231433-0 |
SPRING M005W |
| 29 |
419705-5 |
BUTTON LOCK KP0810K |
| 30 |
188215-0 |
GRIP X KP0810K |
| 31 |
265995-6 |
SCREW M4X18 X 6408 / 6221DW |
| 32 |
265995-6 |
SCREW M4X18 X 6408 / 6221DW |
| 33 |
687052-4 |
CLAMP Cable tie X 6408 |
| 34 |
682504-0 |
CABLE SLEEVE 10/85 |
| 37 |
525748-8 |
STATOR FOR KP0810K |
| 38 |
419701-3 |
DEFLETTORE X KP0810K |
| 39 |
266095-5 |
SCREW 5 X 55 HR5001C |
| 40 |
419710-2 |
CHIP CONVEYOR KP0810K |
| 41 |
125353-7 |
DUCT INTAKE X KP0810K |
| 42 |
681659-8 |
INSULATOR X KP0810K |
| 43 |
211031-6 |
BEARING 608LLB X 4304T |
| 44 |
513684-0 |
ARMATURE X KP0810K |
| 45 |
240079-1 |
FAN 62 X KP0810K |
| 46 |
211087-9 |
BALL BEARING NSK 6200DDW |
| 47 |
158149-1 |
HOLDER FOR MOTOR KP0810K |
| 48 |
222125-2 |
PULLEY 4-20L 1901 / 1923B |
| 49 |
225007-7 |
BELT 4-241 KP0810K |
| 50 |
419698-6 |
COVER BELT X KP0810K |
| 51 |
911133-5 |
SCREW M4X18 |
| 52 |
222126-0 |
PULLEY 4-37 1901 / 1923B |
| 53 |
265995-6 |
SCREW M4X18 X 6408 / 6221DW |
| 54 |
211087-9 |
BALL BEARING NSK 6200DDW |
| 55 |
251291-8 |
SCREW M 4 X 8 BO6030 |
| 56 |
158156-4 |
ROLL OUT X KP0810K |
| 57 |
793322-2 |
MINI-BLADE TCT 82MM |
| 58 |
343433-9 |
ATTACK MINI COLT. |
| 59 |
345644-2 |
STOP KNIVES X KP0810K |
| 60 |
251246-3 |
HEAD SCREW CILIND. M4x5 |
| 61 |
187676-1 |
PLATE ROLL |
| 62 |
251609-3 |
BOLT M6X17 |
| 63 |
231698-4 |
SPRING TWIST 7 X KP0810K |
| 64 |
419706-3 |
FOOT X KP0810K |
| 65 |
318098-6 |
BASE X KP0810K |
| 66 |
265995-6 |
SCREW M4X18 X 6408 / 6221DW |
| 67 |
158360-5 |
BASE FRONT X KP0810K P19 |
| 68 |
266026-4 |
SCREW M4 X 12 P01 |
| 69 |
232232-3 |
SPRING BAND X KP0810K P01 |
| 70 |
267012-8 |
WASHER 5 X KP0810K P01 |
