Makita Spare Parts for Power Planer 1100

SKU: Makita Pialla 1100
€37.19
VAT included

Makita Spare Parts for Power Planer 1100

We have the original Spares MAKITA for Power Planer 1100 - 82 mm, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Power Planer 1100 - 82 mm. All Spares are original and can be supplied at Cheap and discounted prices. Our Spares are Genuine Parts Guaranteed.
Makita Spare Parts for Power Planer 1100
  • Makita Spare Parts for Power Planer 1100
  • Makita Spare Parts for Power Planer 1100

Makita Spare Parts for Power Planer 1100

SKU: Makita Pialla 1100 Condition: New
€37.19
VAT included

Makita Spare Parts for Power Planer 1100

We have the original Spares MAKITA for Power Planer 1100 - 82 mm, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Power Planer 1100 - 82 mm. All Spares are original and can be supplied at Cheap and discounted prices. Our Spares are Genuine Parts Guaranteed.
settings 55 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

50 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
3
photo_cameraImage coming soon 911226-8 HEAD SCREW CILIND. M5X18 €1.47
5
photo_cameraImage coming soon 651034-2 SWITCH €39.66
7
photo_cameraImage coming soon 682504-0 CORD GUARD 10/85 €3.84
8
photo_cameraImage coming soon 911133-5 SCREW M4X18 €1.46
9
photo_cameraImage coming soon 687001-1 CLAMP cable tie €1.47
10
photo_cameraImage coming soon 645209-3 CAPACITOR €8.30
12
photo_cameraImage coming soon 911153-9 SCREW M4X28 €1.39
13
photo_cameraImage coming soon 411632-2 COVER-HANDLE €9.57
14
photo_cameraImage coming soon 211068-3 BEARING 6200 €7.28
15
Armature Washer for Planer Makita 1100 681623-9 Armature Washer for Planer Makita 1100 €2.00
16
photo_cameraImage coming soon 523014-7 STATOR €67.68
17
photo_cameraImage coming soon 513398-1 ARMATURE €137.73
18
photo_cameraImage coming soon 241001-1 FAN €4.17
19
photo_cameraImage coming soon 211066-7 BALL BEARING HM1301 - 6200 €11.93
20
photo_cameraImage coming soon 133042-0 LATERAL HOLDER ENGINE €35.07
21
photo_cameraImage coming soon 222002-8 PULLEY 5-26 €10.72
22
photo_cameraImage coming soon 225001-9 BELT 5-285 €27.57
23
photo_cameraImage coming soon 411004-1 BELT COVER €8.19
24
photo_cameraImage coming soon 911546-0 HEAD SCREW CILIND. M4X25 €1.36
25
Carbon Brush Holder Cap for Hammer Makita HR1820 643600-9 Carbon Brush Holder Cap for Hammer Makita HR1820 €2.02
26
Carbon Brushes CB-100 for Polishing Makita 9207SPB 181030-1 Carbon Brushes CB-100 for Polishing Makita 9207SPB €8.23
27
photo_cameraImage coming soon 159529-4 HOUSING MOTOR X 1100 €83.76
29
photo_cameraImage coming soon 911290-9 SCREW M5X65 €1.53
32
Rubber Pin for Hammer SDS-Max Makita HR4000C 263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C €1.47
34
photo_cameraImage coming soon 271226-3 KNOB 50 €8.19
35
photo_cameraImage coming soon 941251-5 FLAT WASHER 10 €1.36
36
photo_cameraImage coming soon 312004-3 COVER CHIPS €7.28
37
photo_cameraImage coming soon 911536-3 SCREW M4X20 €2.86
39
photo_cameraImage coming soon 342002-3 SIDE PROTECTION €2.91
40
photo_cameraImage coming soon 924206-5 BUTTERFLY SCREW M5x10 €1.25
41
photo_cameraImage coming soon 942101-7 SPRING WASHER 5 €1.36
42
photo_cameraImage coming soon 941101-4 FLAT WASHER 5 €1.47
43
photo_cameraImage coming soon 342001-5 HELP BEAT €4.17
45
photo_cameraImage coming soon 156510-6 ALUMINIUM FRAME €215.82
46
photo_cameraImage coming soon 231001-9 SPRING SPIRAL 17 €2.91
47
photo_cameraImage coming soon 421001-9 BASE RUBBER €4.86
48
photo_cameraImage coming soon 312002-7 UP FRONT €39.66
49
photo_cameraImage coming soon 251609-3 BOLT M6X17 €2.02
50
photo_cameraImage coming soon 187676-1 PLATE ROLL €14.77
51
photo_cameraImage coming soon 251246-3 HEAD SCREW CILIND. M4x5 €1.25
54
photo_cameraImage coming soon 323001-4 POST ROLL €5.67
55
photo_cameraImage coming soon 253139-0 FLAT WASHER 8 €2.03
56
photo_cameraImage coming soon 211032-4 BEARING X 1902 €5.87
57
photo_cameraImage coming soon 961004-6 RETAINING RING S8 €3.76
58
Assembly Drum for Planer Makita 82 MM 750W - 1100 132355-6 Assembly Drum for Planer Makita 82 MM 750W - 1100 €117.63
59
photo_cameraImage coming soon 211107-9 BEARING 6201 €9.40
60
photo_cameraImage coming soon 263005-3 PIN RUBBER 6 €2.49
61
photo_cameraImage coming soon 157022-2 HOLDER ROLLER €16.23
62
photo_cameraImage coming soon 911123-8 HEAD SCREW CILIND. M4x14 €1.29
63
photo_cameraImage coming soon 222001-0 5 to 29.4 PULLEY €10.72

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Power Planer 1100

Fix Your Power Planer 1100 - 82 mm. All Spares are original and can be supplied at Cheap and discounted prices. Our Spares are Genuine Parts Guaranteed.

In the following table, look for the model of Power Planer and the respective parts of the code.
Power Planer 1100 - 82 mm

Planer Makita 1100
# Part Num. Description
3 911226-8 HEAD SCREW CILIND. M5X18
5 651034-2 SWITCH
6 911101-8 HEAD SCREW CILIND. M4X6
7 682504-0 CABLE SLEEVE 10/85
8 911133-5 SCREW M4X18
9 687001-1 CLAMP cable tie
10 645209-3 CAPACITOR
12 911153-9 SCREW M4X28
13 411632-2 COVER-HANDLE
14 211068-3 BEARING 6200
15 681623-9 INSULATION WASHER
16 523014-7 STATOR
17 513398-1 ARMATURE
18 241001-1 FAN
19 211066-7 BEARING 6200
20 133042-0 LATERAL HOLDER ENGINE
21 222002-8 PULLEY 5-26
22 225001-9 BELT 5-285
23 411004-1 BELT COVER
24 911546-0 HEAD SCREW CILIND. M4X25
25 643600-9 BRUSH COVER
26 181030-1 CARBON BRUSHE SET CB-100
27 159529-4 HOUSING MOTOR X 1100
29 911290-9 SCREW M5X65
30 911101-8 HEAD SCREW CILIND. M4X6
31 342148-5 COVER FOR 1100
32 263002-9 PIN RUBBER 4
33 911546-0 HEAD SCREW CILIND. M4X25
34 271226-3 KNOB 50
35 941251-5 FLAT WASHER 10
36 312004-3 COVER CHIPS
37 911536-3 SCREW M4x20
38 951131-7 JACK BAND 4/30
39 342002-3 SIDE PROTECTION
40 924206-5 BUTTERFLY SCREW M5x10
41 942101-7 SPRING WASHER 5
42 941101-4 FLAT WASHER 5
43 342001-5 HELP BEAT
45 156510-6 ALUMINIUM FRAME
46 231001-9 SPRING SPIRAL 17
47 421001-9 BASE RUBBER
48 312002-7 UP FRONT
49 251609-3 BOLT M6X17
50 187676-1 PLATE ROLL
51 251246-3 HEAD SCREW CILIND. M4x5
52 345644-2 STOP KNIVES X KP0810K
53 911226-8 HEAD SCREW CILIND. M5X18
54 323001-4 POST ROLL
55 253139-0 FLAT WASHER 8
56 211032-4 BEARING
57 961004-6 RETAINING RING S8
58 132355-6 ROLL OUT
59 211107-9 BEARING 6201
60 263005-3 PIN RUBBER 6
61 157022-2 HOLDER ROLLER
62 911123-8 HEAD SCREW CILIND. M4x14
63 222001-0 5 to 29.4 PULLEY
900 251212-0 SCREW M5X13 1806B
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita Pialla 1100
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

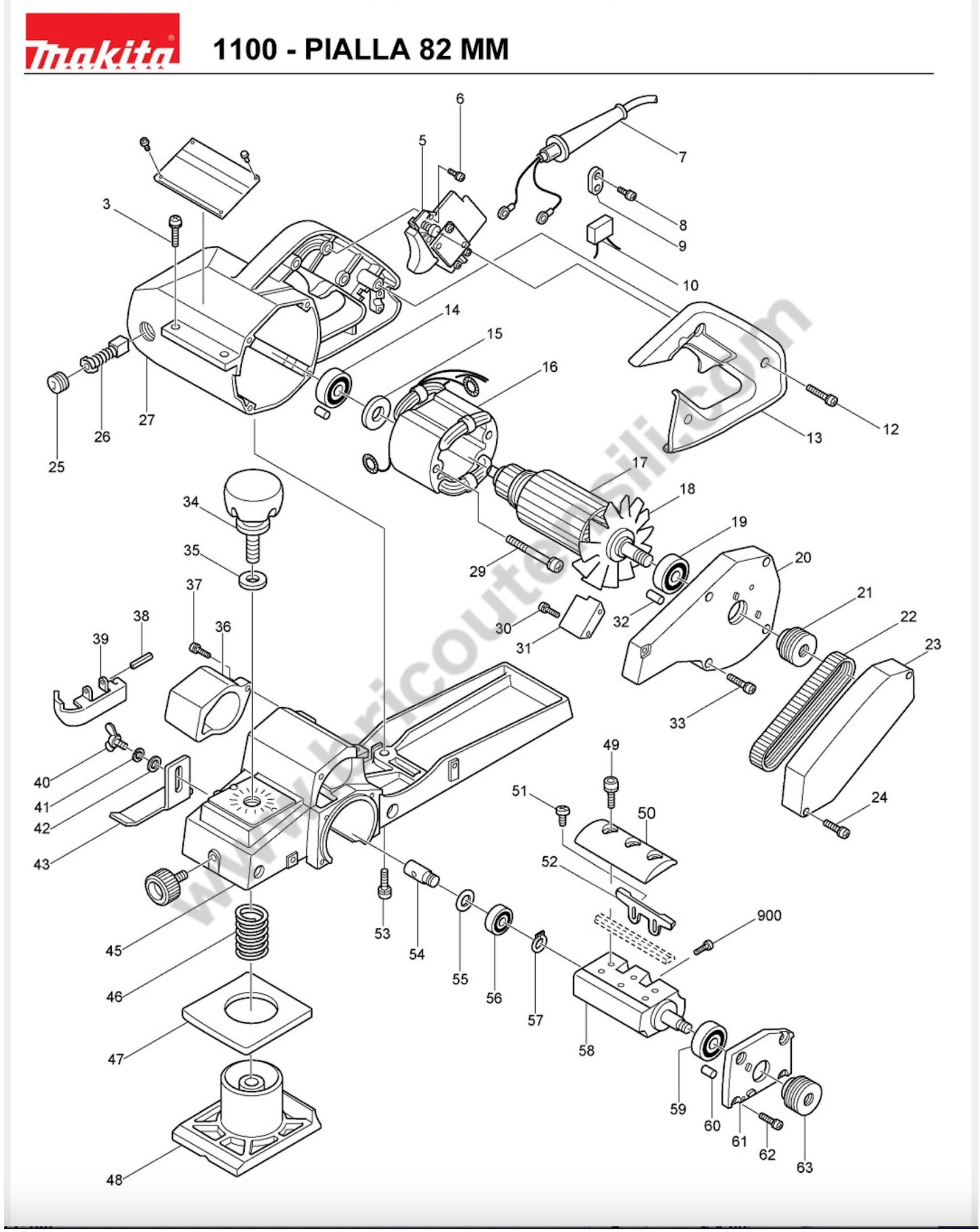

Makita Pialla 1100 Drawing

Makita Pialla 1100 Drawing

Download (513.78KB)
