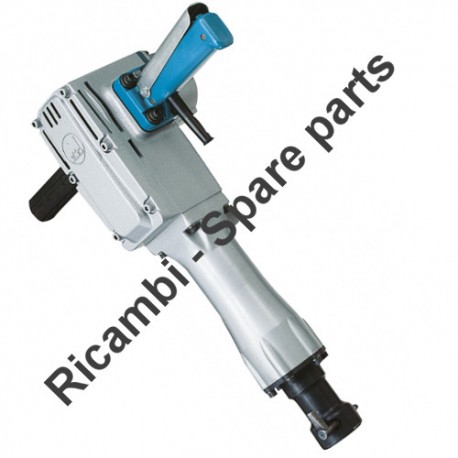

Makita Spare Parts for Hammer HM1400
Fix Your Breaker Hammer HM1400 HEX 30 mm 1240 W 17 Kg. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of the Hammer and the respective parts of the code.
| Breaker Hammer Makita HM1400 |
| # |
Part Num. |
Description |
| 1 |
922471-0 |
BOLT M8x50 |
| 3 |
211129-9 |
BALL BEARING 6201DD |
| 4 |
221713-2 |
GEAR 36 |
| 5 |
211129-9 |
BALL BEARING 6201DD |
| 6 |
331212-7 |
SEAL |
| 7 |
213460-9 |
SEAL 35 |
| 8 |
211228-7 |
BALL BEARING 6202DD |
| 9 |
213202-1 |
DUST WASHER 15 |
| 10 |
241648-1 |
FAN 104 |
| 11 |
514843-9 |
ARMATURE |
| 12 |
681646-7 |
ROND.ISOL.HM1200 / 3612BR |
| 13 |
211087-9 |
BALL BEARING 6200DDW |
| 14 |
213406-5 |
SEAL 30 |
| 15 |
524793-0 |
STATOR |
| 16 |
942301-9 |
SPRING WASHER 12 |
| 17 |
922667-3 |
BOLT M12x45 |
| 18 |
321560-2 |
REDUCTION |
| 19 |
321557-1 |
ROD |
| 20 |
212307-4 |
ROLLER 1820 |
| 22 |
265343-9 |
BOLT M5X80 |
| 23 |
321556-3 |
ECCENTRIC SHAFT |
| 24 |
266009-4 |
SCREW M8 X 18 |
| 25 |
254001-2 |
KEY CRESCENT 4 |
| 27 |
315525-4 |
HOUSING BEARING |
| 28 |
211359-2 |
BEARING 6205 |
| 29 |
213354-8 |
SEAL OIL 25 |
| 30 |
157648-0 |
GEAR HOUSING |
| 31 |
221714-0 |
GEAR 53 |
| 32 |
211214-8 |
BALL BEARING 6302 |
| 33 |
315908-8 |
GEAR HOUSING COVER |
| 34 |
323147-6 |
SCREW SWITCH |
| 35 |
342531-6 |
LEVER SWITCH |
| 36 |
961011-9 |
RETAINING RING E4 |
| 37 |
651131-4 |
SWITCH C3D-15MS |
| 38 |
181906-2 |
HANDLE SET CPL |
| 39 |
911251-9 |
HEAD SCREW CILIND. M5x30 |
| 40 |
922357-8 |
SCREW Q.S.T. M.6X35 |
| 42 |
316385-7 |
NEW HOUSING REAR |
| 43 |
253751-6 |
Pondella FLAT 24 |
| 44 |
159420-6 |
NEW HOUSING MOTOR |
| 47 |
423137-0 |
SEAL |
| 48 |
687001-1 |
CLAMP cable tie |
| 49 |
911133-5 |
SCREW M4X18 |
| 50 |
685700-9 |
SPONGE |
| 51 |
645006-7 |
CAPACITOR X LS1013 |
| 53 |
922461-3 |
BOLT M8X40 |
| 55 |
321956-7 |
HANDLE REDUCTION |
| 56 |
421308-3 |
SOCKET |
| 57 |
682505-8 |
CABLE SLEEVE 10/90 |
| 59 |
213855-6 |
SEAL 95 |
| 60 |
157649-8 |
HOUSING ROD |
| 61 |
442009-0 |
SEAL HOUSING |
| 62 |
341397-1 |
COVER HOUSING |
| 63 |
911211-1 |
SCREW M5X12 |
| 64 |
181048-2 |
CARBON BRUSHE SET CB-155 (CB-161) |
| 65 |
643650-4 |
CARBON BRUSH CAP |
| 66 |
911218-7 |
HEAD SCREW CILIND. M5x14 |
| 67 |
343891-9 |
NEW PLATE |
| 94 |
262003-4 |
RUBBER WASHER |
| 95 |
273423-7 |
HANDLE SIDE |
| 96 |
922451-6 |
BOLT M8x30 |
| 97 |
654084-6 |
RING TERMINAL HM1300 |
| 999 |
193399-1 |
REPAIR KITS HM1400 |
| 68 |
213755-0 |
O-RING 75 |
| 69 |
315524-6 |
CANNON |
| 71 |
922461-3 |
BOLT M8X40 |
| 72 |
262034-3 |
RING NYLON 63 |
| 73 |
253861-9 |
FLAT WASHER 63 |
| 74 |
331299-9 |
RING |
| 75 |
322208-9 |
SUPPORT RING |
| 76 |
321563-6 |
POST |
| 77 |
262039-3 |
RING NYLON 42 |
| 78 |
213517-6 |
RING 40 |
| 79 |
213504-5 |
SEAL 40 |
| 80 |
213754-2 |
SEAL 71 |
| 82 |
922451-6 |
BOLT M8x30 |
| 83 |
321961-4 |
TOOL HOLDER |
| 84 |
321788-2 |
SUPPORT PUNTA |
| 85 |
231032-8 |
SPRING 5 |
| 86 |
216004-4 |
BALL 7.9 |
| 87 |
322059-0 |
CYLINDER |
| 88 |
412055-7 |
PISTON RING 50 |
| 89 |
341993-5 |
INNER RING |
| 90 |
412055-7 |
PISTON RING 50 |
| 91 |
341993-5 |
INNER RING |
| 92 |
321562-8 |
PISTON |
| 93 |
256128-4 |
PIN 10 |
| 88 |
324238-6 |
PIN X SUPP. TIPS XHM1800 |
| 89 |
324236-0 |
STOP BITS X HM1800 |
| 90 |
256219-1 |
PIN 4 X HM 1500 |
| 91 |
322477-2 |
PIN X SUPP.PUNTA HM1800 |
| 92 |
233083-7 |
SPRING OF COMPRESSION 12 |
| 93 |
322560-5 |
RETAINING RING HM1810 |
| 94 |
265989-1 |
BOLT ESAG.X HM1800 |
| 95 |
253989-3 |
SPRING WASHER 12 X HM1500 |
| 96 |
324539-2 |
FRONT COVER 29 HM1810 |
| 97 |
213755-0 |
SEAL 75 X HM1400 |
| 98 |
213517-6 |
RING 40 X HM1300 |
| 99 |
324545-7 |
TIP BLOCK HM1810 |
| 100 |
213667-7 |
RING X HM1800 |
| 101 |
324541-5 |
HOLDER TIP BLOCK X HM1810 |
| 103 |
682546-4 |
CABLE X HM1800 |
| 104 |
631671-8 |
BULB X HM1810 |
| 105 |
638378-7 |
CABLE HARNESS X HM1810 |
| 106 |
418951-7 |
LENS X HM1810 |
| 107 |
317901-8 |
BACK COVER X HM1810 |
| 108 |
922366-7 |
BOLT ESAG.M6X45 |
| 110 |
418954-1 |
COVER INTEGRATED X HM1810 |
| 111 |
419044-3 |
COVER HANDLE X HM1800 |
| 112 |
685700-9 |
SPONGE X M802 / HR3850B |
| 113 |
685722-9 |
SPONGE X 4302C |
| 114 |
688131-1 |
FILTER LINE X MT240 |
| 115 |
687052-4 |
CLAMP Cable tie X 6408 |
| 116 |
265995-6 |
SCREW M4X18 X 6408 / 6221DW |
| 117 |
645200-1 |
CAPACITOR |
| 118 |
685722-9 |
SPONGE X 4302C |
| 119 |
654554-5 |
CLAMP X HM1810 |
| 120 |
265535-0 |
SCREW M6 X 65 HM1810 |
| 121 |
941152-7 |
FLAT WASHER 6 |
| 122 |
418333-3 |
HANDLE COMPLETE X HM1800 |
| 123 |
418332-5 |
LEVER SWITCH X HM1800 |
| 124 |
421850-4 |
PARA POWDER X HM1800 |
| 125 |
256206-0 |
PIN X 4399DW |
| 126 |
345355-9 |
HOLDER SWITCH X HM1800 |
| 127 |
265995-6 |
SCREW M4X18 X 6408 / 6221DW |
| 128 |
651131-4 |
SWITCH C3D-15MS |
| 129 |
419045-1 |
COVER X Switch,. HM1810 |
| 130 |
265995-6 |
SCREW M4X18 X 6408 / 6221DW |
| 131 |
685718-0 |
SPONGE X JR3000V / 9035N |
| 133 |
213953-6 |
RING 24 HR2430 |
| 135 |
265995-6 |
SCREW M4X18 X 6408 / 6221DW |
