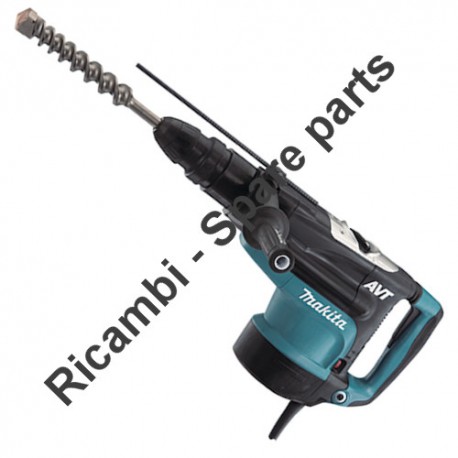

Makita Spare Parts for Rotary Hammer HR5211C

SKU: Makita HR5211C
€163.90
VAT included

Makita Spare Parts for Rotary Hammer HR5211C

We have the original Spares MAKITA for Rotary Hammer SDS-­MAX 52 mm HR5211C, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Rotary Hammer HR5211C. All Spares are original and can be supplied at Cheap and discounted prices. Our Spares are Genuine Parts Guaranteed.

Makita Spare Parts for Rotary Hammer HR5211C
  • Makita Spare Parts for Rotary Hammer HR5211C
  • Makita Spare Parts for Rotary Hammer HR5211C
Makita

Makita Spare Parts for Rotary Hammer HR5211C

SKU: Makita HR5211C Condition: New
€163.90
VAT included

Makita Spare Parts for Rotary Hammer HR5211C

We have the original Spares MAKITA for Rotary Hammer SDS-­MAX 52 mm HR5211C, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Rotary Hammer HR5211C. All Spares are original and can be supplied at Cheap and discounted prices. Our Spares are Genuine Parts Guaranteed.

settings 129 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
126 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

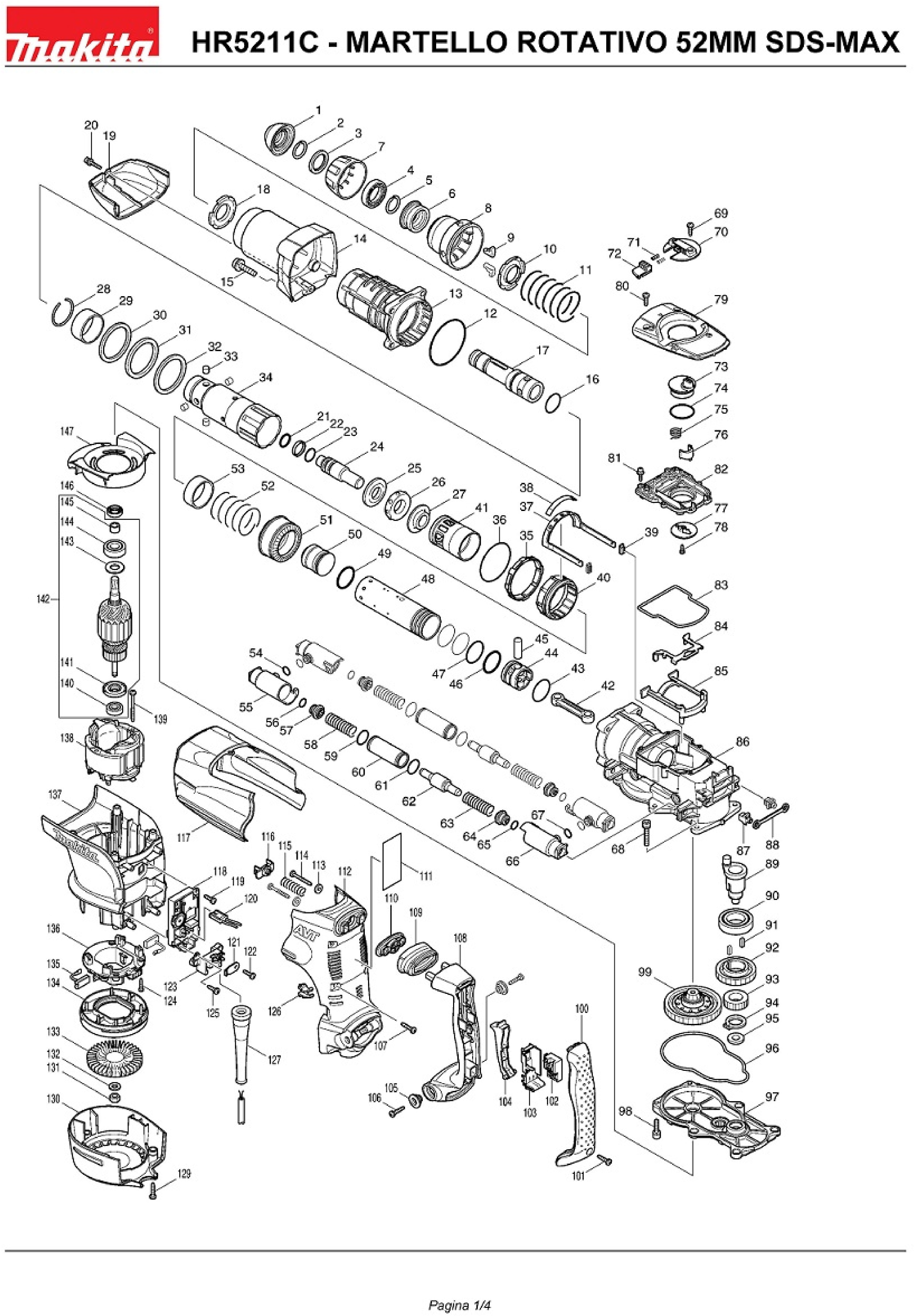

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 286285-4 FRONT HOOD HR4001C/4010C €3.19
2
 photo_cameraImage coming soon 233948-3 RING 25 X HR5201C €1.46
3
 photo_cameraImage coming soon 257280-1 RING 28 X HR5201C €4.51
4
 photo_cameraImage coming soon 419002-9 DISTANCE HR4001C/HR4010C €2.13
6
 photo_cameraImage coming soon 324752-2 CHUCK RING HR5201C €19.33
7
 photo_cameraImage coming soon 419778-8 CHUCK COVER X HR5201C €2.62
9
 photo_cameraImage coming soon 310178-4 TOOL RETAINER HR5201C €7.72
10
 photo_cameraImage coming soon 345804-6 SPRING GUIDE HR5201C €2.74
11
 photo_cameraImage coming soon 233496-2 COMRESSION SPRING 49 X HR5201C €2.74
12
 photo_cameraImage coming soon 213766-5 O-RING 78 X HR5201C €2.62
13
 Makita HR5201C Barrel Complete 158175-0 Makita HR5201C Barrel Complete €17.37
14
 photo_cameraImage coming soon 158179-2 BARREL COVER COMPLETE X HR5201C €16.05
15
 photo_cameraImage coming soon 922456-6 HEX SOCKET HD BOLT M8 X 35 HR5 HR5211C HM1213C HM1203C €1.40
16
 photo_cameraImage coming soon 213492-6 O-RING 32 X HR5201C €2.62
17
 photo_cameraImage coming soon 324740-9 TOOL HOLDER A X HR5201C €97.84
19
 photo_cameraImage coming soon 419791-6 GEAR HOUSING COVER HR5201C €4.98
20
 photo_cameraImage coming soon 922148-7 SCREW M4 X 25 X HR5201C €1.42
21
 photo_cameraImage coming soon 213274-6 O-RING 18 X HR3000C €1.37
22
 Rubber Ring 25 for Hammers Makita HR4000C 213392-0 Rubber Ring 25 for Hammers Makita HR4000C €9.24
23
 Ring 20 for Demolition Hammer Makita HR4000C 213317-4 Ring 20 for Demolition Hammer Makita HR4000C €1.44
24
 photo_cameraImage coming soon 324753-0 IMPACT BOLT HR5201C €10.75
25
 photo_cameraImage coming soon 324756-4 O-RING 20 X HR5201C €6.44
26
 photo_cameraImage coming soon 424000-0 RUBBER RING 24 X HR5201C €4.98
27
 photo_cameraImage coming soon 324757-2 COLLAR SLEEVE 20 HR5201C €7.36
28
 photo_cameraImage coming soon 233949-1 O-RING 44 X HR5201C €1.36
29
 photo_cameraImage coming soon 257282-7 O-RING 47 X HR5201C €32.08
30
 photo_cameraImage coming soon 267287-9 WASHER 57 HR5201C €2.03
31
 photo_cameraImage coming soon 262122-6 URETHANE RING 57 X HR5201C €10.75
33
 photo_cameraImage coming soon 256265-4 PIN 10 HR5001C €3.73
34
 photo_cameraImage coming soon 324741-7 TOOL HOLDER B X HR5201C €152.66
35
 photo_cameraImage coming soon 419776-2 LOCK SLEEVE HR5201C €2.62
36
 photo_cameraImage coming soon 213654-6 O-RING 60 HR3850B / HM0810 €3.04
37
 photo_cameraImage coming soon 165459-9 RINK ARM HR5201C €21.06
38
 photo_cameraImage coming soon 419775-4 LINK ARM GUIDE HR5201C €2.03
39
 photo_cameraImage coming soon 424024-6 SEAL PLATE X HR5210C €3.01
40
 photo_cameraImage coming soon 313138-5 DRIVING SLEEVE HR5201C €23.81
41
 photo_cameraImage coming soon 419780-1 SLIDE SLEEVE X HR5201C €3.04
42
 Conrod for Rotative Demolition Hammers Makita HR5201-10-11C 451516-2 Conrod for Rotative Demolition Hammers Makita HR5201-10-11C €11.59
43
 O-Ring 35 for Demolition Hammers Makita HR 4501-10-11C 213460-9 O-Ring 35 for Demolition Hammers Makita HR 4501-10-11C €3.29
44
 Piston for Demolition Hammers SDS-MAX Makita HR5201-5210-5211C 419771-2 Piston for Demolition Hammers SDS-MAX Makita HR5201-5210-5211C €3.30
45
 Piston Pin for Rotary Hammer Makita HR5201C 268121-6 Piston Pin for Rotary Hammer Makita HR5201C €1.67
46
 O-Ring 34 for Rotary Hammer Makita HR5201C 213296-6 O-Ring 34 for Rotary Hammer Makita HR5201C €3.17
47
 Seal 36 O-R for Sanders Makita BO4565-4566 213510-0 Seal 36 O-R for Sanders Makita BO4565-4566 €3.35
48
 photo_cameraImage coming soon 331748-6 CYLINDER 40 X HR5201C €83.76
50
 photo_cameraImage coming soon 324754-8 STRIKER X HR5201C €10.75
51
 photo_cameraImage coming soon 227511-2 GEAR 33 X HR5201C €55.05
52
 photo_cameraImage coming soon 233498-8 COMPRESSION SPRING 46 X HR5201C €3.73
53
 photo_cameraImage coming soon 257281-9 O-RING 45 X HR5201C €7.36
54
 photo_cameraImage coming soon 213118-0 O-RING 12 X HR5210C €1.42
55
 photo_cameraImage coming soon 318124-1 PIPE HOLDER HR5210C €13.93
57
 photo_cameraImage coming soon 419773-8 SPRING GUIDE HR5210C €1.88
58
 photo_cameraImage coming soon 233497-0 COMPRESSION SPRING 15 HR5210C €1.93
59
 photo_cameraImage coming soon 213953-6 RING 24 HR2430 €1.40
60
 photo_cameraImage coming soon 331745-2 PIPE 22 X HR5210C €4.17
62
 photo_cameraImage coming soon 324755-6 COUNTER WEIGHT X HR5210C €27.72
68
 photo_cameraImage coming soon 922361-7 SCREW M6X40 X HM1303 €1.40
69
 Srew M4X14 for Hammers Makita HR4001C-HR4010C 266192-7 Srew M4X14 for Hammers Makita HR4001C-HR4010C €1.46
70
 photo_cameraImage coming soon 419020-7 LEVER HR4001C/HR4010C €5.67
71
 photo_cameraImage coming soon 233436-0 COMPRESSION SPRING 3 HR4001C/HR4010C €1.70
72
 photo_cameraImage coming soon 419777-0 LOCK BUTTON X HR5201C €2.03
73
 photo_cameraImage coming soon 450687-2 CRANK LEVER HR5201C €3.19
74
 photo_cameraImage coming soon 213534-6 RING 36 X HR5201C €1.42
75
 photo_cameraImage coming soon 233506-5 TORSION SPRING 16 X HR5201C €1.42
76
 photo_cameraImage coming soon 310207-3 LINK LEVER HR5201C €7.72
77
 photo_cameraImage coming soon 345778-1 RETAINER PLATE HR5201C €3.91
78
 photo_cameraImage coming soon 265014-8 SCREW M4 X 12 €2.13
79
 photo_cameraImage coming soon 318129-1 CRANK CAP COVER HR5211C €18.53
81
 photo_cameraImage coming soon 911133-5 SCREW M4X18 €1.46
83
 photo_cameraImage coming soon 421998-2 SEAL RING X HR5201C €2.62
84
 photo_cameraImage coming soon 345779-9 LINK PLATE X HR5201C €4.30
85
 photo_cameraImage coming soon 419781-9 LINK PLATE GUIDE HR5201C €2.62
86
 photo_cameraImage coming soon 158176-8 CRANK HOUSING COMPL. HR5210C €111.32
87
 photo_cameraImage coming soon 419008-7 FIX GUIDE HR4001C €1.42
88
 photo_cameraImage coming soon 423366-5 CUSHION PLATE X HR5201C €1.40
89
 photo_cameraImage coming soon 324739-4 CRANK SHAFT HR5201C €35.07
90
 photo_cameraImage coming soon 211418-2 BALL BEARING 6006LLU X HR4500C €16.72
91
 photo_cameraImage coming soon 254229-2 KEY 5 X HR4000C €2.03
92
 photo_cameraImage coming soon 226646-6 GEAR 47 HR5201C €21.06
93
 photo_cameraImage coming soon 227176-0 GEAR 24 HR5201C €9.61
94
 photo_cameraImage coming soon 961102-6 EXT DIN 471 CIRCLIP-22*  €2.03
95
 photo_cameraImage coming soon 253843-1 FLAT WASHER X LC1230 €2.03
96
 photo_cameraImage coming soon 421999-0 SEAL RING X HR5201C €3.04
97
 photo_cameraImage coming soon 158178-4 GEAR HOUSING COMPL. X HR5201C €55.05
98
 photo_cameraImage coming soon 922341-3 SCREW M6X25 €1.44
99
 Makita HR5201C Torque Limiter Ass'y 125374-9 Makita HR5201C Torque Limiter Ass'y €163.80
100
 photo_cameraImage coming soon 419796-6 HANDLE COVER HR5201C €19.33
101
 Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
102
 Switch TG73-B1 for Demolition Hammer Makita HR4001C 650567-4 Switch TG73-B1 for Demolition Hammer Makita HR4001C €20.01
103
 photo_cameraImage coming soon 154626-1 SWITCH HOLDER HR4001C €4.08
104
 photo_cameraImage coming soon 419025-7 SWITCH X HR4011C €4.08
105
 photo_cameraImage coming soon 313124-6 SHOULDER SLEEVE 6 HR4011C €2.99
106
 photo_cameraImage coming soon 266041-8 PT SCREW 5x25 €1.70
108
 Makita HR4511C Handle 419798-2 Makita HR4511C Handle €14.78
109
 photo_cameraImage coming soon 424001-8 DUST COVER X HR5211C €2.91
110
 photo_cameraImage coming soon 419783-5 DUST COVER SUPPORT X HR5211C €2.45
112
 photo_cameraImage coming soon 419797-4 HANDLE BASE X HR5211C €32.08
113
 photo_cameraImage coming soon 253807-5 WASHER 5 6012D / HD / 62/63 / 64DW €1.42
114
 photo_cameraImage coming soon 266211-9 SCREW 5 X 40 HK0500 €3.76
115
 Compression Spring 11 mm for Hammer Makita HR4011C 233434-4 Compression Spring 11 mm for Hammer Makita HR4011C €3.03
116
 photo_cameraImage coming soon 419013-4 SPRING GUIDE X HR4011C €2.52
117
 photo_cameraImage coming soon 419793-2 CRANK HOUSING COVER X HR5210C €13.93
118
 photo_cameraImage coming soon 631727-7 CONTROLLER HR5201C €60.56
120
 photo_cameraImage coming soon 638510-3 LEAD UNIT HR5201C €2.74
121
 photo_cameraImage coming soon 687169-3 STRAIN RELIEF HP1620 €1.46
123
 photo_cameraImage coming soon 419024-9 CORD CABLES BASE HR4001C €2.18
126
 Lens for Demolition Hammer Makita HR4501C 419774-6 Lens for Demolition Hammer Makita HR4501C €3.19
127
 Power Cord Protection for Angle Grinder Makita 1800-2000-2200W 682560-0 Power Cord Protection for Angle Grinder Makita 1800-2000-2200W €3.18
130
 photo_cameraImage coming soon 419790-8 REAR COVER X HR5201C €16.23
131
 photo_cameraImage coming soon 252178-7 NUT M 8-12 X 4112HS €1.42
132
 photo_cameraImage coming soon 253165-9 FLAT WASHER 8 €1.42
133
 Fan for Rotary Hammer Makita HR4500C 240016-5 Fan for Rotary Hammer Makita HR4500C €10.36
134
 photo_cameraImage coming soon 419782-7 FAN GUIDE HR5201C €3.19
135
 Carbon Brushes Makita for Hammers HM-HR 195844-2 Carbon Brushes Makita for Hammers HM-HR €11.59
136
 photo_cameraImage coming soon 638447-4/HR CARBON BRUSHE HOLDER HR5201C €12.69
137
 photo_cameraImage coming soon 419795-8 MOTOR HOUSING X HR5201C €35.07
138
 photo_cameraImage coming soon 636303-2 STATOR FOR HR5201C €36.11
139
 photo_cameraImage coming soon 266095-5 SCREW 5x55 HR5001C €1.47
140
 photo_cameraImage coming soon 210059-1 BEARING 6000 HR2010 €12.89
141
 Armature Washer for Demolition Hammers Makita HR 4501-10-11C 681642-5 Armature Washer for Demolition Hammers Makita HR 4501-10-11C €13.30
142
 Armature for Rotary Hammers Makita HR5201C-HR5210C 516993-6 Armature for Rotary Hammers Makita HR5201C-HR5210C €131.51
143
 photo_cameraImage coming soon 267025-9 FLAT WASHER 15 6912D €1.42
144
 photo_cameraImage coming soon 211238-4 BALL BEARING 6202LLU €8.65
145
 photo_cameraImage coming soon 331596-3 SLEEVE 12 4500C €10.43
146
 Oil Seal for Demolition Hammers Makita HR 4001-2-10-11-13C 213231-4 Oil Seal for Demolition Hammers Makita HR 4001-2-10-11-13C €15.13
147
 photo_cameraImage coming soon 419788-5 BAFFLE PLATE HR5201C €3.04
999
 Service Pack for Demolition Hammer Makita HR5201C 195191-1 Service Pack for Demolition Hammer Makita HR5201C €47.24

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Rotary Hammer HR5211C

Fix Your Rotary Demolition Hammer SDS-­MAX 52 mm HR5211C. All Spares are original and can be supplied at Cheap and discounted prices. Our Spares are Genuine Parts Guaranteed.

In the following table, look for the model of the Rotary Hammer and the respective parts of the code.
Makita HR5211C

Rotary Demolition Hammer Makita HR5211C
# Part Num. Description
1 286285-4 TOOL HOLDER CAP HR4001C / 4010C
2 233948-3 O-RING 25 X HR5201C
3 257280-1 O-RING 28 X HR5201C
4 419002-9 SPACER X HR4001C / HR4010C
5 233948-3 O-RING 25 X HR5201C
6 324752-2 CHUCK RING HR5201C
7 419778-8 CHUCK COVER X HR5201C
8 419779-6 RELEASE COVER X HR5201C
9 310178-4 TOOL RETAINER X HR5201C
10 345804-6 SPRING GUIDE HR5201C
11 233496-2 COMPRESSION SPRING 49 X HR5201C
12 213766-5 O-RING 78 X HR5201C
13 158175-0 BARREL COMPLETE HR5201C
14 158179-2 BARREL COVER COMPLETE X HR5201C
15 922456-6 HEX SOCKET HD BOLT M8 X 35 HR5 HR5211C HM1213C HM1203C
16 213492-6 O-RING 32 X HR5201C
17 324740-9 TOOL HOLDER A X HR5201C
18 345804-6 SPRING GUIDE HR5201C
19 419791-6 GEAR HOUSING COVER HR5201C
20 922148-7 SCREW M4 X 25 X HR5201C
21 213274-6 O-RING 18 X HR3000C
22 213392-0 RUBBER RING 25 X HR4000C
23 213317-4 O-RING 20 X HR4000C
24 324753-0 IMPACT BOLT HR5201C
25 324756-4 O-RING 20 X HR5201C
26 424000-0 RUBBER RING 24 X HR5201C
27 324757-2 COLLAR SLEEVE 20 HR5201C
28 233949-1 O-RING 44 X HR5201C
29 257282-7 O-RING 47 X HR5201C
30 267287-9 WASHER 57 HR5201C
31 262122-6 URETHANE RING 57 X HR5201C
32 267287-9 WASHER 57 HR5201C
33 256265-4 PIN 10 HR5001C
34 324741-7 TOOL HOLDER B X HR5201C
35 419776-2 LOCK SLEEVE HR5201C
36 213654-6 O-RING 60 HR3850B / HM0810
37 165459-9 RINK ARM HR5201C
38 419775-4 LINK ARM GUIDE HR5201C
39 424024-6 SEAL PLATE X HR5210C
40 313138-5 DRIVING SLEEVE HR5201C
41 419780-1 SLIDE SLEEVE X HR5201C
42 451516-2 CONNECTION ROD HR5201C
43 213460-9 O-RING 35 HK / HR1800 / HM12
44 419771-2 PISTON X HR5201C
45 268121-6 PIN 12 X HR5201C
46 213296-6 O-RING 34 HR5201C
47 213510-0 O-RING 36 HR2010
48 331748-6 CYLINDER 40 X HR5201C
49 213296-6 O-RING 34 HR5201C
50 324754-8 STRIKER X HR5201C
51 227511-2 GEAR 33 X HR5201C
52 233498-8 COMPRESSION SPRING 46 X HR5201C
53 257281-9 O-RING 45 X HR5201C
54 213118-0 O-RING 12 X HR5210C
55 318124-1 PIPE HOLDER HR5210C
56 213118-0 O-RING 12 X HR5210C
57 419773-8 SPRING GUIDE HR5210C
58 233497-0 COMPRESSION SPRING 15 HR5210C
59 213953-6 O-RING 24 HR2430
60 331745-2 PIPE 22 X HR5210C
61 213953-6 O-RING 24 HR2430
62 324755-6 COUNTER WEIGHT X HR5210C
63 233497-0 COMPRESSION SPRING 15 HR5210C
64 419773-8 SPRING GUIDE HR5210C
65 213118-0 O-RING 12 X HR5210C
66 318124-1 PIPE HOLDER HR5210C
67 213118-0 O-RING 12 X HR5210C
68 922361-7 SCREW M6X40 X HM1303
69 266192-7 SCREW 4 X 14 X HR4001C / HR4010C
70 419020-7 CHANGE LEVER X HR4001C / HR4010C
71 233436-0 COMPRESSION SPRING 3 X HR4001C / HR4010C
72 419777-0 LOCK BUTTON X HR5201C
73 450687-2 CRANK LEVER X HR5201C
74 213534-6 O-RING 36 X HR5201C
75 233506-5 TORSION SPRING 16 X HR5201C
76 310207-3 LINK LEVER HR5201C
77 345778-1 RETAINER PLATE HR5201C
78 265014-8 SCREW M4 X 12
79 318129-1 CRANK CAP COVER HR5211C
80 266192-7 SCREW 4 X 14 X HR4001C / HR4010C
81 911133-5 SCREW M4X18
82 419789-3 FLANGE X HR5201C
83 421998-2 SEAL RING X HR5201C
84 345779-9 LINK PLATE X HR5201C
85 419781-9 LINK PLATE GUIDE HR5201C
86 158176-8 CRANK HOUSING COMPL. HR5210C
87 419008-7 FIX GUIDE X HR4001C
88 423366-5 CUSHION PLATE X HR5201C
89 324739-4 CRANK SHAFT HR5201C
90 211418-2 BALL BEARING 6006LLU X HR4500C
91 254229-2 KEY 5 X HR4000C
92 226646-6 GEAR 47 HR5201C
93 227176-0 GEAR 24 HR5201C
94 961102-6 EXT DIN 471 CIRCLIP-22*
95 253843-1 FLAT WASHER X LC1230
96 421999-0 SEAL RING X HR5201C
97 158178-4 GEAR HOUSING COMPL. X HR5201C
98 922341-3 SCREW M6X25
99 125374-9 TORQUE LIMITER ASS'Y X HR5201C
100 419796-6 HANDLE COVER X HR5201C
101 265995-6 SCREW M4X18 X 6408 / 6221DW
102 650567-4 SWITCH TG73B-1 HR4001C
103 154626-1 SWITCH HOLDER HR4001C
104 419025-7 SWITCH LEVER X HR4011C
105 313124-6 SHOULDER SLEEVE 6 HR4011C
106 266041-8 PT SCREW 5x25
107 266041-8 PT SCREW 5x25
108 419798-2 HANDLE X HR5211C
109 424001-8 DUST COVER X HR5211C
110 419783-5 DUST COVER SUPPORT X HR5211C
111 863353-6 LABEL MOD. HR5211C
112 419797-4 HANDLE BASE X HR5211C
113 253807-5 WASHER 5 6012D / HD / 62/63 / 64DW
114 266211-9 SCREW 5 X 40 X HK0500
115 233434-4 COMPRESSION SPRING 11 X HR4011C
116 419013-4 SPRING GUIDE X HR4011C
117 419793-2 CRANK HOUSING COVER X HR5210C
118 631727-7 CONTROLLER HR5201C
119 266192-7 SCREW 4 X 14 X HR4001C / HR4010C
120 638510-3 CORD HR5201C
121 687169-3 STRAIN RELIEF HP1620
122 266192-7 SCREW 4 X 14 X HR4001C / HR4010C
123 419024-9 CORD CLAMP BASE HR4001C
124 265995-6 SCREW M4X18 X 6408 / 6221DW
125 266192-7 SCREW 4 X 14 X HR4001C / HR4010C
126 419774-6 LENS FOR HR5201C
127 682560-0 CABLE SLEEVE X HM1202C / 9079S
129 266041-8 PT SCREW 5x25
130 419790-8 REAR COVER X HR5201C
131 252178-7 NUT M 8-12 X 4112HS
132 253165-9 FLAT WASHER 8
133 240016-5 FAN X HR5001C
134 419782-7 FAN GUIDE HR5201C
135 195844-2 CARBON BRUSHE SET CB-175
136 638447-4/HR CARBON BRUSHE HOLDER HR5201C
137 419795-8 MOTOR HOUSING X HR5201C
138 636303-2 STATOR FOR HR5201C
139 266095-5 SCREW 5 X 55 HR5001C
140 210059-1 BALL BEARING 6000 HR2010
141 681642-5 WASHER X LS1013
142 516993-6 ARMATURE HR5201C
143 267025-9 FLAT WASHER 15 6912D
144 211238-4 BALL BEARING 6202LLU
145 331596-3 SLEEVE 12 X HR4500C
146 213231-4 OIL SEAL X HR4500C
147 419788-5 BAFFLE PLATE HR5201C
999 195191-1 SERVICE KITS X HR5201C
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita HR5211C
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita HR5211C

Diagram Makita HR5211C

Download (287.21KB)

You might also like

Carbon Brushes Makita for Hammers HM-HR
Makita SKU: 195844-2
Carbon Brushes Makita for Hammers HM-HR
Carbon Brushes Makita for Makita Hammers HM-HR Genuine part MAKITA, Carbon Brushe Set CB-175 old CB-171 for repair Hammers and Rotary Hammers HM1101C - HM1111C - HM1203C - HR4501C - HR4510C - HR5201C - HR5201C. Part For the following...
AVAILABLE €11.59
Details
Seal 36 O-R for Sanders Makita BO4565-4566
Makita SKU: 213510-0
Seal 36 O-R for Sanders Makita BO4565-4566
Seal 36 O-R for Sanders Makita BO4565-4566 Genuine spare Makita, O-Ring 36 for Rotary Hammers HR5001C-5201C-5210C-5211C and Orbital Sanders Series BO4555-4556-4565-4566. Parts for the following products: - NAILER AIR HP 25-50mm -...
AVAILABLE €3.35
Details
O-Ring 35 for Demolition Hammers Makita HR 4501-10-11C
Makita SKU: 213460-9
O-Ring 35 for Demolition Hammers Makita HR 4501-10-11C
O-Ring 35 for Demolition Hammers Makita HR 4501-10-11C Genuine spare part Makita, O-Ring 35 for SDS Max Rotary Demolition Hammers HR4501C  - HR4510C - HR4511C - HR5201C - HR5210C - HR5211C - HR5212C. Part for the following...
AVAILABLE €3.29
Details
Rubber Ring 25 for Hammers Makita HR4000C
Makita SKU: 213392-0
Rubber Ring 25 for Hammers Makita HR4000C
Rubber Ring 25 for Hammers Makita HR4000C Original spare Makita, Rubber ring 25 mm for Rotary Hammers SDS Max, HR4001C - HR 4002 - HR4003C - HR4010C - HR4011C - HR4013C - HR4500C - HR5201C - HR5210C and compatible. - Code: 213392-0
AVAILABLE €9.24
Details
Armature Washer for Demolition Hammers Makita HR 4501-10-11C
Makita SKU: 681642-5
Armature Washer for Demolition Hammers Makita HR 4501-10-11C
Armature Washer for Demolition Hammers Makita HR 4501-10-11C Genuine spare Makita, Armature Protection Washer for SDS-Max Rotary Hammers, HR4501C - HR4510C - HR4511C - HR5201C - HR5210C - HR5211C - HR5212C. Part for the following...
Last items in stock €13.30
Details
Power Cord for Angle Grinder Makita 1800-2000-2200W
Makita SKU: Cavo 230
Power Cord for Angle Grinder Makita 1800-2000-2200W
Power Cord for Angle Grinder Makita 1800-2000-2200W Original spare Makita, Power cord for Angle Grinders 1800-2000-2200 Watts and compatible. Part for the following products: - For Angle Grinder Makita 230 mm - Code :
Last items in stock €31.79
Details
Armature for Demolition Hammers Makita HR5202C-HR5212C
Makita SKU: 517898-3
Armature for Demolition Hammers Makita HR5202C-HR5212C
Armature for Demolition Hammers Makita HR5202C-HR5212C Genuine replacement part Makita, Armature Ass'y 220-240V for SDS-Max Rotary Hammers, HR5202C - HR5212C. Part for the following products: -  Rotary Hammer Makita...
Last items in stock €146.24
Details
Armature for Rotary Hammers Makita HR5201C-HR5210C
Makita SKU: 516993-6
Armature for Rotary Hammers Makita HR5201C-HR5210C
Armature for Rotary Hammers Makita HR5201C-HR5210C Genuine spare parts Makita, Armature 220-240V for SDS-Max Rotary Hammers, HR5201C - HR5210C - HR5211C. FOR THE FOLLOWS ITEMS : -  ROTARY...
AVAILABLE €131.51
Details
Service Pack for Demolition Hammer Makita HR5201C
Makita SKU: 195191-1
Service Pack for Demolition Hammer Makita HR5201C
Service Pack for Demolition Hammer Makita HR5201C Genuine part Makita, Service Pack for Rotary Demolition Hammers SDS-Max, HR5201C - HR5210C - HR5211C Part for the following products: - HR5201C - Rotary Hammer 52MM SDS-MAX - HR5210C -...
AVAILABLE €47.24
Details
Compression Spring 11 mm for Hammer Makita HR4011C Sale
Makita SKU: 233434-4
Compression Spring 11 mm for Hammer Makita HR4011C
Compression Spring 11 mm for Hammer Makita HR4011C Genuine spare Makita, Compression Spring 11 mm for Hammers HM0871C - HM1111C - HM1213C - HR4011C - HR4511C - HR5211C Parts for the following products: - HM0871C - HAMMER 1100W SDS-MAX...
AVAILABLE €3.03
Details
O-Ring 34 for Rotary Hammer Makita HR5201C
Makita SKU: 213296-6
O-Ring 34 for Rotary Hammer Makita HR5201C
O-Ring 34 for Rotary Hammer Makita HR5201C Genuine spare part Makita, O-Ring 34 for SDS Max Rotary Hammers HR5201C  - HR5210C - HR5211C - HR5201C Part for the following products: - HR5201C - ROTARY HAMMER 52MM SDS-MAX - HR5210C -...
Last items in stock €3.17
Details
Piston Pin for Rotary Hammer Makita HR5201C
Valex s.p.a. SKU: 268121-6
Piston Pin for Rotary Hammer Makita HR5201C
Piston Pin for Rotary Hammer Makita HR5201C Genuine spare part Makita, Piston Pin for Rotary Demolition Hammers HM1203C - HM1213C - HM1214C - HR5201C - HR5210C - HR5211C...
Last items in stock €1.67
Details
Ring 20 for Demolition Hammer Makita HR4000C
Valex s.p.a. SKU: 213317-4
Ring 20 for Demolition Hammer Makita HR4000C
Ring 20 for Demolition Hammer Makita HR4000C Genuine spare part Makita, Ring 20 for Rotary Hammers SDS Max, HR4001C - HR 4002 - HR4003C - HR4010C - HR4011C - HR4013C Part for the following products: - Rotary Hammer Makita HR4000C -...
AVAILABLE €1.44
Details
Lens for Demolition Hammer Makita HR4501C
Makita SKU: 419774-6
Lens for Demolition Hammer Makita HR4501C
Lens for Demolition Hammer Makita HR4501C Original spare parts Makita, Lens for Demolition Rotary Hammers HR4501C - HR4510C - HR4511C Part for the following product: -  HR4501C - ROTARY HAMMER SDS-MAX 1300W - HR4510C - ROTARY HAMMER...
Last items in stock €3.19
Details
Fan for Rotary Hammer Makita HR4500C
Makita SKU: 240016-5
Fan for Rotary Hammer Makita HR4500C
Fan for Rotary Hammer Makita HR4500C Genuine part Makita, Fan for Rotary Hammers SDS Max HR4500C - HR4501C - HR4510C - HR4511C - HR5001C - HR5202C. Parts for the following products:...
on 7/10 Business Days Approx. €10.36
Details
Makita HR5201C Torque Limiter Ass'y
Makita SKU: 125374-9
Makita HR5201C Torque Limiter Ass'y
Makita HR5201C Torque Limiter Ass'y Genuine spare parts Makita, Torque Limiter Ass'y for SDS-Max Rotary Hammers, HR5201C - HR5210C - HR5211C. FOR THE FOLLOWS ITEMS : -  ROTARY HAMMER 52MM SDS-MAX MAKITA HR5201C...
Last items in stock €163.80
Details
Makita HR5201C Barrel Complete
Makita SKU: 158175-0
Makita HR5201C Barrel Complete
Makita HR5201C Barrel Complete Genuine spare parts Makita, Barrel Complete for SDS-Max Rotary Hammers, HR5201C - HR5210C - HR5211C. FOR THE FOLLOWS ITEMS : -  ROTARY HAMMER 52MM SDS-MAX MAKITA HR5201C - ...
Last items in stock €17.37
Details
Makita HR4511C Handle
Makita SKU: 419798-2
Makita HR4511C Handle
Makita HR4511C Handle Genuine part Makita, Handle for Rotary Hammer SDS-MAX HR4511C - HR5211C. Part for the following products: - HR4511C - ROTARY HAMMER SD-SMAX 1350W 45mm - HR5211C - MARTELLO ROTATIVO 52MM SDS-MAX -...
Last items in stock €14.78
Details
Comments (0)
