Makita Spare Parts for Rotary Hammer HR2600

SKU: Makita HR2600
€19.64
VAT included

Makita Spare Parts for Rotary Hammer HR2600

We have the original Spares MAKITA for Rotary Hammer SDS PLUS HR2600 the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Rotary Hammer SDS PLUS HR2600. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee
Makita Spare Parts for Rotary Hammer HR2600
  • Makita Spare Parts for Rotary Hammer HR2600
  • Makita Spare Parts for Rotary Hammer HR2600

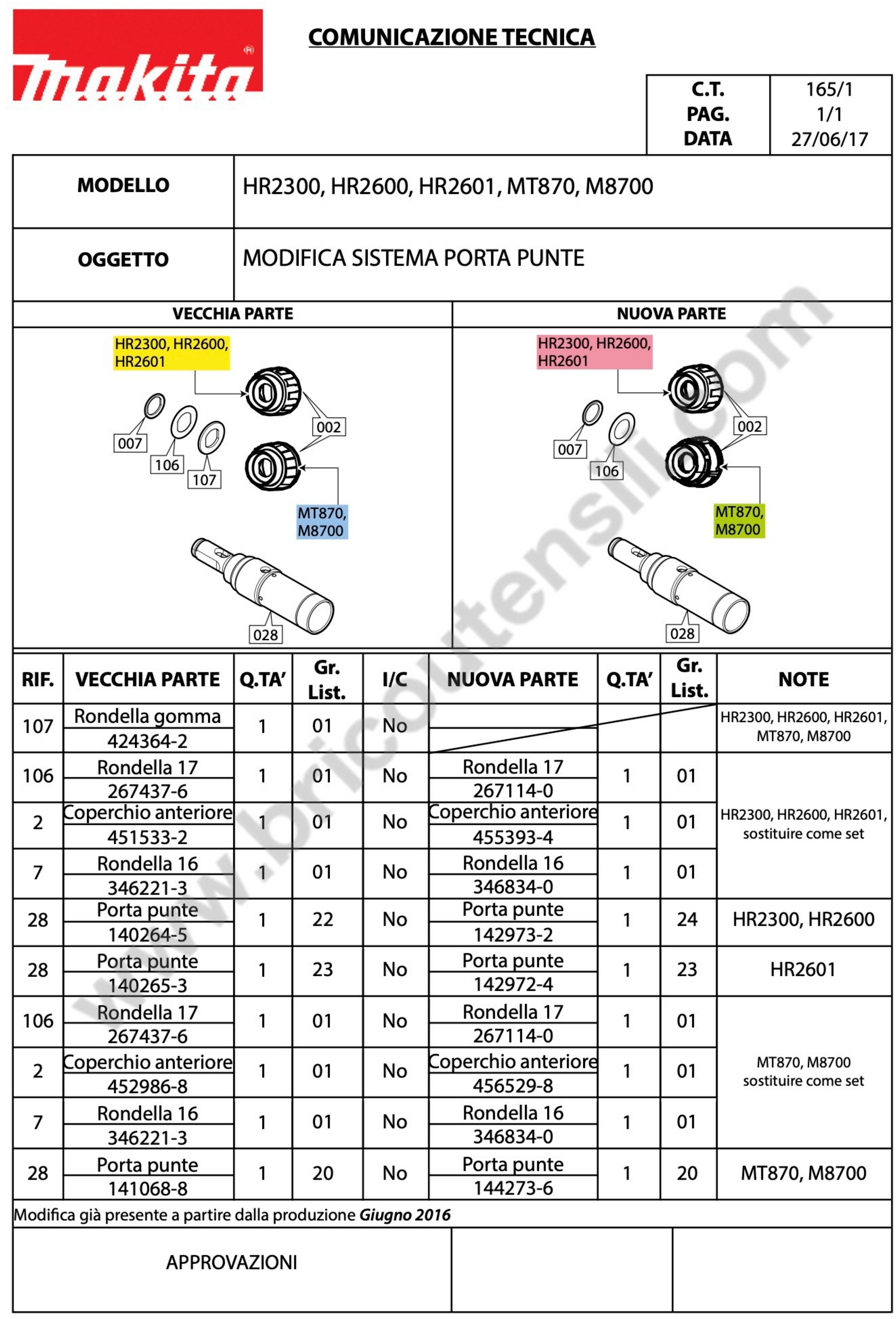

  • Makita Spare Parts for Rotary Hammer HR2600 - CT165-1

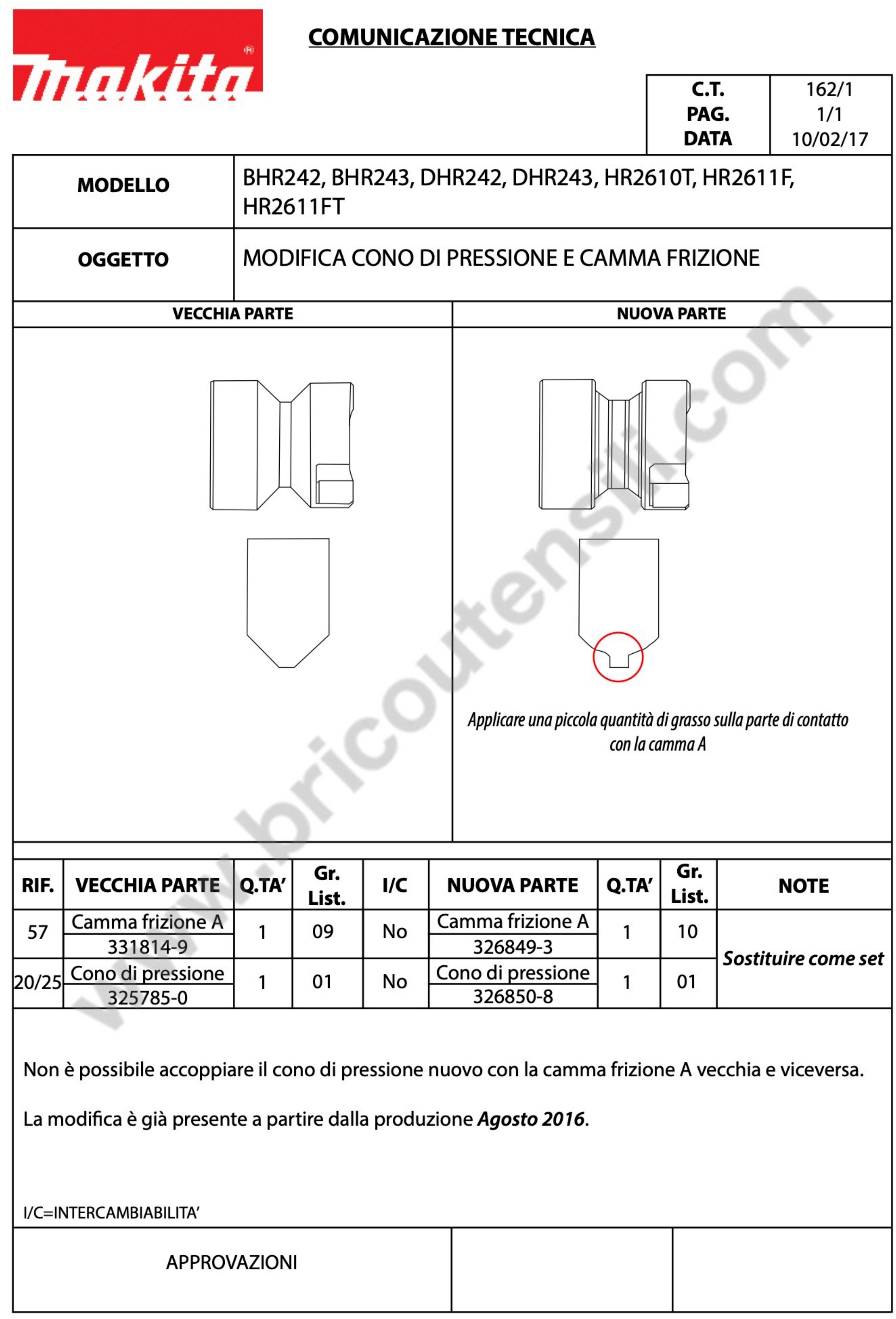

  • Makita Spare Parts for Rotary Hammer HR2600 - CT162-1

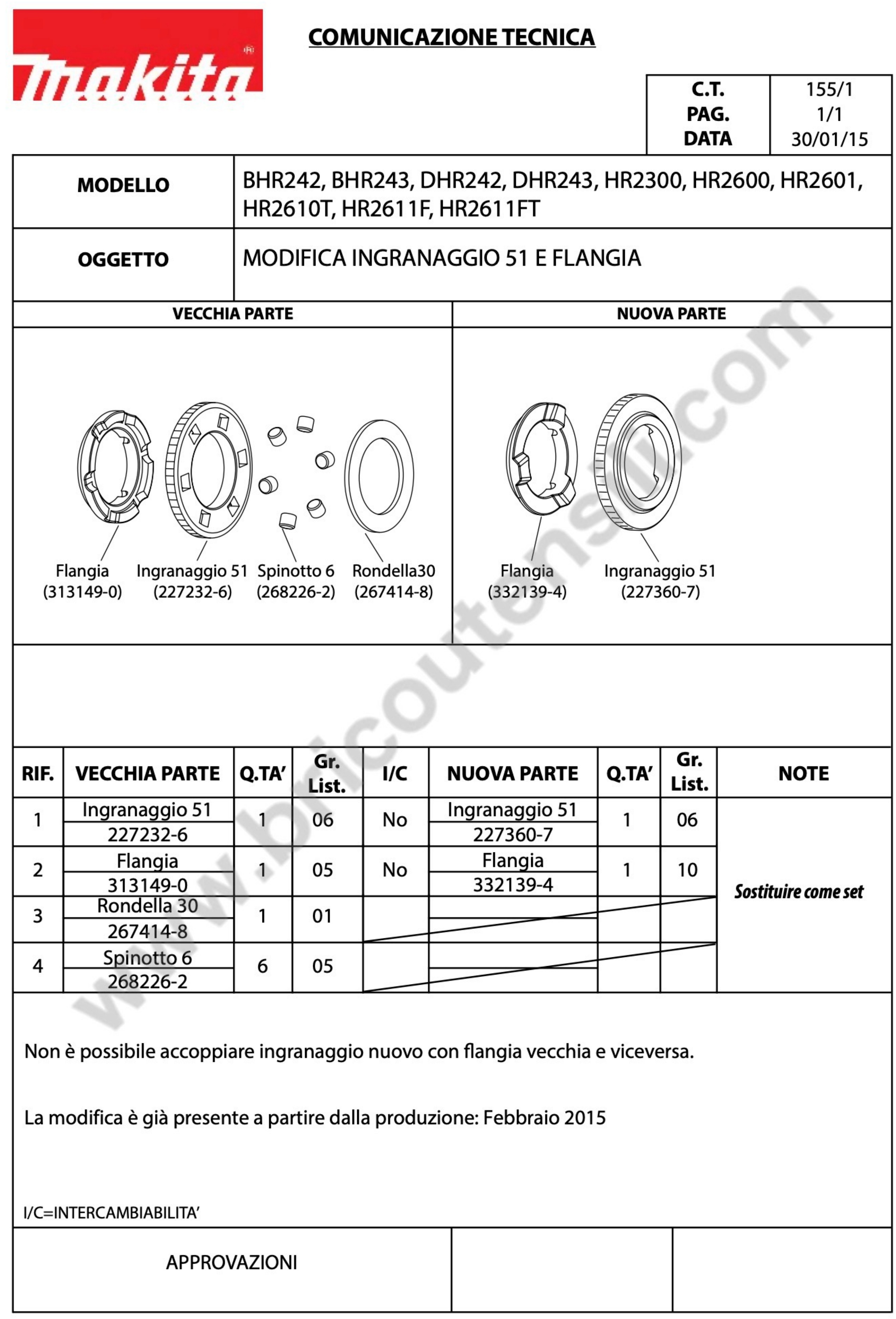

  • Makita Spare Parts for Rotary Hammer HR2600 - CT155-1
Makita

Makita Spare Parts for Rotary Hammer HR2600

SKU: Makita HR2600 Condition: New
€19.64
VAT included

Makita Spare Parts for Rotary Hammer HR2600

We have the original Spares MAKITA for Rotary Hammer SDS PLUS HR2600 the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Rotary Hammer SDS PLUS HR2600. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee
settings 87 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
86 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

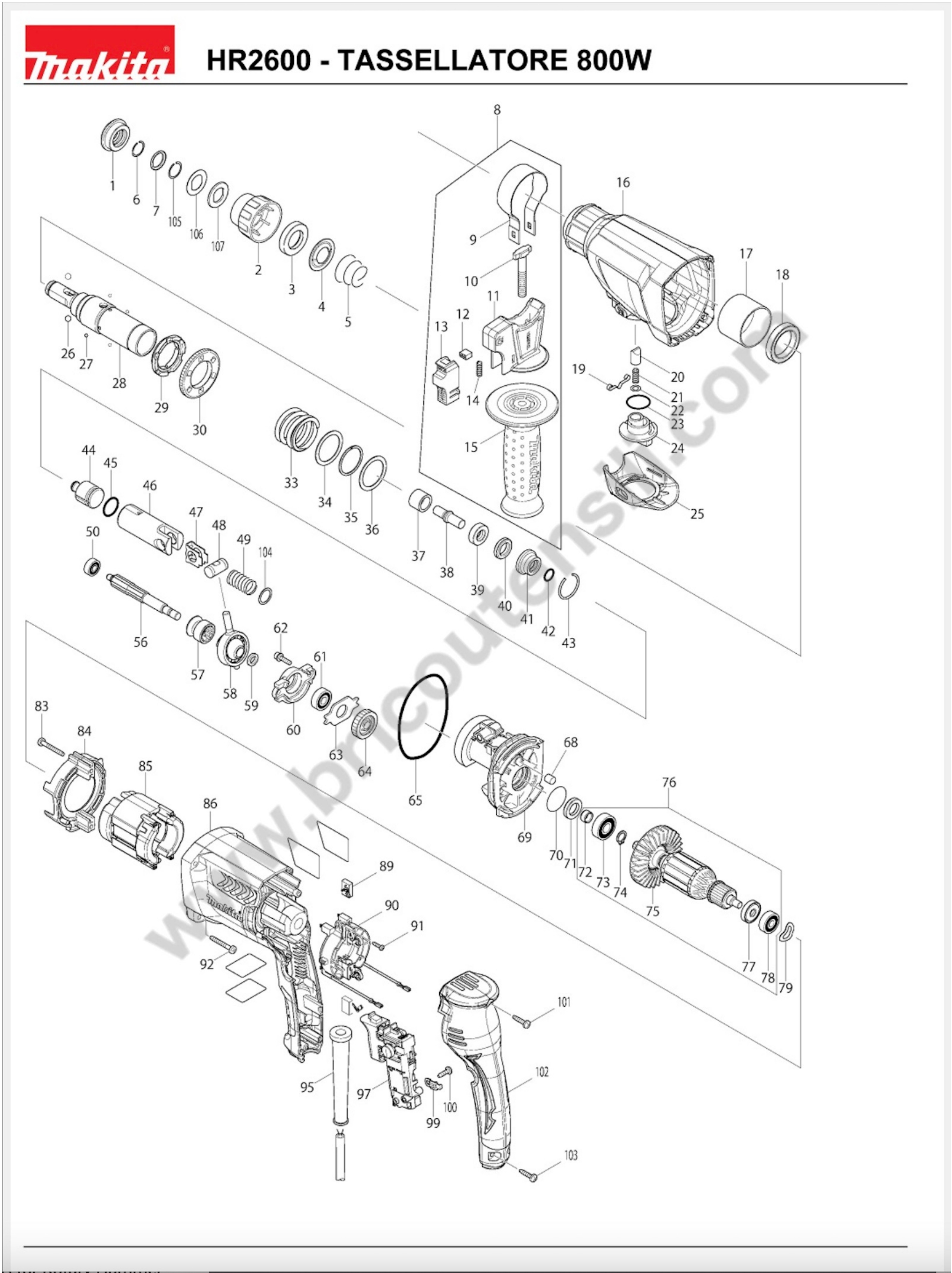

Esploso pagina 1
Esploso pagina 2
Esploso pagina 3
Esploso pagina 4
1 / 4
Pos. Item Price Buy
1
 photo_cameraImage coming soon 286288-8 CAP 35 HR2601 €1.38
2
 photo_cameraImage coming soon 451533-2 FRONT COVER HR2601 €2.95
3
 photo_cameraImage coming soon 325813-1 RING 21 HR2601 €1.90
4
 Guide Washer for Rotary Hammer Makita HR2601 346177-0 Guide Washer for Rotary Hammer Makita HR2601 €1.41
5
 Spring 21-29 for 20 mm Hammer Makita HR2020 233916-6 Spring 21-29 for 20 mm Hammer Makita HR2020 €3.18
6
 photo_cameraImage coming soon 233989-9 CIRCLIP 14 HR2601 €1.38
7
 photo_cameraImage coming soon 346221-3 WASHER 16 HR2601 €1.38
8
 photo_cameraImage coming soon 122878-2 GRIP ASSEMBLY HR2601 €17.13
9
 photo_cameraImage coming soon 346181-9 GRIP SPRING 50 HR2601 €2.88
10
 photo_cameraImage coming soon 266349-0 SCREW M8x50 HR2601 €2.43
11
 photo_cameraImage coming soon 451539-0 GRIP BASE HR2601 €1.92
12
 photo_cameraImage coming soon 313179-1 RACK HR2601 €2.66
13
 photo_cameraImage coming soon 451540-5 LOCK BUTTON HR2601 €2.95
14
 photo_cameraImage coming soon 233360-7 COMPRESSION SPRING 4 X MT952 €1.47
15
 photo_cameraImage coming soon 154935-8 GRIP 36 HR2601 €6.84
16
 photo_cameraImage coming soon 140270-0 GEAR BOX HR2300 €16.92
17
 photo_cameraImage coming soon 331890-3 SLEEVE HR2601 €1.62
18
 photo_cameraImage coming soon 211294-4 BALL BEARING 6806LLU HR2601 €14.19
19
 Leaf Spring for Rotary Hammer Makita HR2610T 232152-1 Leaf Spring for Rotary Hammer Makita HR2610T €3.08
20
 Push Corn for Rotary Hammer Makita HR2610T 325785-0 Push Corn for Rotary Hammer Makita HR2610T €1.35
21
 Compression Spring 5 for Rotary Hammer Makita DHR242RMJ 234147-0 Compression Spring 5 for Rotary Hammer Makita DHR242RMJ €1.46
22
 Thin Washer 6 for Rotary Hammer Makita HR2611F 253308-3 Thin Washer 6 for Rotary Hammer Makita HR2611F €1.22
23
 O-Ring 21 for Rotary Hammer Makita HR260 213381-5 O-Ring 21 for Rotary Hammer Makita HR260 €2.12
24
 photo_cameraImage coming soon 451531-6 LEVER B HR2601 €1.44
26
 Steel Ball 7 mm for Hammers Makita 216022-2 Steel Ball 7 mm for Hammers Makita €1.47
27
 photo_cameraImage coming soon 216019-1 STEEL BALL 3 X 6960DW €1.42
28
 photo_cameraImage coming soon 140264-5 TOOL HOLDER HR2300 - Read Communication CT165-1 €32.00
29
 Flange for Hammers Makita HR2600-HR2601 332139-4 Flange for Hammers Makita HR2600-HR2601 €7.40
30
 Gear 51 for Hammer Makita HR2600 227360-7 Gear 51 for Hammer Makita HR2600 €4.50
33
 photo_cameraImage coming soon 234148-8 COMPRESSION SPRING 31 HR2601 €2.07
34
 photo_cameraImage coming soon 267153-0 WASHER 30 HR2601 €1.47
35
 photo_cameraImage coming soon 257932-4 WASHER RETAINING 30 HR2601 €3.80
37
 photo_cameraImage coming soon 325782-6 SLEEVE 9A MT870 €3.98
38
 photo_cameraImage coming soon 325789-2 HINGED HR2601 €1.90
39
 photo_cameraImage coming soon 325794-9 O RING 10A MT870 €1.77
40
 photo_cameraImage coming soon 424267-0 CUSHION RING 12 €1.92
41
 photo_cameraImage coming soon 325798-1 O-RING CASE A MT870 €2.47
42
 photo_cameraImage coming soon 213073-6 9 RING HR2020 €2.21
43
 photo_cameraImage coming soon 233979-2 CIRCLIP 28 HR2601 €1.38
44
 Striker for Rotary Hammer Makita HR2600 325784-2 Striker for Rotary Hammer Makita HR2600 €4.57
45
 Gasket 17,5 X HR2210/20 for Rotary Hammer Makita HR2600-HR2601 213258-4 Gasket 17,5 X HR2210/20 for Rotary Hammer Makita HR2600-HR2601 €5.87
46
 Piston Cylinder for Rotary Hammer Makita DHR242RMJ 310345-1 Piston Cylinder for Rotary Hammer Makita DHR242RMJ €12.95
47
 photo_cameraImage coming soon 346036-8 PLATE PIN BHR261D €1.38
48
 photo_cameraImage coming soon 324215-8 PISTON PIN X X HR2020 €3.31
49
 photo_cameraImage coming soon 234098-7 COMPRESSION SPRING 14 BHR261D €1.36
50
 photo_cameraImage coming soon 210028-2 BEARING 606ZZ €2.08
56
 photo_cameraImage coming soon 227243-1 GEAR 10 HR2601 €10.04
57
 photo_cameraImage coming soon 331815-7 CAM CLUTCH B HR2601 €6.18
58
 photo_cameraImage coming soon 219020-5 SWASH BEARING 10 HR2601 €43.74
59
 photo_cameraImage coming soon 267234-0 FLAT WASHER 8 X HR2020 €1.36
60
 photo_cameraImage coming soon 310344-3 BEARING BOX HR2601 €6.84
61
 photo_cameraImage coming soon 211032-4 BEARING X 1902 €5.87
62
 photo_cameraImage coming soon 266437-3 SCREW M4x16 FRENA THREAD HR4001C €3.39
63
 photo_cameraImage coming soon 285735-6 RETAINING BEARING HR2601 €1.27
64
 photo_cameraImage coming soon 227719-8 GEAR 26 HR2601 €5.37
65
 photo_cameraImage coming soon 213728-3 RING 68 X BHR261D €2.04
68
 photo_cameraImage coming soon 443153-6 FELT HR2601 €1.38
69
 photo_cameraImage coming soon 141572-7 INNER HOUSING HR2300 €15.25
70
 photo_cameraImage coming soon 213407-3 SEAL 26 X 3901 €2.18
71
 photo_cameraImage coming soon 213133-4 SEAL OIL 12 HR2800 €8.52
72
 photo_cameraImage coming soon 262569-4 SOCKET 9 HR2601 €1.27
73
 photo_cameraImage coming soon 211097-6 BEARING 5604R €9.66
74
 photo_cameraImage coming soon 961006-2 RETAINING RING S10 €2.17
75
 photo_cameraImage coming soon 240121-8 FAN 65 HR2601 €1.90
76
 photo_cameraImage coming soon 515359-7 ARMATURE 240V €41.08
77
 photo_cameraImage coming soon 681652-2 INSULATING WASHER X JR180D €3.51
78
 photo_cameraImage coming soon 210023-2 9910/11 BEARING €7.16
79
 photo_cameraImage coming soon 267804-5 WAVY WASHER 15 HR2230 €1.25
83
 photo_cameraImage coming soon 266361-0 4 SCREW FOR 30 PER 9554NB €2.28
84
 photo_cameraImage coming soon 451527-7 BAFFLE HR2601 €2.95
85
 photo_cameraImage coming soon 626634-7 STATOR HR2601 €27.92
86
 photo_cameraImage coming soon 451536-6 MOTOR HOUSING HR2601 €13.14
89
 Carbon Brushes CB-325 for Angle Grinder Makita 9554NB 194074-2 Carbon Brushes CB-325 for Angle Grinder Makita 9554NB €4.19
90
 photo_cameraImage coming soon 638655-7 BRUSHES HOLDER HR2601 €15.86
91
 photo_cameraImage coming soon 266556-5 SCREW 3X12 HR26001 €2.95
95
 photo_cameraImage coming soon 682566-8 CORD GUARD X HR2450 €2.15
97
 photo_cameraImage coming soon 650625-6 SWITCH HR2601 €26.13
99
 photo_cameraImage coming soon 687682-1 CLAMP Cable tie X JS1000 €2.95
100
 photo_cameraImage coming soon 266385-6 SCREW 4x14 GA9020 €1.44
101
 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 €1.47
102
 photo_cameraImage coming soon 451528-5 COVER HANDLE HR2601 €6.08
104
 photo_cameraImage coming soon 267447-3 WASHER 14 HR2601 €1.36
105
 photo_cameraImage coming soon 233992-0 CIRCLIP 15 HR2601 €1.38
106
 photo_cameraImage coming soon 267437-6 WASHER 17 HR2601 €2.95
107
 photo_cameraImage coming soon 424364-2 WASHER RUBBER 16 HR2601 €2.95
999
 photo_cameraImage coming soon 195105-0 SERVICE KIT HR2300 €25.53

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Rotary Hammer HR2600

We have the original Spares MAKITA for Rotary Hammer SDS PLUS HR2600 the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Rotary Hammer SDS PLUS HR2600. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Rotary Hammer and the respective parts of the code.

Makita HR2600

Rotary Hammer Makita HR2600
# Part Num. Description
1 286288-8 CAP 35 HR2601
2 451533-2 FRONT COVER HR2601 - Read Communication CT165-1
3 325813-1 RING 21 HR2601
4 346177-0 GUIDE WASHER HR2601
5 233916-6 SPRING 21-29 X HR2020
6 233989-9 CIRCLIP 14 HR2601
7 346221-3 WASHER 16 HR2601 - Read Communication CT165-1
8 122878-2 GRIP ASSEMBLY HR2601
9 346181-9 GRIP SPRING 50 HR2601
10 266349-0 SCREW M8x50 HR2601
11 451539-0 GRIP BASE HR2601
12 313179-1 RACK HR2601
13 451540-5 LOCK BUTTON HR2601
14 233360-7 COMPRESSION SPRING 4 X MT952
15 154935-8 HANDLE 36 HR2601
16 140270-0 GEAR BOX HR2300
17 331890-3 SLEEVE HR2601
18 211294-4 BALL BEARING 6806LLU HR2601
19 232152-1 LEAF SPRING 6832
20 325785-0 PUSH CORN HR2601 - Read Communication CT162-1
21 234147-0 COMPRESSION SPRING 5 HR2601
22 253308-3 WASHER 6 43SB / 6510b-2 / 5016N
23 213381-5 O-RING 21 NEW HR3510 / 20
24 451531-6 LEVER B HR2601
25 451532-4 COVER LEVER HR2601
26 216022-2 STEEL BALL 7
27 216019-1 STEEL BALL 3 X 6960DW
28 140264-5 TOOL HOLDER HR2300 - Read Communication CT165-1
29 332139-4 FLANGE HR2601 - Read Communication CT155-1
30 227360-7 GEAR 51 HR2601 - Read Communication CT155-1
33 234148-8 COMPRESSION SPRING 31 HR261
34 267153-0 WASHER 30 HR2601
35 257932-4 SPIRO LOCK WASHER 30 HR2601
36 267153-0 WASHER 30 HR2601
37 325782-6 SLEEVE 9A MT870
38 325789-2 IMPACT BOLT A HR2601
39 325794-9 O RING 10A MT870
40 424267-0 CUSHION RING 12
41 325798-1 O-RING CASE A MT870
42 213073-6 O-RING 9 X HR2020
43 233979-2 CIRCLIP 28 HR2601
44 325784-2 STRIKER HR2601
45 213258-4 O-RING 17.5 X HR2210 / 20
46 310345-1 PISTON CYLINDER HR2601
47 346036-8 GUIDE PLATE BHR261D
48 324215-8 PISTON PIN HR2020
49 234098-7 COMPRESSION SPRING 14 BHR261D
50 210028-2 BALL BEARING 606ZZ
56 227243-1 GEAR 10 HR2601
57 331815-7 CAM CLUTCH B HR2601
58 219020-5 SWASH BEARING 10  HR2601
59 267234-0 FLAT WASHER 8 X HR2020
60 310344-3 BOX BEARING HR2601
61 211032-4 BEARING X 1902
62 266437-3 SCREW M4x16 HR4001C
63 285735-6 RETAINING BEARING HR2601
64 227719-8 GEAR 26 HR2601
65 213728-3 RING 68 X BHR261D
68 443153-6 FELT HR2601
69 141572-7 INNER HOUSING HR2300
70 213407-3 SEAL 26 X 3901
71 213133-4 SEAL OIL 12 X HR2800
72 262569-4 COMPASS 9 HR2601
73 211097-6 BEARING 5604R
74 961006-2 RETAINING RING S10
75 240121-8 FAN 65 HR2601
76 515359-7 ARMATURE 240V
77 681652-2 INSULATION WASHER X JR180D
78 210023-2 BEARING 9910/11
79 267804-5 WASHER 15 HR2230
83 266361-0 SCREW 4 X 30 X 9554NB
84 451527-7 BAFFLE HR2601
85 626634-7 FIELD ASS'Y HR2601
86 451536-6 MOTOR HOUSING HR2601
89 194074-2 CARBON BRUSH CB-325 X 9554NB
90 638655-7 CARBON BRUSHE HOLDER HR2601
91 266556-5 SCREW 3X12 HR26001
92 266361-0 SCREW 4 X 30 X 9554NB
95 682566-8 CORD GUARD X HR2450
97 650625-6 SWITCH HR2601
99 687682-1 CORD CLAMP X JS10
100 266385-6 4x14 SCREW FOR GA9020
101 266326-2 SCREW 4x18 X MT601
102 451528-5 COVER HANDLE HR2601
103 266326-2 SCREW 4x18 X MT601
104 267447-3 WASHER 14 HR2601
105 233992-0 CIRCLIP 15 HR2601
106 267437-6 WASHER 17 HR2601 - Read Communication CT165-1
107 424364-2 WASHER RUBBER 16 HR2601
999 195105-0 SERVICE KIT HR2300
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita HR2600
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Makita HR2600 Drawing

Makita HR2600 Drawing

Download (1.37MB)

You might also like

Carbon Brushes CB-325 for Angle Grinder Makita 9554NB
Makita SKU: 194074-2
Carbon Brushes CB-325 for Angle Grinder Makita 9554NB
Carbon Brushes CB-325 for Angle Grinder Makita 9554NB Original spare part Makita for Angle Grinder, Carbon Brushes for 9554HN - 9554HNG - 9554NB - 9555NB - 9555NB - 9557HN - 9558HN - 9564H Part for the following products: - ANGLE...
AVAILABLE €4.19
Details
Spring 21-29 for 20 mm Hammer Makita HR2020
Makita SKU: 233916-6
Spring 21-29 for 20 mm Hammer Makita HR2020
Spring 21-29 for 20 mm Hammer Makita HR2020 Original spare Makita, 21-29 Spring for 20 mm Hammerdrill SDS Plus 710 W Makita HR2020. Part for the following products: - Hammer SDS-PLUS 18MM 1830 - Hammer 24MM 750W 2450 - Hammer 720W...
AVAILABLE €3.18
Details
Gear 51 for Hammer Makita HR2600
Makita SKU: 227360-7
Gear 51 for Hammer Makita HR2600
Gear 51 for Hammer Makita HR2600 Genuine spare part Makita, Gear 51 for SDS PLUS Hammers, HR2600. Part For the Following Items: - Hammer Makita HR2600 - Code : 2227360-7 ex 227232-6
Last items in stock €4.50
Details
Flange for Hammers Makita HR2600-HR2601
Makita SKU: 332139-4
Flange for Hammers Makita HR2600-HR2601
Flange for Hammers Makita HR2600-HR2601 Genuine part Makita, Flange for Hammers SDS-Plus Makita HR2600 - HR2601. Replacement for the following items: - Hammer Makita HR2600 - Hammer Makita HR2601 - Code: 332139-4
Last items in stock €7.40
Details
Washer 16 for Rotary Hammers Makita HR2600-HR2601
Makita SKU: 346834-0
Washer 16 for Rotary Hammers Makita HR2600-HR2601
Washer 16 for Rotary Hammers Makita HR2600-HR2601 Genuine spare part Makita, Washer 16 for Rotary Hammers Makita HR2300 - HR2600 - HR2601 - HR2611F - HR2630 - HR2631F - BHR242RFE - DHR242RMJ Part for the following products: - HR2300 -...
AVAILABLE €1.32
Details
Piston Cylinder for Rotary Hammer Makita DHR242RMJ
Makita SKU: 310345-1
Piston Cylinder for Rotary Hammer Makita DHR242RMJ
Piston Cylinder for Rotary Hammer Makita DHR242RMJ Genuine spare part Makita, Piston Cylinder for SDS-Plus Cordless Rotary Hammers DHR242RMJ - DHR243RMJ - BHR242RFE - BHR243RFE. Parts for the following products: -  DHR242RMJ -...
Last items in stock €12.95
Details
Striker for Rotary Hammer Makita HR2600
Makita SKU: 325784-2
Striker for Rotary Hammer Makita HR2600
Striker for Rotary Hammer Makita HR2600 Genuine spare part Makita, Striker for SDS-PLUS Makita HR2300 - HR2600 - HR2601 - HR2610T Part For the Following Items: -  HR2300 - ROTARY HAMMER 720W 23mm -  HR2600 - ROTARY HAMMER 800W 26mm...
Last items in stock €4.57
Details
O-Ring 21 for Rotary Hammer Makita HR260
Makita SKU: 213381-5
O-Ring 21 for Rotary Hammer Makita HR260
O-Ring 21 for Rotary Hammer Makita HR2600 Genuine spare part Makita, O-Ring 21 for SDS-PLUS Makita HR2300 - HR2600 - HR2601 - HR2610T Part For the Following Items: -  HR2300 - ROTARY HAMMER...
on 7/10 Business Days Approx €2.12
Details
Guide Washer for Rotary Hammer Makita HR2601
Makita SKU: 346177-0
Guide Washer for Rotary Hammer Makita HR2601
Guide Washer for Rotary Hammer Makita HR2601 Genuine spare part Makita, Guide Washer for Rotary Hammers Makita HR2600 - HR2601 - HR2611F - HR2630 - HR2631F. Parts for the following products: -  HR2300 - ROTARY HAMMER SDS.+ 720W -...
on 7/10 Business Days Approx. €1.41
Details
Leaf Spring for Rotary Hammer Makita HR2610T
Makita SKU: 232152-1
Leaf Spring for Rotary Hammer Makita HR2610T
Change Lever A Leaf Spring for Rotary Hammer Makita HR2610T Original spare Makita, Change Lever A Leaf Spring for Rotary Hammers, 2610T - HR2611FT - HR2611F. Parts for the following products: - ...
Last items in stock €3.08
Details
Push Corn for Rotary Hammer Makita HR2610T
Makita SKU: 325785-0
Push Corn for Rotary Hammer Makita HR2610T
Push Corn for Rotary Hammer Makita HR2610T Original spare Makita, Change Lever A Push Corn for Rotary Hammers, 2610T - HR2611FT - HR2611F. Parts for the following products: -  HR2610T - ROTARY...
AVAILABLE €1.35
Details
Comments (0)
