Makita Spare Parts for Mixer DS4011

SKU: Makita DS4011
€17.21
VAT included

Makita Spare Parts for Mixer DS4011

Makita original spare parts for to replace broken parts for to fix Mixer DS4011.

Fix Your Mixer. All Spares are Ready For Quick shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

Makita Spare Parts for Mixer DS4011
  • Makita Spare Parts for Mixer DS4011
  • Makita Spare Parts for Mixers DS4011-UT1200/1400/1401/1600/120

Makita Spare Parts for Mixer DS4011

SKU: Makita DS4011 Condition: New
€17.21
VAT included

Makita Spare Parts for Mixer DS4011

Makita original spare parts for to replace broken parts for to fix Mixer DS4011.

Fix Your Mixer. All Spares are Ready For Quick shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

settings 40 spare parts

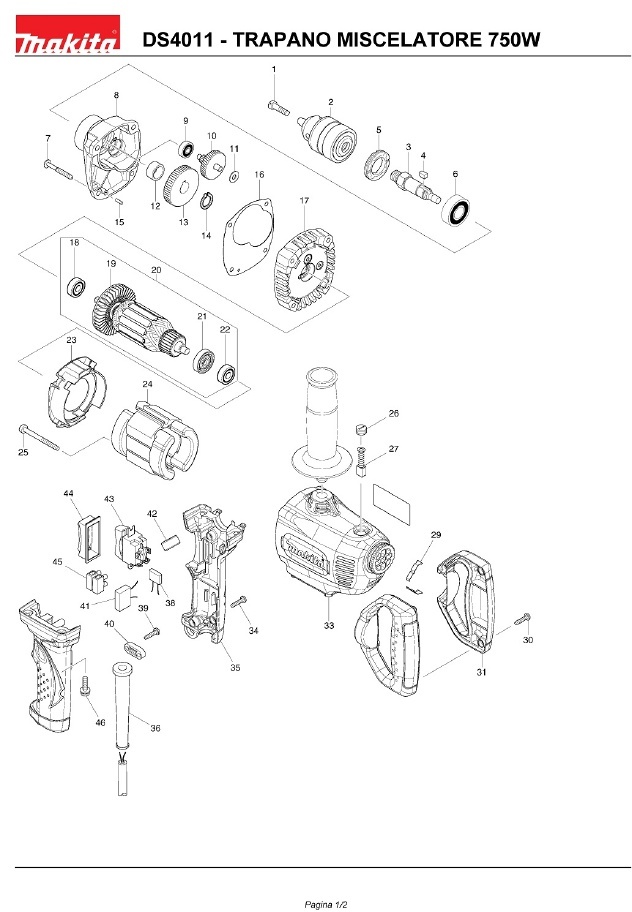

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

35 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 251441-5 SCREW M6 X 22 X DS4011 €1.58
2
photo_cameraImage coming soon 193822-6 CHUCK CREM. 13 €40.47
3
Chuck Spindle for Mixer Makita DS4011 325494-1 Chuck Spindle for Mixer Makita DS4011 €43.57
5
photo_cameraImage coming soon 285807-7 BEARING 22-36 €2.44
6
photo_cameraImage coming soon 211206-7 BEARING 6202V €9.76
7
photo_cameraImage coming soon 266211-9 SCREW 5 X 40 HK0500 €3.76
8
photo_cameraImage coming soon 140620-9 BOX ING. X DS4011 €13.49
9
photo_cameraImage coming soon 211016-2 BALL BEARING 626DD €7.03
10
Gear 7/41 for Mixer Makita DS4011 226028-2 Gear 7/41 for Mixer Makita DS4011 €19.02
12
photo_cameraImage coming soon 257018-4 RING 15 63 / NB / L / 6013BR €2.44
13
photo_cameraImage coming soon 221261-1 INGR.47 63L / 6013BR / DP4700 €19.78
14
Makita Power Tools Ext DIN471 Circlip-14 961054-1 Makita Power Tools Ext DIN471 Circlip-14 €1.37
16
photo_cameraImage coming soon 452066-0 SEAL X DS4011 €2.05
17
photo_cameraImage coming soon 140619-4 COVER BOX INGR.DS4011 €23.02
18
photo_cameraImage coming soon 211031-6 BEARING 608 €6.55
19
photo_cameraImage coming soon 241850-6 FAN X HR2400 €3.84
20
photo_cameraImage coming soon 513809-6 ARMATURE X DS4011 €61.92
21
photo_cameraImage coming soon 681659-8 INSULATING WASHER X KP0810K €2.88
24
photo_cameraImage coming soon 520075-8 Stator X DS4011 €36.56
25
photo_cameraImage coming soon 266095-5 SCREW 5x55 HR5001C €1.47
26
Brush Holder Cap for Impact Wrench MAKITA TW0350 643550-8 Brush Holder Cap for Impact Wrench MAKITA TW0350 €2.00
27
Carbon Brushes CB-411 for Trimmer Makita 3707-3708 FC 191940-4 Carbon Brushes CB-411 for Trimmer Makita 3707-3708 FC €8.17
30
Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
31
photo_cameraImage coming soon 188921-7 HANDLE POST. X DS4011 €5.30
33
photo_cameraImage coming soon 140621-7 HOUSING MOT. X DS4011 €26.65
35
photo_cameraImage coming soon 188920-9 HANDLE LOWER DS4011 €8.92
36
photo_cameraImage coming soon 682566-8 CORD GUARD X HR2450 €2.15
38
photo_cameraImage coming soon 646755-9 RESISTANCE X DA6301 €2.70
40
photo_cameraImage coming soon 687052-4 CLAMP cable clamp X 6408 €5.40
41
Capacitor for Angle Grinder Makita GA4530 645200-1 Capacitor for Angle Grinder Makita GA4530 €2.65
42
photo_cameraImage coming soon 688131-1 FILTER LINE X MT240 €1.40
43
photo_cameraImage coming soon 651564-3 SWITCH X DA6301 €36.56
44
photo_cameraImage coming soon 421297-2 SWITCH COVER DS4011 €3.01
45
photo_cameraImage coming soon 654531-7 CLAMP X 420S €5.13
46
photo_cameraImage coming soon 911233-1 HEAD SCREW M5X20 3600H €1.46

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Mixer DS4011.

Fix Your Mixer Mixer DS4011. All Spares are Ready For Quick shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Mixers and the respective parts of the code.
Makita DS4011

Mixer Makita DS4011
# Part Num. Description
1 251441-5 SCREW M6 X 22 X DS4011
2 193822-6 CHUCK CREM. 13
3 325494-1 SPINDLE X 6300L / 6013BR
4 254211-1 KEY 5
5 285807-7 BEARING 22-36
6 211206-7 BEARING 6202V
7 266211-9 SCREW 5 X 40 X HK0500
8 140620-9 BOX ING. X DS4011
9 211016-2 BALL BEARING 626DD
10 226028-2 GEAR 7-41 63L / 6013BR
11 261008-1 WASHER 6 63L / 6013BR
12 257018-4 RING 15 63 / NB / L / 6013BR
13 221261-1 INGR.47 63L / 6013BR / DP4700
14 961054-1 RETAINING RING S14
15 256180-2 PIN 3
16 452066-0 SEAL X DS4011
17 140619-4 COVER BOX INGR.DS4011
18 211031-6 BEARING 608LLB X 4304TT
19 241850-6 FAN X HR2400
20 513809-6 ARMATURE X DS4011
21 681659-8 INSULATOR X KP0810K10K
22 211031-6 BEARING 608LLB X 4304TT
23 452063-6 BAFFLE X DS4011
24 520075-8 STATORE X DS4011
25 266095-5 SCREW 5 X 55 HR5001C
26 643550-8 TAP. BRUSH
27 191940-4 CARBON BRUSHES CB-411 X EX 422/421
29 232260-8 SPRING PLATE X DS4011
30 265995-6 SCREW M4X18 X 6408 / 6221DW
31 188921-7 HANDLE POST. X DS4011
33 140621-7 HOUSING MOT. X DS4011
34 265995-6 SCREW M4X18 X 6408 / 6221DW
35 188920-9 HANDLE LOWER DS4011
36 682566-8 PASS CABLE X HR2450
38 646755-9 RESISTANCE X DA6301
39 265995-6 SCREW M4X18 X 6408 / 6221DW
40 687052-4 CLAMP Cable tie X 6408
41 645200-1 CAPACITOR
42 688131-1 FILTER LINE X MT240
43 651564-3 SWITCH X DA6301
44 421297-2 SWITCH COVER DS4011
45 654531-7 CLAMP X 420S
46 911233-1 HEAD SCREW M5X20 3600H
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita DS4011
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita DS4011

Diagram Makita DS4011

Download (265.44KB)
