Makita Spare Parts for Angle Grinder GA4541

SKU: Makita GA4541
€17.62
VAT included

Makita Spare Parts for Angle Grinder GA4541

Makita genuine spare parts or replacements parts for to repair Angle Grinder GA4541.
Makita Spare Parts for Angle Grinder GA4541
  • Makita Spare Parts for Angle Grinder GA4541
  • Makita Spare Parts for Angle Grinder GA4541

Makita Spare Parts for Angle Grinder GA4541

SKU: Makita GA4541 Condition: New
€17.62
VAT included

Makita Spare Parts for Angle Grinder GA4541

Makita genuine spare parts or replacements parts for to repair Angle Grinder GA4541.
settings 65 spare parts

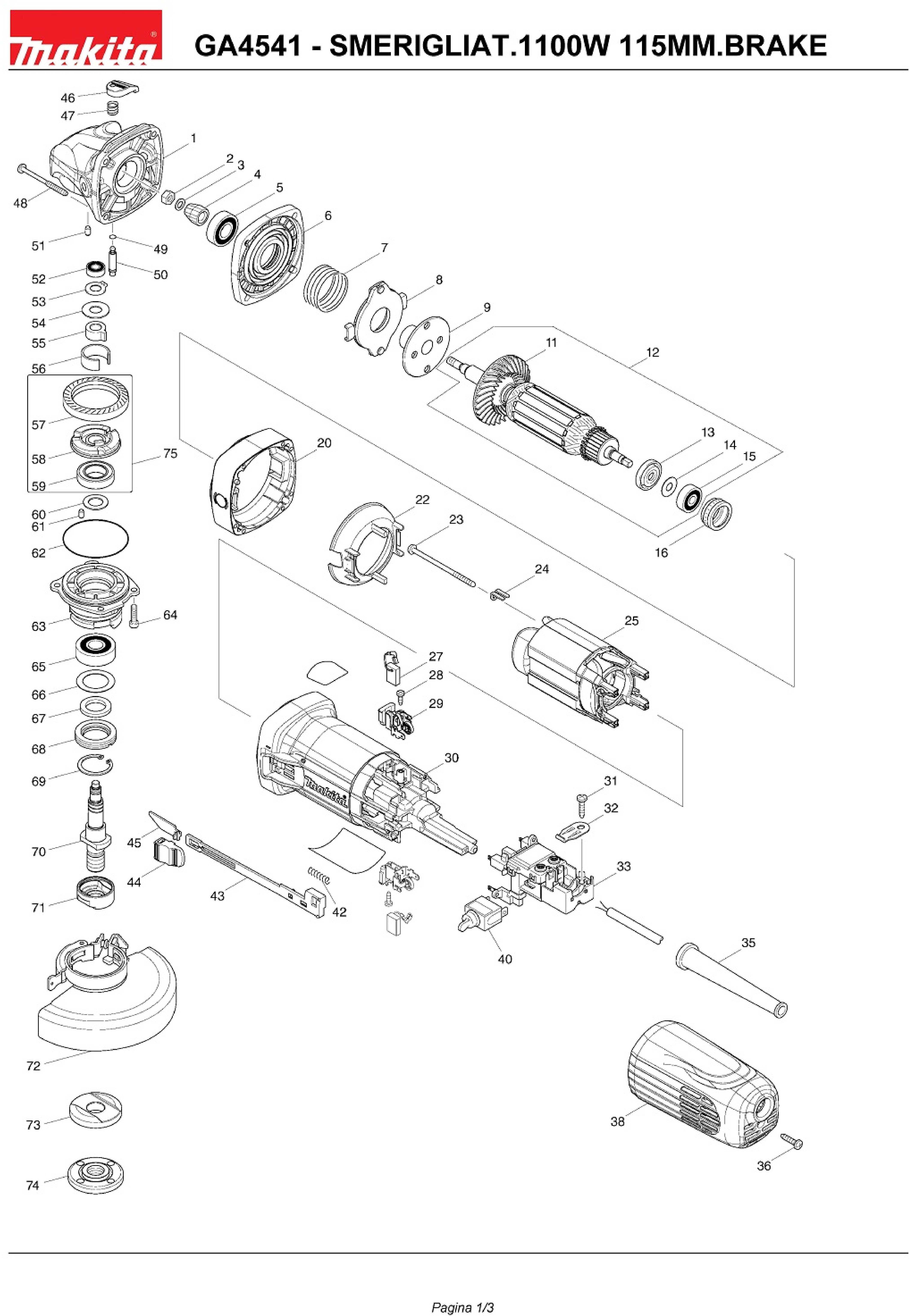

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

61 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 168705-9 GEAR BOX FOR GA €23.75
2
Armature Nut M6 for Angle Grinder Makita 9554NB 252186-8 Armature Nut M6 for Angle Grinder Makita 9554NB €1.47
3
photo_cameraImage coming soon 253077-6 WASHER P. 6 4300 / 01BV €1.40
4
photo_cameraImage coming soon 227591-8 GEAR FOR 10 GA €14.23
5
photo_cameraImage coming soon 211142-7 BEARING 6001LLB X GD0800C €11.39
6
photo_cameraImage coming soon 141981-0 COVER GEAR BOX €12.33
7
photo_cameraImage coming soon 234230-3 SPRING COMPRESSION 33 €1.66
8
photo_cameraImage coming soon 141515-9 BRAKE HOLDER €22.07
9
photo_cameraImage coming soon 326132-8 PLATE BRAKE €15.82
13
Armature Washer for Angle Grinders Makita 9561-9562CV 681656-4 Armature Washer for Angle Grinders Makita 9561-9562CV €1.50
14
photo_cameraImage coming soon 253823-7 ROND. FLAT 7 X JS1600 €2.40
15
photo_cameraImage coming soon 210027-4 BEARING 627DDW X 9561CV €6.30
16
photo_cameraImage coming soon 421738-8 RING LABYRINTH 22 X 9561CV €14.23
20
photo_cameraImage coming soon 455351-0 BARREL €3.31
22
photo_cameraImage coming soon 453375-0 BAFFLE B €1.66
23
photo_cameraImage coming soon 266258-3 SCREW 4 X 70 X 9564 €2.34
24
photo_cameraImage coming soon 344871-8 RETAINING X GD0800C €3.24
25
photo_cameraImage coming soon 626649-4 STATOR GA SERIES €52.31
27
Carbon Brushes CB-325 for Angle Grinder Makita 9554NB 194074-2 Carbon Brushes CB-325 for Angle Grinder Makita 9554NB €4.19
28
Tapping Screw Bind M3X10 for Percussion Drill Makita HP2030 266007-8 Tapping Screw Bind M3X10 for Percussion Drill Makita HP2030 €2.07
29
Carbon Brushes Holder for Grinders Makita GA4540-4541-5040-5041 643769-9 Carbon Brushes Holder for Grinders Makita GA4540-4541-5040-5041 €2.51
30
photo_cameraImage coming soon 453376-8 HOUSING MOTOR B €5.58
31
Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 €1.47
32
photo_cameraImage coming soon 687169-3 STRAIN RELIEF HP1620 €1.46
33
photo_cameraImage coming soon 638949-0 SWITCH HOLDER €12.65
35
Power Cord Protection for Angle Grinder Makita 115-125 mm 682559-5 Power Cord Protection for Angle Grinder Makita 115-125 mm €2.07
36
Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 €1.47
38
photo_cameraImage coming soon 453364-5 BACK COVER FOR GA €4.72
40
Switch Makita Makita ST115A-40 651418-4 Switch Makita Makita ST115A-40 €10.80
42
photo_cameraImage coming soon 233071-4 SPRING COMPRESSION 4 X 9541 €2.34
43
photo_cameraImage coming soon 453847-5 LEVER SWITCH €2.34
44
photo_cameraImage coming soon 453377-6 KEY SWITCH B €1.66
45
photo_cameraImage coming soon 346557-0 PLATE SWITCH €1.66
46
photo_cameraImage coming soon 453369-5 BUTTON €2.34
47
Pin Disc Block Sping for Angle Grinder Makita GA4530 234057-1 Pin Disc Block Sping for Angle Grinder Makita GA4530 €1.83
48
photo_cameraImage coming soon 266467-4 SCREW 4X50 FS2500K €1.66
49
photo_cameraImage coming soon 213032-0 RING 4 X GA4530 €2.34
50
photo_cameraImage coming soon 256535-1 PLUG FOR 6 GA €2.34
51
Rubber Pin for Hammer SDS-Max Makita HR4000C 263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C €1.47
52
photo_cameraImage coming soon 210026-6 BALL BEARING 696ZZ €4.06
53
photo_cameraImage coming soon 961005-4 RETAINING RING S9 €2.34
54
photo_cameraImage coming soon 253180-3 FLAT WASHER 10 6221DW €2.18
56
photo_cameraImage coming soon 346556-2 C PLATE FOR GA €4.72
57
photo_cameraImage coming soon 227592-6 GEAR FOR 38 GA €11.06
58
photo_cameraImage coming soon 313228-4 JUNCTION FOR GA €12.65
59
photo_cameraImage coming soon 210302-8 BEARING 6903ZZ FOR GA €11.06
60
Hard Washer 12 for Reciprocating Saw Makita JR3070CT 253744-3 Hard Washer 12 for Reciprocating Saw Makita JR3070CT €1.48
61
Rubber Pin for Hammer SDS-Max Makita HR4000C 263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C €1.47
62
photo_cameraImage coming soon 213641-5 RING FOR 51 GA €1.36
64
photo_cameraImage coming soon 265490-6 SCREW M4 X 16 X 9561CV €1.40
65
Bearing 6201DD NSK for Powertools Makita 211129-9 Bearing 6201DD NSK for Powertools Makita €8.41
66
photo_cameraImage coming soon 267279-8 FLAT WASHER 21 X HR2450FT €1.36
67
photo_cameraImage coming soon 443124-3 FELT RING 17 GD0600 €2.34
68
photo_cameraImage coming soon 285854-8 RETAINING BEARING 20-33 €2.34
69
Retaining Ring R26 for Angle Grinder and Milling Machines Makita 962105-3 Retaining Ring R26 for Angle Grinder and Milling Machines Makita €1.47
70
photo_cameraImage coming soon 326133-6 POST P99 €29.79
71
photo_cameraImage coming soon 310514-4 FLANGE POST €9.93
72
Disc Protection for Angle Grinder Makita GA4540 123144-0 Disc Protection for Angle Grinder Makita GA4540 €17.65
73
photo_cameraImage coming soon 224447-6 FLANGE INTERNAL 42B P99 €6.75
74
Upper Flange for Angle Grinders Makita 115-125 mm 224554-5 Upper Flange for Angle Grinders Makita 115-125 mm €8.23
75
photo_cameraImage coming soon 135555-7 JUNCTION CPL P99 €46.87

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Angle Grinder GA4541

Makita genuine spare parts or replacements parts for to repair Angle Grinder GA4541

In the following table, look for the model of the Angle Grinder and the respective parts of the code.
Makita GA4541

Angle Grinder GA4541
1 168705-9 GEAR BOX FOR GA
2 252186-8 NUT M6 X 9554NB
3 253077-6 WASHER P. 6 4300 / 01BV
4 227591-8 GEAR FOR 10 GA
5 211142-7 BEARING 6001LLB X GD0800C
6 141981-0 COVER GEAR BOX
7 234230-3 SPRING COMPRESSION 33
8 141515-9 BRAKE HOLDER
9 326132-8 PLATE BRAKE
11 240135-7 FAN 60B
12 515369-4 ARMATURE
13 681656-4 INSULATOR X GD0810C
14 253823-7 ROND. FLAT 7 X JS1600
15 210027-4 BEARING 627DDW X 9561CV
16 421738-8 RING LABYRINTH 22 X 9561CV
20 455351-0 SPACER
22 453375-0 DEFLETTORE B
23 266258-3 SCREW 4 X 70 X 9564
24 344871-8 RETAINING X GD0800C
25 626649-4 STATOR GA SERIES
27 194074-2 CARBON BRUSHES CB-325 X 9554NB
28 266007-8 SCREW M3 X10 HP2030
29 643769-9 BRUSHES HOLDER
30 453376-8 HOUSING MOTOR B
31 266326-2 SCREW 4x18 X MT601
32 687169-3 CLAMP HP1620
33 638949-0 SWITCH HOLDER
35 682559-5 SAVE CABLE X 6822
36 266326-2 SCREW 4x18 X MT601
38 453364-5 BACK COVER FOR GA
40 651418-4 SWITCH ST115A-40 X 9541
42 233071-4 SPRING COMPRESSION 4 X 9541
43 453847-5 LEVER SWITCH
44 453377-6 KEY SWITCH B
45 346557-0 PLATE SWITCH
46 453369-5 BUTTON
47 234057-1 SPRING COMPRRESSION 6 GA5021C
48 266467-4 SCREW 4X50 FS2500K
49 213032-0 RING 4 X GA4530
50 256535-1 PLUG FOR 6 GA
51 263002-9 RUBBER PLUG 4
52 210026-6 BALL BEARING 696ZZ
53 961005-4 RETAINING RING S9
54 253180-3 FLAT WASHER 10 X 6221DW
55 310577-0 JOINT
56 346556-2 C PLATE FOR GA
57 227592-6 GEAR FOR 38 GA
58 313228-4 JUNCTION FOR GA
59 210302-8 BEARING 6903ZZ FOR GA
60 253744-3 ROND.PIANA 12 24B / 12N / 14
61 263002-9 RUBBER PLUG 4
62 213641-5 RING FOR 51 GA
63 318839-0 BOX BEARING B
64 265490-6 SCREW M4 X 16 X 9561CV
65 211129-9 BALL BEARING NSK 6201DD
66 267279-8 FLAT WASHER 21 X HR2450FT
67 443124-3 FELT RING 17 GD0600
68 285854-8 RETAINING BEARING 20-33
69 962105-3 RETAINING RING R26
70 326133-6 POST
71 310514-4 FLANGE POST
72 123144-0 WHEEEL GUARD GA SERIES
73 224447-6 FLANGE INTERNAL 42B P99
74 224554-5 EXTERNAL FLANGE 14-45 X 9541 P08
75 135555-7 JUNCTION CPL P99

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
