Makita

Makita Spare Parts for Angle Grinder 9554HNG

SKU: 9554HNG
€38.65
VAT included

Makita Spare Parts for Angle Grinder 9554HNG

MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Angle Grinder 9554HNG.
Makita Spare Parts for Angle Grinder 9554HNG
  • Makita Spare Parts for Angle Grinder 9554HNG
  • Makita Spare Parts for Angle Grinder 9554HNG
Makita

Makita Spare Parts for Angle Grinder 9554HNG

SKU: 9554HNG Condition: New
€38.65
VAT included

Makita Spare Parts for Angle Grinder 9554HNG

MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Angle Grinder 9554HNG.
settings 50 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
50 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

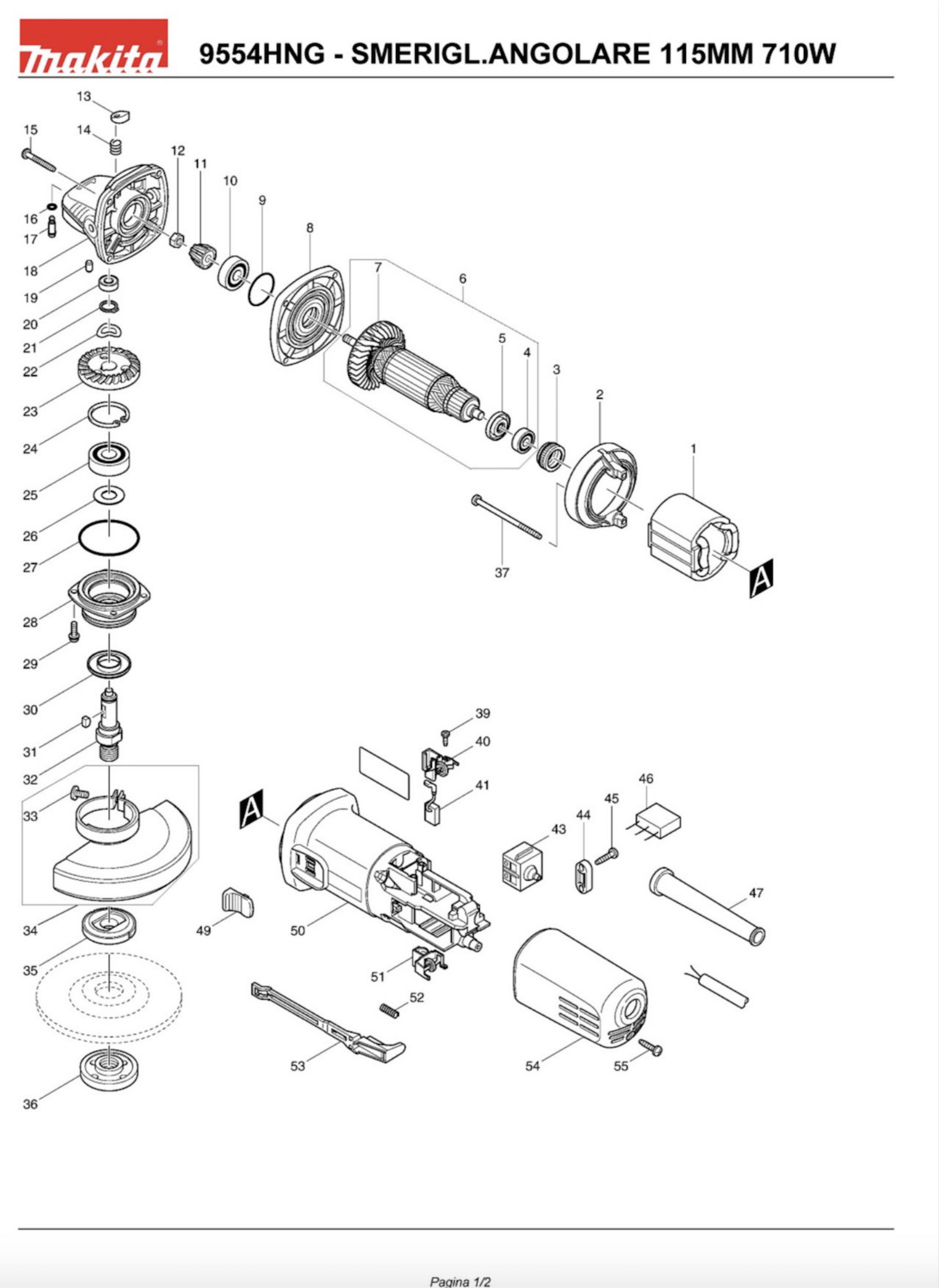

Esploso pagina 1
Pos. Item Price Buy
1
 Stator for Angle Grinder Makita 9554-9555 621713-6 Stator for Angle Grinder Makita 9554-9555 €19.59
2
 photo_cameraImage coming soon 418795-5 DEFLECTOR FOR 9554NB €2.39
3
 Ball Bearing Protection for Angle Grinder Makita GA4530 421868-5 Ball Bearing Protection for Angle Grinder Makita GA4530 €2.00
4
 Ball Bearing 607 LLB for Angle Grinder Makita 9554NB 210034-7 Ball Bearing 607 LLB for Angle Grinder Makita 9554NB €3.34
5
 Armature Washer for Angle Grinder Makita GA4530 681636-0 Armature Washer for Angle Grinder Makita GA4530 €2.34
6
 Armature for Angle Grinder Makita 9553-9554-9555 515619-7 Armature for Angle Grinder Makita 9553-9554-9555 €31.12
7
 photo_cameraImage coming soon 240076-7 FAN FOR 56 9554NB €2.27
8
 photo_cameraImage coming soon 317821-6 COVER SCAT.INGR. FOR 9554NB €8.12
9
 O-Ring 26 for Powertools Makita 213445-5 O-Ring 26 for Powertools Makita €1.95
10
 photo_cameraImage coming soon 210042-8 BEARING FOR 629LLB GD0600 €5.93
11
 Makita 9554NB Bevel Gear 10 227541-3 Makita 9554NB Bevel Gear 10 €13.43
12
 Armature Nut M6 for Angle Grinder Makita 9554NB 252186-8 Armature Nut M6 for Angle Grinder Makita 9554NB €1.47
13
 Button Pin Disc Block for Angle Grinder Makita 9554NB 417771-6 Button Pin Disc Block for Angle Grinder Makita 9554NB €3.18
14
 Pin Disc Block Spring for Angle Grinder Makita 9554NB 233376-2 Pin Disc Block Spring for Angle Grinder Makita 9554NB €2.51
15
 photo_cameraImage coming soon 266050-7 SCREW 4X30 PT €3.76
16
 OR Ring mm 5 for Pin Disc Block for Angle Grinder Makita 9554NB 213960-9 OR Ring mm 5 for Pin Disc Block for Angle Grinder Makita 9554NB €1.43
17
 photo_cameraImage coming soon 256546-6 DISC LOCK PIN €2.17
18
 photo_cameraImage coming soon 318941-9 GEAR BOX €11.07
19
 Rubber Pin for Hammer SDS-Max Makita HR4000C 263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C €1.47
20
 Bearing 696ZZ FOR Angle Grinder Makita GA4530 210033-9 Bearing 696ZZ FOR Angle Grinder Makita GA4530 €3.35
21
 Retaining Ring S12 for Power Tools Makita 961052-5 Retaining Ring S12 for Power Tools Makita €1.40
22
 Wave Washer 12 for Angle Grinders Makita 9554HN/NB 267794-2 Wave Washer 12 for Angle Grinders Makita 9554HN/NB €1.32
23
 Makita 9554NB Spiral Bevel Gear 37 227542-1 Makita 9554NB Spiral Bevel Gear 37 €8.38
24
 Retaining Ring R32 for Powertools Makita 962151-6 Retaining Ring R32 for Powertools Makita €1.43
25
 Bearing 6201DD NSK for Powertools Makita 211129-9 Bearing 6201DD NSK for Powertools Makita €8.41
26
 photo_cameraImage coming soon 267238-2 WASHER 12 MT952 €2.39
27
 photo_cameraImage coming soon 213622-9 RING FOR 9554NB 45 €2.40
28
 photo_cameraImage coming soon 318331-6 BEARING CASE 9554NB €5.69
29
 photo_cameraImage coming soon 265099-4 SCREW M4x14 FOR 9554NB €1.43
30
 photo_cameraImage coming soon 345464-4 RING FOR DUST 9554NB €1.40
31
 Woodruf Key mm 4x7,95x4,97 for Angle Grinder Makita 9554NB 254011-9 Woodruf Key mm 4x7,95x4,97 for Angle Grinder Makita 9554NB €1.38
32
 photo_cameraImage coming soon 324489-1 SPINDLE 9554NB €6.49
33
 photo_cameraImage coming soon 265180-1 SCREW M5x16 €1.40
34
 Disc Protection for Angle Grinder Makita 9554NB 123098-1 Disc Protection for Angle Grinder Makita 9554NB €16.64
35
 Inner Flange for Angle Grinder Makita 115-125 mm 224415-9 Inner Flange for Angle Grinder Makita 115-125 mm €8.23
36
 Upper Flange for Angle Grinders Makita 115-125 mm 224554-5 Upper Flange for Angle Grinders Makita 115-125 mm €8.23
37
 photo_cameraImage coming soon 266325-4 SCREW M 4 TO 70 PER MT952 €1.36
39
 Tapping Screw Bind M3X10 for Percussion Drill Makita HP2030 266007-8 Tapping Screw Bind M3X10 for Percussion Drill Makita HP2030 €2.07
40
 photo_cameraImage coming soon 643760-7 BRUSH HOLDER FOR BO6040 €6.31
41
 Carbon Brushes CB-325 for Angle Grinder Makita 9554NB 194074-2 Carbon Brushes CB-325 for Angle Grinder Makita 9554NB €4.19
43
 Switch for Angle Grinder Makita 710 W 9554HN/NB 651947-7 Switch for Angle Grinder Makita 710 W 9554HN/NB €14.96
44
 photo_cameraImage coming soon 687124-5 CORD CLAMP MT953 €1.47
45
 Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
46
 photo_cameraImage coming soon 638740-6 CAPACITOR €3.13
47
 Power Cord Protection for Angle Grinder Makita 115-125 mm 682559-5 Power Cord Protection for Angle Grinder Makita 115-125 mm €2.07
49
 Switch Lever Button for Angle Grinder Makita 9554-9555 419566-3 Switch Lever Button for Angle Grinder Makita 9554-9555 €2.51
50
 photo_cameraImage coming soon 451126-5 MOTOR HOUSING FOR 9554NB €18.44
52
 Lever Switch Spring for Angle Grinder Makita 9554NB 233121-5 Lever Switch Spring for Angle Grinder Makita 9554NB €1.30
53
 Switch Lever for Angle Grinder Makita 9554-9555 418796-3 Switch Lever for Angle Grinder Makita 9554-9555 €6.55
54
 photo_cameraImage coming soon 418726-4 BACK COVER FOR 9554NB €4.47

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Angle Grinder 9554HNG

MAKITA Original spare parts

 at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Angle Grinder 9554HNG.

In the following table, look for the model of the Angle Grinder and the respective parts of the code.


Angle Grinder 9554HNG
1 621713-6 STATOR X 9554NB
2 418795-5 BAFFLEX 9554NB
3 421868-5 RUBBER RING X 9554NB
4 210034-7 BEARING 607LLB X 9554NB
5 681636-0 INSULATOR
6 515619-7 ARMATURE X 9554NB
7 240076-7 FAN 56 X 9554NB
8 317821-6 COVER SCAT.INGR. X 9554NB
9 213445-5 RING 26 X 9554NB
10 210042-8 BEARING FOR 629LLB GD0600
11 227541-3 GEAR 10
12 252186-8 NUT M6 X 9554NB
13 417771-6 BUTTON X 9554NB
14 233376-2 SPRING COMP. 8 X MT952
15 266050-7 SCREW 4X30 PT
16 213960-9 RING 5 X 9554NB
17 256546-6 DISC LOCK PIN
18 318941-9 GEAR BOX
19 263002-9 RUBBER PLUG 4
20 210033-9 BEARING 696ZZ X 2107FK
21 961052-5 RETAINING RING S12
22 267794-2 WAVY WASHER 12 X 9554NB
23 227542-1 GEAR 37
24 962151-6 RETAINING RING R32
25 211129-9 BALL BEARING NSK 6201DD
26 267238-2 WASHER 12 X 9554NB
27 213622-9 RING 45 X 9554NB
28 318331-6 BEARING BOX X 9554NB
29 265099-4 SCREW M4 X 14 X 9554NB
30 345464-4 RING DUST X 9554NB
31 254011-9 KEY 4
32 324489-1 POST X 9554NB
33 265180-1 SCREW M5X16
34 123098-1 WHEEL GUARD 115AK
35 224415-9 FLANGE INTERNAL 42 GA95010
36 224554-5 EXTERNAL FLANGE 14-45 X 9541
37 266325-4 SCREW M 4 X 70 X MT952
39 266007-8 SCREW M3 X10 HP2030
40 643760-7 BRUSH HOLDER X BO6040
41 194074-2 CARBON BRUSHES CB-325 X 9554NB
43 651947-7 SWITCH-9527PB 9528PB
44 687124-5 CLAMP ties MT953
45 265995-6 SCREW M4X18 X 6408 / 6221DW
46 638740-6 CAPACITOR
47 682559-5 CORD ARMOR X 6822
49 419566-3 BUTTON SWITCH 9554NB
50 451126-5 HOUSING MOTOR X 9554NB
51 643760-7 BRUSH X BO6040
52 233121-5 SPRING COMPRESSION 4 X 9554NB
53 418796-3 LEVER SWITCH X 9554NB
54 418726-4 BACK COVER X 9554NB
55 265995-6 SCREW M4X18 X 6408 / 6221DW

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
