Makita Spare Parts for Angle Grinder GA4530

Name: Makita Spare Parts for Angle Grinder GA4530
Brand: Makita
SKU: Makita GA4530
Availability: InStock

SKU: Makita GA4530

€17.62

VAT included

Makita Spare Parts for Angle Grinder GA4530

Makita Genuine spare parts or replacement parts for to repair Angle Grinder GA4530.

Fix Your Angle Grinder GA4530. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

52 spare parts

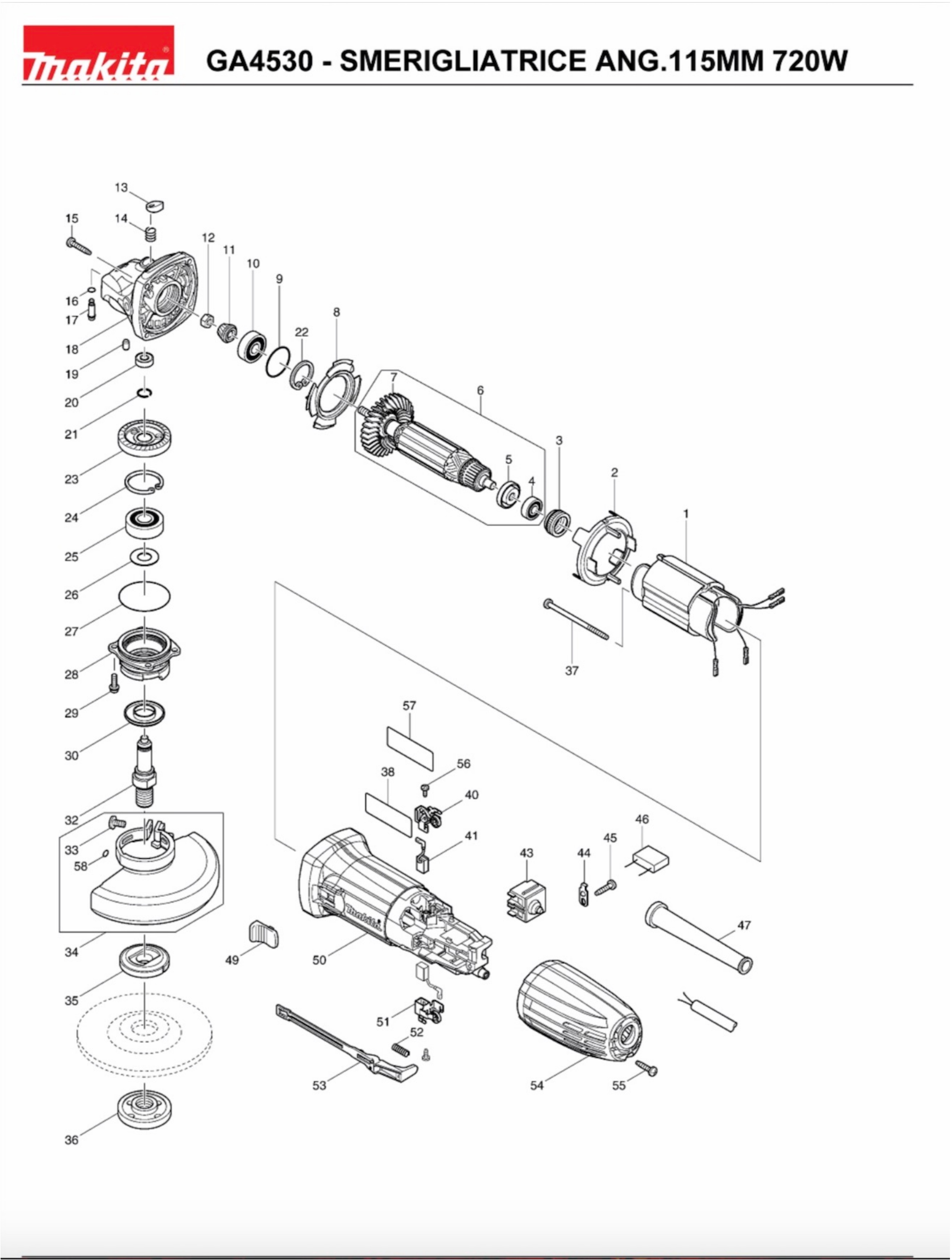

Page 1 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
1		635113-4 Stator for Angle Grinder Makita GA4530-4534	€33.48
2		450796-7 Baffle for Angle Grinder Makita GA4530	€1.50
3		421868-5 Ball Bearing Protection for Angle Grinder Makita GA4530	€2.00
4		210034-7 Ball Bearing 607 LLB for Angle Grinder Makita 9554NB	€3.34
5		681636-0 Armature Washer for Angle Grinder Makita GA4530	€2.34
6		517649-4 Armature for Angle Grinder Makita GA4530-4534-5034	€28.43
7	Image coming soon	240107-2 FAN FOR 56 GA4530	€2.34
8		413126-3 Conveyor for Angle Grinder Makita GA4530	€1.50
9		213445-5 O-Ring 26 for Powertools Makita	€1.95
10		211092-6 Bearing 629DD FOR Angle Grinder Makita GA4530	€9.01
11		227545-5 Pinion Gear for Makita Angle Grinder GA4530	€6.55
12		252186-8 Armature Nut M6 for Angle Grinder Makita 9554NB	€1.47
13		417771-6 Button Pin Disc Block for Angle Grinder Makita 9554NB	€3.18
14		234057-1 Pin Disc Block Sping for Angle Grinder Makita GA4530	€1.83
15	Image coming soon	266324-6 SCREW M 4 X 22 X MT601	€2.95
16	Image coming soon	213032-0 RING 4 X GA4530	€2.34
17		256510-7 Pin Disc Block for Angle Grinder Makita GA4530	€2.51
18		318335-8 Gears Box for Angle Grinder Makita GA4530	€14.96
19		263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C	€1.47
20		210033-9 Bearing 696ZZ FOR Angle Grinder Makita GA4530	€3.35
21		233950-6 Ring 11 for Angle Grinder Makita GA4530	€1.43
22		962105-3 Retaining Ring R26 for Angle Grinder and Milling Machines Makita	€1.47
23		227546-3 Crown Gear for Makita Angle Grinder GA4530	€11.60
24		962151-6 Retaining Ring R32 for Powertools Makita	€1.43
25		211129-9 Bearing 6201DD NSK for Powertools Makita	€8.41
26		267113-2 Flat Washer 12 for Rotary Hammer Makita HR4000C	€2.51
27		213561-3 O-Ring 42 for Angle Grinder and Milling Machines Makita	€1.30
28		318336-6 Bearings Box for Angle Grinder Makita GA4530	€11.60
29	Image coming soon	265099-4 SCREW M4x14 FOR 9554NB	€1.43
30	Image coming soon	345464-4 RING FOR DUST 9554NB	€1.40
32		324954-0 Spindle for Angle Grinder Makita GA4530	€8.23
33	Image coming soon	265180-1 SCREW M5x16	€1.40
34		123098-1 Disc Protection for Angle Grinder Makita 9554NB	€16.64
35		224415-9 Inner Flange for Angle Grinder Makita 115-125 mm	€8.23
36		224554-5 Upper Flange for Angle Grinders Makita 115-125 mm	€8.23
37	Image coming soon	266325-4 SCREW M 4 TO 70 PER MT952	€1.36
38	Image coming soon	866050-3 LABEL GA4530	€2.34
40		643839-4 Carbon Brushe Holder for Angle Grinders Makita GA4530-4534-5034	€3.18
41		194722-3 Carbon Brushes for Angle Grinders Makita GA4530-4534-5034	€5.37
43		650560-8 Switch for Angle Grinders Makita GA4530-34-5034	€8.23
44		687681-3 Strain Relief for Angle Grinder Makita GA4530	€2.51
45		266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530	€1.47
46		645200-1 Capacitor for Angle Grinder Makita GA4530	€2.65
47		682559-5 Power Cord Protection for Angle Grinder Makita 115-125 mm	€2.07
49		419566-3 Switch Lever Button for Angle Grinder Makita 9554-9555	€2.51
50		451128-1 Motor Housing for Angle Grinder Makita GA4530	€14.96
52		233121-5 Lever Switch Spring for Angle Grinder Makita 9554NB	€1.30
53		450797-5 Switch Lever for Angle Grinder Makita GA4530	€6.55
54		450794-1 Rear Cover for Angle Grinder Makita GA4530	€6.55
56	Image coming soon	266492-5 SCREW M4X25-9527PB 9528PB	€2.47
57	Image coming soon	819327-5 CLEAR LABEL GA4530	€2.34
58	Image coming soon	213009-5 RING 4	€1.40

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Angle Grinder GA4530

Makita Genuine spare parts or replacement parts for to repair Angle Grinder GA4530.

Fix Your Angle Grinder GA4530. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Angle Grinder and the respective parts of the code.

Angle Grinder GA4530
#	Part Num.	Description
1	635113-4	STATOR FOR GA4530
2	450796-7	DEFLECTOR FOR GA4530
3	421868-5	RUBBER RING X 9554NB
4	210034-7	BALL BEARING 607LLB X 9554NB
5	681636-0	INSULATOR
6	517649-4	ARMATURE FOR GA4530
7	240107-2	FAN FOR 56 GA4530
8	413126-3	CONVEYOR FOR GA4530
9	213445-5	RING 26 X 9554NB
10	211092-6	BALL BEARING 629DD
11	227545-5	SPIRAL BEVEL GEAR 10 GA4530
12	252186-8	NUT M6 X 9554NB
13	417771-6	BUTTON X 9554NB
14	234057-1	COMPRRESSIONE SPRING 6 GA5021C
15	266324-6	SCREW M 4 X 22 X MT601
16	213032-0	RING 4 X GA4530
17	256510-7	4 PIN FOR GA4530
18	318335-8	GEAR HOUSING GA4530
19	263002-9	RUBBER PLUG 4
20	210033-9	BALL BEARING 696ZZ X 2107FK
21	233950-6	RING 11 X GA5010
22	962105-3	RETAINING RING R26
23	227546-3	BEVEL GEAR 37 GA4530
24	962151-6	RETAINING RING R32
25	211129-9	BALL BEARING NSK 6201DD
26	267113-2	FLAT WASHER 12 X 8412DWH
27	213561-3	RING FOR 42 GA4530
28	318336-6	BOX BEARING GA4530
29	265099-4	SCREW M4 X 14 X 9554NB
30	345464-4	RING DUST X 9554NB
32	324954-0	POST FOR GA4530
33	265180-1	SCREW M5X16
34	123098-1	DISC GUARD 115AK
35	224415-9	FLANGE INTERNAL 42 GA95010
36	224554-5	EXTERNAL FLANGE 14-45 X 9541
37	266325-4	SCREW M 4 X 70 X MT952
38	866050-3	LABEL GA4530
40	643839-4	BRUSH HOLDER X GA4530
41	194722-3	CARBON BRUSH CB 459 X GA4530
43	650560-8	SWITCH DPX-2110-R 9554NB
44	687681-3	CLAMP ties GA4530
45	266326-2	SCREW 4x18 X MT601
46	645200-1	CAPACITOR
47	682559-5	CABLE ARMOR X 6822
49	419566-3	BUTTON SWITCH 9554NB
50	451128-1	MOTOR HOUSING GA4530
51	643839-4	BRUSH HOLDER GA4530
52	233121-5	SPRING COMPRESSION 4 X 9554NB
53	450797-5	SWITCH LEVER GA4530
54	450794-1	BACK COVER GA4530
55	266326-2	SCREW 4x18 X MT601
56	266492-5	SCREW M4X25-9527PB 9528PB
57	819327-5	CLEAR LABEL GA4530
58	213009-5	RING 4

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference Makita GA4530

Available 12 Items

Data sheet

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]

Specific References

Condition New

Download

Diagram Makita GA4530

Download (249.63KB)
