Makita

Makita Spare Parts for Band Saw LB1200F

SKU: Makita LB1200F
€467.66
VAT included

Makita Spare Parts for Band Saw LB1200F

Makita Original spare parts at attractive prices never seen on the web, we are a licensed service center with after-sales service able to quickly solve the maintenance or repair any issues for Band Saw LB1200F.
Makita Spare Parts for Band Saw LB1200F
  • Makita Spare Parts for Band Saw LB1200F
  • Makita Spare Parts for Band Saw LB1200F - Drawing
  • Makita Spare Parts for Band Saw LB1200F - Drawing 1
  • Makita Spare Parts for Band Saw LB1200F - Bandsaw Blade
  • Makita Spare Parts for Band Saw LB1200F - Sanding belt
  • Makita Spare Parts for Band Saw LB1200F - Rip Fence Assy
  • Makita Spare Parts for Band Saw LB1200F - Extension Table Set
Makita

Makita Spare Parts for Band Saw LB1200F

SKU: Makita LB1200F Condition: New
€467.66
VAT included

Makita Spare Parts for Band Saw LB1200F

Makita Original spare parts at attractive prices never seen on the web, we are a licensed service center with after-sales service able to quickly solve the maintenance or repair any issues for Band Saw LB1200F.
settings 213 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
213 spare parts

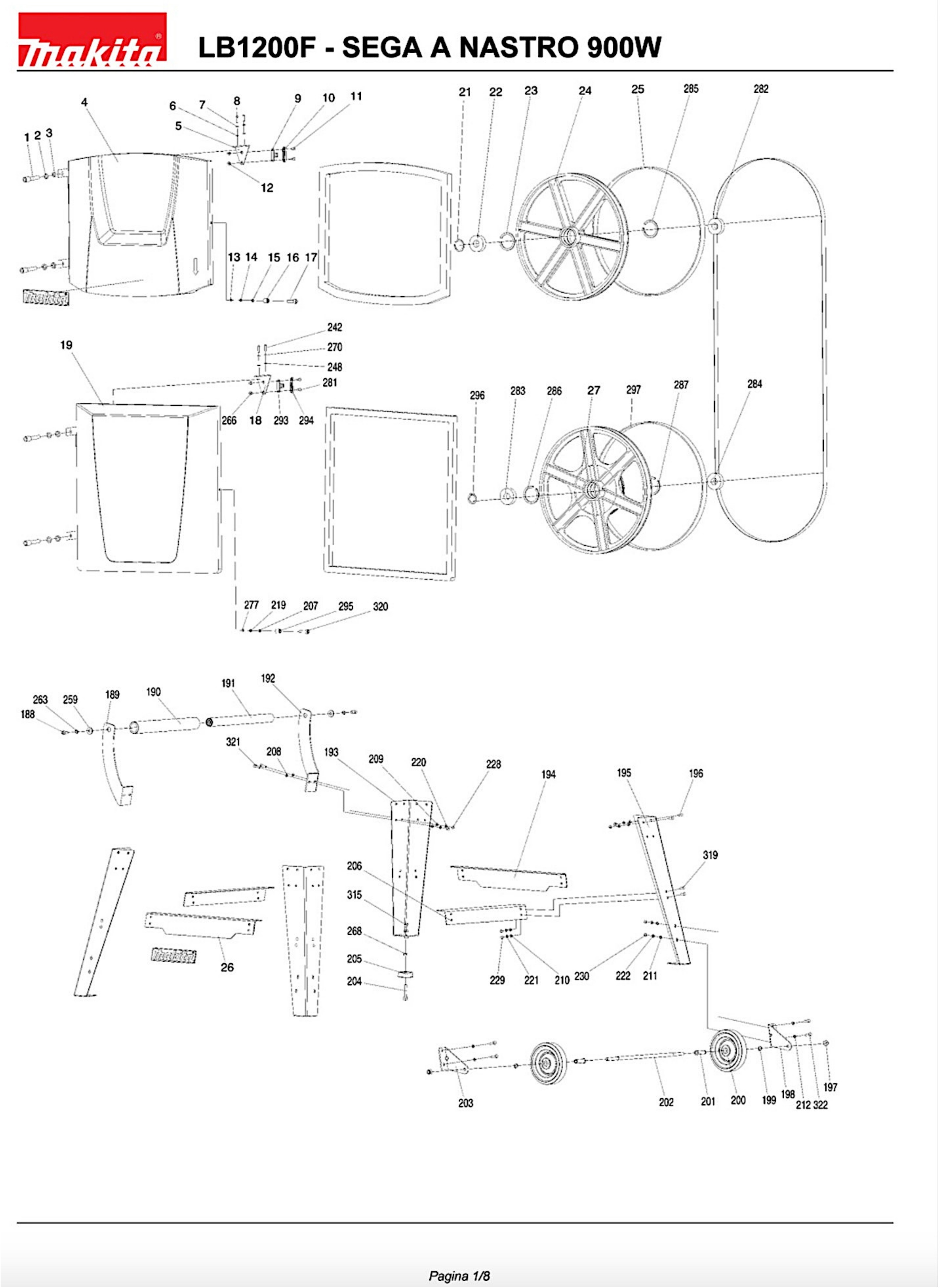

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon JM21000018 SCREW M5X12 LB1200F €2.27
2
 photo_cameraImage coming soon JM21000019 SPRING WASHER 5 LB1200F €2.27
3
 photo_cameraImage coming soon JM21000020 WASHER 5 LB1200F €2.27
4
 photo_cameraImage coming soon JM21000021 TOP COVER LB1200F €30.77
5
 photo_cameraImage coming soon JM21000025 SUPPORT LB1200F €2.27
6
 photo_cameraImage coming soon JM21000026 WASHER 4 LB1200F €2.27
7
 photo_cameraImage coming soon JM21000027 SPRING WASHER 4 LB1200F €2.27
8
 photo_cameraImage coming soon JM21000028 SCREW M4X10 LB1200F €2.27
9
 photo_cameraImage coming soon JM21000029 PLATE LB1200F €2.27
10
 photo_cameraImage coming soon JM21000030 CLAMP LB1200F €2.27
11
 photo_cameraImage coming soon JM21000031 SCREW M4X12 LB1200F €2.27
12
 photo_cameraImage coming soon JM21000032 NUT M4 LB1200F €2.27
13
 photo_cameraImage coming soon JM21000033 NUT M4 LB1200F €2.27
14
 photo_cameraImage coming soon JM21000034 SPRING WASHER 6 LB1200F €2.27
15
 photo_cameraImage coming soon JM21000035 WASHER 6 LB1200F €2.27
16
 photo_cameraImage coming soon JM21000036 DISTANCE LB1200F €2.27
17
 photo_cameraImage coming soon JM21000037 SCREW M6X20 LB1200F €2.27
18
 photo_cameraImage coming soon JM21000038 SUPPORT LB1200F €2.27
19
 photo_cameraImage coming soon JM21000039 COVER LOWER LB1200F €30.77
21
 photo_cameraImage coming soon JM21000043 RETAINING RING 17 LB1200F €2.27
22
 photo_cameraImage coming soon JM21000044 BEARING 6203 LB1200F €7.66
23
 photo_cameraImage coming soon JM21000045 RING 40 LB1200F €2.27
24
 Upper Saw Wheel for Wood Band Saw Makita LB1200F JM21000046 Upper Saw Wheel for Wood Band Saw Makita LB1200F €75.53
25
 Pulley Tire for Wood Band Saw Makita LB1200F JM21000047 Pulley Tire for Wood Band Saw Makita LB1200F €10.51
26
 photo_cameraImage coming soon JM21000048 BEAM A LB1200F €15.36
27
 photo_cameraImage coming soon JM21000050 LOWER PULLEY LB1200F €69.12
188
 photo_cameraImage coming soon JM21000203 SCREW M8 LB1200F €2.27
189
 photo_cameraImage coming soon JM21000204 SUPPORT B ​​LB1200F €18.44
190
 photo_cameraImage coming soon JM21000205 TUBE LB1200F €7.66
191
 photo_cameraImage coming soon JM21000206 AUCTION LB1200F €2.27
192
 photo_cameraImage coming soon JM21000207 SUPPORT LB1200F €19.98
193
 photo_cameraImage coming soon JM21000208 LEG A LB1200F €30.77
194
 photo_cameraImage coming soon JM21000049 BEAM A LB1200F €13.82
195
 photo_cameraImage coming soon JM21000209 LEG B LB1200F €30.77
196
 photo_cameraImage coming soon JM21000210 SCREW M6X16 LB1200F €2.27
197
 photo_cameraImage coming soon JM21000211 SELF-LOCKING NUT M10 LB120 €2.27
198
 photo_cameraImage coming soon JM21000212 SUPPORT WHEEL B LB1200F €7.66
199
 photo_cameraImage coming soon JM21000213 RING RETAINING LB1200F €2.27
200
 photo_cameraImage coming soon JM21000214 WHEEL LB1200F €18.44
201
 photo_cameraImage coming soon JM21000215 COMPASS LB1200F €4.58
202
 photo_cameraImage coming soon JM21000216 TREE WHEEL LB1200F €7.66
203
 photo_cameraImage coming soon JM21000217 SUPPORT WHEEL LB1200F €7.66
204
 photo_cameraImage coming soon JM21000218 SCREW M8x50 LB1200F €2.27
205
 photo_cameraImage coming soon JM21000219 RUBBER LB1200F €2.27
206
 photo_cameraImage coming soon JM21000220 TRAVERSO B LB1200F €13.82
207
 photo_cameraImage coming soon JM21000035 WASHER 6 LB1200F €2.27
208
 photo_cameraImage coming soon JM21000035 WASHER 6 LB1200F €2.27
209
 photo_cameraImage coming soon JM21000035 WASHER 6 LB1200F €2.27
210
 photo_cameraImage coming soon JM21000035 WASHER 6 LB1200F €2.27
211
 photo_cameraImage coming soon JM21000035 WASHER 6 LB1200F €2.27
212
 photo_cameraImage coming soon JM21000035 WASHER 6 LB1200F €2.27
219
 photo_cameraImage coming soon JM21000034 SPRING WASHER 6 LB1200F €2.27
220
 photo_cameraImage coming soon JM21000034 SPRING WASHER 6 LB1200F €2.27
221
 photo_cameraImage coming soon JM21000034 SPRING WASHER 6 LB1200F €2.27
222
 photo_cameraImage coming soon JM21000034 SPRING WASHER 6 LB1200F €2.27
228
 photo_cameraImage coming soon JM21000063 NUT M6 LB1200F €2.27
229
 photo_cameraImage coming soon JM21000063 NUT M6 LB1200F €2.27
230
 photo_cameraImage coming soon JM21000063 NUT M6 LB1200F €2.27
242
 photo_cameraImage coming soon JM21000028 SCREW M4X10 LB1200F €2.27
248
 photo_cameraImage coming soon JM21000026 WASHER 4 LB1200F €2.27
259
 photo_cameraImage coming soon JM21000083 WASHER 8 LB1200F €2.27
263
 photo_cameraImage coming soon JM21000059 SPRING WASHER 8 LB1200F €2.27
266
 photo_cameraImage coming soon JM21000032 NUT M4 LB1200F €2.27
268
 photo_cameraImage coming soon JM21000058 NUT M8 LB1200F €2.27
270
 photo_cameraImage coming soon JM21000027 SPRING WASHER 4 LB1200F €2.27
277
 photo_cameraImage coming soon JM21000033 NUT M4 LB1200F €2.27
281
 photo_cameraImage coming soon JM21000031 SCREW M4X12 LB1200F €2.27
282
 photo_cameraImage coming soon JM21000044 BEARING 6203 LB1200F €7.66
283
 photo_cameraImage coming soon JM21000044 BEARING 6203 LB1200F €7.66
284
 photo_cameraImage coming soon JM21000044 BEARING 6203 LB1200F €7.66
285
 photo_cameraImage coming soon JM21000045 RING 40 LB1200F €2.27
286
 photo_cameraImage coming soon JM21000045 RING 40 LB1200F €2.27
287
 photo_cameraImage coming soon JM21000045 RING 40 LB1200F €2.27
293
 photo_cameraImage coming soon JM21000029 PLATE LB1200F €2.27
294
 photo_cameraImage coming soon JM21000030 CLAMP LB1200F €2.27
295
 photo_cameraImage coming soon JM21000036 DISTANCE LB1200F €2.27
296
 photo_cameraImage coming soon JM21000043 RETAINING RING 17 LB1200F €2.27
297
 Pulley Tire for Wood Band Saw Makita LB1200F JM21000047 Pulley Tire for Wood Band Saw Makita LB1200F €10.51
315
 photo_cameraImage coming soon JM21000173 WING NUT M8 LB1200F €2.27
319
 photo_cameraImage coming soon JM21000210 SCREW M6X16 LB1200F €2.27
320
 photo_cameraImage coming soon JM21000037 SCREW M6X20 LB1200F €2.27
321
 photo_cameraImage coming soon JM21000037 SCREW M6X20 LB1200F €2.27
322
 photo_cameraImage coming soon JM21000037 SCREW M6X20 LB1200F €2.27

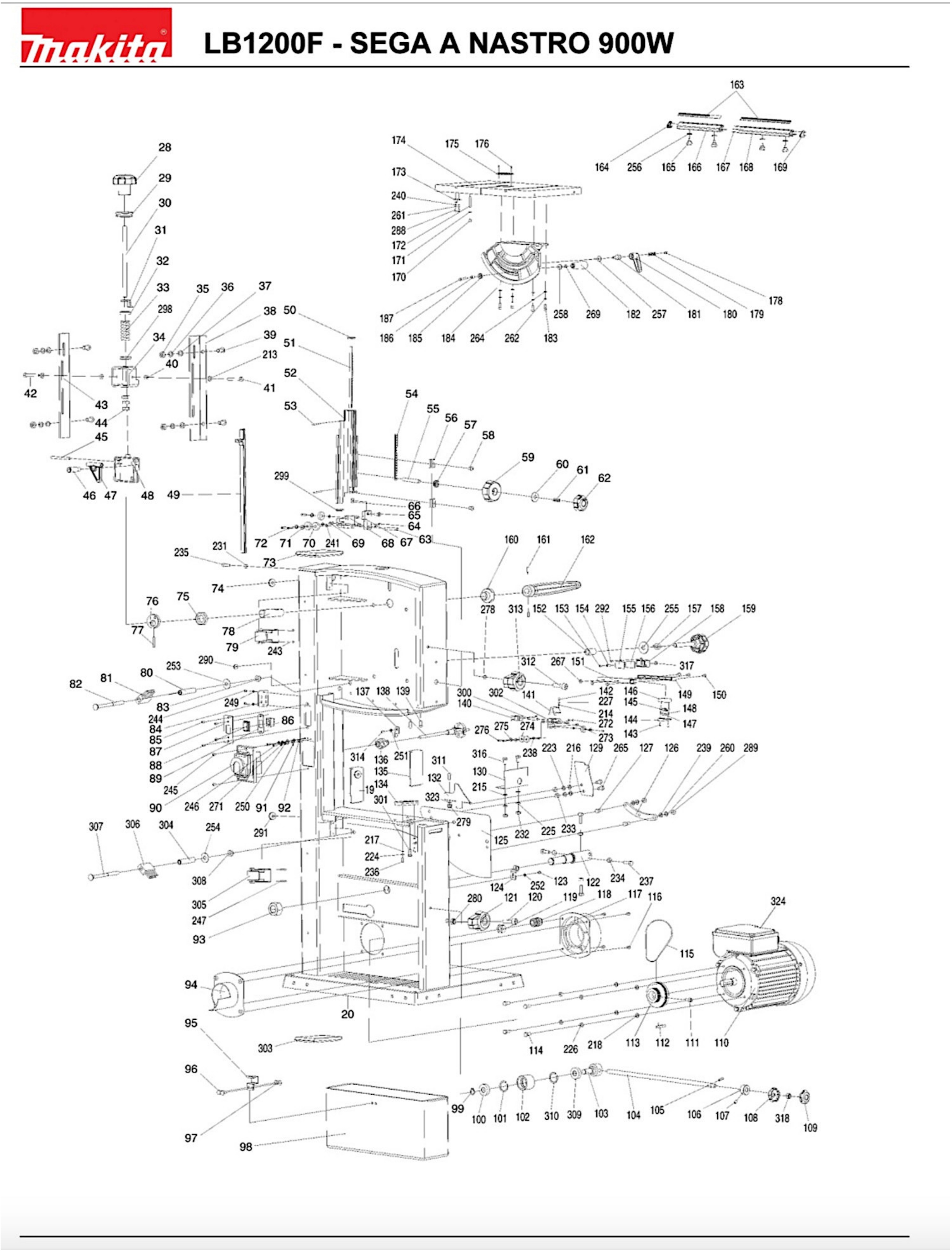

Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
20
 photo_cameraImage coming soon JM21000041 FRAME LB1200F €334.19
28
 Blade Setting Knob for Wood Band Saw Makita LB1200F JM21000051 Blade Setting Knob for Wood Band Saw Makita LB1200F €11.60
29
 Seal for Wood Band Saw Makita LB1200F JM21000052 Seal for Wood Band Saw Makita LB1200F €2.50
30
 photo_cameraImage coming soon JM21000053 AUCTION LB1200F €3.04
31
 photo_cameraImage coming soon JM21000054 INDICATOR LB1200F €2.27
32
 photo_cameraImage coming soon JM21000055 BASE X SPRING LB1200F €2.27
33
 photo_cameraImage coming soon JM21000056 SPRING COMPRESSION 45 LB1200F €2.27
34
 photo_cameraImage coming soon JM21000057 SUPPORT LB1200F €6.12
35
 photo_cameraImage coming soon JM21000058 NUT M8 LB1200F €2.27
36
 photo_cameraImage coming soon JM21000059 SPRING WASHER 8 LB1200F €2.27
37
 photo_cameraImage coming soon JM21000060 WASHER 8 LB1200F €2.27
38
 photo_cameraImage coming soon JM21000061 PLATE LB1200F €13.82
39
 photo_cameraImage coming soon JM21000062 SCREW M8x16 LB1200F €2.27
40
 photo_cameraImage coming soon JM21000063 NUT M6 LB1200F €2.27
41
 photo_cameraImage coming soon JM21000064 SCREW M6X35 LB1200F €2.27
42
 photo_cameraImage coming soon JM21000065 SCREW M6X25 LB1200F €2.27
43
 photo_cameraImage coming soon JM21000066 PLATE B LB1200F €13.82
44
 photo_cameraImage coming soon JM21000067 NUT M10 LB1200F €2.27
45
 photo_cameraImage coming soon JM21000068 PIN LB1200F €2.27
46
 photo_cameraImage coming soon JM21000069 TREE WHEEL SUP.LB1200F €7.66
47
 Moving Bracket for Wood Band Saw Makita LB1200F JM21000070 Moving Bracket for Wood Band Saw Makita LB1200F €11.60
48
 photo_cameraImage coming soon JM21000071 SUPPORT LB1200F €9.20
49
 photo_cameraImage coming soon JM21000072 DUST LB1200F €2.27
50
 photo_cameraImage coming soon JM21000073 COVER LB1200F €2.27
51
 photo_cameraImage coming soon JM21000074 RACK LB1200F €2.27
52
 photo_cameraImage coming soon JM21000075 SUPPORT SLIDING LB1200F €19.98
53
 photo_cameraImage coming soon JM21000076 ELASTIC PIN 4 LB1200F €2.27
54
 photo_cameraImage coming soon JM21000077 LABEL €2.27
55
 photo_cameraImage coming soon JM21000078 SCREW LB1200F €2.27
56
 photo_cameraImage coming soon JM21000079 SLED LB1200F €2.27
57
 Toothed Wheel B for Wood Band Saw Makita LB1200F JM21000080 Toothed Wheel B for Wood Band Saw Makita LB1200F €3.02
58
 photo_cameraImage coming soon JM21000081 SCREW M6X12 LB1200F €2.27
59
 photo_cameraImage coming soon JM21000082 KNOB LB1200F €2.27
60
 photo_cameraImage coming soon JM21000083 WASHER 8 LB1200F €2.27
61
 photo_cameraImage coming soon JM21000084 SPRING LB1200F €2.27
62
 photo_cameraImage coming soon JM21000085 NUT KEYLESS LB1200F €2.27
63
 photo_cameraImage coming soon JM21000086 JACK LB1200F €2.27
64
 photo_cameraImage coming soon JM21000087 SCREW M6x10 LB1200F €2.27
65
 photo_cameraImage coming soon JM21000088 SCREW C LB1200F €2.27
66
 photo_cameraImage coming soon JM21000089 SUPPORT LB1200F €3.81
67
 photo_cameraImage coming soon JM21000090 SUPPORT B ​​LB1200F €7.66
68
 photo_cameraImage coming soon JM21000091 SUPPORT LB1200F €19.98
69
 photo_cameraImage coming soon JM21000092 JACK B LB1200F €19.98
70
 photo_cameraImage coming soon JM21000093 BEARING 6200 LB1200F €6.12
71
 photo_cameraImage coming soon JM21000094 COMPASS B LB1200F €2.27
72
 photo_cameraImage coming soon JM21000095 SCREW M5X20 LB1200F €2.27
73
 photo_cameraImage coming soon JM21000096 COVER LB1200F €2.27
74
 photo_cameraImage coming soon JM21000097 PROTECTION LB1200F €2.27
75
 photo_cameraImage coming soon JM21000098 NUT M20 LB1200F €2.27
76
 photo_cameraImage coming soon JM21000099 ECCENTRIC 32 LB1200F €4.58
77
 photo_cameraImage coming soon JM21000100 PIN 4X32 LB1200F €2.27
78
 photo_cameraImage coming soon JM21000101 INSERT B LB1200F €2.27
79
 photo_cameraImage coming soon JM21000102 SWITCH LB1200F €23.06
80
 photo_cameraImage coming soon JM21000103 COMPASS A LB1200F €4.58
81
 photo_cameraImage coming soon JM21000104 BRUSH LB1200F €2.27
82
 photo_cameraImage coming soon JM21000105 SCREW LB1200F €2.27
83
 photo_cameraImage coming soon JM21000106 NUT M8 KEYLESS LB1200F €2.27
84
 photo_cameraImage coming soon JM21000107 PLATE LB1200F €2.27
85
 photo_cameraImage coming soon JM21000108 SCREW M4X10 LB1200F €2.27
86
 photo_cameraImage coming soon JM21000109 SWITCH HY17 LB1200F €3.81
87
 photo_cameraImage coming soon JM21000110 PLATE LB1200F €2.27
88
 photo_cameraImage coming soon JM21000111 PROTECTION LB1200F €2.27
89
 photo_cameraImage coming soon JM21000112 PANEL LED LB1200F €2.27
90
 Switch for Wood Band Saw Makita LB1200F JM21000003 Switch for Wood Band Saw Makita LB1200F €29.46
91
 photo_cameraImage coming soon JM21000221 GROUND LEAD LB1200F €2.27
92
 photo_cameraImage coming soon JM21000113 WASHER 4 LB1200F €2.27
93
 photo_cameraImage coming soon JM21000114 NUT M20 LB1200F €2.27
94
 photo_cameraImage coming soon JM21000115 COLLECTOR CHIPS LB1200F €2.27
95
 photo_cameraImage coming soon JM21000116 PLATE LB1200F €2.27
96
 photo_cameraImage coming soon JM21000117 SCREW M5X12 LB1200F €2.27
97
 photo_cameraImage coming soon JM21000118 NUT M5 LB1200F €2.27
99
 photo_cameraImage coming soon JM21000120 RETAINING RING 11 LB1200F €2.27
100
 photo_cameraImage coming soon JM21000121 BEARING 6001 LB1200F €6.12
101
 photo_cameraImage coming soon JM21000122 RING 28 LB1200F €2.27
102
 photo_cameraImage coming soon JM21000123 WHEEL TENSION LB1200F €4.58
103
 photo_cameraImage coming soon JM21000124 TREE LB1200F €3.04
104
 photo_cameraImage coming soon JM21000125 AUCTION LB1200F €6.12
105
 photo_cameraImage coming soon JM21000126 ELASTIC PIN LB1200F €2.27
106
 photo_cameraImage coming soon JM21000127 FREEZE LB1200F €2.27
107
 photo_cameraImage coming soon JM21000128 SCREW M5X8 LB1200F €2.27
108
 photo_cameraImage coming soon JM21000129 KNOB LB1200F €2.27
109
 photo_cameraImage coming soon JM21000130 KNOB B LB1200F €2.27
110
 photo_cameraImage coming soon JM21000001 ELECTRIC MOTOR LB1200F €427.99
111
 photo_cameraImage coming soon JM21000131 SCREW M6X12 LB1200F €2.27
112
 photo_cameraImage coming soon JM21000132 KEY 5X5X20 LB1200F €2.27
113
 photo_cameraImage coming soon JM21000133 MOTOR PULLEY LB1200F €7.66
114
 photo_cameraImage coming soon JM21000134 SCREW M6X12 LB1200F €2.27
115
 Belt for Wood Band Saw Makita LB1200F JM21000135 Belt for Wood Band Saw Makita LB1200F €24.39
116
 photo_cameraImage coming soon JM21000136 SCREW M4,2X14 LB1200F €2.27
117
 photo_cameraImage coming soon JM21000137 COLLECTOR CHIPS LB1200F €2.27
118
 photo_cameraImage coming soon JM21000138 CLAMP LB1200F €2.27
119
 photo_cameraImage coming soon JM21000139 SCREW M10 LB1200F €2.27
120
 photo_cameraImage coming soon JM21000140 SCREW M6X25 LB1200F €2.27
121
 photo_cameraImage coming soon JM21000141 KNOB LB1200F €2.27
122
 photo_cameraImage coming soon JM21000142 POST LB1200F €10.74
123
 photo_cameraImage coming soon JM21000143 SCREW M4X8 LB1200F €2.27
124
 photo_cameraImage coming soon JM21000144 INDICATOR LB1200F €2.27
125
 photo_cameraImage coming soon JM21000145 DISTANCE LB1200F €7.66
126
 photo_cameraImage coming soon JM21000146 SLED LB1200F €3.04
127
 photo_cameraImage coming soon JM21000147 SCREW B LB1200F €2.27
129
 photo_cameraImage coming soon JM21000148 PLATE LB1200F €2.27
130
 photo_cameraImage coming soon JM21000149 PROTECTION CHIP LB1200F €2.27
132
 photo_cameraImage coming soon JM21000150 COVER LOWER B LB1200F €2.27
134
 photo_cameraImage coming soon JM21000151 SLED LB1200F €2.27
135
 photo_cameraImage coming soon JM21000152 PROTECTION LB1200F €2.27
136
 photo_cameraImage coming soon JM21000153 CLAMP LB1200F €2.27
137
 photo_cameraImage coming soon JM21000154 INDICATOR LB1200F €2.27
138
 photo_cameraImage coming soon JM21000010 POWER CABLE LB1200F €30.77
139
 photo_cameraImage coming soon JM21000155 SCREW 4.2x 8 LB1200F €2.27
140
 photo_cameraImage coming soon JM21000156 SUPPORT C LB1200F €7.66
141
 photo_cameraImage coming soon JM21000157 COVER LOWER. A LB1200F €2.27
142
 photo_cameraImage coming soon JM21000158 SCREW M6x10 LB1200F €2.27
143
 photo_cameraImage coming soon JM21000159 SCREW 3,2X8 LB1200F €2.27
144
 photo_cameraImage coming soon JM21000160 COVER LED B LB1200F €2.27
145
 photo_cameraImage coming soon JM21000161 COVER LB1200F €2.27
146
 photo_cameraImage coming soon JM21000162 COVER LED A LB1200F €2.27
147
 photo_cameraImage coming soon JM21000163 COVER LED C LB1200F €2.27
148
 photo_cameraImage coming soon JM21000164 SCREW 2,2X8 LB1200F €2.27
149
 photo_cameraImage coming soon JM21000165 CABLE PROTECTION LED A €2.27
150
 photo_cameraImage coming soon JM21000166 SCREW M4x20 LB1200F €2.27
151
 photo_cameraImage coming soon JM21000167 CABLE PROTECTION LED B €2.27
152
 photo_cameraImage coming soon JM21000168 COMPASS LB1200F €2.27
153
 photo_cameraImage coming soon JM21000169 SCREW M4X35 LB1200F €2.27
154
 photo_cameraImage coming soon JM21000170 COMPASS 8 LB1200F €2.27
155
 photo_cameraImage coming soon JM21000171 COVER TRANSFORMER INF. €2.27
156
 Transformer + Led for Wood Band Saw Makita LB1200F JM21000172 Transformer + Led for Wood Band Saw Makita LB1200F €18.18
157
 photo_cameraImage coming soon JM21000173 WING NUT M8 LB1200F €2.27
158
 photo_cameraImage coming soon JM21000174 COVER TRANSFORMER SUP. €2.27
159
 photo_cameraImage coming soon JM21000175 KNOB LB1200F €2.27
160
 photo_cameraImage coming soon JM21000176 COMPASS C LB1200F €5.35
161
 photo_cameraImage coming soon JM21000177 SCREW M6x10 LB1200F €2.27
162
 photo_cameraImage coming soon JM21000178 GRIP LB1200F €6.12
163
 Scale Label for Wood Band Saw Makita LB1200F JM21000179 Scale Label for Wood Band Saw Makita LB1200F €3.17
164
 photo_cameraImage coming soon JM21000180 COVER B LB1200F €2.27
165
 photo_cameraImage coming soon JM21000181 KNOB C LB1200F €2.27
166
 Front Rail for Wood Band Saw Makita LB1200F JM21000182 Front Rail for Wood Band Saw Makita LB1200F €34.31
167
 photo_cameraImage coming soon JM21000183 PLUG LB1200F €2.27
168
 photo_cameraImage coming soon JM21000184 RAIL FRONT B LB1200F €30.77
169
 photo_cameraImage coming soon JM21000185 FRONT COVER A LB1200F €2.27
170
 photo_cameraImage coming soon JM21000186 COVER LB1200F €2.27
171
 photo_cameraImage coming soon JM21000187 SCREW M8x50 LB1200F €2.27
172
 photo_cameraImage coming soon JM21000188 SCREW M8x50 LB1200F €2.27
173
 photo_cameraImage coming soon JM21000189 PLATE LB1200F €2.27
174
 photo_cameraImage coming soon JM21000190 BASE LB1200F €334.19
175
 Blade Protection Plate for Wood Band Saw Makita LB1200F JM21000191 Blade Protection Plate for Wood Band Saw Makita LB1200F €2.10
176
 photo_cameraImage coming soon JM21000192 SCREW M3X10 LB1200F €2.27
178
 photo_cameraImage coming soon JM21000193 SCREW M6X30 LB1200F €2.27
179
 photo_cameraImage coming soon JM21000194 SPRING COMPRESSION LB1200F €2.27
180
 photo_cameraImage coming soon JM21000195 HANDLE B LB1200F €2.27
181
 photo_cameraImage coming soon JM21000196 SCREW LB1200F €2.27
182
 photo_cameraImage coming soon JM21000197 LEVER LATCH LB1200F €3.81
183
 photo_cameraImage coming soon JM21000198 SCREW M8X20 LB1200F €2.27
184
 Working Table Turnion for Band Saw Makita LB1200F JM21000199 Working Table Turnion for Band Saw Makita LB1200F €66.34
185
 photo_cameraImage coming soon JM21000200 COGWHEEL A LB1200F €2.27
186
 photo_cameraImage coming soon JM21000201 COMPASS LB1200F €2.27
187
 photo_cameraImage coming soon JM21000202 POST LB1200F €2.27
213
 photo_cameraImage coming soon JM21000035 WASHER 6 LB1200F €2.27
214
 photo_cameraImage coming soon JM21000035 WASHER 6 LB1200F €2.27
215
 photo_cameraImage coming soon JM21000035 WASHER 6 LB1200F €2.27
216
 photo_cameraImage coming soon JM21000035 WASHER 6 LB1200F €2.27
217
 photo_cameraImage coming soon JM21000035 WASHER 6 LB1200F €2.27
218
 photo_cameraImage coming soon JM21000035 WASHER 6 LB1200F €2.27
223
 photo_cameraImage coming soon JM21000034 SPRING WASHER 6 LB1200F €2.27
224
 photo_cameraImage coming soon JM21000034 SPRING WASHER 6 LB1200F €2.27
225
 photo_cameraImage coming soon JM21000034 SPRING WASHER 6 LB1200F €2.27
226
 photo_cameraImage coming soon JM21000034 SPRING WASHER 6 LB1200F €2.27
227
 photo_cameraImage coming soon JM21000034 SPRING WASHER 6 LB1200F €2.27
231
 photo_cameraImage coming soon JM21000063 NUT M6 LB1200F €2.27
232
 photo_cameraImage coming soon JM21000063 NUT M6 LB1200F €2.27
233
 photo_cameraImage coming soon JM21000063 NUT M6 LB1200F €2.27
234
 photo_cameraImage coming soon JM21000063 NUT M6 LB1200F €2.27
235
 photo_cameraImage coming soon JM21000037 SCREW M6X20 LB1200F €2.27
236
 photo_cameraImage coming soon JM21000037 SCREW M6X20 LB1200F €2.27
237
 photo_cameraImage coming soon JM21000037 SCREW M6X20 LB1200F €2.27
238
 photo_cameraImage coming soon JM21000020 WASHER 5 LB1200F €2.27
239
 photo_cameraImage coming soon JM21000020 WASHER 5 LB1200F €2.27
240
 photo_cameraImage coming soon JM21000020 WASHER 5 LB1200F €2.27
241
 photo_cameraImage coming soon JM21000020 WASHER 5 LB1200F €2.27
243
 photo_cameraImage coming soon JM21000028 SCREW M4X10 LB1200F €2.27
244
 photo_cameraImage coming soon JM21000028 SCREW M4X10 LB1200F €2.27
245
 photo_cameraImage coming soon JM21000028 SCREW M4X10 LB1200F €2.27
246
 photo_cameraImage coming soon JM21000028 SCREW M4X10 LB1200F €2.27
247
 photo_cameraImage coming soon JM21000028 SCREW M4X10 LB1200F €2.27
249
 photo_cameraImage coming soon JM21000026 WASHER 4 LB1200F €2.27
250
 photo_cameraImage coming soon JM21000026 WASHER 4 LB1200F €2.27
251
 photo_cameraImage coming soon JM21000026 WASHER 4 LB1200F €2.27
252
 photo_cameraImage coming soon JM21000026 WASHER 4 LB1200F €2.27
253
 photo_cameraImage coming soon JM21000083 WASHER 8 LB1200F €2.27
254
 photo_cameraImage coming soon JM21000083 WASHER 8 LB1200F €2.27
255
 photo_cameraImage coming soon JM21000083 WASHER 8 LB1200F €2.27
256
 photo_cameraImage coming soon JM21000083 WASHER 8 LB1200F €2.27
257
 photo_cameraImage coming soon JM21000083 WASHER 8 LB1200F €2.27
258
 photo_cameraImage coming soon JM21000083 WASHER 8 LB1200F €2.27
260
 photo_cameraImage coming soon JM21000019 SPRING WASHER 5 LB1200F €2.27
261
 photo_cameraImage coming soon JM21000019 SPRING WASHER 5 LB1200F €2.27
262
 photo_cameraImage coming soon JM21000059 SPRING WASHER 8 LB1200F €2.27
264
 photo_cameraImage coming soon JM21000060 WASHER 8 LB1200F €2.27
265
 photo_cameraImage coming soon JM21000134 SCREW M6X12 LB1200F €2.27
267
 photo_cameraImage coming soon JM21000032 NUT M4 LB1200F €2.27
269
 photo_cameraImage coming soon JM21000058 NUT M8 LB1200F €2.27
271
 photo_cameraImage coming soon JM21000027 SPRING WASHER 4 LB1200F €2.27
272
 photo_cameraImage coming soon JM21000087 SCREW M6x10 LB1200F €2.27
273
 photo_cameraImage coming soon JM21000092 JACK B LB1200F €19.98
274
 photo_cameraImage coming soon JM21000093 BEARING 6200 LB1200F €6.12
275
 photo_cameraImage coming soon JM21000094 COMPASS B LB1200F €2.27
276
 photo_cameraImage coming soon JM21000095 SCREW M5X20 LB1200F €2.27
278
 photo_cameraImage coming soon JM21000033 NUT M4 LB1200F €2.27
279
 photo_cameraImage coming soon JM21000033 NUT M4 LB1200F €2.27
280
 photo_cameraImage coming soon JM21000033 NUT M4 LB1200F €2.27
288
 photo_cameraImage coming soon JM21000117 SCREW M5X12 LB1200F €2.27
289
 photo_cameraImage coming soon JM21000118 NUT M5 LB1200F €2.27
290
 photo_cameraImage coming soon JM21000097 PROTECTION LB1200F €2.27
291
 photo_cameraImage coming soon JM21000097 PROTECTION LB1200F €2.27
292
 photo_cameraImage coming soon JM21000159 SCREW 3,2X8 LB1200F €2.27
298
 photo_cameraImage coming soon JM21000055 BASE X SPRING LB1200F €2.27
299
 photo_cameraImage coming soon JM21000073 COVER LB1200F €2.27
300
 photo_cameraImage coming soon JM21000086 JACK LB1200F €2.27
301
 photo_cameraImage coming soon JM21000088 SCREW C LB1200F €2.27
302
 photo_cameraImage coming soon JM21000091 SUPPORT LB1200F €19.98
303
 photo_cameraImage coming soon JM21000096 COVER LB1200F €2.27
304
 photo_cameraImage coming soon JM21000103 COMPASS A LB1200F €4.58
305
 photo_cameraImage coming soon JM21000102 SWITCH LB1200F €23.06
306
 photo_cameraImage coming soon JM21000104 BRUSH LB1200F €2.27
307
 photo_cameraImage coming soon JM21000105 SCREW LB1200F €2.27
308
 photo_cameraImage coming soon JM21000106 NUT M8 KEYLESS LB1200F €2.27
309
 photo_cameraImage coming soon JM21000121 BEARING 6001 LB1200F €6.12
310
 photo_cameraImage coming soon JM21000122 RING 28 LB1200F €2.27
311
 photo_cameraImage coming soon JM21000131 SCREW M6X12 LB1200F €2.27
312
 photo_cameraImage coming soon JM21000140 SCREW M6X25 LB1200F €2.27
313
 photo_cameraImage coming soon JM21000141 KNOB LB1200F €2.27
314
 photo_cameraImage coming soon JM21000143 SCREW M4X8 LB1200F €2.27
316
 photo_cameraImage coming soon JM21000134 SCREW M6X12 LB1200F €2.27
317
 photo_cameraImage coming soon JM21000032 NUT M4 LB1200F €2.27
318
 photo_cameraImage coming soon JM21000106 NUT M8 KEYLESS LB1200F €2.27
323
 photo_cameraImage coming soon JM21000035 WASHER 6 LB1200F €2.27
324
 photo_cameraImage coming soon JM21000228 BOX CONNECTORS €9.20
Page 3 local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
500
 photo_cameraImage coming soon B-16689 6tpi Wood Curve Cutting High Carbon Steel Bandsaw Blade (pack Of 3) €66.37
501
 photo_cameraImage coming soon B-16695 14tpi Metal Cutting High Carbon Steel Bandsaw Blade (pack Of 3) €65.39
502
 photo_cameraImage coming soon B-16667 4tpi Wood Cross Cutting High Carbon Steel Bandsaw Blade (pack Of 3) €75.01
503
 photo_cameraImage coming soon B-16673 4tpi Wood Universal Cutting High Carbon Steel Bandsaw Blade (pack Of 3) €55.26
504
 photo_cameraImage coming soon B-42581 Sanding belt K80  20x2240mm 5 pieces €11.77
505
 photo_cameraImage coming soon B-42597 Sanding belt G120 20x2240mm 5 pieces €11.77
507
 photo_cameraImage coming soon 783203-8 HEX. WRENCH 5 €2.17
508
 photo_cameraImage coming soon JM21080230 RIP FENCE ASSY €27.00
509
 photo_cameraImage coming soon JM21080260 MITER GUAGE ASSY €19.93
512
 photo_cameraImage coming soon 419093-0 JOINT 2704 €3.51
513
 photo_cameraImage coming soon JM21000300 EXTENSION TABLE SET €118.04

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Band Saw LB1200F

Makita Original spare parts at attractive prices never seen on the web, we are a licensed service center with after-sales service able to quickly solve the maintenance or repair any issues for Band Saw LB1200F.

In the following table, look for the model and the respective parts of the code.
Makita LB1200F

Band Saw LB1200F Pag.1
# Part Num. Description
1 JM21000018 SCREW M5X12 LB1200F
2 JM21000019 SPRING WASHER 5 LB1200F
3 JM21000020 WASHER 5 LB1200F
4 JM21000021 TOP COVER LB1200F
5 JM21000025 SUPPORT LB1200F
6 JM21000026 WASHER 4 LB1200F
7 JM21000027 SPRING WASHER 4 LB1200F
8 JM21000028 SCREW M4X10 LB1200F
9 JM21000029 PLATE LB1200F
10 JM21000030 CLAMP LB1200F
11 JM21000031 SCREW M4X12 LB1200F
12 JM21000032 NUT M4 LB1200F
13 JM21000033 NUT M4 LB1200F
14 JM21000034 SPRING WASHER 6 LB1200F
15 JM21000035 WASHER 6 LB1200F
16 JM21000036 DISTANCE LB1200F
17 JM21000037 SCREW M6X20 LB1200F
18 JM21000038 SUPPORT LB1200F
19 JM21000039 COVER LOWER LB1200F
21 JM21000043 RETAINING RING 17 LB1200F
22 JM21000044 BEARING 6203 LB1200F
23 JM21000045 RING 40 LB1200F
24 JM21000046 UPPER SAW WHEEL LB1200F
25 JM21000047 PULLEY TIRE LB1200F
26 JM21000048 BEAM A LB1200F
27 JM21000050 LOWER PULLEY LB1200F
188 JM21000203 SCREW M8 LB1200F
189 JM21000204 SUPPORT B ​​LB1200F
190 JM21000205 TUBE LB1200F
191 JM21000206 AUCTION LB1200F
192 JM21000207 SUPPORT LB1200F
193 JM21000208 LEG A LB1200F
194 JM21000049 BEAM A LB1200F
195 JM21000209 LEG B LB1200F
196 JM21000210 SCREW M6X16 LB1200F
197 JM21000211 SELF-LOCKING NUT M10 LB120
198 JM21000212 SUPPORT WHEEL B LB1200F
199 JM21000213 RING RETAINING LB1200F
200 JM21000214 WHEEL LB1200F
201 JM21000215 COMPASS LB1200F
202 JM21000216 TREE WHEEL LB1200F
203 JM21000217 SUPPORT WHEEL LB1200F
204 JM21000218 SCREW M8x50 LB1200F
205 JM21000219 RUBBER LB1200F
206 JM21000220 TRAVERSO B LB1200F
207 JM21000035 WASHER 6 LB1200F
208 JM21000035 WASHER 6 LB1200F
209 JM21000035 WASHER 6 LB1200F
210 JM21000035 WASHER 6 LB1200F
211 JM21000035 WASHER 6 LB1200F
212 JM21000035 WASHER 6 LB1200F
219 JM21000034 SPRING WASHER 6 LB1200F
220 JM21000034 SPRING WASHER 6 LB1200F
221 JM21000034 SPRING WASHER 6 LB1200F
222 JM21000034 SPRING WASHER 6 LB1200F
228 JM21000063 NUT M6 LB1200F
229 JM21000063 NUT M6 LB1200F
230 JM21000063 NUT M6 LB1200F
242 JM21000028 SCREW M4X10 LB1200F
248 JM21000026 WASHER 4 LB1200F
259 JM21000083 WASHER 8 LB1200F
263 JM21000059 SPRING WASHER 8 LB1200F
266 JM21000032 NUT M4 LB1200F
268 JM21000058 NUT M8 LB1200F
270 JM21000027 SPRING WASHER 4 LB1200F
277 JM21000033 NUT M4 LB1200F
281 JM21000031 SCREW M4X12 LB1200F
282 JM21000044 BEARING 6203 LB1200F
283 JM21000044 BEARING 6203 LB1200F
284 JM21000044 BEARING 6203 LB1200F
285 JM21000045 RING 40 LB1200F
286 JM21000045 RING 40 LB1200F
287 JM21000045 RING 40 LB1200F
293 JM21000029 PLATE LB1200F
294 JM21000030 CLAMP LB1200F
295 JM21000036 DISTANCE LB1200F
296 JM21000043 RETAINING RING 17 LB1200F
297 JM21000047 RUBBER PULLEY LB1200F
315 JM21000173 WING NUT M8 LB1200F
319 JM21000210 SCREW M6X16 LB1200F
320 JM21000037 SCREW M6X20 LB1200F
321 JM21000037 SCREW M6X20 LB1200F
322 JM21000037 SCREW M6X20 LB1200F
Pag.2
19 JM21000330 ADAPTER X LB1200F
20 JM21000041 FRAME LB1200F
28 JM21000051 BLADE SETTING KNOB LB1200F
29 JM21000052 SEALING RING LB1200F
30 JM21000053 AUCTION LB1200F
31 JM21000054 INDICATOR LB1200F
32 JM21000055 BASE X SPRING LB1200F
33 JM21000056 SPRING COMPRESSION 45 LB1200F
34 JM21000057 SUPPORT LB1200F
35 JM21000058 NUT M8 LB1200F
36 JM21000059 SPRING WASHER 8 LB1200F
37 JM21000060 WASHER 8 LB1200F
38 JM21000061 PLATE LB1200F
39 JM21000062 SCREW M8x16 LB1200F
40 JM21000063 NUT M6 LB1200F
41 JM21000064 SCREW M6X35 LB1200F
42 JM21000065 SCREW M6X25 LB1200F
43 JM21000066 PLATE B LB1200F
44 JM21000067 NUT M10 LB1200F
45 JM21000068 PIN LB1200F
46 JM21000069 TREE WHEEL SUP.LB1200F
47 JM21000070 MOVING BRACKET LB1200F
48 JM21000071 SUPPORT LB1200F
49 JM21000072 DUST LB1200F
50 JM21000073 COVER LB1200F
51 JM21000074 RACK LB1200F
52 JM21000075 SUPPORT SLIDING LB1200F
53 JM21000076 ELASTIC PIN 4 LB1200F
54 JM21000077 LABEL
55 JM21000078 SCREW LB1200F
56 JM21000079 SLED LB1200F
57 JM21000080 COGWHEEL B LB1200F
58 JM21000081 SCREW M6X12 LB1200F
59 JM21000082 KNOB LB1200F
60 JM21000083 WASHER 8 LB1200F
61 JM21000084 SPRING LB1200F
62 JM21000085 NUT KEYLESS LB1200F
63 JM21000086 JACK LB1200F
64 JM21000087 SCREW M6x10 LB1200F
65 JM21000088 SCREW C LB1200F
66 JM21000089 SUPPORT LB1200F
67 JM21000090 SUPPORT B ​​LB1200F
68 JM21000091 SUPPORT LB1200F
69 JM21000092 JACK B LB1200F
70 JM21000093 BEARING 6200 LB1200F
71 JM21000094 COMPASS B LB1200F
72 JM21000095 SCREW M5X20 LB1200F
73 JM21000096 COVER LB1200F
74 JM21000097 PROTECTION LB1200F
75 JM21000098 NUT M20 LB1200F
76 JM21000099 ECCENTRIC 32 LB1200F
77 JM21000100 PIN 4X32 LB1200F
78 JM21000101 INSERT B LB1200F
79 JM21000102 SWITCH LB1200F
80 JM21000103 COMPASS A LB1200F
81 JM21000104 BRUSH LB1200F
82 JM21000105 SCREW LB1200F
83 JM21000106 NUT M8 KEYLESS LB1200F
84 JM21000107 PLATE LB1200F
85 JM21000108 SCREW M4X10 LB1200F
86 JM21000109 SWITCH HY17 LB1200F
87 JM21000110 PLATE LB1200F
153 JM21000169 SCREW M4X35 LB1200F
154 JM21000170 COMPASS 8 LB1200F
155 JM21000171 COVER TRANSFORMER INF.
156 JM21000172 TRANSFORMER WITH LED LB1200F
157 JM21000173 WING NUT M8 LB1200F
158 JM21000174 COVER TRANSFORMER SUP.
159 JM21000175 KNOB LB1200F
160 JM21000176 COMPASS C LB1200F
161 JM21000177 SCREW M6x10 LB1200F
162 JM21000178 GRIP LB1200F
163 JM21000179 LABEL LB1200F
164 JM21000180 COVER B LB1200F
165 JM21000181 KNOB C LB1200F
166 JM21000182 RAIL FRONT LB1200F
167 JM21000183 PLUG LB1200F
168 JM21000184 RAIL FRONT B LB1200F
169 JM21000185 FRONT COVER A LB1200F
170 JM21000186 COVER LB1200F
171 JM21000187 SCREW M8x50 LB1200F
172 JM21000188 SCREW M8x50 LB1200F
173 JM21000189 PLATE LB1200F
174 JM21000190 BASE LB1200F
175 JM21000191 PROTECTION PLATE BLADE LB1200
176 JM21000192 SCREW M3X10 LB1200F
178 JM21000193 SCREW M6X30 LB1200F
179 JM21000194 SPRING COMPRESSION LB1200F
180 JM21000195 HANDLE B LB1200F
181 JM21000196 SCREW LB1200F
182 JM21000197 LEVER LATCH LB1200F
183 JM21000198 SCREW M8X20 LB1200F
184 JM21000199 WORKING TABLE TURNION LB1200F
185 JM21000200 COGWHEEL A LB1200F
186 JM21000201 COMPASS LB1200F
187 JM21000202 POST LB1200F
213 JM21000035 WASHER 6 LB1200F
214 JM21000035 WASHER 6 LB1200F
215 JM21000035 WASHER 6 LB1200F
216 JM21000035 WASHER 6 LB1200F
217 JM21000035 WASHER 6 LB1200F
218 JM21000035 WASHER 6 LB1200F
223 JM21000034 SPRING WASHER 6 LB1200F
224 JM21000034 SPRING WASHER 6 LB1200F
225 JM21000034 SPRING WASHER 6 LB1200F
226 JM21000034 SPRING WASHER 6 LB1200F
227 JM21000034 SPRING WASHER 6 LB1200F
231 JM21000063 NUT M6 LB1200F
232 JM21000063 NUT M6 LB1200F
233 JM21000063 NUT M6 LB1200F
234 JM21000063 NUT M6 LB1200F
235 JM21000037 SCREW M6X20 LB1200F
236 JM21000037 SCREW M6X20 LB1200F
237 JM21000037 SCREW M6X20 LB1200F
238 JM21000020 WASHER 5 LB1200F
239 JM21000020 WASHER 5 LB1200F
240 JM21000020 WASHER 5 LB1200F
241 JM21000020 WASHER 5 LB1200F
243 JM21000028 SCREW M4X10 LB1200F
244 JM21000028 SCREW M4X10 LB1200F
245 JM21000028 SCREW M4X10 LB1200F
246 JM21000028 SCREW M4X10 LB1200F
247 JM21000028 SCREW M4X10 LB1200F
249 JM21000026 WASHER 4 LB1200F
250 JM21000026 WASHER 4 LB1200F
251 JM21000026 WASHER 4 LB1200F
252 JM21000026 WASHER 4 LB1200F
253 JM21000083 WASHER 8 LB1200F
254 JM21000083 WASHER 8 LB1200F
255 JM21000083 WASHER 8 LB1200F
256 JM21000083 WASHER 8 LB1200F
257 JM21000083 WASHER 8 LB1200F
258 JM21000083 WASHER 8 LB1200F
260 JM21000019 SPRING WASHER 5 LB1200F
261 JM21000019 SPRING WASHER 5 LB1200F
262 JM21000059 SPRING WASHER 8 LB1200F
264 JM21000060 WASHER 8 LB1200F
265 JM21000134 SCREW M6X12 LB1200F
267 JM21000032 NUT M4 LB1200F
269 JM21000058 NUT M8 LB1200F
271 JM21000027 SPRING WASHER 4 LB1200F
272 JM21000087 SCREW M6x10 LB1200F
273 JM21000092 JACK B LB1200F
274 JM21000093 BEARING 6200 LB1200F
275 JM21000094 COMPASS B LB1200F
276 JM21000095 SCREW M5X20 LB1200F
278 JM21000033 NUT M4 LB1200F
279 JM21000033 NUT M4 LB1200F
280 JM21000033 NUT M4 LB1200F
288 JM21000117 SCREW M5X12 LB1200F
289 JM21000118 NUT M5 LB1200F
290 JM21000097 PROTECTION LB1200F
291 JM21000097 PROTECTION LB1200F
292 JM21000159 SCREW 3,2X8 LB1200F
298 JM21000055 BASE X SPRING LB1200F
299 JM21000073 COVER LB1200F
300 JM21000086 JACK LB1200F
301 JM21000088 SCREW C LB1200F
302 JM21000091 SUPPORT LB1200F
303 JM21000096 COVER LB1200F
304 JM21000103 COMPASS A LB1200F
305 JM21000102 SWITCH LB1200F
306 JM21000104 BRUSH LB1200F
307 JM21000105 SCREW LB1200F
308 JM21000106 NUT M8 KEYLESS LB1200F
309 JM21000121 BEARING 6001 LB1200F
310 JM21000122 RING 28 LB1200F
311 JM21000131 SCREW M6X12 LB1200F
312 JM21000140 SCREW M6X25 LB1200F
313 JM21000141 KNOB LB1200F
314 JM21000143 SCREW M4X8 LB1200F
316 JM21000134 SCREW M6X12 LB1200F
317 JM21000032 NUT M4 LB1200F
318 JM21000106 NUT M8 KEYLESS LB1200F
323 JM21000035 WASHER 6 LB1200F
324 JM21000228 BOX CONNECTORS
88 JM21000111 PROTECTION LB1200F
89 JM21000112 PANEL LED LB1200F
90 JM21000003 SWITCH LB1200F
91 JM21000221 GROUND LEAD LB1200F
92 JM21000113 WASHER 4 LB1200F
93 JM21000114 NUT M20 LB1200F
94 JM21000115 COLLECTOR CHIPS LB1200F
95 JM21000116 PLATE LB1200F
96 JM21000117 SCREW M5X12 LB1200F
97 JM21000118 NUT M5 LB1200F
98 JM21000119 COLLECTOR CHIPS LB1200F
99 JM21000120 RETAINING RING 11 LB1200F
100 JM21000121 BEARING 6001 LB1200F
101 JM21000122 RING 28 LB1200F
102 JM21000123 WHEEL TENSION LB1200F
103 JM21000124 TREE LB1200F
104 JM21000125 AUCTION LB1200F
105 JM21000126 ELASTIC PIN LB1200F
106 JM21000127 FREEZE LB1200F
107 JM21000128 SCREW M5X8 LB1200F
108 JM21000129 KNOB LB1200F
109 JM21000130 KNOB B LB1200F
110 JM21000001 ELECTRIC MOTOR LB1200F
111 JM21000131 SCREW M6X12 LB1200F
112 JM21000132 KEY 5X5X20 LB1200F
113 JM21000133 MOTOR PULLEY LB1200F
114 JM21000134 SCREW M6X12 LB1200F
115 JM21000135 BELT LB1200F
116 JM21000136 SCREW M4,2X14 LB1200F
117 JM21000137 COLLECTOR CHIPS LB1200F
118 JM21000138 CLAMP LB1200F
119 JM21000139 SCREW M10 LB1200F
120 JM21000140 SCREW M6X25 LB1200F
121 JM21000141 KNOB LB1200F
122 JM21000142 POST LB1200F
123 JM21000143 SCREW M4X8 LB1200F
124 JM21000144 INDICATOR LB1200F
125 JM21000145 DISTANCE LB1200F
126 JM21000146 SLED LB1200F
127 JM21000147 SCREW B LB1200F
129 JM21000148 PLATE LB1200F
130 JM21000149 PROTECTION CHIP LB1200F
132 JM21000150 COVER LOWER B LB1200F
134 JM21000151 SLED LB1200F
135 JM21000152 PROTECTION LB1200F
136 JM21000153 CLAMP LB1200F
137 JM21000154 INDICATOR LB1200F
138 JM21000010 POWER CABLE LB1200F
139 JM21000155 SCREW 4.2x 8 LB1200F
140 JM21000156 SUPPORT C LB1200F
141 JM21000157 COVER LOWER. A LB1200F
142 JM21000158 SCREW M6x10 LB1200F
143 JM21000159 SCREW 3,2X8 LB1200F
144 JM21000160 COVER LED B LB1200F
145 JM21000161 COVER LB1200F
146 JM21000162 COVER LED A LB1200F
147 JM21000163 COVER LED C LB1200F
148 JM21000164 SCREW 2,2X8 LB1200F
149 JM21000165 CABLE PROTECTION LED A
150 JM21000166 SCREW M4x20 LB1200F
151 JM21000167 CABLE PROTECTION LED B
152 JM21000168 COMPASS LB1200F
Accessories Pag.3
500 B-16689 6tpi Wood Curve Cutting High Carbon Steel Bandsaw Blade (pack Of 3)
501 B-16695 14tpi Metal Cutting High Carbon Steel Bandsaw Blade (pack Of 3)
502 B-16667 4tpi Wood Cross Cutting High Carbon Steel Bandsaw Blade (pack Of 3)
503 B-16673 4tpi Wood Universal Cutting High Carbon Steel Bandsaw Blade (pack Of 3)
504 B-42581 Sanding belt K80  20x2240mm 5 pieces
505 B-42597 Sanding belt G120 20x2240mm 5 pieces
506 783202-0 Hex. Wrench 4
507 783203-8 HEX. WRENCH 5
508 JM21080230 RIP FENCE ASSY
509 JM21080260 MITER GUAGE ASSY
510 JM21080320 CIRCULAR GUIDE
511 JM21080330 SANDING BELT HOLDER
512 419093-0 JOINT 2704
513 JM21000300 EXTENSION TABLE SET
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita LB1200F
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita LB1200F

Diagram Makita LB1200F

Download (642.33KB)

You might also like

Holder for Wood Bench Saw Makita LB1200F
Makita SKU: JM21000070
Moving Bracket for Wood Band Saw Makita LB1200F
Moving Bracket for Wood Band Saw Makita LB1200F Genuine spare part Makita, Moving Bracket for Wood Band Saw Makita LB1200F Part for the following products: -  Wood Band Saw Makita LB1200F - Code: JM21000070
AVAILABLE €11.60
Details
Belt for Wood Bench Saw Makita LB1200F
Makita SKU: JM21000135
Belt for Wood Band Saw Makita LB1200F
Belt for Wood Band Saw Makita LB1200F Genuine spare part Makita, Belt for Wood Band Saw Makita LB1200F Part for the following products: -  Wood Band Saw Makita LB1200F - Code: JM21000135
AVAILABLE €24.39
Details
Blade Setting Knob for Wood Band Saw Makita LB1200F
Makita SKU: JM21000051
Blade Setting Knob for Wood Band Saw Makita LB1200F
Blade Setting Knob for Wood Band Saw Makita LB1200F Genuine replacement part Makita, Blade Setting Knob for Wood Band Saw LB1200F. Part for the following products: -  Wood Band Saw Makita LB1200F - Code: JM21000051
AVAILABLE €11.60
Details
Blade Protection Plate for Wood Band Saw Makita LB1200F
Makita SKU: JM21000191
Blade Protection Plate for Wood Band Saw Makita LB1200F
Blade Protection Plate for Wood Band Saw Makita LB1200F Genuine part Makita, Blade Protection Plate for Wood Band Saw LB1200F Part for the following products: -  Wood Band Saw Makita LB1200F - Code: JM21000191
Usually Ships in: 7/10 Business Days Approx. €2.10
Details
Toothed Wheel B for Wood Band Saw Makita LB1200F
Makita SKU: JM21000080
Toothed Wheel B for Wood Band Saw Makita LB1200F
Toothed Wheel B for Wood Band Saw Makita LB1200F Genuine part Makita, Toothed Wheel B for Wood Band Saw LB1200F Part for the following products: -  Wood Band Saw Makita LB1200F - Code: JM21000080
Usually Ships in: 7/10 Business Days Approx. €3.02
Details
Seal for Wood Band Saw Makita LB1200F
Makita SKU: JM21000052
Seal for Wood Band Saw Makita LB1200F
Seal for Wood Band Saw Makita LB1200F Genuine part Makita, Sealing Ring for Wood Band Saw LB1200F Part for the following products: -  Wood Band Saw Makita LB1200F - Code: JM21000052
AVAILABLE €2.50
Details
Front Rail for Wood Band Saw Makita LB1200F Sale
Makita SKU: JM21000182
Front Rail for Wood Band Saw Makita LB1200F
Front Rail for Wood Band Saw Makita LB1200F Genuine replacement part Makita, Front Rail for Wood Band Saw LB1200F. Part for the following products: -  Wood Band Saw Makita LB1200F - Code: JM21000182
AVAILABLE €34.31
Details
Pulley Tire for Wood Band Saw Makita LB1200F
Makita SKU: JM21000047
Pulley Tire for Wood Band Saw Makita LB1200F
Pulley Tire for Wood Band Saw Makita LB1200F Genuine replacement part Makita, Pulley Tire for Wood Band Saw LB1200F. Part for the following products: -  Wood Band Saw Makita LB1200F - Code: JM21000047
AVAILABLE €10.51
Details
Scale Label for Wood Band Saw Makita LB1200F Sale
Makita SKU: JM21000179
Scale Label for Wood Band Saw Makita LB1200F
Scale Label for Wood Band Saw Makita LB1200F Genuine replacement part Makita, Scale Label for Wood Band Saw LB1200F. Part for the following products: -  Wood Band Saw Makita LB1200F - Code: JM21000179
AVAILABLE €3.17
Details
Switch for Wood Band Saw Makita LB1200F
Makita SKU: JM21000003
Switch for Wood Band Saw Makita LB1200F
Switch for Wood Band Saw Makita LB1200F Genuine replacement part Makita, KJD-12 Switch 4 Pin 250V IP54 5E4 Start Stop On/Off for Wood Band Saw LB1200F. Part for the following products: -  Wood Band Saw Makita...
AVAILABLE €29.46
Details
Transformer + Led for Wood Band Saw Makita LB1200F
Makita SKU: JM21000172
Transformer + Led for Wood Band Saw Makita LB1200F
Transformer + Led for Wood Band Saw Makita LB1200F Genuine replacement part Makita, Transformer + Led for Wood Band Saw LB1200F. Part for the following products: -  Wood Band Saw Makita LB1200F - Code: JM21000172
Usually Ships in: 7/10 Business Days Approx. €18.18
Details
Upper Saw Wheel for Wood Band Saw Makita LB1200F
Makita SKU: JM21000046
Upper Saw Wheel for Wood Band Saw Makita LB1200F
Upper Saw Wheel for Wood Band Saw Makita LB1200F Genuine spare Makita, Upper Saw Wheel for Wood Band Saw Makita LB1200F Part for the following products: -  Wood Band Saw Makita LB1200F - Code: JM21000046
AVAILABLE €75.53
Details
Working Table Turnion for Band Saw Makita LB1200F
Makita SKU: JM21000199
Working Table Turnion for Band Saw Makita LB1200F
Working Table Turnion for Band Saw Makita LB1200F Genuine part Makita, Working Table Turnion with Angle Rule Assy for Wood Band Saw LB1200F Part for the following products: -  Wood Band Saw Makita LB1200F - Code: JM21000199
Last items in stock €66.34
Details
Comments (0)
