Makita Spare Parts for Cordless Circular Saw for Metal BCS550Z
MAKITA service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues forCordless Circular Saw for Metal BCS550Z.
- Brake electric motor
- Ergonomic soft grip coating
- LED lighting

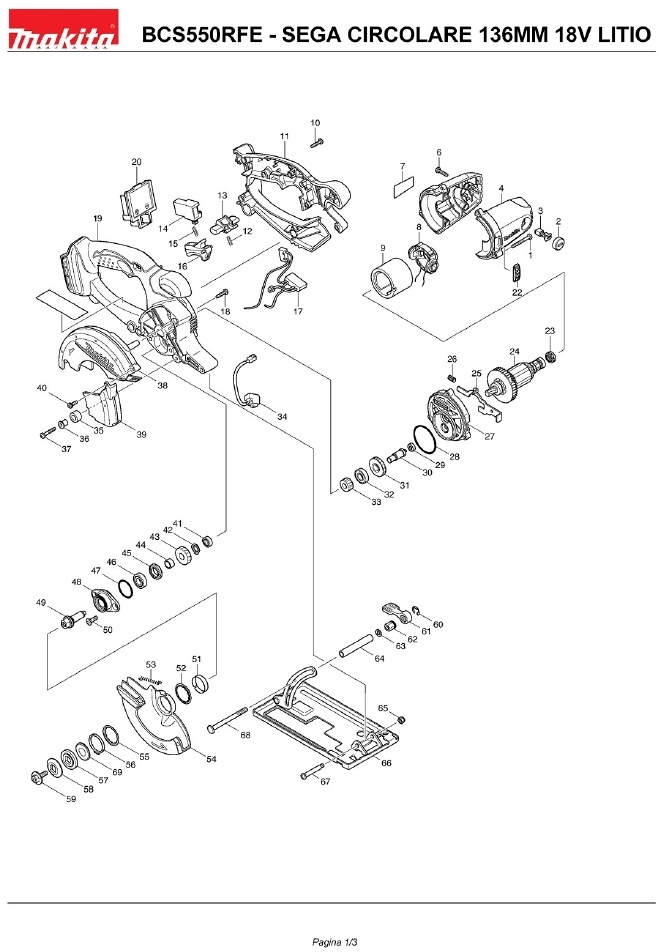

In the following table, look for the model and the respective parts of the code.
|
Cordless Circular Saw for Metal BCS550Z |
| 1 |
266048-4 |
SCREW M 4 X 40 X 4334D |
| 2 |
643807-7 |
PLUG HOLDER BRUSHES 6347D |
| 3 |
191971-3 |
CHARCOALS CB-430 |
| 4 |
188209-5 |
HOUSING MOTOR BCS550R |
| 6 |
265995-6 |
SCREW M4X18 X 6408 / 6221DW |
| 7 |
862979-1 |
LABEL BCS550R |
| 8 |
638925-4 |
SUPPORT BRUSHES BCS550 |
| 9 |
638420-4 |
STATORE PERMANENT MAGNET |
| 10 |
265995-6 |
SCREW M4X18 X 6408 / 6221DW |
| 11 |
419661-9 |
HANDLE SX BCS550R |
| 12 |
231469-9 |
SPRING 4 X 6811DW |
| 13 |
419664-3 |
LEVER BCS550R |
| 14 |
651956-6 |
SWITCH TG72BD X 5621RDW |
| 15 |
231469-9 |
SPRING 4 X 6811DW |
| 16 |
419665-1 |
LEVER SWITCH BCS550R |
| 17 |
620260-4 |
REGULATOR |
| 18 |
265995-6 |
SCREW M4X18 X 6408 / 6221DW |
| 19 |
453154-6 |
HANDLE DX |
| 20 |
644808-8 |
TERMINAL BLS713 X-BHP451 |
| 22 |
419609-1 |
GRID BCS550R |
| 23 |
421977-0 |
RUBBER RING 13 X BGA452 |
| 24 |
619290-0 |
INDUCED BCS550R |
| 25 |
345643-4 |
LOCKING RING BCS550R |
| 26 |
233117-6 |
SPRING COMP. 6 X GA7010C |
| 27 |
419656-2 |
HOUSING GEAR BCS550R |
| 28 |
213560-5 |
RING 44 X HK0500 |
| 29 |
210036-3 |
BEARING 604ZZ X BCS550R |
| 30 |
324729-7 |
POST BCS550R |
| 31 |
227752-0 |
GEAR 27 X BCS550R |
| 32 |
210080-0 |
BEARING 6900ZZ X BCS550R |
| 33 |
226635-1 |
GEAR 15 X BCS550R |
| 34 |
631550-0 |
CIRCUIT FOR LIGHT BCS550R |
| 35 |
262566-0 |
RUBBER BUSH 6 BCS550R |
| 36 |
262563-6 |
COMPASS 4 BCS550R |
| 37 |
265999-8 |
SCREW 4X25 |
| 38 |
419662-7 |
BOX BLADE BCS550R |
| 39 |
419663-5 |
COVER BLADE BCS550R |
| 40 |
266020-6 |
SCREW M4 X 12 |
| 41 |
210026-6 |
BALL BEARING 696ZZ |
| 42 |
961006-2 |
RETAINING RING S10 |
| 43 |
226640-8 |
GEAR 23 X BCS550R |
| 44 |
257760-7 |
COMPASS 10 BCS550R |
| 45 |
285847-5 |
RETAINING CUSC.14-23 X BCS5 |
| 46 |
210069-8 |
BEARING 6900DDW X BCS550R |
| 47 |
213435-8 |
RING 26 X HR3000C |
| 48 |
318087-1 |
BOX BEARING BCS550R |
| 49 |
324730-2 |
TREE LAMA BCS550R |
| 50 |
265034-2 |
SCREW M5 X 16 |
| 51 |
345470-9 |
RING THICKNESS X BCS550R |
| 52 |
345739-1 |
DISTANZIALE BCS550R |
| 53 |
231792-2 |
SPRING TENSION 3 X BCS550R |
| 54 |
158116-6 |
COVER SAFETY BCS550R |
| 55 |
345739-1 |
DISTANZIALE BCS550R |
| 56 |
257938-2 |
RETAINING RING WR-26 |
| 57 |
224391-7 |
FLANGE INTERIOR 30 |
| 58 |
224404-4 |
EXTERNAL FLANGE BCS550R |
| 59 |
266458-5 |
SCREW M 6 X 18 X 4131 |
| 60 |
961014-3 |
RETAINING RING E-8 |
| 61 |
272229-0 |
LEVER 40 X 3901 |
| 62 |
252159-1 |
HEX NUT XM6 X 5621RDW |
| 63 |
941151-9 |
WASHER 6 X HM1303 |
| 64 |
331733-9 |
TUBE 6 BCS550R |
| 65 |
|
NUT X JR 3020 |
| 66 |
163471-3 |
BASE BCS550R |
| 67 |
265056-2 |
BOLT M5 X LS1013 |
| 68 |
266405-6 |
SCREW M6x75 BCS550R |
| 69 |
267802-9 |
BELLEVILLE WASHER 13 X BCS5 50R |
