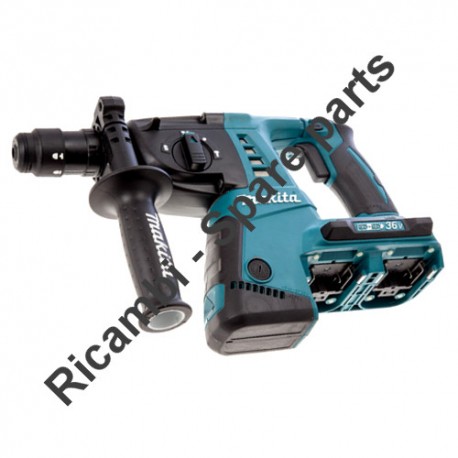

Makita Spare Parts for Combined Rotary Hammer DHR264Z
We are MAKITA original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Rotary Hammer DHR264Z.

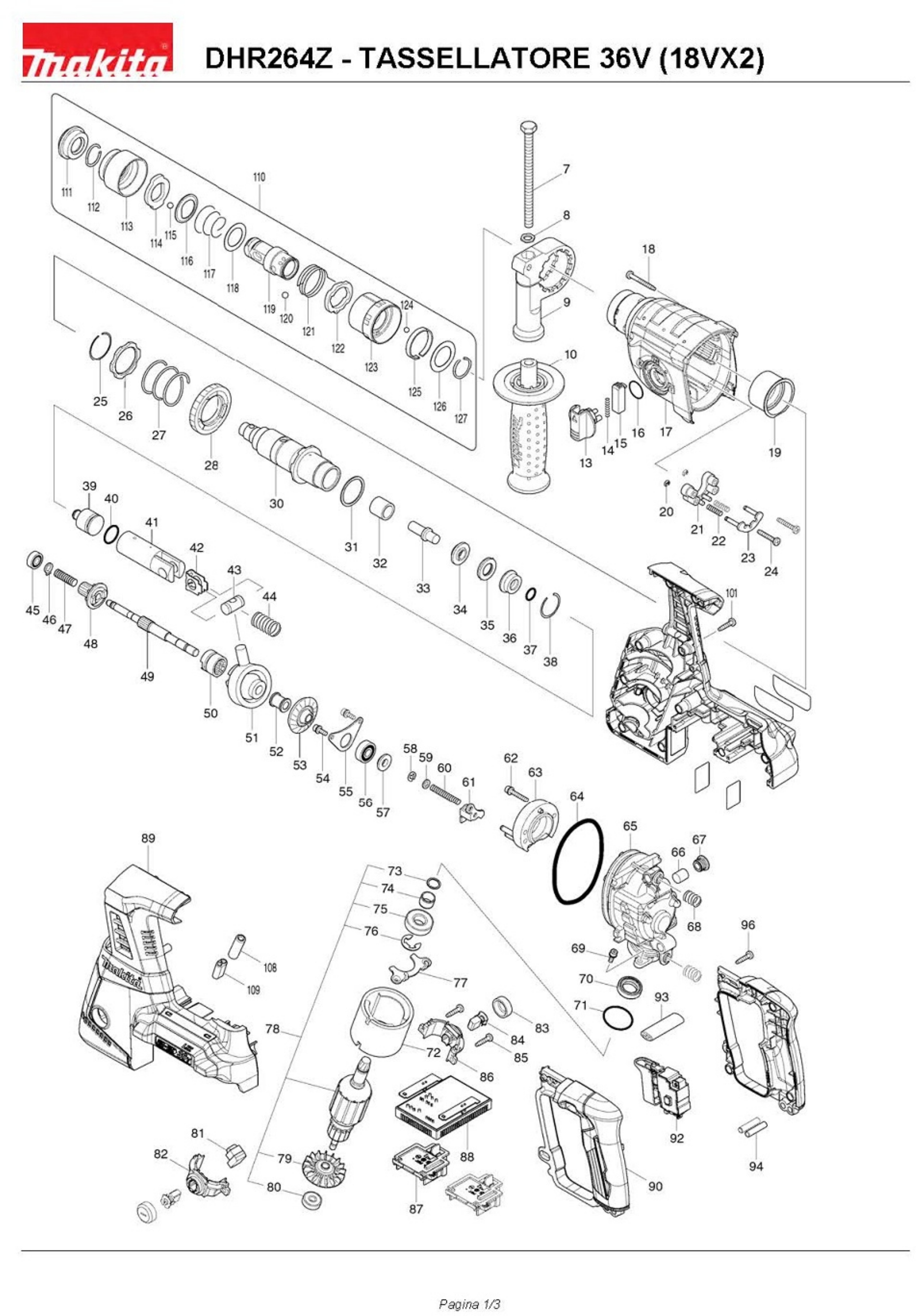

In the following table, look for the model of Rotary hammer and the respective parts of the code.
| ROTARY HAMMER DHR264Z |
| # |
Part Num. |
Description |
| 7 |
921923-8 |
SCREW M 8 X 120 X HR2020 |
| 8 |
345280-4 |
WASHER X HP2051F |
| 9 |
417630-4 |
HANDLE BASE X X HR2020 |
| 10 |
158057-6 |
HANDLE 36 CPL HR2230 |
| 13 |
450980-4 |
LEVER BHR261D |
| 14 |
233279-0 |
SPRING COMP. 4 X BHR200 |
| 15 |
453706-3 |
KEY LOCK BHR262RDE |
| 16 |
213278-8 |
RING 13 X HR2020 |
| 17 |
158945-7 |
GEAR HOUSING BHR261D |
| 18 |
266560-4 |
SCREW 4x40 HS300D |
| 19 |
153290-5 |
BEARING X HR2020 |
| 20 |
961017-7 |
RING E-3 X 4305T |
| 21 |
417796-0 |
BASIC GUIDE X X HR2450 |
| 22 |
233344-5 |
SPRING COMPRESSION 4 |
| 23 |
163430-7 |
PLATE LOCK X HR2450 |
| 24 |
266374-1 |
4X25 SCREW FOR GA9020 |
| 25 |
233929-7 |
SNAP RING 29 X HR2450FT |
| 26 |
267460-1 |
WASHER 31 X BHR240 |
| 27 |
233401-9 |
SPRING COMPRESSION 32 HR2450FT |
| 28 |
227109-5 |
GEAR 51 X HR2450FT |
| 30 |
158307-9 |
DOOR TIPS X HR2470FT |
| 31 |
267229-3 |
WASHER 28 X HR2020 |
| 32 |
331769-8 |
COMPASS FOR 9 HR2230 |
| 33 |
324796-2 |
SWING HR2811FT |
| 34 |
324402-9 |
RING 10 X HR2450FT |
| 35 |
421955-0 |
CUSHIONING RING 13 |
| 36 |
324216-6 |
RING X HR2020 |
| 37 |
213073-6 |
RING 9 X HR2020 |
| 38 |
233917-4 |
SNAP RING 28 X HR2020 |
| 39 |
326404-1 |
STRIKER |
| 40 |
213227-5 |
RING 16 X HK0500 |
| 41 |
318132-2 |
CYLINDER PISTON X HR2470F / FT |
| 42 |
346036-8 |
PLATE PIN BHR261D |
| 43 |
324215-8 |
PISTON PIN X X HR2020 |
| 44 |
234098-7 |
SPRING COMPRESSION 14 BHR261D |
| 45 |
211012-0 |
BEARING X 9524NB |
| 46 |
961003-8 |
RETAINING RING S7 |
| 47 |
233343-7 |
SPRING COMPRESSION X HR2450 |
| 48 |
227179-4 |
GEAR 10 X HR2470FT |
| 49 |
325976-3 |
CAM BHR261D |
| 50 |
331992-5 |
CLUTCH BHR262RDE |
| 51 |
219014-0 |
ECCENTRIC 10 X HR2020 |
| 52 |
325640-6 |
COMPASS 9 BHR261D |
| 53 |
227549-7 |
GEAR 26 X BHR261D |
| 54 |
266273-7 |
SCREW 4 X 12 X 4604D |
| 55 |
346038-4 |
RETAINING BEARING B BHR261D |
| 56 |
211032-4 |
BEARING X 1902 |
| 57 |
324212-4 |
RING 8 X HR2020 |
| 58 |
961011-9 |
RETAINING RING E4 |
| 59 |
941102-2 |
FLAT WASHER 5 |
| 60 |
233342-9 |
SPRING COMPRES. 6 X HR2450 |
| 61 |
345220-2 |
PLATE CHANGE X HR2450 |
| 62 |
922148-7 |
SCREW M4 X 25 X HR5201C |
| 63 |
158944-9 |
INTERNAL SUPPORT BHR261D |
| 64 |
213728-3 |
RING 68 X BHR261D |
| 65 |
318392-6 |
CASING INTERNAL BHR261D |
| 66 |
443143-9 |
FILTER BHP261D |
| 67 |
424185-2 |
CAP BHR261D |
| 68 |
234097-9 |
SPRING COMPRESSION 10 BHP261D |
| 69 |
266273-7 |
SCREW 4 X 12 X 4604D |
| 70 |
213231-4 |
SEAL OIL X HR4500C |
| 71 |
213437-4 |
RING 28 X BHR261D |
| 72 |
632828-4 |
STATOR PERMANENT MAGNET |
| 73 |
961082-6 |
RING RIT. WR12 BHR261D |
| 74 |
331596-3 |
COMPASS 12 X HR4500C |
| 75 |
211131-2 |
BALL BEARING 6001DD |
| 76 |
961016-9 |
RETAINING RING E10 |
| 77 |
346037-6 |
RETAINING BEARING BHP261D |
| 78 |
519235-7 |
INDUCED BHR261D |
| 79 |
240037-7 |
FAN 44 X BHR200 |
| 80 |
210022-4 |
BEARING 9910/11 |
| 81 |
620281-6 |
CIRCUIT LIGHT |
| 82 |
644507-2 |
SUPPORT BRUSHES SX |
| 83 |
643829-7 |
PLUG BRUSH HOLDER BSS611R |
| 84 |
194928-3 |
CHARCOALS CB-442 |
| 85 |
266326-2 |
SCREW 4x18 X MT601 |
| 86 |
644508-0 |
SUPPORT BRUSHES DX |
| 87 |
644808-8 |
X-TERMINAL BLS713 BHP451 |
| 88 |
620280-8 |
REGULATOR |
| 89 |
187833-1 |
CARCASS |
| 90 |
187771-7 |
HANDLE |
| 92 |
650721-0 |
SWITCH TG573RSBA-1 |
| 93 |
454980-6 |
LEVER |
| 94 |
256261-2 |
PIN 6 BHR261D |
| 96 |
266326-2 |
SCREW 4x18 X MT601 |
| 101 |
266326-2 |
SCREW 4x18 X MT601 |
| 108 |
688165-4 |
FILTER LINE X AH3655 |
| 109 |
688172-7 |
FILTER LINE |
| 110 |
194080-7 |
QUICK CHUCK SDS-PLUS |
| 111 |
286263-4 |
CAP 35 X HR2020 |
| 112 |
233940-9 |
SNAP RING 19 FOR HR2432 |
| 113 |
418217-5 |
COVER CHUCK HR2450FT |
| 114 |
345333-9 |
STOPPED FOR CHUCK HR2450FT |
| 115 |
216022-2 |
BALL 7 |
| 116 |
345187-4 |
WASHER GUIDE X HR2020 |
| 117 |
233916-6 |
SPRING 21-29 X HR2020 |
| 118 |
267279-8 |
FLAT WASHER 21 X HR2450FT |
| 119 |
324355-2 |
CHUCK SDS-PLUS X HR2450FT |
| 120 |
216013-3 |
BALL 6 |
| 121 |
231669-1 |
SPRING TORSION 31 X HR2450FT |
| 122 |
345334-7 |
RING GEAR X HR2450FT |
| 123 |
418218-3 |
COVER RING GEAR X HR2450FT |
| 124 |
216018-3 |
BALL 5 HP2030 |
| 125 |
345335-5 |
SPRING BAND X HR2450FT |
| 126 |
267270-6 |
WASHER 24 X HR2450FT |
| 127 |
233924-7 |
RETAINING RING 21 X HR2450FT |
