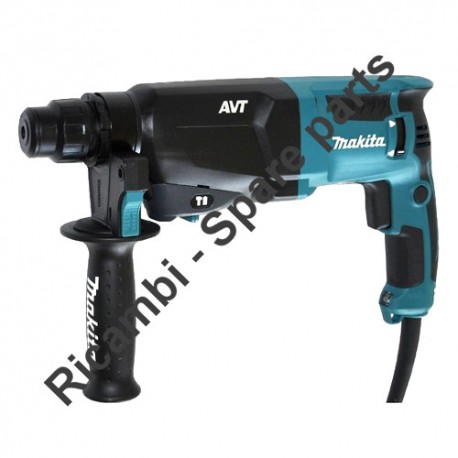

Makita Spare Parts for Rotary Hammer HR2611F
Fix Your Rotary Hammer HR2611F. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

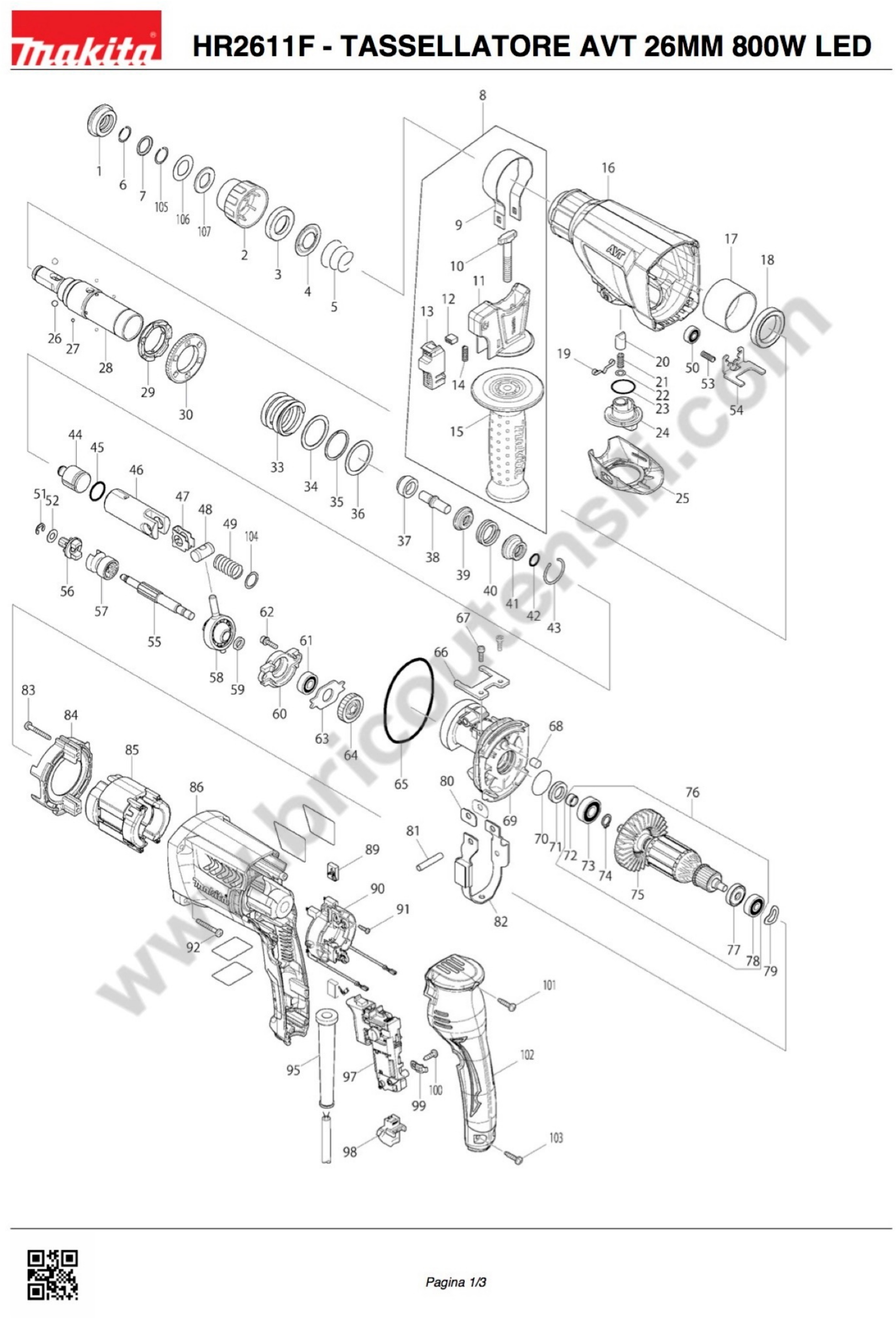

In the following table, look for the model of Hammer and the respective parts of the code.
| Rotary Hammer HR2611F |
| # |
Part Num. |
Description |
| 1 |
286288-8 |
CAP 35 HR2601 |
| 2 |
451533-2 |
FRONT COVER HR2601 |
| 3 |
325813-1 |
RING 21 HR2601 |
| 4 |
346177-0 |
GUIDE WASHER HR2601 |
| 5 |
233916-6 |
SPRING 21-29 X HR2020 |
| 6 |
233989-9 |
CIRCLIP 14 HR2601 |
| 7 |
346221-3 |
WASHER 16 HR2601 |
| 8 |
122878-2 |
GRIP ASSEMBLY HR2601 |
| 9 |
346181-9 |
GRIP SPRING 50 HR2601 |
| 10 |
266349-0 |
SCREW M8x50 HR2601 |
| 11 |
451539-0 |
GRIP BASE HR2601 |
| 12 |
313179-1 |
RACK HR2601 |
| 13 |
451540-5 |
LOCK BUTTON HR2601 |
| 14 |
233360-7 |
COMPRESSION SPRING 4 X MT952 |
| 15 |
154935-8 |
GRIP 36 HR2601 |
| 16 |
140423-1 |
GEAR BOX HR2611FT |
| 17 |
331890-3 |
SLEEVE HR2601 |
| 18 |
211294-4 |
BALL BEARING 6806LLU HR2601 |
| 19 |
232152-1 |
LEAF SPRING X 6832 |
| 20 |
325785-0 |
PUSH CORN HR2601 |
| 21 |
234147-0 |
COMPRESSION SPRING 5 HR2601 |
| 22 |
253308-3 |
WASHER 6 43SB / 6510B-2 / 5016N |
| 23 |
213381-5 |
O-RING 21 NEW HR3510 / 20 |
| 24 |
451529-3 |
CHANGE LEVER A HR2611FT |
| 25 |
451530-8 |
COVER LEVER A HR2611FT |
| 26 |
216022-2 |
STEEL BALL 7 |
| 27 |
216019-1 |
STEEL BALL 3 X 6960DW |
| 28 |
140265-3 |
TOOL HOLDER HR2601 |
| 29 |
313149-0 |
FLANGE HR2601 |

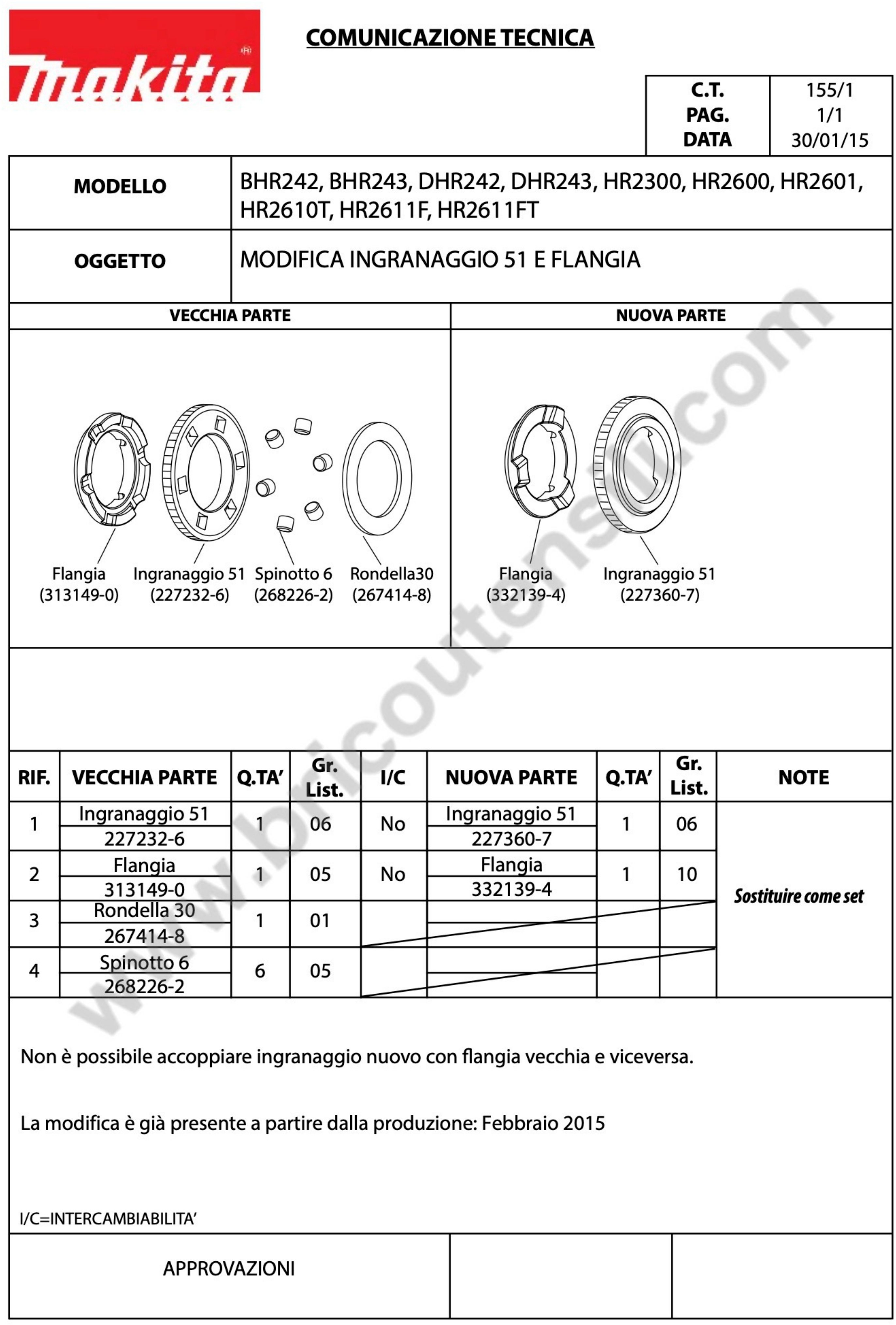

| 29 |
332139-4 |
NEW FLANGE X GEAR 51 |
| 30 |
227232-6 |
GEAR 51 HR2601 REPLACED BY 227360-7 |
| 31 |
268226-2 |
PIN 6 X HK1820 / L |
| 32 |
267414-8 |
WASHER 30 HR2601 |
| 33 |
234148-8 |
COMPRESSION SPRING 31 HR2601 |
| 34 |
267153-0 |
WASHER 30 HR2601 |
| 35 |
257932-4 |
WASHER RETAINING 30 HR2601 |
| 36 |
267153-0 |
WASHER 30 HR2601 |
| 37 |
325783-4 |
SOCKET 9B HR2601 |
| 38 |
325789-2 |
HINGED HR2601 |
| 39 |
325792-3 |
WASHER 10 HR2601 |
| 40 |
234149-6 |
COMPRESSION SPRING 20 HR2601 |
| 41 |
325793-1 |
RING HOLDER B HR2601 |
| 42 |
213073-6 |
RING 9 X HR2020 |
| 43 |
233979-2 |
CIRCLIP 28 HR2601 |
| 44 |
325784-2 |
STRIKER HR2601 |
| 45 |
213258-4 |
O-RING 17.5 X HR2210 / 20 |
| 46 |
310345-1 |
PISTON CYLINDER HR2601 |
| 47 |
346036-8 |
PLATE PIN BHR261D |
| 48 |
324215-8 |
PISTON PIN X X HR2020 |
| 49 |
234098-7 |
COMPRESSION SPRING 14 BHR261D |
| 50 |
211012-0 |
BALL BEARING X 9524NB |
| 51 |
257336-0 |
RETAINING RING EXT U-6 |
| 52 |
253186-1 |
FLAT WASHER 7 X 420S |
| 53 |
233360-7 |
COMPRESSION SPRING 4 X MT952 |
| 54 |
346176-2 |
PLATE LOCK HR2611FT |
| 55 |
325786-8 |
POST HR2611FT |
| 56 |
227231-8 |
GEAR 10 HR2611FT |
| 57 |
331814-9 |
CAM CLUTCH HR2611FT |
| 58 |
219020-5 |
SWASH BEARING 10 HR2601 |
| 59 |
267234-0 |
FLAT WASHER 8 X HR2020 |
| 60 |
310344-3 |
BEARING BOX HR2601 |
| 61 |
211032-4 |
BEARING X 1902 |
| 62 |
266437-3 |
SCREW M4x16 FRENAFIL X HR4001C |
| 63 |
285735-6 |
RETAINING BEARING HR2601 |
| 64 |
227719-8 |
GEAR 26 HR2601 |
| 65 |
213728-3 |
RING 68 X BHR261D |
| 66 |
346222-1 |
PLATE HR2601 |
| 67 |
265353-6 |
SCREW M 4 X 12 X 4341FCT |
| 68 |
443153-6 |
FELT HR2601 |
| 69 |
140267-9 |
CASING INTERNAL HR2601 |
| 70 |
213407-3 |
SEAL 26 X 3901 |
| 71 |
213133-4 |
SEAL OIL 12 X HR2800 |
| 72 |
262569-4 |
SOCKET 9 HR2601 |
| 73 |
211097-6 |
BEARING 5604R |
| 74 |
961006-2 |
RETAINING RING S10 |
| 75 |
240121-8 |
FAN 65 HR2601 |
| 76 |
515359-7 |
ARMATURE 240V |
| 77 |
681652-2 |
INSULATING WASHER X JR180D |
| 78 |
210023-2 |
BEARING 9910/11 |
| 79 |
267804-5 |
WAVY WASHER 15 HR2230 |
| 80 |
346180-1 |
GUIDE Balancer HR2601 |
| 81 |
256246-8 |
PIN 6 LS1216F |
| 82 |
165593-5 |
Balancer HR2601 |
| 83 |
266361-0 |
SCREW 4 X 30 X 9554NB |
| 84 |
451527-7 |
BAFFLE HR2601 |
| 85 |
626634-7 |
STATORE HR2601 |
| 86 |
451535-8 |
HOUSING MOTOR HR2611FT |
| 89 |
194074-2 |
CARBON BRUSHES CB-325 X 9554NB |
| 90 |
638655-7 |
BRUSHES HOLDER HR2601 |
| 91 |
266556-5 |
SCREW 3X12 HR26001 |
| 92 |
266361-0 |
SCREW 4 X 30 X 9554NB |
| 95 |
682566-8 |
PASS CABLE X HR2450 |
| 97 |
650625-6 |
SWITCH HR2601 |
| 98 |
631937-6 |
CIRCUIT LIGHT HR2611FT |
| 99 |
687682-1 |
CLAMP Cable tie X JS1000 |
| 100 |
266385-6 |
4x14 SCREW FOR GA9020 |
| 101 |
266326-2 |
SCREW 4x18 X MT601 |
| 102 |
451528-5 |
COVER HANDLE HR2601 |
| 103 |
266326-2 |
SCREW 4x18 X MT601 |
| 104 |
267447-3 |
WASHER 14 HR2601 |
| 105 |
233992-0 |
CIRCLIP 15 HR2601 |
| 106 |
267437-6 |
WASHER 17 HR2601 |
| 107 |
424364-2 |
WASHER RUBBER 16 HR2601 |
| 999 |
195105-0 |
SERVICE KIT HR2300 |
