Makita

Makita Spare Parts for SDS-Plus Rotary Hammer HR1830

SKU: Makita HR1830
€33.39
VAT included

Makita Spare Parts for SDS-Plus Rotary Hammer HR1830

Distribution and Sale at attractive prices of MAKITA Original Spare Parts. Low prices and a professional Assistance guarantee, repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Rotary Hammer SDS-PLUS 18MM HR1830.

Makita Spare Parts for SDS-Plus Rotary Hammer HR1830
  • Makita Spare Parts for SDS-Plus Rotary Hammer HR1830
  • Makita Spare Parts for SDS-Plus Hammers HR1830-2300-2450
Makita

Makita Spare Parts for SDS-Plus Rotary Hammer HR1830

SKU: Makita HR1830 Condition: New
€33.39
VAT included

Makita Spare Parts for SDS-Plus Rotary Hammer HR1830

Distribution and Sale at attractive prices of MAKITA Original Spare Parts. Low prices and a professional Assistance guarantee, repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Rotary Hammer SDS-PLUS 18MM HR1830.

settings 70 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
64 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

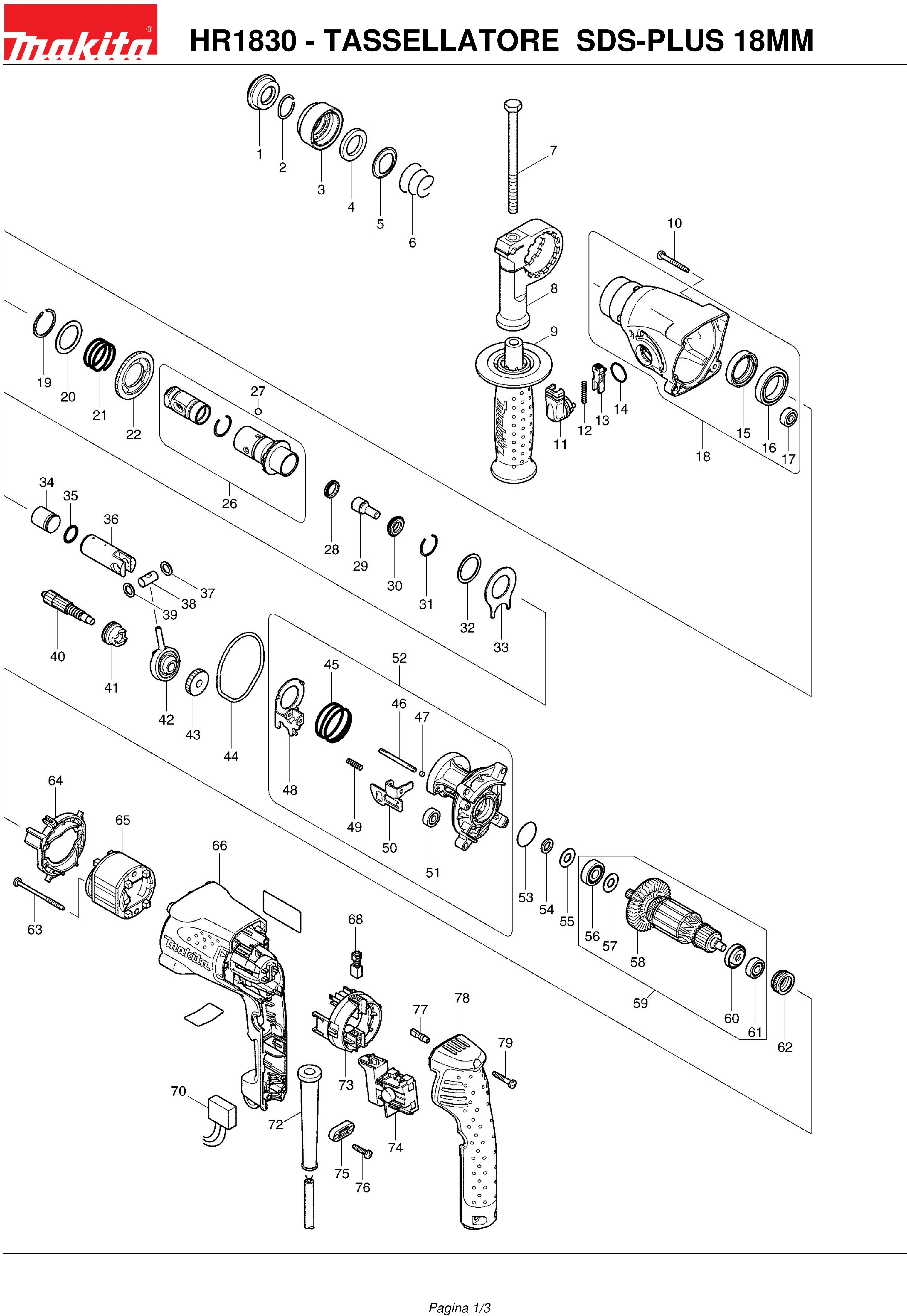

Esploso pagina 1
Pos. Item Price Buy
2
 Elastic Ring 19 for HAMMER Makita HR2020 233940-9 Elastic Ring 19 for HAMMER Makita HR2020 €1.50
3
 photo_cameraImage coming soon 419220-9 COVER CHUCK X HR1830 €2.16
4
 Ring 21 for Chuck Hammer Makita HR2020 257241-1 Ring 21 for Chuck Hammer Makita HR2020 €3.31
5
 Guide Washer for HAMMER Makita HR2020 345187-4 Guide Washer for HAMMER Makita HR2020 €1.50
6
 Spring 21-29 for 20 mm Hammer Makita HR2020 233916-6 Spring 21-29 for 20 mm Hammer Makita HR2020 €3.18
7
 Bolt M 8 X 120 for Hammer Drills Makita HP1630-HP1631 921923-8 Bolt M 8 X 120 for Hammer Drills Makita HP1630-HP1631 €2.22
8
 photo_cameraImage coming soon 417911-6 HANDLE BASE X X HR1830 €2.46
9
 photo_cameraImage coming soon 158057-6 HANDLE 36 CPL HR2230 €10.01
10
 photo_cameraImage coming soon 266048-4 VITE M 4 PER 40 PER 4334D €3.51
11
 photo_cameraImage coming soon 162242-5 LEVER CPL X HR1830 €1.69
12
 Compression Spring 3 for Rotary Hammer Makita HR1830 233459-8 Compression Spring 3 for Rotary Hammer Makita HR1830 €1.43
13
 photo_cameraImage coming soon 419192-8 KEY LOCK HR1830 €1.26
14
 photo_cameraImage coming soon 213278-8 RING 13 X HR2020 €1.40
15
 photo_cameraImage coming soon 213956-0 OIL SEAL 25 FOR HR1830 €2.53
16
 photo_cameraImage coming soon 211375-4 BALL BEARING 6805LLB 6221D €22.62
17
 Bearing for Angle Grinder Makita 9524NB 211012-0 Bearing for Angle Grinder Makita 9524NB €8.23
18
 photo_cameraImage coming soon 154840-9 GEAR BOX HR1830 €26.15
20
 photo_cameraImage coming soon 267304-5 WASHER 25 HR1830 €1.25
21
 photo_cameraImage coming soon 233457-2 SPRING COMPRESSION 25 HR1830 €1.69
22
 photo_cameraImage coming soon 331707-0 GEAR 46 HR1830 €15.18
26
 photo_cameraImage coming soon 154843-3 CHUCK CPL HR1830 €26.15
27
 Steel Ball 7 mm for Hammers Makita 216022-2 Steel Ball 7 mm for Hammers Makita €1.47
28
 photo_cameraImage coming soon 213183-9 RING 13 HR1830 €1.69
29
 photo_cameraImage coming soon 324611-0 SWING HR1830 €2.53
30
 photo_cameraImage coming soon 257275-4 RING 11 HR1830 €2.53
31
 photo_cameraImage coming soon 233942-5 O- RING 22 €1.25
32
 photo_cameraImage coming soon 267175-0 FLAT WASHER 24 6914DW €1.43
33
 photo_cameraImage coming soon 345681-6 FLANGE HR1830 €1.25
34
 photo_cameraImage coming soon 324613-6 STRIKER X HR1830 €2.53
35
 photo_cameraImage coming soon 213182-1 RING 14 X HR1830 €1.69
36
 photo_cameraImage coming soon 331708-8 PISTON HR1830 €17.22
38
 photo_cameraImage coming soon 324612-8 PISTON PIN X X HR1830 €1.86
40
 photo_cameraImage coming soon 227152-4 GEAR 10 HR1830 €7.92
41
 photo_cameraImage coming soon 331706-2 CLUTCH CAM HR1830 €6.07
42
 photo_cameraImage coming soon 219019-0 SWASH BEARING 9 BHR162/HR1830 €54.98
43
 photo_cameraImage coming soon 226620-4 GEAR 23 HR1830 €5.63
45
 photo_cameraImage coming soon 233458-0 COMPRESSION SPRING 32 HR1830 €1.25
46
 photo_cameraImage coming soon 268147-8 PIN 4 HR1830 €1.69
48
 photo_cameraImage coming soon 345645-0 CHANGE PLATE FOR HR1830 €6.07
50
 photo_cameraImage coming soon 345654-9 RETAINING PLATE FOR HR1830 €3.56
52
 photo_cameraImage coming soon 154841-7 INNER HOUSING SPL. X HR1830 €28.57
53
 photo_cameraImage coming soon 213953-6 RING 24 HR2430 €1.40
54
 photo_cameraImage coming soon 267302-9 WASHER 9 HR1830 €1.77
55
 photo_cameraImage coming soon 267231-6 FLAT WASHER 9 X HR2020 €1.36
56
 photo_cameraImage coming soon 210060-6 BALL BEARING 609LLU HR2430 €6.44
58
 photo_cameraImage coming soon 240083-0 FAN 52 HR1830 €3.43
59
 Armature for Hammer 18 mm Makita HR1830 515649-8 Armature for Hammer 18 mm Makita HR1830 €41.89
60
 Armature Washer for Angle Grinder Makita GA4530 681636-0 Armature Washer for Angle Grinder Makita GA4530 €2.34
61
 Ball Bearing 607DDW for Laminate Trimmer Makita 3706 210017-7 Ball Bearing 607DDW for Laminate Trimmer Makita 3706 €8.46
62
 Ball Bearing Protection for Angle Grinder Makita GA4530 421868-5 Ball Bearing Protection for Angle Grinder Makita GA4530 €2.00
63
 photo_cameraImage coming soon 266091-3 SPECIAL SCREW 4 X 50 €1.32
64
 photo_cameraImage coming soon 419196-0 BAFFLE PLATE HR1830 €2.87
65
 Stator for Hammer 18 mm Makita HR1830 633624-3 Stator for Hammer 18 mm Makita HR1830 €16.64 €14.98 -10%
66
 photo_cameraImage coming soon 419198-6 MOTOR HOUSING HR1830 €20.96
68
 Carbon Brushes Makita for Sanders BO4555-4556-4565-4566 191962-4 Carbon Brushes Makita for Sanders BO4555-4556-4565-4566 €7.53
70
 Capacitor for Angle Grinder Makita GA4530 645200-1 Capacitor for Angle Grinder Makita GA4530 €2.65
72
 photo_cameraImage coming soon 682566-8 CORD GUARD X HR2450 €2.15
73
 photo_cameraImage coming soon 638413-1 CARBON BRUSHE HOLDER X HP2071F €18.87
74
 photo_cameraImage coming soon 650570-5 SWITCH TG843TB-2 HP1830 €30.51
75
 photo_cameraImage coming soon 687052-4 CLAMP cable clamp X 6408 €5.40
76
 Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
78
 photo_cameraImage coming soon 419197-8 COVER HANDLE HR1830 €14.46
79
 photo_cameraImage coming soon 265999-8 4X25 SCREW €1.47
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

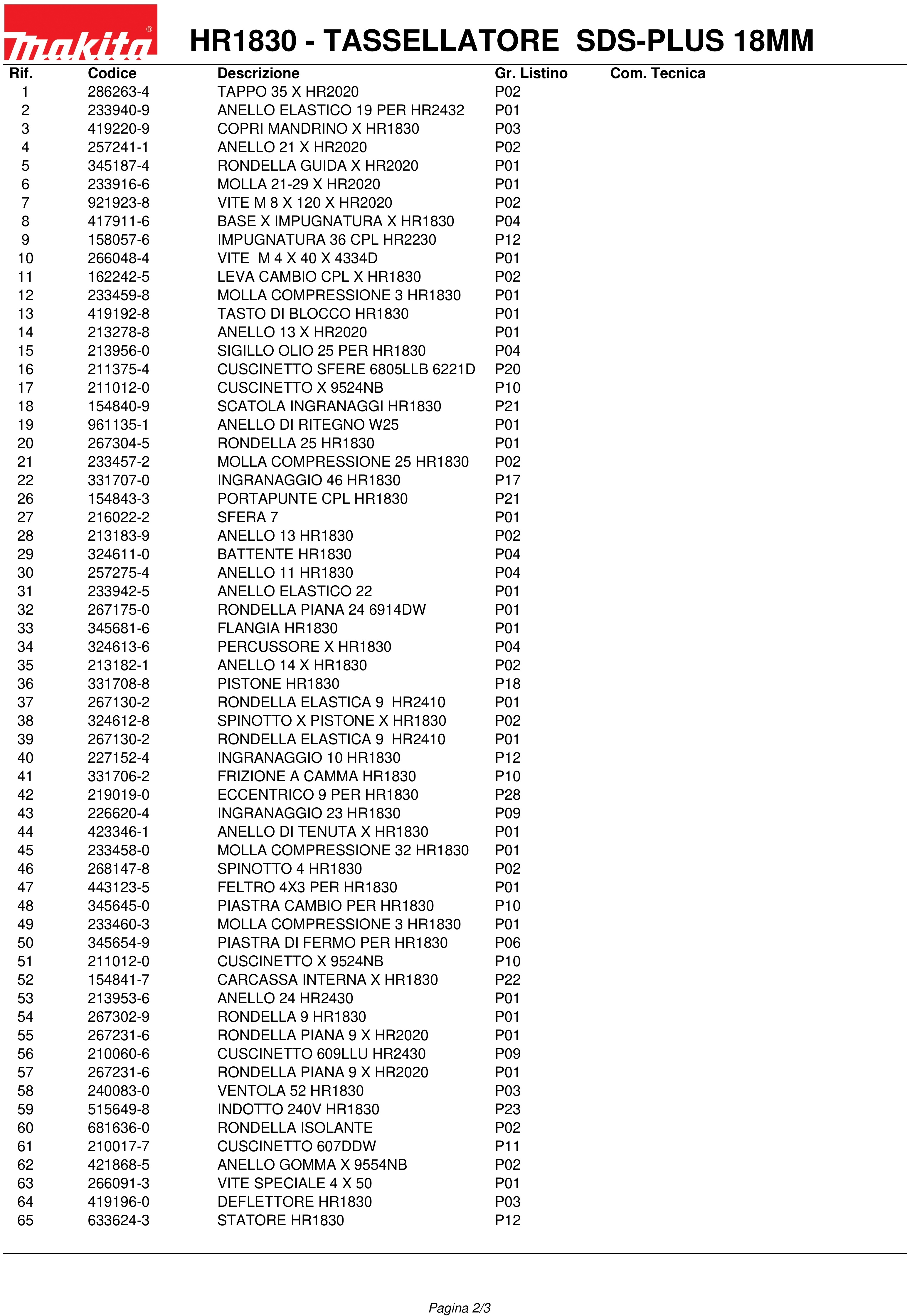

Esploso pagina 2
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

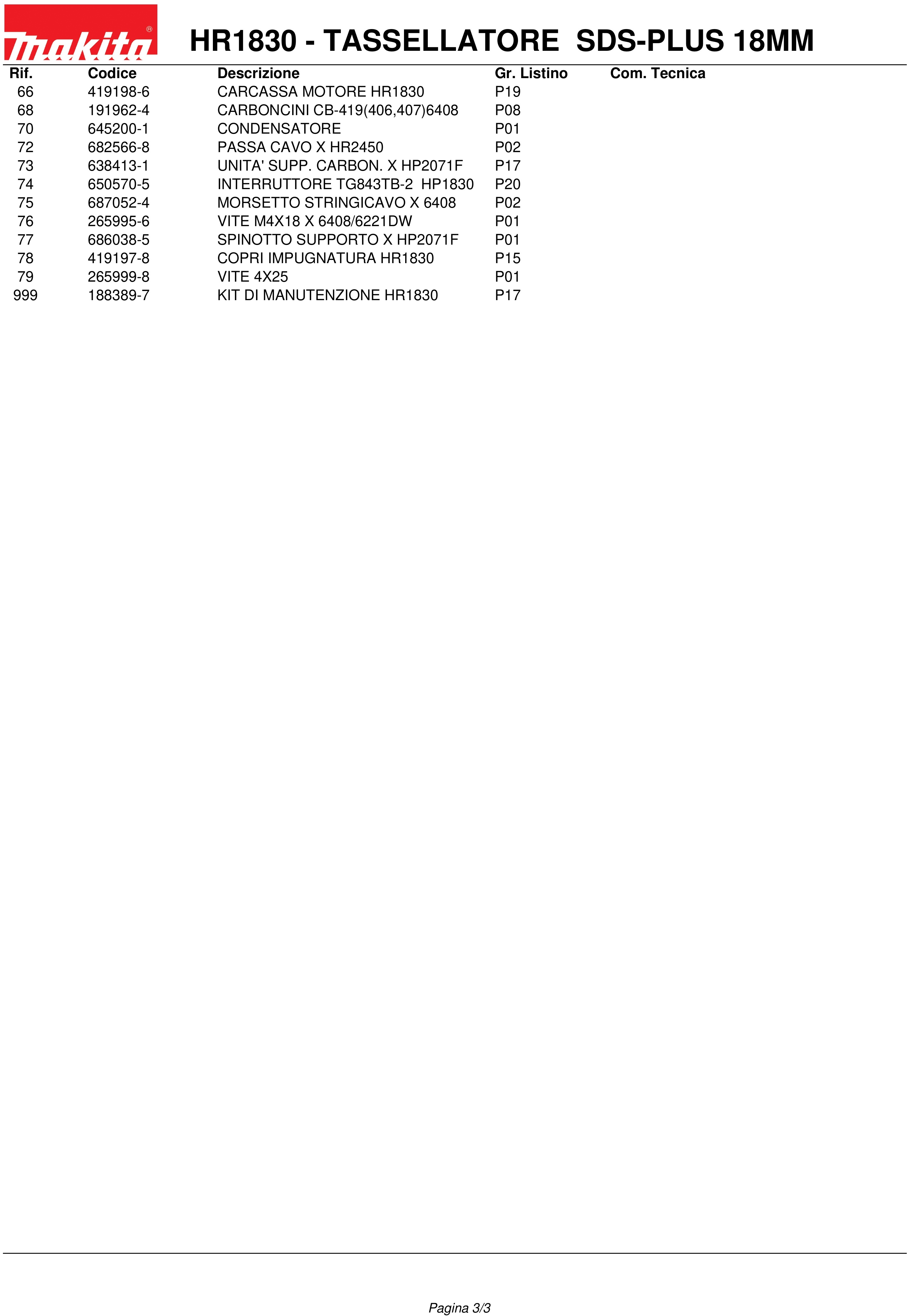

Esploso pagina 3
Pos. Item Price Buy
999
 photo_cameraImage coming soon 188389-7 SERVICE KIT HR1830 €17.77

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for SDS-Plus Rotary Hammer HR1830

Distribution and Sale at attractive prices of MAKITA Original Spare Parts

. Low prices and a professional Assistance guarantee, repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Rotary Hammer SDS-PLUS 18MM HR1830.

In the following table, look for the model of Rotary Hammer and the respective parts of the code.


ROTARY HAMMER SDS-PLUS 18MM 1830
1 286263-4 CAP 35 X HR2020
2 233940-9 SPRING RING 19 FOR HR2432
3 419220-9 COVER CHUCK X HR1830
4 257241-1 RING 21 X HR2020
5 345187-4 WASHER GUIDE X HR2020
6 233916-6 SPRING 21-29 X HR2020
7 921923-8 SCREW M 8 X 120 X HR2020
8 417911-6 HANDLE BASE X X HR1830
9 158057-6 HANDLE 36 CPL HR2230
10 266048-4 SCREW M 4 X 40 X 4334D
11 162242-5 LEVER CPL X HR1830
12 233459-8 COMPRESSION SPRING 3 HR1830
13 419192-8 KEY LOCK HR1830
14 213278-8 RING 13 X HR2020
15 213956-0 OIL SEAL 25 FOR HR1830
16 211375-4 BALL BEARING 6805LLB 6221D
17 211012-0 BEARING X 9524NB
18 154840-9 GEAR BOX HR1830
19 961135-1 RETAINING RING W25
20 267304-5 WASHER 25 HR1830
21 233457-2 SPRING COMPRESSION 25 HR1830
22 331707-0 GEAR 46 HR1830
26 154843-3 CHUCK CPL HR1830
27 216022-2 STEEL BALL 7
28 213183-9 RING 13 HR1830
29 324611-0 SWING HR1830
30 257275-4 RING 11 HR1830
31 233942-5 O- RING 22
32 267175-0 FLAT WASHER 24 6914DW
33 345681-6 FLANGE HR1830
34 324613-6 STRIKER X HR1830
35 213182-1 RING 14 X HR1830
36 331708-8 PISTON HR1830
37 267130-2 SPRING WASHER 9 HR2410
38 324612-8 PISTON PIN X X HR1830
39 267130-2 SPRING WASHER 9 HR2410
40 227152-4 GEAR 10 HR1830
41 331706-2 CLUTCH CAM HR1830
42 219019-0 SWASH BEARING 9 BHR162/HR1830
43 226620-4 GEAR 23 HR1830
44 423346-1 RING X HR1830
45 233458-0 COMPRESSION SPRING 32 HR1830
46 268147-8 PIN 4 HR1830
47 443123-5 FELT 4X3 FOR HR1830
48 345645-0 CHANGE PLATE FOR HR1830
49 233460-3 COMPRESSION SPRING 3 HR1830
50 345654-9 RETAINING PLATE FOR HR1830
51 211012-0 BALL BEARING X 9524NB
52 154841-7 INNER HOUSING SPL. X HR1830
53 213953-6 RING 24 HR2430
54 267302-9 WASHER 9 HR1830
55 267231-6 FLAT WASHER 9 X HR2020
56 210060-6 BALL BEARING 609LLU HR2430
57 267231-6 FLAT WASHER 9 X HR2020
58 240083-0 FAN 52 HR1830
59 515649-8 ARMATURE 240V HR1830
60 681636-0 INSULATION WASHER
61 210017-7 BALL BEARING 607DDW
62 421868-5 RUBBER RING X 9554NB
63 266091-3 SPECIAL SCREW 4 X 50
64 419196-0 BAFFLE PLATE HR1830
65 633624-3 STATOR HR1830
66 419198-6 MOTOR HOUSING HR1830
68 191962-4 CARBON BRUSHES CB-419 (406.407) 6408
70 645200-1 CAPACITOR
72 682566-8 CORD GUARD X HR2450
73 638413-1 CARBON BRUSHE HOLDER X HP2071F
74 650570-5 SWITCH TG843TB-2 HP1830
75 687052-4 STRAIN RELIEF X 6408
76 265995-6 SCREW M4X18 X 6408 / 6221DW
77 686038-5 PIN HOLDER X HP2071F
78 419197-8 COVER HANDLE HR1830
79 265999-8 SCREW 4X25
999 188389-7 SERVICE KIT HR1830

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
