Makita Spare Parts for Angle Grinder GA9030S

Makita Original spare parts sourced directly from the manufacturer, with after-sales assistance at the best price on the web for to repair Angle Grinder GA9030S.

55 spare parts

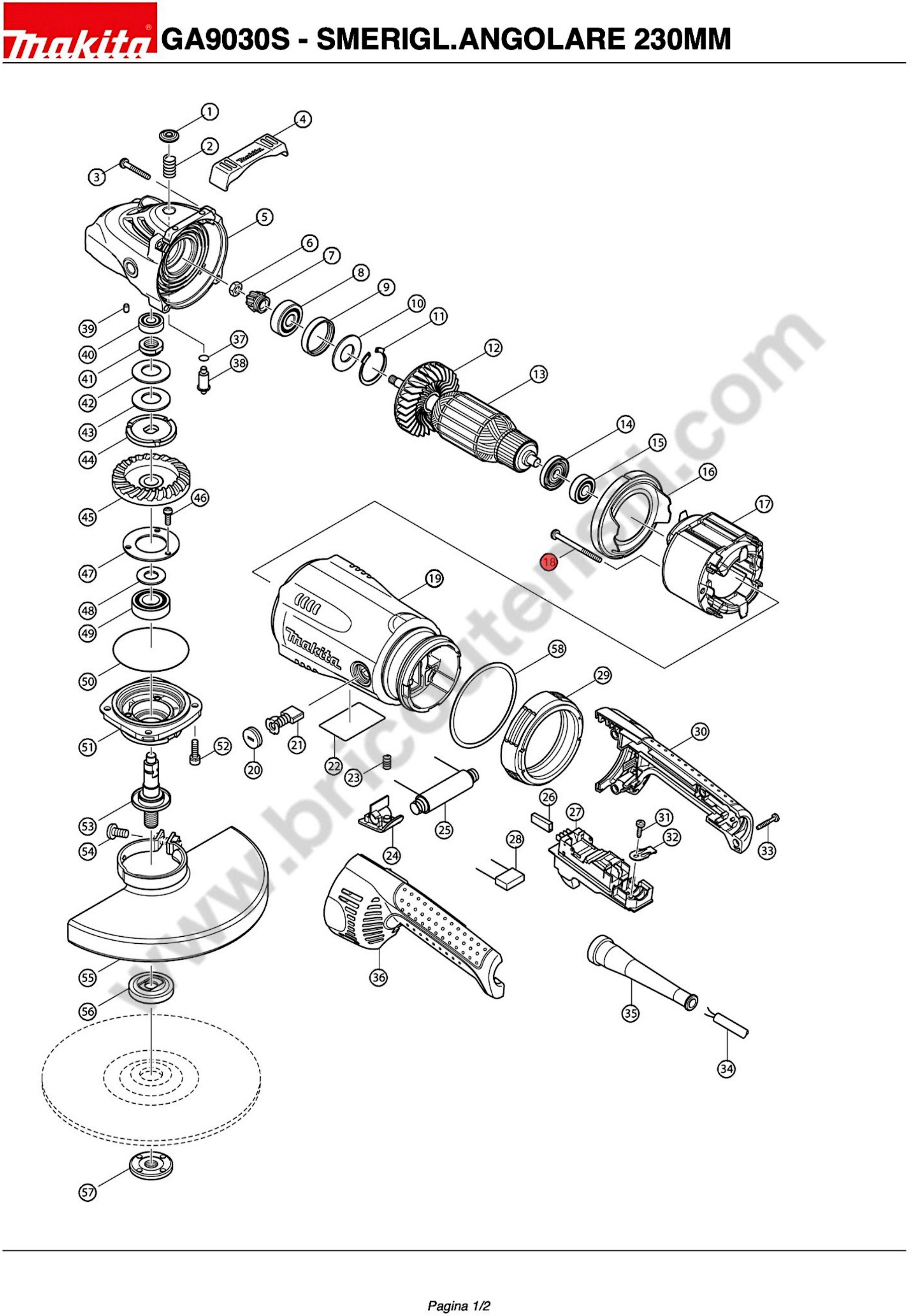

Page 1 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
1		419133-4 Makita Pin Cap for Angle Grinder GA9020	€1.50
2		233292-8 Pin Disc Block Spring for Angle Grinder Makita GA9020	€1.50
3		266012-5 Screw M5 X 35 for Angle Grinder Makita GA9050R	€2.01
4		419144-9 Bumper for Angle Grinder Makita GA9020	€2.50
5		142754-4 Gear Box for Angle Grinder Makita GA9020	€25.65
6	Image coming soon	252194-9 NUT M8 GA9020	€1.79
7	Image coming soon	227490-4 BEVEL GEAR 12 GA9020	€7.11
8		211132-0 Ball Bearing 6301DD for Angle Grinders Makita	€13.46
9	Image coming soon	262085-6 RUBBER RING 38 9079S	€1.42
10		267299-2 Washer 20 for Angle Grinder Makita GA9020	€1.27
11	Image coming soon	962211-4 RETAINING RING R42	€3.13
12		240081-4 Armature Fan for Angle Grinder Makita GA9020	€5.87
13		517828-4 Armature for Angle Grinder Makita GA9030	€58.71
14	Image coming soon	681630-2 WASHER 9029-9029SF.	€2.90
15	Image coming soon	210075-3 BALL BEARING 6200DDW GA9020	€3.13
16	Image coming soon	419135-0 DEFLECTOR GA9020	€1.79
17	Image coming soon	526193-0 STATOR FOR GA9030	€50.21
18	Image coming soon	266352-1 SCREW 5X65 MT901	€1.38
19	Image coming soon	154786-9 HOUSING MOTOR GA9040S	€28.31
20		643710-2 Brushes Holder Cap for Angle Grinders Makita GA7020-GA9020-9069	€2.01
21	Image coming soon	194992-4 CARBON BRUSH SET CB-204	€6.30
23	Image coming soon	233375-4 SPRING COMPRESSION 7 X GA9040S	€1.79
24	Image coming soon	419260-7 LOCKOUT BUTTON FOR GA9040S	€1.40
25	Image coming soon	646788-4 RESISTOR FOR GA9020S	€6.63
26	Image coming soon	686036-9 TERMINAL GA9020	€1.79
27	Image coming soon	651178-8 SWITCH 1362.0112	€32.73
28		645088-9 Capacitor for Angle Grinder Makita GA9020	€1.50
29	Image coming soon	421936-4 INSERT X Absorbed. Vibrate.	€2.69
30	Image coming soon	188123-5 REAR HANDLE For GA9040S	€18.98
31		266192-7 Srew M4X14 for Hammers Makita HR4001C-HR4010C	€1.46
32	Image coming soon	687169-3 STRAIN RELIEF HP1620	€1.46
33	Image coming soon	265999-8 4X25 SCREW	€1.47
34	Image coming soon	665630-0 Spare Part 665630-0	€2.69
35		682560-0 Power Cord Protection for Angle Grinder Makita 1800-2000-2200W	€3.18
36	Image coming soon	188123-5 REAR HANDLE For GA9040S	€18.98
37	Image coming soon	213062-1 9 RING BSR730	€1.79
38		256491-5 Pin Disc Block for Angle Grinders Makita 180-230MM	€3.35
39		263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C	€1.32
40		211480-7 Ball Bearing 6000 ZZ for CUT-OFF Machine Makita 2414EN	€8.05
41	Image coming soon	252429-8 NUT FOR M15-23 GA9040S	€2.08
42	Image coming soon	232163-6 WASHER 20 X 9047F 9049F	€3.84
43	Image coming soon	232163-6 WASHER 20 X 9047F 9049F	€3.84
44	Image coming soon	267798-4 WASHER LOCK FOR GA9040S	€4.43
45	Image coming soon	227492-0 GEAR FOR 53C GA9040S	€18.98
46	Image coming soon	265120-9 SCREW M5x16 GA9020	€1.79
47		285724-1 Bearings Washer Grinders Makita GA7020-GA9020	€2.51
48	Image coming soon	267167-9 WASHER 15 X 9047F 9049F	€2.08
49		211285-5 Ball Bearing 6203DDW for Makita GA9020	€3.84
50	Image coming soon	213760-7 SEAL 78 HR2010	€2.69
51		318377-2 Bearings Box for Angle Grinders Makita GA7020-GA9020	€8.73
52	Image coming soon	265541-5 SCREW M6X22 GA9020	€1.79
53	Image coming soon	154777-0 POST FOR GA9040S	€10.73
54	Image coming soon	265158-4 M8X25 SCREW FOR GA9020	€1.40
55		122891-0 Cover Disc for Angle Grinder Makita GA9020	€36.84
56	Image coming soon	122444-5 INTERNAL FLANGE 9079S	€35.76
57		224543-0 Upper Flange for Angle Grinder Makita 180-230 mm	€5.45
58	Image coming soon	261131-2 WASHER NYLON 89 TO GA9040S	€1.79

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Angle Grinder GA9030S

Makita

Original spare parts sourced directly from the manufacturer, with after-sales assistance at the best price on the web for to repair Angle Grinder GA9030S.

In the following table, look for the model of the Angle Grinder and the respective parts of the code.

MAKITA GA9030S
#	Part Num	Description
1	419133-4	PIECE CAP FOR GA9020
2	233292-8	COMPRESSION SPRING 12
3	266012-5	SCREW M5 X 35 HR160DW
4	419144-9	RUBBER PROTECTION FOR GA9020
5	142754-4	GEAR HOUSING FOR GA9020
6	252194-9	NUT M8 FOR GA9020
7	227490-4	GEAR 12 FOR GA9020
8	211132-0	BALL BEARING 6301DD
9	262085-6	RUBBER RING 38 9079S
10	267299-2	WASHER 20 FOR GA9020
11	962211-4	RETAINING RING R42
12	240081-4	FAN 80 FOR GA9020
13	517828-4	ARMATURE FOR GA9030
14	681630-2	WASHER FOR 9029-9029SF
15	210075-3	6200DDW BEARING FOR GA9020
16	419135-0	DEFLECTOR FOR GA9020
17	526193-0	STATOR FOR GA9030
18	266352-1	5X65 SCREW MT901
19	154786-9	MOTOR CASING FOR GA9040S
20	643710-2	BRUSH HOLDER CAP XHM1500
21	194992-4	CARBON BRUSHES CB-204 (201, 202)
22	862126-4
23	233375-4	COMPRESSION SPRING 7 FOR GA9040S
24	419260-7	LOCKOUT BUTTON FOR GA9040S
25	646788-4	RESISTOR FOR GA9020S
26	686036-9	TERMINAL FOR GA9020
27	651178-8	SWITCH 1362.0112
28	645088-9	CAPACITIZER FOR GA9020
29	421936-4	VIBRATION ABSORPTION INSERT
30	188123-5	REAR HANDLE For GA9040S
31	266192-7	4 x 14 SCREW FOR HR4001C/HR4010C
32	687169-3	HP1620 CABLE CLAMP
33	265999-8	4 x 25 SCREW
34	665630-0
35	682560-0	CABLE SLEEVE FOR HM1202C/9079S
36	188123-5	REAR HANDLE For GA9040S
37	213062-1	RING 9 X BSR730
38	256491-5	PIN 5 FOR GA9020
39	263002-9	RUBBER PIN 4
40	211480-7	BEARING 6000ZZ
41	252429-8	NUT M15-23 FOR GA9040S
42	232163-6	WASHER 20 X 9047F 9049F
43	232163-6	WASHER 20 X 9047F 9049F
44	267798-4	LOCK WASHER FOR GA9040S
45	227492-0	GEAR 53C FOR GA9040S
46	265120-9	SCREW M5X16 FOR GA9020
47	285724-1	BEARING RETAINER 50 GA9020
48	267167-9	WASHER 15 X 9047F 9049F
49	211285-5	BEARING 6203DDW FOR GA9020
50	213760-7	SEAL 78 HR2010
51	318377-2	BEARING BOX GA9020
52	265541-5	SCREW M6X22 FOR GA9020
53	154777-0	SHAFT FOR GA9040S
54	265158-4	M8X25 SCREW FOR GA9020
55	122891-0	DISC COVER FOR GA9020
56	122444-5	INTERNAL FLANGE 9079S
57	224543-0	FLANGE 9047F 9049F 9049SF
58	261131-2	NYLON WASHER 89 FOR GA9040S

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference Makita GA9030S

Available 12 Items

Data sheet

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]

Specific References

Condition New

Download

Makita GA9030S Parts Drawing

Download (398.07KB)
