Makita Spare Parts for Angle Grinder 9565CR
Fix Your Angle Grinder 9565CR. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of the Angle Grinder and the respective parts of the code.

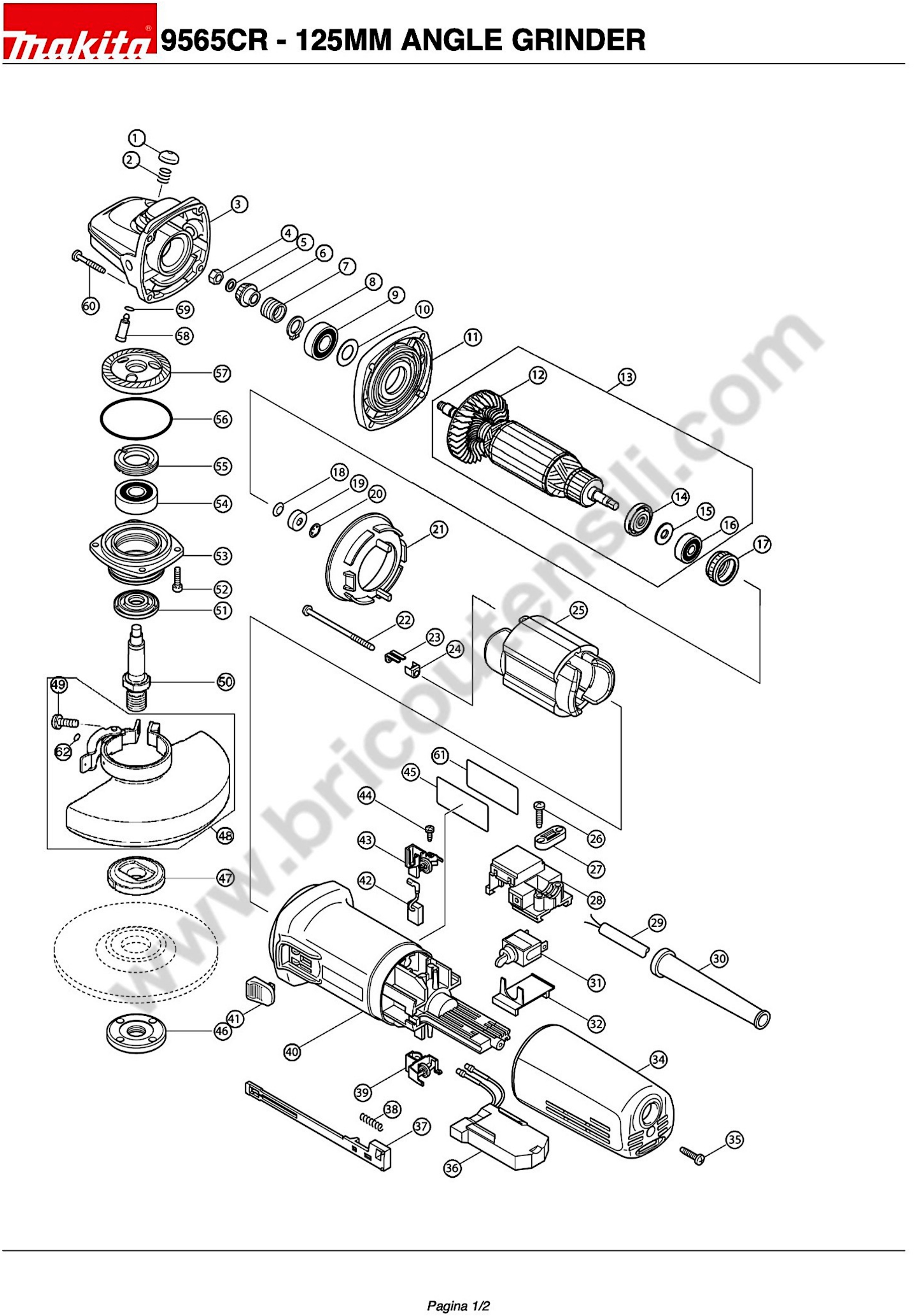

| 9565CR - 125MM ANGLE GRINDER |
| # |
Part Num |
Description |
| 1 |
418067-8 |
PIN CAP FOR SG1250 |
| 2 |
233072-2 |
COMPRESSION SPRING 8 X 9541 |
| 3 |
153488-4 |
GEAR CASE COMPLETE FOR SG1250 |
| 4 |
252268-6 |
HEXAGON NUT M6 |
| 5 |
253077-6 |
WASHER P. 6 4300/01BV |
| 7 |
233901-9 |
LOCKING SPRING 12 X GD0800C |
| 9 |
211142-7 |
BEARING 6001LLB FOR GD0800C |
| 10 |
253084-9 |
FLAT WASHER 12 8419B / 5016NB |
| 11 |
317359-1 |
GEAR BOX COVER FOR 9561 |
| 13 |
515228-2 |
ARMOR 9565CV 220-240V |
| 14 |
681656-4 |
INSULATING WASHER FOR GD0810C |
| 15 |
253823-7 |
WASHER FLAT 7 X JS1600 |
| 16 |
210027-4 |
BEARING 627DDW X 9561CV |
| 17 |
422750-1 |
LABYRINTH RING 22 X 9561CV |
| 18 |
267756-0 |
WAVED WASHER X BO6040 |
| 19 |
688117-5 |
WASHER X GD0800C |
| 20 |
259039-2 |
LOCKING 6 X 9566CV |
| 21 |
413076-2 |
DEFLECTOR X GD0800C |
| 22 |
266258-3 |
SCREW 4 X 70 X 9564 |
| 23 |
344871-8 |
RETAINER X GD0800C |
| 25 |
621C19-0 |
STATOR 220 X 9565CVL |
| 29 |
665394-6 |
POWER CABLE 1.0-2-2.5 |
| 30 |
682559-5 |
CABLE PROTECTOR X 6822 |
| 31 |
651418-4 |
SWITCH ST115A-40 X 9541 |
| 32 |
687113-0 |
COVER X GD0800C |
| 34 |
417185-9 |
REAR COVER X GD0800C |
| 36 |
620G01-0 |
REGULATOR |
| 37 |
417186-7 |
SWITCH LEVER X 9564 |
| 38 |
233071-4 |
SPRING COMPRESSION BRUSHES 4 X 9541 |
| 40 |
453276-2 |
MOTOR CASING |
| 42 |
191978-9 |
CARBON BRUSHE CB 318 (EX 310) |
| 43 |
643760-7 |
BRUSH HOLDER FOR BO6040 |
| 44 |
266256-7 |
SCREW 3 X 10 FOR GD0800C |
| 45 |
866176-1 |
|
| 46 |
224554-5 |
CLAMP WASHER 14-45 X 9541 |
| 47 |
224490-5 |
INTERNAL FLANGE 42 |
| 48 |
123145-8 |
DISC COVER GA SERIES 125mm |
| 49 |
265180-1 |
SCREW M5X16 |
| 50 |
324035-0 |
STAINLESS STEEL SHAFT 9561CV |
| 51 |
415300-9 |
SPACER FOR 9541 |
| 52 |
265490-6 |
SCREW M4 X 16 FOR 9561CV |
| 53 |
318334-0 |
BEARING BOX |
| 54 |
211129-9 |
BALL BEARING 6201DD NSK |
| 55 |
285841-7 |
BEARING RETAINER FOR 9566CV |
| 56 |
213673-2 |
RING 52 FOR 9561CV |
| 57 |
227514-6 |
GEAR 38 |
| 58 |
256459-1 |
PIN FOR 9561CV |
| 59 |
213048-5 |
RING 6 FOR 9561CV |
| 60 |
266257-5 |
SCREW M4 X 28 X 9561CV |
| 61 |
805W65-3 |
|
| 62 |
213009-5 |
RING 4 |
