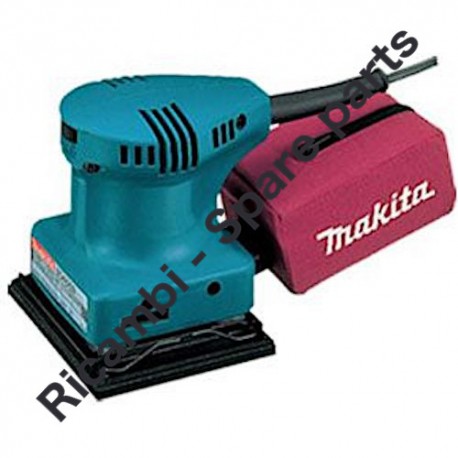

Makita Spare Parts for Orbital Sander BO4553
Makita original spare parts for to make maintenance, replacement of damaged parts or repair electrical or mechanical components of the Orbital Sander BO4553.
Fix Your Orbital Sander Makita BO4553. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

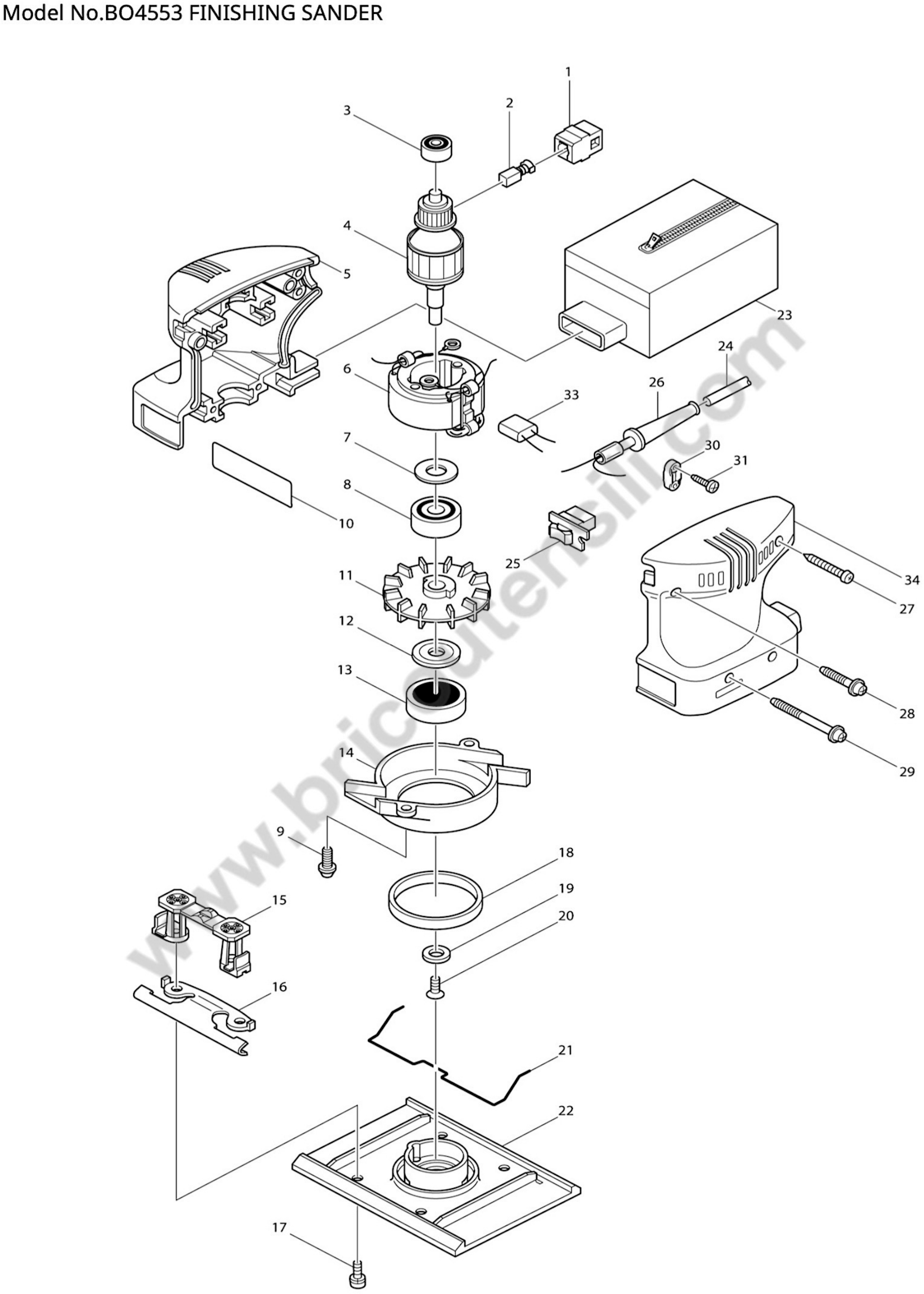

In the following table, look for the model of the Sander and the respective parts of the code.
| Makita Sander BO4553 Parts |
| # |
Part Num |
Description |
| 1 |
643552-4 |
BRUSH HOLDER 5-8 |
| 2 |
191627-8 |
CARBON BRUSH CB-64 |
| 3 |
211021-9 |
BALL BEARING 607LLB |
| 4 |
517084-6 |
ARMATURE ASS'Y 240V |
| 5 |
182777-0 |
HOUSING SET |
| 6 |
599320-2 |
FIELD ASS'Y 240V |
| 7 |
253214-2 |
FLAT WASHER 9 |
| 8 |
211092-6 |
BALL BEARING 629DDW |
| 9 |
265871-4 |
TAPPING SCREW BT 4X16 |
| 10 |
858237-1 |
NAME PLATE BO4553 |
| 11 |
241658-8 |
FAN 63 |
| 12 |
213051-6 |
DUST SEAL 10 |
| 13 |
211066-7 |
BALL BEARING 6200LLB |
| 14 |
410752-9 |
BAFFLE PLATE |
| 15 |
410918-1 |
FOOT |
| 16 |
342986-5 |
CLAMPER |
| 17 |
911118-1 |
PAN HEAD SCREW M4X12 |
| 18 |
262512-3 |
RUBBER SLEEVE 48 |
| 19 |
253825-3 |
FLAT WASHER 6 |
| 20 |
912117-6 |
COUNTERSUNK HEAD SCREW M4X12 |
| 21 |
321869-2 |
LEVER |
| 22 |
263002-9 |
RUBBER PIN |
| 23 |
166027-1 |
DUST BAG |
| 24 |
666453-9 |
POWER SUPPLY CORD 1.0-2-2.0 |
| 25 |
651527-9 |
SWITCH |
| 26 |
682502-4 |
CORD GUARD 8-85 |
| 27 |
265876-4 |
TAPPING SCREW BT 4X40 |
| 28 |
265875-6 |
TAPPING SCREW BT 4X25 |
| 29 |
265872-2 |
TAPPING SCREW BT 4X50 |
| 30 |
687063-9 |
CORD CLAMP |
| 31 |
265995-6 |
VITE |
| 32 |
654532-5 |
TERMINAL BLOCK 1P |
| 33 |
645142-9 |
|
| 34 |
182777-0 |
HOUSING SET |
| A01-1 |
413094-0 |
PUNCH PLATE |
| A02 |
193712-3 |
DUST BAG/PAPER |
| A03 |
193713-1 |
*DUST BAG HOLDER |
| A03-1 |
193932-9 |
PAPER DUST BAG HOLDER SET BO45 MSP- |
| A04 |
193745-8 |
ADAPTER/DUST BAG |
| E01 |
654091-9 |
*NON INSULATED TERMINAL |
