Makita

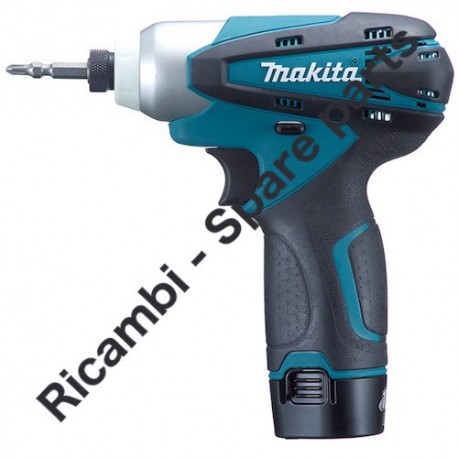

Makita Impact Driver TD090D Parts

SKU: Makita TD090D
€13.46
VAT included

Makita Cordless Impact Driver TD090D Spare Parts

We are MAKITA original spare parts and Accessories Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Cordless Impact Driver TD090D.
Makita Impact Driver TD090D Parts
  • Makita Impact Driver TD090D Parts
  • Makita Impact Driver TD090D Parts Diagram
Makita

Makita Impact Driver TD090D Parts

SKU: Makita TD090D Condition: New
€13.46
VAT included

Makita Cordless Impact Driver TD090D Spare Parts

We are MAKITA original spare parts and Accessories Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Cordless Impact Driver TD090D.
settings 40 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
40 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 187160-6 MOTOR HOUSING TD090D €12.69
2
 photo_cameraImage coming soon 865121-3 LABEL TD090D €1.40
3
 photo_cameraImage coming soon 266130-9 SCREW 3X16 X 6203/13 / 6313DW €1.46
4
 photo_cameraImage coming soon 631813-4 CIRCUIT LIGHT X DF030D €14.38
5
 photo_cameraImage coming soon 450504-6 REVERSE LEVER X DF030D €3.76
6
 photo_cameraImage coming soon 650699-7 SWITCH C3HW-3A-LF1M €58.93
7
 photo_cameraImage coming soon 345998-7 PLATE DF030D €2.52
8
 photo_cameraImage coming soon 643830-2 TERMINAL BATTERY DF030D €4.09
9
 photo_cameraImage coming soon 231965-7 RETAINING RING for 6960DW €1.40
10
 photo_cameraImage coming soon 267143-3 WASHER for 6960DW €1.40
11
 Compression Spring 13 for Cordless Impact Wrench Makita BTD130F 233005-7 Compression Spring 13 for Cordless Impact Wrench Makita BTD130F €1.45
12
 photo_cameraImage coming soon 324711-6 SLEEVE for TD020D €3.13
13
 photo_cameraImage coming soon 424109-8 RUBBER PROTECTION TD090D €3.13
14
 photo_cameraImage coming soon 158670-0 HAMMER CASE TD090D €9.89
15
 photo_cameraImage coming soon 261140-1 WASHER NYLON 20 TD090D €1.40
16
 photo_cameraImage coming soon 216019-1 STEEL BALL 3 X 6960DW €1.42
17
 photo_cameraImage coming soon 324895-0 ANVIL M TD090D €7.58
18
 photo_cameraImage coming soon 324894-2 ELASTIC RING TD090D €11.07
19
 photo_cameraImage coming soon 216019-1 STEEL BALL 3 X 6960DW €1.42
20
 photo_cameraImage coming soon 267380-9 WASHER 20 TD090D €1.40
21
 photo_cameraImage coming soon 234064-4 COMPRESSION SPRING 21 TD090D €1.40
22
 photo_cameraImage coming soon 267813-4 WASHER 21 TD090D €1.40
23
 Steel Ball 4,8 mm for Stonecutter Makita HK1820 216002-8 Steel Ball 4,8 mm for Stonecutter Makita HK1820 €1.50
24
 photo_cameraImage coming soon 221437-0 GEAR 17 TD090D €6.63
25
 photo_cameraImage coming soon 324897-6 POST TD090D €28.54
26
 photo_cameraImage coming soon 268217-3 PIN 3.5 TD090D €1.40
27
 photo_cameraImage coming soon 253052-2 WASHER 12 €1.40
28
 photo_cameraImage coming soon 227215-6 GEAR 43 TD090D €3.84
29
 photo_cameraImage coming soon 158671-8 BEARING BOX TD090D €6.63
30
 Motor 10,8V1,3A for Cordless Impact Driver Makita TD090DWE 629851-8 Motor 10,8V1,3A for Cordless Impact Driver Makita TD090DWE €22.53
31
 photo_cameraImage coming soon 187160-6 MOTOR HOUSING TD090D €12.69
Page 2 local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
A01
 photo_cameraImage coming soon 168467-9 HOLSTER €7.37
A02
 photo_cameraImage coming soon 194550-6 BATTERY SET €90.15
A03
 photo_cameraImage coming soon 196066-7 BATTERY SET €90.15
A07
 photo_cameraImage coming soon 417724-5 SHAFT €2.21
A12
 photo_cameraImage coming soon 453974-8 Makita Latch €6.66
A09
 photo_cameraImage coming soon 638929-6 LINE FILTER UNIT €5.13
A11
 photo_cameraImage coming soon 821549-5 CONNECTOR PLASTIC CASE (TYPE E1) €41.32
A05
 photo_cameraImage coming soon 824781-0 PLASTIC CASE €4.83
A06
 photo_cameraImage coming soon 824842-6 PLASTIC CARRYING CASE €18.16
A13
 photo_cameraImage coming soon 837663-7 INNER TRAY €6.78
A14
 photo_cameraImage coming soon 837866-3 INNER TRAY €8.11

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Cordless Impact Driver TD090D Spare Parts

We are MAKITA original spare parts and Accessories Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Cordless Impact Driver TD090D.

In the following table, look for the model of jackhammers and the respective parts of the code.
Makita TD090D

Makita Cordless Impact Driver TD090D Parts List
Pag.1
# Part Num. Description
1 187160-6 CASETD090D
2 865121-3 LABEL TD090D
3 266130-9 SCREW 3X16 X 6203/13/6313DW
4 631813-4 LIGHT CIRCUIT X DF030D
5 450504-6 REVERSIBILITY LEVER X DF030D
6 650699-7 SWITCH C3HW-3A-LF1M
7 345998-7 PLATE DF030D
8 643830-2 BATTERY TERMINAL DF030D
9 231965-7 RETAINING RING X 6960DW
10 267143-3 WASHER X 6960DW
11 233005-7 SPRING 13 X 6903VDW/BTD130F
12 324711-6 SLEEVE X TD020D
13 424109-8 RUBBER PROTECTION TD090D
14 158670-0 HITCH CASE TD090D
15 261140-1 NYLON WASHER 20 TD090D
16 216019-1 BALL 3 X DHR24*/HR26**
17 324895-0 ANVIL M TD090D
18 324894-2 STROKE TD090D
19 216019-1 BALL 3 X DHR24*/HR26**
20 267380-9 WASHER 20 TD090D
21 234064-4 COMPRESSION SPRING 21 TD090D
22 267813-4 WASHER 21 TD090D
23 216002-8 BALL 4.8
24 221437-0 GEAR 17 TD090D
25 324897-6 SHAFT TD090D
26 268217-3 PIN 3.5 TD090D
27 253052-2 WASHER 12
28 227215-6 GEAR 43 TD090D
29 158671-8 BEARING BOX TD090D
30 629851-8 DC MOTOR FOR TD090D
31 187160-6 MOTOR CASE TD090D
Accessories Pag.2
A01 168467-9 HOLSTER
A02 194550-6 BATTERY SET
A03 196066-7 BATTERY SET
A04 784244-7 BIT 2-50
A05 824781-0 PLASTIC CASE
A06 824842-6 PLASTIC CARRYING CASE
A07 417724-5 LATCH
A08 141104-0 PLASTIC CARRYING CASE COMPLETE
A09 638929-6 LINE FILTER UNIT
A10 654086-2 RECEPTABLE
A11 821549-5 CONNECTOR PLASTIC CASE (TYPE E1)
A12 453974-8 LATCH
A13 837663-7 INNER TRAY
A14 837866-3 INNER TRAY
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice.We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase.All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita TD090D
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Makita TD090D Parts Diagram

Makita TD090D Parts Diagram

Download (306.51KB)
