Makita

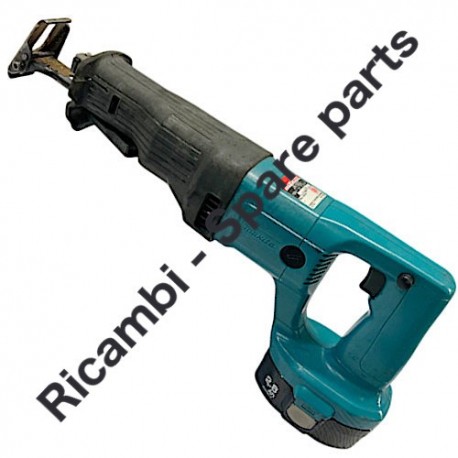

Makita Reciprocatng JR180D Parts

SKU: Makita JR180D
€1.47
VAT included

Makita Spare Parts for Reciprocatng Saw JR180D

We are MAKITA original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Reciprocating Saw JR180D.
Makita Reciprocatng JR180D Parts
  • Makita Reciprocatng JR180D Parts
  • Makita Reciprocatng JR180D Parts Diagram
Makita

Makita Reciprocatng JR180D Parts

SKU: Makita JR180D Condition: New
€1.47
VAT included

Makita Spare Parts for Reciprocatng Saw JR180D

We are MAKITA original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Reciprocating Saw JR180D.
settings 100 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
100 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
A04
 photo_cameraImage coming soon 192827-3 1.03 kg €142.06
A04A_
 photo_cameraImage coming soon 192829-9 BATTERY 1833 €189.72
A04C_
 photo_cameraImage coming soon 193061-8 1.048 kg €183.41
A04B_
 photo_cameraImage coming soon 193102-0 BATTERY 1834 SET €179.13
A04B 1
 photo_cameraImage coming soon 193102-0 BATTERY 1834 SET €179.13
C10
 photo_cameraImage coming soon 241869-5 FAN 55 €5.94
A02
 photo_cameraImage coming soon 414938-7 Battery Cover Uc120dw/Vr250dw €1.80
C10
 photo_cameraImage coming soon 417152-4 CLOSING €1.99
1
 photo_cameraImage coming soon 911228-4 SCREW M5X18 X JR180D €1.44
2-1
 photo_cameraImage coming soon 151941-4 GEARS COVER JR150D €75.83
3
 Steel Ball 4,8 mm for Stonecutter Makita HK1820 216002-8 Steel Ball 4,8 mm for Stonecutter Makita HK1820 €1.50
4
 photo_cameraImage coming soon 256454-1 PIN 5.5-6 €2.08
5
 photo_cameraImage coming soon 310088-5 CLAMP €12.69
5-1
 photo_cameraImage coming soon 310138-6 BINDING POST €21.54
6-1
 photo_cameraImage coming soon 266247-8 Bolt A TESTA CILINDRICA TORX M5X1 0 €1.40
6-2
 photo_cameraImage coming soon 266272-9 Bolt A SPALLA TORX. S.H. M5X 10 €1.40
7
 photo_cameraImage coming soon 162215-8 PUSH BUTTON €21.54
8
 photo_cameraImage coming soon 323916-5 PUSH PIN €3.84
9
 photo_cameraImage coming soon 233018-8 COMPRESSION SPRING 3 €1.40
10
 photo_cameraImage coming soon 233247-3 COMPRESSION SPRING 16 €1.40
11
 photo_cameraImage coming soon 257226-7 RING 13 €2.69
12
 photo_cameraImage coming soon 443070-0 PLATE X JR180D €1.40
13
 photo_cameraImage coming soon 214169-6 BUSH 14 JR3030 €3.97
14
 photo_cameraImage coming soon 168328-3 SLIDER €61.62
14-1
 photo_cameraImage coming soon 168376-2 HOLDER BLADE ROD BJR141 €44.84
15
 photo_cameraImage coming soon 341462-6 PLATE X JR3000 / V €1.40
16
 photo_cameraImage coming soon 911225-0 SCREW M5X16 X JR180D €2.17
17A1
 photo_cameraImage coming soon 163441-2 PLATE X JR3030T €18.98
17A_
 photo_cameraImage coming soon 168337-2 SHOE €18.98
23
 photo_cameraImage coming soon 421693-4 INSULATING COVER X JR180D €24.35
24
 photo_cameraImage coming soon 911114-9 SCREW M4 X 10 €1.40
25
 photo_cameraImage coming soon 257558-2 BUSCHING 9 JR3030 €1.40
26
 photo_cameraImage coming soon 344732-2 INTERNAL PLATE JR3030T €2.60
27
 photo_cameraImage coming soon 344733-0 CLOSING PLATE JR3030T €1.57
28
 photo_cameraImage coming soon 272240-2 LEVER 60 JR3030 €2.08
29
 photo_cameraImage coming soon 921442-4 HEXAGONAL BOLT 8X25 €1.40
30
 photo_cameraImage coming soon 931102-0 HEX NUT M4 €1.42
31-1
 photo_cameraImage coming soon 266220-8 SCREW M6X15 X JR180D €2.69
32
 photo_cameraImage coming soon 212001-8 NEEDLE BEARING 708, JR3000V €18.98
33
 photo_cameraImage coming soon 153267-0 COMPLETE GEAR X JR180D €75.83
34
 photo_cameraImage coming soon 285696-0 BEARING RETAINER JR180D €4.43
35
 Ball Bearing 6000DD NSK for Cordless Drill Makita 6221DW 211061-7 Ball Bearing 6000DD NSK for Cordless Drill Makita 6221DW €8.69
36
 photo_cameraImage coming soon 257146-5 RING 10 LS1400 €3.13
37
 photo_cameraImage coming soon 210057-5 BEARING X JR180D €9.89
37-1
 photo_cameraImage coming soon 210079-5 BEARING X JR180D €9.89
38
 photo_cameraImage coming soon 323887-6 GEAR SPINDLEX JR180D €7.58
39
 photo_cameraImage coming soon 251969-3 HEX SCREW M5X12XJR3020 €1.40
40
 photo_cameraImage coming soon 344795-8 PLATE X JR180D €2.69
41
 photo_cameraImage coming soon 443107-3 FELT X JR180D €1.40
42
 photo_cameraImage coming soon 317229-4 GEARS BOX X JR180D €56.02
43
 Screw M5 X 35 for Angle Grinder Makita GA9050R 266012-5 Screw M5 X 35 for Angle Grinder Makita GA9050R €2.01
43-1
 photo_cameraImage coming soon 266373-3 SCREW 5x35 GA9020 €2.17
44
 photo_cameraImage coming soon 911601-8 SCREW M5X8 X JR180D €1.40
45
 photo_cameraImage coming soon 961016-9 RETAINING RING E10 €1.40
46
 Ball Bearing 6001DD for Makita 9218S 211131-2 Ball Bearing 6001DD for Makita 9218S €6.00
47
 photo_cameraImage coming soon 961016-9 RETAINING RING E10 €1.40
48
 photo_cameraImage coming soon 285697-8 RETAINER BEARING JR180D €3.13
49
 photo_cameraImage coming soon 911516-9 SCREW M4X12 X JR180D €3.13
50
 photo_cameraImage coming soon 416960-0 GUIDE FAN X JR180D €2.08
51
 photo_cameraImage coming soon 519051-7 ARMATURE X JR180D €102.85
52
 photo_cameraImage coming soon 416959-5 DEFLECTOR X JR180D €3.13
53
 photo_cameraImage coming soon 266209-6 SCREW M4 X 60 X 5621RDW €2.08
54
 Yoke Unit for Cordless Combined Rotary Hammer Makita DHR264Z 632828-4 Yoke Unit for Cordless Combined Rotary Hammer Makita DHR264Z €19.09
55
 photo_cameraImage coming soon 681652-2 INSULATING WASHER X JR180D €3.51
56
 Ball Bearing 607DDW for Laminate Trimmer Makita 3706 210017-7 Ball Bearing 607DDW for Laminate Trimmer Makita 3706 €8.46
58
 photo_cameraImage coming soon 416957-9 MOTOR HOUSING X JR180D €18.98
60
 photo_cameraImage coming soon 191970-5 CARBON BRUSH CB-429 €5.13
60-1
 photo_cameraImage coming soon 191976-3 Brush IN CARBONIO CB-432 €6.63
60-2
 photo_cameraImage coming soon 194435-6 CHARCOALS CB-441 €5.13
61
 photo_cameraImage coming soon 643949-7 CARBON BRUSH HOLDER R X JR180D €4.43
62
 photo_cameraImage coming soon 643941-3 PLUG BRUSH X 5621RDW €4.43
63
 photo_cameraImage coming soon 643950-2 CARBON BRUSH SUPPORT L X JR180D €4.43
64
 photo_cameraImage coming soon 183141-8 HANDLE X JR180D €24.35
65
 photo_cameraImage coming soon 231469-9 SPRING 4 X 6811DW €1.40
66
 photo_cameraImage coming soon 416958-7 UNLOCKING BUTTON JR180D €2.69
67
 photo_cameraImage coming soon 911006-2 CYLINDER HEAD SCREW M3X8 €1.40
68
 photo_cameraImage coming soon 416976-5 RETAINER X JR180D €1.40
69
 Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
69-1
 photo_cameraImage coming soon 265A48-7 TAPPING SCREW 4X18, BO4556K €1.40
70
 photo_cameraImage coming soon 183141-8 HANDLE X JR180D €24.35
71
 photo_cameraImage coming soon 231469-9 SPRING 4 X 6811DW €1.40
72
 photo_cameraImage coming soon 689090-2 PLATE X JR180D €8.50
73
 photo_cameraImage coming soon 654195-7 POSITIVE TERMINAL X UB140D €4.43
74
 photo_cameraImage coming soon 687085-9 STRIKER SUPPORT X 6203/13 / 6313D €2.08
75
 photo_cameraImage coming soon 651979-4 SWITCH X JR180D €68.84
75-1
 photo_cameraImage coming soon 651979-4 SWITCH X JR180D €68.84
76-1
 photo_cameraImage coming soon 263024-9 PIN RUBBER 4 X 6916DW €2.86
77
 photo_cameraImage coming soon 654196-5 NEGATIVE TERMINAL X UB140D €4.43
81
 photo_cameraImage coming soon 344858-0 SLIDING PLATE JR180D €2.69
82
 photo_cameraImage coming soon 267758-6 SPRING WASHER 5 €2.08
83
 photo_cameraImage coming soon 256471-1 SHOULDER PIN 5 €4.43
83-1
 photo_cameraImage coming soon 256492-3 PIN 5 X JR3060T €1.40
84
 Compression Spring 6 for Reciprocating Saw Makita BJR2240 233345-3 Compression Spring 6 for Reciprocating Saw Makita BJR2240 €1.37
85
 photo_cameraImage coming soon 961078-7 RETAINER RING S18 X BHR200 €1.40
86
 photo_cameraImage coming soon 162228-9 GUIDE X BJR240 €50.21
87
 photo_cameraImage coming soon 268094-3 PIN 3 X BJR240 €3.25
88
 photo_cameraImage coming soon 331639-1 BUSHING GUIDE X BJR240 €9.89
89
 photo_cameraImage coming soon 417791-0 HOLDER GUIDE X BJR240 €1.40
90
 photo_cameraImage coming soon 256158-5 PIN 3 X T221DW €1.40
91
 photo_cameraImage coming soon 310129-7 BUSHING X BJR240 €35.76
91-1
 photo_cameraImage coming soon 418311-3 SLEEVE X JR3050T €1.40
92
 photo_cameraImage coming soon 345214-7 PLATE X BJR240 €2.16
93
 photo_cameraImage coming soon 233025-1 SPRING 2 X 6702DW €1.47
94
 photo_cameraImage coming soon 231662-5 TORSION SPRING 17 €2.08
94-1
 photo_cameraImage coming soon 231687-9 SPRING TWIST 17 X JR3060T €1.40

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Reciprocatng Saw JR180D

We are MAKITA original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Reciprocating Saw JR180D.

In the following table, look for the model of Saw and the respective parts of the code.
Makita JR180D

MAKITA JR180D Parts
# Part. Num. Description
1 911228-4 PAN HEAD SCREW M5X18
2 151627-0 GEAR HOUSING COVER COMPLE TE
2-1 151941-4 GEAR HOUSING COVER COMPLE TE
3 216002-8 STEEL BALL 4.8
4 256454-1 PIN 5.5-6
5 310088-5 CLAMP
5-1 310138-6 CLAMP
6-1 266247-8 TORX SOCKET HEAD BOLT M5X1 0
6-2 266272-9 TORX. S.H. SHOULDER BOLT M5X 10
7 162215-8 PUSH BUTTON
8 323916-5 PUSH PIN
9 233018-8 COMPRESSION SPRING 3
10 233247-3 COMPRESSION SPRING 16
11 257226-7 RING 13
12 443070-0 PLATE 12X16
13 214169-6 PLANE BEARING 14
14 168328-3 SLIDER
14-1 168376-2 SLIDER
15 341462-6 PLATE
16 911225-0 PAN HEAD SCREW M5X16
17A_ 168337-2 SHOE
17A1 163441-2 SHOE
23 421693-4 INSULATION COVER
24 911114-9 PAN HEAD SCREW M4X10
25 257558-2 SLEEVE 9
26 344732-2 INNER PLATE
27 344733-0 LOCK PLATE
28 272240-2 LEVER 60
29 921442-4 HEX. BOLT M8X25
30 931102-0 HEX. NUT M4
31-1 266220-8 TORX SOCKET HEAD BOLT M6X1 5
32 212001-8 NEEDLE BEARING 708
33 153267-0 GEAR COMPLETE
34 285696-0 BEARING RETAINER A
35 211061-7 BALL BEARING 6000LLB
36 257146-5 RING 10
37 210057-5 BALL BEARING 6900LLB
37-1 210079-5 BALL BEARING 6900LLB
38 323887-6 GEAR SHAFT
39 251969-3 HEX. SOCKET HEAD BOLT M5X12
40 344795-8 PLATE C
41 443107-3 FELT 8X24
42 317229-4 GEAR HOUSING
43 266012-5 TAPPING SCREW 5X35
43-1 266373-3 TAPPING SCREW 5X35
43-2 265B72-6 TAPPING SCREW 5X35
44 911601-8 PAN HEAD SCREW M5X8
45 961016-9 STOP RING E-10
46 211131-2 BALL BEARING 6001DDW
47 961016-9 STOP RING E-10
48 285697-8 BEARING RETAINER B
49 911516-9 PAN HEAD SCREW M4X12
50 416960-0 FAN GUIDE
51 519051-7 ARMATURE ASS'Y 18V
C10 241869-5 FAN 55
D10 INC. 55,56
52 416959-5 BAFFLE PLATE
53 266209-6 TAPPING SCREW 4X60
54 632828-4 FIELD
55 681652-2 INSULATION WASHER
56 210017-7 BALL BEARING 607DDW
57 851734-6 NAME PLATE JR180D
58 416957-9 MOTOR HOUSING
59 819720-3 MAKITA LABEL
60 191970-5 CARBON BRUSH CB-429
60-1 191976-3 CARBON BRUSH CB-432
60-2 194435-6 CARBON BRUSH CB-441
60-3 195022-4 CARBON BRUSH SET CB-441
61 643949-7 BRUSH HOLDER R
62 643941-3 BRUSH HOLDER CAP
63 643950-2 BRUSH HOLDER L
64 183141-8 HANDLE SET
D10 INC. 70
65 231469-9 COMPRESSION SPRING 4
66 416958-7 LOCK-OFF BUTTON
67 911006-2 PAN HEAD SCREW M3X8
68 416976-5 STOPPER
69 265995-6 TAPPING SCREW 4X18
69-1 265A48-7 TAPPING SCREW 4X18
70 183141-8 HANDLE SET
D10 INC. 64
71 231469-9 COMPRESSION SPRING 4
72 689090-2 HEAT SINK
73 654195-7 SPRING TERMINAL (PLUS)
74 687085-9 HOLDER
75 651979-4 SWITCH
75-1 651979-4 SWITCH
76-1 263024-9 RUBBER PIN 4
77 654196-5 SPRING TERMINAL (MINUS)
81 344858-0 SLIDE PLATE
82 267758-6 SPRING WASHER 5
83 256471-1 SHOULDER PIN 5
83-1 256492-3 SHOULDER PIN 5
84 233345-3 COMPRESSION SPRING 6
85 961078-7 RETAINING RING (EXT) S-18
86 162228-9 DRIVING SLEEVE
87 268094-3 PIN 3
88 331639-1 GUIDE SLEEVE
89 417791-0 DRIVING SLEEVE GUIDE
90 256158-5 PIN 3
91 310129-7 SLEEVE
91-1 418311-3 SLEEVE
92 345214-7 PUSH PLATE
93 233025-1 COMPRESSION SPRING 2
94 231662-5 TORSION SPRING 17
94-1 231687-9 TORSION SPRING 17
A01A_ 792003-5 RECIPRO SAW BLADE SET
A02 414938-7 BATTERY COVER
A03 824565-6 PLASTIC CARRYING CASE
C10 417152-4 LATCH
A04 192827-3 BATTERY 1822 SET
A04A_ 192829-9 BATTERY 1833
A04B_ 193102-0 BATTERY 1834 SET
A04B 1 193102-0 BATTERY 1834 SET
A04C_ 193061-8 BATTERY 1835 SET
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita JR180D
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Makita JR180D Parts Diagram

Makita JR180D Parts Diagram

Download (440.66KB)

You might also like

Reciprocating Saw - Makita JR3050T -20% Sale
HiKOKI Power Tools Italia S.p.a. SKU: Makita JR3050T
Reciprocating Saw - Makita JR3050T
Reciprocating Saw - Makita JR3050T Features - Bearings with double seal protection against dust - Ergonomic - Blade engagement fast - Stop carbon brushes
Last items in stock €265.83 €332.29
Details
Needle Bearing for Belt Saw Makita 2106W Sale
Makita SKU: 212115-3
Needle Bearing for Belt Saw Makita 2106W
Needle Bearing for Belt Saw Makita 2106W Genuine spare Makita, Needles Bearing HK121816 for Belt Saw 115 mm 2106W - Reciprocating JR3000 - JR3000V - JR3000VT - JR3020. Part for the following article: - Belt Saw 115MM MAKITA 2106W -...
AVAILABLE €11.60
Details
Carbon Brush Holder Cap for Hammer Makita HM1100 - HM1100C
Makita SKU: 643750-0
Carbon Brush Holder Cap for Hammer Makita HM1100 - HM1100C
Carbon Brush Holder Cap for Hammer Makita HM1100 - HM1100C Genuine part MAKITA, Carbon Brush Holder Cap for Hammers HM1100 - HM1100C - Angle Grinder  GA6021C - GA6020 - Circular Saw 5703R. Parts for the following products: - 2107FK -...
AVAILABLE €2.51
Details
Compression Spring 6 for Reciprocating Saw Makita BJR2240 Sale
Makita SKU: 233345-3
Compression Spring 6 for Reciprocating Saw Makita BJR2240
Compression Spring 6 for Reciprocating Saw Makita BJR2240 Original spare parts Makita, Compression Spring 6 for Reciprocating Saws Makita BJR141RFE - BJR141RFE - BJR181SFE - BJR240SFE - DJR182Z - JR100DWE Part for the following...
AVAILABLE €1.37
Details
Steel Ball 4,8 mm for Stonecutter Makita HK1820
Makita SKU: 216002-8
Steel Ball 4,8 mm for Stonecutter Makita HK1820
Steel Ball 4,8 mm for Stonecutter Makita HK1820 Genuine spare Makita, Steel Ball 4,8 mm Diameter for Stonecutter Makita HK1820 - Hammer HM0870C - Core Drill 8406 - Hammer HR3850...
AVAILABLE €1.50
Details
Ball Bearing 607DDW for Laminate Trimmer Makita 3706
Makita SKU: 210017-7
Ball Bearing 607DDW for Laminate Trimmer Makita 3706
Ball Bearing 607DDW for Laminate Trimmer Makita 3706 Makita genuine spare part, Ball Bearing 607DDW for Laminate Trimmers Makita 3706 - 3707 - 3707FC - 3708 - 3708FC Part for the following products: - 3706 - Drywall Cut-Out Tool -...
AVAILABLE €8.46
Details
Ball Bearing 6001DDW for Makita JR3050T Sale
Makita SKU: 210102-6
Ball Bearing 6001DDW for Makita JR3050T
Ball Bearing 6001DDW for Makita JR3050T Genuine part Makita, Ball Bearing 6001DDW for JR3050T. Part for the following products: - BJR181RFE - Reciprocating Saw 18V-Litio - BJR181SFE - Reciprocating Saw 18V-Litio - BJR182RFE -...
AVAILABLE €3.32
Details
Ball Bearing 6001DD for Makita 9218S
Makita SKU: 211131-2
Ball Bearing 6001DD for Makita 9218S
Ball Bearing 6001DD for Makita 9218S Genuine part Makita, Ball Bearing 6001DD for 9218S. Part for the following products: - Reciprocating Saw JR3070CT - Reciprocating Saw JR3060T...
AVAILABLE €6.00
Details
Ball Bearing 6000DD NSK for Cordless Drill Makita 6221DW
Makita SKU: 211061-7
Ball Bearing 6000DD NSK for Cordless Drill Makita 6221DW
Ball Bearing 6000DD NSK for Cordless Drill Makita 6221DW Genuine part Makita, Ball Bearing 6201LLB NSK for Cordless Drills 6221DW - 6075DW - 6012DWK - 6075DW - 6095DW. Parts for the following products: - 1805B - PLANER 155 MM - 1806B...
AVAILABLE €8.69
Details
Retaining Ring for Reciprocating Saw Makita JR3050T
Makita SKU: 257952-8
Retaining Ring for Reciprocating Saw Makita JR3050T
Retaining Ring for Reciprocating Saw Makita JR3050T Original spare parts Makita, Retaining Ring for Reciprocating Saw Makita JR3050T - JR3060T - JR3070CT - BJR182 - DJR187RTE - DJR360ZK. Part for the following products: -  JR3050T -...
on 7/10 Business Days Approx €1.30
Details
Pt Screw M4X18 for Rotary Hammer Makita HR4000C
Makita SKU: 265995-6
Pt Screw M4X18 for Rotary Hammer Makita HR4000C
Pt Screw M4X18 for Rotary Hammer Makita HR4000C Fantastic prices on Makita Spare Parts , Buy now Pt Screw M4X18 for Rotary Hammer Makita HR4000C - Router Makita 3612C - Orbital Sander Makita BO5031. Parts for the following products:...
on 7/10 Business Days Approx €1.46
Details
Comments (0)
