Makita PC5010C Concrete Planer Parts
Fix Your Concrete Planer PC5010C. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of Concrete Planer and the respective parts of the code.

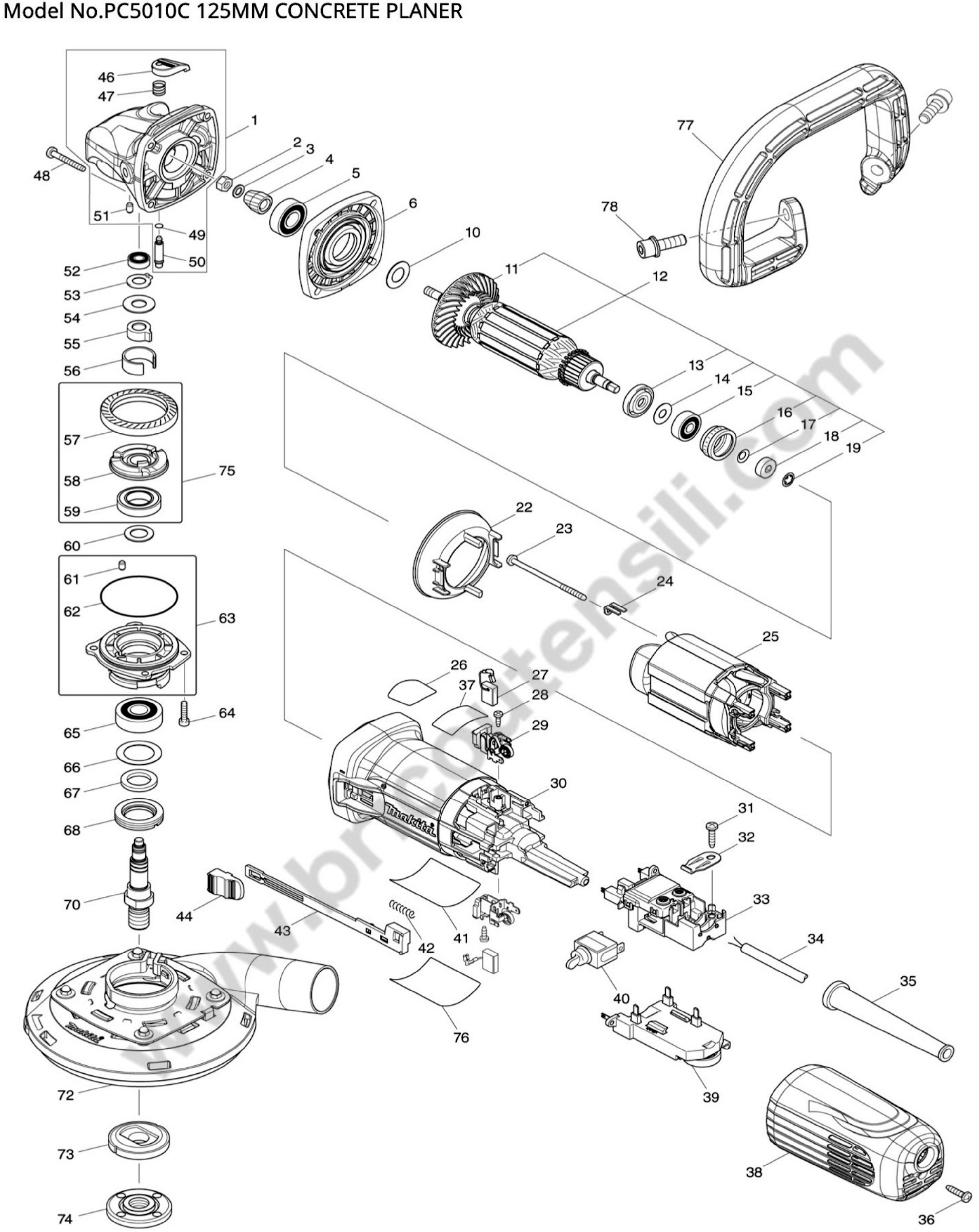

| MAKITA PC5010C CONCRETE PLANER PARTS Pag.1 |
| # |
Part Num. |
Description |
| 1 |
136013-6 |
GEAR HOUSING ASS'Y |
| D10 |
|
INC. 46,47,49-51 |
| 2 |
252186-8 |
HEX. NUT M6 |
| 3 |
253077-6 |
FLAT WASHER 6 |
| 4 |
227593-4 |
SPIRAL BEVEL GEAR 9 |
| 5 |
211142-7 |
BALL BEARING 6001LLB |
| 6 |
141981-0 |
GEAR HOUSING COVER COMPLE TE |
| 10 |
253084-9 |
FLAT WASHER 12 |
| 11 |
240134-9 |
FAN 60 |
| 12 |
510377-0 |
ARMATURE ASS'Y 220-240V |
| D10 |
|
INC. 11,13-19 |
| 12-1 |
510510-4 |
ARMATURE ASS'Y 220-240V |
| D10 |
|
INC. 11,13-19 |
| 13 |
681656-4 |
INSULATION WASHER |
| 14 |
253823-7 |
FLAT WASHER 7 |
| 15 |
210027-4 |
BALL BEARING 627DDW |
| 16 |
421738-8 |
LABYRINTH RUBBER RING 22 |
| 16-1 |
422750-1 |
LABYRINTH RUBBER RING 22 |
| 17 |
267756-0 |
WAVE WASHER 6 |
| 18 |
688117-5 |
MAGNET SLEEVE |
| 19 |
259039-2 |
SELF LOCK 6 |
| 22 |
453367-9 |
BUFFLE PLATE |
| 23 |
266258-3 |
TAPPING SCREW 4X70 |
| 24 |
344871-8 |
RETAINER |
| 25 |
626653-3 |
FIELD 220-240V |
| 26 |
898443-6 |
SJS2 MARK LABEL |
| 27 |
191978-9 |
CARBON BRUSH CB-318 |
| 28 |
266007-8 |
TAPPING SCREW BIND PT 3X10 |
| 29 |
643770-4 |
BRUSH HOLDER |
| 30 |
453366-1 |
MOTOR HOUSING |
| 31 |
266326-2 |
TAPPING SCREW PT 4X18, 5007MG MT601 |
| 31-1 |
265B67-9 |
TAPPING SCREW 4X18 |
| 32 |
687169-3 |
STRAIN RELIEF |
| 33 |
632K98-1 |
SWITCH BLOCK |
| 34 |
665890-4 |
POWER SUPPLY CORD 1.0-2-4.0 |
| 35 |
682566-8 |
CORD GUARD 10 |
| 36 |
266326-2 |
TAPPING SCREW PT 4X18, 5007MG - MT601 |
| 36-1 |
265B67-9 |
TAPPING SCREW 4X18 |
| 37 |
817M63-5 |
INDICATION LABEL |
| 38 |
453365-3 |
REAR COVER C |
| 39 |
620736-1 |
CONTROLLER |
| 39-1 |
620G44-2 |
CONTROLLER |
| 40 |
651418-4 |
SWITCH ST115A-40 |
| 40-1 |
651418-4 |
SWITCH ST115A-40 |
| 41 |
854S18-5 |
PC5010C NAME PLATE |
| 42 |
233071-4 |
COMPRESSION SPRING 4 |
| 43 |
453847-5 |
SWITCH LEVER |
| 44 |
453368-7 |
SWITCH KNOB |
| 46 |
453369-5 |
PIN CAP |
| 47 |
234057-1 |
COMPRESSION SPRING 6 GA5021C |
| 48 |
266361-0 |
TAPPING SCREW 4X30 |
| 48-1 |
265B70-0 |
TAPPING SCREW 4X30 |
| 49 |
213032-0 |
O RING 4 |
| 50 |
256535-1 |
SHOULDER PIN 6 |
| 51 |
263002-9 |
RUBBER PIN 4 |
| 52 |
210006-2 |
BALL BEARING 696ZZ |
| 53 |
961005-4 |
RETAINING RING S-9 |
| 54 |
253180-3 |
FLAT WASHER 10 |
| 55 |
310683-1 |
JOINT SLEEVE |
| 56 |
346556-2 |
C TYPE PLATE |
| 57 |
227594-2 |
SPIRAL BEVEL GEAR 41 |
| 58 |
313228-4 |
COUPLING |
| 59 |
210302-8 |
BALL BEARING 6903ZZ |
| 60 |
253744-3 |
FLAT WASHER 12 |
| 61 |
263002-9 |
RUBBER PIN 4 |
| 62 |
213641-5 |
O RING 51 |
| 63 |
136012-8 |
BEARING BOX ASSEMBLY |
| D10 |
|
INC. 61,62 |
| 63-1 |
136877-8 |
BEARING BOX ASSEMBLY |
| D10 |
|
INC. 61,62 |
| 64 |
265490-6 |
HEX. SOCKET HEAD BOLT M4X16 |
| 65 |
211129-9 |
BALL BEARING 6201DDW |
| 66 |
267279-8 |
FLAT WASHER 21 |
| 67 |
443124-3 |
FELT RING 17 |
| 68 |
285854-8 |
BEARING RETAINER 20-33 |
| 70 |
326130-2 |
SPINDLE |
| 72 |
195239-9 |
115/125MM DUST COVER K SET |
| C1 |
265180-1 |
PAN HEAD SCREW M5X16 |
| 72-1 |
127147-6 |
125MM DUST COVER K ASSY |
| C1 |
265180-1 |
PAN HEAD SCREW M5X16 |
| 72-2 |
122B42-7 |
115/125MM DUST COVER K ASSY |
| C1 |
265180-1 |
PAN HEAD SCREW M5X16 |
| 73 |
224415-9 |
INNER FLANGE 42 |
| 74 |
224554-5 |
LOCK NUT 14-45, 9005B - 9541 |
| 75 |
135556-5 |
COUPLING ASS'Y |
| D10 |
|
INC. 57-59 |
| 76 |
892272-9 |
CLEAR LABEL |
| 77 |
458690-7 |
LOOP HANDLE |
| 78 |
922443-5 |
H.S.H.BOLT M8X25 WITH WR |
| A1 |
140B63-7 |
STEEL CASE COMPLETE |
| A1-1 |
141S96-7 |
STEEL CASE COMPLETE |
| A2 |
782426-5 |
LOCK NUT WRENCH 35 |
| F6 |
192227-7 |
SUPER FLANGE |
| F7 |
194514-0 |
VIBRATION PROOF GRIP SET |
| F12 |
198719-4 |
DUST COVER ATTACHMENT SET |
| F24 |
191S70-5 |
125MM DUST COLLECT COVER K SET |
| F25 |
191W06-8 |
115/125MM DUST COVER K SET |
| C1 |
743129-6 |
BRUSH A |
| C2 |
743130-1 |
BRUSH B |
