Makita

Makita GA5040R Angle Grinder Spare Parts

SKU: Makita GA5040
€21.33
VAT included

Makita GA5040R Angle Grinder Spare Parts

Fix Your Angle Grinder GA5040R. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Makita GA5040R Angle Grinder Spare Parts
  • Makita GA5040R Angle Grinder Spare Parts
  • Makita GA5040R Angle Grinder Spare Parts - Drawing
Makita

Makita GA5040R Angle Grinder Spare Parts

SKU: Makita GA5040 Condition: New
€21.33
VAT included

Makita GA5040R Angle Grinder Spare Parts

Fix Your Angle Grinder GA5040R. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 60 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
60 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

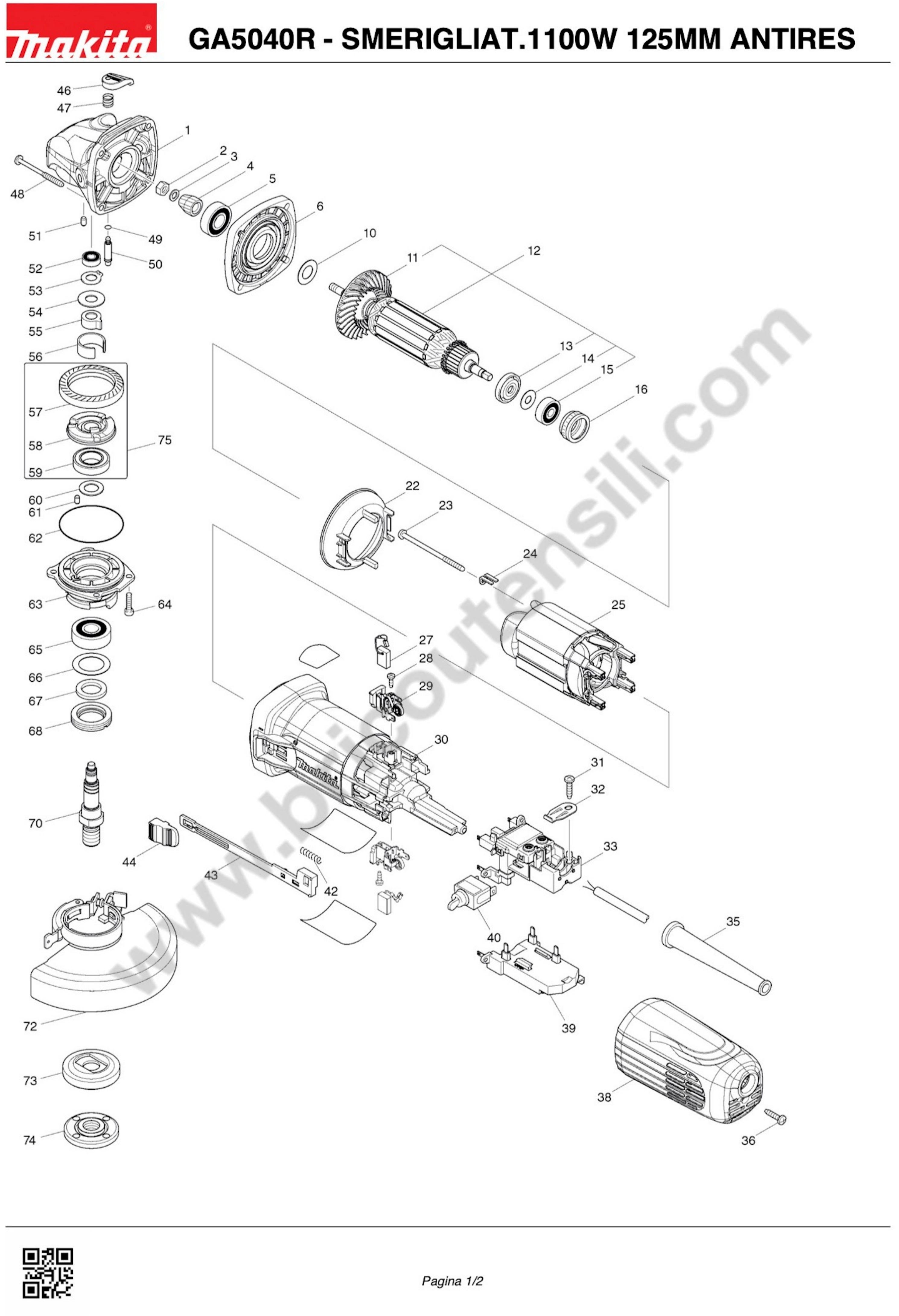

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 319310-7 GEAR BOX €20.11
2
 Armature Nut M6 for Angle Grinder Makita 9554NB 252186-8 Armature Nut M6 for Angle Grinder Makita 9554NB €1.47
3
 photo_cameraImage coming soon 253077-6 WASHER P. 6 4300 / 01BV €1.40
4
 photo_cameraImage coming soon 227591-8 GEAR FOR 10 GA €14.23
5
 photo_cameraImage coming soon 211142-7 BEARING 6001LLB X GD0800C €11.39
6
 photo_cameraImage coming soon 141981-0 COVER GEAR BOX €12.33
10
 Flat Washer 12 for Angle Grinder Makita GA4540 253084-9 Flat Washer 12 for Angle Grinder Makita GA4540 €1.39
11
 photo_cameraImage coming soon 240134-9 FAN FOR 60 GA €3.13
12
 photo_cameraImage coming soon 515364-4 ARMATURE €63.26
13
 Armature Washer for Angle Grinders Makita 9561-9562CV 681656-4 Armature Washer for Angle Grinders Makita 9561-9562CV €1.50
14
 photo_cameraImage coming soon 253823-7 ROND. FLAT 7 X JS1600 €2.40
15
 photo_cameraImage coming soon 210027-4 BEARING 627DDW X 9561CV €6.30
16
 photo_cameraImage coming soon 422750-1 LABYRINTH RUBBER RING 22 BO60 €11.66
22
 photo_cameraImage coming soon 453367-9 BAFFLE €2.34
23
 photo_cameraImage coming soon 266258-3 SCREW 4 X 70 X 9564 €2.34
24
 photo_cameraImage coming soon 344871-8 RETAINING X GD0800C €3.24
25
 photo_cameraImage coming soon 626649-4 STATOR GA SERIES €52.31
27
 Carbon Brushes CB-325 for Angle Grinder Makita 9554NB 194074-2 Carbon Brushes CB-325 for Angle Grinder Makita 9554NB €4.19
28
 Tapping Screw Bind M3X10 for Percussion Drill Makita HP2030 266007-8 Tapping Screw Bind M3X10 for Percussion Drill Makita HP2030 €2.07
29
 photo_cameraImage coming soon 643770-4 BRUSH HOLDER €2.03
30
 photo_cameraImage coming soon 453366-1 HOUSING MOTOR €12.65
31
 photo_cameraImage coming soon 265620-9 TAPPING SCREW 4X18 €1.44
32
 photo_cameraImage coming soon 687169-3 STRAIN RELIEF HP1620 €1.46
33
 photo_cameraImage coming soon 632K98-1 SWITCH SUPPORT €9.61
35
 Power Cord Protection for Angle Grinder Makita 115-125 mm 682559-5 Power Cord Protection for Angle Grinder Makita 115-125 mm €2.07
36
 photo_cameraImage coming soon 265620-9 TAPPING SCREW 4X18 €1.44
38
 photo_cameraImage coming soon 453365-3 BACK COVER C €4.72
39
 photo_cameraImage coming soon 620786-6 CONTROLLER 240V GA4540R/5040R €33.38
40
 Switch Makita Makita ST115A-40 651418-4 Switch Makita Makita ST115A-40 €10.80
42
 photo_cameraImage coming soon 233071-4 SPRING COMPRESSION 4 X 9541 €2.34
43
 photo_cameraImage coming soon 453847-5 LEVER SWITCH €2.34
44
 photo_cameraImage coming soon 453368-7 KEY SWITCH €2.34
46
 photo_cameraImage coming soon 453369-5 BUTTON €2.34
47
 Pin Disc Block Sping for Angle Grinder Makita GA4530 234057-1 Pin Disc Block Sping for Angle Grinder Makita GA4530 €1.83
48
 photo_cameraImage coming soon 266361-0 4 SCREW FOR 30 PER 9554NB €2.28
49
 photo_cameraImage coming soon 213032-0 RING 4 X GA4530 €2.34
50
 photo_cameraImage coming soon 256535-1 PLUG FOR 6 GA €2.34
51
 Rubber Pin for Hammer SDS-Max Makita HR4000C 263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C €1.47
52
 photo_cameraImage coming soon 210026-6 BALL BEARING 696ZZ €4.06
53
 photo_cameraImage coming soon 961005-4 RETAINING RING S9 €2.34
54
 photo_cameraImage coming soon 253180-3 FLAT WASHER 10 6221DW €2.18
55
 photo_cameraImage coming soon 310683-1 JOINT SLEEVE €7.36
56
 photo_cameraImage coming soon 346556-2 C PLATE FOR GA €4.72
57
 photo_cameraImage coming soon 227592-6 GEAR FOR 38 GA €11.06
58
 photo_cameraImage coming soon 313228-4 JUNCTION FOR GA €12.65
59
 photo_cameraImage coming soon 210302-8 BEARING 6903ZZ FOR GA €11.06
60
 Hard Washer 12 for Reciprocating Saw Makita JR3070CT 253744-3 Hard Washer 12 for Reciprocating Saw Makita JR3070CT €1.48
61
 Rubber Pin for Hammer SDS-Max Makita HR4000C 263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C €1.47
62
 photo_cameraImage coming soon 213641-5 RING FOR 51 GA €1.36
63
 photo_cameraImage coming soon 318837-4 BEARING BOX €7.89
64
 photo_cameraImage coming soon 265490-6 SCREW M4 X 16 X 9561CV €1.40
65
 Bearing 6201DD NSK for Powertools Makita 211129-9 Bearing 6201DD NSK for Powertools Makita €8.41
66
 photo_cameraImage coming soon 267279-8 FLAT WASHER 21 X HR2450FT €1.36
67
 photo_cameraImage coming soon 443124-3 FELT RING 17 GD0600 €2.34
68
 photo_cameraImage coming soon 285854-8 RETAINING BEARING 20-33 €2.34
70
 photo_cameraImage coming soon 326130-2 POST FOR GA €12.65
72
 photo_cameraImage coming soon 123099-9 WHEEL GUARD €8.12
73
 Inner Flange 42 for Angle Grinder Makita 9524NB 224490-5 Inner Flange 42 for Angle Grinder Makita 9524NB €2.94
74
 Upper Flange for Angle Grinders Makita 115-125 mm 224554-5 Upper Flange for Angle Grinders Makita 115-125 mm €8.23
75
 photo_cameraImage coming soon 135555-7 JUNCTION CPL P99 €46.87

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita GA5040R Angle Grinder Spare Parts

Fix Your Angle Grinder GA5040R. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Angle Grinder and the respective parts of the code.
Makita GA5040R

Makita GA5040R 5" 125mm Angle Grinder Spare Parts
# Part Num. Description
1 319310-7 GEAR HOUSING COMP GA4540/5040
2 252186-8 HEX NUT M6 BUC250/GA4034/9553
3 253077-6 NARROW WASHER 6 4300BV/9564DZ
4 227591-8 SPIRAL BEVEL GEAR 10 GA5040/G
5 211142-7 BALL BEARING 6001LLB 9565H/CV
6 141981-0 GEAR HOUSING COVER GA5040/GA4
10 253084-9 THIN WASHER 12 8419B/9565H
11 240134-9 FAN 60 GA5040/GA4540/GA4540C/
12 515364-4 ARMATURE ASS'Y 240V
13 681656-4 INSULATION WASHER/PO6000C
14 253823-7 THIN BLUE WASHER BHS630/JS160
15 210027-4 BALL BEARING 627DDW BO6040
16 422750-1 LABYRINTH RUBBER RING 22 BO60
22 453367-9 BUFFLE PLATE GA5040/GA4540/SA
23 266258-3 TAPPING SCREW 4X70 9564/65CV
24 344871-8 RETAINER GD0801C/811C/MT814
25 626649-4 FIELD 240V GA4540&R/GA5450
27 194074-2 CARBON BRUSH CB-325 9553-9555
28 266007-8 PT SCREW 3X10 TRILOBULAR/MS248
29 643770-4 BRUSH HOLDER GA5040/GA4540/GA
30 453366-1 MOTOR HOUSING GA5040/GA4540/G
31 265620-9 TAPPING SCREW M4X18 EBH253/EB3
32 687169-3 STRAIN RELIEF GA/GD/SG125
33 632K98-1 SWITCH BLOCK GA4540C/SA5040C
35 682559-5 CORD GUARD 10 GD0801C/GD0811C
36 265620-9 TAPPING SCREW M4X18 EBH253/EB3
38 453365-3 REAR COVER C GA4540C/SA5040C
39 620786-6 CONTROLLER 240V GA4540R/5040R
40 651418-4 SWITCH ST115A-40 GA4540/5450R
42 233071-4 COMPRESSION SPRING 4 9542
43 453847-5 SWITCH LEVER GA5040/GA4540
44 453368-7 SWITCH KNOB GA5040/GA4540
46 453369-5 PIN CAP GA5040/GA4540/GA4540C
47 234057-1 COMPRESSION SPRING 7 PC5000/0
48 266361-0 TAPPING SCREW 4X30 BGA454/504
49 213032-0 O RING 5 GA4030/GA4034/GA4530
50 256535-1 SHOULDER PIN 6 GA5040/GA4540
51 263002-9 RUBBER PIN 4 GA7050/9050/5021
52 210026-6 BALL BEARING 696ZZ GA4541
53 961005-4 EXT DIN 471 CIRCLIP-9 BGA450
54 253180-3 WASHER 10 6906/BO3710/3711
55 310683-1 JOINT SLEEVE
56 346556-2 C TYPE PLATE GA5040/GA4540
57 227592-6 SPIRAL BEVEL GEAR 38 GA5040
58 313228-4 COUPLING GA5040/GA4540/GA4540
59 210302-8 BALL BEARING 6903ZZ GA5040/45
60 253744-3 HARD WASHER 12 2414/BGA450
61 263002-9 RUBBER PIN 4 GA7050/9050/5021
62 213641-5 O RING 51 GA5040/GA4540/GA454
63 318837-4 BEARING BOX
64 265490-6 HEX SOCKET HD BOLT M4X16
65 211129-9 BALL BEARING 6201DDW BPJ140/8
66 267279-8 FLAT WASHER 21 HR2450T/GA4540
67 443124-3 FELT RING BDG800/GD0600
68 285854-8 BEARING RETAINER 20-33 GA5040
70 326130-2 SPINDLE GA5040/GA4540/GA4540C
72 123099-9 TOOLLESS WHEEL COVER 125AK A
73 224490-5 INNER FLANGE 42 GA7050/GA9050
74 224554-5 LOCK NUT
75 135555-7 COUPLING ASSY GA4541/C/5041
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita GA5040
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Makita GA5040R Drawing

Makita GA5040R Drawing

Download (319.7KB)
