Makita Cordless Drill DDF482 Spare Parts

SKU: Makita DDF482
€20.12
VAT included

Makita Cordless Drill DDF482 Spare Parts

MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Cordless Drill DDF482.
Makita Cordless Drill DDF482 Spare Parts
  • Makita Cordless Drill DDF482 Spare Parts
  • Makita Cordless Drill DDF482 Spare Parts - Drawing
Makita

Makita Cordless Drill DDF482 Spare Parts

SKU: Makita DDF482 Condition: New
€20.12
VAT included

Makita Cordless Drill DDF482 Spare Parts

MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Cordless Drill DDF482.
settings 31 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
31 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

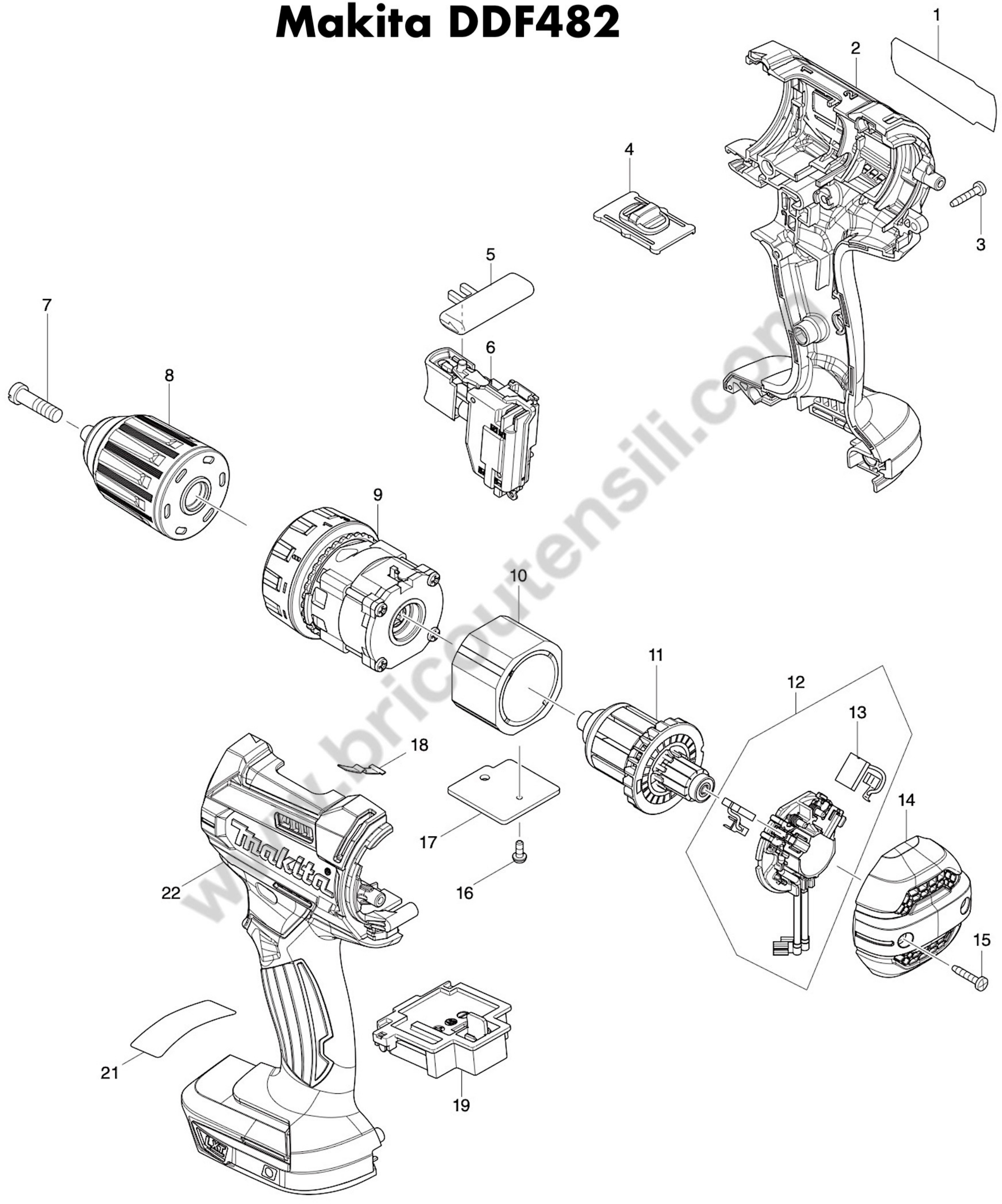

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
A07
 photo_cameraImage coming soon 191A24-4 BATTERY BL1830Bx1(18V3A)+DC18RC IN CARTONE €225.93
A06
 photo_cameraImage coming soon 195584-2 DC18RC FAST CHARGER €212.60
A07
 photo_cameraImage coming soon 197280-8 BATTERY BL1840B SET €251.58
A09
 photo_cameraImage coming soon 197624-2 KITENERGY18VBL1850B5Ax2+DC18RC €408.65
A10
 photo_cameraImage coming soon 198116-4 KITENERGY18VBL1860B6Ax2+DC18RC €449.65
A01
 photo_cameraImage coming soon 251314-2 SCREW M4X12 €1.47
A02
 photo_cameraImage coming soon 346317-0 HOOK €2.21
A04
 photo_cameraImage coming soon 453974-8 Makita Latch €6.66
A03
 photo_cameraImage coming soon 784637-8 BIT2-45 €4.00
A04
 photo_cameraImage coming soon 821550-0 CONNECTOR PLASTIC CASE (TYPE2) €55.51
A08
 photo_cameraImage coming soon 837916-4 INNER TRAY €6.78
2
 photo_cameraImage coming soon 183B65-0 HOUSING SET €18.43
3
 photo_cameraImage coming soon 263005-3 PIN RUBBER 6 €2.49
4
 photo_cameraImage coming soon 123442-2 SPEED CHANGE LEVER ASSEMBLY €1.36
4
 photo_cameraImage coming soon 233438-6 COMPRESSION SPRING 4 €1.36
5
 photo_cameraImage coming soon 419041-9 LEVER SWITCH X BTD130F €2.14
6
 photo_cameraImage coming soon 632F27-4 SWITCH UNIT €59.82
6
 photo_cameraImage coming soon 688172-7 FILTER LINE €1.40
7
 Chuck Screw M 6x22 for Cordless Drill Makita MT064SK 251468-5 Chuck Screw M 6x22 for Cordless Drill Makita MT064SK €1.43
8
 photo_cameraImage coming soon 763262-8 KEYLESS DRILL CHUCK 13 DHP482 €17.67
9
 photo_cameraImage coming soon 123444-8 GEAR ASSEMBLY €34.73
10
 photo_cameraImage coming soon 632J70-7 YOKE UNIT €13.93
11
 photo_cameraImage coming soon 619583-5 ARMATURE €31.77
12
 photo_cameraImage coming soon 632F21-6 BRUSH HOLDER COMPLETE €10.75
13
 Carbon Brushes CB-440 for Cordless Impact Wrench Makita BTD130F 194427-5 Carbon Brushes CB-440 for Cordless Impact Wrench Makita BTD130F €7.83
14
 photo_cameraImage coming soon 456099-7 REAR COVER €3.04
15
 photo_cameraImage coming soon 266429-2 SCREW 3X16 FOR TD0101F €1.46
16
 photo_cameraImage coming soon 652066-2 PAN HD SCREW M3X8 6313DW €1.36
17
 photo_cameraImage coming soon 689070-8 HEAT SINK BTW200/6960DZ/6908D €3.04
18
 photo_cameraImage coming soon 232182-2 SPRING PLATE X 6096DW €1.43
19
 photo_cameraImage coming soon 644808-8 X-TERMINAL BLS713 BHP451 €6.27
22
 photo_cameraImage coming soon 183B65-0 HOUSING SET €18.43

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Cordless Drill DDF482 Spare Parts

MAKITA Original spare parts

 at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Cordless Drill DDF482.

In the following table, look for the model of the Cordless Drill and the respective parts of the code.
Makita DDF482

Makita DDF482 18v Lxt Cordless Drill Driver Spare Parts
# Part Num. Description
1 851E35-2 DDF482 NAME PLATE
2 183B65-0 HOUSING SET
3 263005-3 RUBBER PIN 6 DUR/DHR/DTW/DG
4 123442-2 SPEED CHANGE LEVER ASSEMBLY
4 233438-6 COMPRESSION SPRING 4 BHPBDF45
5 419041-9 F/R CHANGE LEVER BTD043/063/1
6 632F27-4 SWITCH UNIT
6 620444-4 LED CIRCUIT
6 688172-7 LINE FILTER
7 251468-5 -FLAT HD SCREW M6X22 MT64/65
8 763262-8 KEYLESS DRILL CHUCK 13 DHP482
9 123444-8 GEAR ASSEMBLY
10 632J70-7 YOKE UNIT
11 619583-5 ARMATURE
12 632F21-6 BRUSH HOLDER COMPLETE
13 194427-5 CARBON BRUSH CB-440
14 456099-7 REAR COVER
15 266429-2 TAPPING SCREW 3X16 TD126/DUM
16 652066-2 PAN HD SCREW M3X8 6313DW
17 689070-8 HEAT SINK BTW200/6960DZ/6908D
18 232182-2 LEAF SPRING DHP480/DDF480
19 644808-8 TERMINAL DUR182/DHR165/DKP180
22 183B65-0 HOUSING SET
A01 251314-2 Makita Special Machine Screw Pan Head M4X12
A02 346317-0 HOOK
A03 784637-8 +- BIT 2-45
A04 821550-0 CONNECTOR PLASTIC CASE (TYPE2)
A04 453974-8 Latch
A05 450128-8 BATTERY COVER
A06 195584-2 DC18RC FAST CHARGER
A07 197280-8 BATTERY 18V 5A LI-ION
A07 191A24-4 BATTERY BL1830Bx1(18V3A)+DC18RC IN CARTONE
A08 837916-4 INNER TRAY
A09 197624-2 KITENERGY18VBL1850B5Ax2+DC18RC
A10 198116-4 KITENERGY18VBL1860B6Ax2+DC18RC
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita DDF482
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Makita DDF482 Drawing

Makita DDF482 Drawing

Download (431.51KB)
