Makita Jigsaw 4304 Spare Parts

SKU: Makita 4304
€32.81
VAT included

Makita Jigsaw 4304 Spare Parts

We have the original Makita Spare Parts for Jigsaw 4304, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Jigsaw 4304. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Makita Jigsaw 4304 Spare Parts
  • Makita Jigsaw 4304 Spare Parts

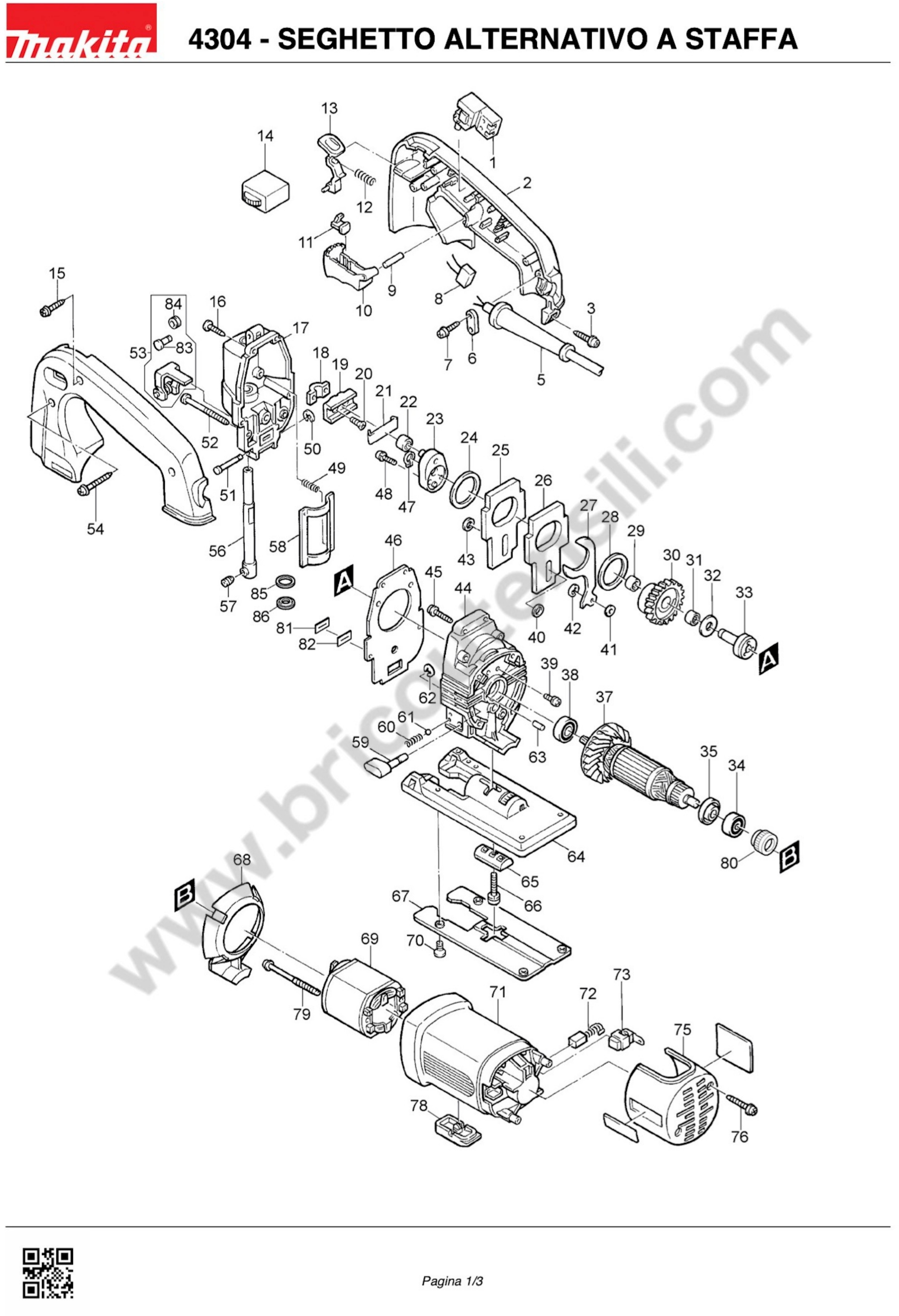

  • Makita Jigsaw 4304 Spare Parts - Drawing

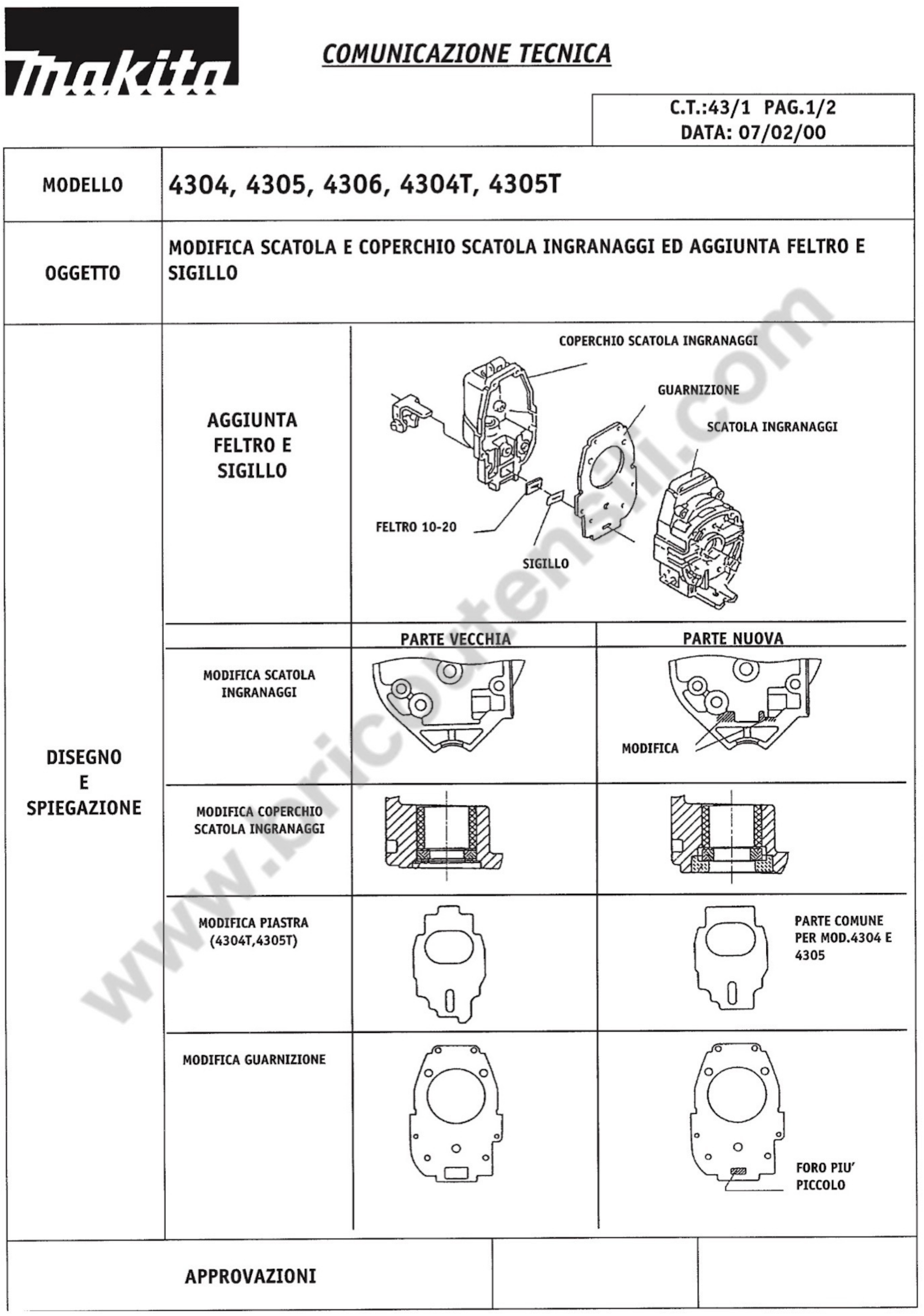

  • Makita Jigsaw 4304 Spare Parts - CT43-1

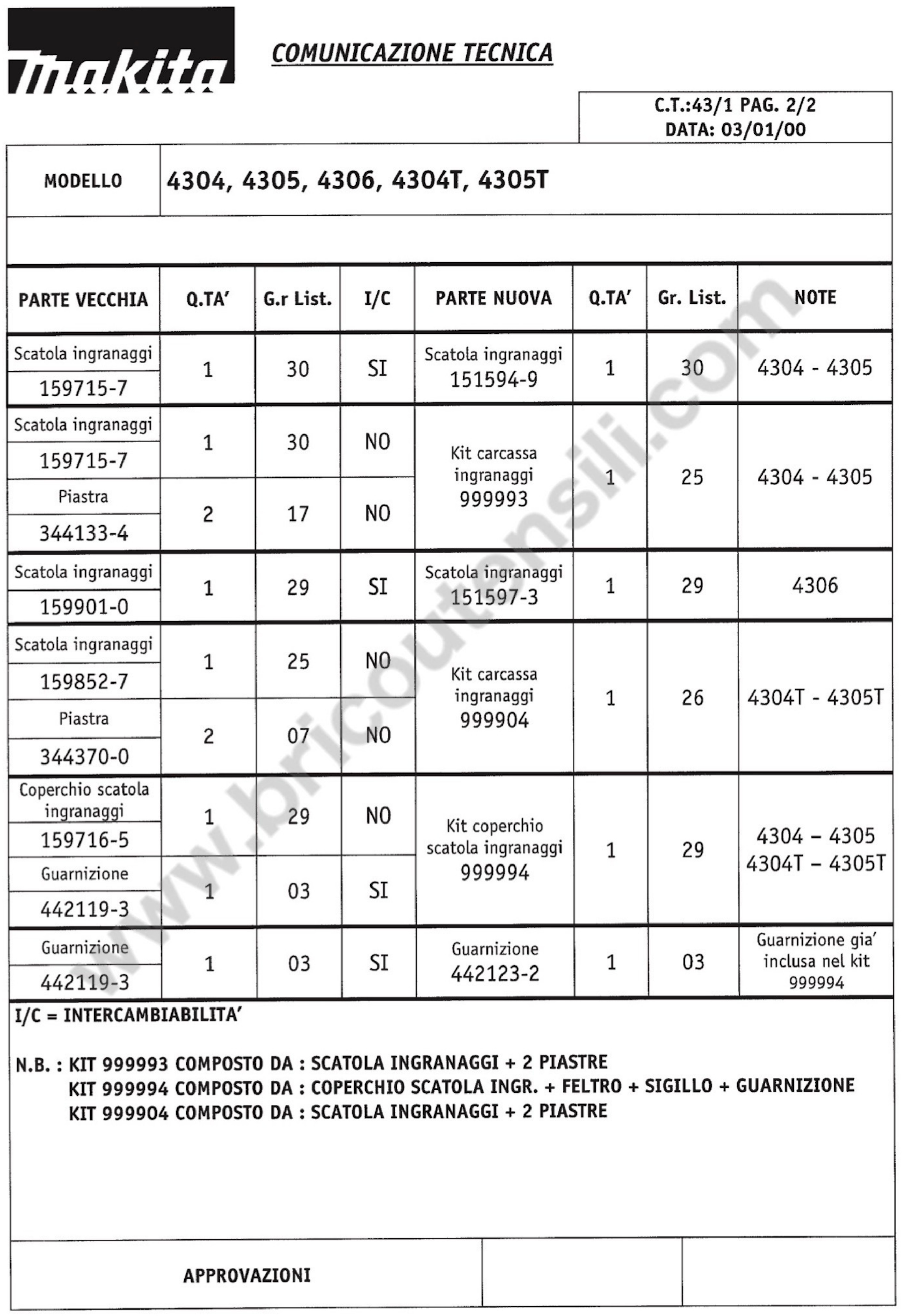

  • Makita Jigsaw 4304 Spare Parts  - CT43-2

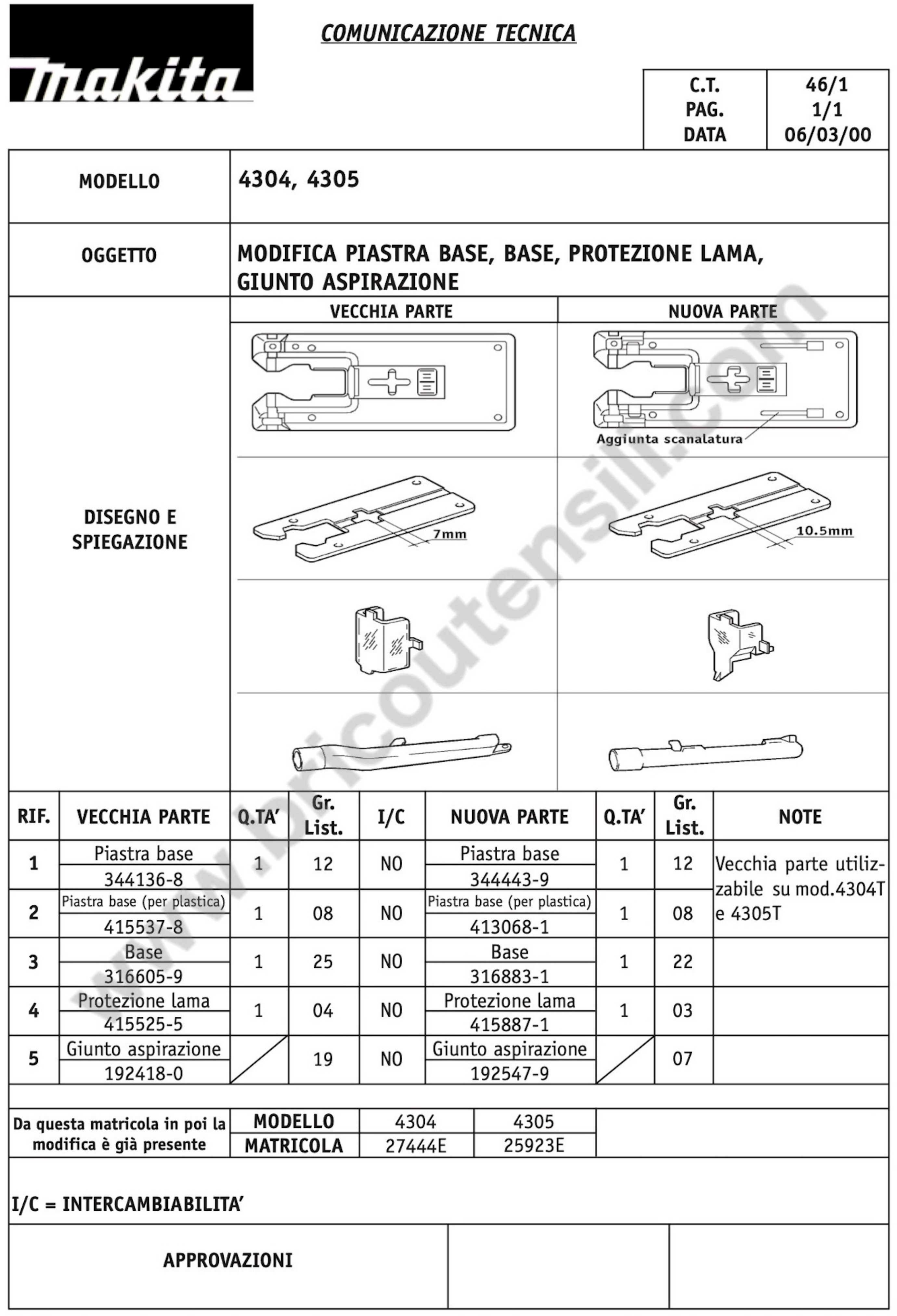

  • Makita Jigsaw 4304 Spare Parts - CT46-1

Makita Jigsaw 4304 Spare Parts

SKU: Makita 4304 Condition: New
€32.81
VAT included

Makita Jigsaw 4304 Spare Parts

We have the original Makita Spare Parts for Jigsaw 4304, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Jigsaw 4304. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 104 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

100 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
Switch for Polisher Makita SA7000 651922-3 Switch for Polisher Makita SA7000 €32.80
2
photo_cameraImage coming soon 182680-5 HANDLE SET 4304/4306 €34.73
3
Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
5
photo_cameraImage coming soon 682502-4 CABLE SLEEVE 8/85 €4.09
6
photo_cameraImage coming soon 687124-5 CORD CLAMP MT953 €1.47
7
Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
8
photo_cameraImage coming soon 645253-0 CAPACITOR X 6408 €5.93
9
photo_cameraImage coming soon 256221-4 PIN 3 X JR3020 €1.36
10
photo_cameraImage coming soon 415158-6 LEVER SWITCH X JR3020 €4.98
11
photo_cameraImage coming soon 415159-4 SPACER X 4304 €3.04
12
photo_cameraImage coming soon 233101-1 COMPRESSION SPRING 4 €1.36
13
photo_cameraImage coming soon 415534-4 LOCK-ON LEVER 4304 €2.03
14
photo_cameraImage coming soon 631678-4 REGULATOR 200 / 220V X 4304T- €66.84
15
Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
16
photo_cameraImage coming soon 266034-5 SCREW CT 4X16 €3.76
17
photo_cameraImage coming soon 153389-6 HOUSING GEAR COVER 4304 €48.75
18
photo_cameraImage coming soon 316608-3 SLIDER CURSOR X 4304 €7.95
19
photo_cameraImage coming soon 310028-3 CURSOR X 4304 €16.17
20
photo_cameraImage coming soon 265035-0 SCREW M4X10 €1.36
21
photo_cameraImage coming soon 344232-2 CURSOR PLATE X 4304 €2.03
22
photo_cameraImage coming soon 212010-7 NEEDLE BEARING 607 €13.93
23
photo_cameraImage coming soon 152454-8 ECCENTRIC HANDLE X 4304 €13.93
24
photo_cameraImage coming soon 253792-2 FLAT WASHER 26 X 9045B / N €1.36
25
photo_cameraImage coming soon 344330-2 BALANCE PLATE €7.36
26
photo_cameraImage coming soon 344330-2 BALANCE PLATE €7.36
27
photo_cameraImage coming soon 344134-2 PUSH PLATE X 4304 €3.73
28
photo_cameraImage coming soon 253792-2 FLAT WASHER 26 X 9045B / N €1.36
29
photo_cameraImage coming soon 212043-2 BALL BEARING TLA810Z HR201 €6.44
30
photo_cameraImage coming soon 226428-6 GEAR 51 X 4304/05 €38.42
31
photo_cameraImage coming soon 212043-2 BALL BEARING TLA810Z HR201 €6.44
32
photo_cameraImage coming soon 253139-0 FLAT WASHER 8 €2.03
33
photo_cameraImage coming soon 322691-0 GEAR SHAFT X 4304/05 €23.64
34
photo_cameraImage coming soon 211021-9 BEARING 607LLB €14.38
35
Armature Washer for Angle Grinder Makita GA4530 681636-0 Armature Washer for Angle Grinder Makita GA4530 €2.34
37
photo_cameraImage coming soon 240039-3 FAN 54 €3.73
38
Ball Bearing 608DDW for Jigsaw Makita 4327 210005-4 Ball Bearing 608DDW for Jigsaw Makita 4327 €5.44
39
photo_cameraImage coming soon 911111-5 HEAD SCREW CILIND. M4X10 €3.76
40
photo_cameraImage coming soon 253715-0 ROND.P.6 6510PBL / LVR / 43SB €1.50
41
photo_cameraImage coming soon 253811-4 WASHER 5 X 5012B €1.36
42
photo_cameraImage coming soon 961011-9 RETAINING RING E4 €1.44
43
photo_cameraImage coming soon 253715-0 ROND.P.6 6510PBL / LVR / 43SB €1.50
44
photo_cameraImage coming soon 151594-9 GEAR HOUSING COMPL. 4304/4305 + CT43-1 €54.39
45
Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
46
photo_cameraImage coming soon 442123-2 GASKET X 4304 4305 €2.62
47
photo_cameraImage coming soon 961004-6 RETAINING RING S8 €3.76
48
photo_cameraImage coming soon 911526-6 SCREW M4 X 14 X HR2420 €3.18
49
photo_cameraImage coming soon 231314-8 SPRING 4 JG16 / 4301BV €1.36
50
photo_cameraImage coming soon 961017-7 RING E-3 X 4305T €3.76
51
photo_cameraImage coming soon 256693-3 PIN 4 X 4304 4305 €4.30
52
photo_cameraImage coming soon 266066-2 PT SCREW 4X55 4306/6826/27 €2.03
53
photo_cameraImage coming soon 152947-5 COMPLETE BLADE GUIDE €20.92
54
photo_cameraImage coming soon 266048-4 VITE M 4 PER 40 PER 4334D €3.51
56
photo_cameraImage coming soon 165089-6 ROD 4304/4305/4331D/4333D €59.82
57
photo_cameraImage coming soon 265894-2 HEX. SOCKET HEAD BOLT M6X €1.36
58
photo_cameraImage coming soon 344137-6 SLIDING PLATE X 4304 €4.30
59
photo_cameraImage coming soon 272231-3 LEVER 17 X 4304 4305 €12.33
60
photo_cameraImage coming soon 231314-8 SPRING 4 JG16 / 4301BV €1.36
61
photo_cameraImage coming soon 216008-6 BALL 4 €1.47
62
photo_cameraImage coming soon 961018-5 RETAINING RING E5 €3.76
63
Rubber Pin for Hammer SDS-Max Makita HR4000C 263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C €1.47
64
photo_cameraImage coming soon 316883-1 *BASE 4304/4305 + CT46-1 €34.73
65
photo_cameraImage coming soon 331435-7 CLAMP PLATE 4304/4305/4331D €3.73
66
photo_cameraImage coming soon 922146-1 BOLT ESAG.M4X25X4602DW €2.03
67
photo_cameraImage coming soon 344443-9 BASIC PLATE X 4304 €9.61
68
photo_cameraImage coming soon 415535-2 BAFFLE PLATE 4304/4305 €2.03
69
photo_cameraImage coming soon 633288-3 STATOR X 4304 €27.49
70
photo_cameraImage coming soon 266055-7 *COUNTERSUNK SCREW M5X8 €1.36
71
photo_cameraImage coming soon 415748-5 HOUSING MOTOR X 4304 €23.64
72
Carbon Brushes Makita for Sanders BO4555-4556-4565-4566 191962-4 Carbon Brushes Makita for Sanders BO4555-4556-4565-4566 €7.53
73
photo_cameraImage coming soon 643923-5 CARBON BRUSH HOLDER  €4.09
75
photo_cameraImage coming soon 415532-8 REAR COVER X 4304 €7.36
76
photo_cameraImage coming soon 266050-7 SCREW 4X30 PT €3.76
78
photo_cameraImage coming soon 415538-6 PLUG X4304 €2.03
79
photo_cameraImage coming soon 266052-3 PT SCREW 4X60 €7.03
80
photo_cameraImage coming soon 421494-0 RUBBER 19 X 9521NB €11.93
81
photo_cameraImage coming soon 443106-5 FELT 10-20 €1.36
82
photo_cameraImage coming soon 344784-3 SAFETY SEAL X 4304 €1.36
83
photo_cameraImage coming soon 268074-9 PIN 4 FOR 4304 €3.73
84
photo_cameraImage coming soon 152950-6 ROLL CPL X 4304 €12.33
85
photo_cameraImage coming soon 253310-6 WASHER 10 56DW / HR3850B €1.36
86
photo_cameraImage coming soon 421821-1 DUST COVER 8 €2.03
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
502
photo_cameraImage coming soon 410048-8 Spare Part 410048-8 €1.48
503
photo_cameraImage coming soon 415524-7 ANTI SPLINTERING DEVICE €1.99
504
photo_cameraImage coming soon 415525-5 PLASTIC COVER €1.48
505
photo_cameraImage coming soon 415887-1 PROTECTOR 4304T/4306/4331D €2.40
506
photo_cameraImage coming soon 792522-1 JIG SAW BLADE B-22 €6.59
507
photo_cameraImage coming soon A-85737 JIGSAW BLADE B22 (5PK) 4301BV €7.72
508
photo_cameraImage coming soon 792538-6 JIG SAW BLADE B-10 €7.16
509
photo_cameraImage coming soon A-85628 JIG SAW BLADEB10 PACK/5PCS Clean cut wood blades forfast fine cut in wood and plastics, especially suited to plywood. €8.55
510
photo_cameraImage coming soon A-02294 JIG SAW BLADE BR-13 €5.83
511
photo_cameraImage coming soon A-85793 JIGSAW BLADE BR13 4301BV PK5 €7.11
512
photo_cameraImage coming soon 413068-1 BASE PLATE 4304/4305/4304T/06 €4.23
513
photo_cameraImage coming soon 415537-8 BASE PLATE €3.54
515
photo_cameraImage coming soon 824662-8 PLASTIC CARRYING CASE €16.67
516
photo_cameraImage coming soon 824809-4 PLASTIC CARRYING CASE €29.53
517
photo_cameraImage coming soon 655030-2 PLUG UK TYPE 16A-4H/110V €14.34
518
photo_cameraImage coming soon 654091-9 NON INSULATED TERMINAL HM0870 HM0871-TD0101F-N910-RP0900- GA5020 - GA5021-JR-LC1230-HR2432-HM1810-SMA40 €1.40
520
photo_cameraImage coming soon 646067-0 CHOKE COIL X 6408 €5.76
521
photo_cameraImage coming soon 192547-9 VACUUM HEAD €4.12
523
photo_cameraImage coming soon 654556-1 CONNECTOR 4304T/HP2032/HP1641 €1.40
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Jigsaw 4304 Spare Parts

Fix Your Jigsaw 4304. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of Jigsaw and the respective parts of the code.
Makita 4304

MAKITA 4304 - JIG SAW PARTS Pag.1
# Part Num. Description
1 651922-3 SWITCH TG71B PC5000/5001C/KP0
2 182680-5 HANDLE SET 4304/4306
3 265995-6 *TAPPING SCREW 4X18
5 682502-4 CORD GUARD 8-85 3707/N1923B
6 687124-5 STRAIN RELIEF UH4570/55/5580/
7 265995-6 TAPPING SCREW 4X18
8 645253-0 *CAPACITOR 0.22UF 4304T
9 256221-4 PIN 3 DST111/DST112/JR3020
10 415158-6 SWITCH LEVER JR3020/4304
11 415159-4 SPACER 8406C/4304/PP200
12 233101-1 COMPRESSON SPRING 4 4304/DUX60
13 415534-4 LOCK-ON LEVER 4304
14 631678-4 *CONTROLLER 4304/4305 240V
15 265995-6 *TAPPING SCREW 4X18
16 266034-5 CT SCREW M4X16 HS6100/DLS714
17 153389-6 *GEAR HOUSING COVER COMP 4304/ + CT43-1
18 316608-3 HOLDER 4304/4305/4331D/4333D
19 310028-3 SLIDER 4304/4305/T/4331D/4333D
20 265035-0 COUNTERSUNK HEAD SCREW M4X10
21 344232-2 THRUST PLATE 4304/4305/4331D
22 212010-7 NEEDLE BEARING 607 4304T/43BA
23 152454-8 CRANK COMP 4331D/4304/4305/T
24 253792-2 BLUE NARROW WASHER 26 4304
25 344330-2 *BALANCE PLATE 4304/4305 + CT43-1
26 344330-2 *BALANCE PLATE 4304/4305 + CT43-1
27 344134-2 PUSH PLATE 4304/4334D/4331D
28 253792-2 BLUE NARROW WASHER 26 4304
29 212043-2 NEEDLE BEARING 810 4305/9920
30 226428-6 HELICAL GEAR 51 4304/4305/4331
31 212043-2 NEEDLE BEARING 810 4305/9920
32 253139-0 THIN WASHER 8 LC1230/TW0350
33 322691-0 GEAR SHAFT 4304/4305/4334D
34 211021-9 BALL BEARING HP1631/607LLB/43
35 681636-0 INSULATION WASHER MT814/815
37 240039-3 FAN 54 4334D/4304/4305
38 210005-4 BALL BEARING 608LLB(/608VV) 6
39 911111-5 PAN HEAD SCREW M4X10 BO3710/1
40 253715-0 HARD WASHER 6 EA3500/3501
41 253811-4 WASHER 5 5012B
42 961011-9 STOP RING E4
43 253715-0 HARD WASHER 6 EA3500/3501
44 151594-9 GEAR HOUSING COMPL. 4304/4305 + CT43-1
45 265995-6 PT SCREW 4X20 TRILOBULAR 6833
46 442123-2 *PACKING 4304/4305 + CT43-1
47 961004-6 EXT DIN CIRCLIP-8 HM1317C/CB
48 911526-6 CAP HD SCREW M4X16 EN4951
49 231314-8 *COMPRESSION SPRING 4
50 961017-7 EXT E-RING JIS JE-3 BPJ140/81
51 256693-3 PIN 4 4304/4305/4333D/4334D
52 266066-2 PT SCREW 4X55 4306/6826/27
53 152947-5 *RETAINER COMP 4304/4305/4334D
54 266048-4 PT SCREW 4X35 VC3211M/BSS501
56 165089-6 ROD 4304/4305/4331D/4333D
57 265894-2 *CUP POINT GRUB SCRW M6X8
58 344137-6 SLIDE PLATE 4304/4305/4331D
59 272231-3 LEVER 17 4304/4305/4331D
60 231314-8 *COMPRESSION SPRING 4
61 216008-6 STEEL BALL 4 5008MB/JV101D
62 961018-5 EXT E-RING JIS JE-5 DLS714
63 263002-9 RUBBER PIN 4 GA7050/9050/5021
64 316883-1 *BASE 4304/4305 + CT46-1
65 331435-7 CLAMP PLATE 4304/4305/4331D
66 922146-1 *CAP HD SCREW M4X25
67 344443-9 *BASE PLATE 4304/4305
68 415535-2 BAFFLE PLATE 4304/4305
69 633288-3 FIELD 240V 4304/4305
70 266055-7 *COUNTERSUNK SCREW M5X8
71 415748-5 MOTOR HOUSING
72 191962-4 CARBON BRUSH CB-419 SET HP164
73 643923-5 BRUSH HOLDER UH4860/4304/4305
75 415532-8 REAR COVER 4304/4306
76 266050-7 PT SCREW 4X30 BUC121/122
78 415538-6 CAP 4304
79 266052-3 PT SCREW 4X60 TRILOBULAR HR24
80 421494-0 RUBBER RING 19 4305/T/3707/HP
81 443106-5 SAFETY WIRE 4304/T/4305/4331D
82 344784-3 SEAL PLATE 4304/4305/4331D + CT43-1
83 268074-9 FELT 4304/4305/4331D
84 152950-6 ROLLER CPL X 4304
85 253310-6 WASHER 10 56DW/HR3850B
86 421821-1 DUST SEAL 8
EXTRA ACCESSORIES Pag.2
501 783201-2 HEX WRENCH 3
502 410048-8
503 415524-7 ANTI-SPLINTERING DEVICE 4304/4
504 415525-5 PLASTIC COVER
505 415887-1 PROTECTOR 4304T/4306/4331D
506 792522-1 JIG SAW BLADE B-22
507 A-85737 JIGSAW BLADE B22 (5PK) 4301BV
508 792538-6 JIG SAW BLADE B-10
509 A-85628 JIGSAW BLADE B10 (5PK) 4301BV
510 A-02294 JIG SAW BLADE BR-13
511 A-85793 JIGSAW BLADE BR13 4301BV PK5
512 413068-1 BASE PLATE 4304/4305/4304T/06
513 415537-8 BASE PLATE
514 824536-3 PLASTIC CARRYING CASE
515 824662-8 PLASTIC CARRYING CASE
516 824809-4 PLASTIC CARRYING CASE
517 655030-2
518 654091-9 NON INSULATED TERMINAL GD0801
519 654128-2 EARTH TERMINAL 9520NB/952/682
520 646067-0 CHOKE COIL CH9-5 4304
521 192547-9 VACUUM HEAD
522 033909-1 MARKING TAPE (1PC= 1M)
523 654556-1 CONNECTOR 4304T/HP2032/HP1641
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita 4304
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Makita Jigsaw 4304 Drawing

Makita Jigsaw 4304 Drawing

Download (1.34MB)

You might also like

Makita SKU: 651922-3
Switch for Polisher Makita SA7000 Genuine part Makita, Switch for Polisher SA7000 - Mitre Saw 2414B - 2414EN-NB - Planes Makita 4304 - 4304T - 4306 -  Circular Saws Makita 5017RKB - 5603R - RK - 5703R - RK - 5705RK Part for the...
Last items in stock €32.80
Makita SKU: 191962-4
Carbon Brushes Makita for Sanders BO4555-4556-4565-4566 Genuine Parts Makita, Carbon Brushes for: Jigsaws 4304 - 4305 - 4306 - 4340 - 4341 - 4350 - 4351, for Drills 6310 -  6408 - 6824, for Sanders  BO4555 - 4556 - 4565 - 4566 Part...
AVAILABLE €7.53
Makita SKU: 681636-0
Armature Washer for Angle Grinder Makita GA4530 Genuine spare Makita, Armature Protection Washer for Angle Grinders GA4530 - GA4530R - GA4534 - GA5034 - 9521NB - 9554HN - 9557HN...
AVAILABLE €2.34
Comments (0)
