Makita Spare Parts for Demolition Hammer HM1300

SKU: Makita HM1300
€4.31
VAT included

Makita Spare Parts for Demolition Hammer HM1300

MAKITA Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Demolition Hammer - HM1300.
Makita Spare Parts for Demolition Hammer HM1300
  • Makita Spare Parts for Demolition Hammer HM1300

Makita Spare Parts for Demolition Hammer HM1300

SKU: Makita HM1300 Condition: New
€4.31
VAT included

Makita Spare Parts for Demolition Hammer HM1300

MAKITA Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Demolition Hammer - HM1300.
settings 91 spare parts

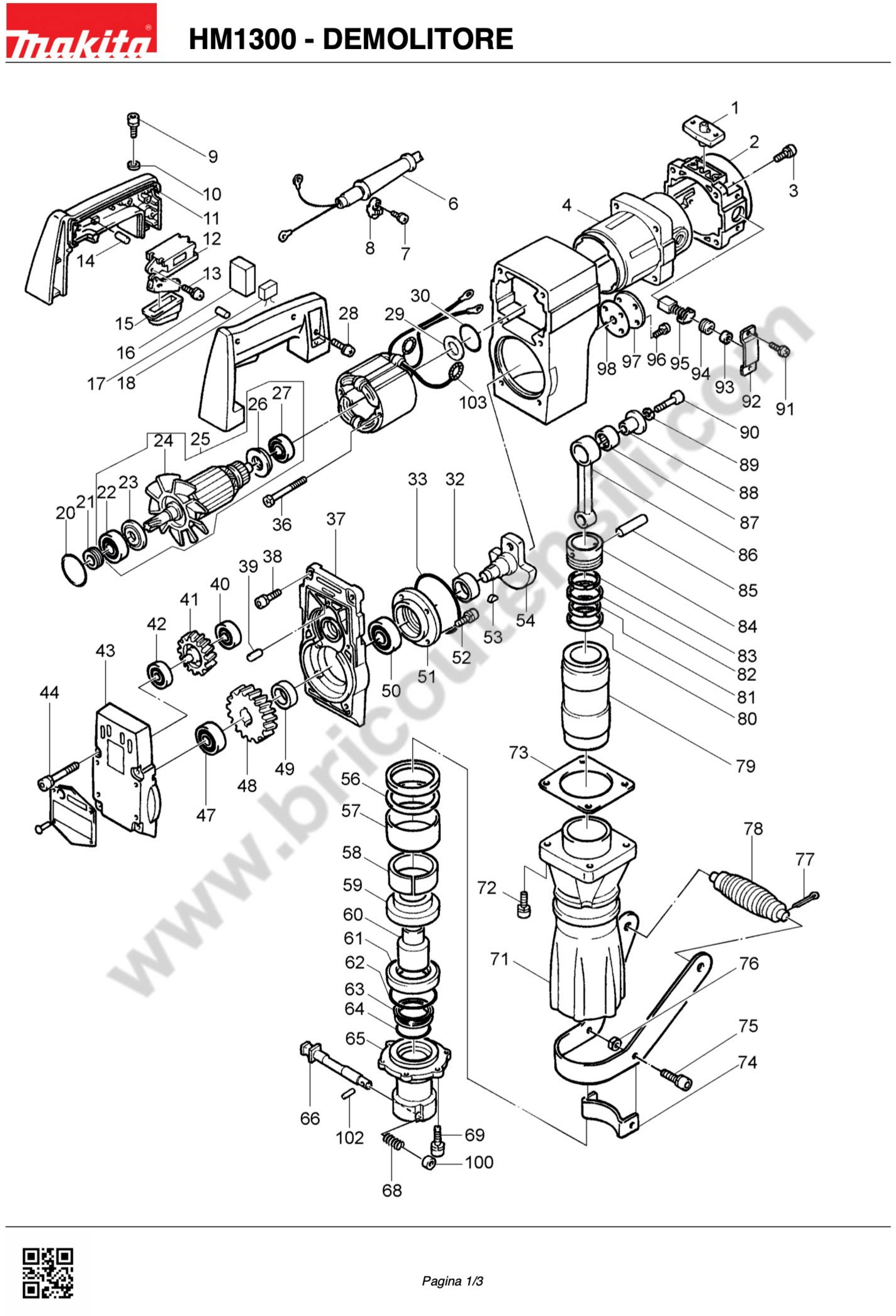

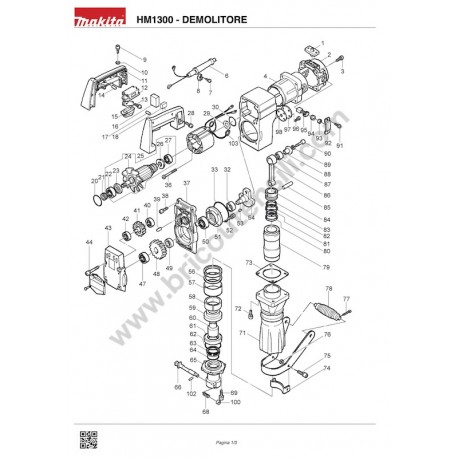

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

91 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 410725-2 HANDLE BASE HM1300 €4.07
2
photo_cameraImage coming soon 316392-0 REAR CASE HM1300 €69.60
3
photo_cameraImage coming soon 922356-0 HEX.SOCKET HEAD BOLT M6 X 35 X HM1500 €1.92
4
photo_cameraImage coming soon 159421-4 MOTOR HOUSING HM1300 €115.55
6
Power Cord Guard 10/90 for for Makita Power Tools 682505-8 Power Cord Guard 10/90 for for Makita Power Tools €3.18
7
photo_cameraImage coming soon 911133-5 SCREW M4X18 €1.46
8
photo_cameraImage coming soon 687001-1 CLAMP cable tie €1.47
9
photo_cameraImage coming soon 922356-0 HEX.SOCKET HEAD BOLT M6 X 35 X HM1500 €1.92
10
photo_cameraImage coming soon 941152-7 FLAT WASHER 6 €1.46
11
photo_cameraImage coming soon 181702-8 HANDLE SET COMPLETE HM1300 €41.16
12
Switch for Demolition Hammer MAKITA HM1200 651145-3 Switch for Demolition Hammer MAKITA HM1200 €39.90
13
Srew M4X16 HM1301 for Hammers Makita HR3850-HR3850K 911129-6 Srew M4X16 HM1301 for Hammers Makita HR3850-HR3850K €1.43
14
Rubber Pin for Hammer SDS-Max Makita HR4000C 263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C €1.47
15
Switch Dust Cover for Rotary Hammers MAKITA HR3850-B-K 421265-5 Switch Dust Cover for Rotary Hammers MAKITA HR3850-B-K €3.90
16
photo_cameraImage coming soon 685725-3 SPONGE FOR UH3000 €1.40
17
Rubber Pin for Hammer SDS-Max Makita HR4000C 263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C €1.47
18
Noise Suppressor for Cut-Off Machine Makita 2412N 645006-7 Noise Suppressor for Cut-Off Machine Makita 2412N €2.14
20
photo_cameraImage coming soon 213469-1 O-RING 35 HM1300 €4.72
21
photo_cameraImage coming soon 331271-1 SEAL HM1300 €6.96
22
Ball Bearing 6202DD for Demolition Hammer Makita HM1800 211228-7 Ball Bearing 6202DD for Demolition Hammer Makita HM1800 €8.71
23
photo_cameraImage coming soon 213202-1 DUST WASHER 15 €2.48
24
photo_cameraImage coming soon 241648-1 FAN 104 €21.05
25
photo_cameraImage coming soon 513403-4 ARMATURE 240V HM1300 €225.63
26
Armature Washer for Demolition Hammer Makita HR3850K 681646-7 Armature Washer for Demolition Hammer Makita HR3850K €8.71
27
photo_cameraImage coming soon 211066-7 BALL BEARING HM1301 - 6200 €11.93
28
photo_cameraImage coming soon 911243-8 SCREW M5x25 HR2010 €1.40
29
photo_cameraImage coming soon 253794-8 FLAT WASHER 18 6905B / 2708 €2.08
30
Gasket 30 O-R for Cylinder Hammers Makita HR4001-2-3-10-11C 213406-5 Gasket 30 O-R for Cylinder Hammers Makita HR4001-2-3-10-11C €1.35
32
photo_cameraImage coming soon 213408-1 OIL SEAL 30 HM1300 €6.96
33
photo_cameraImage coming soon 213806-9 GASKET 90 XHR2510 €4.72
36
photo_cameraImage coming soon 265341-3 HEX BOLT M5X75 €1.92
37
photo_cameraImage coming soon 157633-3 GEAR HOUSING HM1300 €142.27
38
photo_cameraImage coming soon 922341-3 SCREW M6X25 €1.44
39
photo_cameraImage coming soon 256111-1 PIN 6 €3.13
40
photo_cameraImage coming soon 211109-5 BALL BEARING 6201 X HM1303 €7.58
41
photo_cameraImage coming soon 221740-9 HELICAL GEAR 43 HM1300 €65.12
42
photo_cameraImage coming soon 211109-5 BALL BEARING 6201 X HM1303 €7.58
43
photo_cameraImage coming soon 157634-1 GEAR HOUSING COVER HM1300 €115.55
44
photo_cameraImage coming soon 922381-1 BOLT M6x60 €1.92
47
photo_cameraImage coming soon 211214-8 BALL BEARING 6302 €8.50
48
photo_cameraImage coming soon 221739-4 HELICAL GEAR 68 HM1300 €94.39
49
photo_cameraImage coming soon 257111-4 RING 25 HM1300 €4.07
50
photo_cameraImage coming soon 211359-2 BEARING 6205 €9.09
51
photo_cameraImage coming soon 315782-4 BEARING BOX HM1300 €41.16
52
photo_cameraImage coming soon 266009-4 SCREW M8 X 18 €1.92
53
photo_cameraImage coming soon 254001-2 KEY CRESCENT 4 €1.44
54
photo_cameraImage coming soon 321829-4 CRANK SHAFT HM1300 €115.55
56
photo_cameraImage coming soon 267006-3 FLAT WASHER 60HM1300 €7.81
57
photo_cameraImage coming soon 421291-4 RUBBER RING 68 HM1300 €7.81
58
photo_cameraImage coming soon 331300-0 IDLER HM1300 €37.09
59
photo_cameraImage coming soon 322234-8 RING HOLDER HM1300 €41.16
60
photo_cameraImage coming soon 322233-0 IMPACT BOLT HM1300 €78.13
61
photo_cameraImage coming soon 421292-2 URETHANE RING 44 HM1300 €25.99
62
photo_cameraImage coming soon 213707-1 SEAL 65 X HR1800 €3.84
63
photo_cameraImage coming soon 213517-6 RING 40 €30.04
64
photo_cameraImage coming soon 213504-5 SEAL 40 €2.89
65
photo_cameraImage coming soon 322168-5 TOOL HOLDER 30 €288.49
66
photo_cameraImage coming soon 322567-1 TOOL RETAINER X HM 1500 €41.16
68
photo_cameraImage coming soon 231281-7 SPRING 15 NEW HM1300 €2.48
69
photo_cameraImage coming soon 266010-9 BOLT M8x30 X HM1303 €2.08
71
photo_cameraImage coming soon 315780-8 CYLINDER HM1300 €363.53
72
photo_cameraImage coming soon 266011-7 HEX. SOCKET HEAD BOLT M8X35 €2.48
73
photo_cameraImage coming soon 442085-4 CYLINDER PACKING HM1300 €3.53
74
photo_cameraImage coming soon 342852-6 SIDE HANDLE PLATE HM1300 €4.72
75
photo_cameraImage coming soon 922441-9 BOLT M8X25 €1.33
76
photo_cameraImage coming soon 252005-8 HEXAGON NUT M8-13 €2.08
77
photo_cameraImage coming soon 952257-8 PIN 3.0-20 HR5000K €1.29
78
photo_cameraImage coming soon 273492-8 GRIP 38 HR5000K €13.57
79
photo_cameraImage coming soon 322235-6 HAMMER HM1300 €225.63
80
photo_cameraImage coming soon 412067-0 PISTON RING 46 HM1300 €37.09
81
photo_cameraImage coming soon 342853-4 INNER RING 42 HM1300 €5.46
82
photo_cameraImage coming soon 412067-0 PISTON RING 46 HM1300 €37.09
83
photo_cameraImage coming soon 342853-4 INNER RING 42 HM1300 €5.46
84
photo_cameraImage coming soon 321824-4 PISTON HM1300 €46.08
85
photo_cameraImage coming soon 256202-8 PIN 10 HM1300 €4.72
86
photo_cameraImage coming soon 321826-0 CONROD HM1300 €51.42
87
photo_cameraImage coming soon 212260-4 ROLLER BEARING 1716 €32.82
88
photo_cameraImage coming soon 321825-2 REDUCTION ROD XHM1300 €13.16
89
photo_cameraImage coming soon 942251-8 SPRING WASHER 10 €1.33
90
photo_cameraImage coming soon 922557-0 BOLT M10x35 €1.98
91
photo_cameraImage coming soon 911206-4 SCREW M5x10 €1.33
92
photo_cameraImage coming soon 342998-8 HOLDER CAP PLATE HM1300 €2.48
93
Rubber Ring 6 for Hammer Makita HM1303 262049-0 Rubber Ring 6 for Hammer Makita HM1303 €1.46
94
Carbon Brush Holder Cover for Electric Chainsaw Makita UC3041A 643650-4 Carbon Brush Holder Cover for Electric Chainsaw Makita UC3041A €2.43
95
Carbon Brushes CB-155 for Hammer Makita HM1400 181048-2 Carbon Brushes CB-155 for Hammer Makita HM1400 €13.26
96
photo_cameraImage coming soon 911211-1 SCREW M5X12 €1.36
97
photo_cameraImage coming soon 341397-1 COVER HOUSING €2.48
98
photo_cameraImage coming soon 442009-0 SEAL HOUSING €2.48
100
photo_cameraImage coming soon 322699-4 RETAINER RING X HM1500 €12.62
102
photo_cameraImage coming soon 256219-1 PIN 4 X HM 1500 €1.40
103
photo_cameraImage coming soon 654084-6 RING TERMINAL HM1300 €2.48

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Demolition Hammer HM1300

MAKITA Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Demolition Hammer - HM1300.

In the following table, look for the model of the Hammer and the respective parts of the code.
Makita HM1300

MAKITA HM1300 DEMOLITION HAMMER
Pos. Codice Description
1 410725-2 HANDLE BASE HM1300
2 316392-0 REAR CASE HM1300
3 922356-0 CAP HD SCREW M6X35 HM1500
4 159421-4 MOTOR HOUSING HM1300
6 682505-8 CORD GUARD 10-90 HS6100/7100
7 911133-5 PAN HEAD SCREW M4X18
8 687001-1 STRAIN RELIEF HK1820L/3601B
9 922356-0 CAP HD SCREW M6X35 HM1500
10 941152-7 FLAT WASHER 6
11 181702-8 HANDLE SET COMPLETE HM1300
12 651145-3 SWITCH C3D-H-MS 8900N/HM1200
13 911129-6 PAN HEAD SCREW M4X16 HM1301
14 263002-9 RUBBER PIN 4
15 421265-5 DUST COVER HR3850 / B
16 685725-3 SPONGE SHEET UH3000
17 263002-9 RUBBER PIN 4
18 645006-7 NOISE SUPPRESSOR 240V LS1013
20 213469-1 O RING 35 HM1300
21 331271-1 SEAL HM1300
22 211228-7 BALL BEARING 6202DD
23 213202-1 DUST SEAL 15
24 241648-1 FAN 104 HM1300
25 513403-4 ARMATURE 240V HM1300
26 681646-7 INSULATION WASHER HM1400 - HM1200 / 3612BR
27 211066-7 BALL BEARING 6200LLB HM1301
28 911243-8 PAN HEAD SCREW M5X25 HR2010
29 253794-8 FLAT WASHER 18 6905B / 2708
30 213406-5 O RING 30 VC3211M/HR5000/HM13 - 58NB / SB / HM1200
32 213408-1 OIL SEAL 30 HM1300
33 213806-9 O RING 90 HM1317C-CB/HR2510
36 265341-3 HEX HD SCREW M5X75
37 157633-3 GEAR HOUSING HM1300
38 922341-3 HEX HD SCREW M5X75
39 256111-1 PIN 6
40 211109-5 BALL BEARING 6201 HM1303
41 221740-9 HELICAL GEAR 43 HM1300
42 211109-5 BALL BEARING 6201 HM1303
43 157634-1 GEAR HOUSING COVER HM1300
44 922381-1 HEX SOCKET HD BOLT M6 X 60
47 211214-8 BALL BEARING 6302
48 221739-4 HELICAL GEAR 68 HM1300
49 257111-4 RING 25 HM1300
50 211359-2 BALL BEARING 6205
51 315782-4 BEARING BOX HM1300
52 266009-4 HEX. SOCKET HEAD BOLT M8X18 HM1301
53 254001-2 WOODRUFF KEY 4
54 321829-4 CRANK SHAFT HM1300
56 267006-3 FLAT WASHER 60HM1300
57 421291-4 RUBBER RING 68 HM1300
58 331300-0 IDLER HM1300
59 322234-8 RING HOLDER HM1300
60 322233-0 IMPACT BOLT HM1300
61 421292-2 URETHANE RING 44 HM1300
62 213707-1 O-RING 65 HR1800
63 213517-6 X RING 40 HM1300
64 213504-5 O-RING 40 HM1300
65 322168-5 TOOL HOLDER 30
66 322567-1 TOOL RETAINER HM 1500
68 231281-7 COMPRESSION SPRING 15 NEW HM1300
69 266010-9 HEX SOCKET HD BOLT M8X30 HM1303
71 315780-8 CYLINDER HM1300
72 266011-7 HEX SOCKET HD BOLT M8X35 HM131 HM1301
73 442085-4 CYLINDER PACKING HM1300
74 342852-6 SIDE HANDLE PLATE HM1300
75 922441-9 HEX. SOCKET HEAD BOLT M8X25
76 252005-8 SELF-LOCKING NUT M8-13 HM1304
77 952257-8 SPLIT COTTER PIN 3.0-20 HR5000K
78 273492-8 GRIP 38 HR5000K
79 322235-6 HAMMER HM1300
80 412067-0 PISTON RING 46 HM1300
81 342853-4 INNER RING 42 HM1300
82 412067-0 PISTON RING 46HM1300
83 342853-4 INNER RING 42HM1300
84 321824-4 PISTON HM1300
85 256202-8 PIN 10 HM1300
86 321826-0 CONROD HM1300
87 212260-4 NEEDLE BEARING 1716
88 321825-2 CRANK SLEEVE HM1300
89 942251-8 M10 SPRING RING DIN128 LS800D
90 922557-0 HEX SOCKET HD BOLT M10 X 35
91 911206-4 PAN HEAD SCREW M5X10
92 342998-8 HOLDER CAP PLATE HM1300
93 262049-0 RUBBER RING 6 N500
94 643650-4 BRUSH HOLDER CAP 6.5-13.5
95 181048-2 CARBON BRUSH CB-155 (TIB143) (CB-161)
96 911211-1 PAN HEAD SCREW M5X12
97 341397-1 MOTOR HOUSING COVER HM1303B - HM1300
98 442009-0 MOTOR HOUSING PACKING HM1303B - HM1300
100 322699-4 RETAINING RING HM1500
102 256219-1 PIN 4 HM 1500
103 654084-6 TERMINAL RING HM1300
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita HM1300
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Makita HM1300

Drawing Makita HM1300

Download (423.79KB)

You might also like

Valex s.p.a. SKU: 213406-5
Gasket 30 O-R for Cylinder Hammers Makita HR4001-2-3-10-11C Genuine spare part Makita, O-Ring for cylinder Rotary Demolition Hammers SDS Max, HR4001C - HR4002 - HR4003C - HR4010C - HR4011C Part for the following products: - Rotary...
Last items in stock €1.35
Makita SKU: 181048-2
Carbon Brushes CB-155 for Hammer Makita HM1400 Makita genuine spare part, Carbon Brusches CB-155 for Hammer Breaker HM1400 Exagonal 30 mm 1240 W Part for the following products: - Hammer Breaker HM1400 Exagonal 30 mm 1240 W Technical...
Last items in stock €13.26
Makita SKU: 682505-8
Power Cord Guard 10/90 for for Makita Power Tools Genuine part Makita, Power Cord Guard diameter 10 mm Length 90 mm for Power Tools. Parts for the following products: - 4112HS - CUTTING ANG.305MM 2400W - 4114S - CUTTING ANG.355MM...
AVAILABLE €3.18
Makita SKU: 643650-4
Carbon Brush Holder Cover for Electric Chainsaw Makita UC3041A Genuine parts Makita, Carbon Brush Holder Cover for Electric Chainsaws UC3041A - UC3030A - UC3530A - UC3551A - UC4030A - UC4051A - DOLMAR ES2135A  - ES2136TLC - ES2140A -...
AVAILABLE €2.43
Makita SKU: 681646-7
Armature Washer for Demolition Hammer Makita HR3850K Genuine spare part Makita, Armature Protection Washer for Demolition Hammers HM1200 - HM1200K - HM1300 - HM1303 - HM1304 - HM1800 - HM1810 - HR3850 - HR3850K Part for the following...
AVAILABLE €8.71
Makita SKU: 645006-7
Noise Suppressor for Cut-Off Machine Makita 2412N Genuine part Makita, Capacitor Noise Suppressor 0,047μF KX2 275V for Cut-Off Machines 2412N - 2414 - 2414K. Part for the following...
Last items in stock €2.14
Makita SKU: 651145-3
Switch for Demolition Hammer MAKITA HM1200 Genuine replacement part Makita, Switch C3D-H-MS for Demolition Hammer HM1200 - HM1200K. Part for the following products: -  HM1200 - DEMOLITION...
AVAILABLE €39.90
Comments (0)
