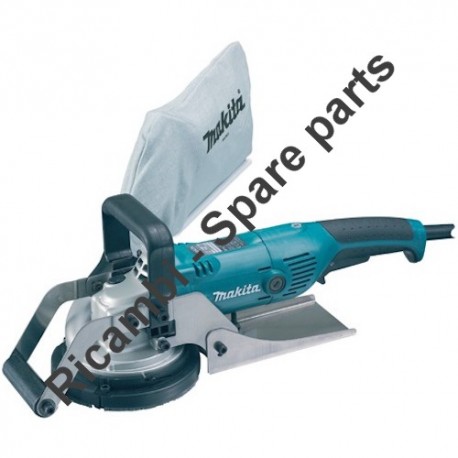

Makita Spare Parts for Concrete Planer PC5001C

SKU: Makita PC5001C
€1.32
VAT included

Makita Spare Parts for Concrete Planer PC5001C

We have the Makita original Spares for Concrete Planer PC5001C, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Concrete Planer PC5001C. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Makita Spare Parts for Concrete Planer PC5001C
  • Makita Spare Parts for Concrete Planer PC5001C
  • Makita Spare Parts for Concrete Planer PC5001C
Makita

Makita Spare Parts for Concrete Planer PC5001C

SKU: Makita PC5001C Condition: New
€1.32
VAT included

Makita Spare Parts for Concrete Planer PC5001C

We have the Makita original Spares for Concrete Planer PC5001C, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Concrete Planer PC5001C. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 87 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
84 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 266459-3 SCREW 5x25 PC5000C €1.44
2
 Button Pin Disc Block for Angle Grinder Makita 9554NB 417771-6 Button Pin Disc Block for Angle Grinder Makita 9554NB €3.18
3
 Pin Disc Block Sping for Angle Grinder Makita GA4530 234057-1 Pin Disc Block Sping for Angle Grinder Makita GA4530 €1.83
4
 photo_cameraImage coming soon 318158-4 GEAR BOX GA 5010 €16.14
5
 photo_cameraImage coming soon 424051-3 RING RUBBER 26 GA5021C €1.29
6
 photo_cameraImage coming soon 264010-3 NUT M7 X GA5010 €5.00
7
 photo_cameraImage coming soon 227520-1 GEAR FOR 11 GA6020 €5.84
8
 photo_cameraImage coming soon 211088-7 BALL BEARING 6000-9527PB 9528PB €7.11
9
 photo_cameraImage coming soon 267352-4 WASHER 22 GA5010 €1.29
10
 photo_cameraImage coming soon 962107-9 RETAINING RING R-30 X GA5010 €1.29
11
 photo_cameraImage coming soon 240094-5 FAN 70 GA5010 €2.53
12
 photo_cameraImage coming soon 518685-3 ARMATURE ASS'Y 240V €45.72
13
 photo_cameraImage coming soon 681660-3 INSULATOR X PV7000C €13.42
14
 photo_cameraImage coming soon 267281-1 WASHER 8 X GA9010C €3.41
15
 Ball Bearing 608DDW for Router Makita RP0900 210044-4 Ball Bearing 608DDW for Router Makita RP0900 €4.63
16
 photo_cameraImage coming soon 421720-7 RUBBER RING 5604R €15.56
17
 photo_cameraImage coming soon 266325-4 SCREW M 4 TO 70 PER MT952 €1.36
18
 photo_cameraImage coming soon 419961-7 BAFFLE GA5010 €1.29
19
 photo_cameraImage coming soon 528819-0 FIELD ASS'Y, PC5000C - GA5021C €36.80
20
 photo_cameraImage coming soon 140019-8 HOUSING MOTOR PC5000C €21.68
21
 photo_cameraImage coming soon 194547-5 CARBON BRUSHES CB-253 X GA5021C €4.29
22
 Carbon Brush Holder Cap for Hammer Makita HM1100 - HM1100C 643750-0 Carbon Brush Holder Cap for Hammer Makita HM1100 - HM1100C €2.51
23
 photo_cameraImage coming soon 866331-5 NAME PLATE PC5001C €2.87
24
 photo_cameraImage coming soon 188630-8 HANDLE REAR PC5000C €19.08
25
 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 €1.47
26
 photo_cameraImage coming soon 631799-2 REGULATOR X GA5021C €46.67
27
 photo_cameraImage coming soon 418518-1 COMPASS X GA9010C €3.41
28
 Switch for Polisher Makita SA7000 651922-3 Switch for Polisher Makita SA7000 €32.80
29
 photo_cameraImage coming soon 654575-7 TERMINAL X 5704R €10.00
30
 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 €1.47
31
 photo_cameraImage coming soon 687124-5 CORD CLAMP MT953 €1.47
32
 photo_cameraImage coming soon 682574-9 CABLE SLEEVE 10-90 PC5000C €1.47
34
 photo_cameraImage coming soon 233117-6 COMPRESSION SPRING 6 X GA7010C €1.32
35
 photo_cameraImage coming soon 418519-9 BASE FOR SWITCH X GA9010C €1.94
36
 photo_cameraImage coming soon 158402-5 SWITCH LEVER A PC5000C - GA5021C €6.91
38
 photo_cameraImage coming soon 450184-8 LENS FOR PC5000C €1.29
39
 photo_cameraImage coming soon 213977-2 RING 7 X GA5010 €1.29
40
 photo_cameraImage coming soon 256505-0 PIN 5 GA5010 €2.41
41
 Rubber Pin for Hammer SDS-Max Makita HR4000C 263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C €1.47
42
 Bearing 696ZZ FOR Angle Grinder Makita GA4530 210033-9 Bearing 696ZZ FOR Angle Grinder Makita GA4530 €3.35
43
 Ring 11 for Angle Grinder Makita GA4530 233950-6 Ring 11 for Angle Grinder Makita GA4530 €1.43
44
 photo_cameraImage coming soon 227521-9 35A GEAR PC5000C €12.70
45
 photo_cameraImage coming soon 257171-6 RING 12 X PC5000C €2.53
46
 photo_cameraImage coming soon 911003-8 SCREW M3X6 X 6096DW €4.09
47
 photo_cameraImage coming soon 285728-3 BEARING RETAINER 39 GA5010 €2.99
48
 photo_cameraImage coming soon 210241-2 * BALL BEARING 6202DDW €2.62
49
 photo_cameraImage coming soon 253853-8 WASHER 15 X HR1800 €1.29
50
 photo_cameraImage coming soon 213624-5 RING 48 X GA5010 €1.29
51
 photo_cameraImage coming soon 345464-4 RING FOR DUST 9554NB €1.40
52
 photo_cameraImage coming soon 325625-2 POST PC5000C €12.70
53
 Skirt B Cpl for Concrete Planer Makita PC5000C 141021-4 Skirt B Cpl for Concrete Planer Makita PC5000C €42.08
54
 photo_cameraImage coming soon 911256-9 SCREW M5x35 €1.44
55
 photo_cameraImage coming soon 911024-0 SCREW M3 X 14 X PC5000C €1.29
56
 photo_cameraImage coming soon 240114-5 FAN 85 PC5000C0 €8.43
57
 photo_cameraImage coming soon 346045-7 SEPARATOR PC5000C €1.94
58
 photo_cameraImage coming soon 911115-7 SCREW M4X10 X HR4000C €1.29
59
 photo_cameraImage coming soon 922312-0 BOLT M6 X 12 €1.33
60
 photo_cameraImage coming soon 424526-2 COVER ANTIPOL.ANT.PC5000C €14.35
61
 photo_cameraImage coming soon 424525-4 DUST COVER PC5000C €16.72
62
 Brush B for Concrete Planer Makita PC5000C 743341-8 Brush B for Concrete Planer Makita PC5000C €6.89
63
 Brush A for Concrete Planer Makita PC5000C 743340-0 Brush A for Concrete Planer Makita PC5000C €12.20
64
 Upper Flange for Angle Grinders Makita 115-125 mm 224554-5 Upper Flange for Angle Grinders Makita 115-125 mm €8.23
65
 photo_cameraImage coming soon 273529-1 GRIP, PC5001C €22.18
66
 photo_cameraImage coming soon 922441-9 BOLT M8X25 €1.33
67
 photo_cameraImage coming soon 450190-3 DISTANCE B PC5000C €1.29
68
 photo_cameraImage coming soon 450190-3 DISTANCE B PC5000C €1.29
69
 photo_cameraImage coming soon 152179-4 FRONT ROLLER X PC1100 €17.30
70
 photo_cameraImage coming soon 321436-3 FRONT ROLLER SHAFT XPC1100 €7.75
71
 photo_cameraImage coming soon 922311-2 H.S.H. BOLT M6X12, 5077B - PC5001C €1.29
72
 photo_cameraImage coming soon 253011-6 FLAT WASHER 6 €1.29
73
 photo_cameraImage coming soon 346042-3 ROLLER HOLDER L, PC5001C €5.42
74
 photo_cameraImage coming soon 922311-2 H.S.H. BOLT M6X12, 5077B - PC5001C €1.29
75
 photo_cameraImage coming soon 922311-2 H.S.H. BOLT M6X12, 5077B - PC5001C €1.29
76
 photo_cameraImage coming soon 346043-1 ROLLER HOLDER R, PC5001C €4.68
77
 photo_cameraImage coming soon 346044-9 BASE HOLDER CPL., PC5001C €22.18
78
 photo_cameraImage coming soon 265844-7 HEX. SOCKET HEAD BOLT M6X20 €1.40
79
 photo_cameraImage coming soon 922311-2 H.S.H. BOLT M6X12, 5077B - PC5001C €1.29
80
 photo_cameraImage coming soon 341840-0 BASE X PC1100 €29.81
81
 photo_cameraImage coming soon 253828-7 WASHER 10 GA5020C-6021C €1.29
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 2
Pos. Item Price Buy
500
 photo_cameraImage coming soon 122853-8 DUST BAG ASS'Y, PC5000C €8.04
501
 photo_cameraImage coming soon 410047-0 WRENCH HOLDER, GV5000 €1.71
503
 photo_cameraImage coming soon 783203-8 HEX. WRENCH 5 €2.17
504
 photo_cameraImage coming soon 140073-2 STEEL TOOL CASE, PC5000C €97.08
507
 photo_cameraImage coming soon B-12289 Smooth, Top Quality finish €260.41

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Concrete Planer PC5001C

Fix Your Concrete Planer PC5001C. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of Concrete Planer and the respective parts of the code.
Makita PC5001C

PC5001C - CONCRETE PLANER D.125mm + BASE Pag.1
# Part Num. Description
1 266459-3 TAPPING SCREW 5X25, 5477NB PC5000C
2 417771-6 PIN CAP, 9557NB 9554NB
3 234057-1 COMPRESSION SPRING 6 GA5021C
4 318158-4 GEAR HOUSING GA 5010
5 424051-3 RUBBER RING 26 GA5021C
6 264010-3 HEX NUT M7 X GA5010
7 227520-1 SPIRAL BEVEL GEAR 11, GA6010Z GA6020
8 211088-7 BALL BEARING 6000 9527PB-9528PB
9 267352-4 FLAT WASHER 22 GA5010
10 962107-9 RET. RING (INT) R-30, GA5020 - GA5010
11 240094-5 FAN 70 GA5010
12 518685-3 ARMATURE ASS'Y 240V
13 681660-3 INSULATION WASHER X PV7000C
14 267281-1 FLAT WASHER 8 X GA9010C
15 210044-4 BALL BEARING 608DDW
16 421720-7 RUBBER RING 5604R
17 266325-4 TAPPING SCREW M 4 X 70 X MT952
18 419961-7 BAFFLE PLATE GA5010
19 528819-0 FIELD ASS'Y, PC5000C - GA5021C
20 140019-8 MOTOR HOUSING CPL., PC5001C - PC5000C
21 194547-5 CARBON BRUSH SET, CB-253 251/250
22 643750-0 BRUSH HOLDER CAP
23 866331-5 NAME PLATE PC5001C
24 188630-8 HANDLE SET, PC5000C
25 266326-2 TAPPING SCREW PT 4X18, 5007MG MT601
26 631799-2 CONTROLLER, PC5000C - GA5021C
27 418518-1 SLEEVE, JR3070CT - GA9010C
28 651922-3 SWITCH TG71B HR4041C
29 654575-7 TERMINAL BLOCK, PC5000C - 5704R
30 266326-2 TAPPING SCREW PT 4X18, 5007MG - MT601
31 687124-5 STRAIN RELIEF, JV0600K - MT953
32 682574-9 CORD GUARD 10-90, PC5000C
34 233117-6 COMPRESSION SPRING, 6 AF502,SH01W - GA7010C
35 418519-9 SWITCH BASE, GA7011C - GA9010C
36 158402-5 SWITCH LEVER A PC5000C - GA5021C
38 450184-8 LENZ, PC5000C
39 213977-2 O-RING 7 X GA5010
40 256505-0 SHOULDER PIN 5, GA5020 - GA5010
41 263002-9 RUBBER PIN 4
42 210033-9 BALL BEARING 696ZZ X 2107FK
43 233950-6 RING SPRING 11, GA4030 - GA5010
44 227521-9 SPIRAL BEVEL GEAR 35A, GA6010Z - PC5000C
45 257171-6 RING 12 X PC5000C
46 911003-8 P.H. SCREW M3X6, FD02W - 6096DW
47 285728-3 BEARING RETAINER 39 GA5010 - GA5020
48 210241-2 * BALL BEARING 6202DDW
49 253853-8 FLAT WASHER 15 X HR1800
50 213624-5 O-RING 48 X GA5010
51 345464-4 LABYRINTH RING, GA4030 - 9554NB
52 325625-2 SPINDLE A, PC5000C
53 141021-4 SKIRT B CPL., PC5000C
54 911256-9 P.H. SCREW M5X35, 6300LR
55 911024-0 PAN HEAD SCREW M3X14, LP1812C - PC5000C
56 240114-5 FAN 85 PC5000C0
57 346045-7 SEPARATOR PC5000C
58 911115-7 P.H. SCREW M4X10, PC5000C - HR4000C
59 922312-0 H.S.H. BOLT M6X12, 2414NB

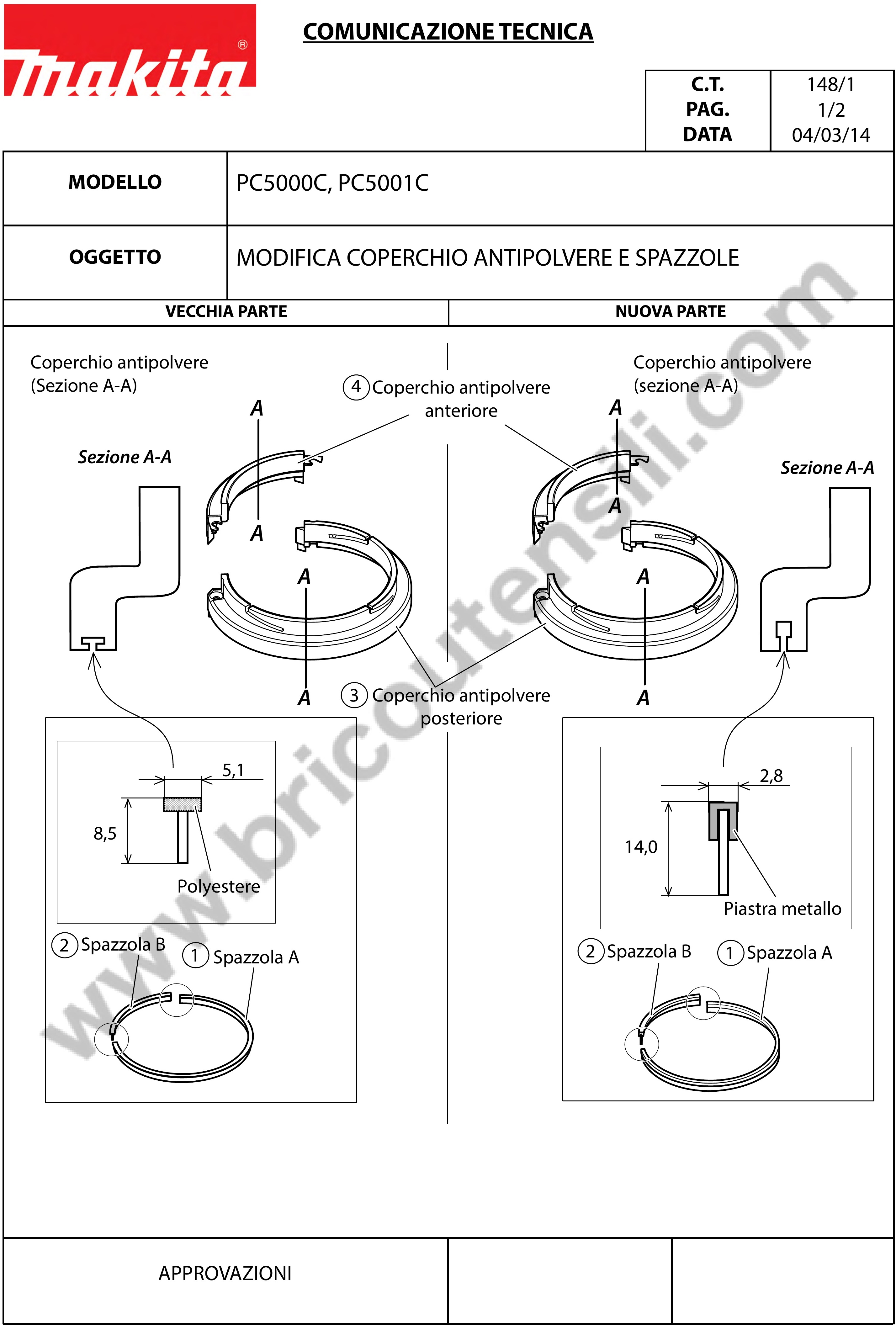

60 424526-2 DUST COVER CAP PC5000C See Data Sheet T. CT148-1
61 424525-4 DUST COVER CAP PC5000C See the Technical Sheet T. CT148-1
62 743341-8 BRUSH B, PC5000C See the Technical Sheet T. CT148-1
63 743340-0 BRUSH A PC5000C See at the Technical Sheet T. CT148-1
64 224554-5 LOCK NUT 14-45, 9005B - 9541
65 273529-1 GRIP, PC5001C
66 922441-9 H.S.H. BOLT M8X25, LS1016L
67 450190-3 SPACER B PC5000C
68 450190-3 SPACER B PC5000C
69 152179-4 FRONT ROLLER X PC1100
70 321436-3 FRONT ROLLER SHAFT XPC1100
71 922311-2 H.S.H. BOLT M6X12, 5077B - PC5001C
72 253011-6 FLAT WASHER 6 LS1400
73 346042-3 ROLLER HOLDER L, PC5001C
74 922311-2 H.S.H. BOLT M6X12, 5077B - PC5001C
75 922311-2 H.S.H. BOLT M6X12, 5077B - PC5001C
76 346043-1 ROLLER HOLDER R, PC5001C
77 346044-9 BASE HOLDER CPL., PC5001C
78 265844-7 H.S.H.BOLT M6X20, AN923
79 922311-2 H.S.H. BOLT M6X12, 5077B - PC5001C
80 341840-0 BASE X PC1100
81 253828-7 FLAT WASHER 10, 2012NB - GA5020C-6021C
Accessories Pag.2
500 122853-8 DUST BAG ASS'Y, PC5000C
501 410047-0 WRENCH HOLDER, GV5000
502 782425-7 LOCK NUT WRENCH 28, PC5000C
503 783203-8 HEX WRENCH 5, 4131
504 140073-2 STEEL TOOL CASE, PC5000C
505 194921-7 DUST COVER BRUSH SET, PC5000C
506 A-94998 DIAMOND WHEEL, PC5001C
507 B-12289 OFFSET DIAMOND WHEEL 125, PC5001C
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita PC5001C
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Parts Breakdown Makita PC5001C

Parts Breakdown Makita PC5001C

Download (354.59KB)

Tech Info CT148-1

Tech Info CT148-1

Download (150.8KB)

You might also like

Switch for Polisher Makita SA7000
Makita SKU: 651922-3
Switch for Polisher Makita SA7000
Switch for Polisher Makita SA7000 Genuine part Makita, Switch for Polisher SA7000 - Mitre Saw 2414B - 2414EN-NB - Planes Makita 4304 - 4304T - 4306 -  Circular Saws Makita 5017RKB - 5603R - RK - 5703R - RK - 5705RK Part for the...
Last items in stock €32.80
Details
Button Pin Disc Block for Angle Grinder Makita 9554NB
Makita SKU: 417771-6
Button Pin Disc Block for Angle Grinder Makita 9554NB
Button Pin Disc Block for Angle Grinder Makita 9554NB Genuine spare part Makita, Button Pin Disc Block for Angle Grinders with disk mm 115-125. Part for the following products: - ANGLE GRINDER 115MM 710W - 9554HN - ANGLE GRINDER 115MM...
Last items in stock €3.18
Details
Upper Flange for Angle Grinders Makita 115-125 mm
Makita SKU: 224554-5
Upper Flange for Angle Grinders Makita 115-125 mm
Upper Flange for Angle Grinders Makita 115-125 mm Genuine part Makita, Upper Disk Flange for Angle Grinders with disk max 115-125 mm and compatible. Parts for the following products: - 9015B - ANGLE GRINDER 125MM 1050W - 9016B -...
AVAILABLE €8.23
Details
Bearing 696ZZ FOR Angle Grinder Makita GA4530
Makita SKU: 210033-9
Bearing 696ZZ FOR Angle Grinder Makita GA4530
Bearing 696ZZ FOR Angle Grinder Makita GA4530 Genuine part Makita, Bearing 696ZZ for Angle Grinders GA4530 - 9554HN - 9554NB - 9555NB - 9557HN - 9558HN - Band Saw 2107FK. Parts for the following products: - 2107FK - BAND SAW - 9554HN...
AVAILABLE €3.35
Details
Pin Disc Block Sping for Angle Grinder Makita GA4530
Makita SKU: 234057-1
Pin Disc Block Sping for Angle Grinder Makita GA4530
Makita GA4530 Compression Spring 6 Genuine spare Makita, Pin Disc Block Compression Spring for Angle Grinders with disk mm 115-125 GA4530 - GA4530R - GA4534 - GA5034. Parts for the following products: - GA4530 - ANGLE GRINDER 720W...
AVAILABLE €1.83
Details
Brush A for Concrete Planer Makita PC5000C
Makita SKU: 743340-0
Brush A for Concrete Planer Makita PC5000C
Brush A for Concrete Planer Makita PC5000C. Genuine spare part Makita, Brush A for Concrete Planer Makita PC5000C - PC5001C. FOR THE FOLLOWING ITEMS: -  PC5000C - Concrete Planer 125MM -  PC5001C - Concrete...
AVAILABLE €12.20
Details
Brush B for Concrete Planer Makita PC5000C
Makita SKU: 743341-8
Brush B for Concrete Planer Makita PC5000C
Brush B for Concrete Planer Makita PC5000C. Genuine spare part Makita, Brush A for Concrete Planer Makita PC5000C - PC5001C. FOR THE FOLLOWING ITEMS: -  PC5000C - Concrete Planer 125MM -  PC5001C - Concrete...
AVAILABLE €6.89
Details
Carbon Brush Holder Cap for Hammer Makita HM1100 - HM1100C
Makita SKU: 643750-0
Carbon Brush Holder Cap for Hammer Makita HM1100 - HM1100C
Carbon Brush Holder Cap for Hammer Makita HM1100 - HM1100C Genuine part MAKITA, Carbon Brush Holder Cap for Hammers HM1100 - HM1100C - Angle Grinder  GA6021C - GA6020 - Circular Saw 5703R. Parts for the following products: - 2107FK -...
Last items in stock €2.51
Details
Ball Bearing 608DDW for Router Makita RP0900
Makita SKU: 210044-4
Ball Bearing 608DDW for Router Makita RP0900
Ball Bearing 608DDW for Router Makita RP0900 Genuine Parts Makita, Ball Bearing 608DDW for Vertical Router RP0900 - Concrete Planer PC5000C - PC5001C - Blower UB1103Z Parts for the following products: - M4301 - JIGSAW 450W - MT431 -...
AVAILABLE €4.63
Details
Ring 11 for Angle Grinder Makita GA4530
Makita SKU: 233950-6
Ring 11 for Angle Grinder Makita GA4530
Ring 11 for Angle Grinder Makita GA4530 Genuine spare Makita, Ring 11 for Angle Grinder GA4530 - GA4530R - GA4534 - GA5030KSP2 - GA5034 - M9502R - M9503R - MT962 Part for the following products: - BPJ180Z - PLATE JOINER A BATTERIA -...
AVAILABLE €1.43
Details
Skirt B Cpl for Concrete Planer Makita PC5000C
Makita SKU: 141021-4
Skirt B Cpl for Concrete Planer Makita PC5000C
Skirt B Cpl for Concrete Planer Makita PC5000C Original replacement part Makita, Skirt B Cpl for Concrete Planers PC5000C - PC5001C. Part for the following products: - PC5000C - CONCRETE PLANER DIAM.125MM - PC5001C - CONCRETE PLANER...
Last items in stock €42.08
Details
Comments (0)
