We are MAKITA original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Cordless Rotary Hammer Drill DHR182ZJ.
In the following table, look for the model of the Cordless Rotary Hammer Drill and the respective parts of the code.

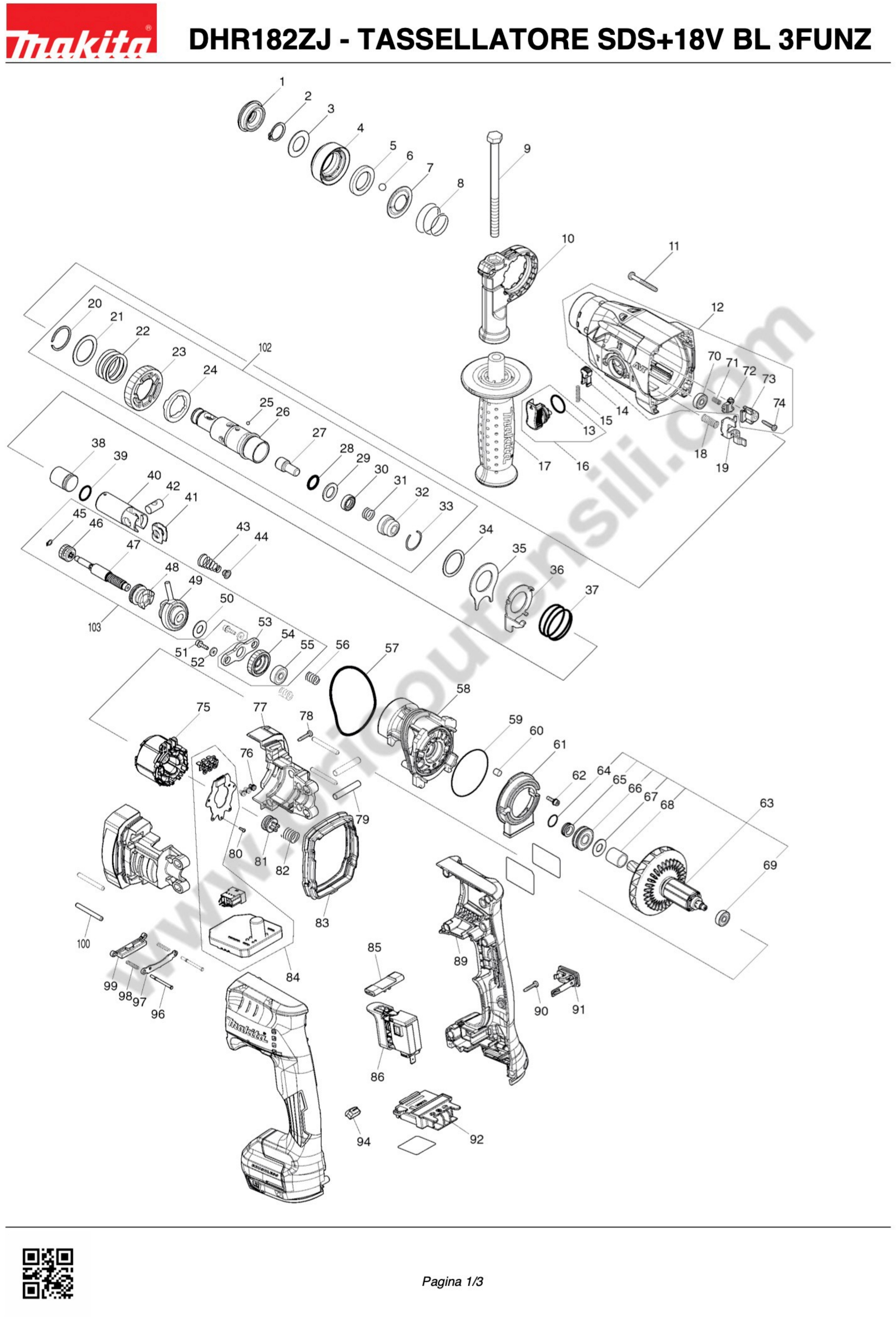

| DHR182ZJ - CORDLESS ROTARY HAMMER SDS+18V BL 3 FUNZIONI | ||
| Rif. | Part Num. | Description |
| 1 | 286037-3 | CAP 34 |
| 2 | 961057-5 | CIRCLIP S17 |
| 3 | 253377-4 | WASHER 17 |
| 4 | 458845-4 | Chuck Cover Dhr182 |
| 5 | 257416-2 | RING 21 |
| 6 | 216022-2 | STEEL BALL 7 |
| 7 | 346177-0 | GUIDE WASHER HR2601 |
| 8 | 232347-6 | CONICAL COMPRESSION SPRING 21-29 |
| 9 | 921923-8 | HEX BOLT M 8 X 120 X HR2020 |
| 10 | 417911-6 | GRIP BASE HR1830 |
| 11 | 266053-1 | PT SCREW PT 4X35 |
| 12 | 136043-7 | GEAR HOUSING ASS'Y |
| 13 | 213278-8 | RING 13 X HR2020 |
| 14 | 458851-9 | LOCK BUTTON |
| 15 | 234264-6 | COMPRESSION SPRING 3 |
| 16 | 136040-3 | CHANGE LEVER |
| 17 | 158057-6 | GRI 36 ASSY HR2230 |
| 18 | 232473-1 | COMPRESSION SPRING 8 |
| 19 | 347463-2 | CHANGE PLATE B |
| 20 | 347555-7 | RETAINING RING 25 |
| 21 | 267304-5 | FLAT WASHER 25 HR1830 |
| 22 | 232360-4 | COMPRESSION SPRING 25 HR1841F |
| 23 | 226854-9 | SUR GEAR 44 |
| 24 | 327039-1 | DRIVING FLANGE HR1841F |
| 25 | 216019-1 | STEEL BALL 3 DHR24 * / HR26 ** |
| 26 | 326886-7 | TOOL HOLDER HR1841F |
| 27 | 326887-5 | IMACT BOLT HR1841F |
| 28 | 213117-2 | O-RING 11 HR2410 |
| 29 | 253380-5 | FLAT WASHER 13 HR1841F |
| 30 | 326888-3 | RING 60 HR1841F |
| 31 | 232357-3 | COMPRESSION SPRING 10A HR1841F |
| 32 | 327038-3 | CU SLEEVE HR1841F |
| 33 | 233942-5 | RING SPRING 22 |
| 34 | 267175-0 | FLAT WASHER 24 6914DW |
| 35 | 345681-6 | JOINT PLATE HR1830 |
| 36 | 347462-4 | CHANGE PLATE A |
| 37 | 233458-0 | COMPRESSION SPRING 32 HR1830 |
| 38 | 327215-7 | STRIKER |
| 39 | 213832-8 | O-RING 13 HR1841F |
| 40 | 326890-6 | PYSTON CYLINDER HR1841F |
| 41 | 347127-8 | GUIDE PLATE HR1841F |
| 42 | 324612-8 | PISTON JOINT HR1830 |
| 43 | 232361-2 | COMPRESSION SPRING 6-13 HR1841F |
| 44 | 347130-9 | SPRING GUIDE HR1841F |
| 45 | 961008-8 | RETAINING RING S5 X 9565CLR |
| 46 | 226853-1 | SUR GEAR 12 |
| 47 | 327216-5 | CAM SHAFT |
| 48 | 327217-3 | CLUTCH CAM |
| 49 | 219029-7 | SEASH BEARING 9 HR1841F |
| 50 | 253733-8 | FLAT WASHER 9 X 2708 |
| 51 | 251510-2 | HSH BOLT M3X12 |
| 52 | 253381-3 | FLAT WASHER 3 HR1841F |
| 53 | 347129-4 | SPRING PLATE HR1841F |
| 54 | 221496-4 | HELICAL GEAR 23 HR1841F |
| 55 | 211016-2 | BALL BEARING 626DD |
| 56 | 232359-9 | COMPRESSION SPRING 7 HR1841F |
| 57 | 213833-6 | O-RING 60 HR1841F |
| 58 | 140F85-1 | INNER HOUSING COM. |
| 59 | 213641-5 | O-RING 51 FOR GA |
| 60 | 443138-2 | FILTER X HR3200C |
| 61 | 458848-8 | AIR DUCT |
| 62 | 251510-2 | HSH BOLT M3X12 |
| 63 | 519549-4 | ROTOR ARMATURE ASS'Y |
| 64 | 213118-0 | O-RING 12 X HR5210C |
| 65 | 327227-0 | RING 9 |
| 66 | 210162-8 | BALL BEARING 609LLU HR1841F |
| 67 | 267231-6 | FLAT WASHER 9 X HR2020 |
| 68 | 458841-2 | SLEEVE 12 |
| 69 | 210035-5 | BALL BEARING 625DDW |
| 70 | 210035-5 | BALL BEARING 625DDW |
| 71 | 232474-9 | COMPRESSION SPRING 4 |
| 72 | 310913-0 | LOCK PLATE |
| 73 | 458846-2 | STOPPER PLATE |
| 74 | 266130-9 | SCREW 3X16 X 6203/13 / 6313DW |
| 75 | 629393-2 | STATOR |
| 76 | 652069-6 | FLAT HD SCREW M3x6 |
| 77 | 183L14-7 | MOTOR HOUSING |
| 78 | 266130-9 | SCREW 3X16 X 6203/13 / 6313DW |
| 79 | 268076-5 | PIN 6 UH200DWEX |
| 80 | 266490-9 | TAPPING SCREW PT 2X6 |
| 81 | 458847-0 | SPRING SUPPORT |
| 82 | 232358-1 | COMPRESSION SPRING 10B HR1841F |
| 83 | 422354-9 | BELLOWS |
| 84 | 620995-7 | CONTROLLER |
| 85 | 458844-6 | F/R CHANGE LEVER |
| 86 | 651380-3 | SWITCH C3JW-6B-25 |
| 89 | 183L12-1 | HANDLE SET |
| 90 | 266130-9 | SCREW 3X16 X 6203/13 / 6313DW |
| 91 | 140F99-0 | CAP COMPLETE |
| 92 | 643874-2 | TERMINAL |
| 94 | 620549-0 | LED CIRCUIT |
| 96 | 256586-4 | FLT FILLISTER 2,5 |
| 97 | 458850-1 | GUIDE PLATE |
| 98 | 232475-7 | COMPRESSION SPRING 3 |
| 99 | 458849-6 | SHATTER |
| 100 | 256585-6 | ROD 4 |
| 102 | 136154-8 | TOOL HOLDER |
| 103 | 136042-9 | CAM SHAFT CPL |
| 415486-9 | POLE 8450/HP2032/BHR16HR1830 | |
| 821552-6 | MakPac Type 4 Connector Carry Case Kitbox | |
| 453974-8 | Latch For Stacking Case Makpac | |
| 199544-6 | HAMMER SERVICE KIT | |
