Makita

Makita Spare Parts for Belt Sander 9404

SKU: Makita 9404
€12.87
VAT included

Makita Spare Parts for Belt Sander 9404

Makita genuine spare parts or replacement parts for to repair Belt Sander 9404.

Fix Your Belt Sander 9404. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Makita Spare Parts for Belt Sander 9404
  • Makita Spare Parts for Belt Sander 9404
  • Makita Spare Parts for Belt Sander 9404
Makita

Makita Spare Parts for Belt Sander 9404

SKU: Makita 9404 Condition: New
€12.87
VAT included

Makita Spare Parts for Belt Sander 9404

Makita genuine spare parts or replacement parts for to repair Belt Sander 9404.

Fix Your Belt Sander 9404. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 68 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
56 spare parts

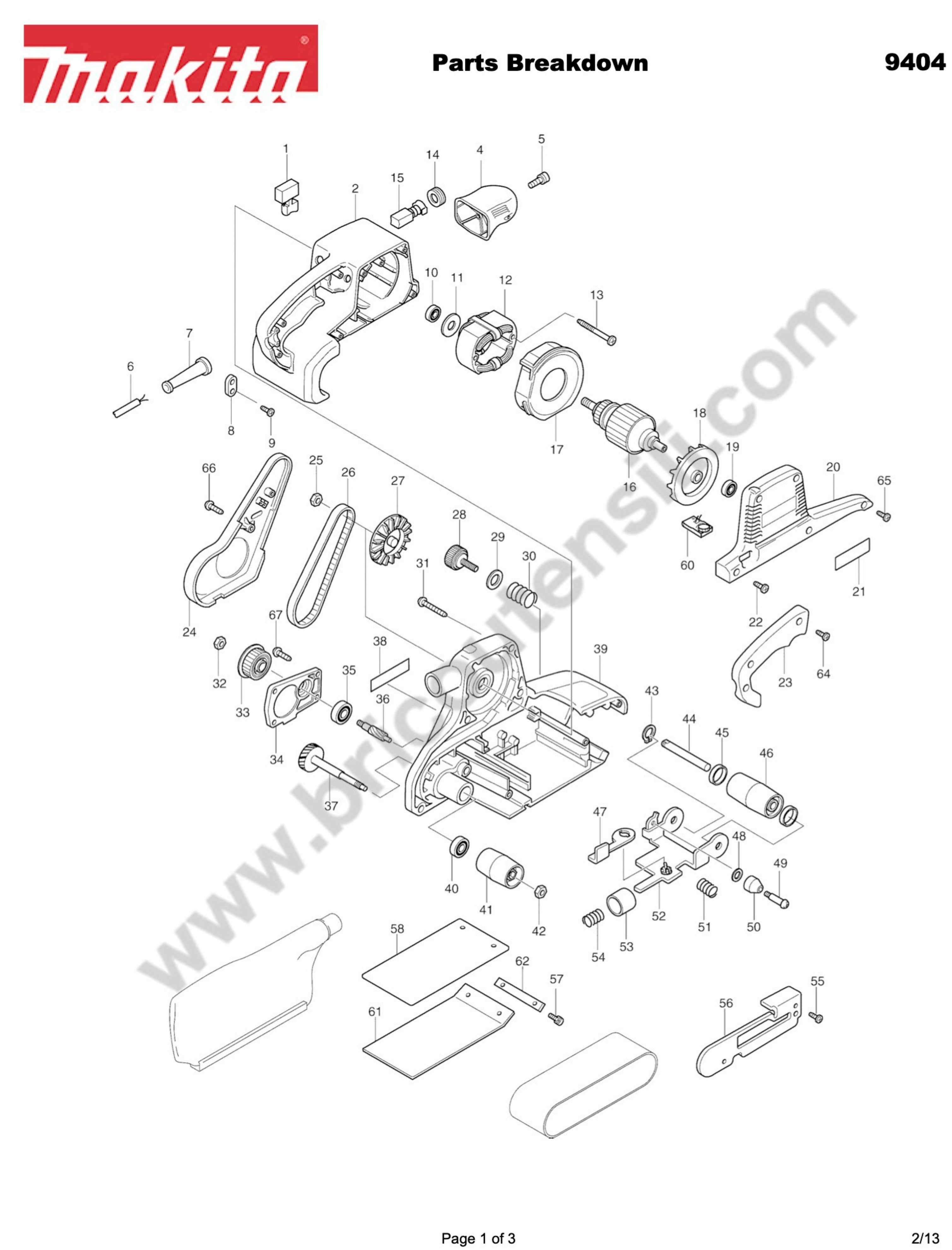

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 650230-9 SWITCH TGL115CDT EQ-2 €12.14
2
 photo_cameraImage coming soon 151743-8 MOTOR HOUSING COMPL. 9920 €45.84
4
 photo_cameraImage coming soon 417049-7 FRONT HANDLE HT2256D €6.21
5
 photo_cameraImage coming soon 266173-1 SCREW PT 5X30 €1.47
7
 photo_cameraImage coming soon 682503-2 SLEEVE PROTECTING_COVER X HM1500 €2.69
8
 photo_cameraImage coming soon 687063-9 CABLE TIE X 4304T €3.18
9
 photo_cameraImage coming soon 265A48-7 TAPPING SCREW 4X18, BO4556K €1.40
10
 photo_cameraImage coming soon 211088-7 BALL BEARING 6000-9527PB 9528PB €7.11
11
 photo_cameraImage coming soon 681649-1 INSULATING WASHER 9403 €1.35
13
 photo_cameraImage coming soon 266056-5 SCREW M 5 X 45 X JR3060T €2.69
14
 Carbon Brush Holder Cap for Hammer Makita HM1100 - HM1100C 643750-0 Carbon Brush Holder Cap for Hammer Makita HM1100 - HM1100C €2.51
15
 Carbon Brushes CB-303 for Belt Sander Makita 9920X 191963-2 Carbon Brushes CB-303 for Belt Sander Makita 9920X €9.96
16
 photo_cameraImage coming soon 513339-7 ARMATURE 9920 €84.14
17
 photo_cameraImage coming soon 417050-2 VANE X 9920 €2.59
18
 photo_cameraImage coming soon 240026-2 FAN X 9920 €3.17
19
 photo_cameraImage coming soon 210193-7 BALL BEARING 627DDW, RT0700C €4.54
20
 Motor Cover for Belt Sander MAKITA 9920X 417048-9 Motor Cover for Belt Sander MAKITA 9920X €18.18
22
 photo_cameraImage coming soon 265A48-7 TAPPING SCREW 4X18, BO4556K €1.40
23
 photo_cameraImage coming soon 417051-0 COVER HANDLE X 9920 €5.44
24
 photo_cameraImage coming soon 417052-8 COVER BELT X 9920 €4.21
25
 photo_cameraImage coming soon 252153-3 HEX NUT 9910/11 €1.37
26
 Drive Belt for Belt Sander MAKITA 9920X 225084-9 Drive Belt for Belt Sander MAKITA 9920X €13.28
27
 Fan with Gear for Belt Sander MAKITA 9920X 241663-5 Fan with Gear for Belt Sander MAKITA 9920X €31.79
28
 photo_cameraImage coming soon 265B65-3 SCREW M6X25, 9900B €1.64
29
 photo_cameraImage coming soon 253707-9 WASHER P.16 99B / 6000R / 8410B €1.40
31
 photo_cameraImage coming soon 266050-7 SCREW 4X30 PT €3.76
32
 photo_cameraImage coming soon 931402-8 NUT M8 €3.18
33
 photo_cameraImage coming soon 222156-1 PULLEY X 9920 €10.40
34
 photo_cameraImage coming soon 317273-1 COVER GEAR 9920 €9.07
36
 photo_cameraImage coming soon 226520-8 GEAR TWISTED X 9920 €10.40
37
 photo_cameraImage coming soon 151755-1 GEAR TWISTED X 9920 €19.93
39
 photo_cameraImage coming soon 151748-8 COMPLETE FRAME X 9404 €114.44
40
 photo_cameraImage coming soon 211088-7 BALL BEARING 6000-9527PB 9528PB €7.11
41
 photo_cameraImage coming soon 162217-4 REAR ROLLER 9920 €19.93
43
 Retaining Ring S12 for Power Tools Makita 961052-5 Retaining Ring S12 for Power Tools Makita €1.40
44
 photo_cameraImage coming soon 323932-7 TENSION ROLLER SHAFT X 9404 €5.44
45
 photo_cameraImage coming soon 253922-5 WASHER 12 9401/02 / 99B €2.06
46
 photo_cameraImage coming soon 151754-3 FRONT ROLLER CPL 9404 €29.27
47
 photo_cameraImage coming soon 344823-9 LEVER X 9920 €3.17
49
 photo_cameraImage coming soon 265059-6 SCREW 9910/11 €1.73
50
 photo_cameraImage coming soon 416417-1 WHEEL X 9910/11 €10.92
52
 photo_cameraImage coming soon 151745-4 TENSION ROLLER ARM X 9404 €15.55
53
 photo_cameraImage coming soon 267746-3 SOCKET X 9920 €2.22
55
 photo_cameraImage coming soon 266034-5 SCREW CT 4X16 €3.76
56
 photo_cameraImage coming soon 344822-1 PROTECTION COVER X 9920 €8.12
57
 photo_cameraImage coming soon 911116-5 SCREW M4X12 X AM4024LG €1.31
64
 photo_cameraImage coming soon 265A48-7 TAPPING SCREW 4X18, BO4556K €1.40
65
 photo_cameraImage coming soon 266034-5 SCREW CT 4X16 €3.76
500
 photo_cameraImage coming soon 122591-2 DUST BAG €15.67
501
 photo_cameraImage coming soon 654475-1 TERMINAL BLOCK, BO4556 €1.47
502
 photo_cameraImage coming soon 821551-8 CONNECTOR PLASTIC CASE (TYPE3) €58.02
503
 photo_cameraImage coming soon 837653-0 INNER TRAY €7.58
504
 photo_cameraImage coming soon 654532-5 TERMINAL BLOCK 6E / 1DS €3.76
505
 Noise Suppressor for Cut-Off Machine Makita 2412N 645006-7 Noise Suppressor for Cut-Off Machine Makita 2412N €2.14
506
 Capacitor for Die Grinder Makita GD0801C 645089-7 Capacitor for Die Grinder Makita GD0801C €1.47
507
 photo_cameraImage coming soon 654091-9 NON INSULATED TERMINAL HM0870 HM0871-TD0101F-N910-RP0900- GA5020 - GA5021-JR-LC1230-HR2432-HM1810-SMA40 €1.40

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Belt Sander 9404

Fix Your Belt Sander 9404. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of Orbital Sander and the respective parts of the code.
Makita 9404X

Makita 9404 - Belt Sander spares and accessories
# Part Num. Description
1 650230-9 SWITCH, 2107F
2 151743-8 MOTOR HOUSING CPL., 9903
4 417049-7 FRONT GRIP, 9903
5 266173-1 T. SCREW FLANGE PT5X3, GA7011c
6 660023-6 CORD (2X18X16 SJ), HR2010
7 682503-2 CORD GUARD 8-90, 9903
8 687063-9 STRAIN RELIEF, 4323K
9 265A48-7 TAPPING SCREW 4X18, BO4556K
10 211088-7 BALL BEARING 6000DDW, 9005B
11 681649-1 INSULATION WASHER, 9921
12 523401-0 FIELD ASS'Y, 9903
13 266056-5 T. SCREW FLANGE PT5X45, LXWT01
14 643750-0 BRUSH HOLDER CAP, HM1100C
15 191963-2 CARBON BRUSH CB-303 SET, 9227C
16 513339-7 ARMATURE ASS'Y 115V, 9903
17 417050-2 BAFFLE PLATE, 9903
18 240026-2 FAN 75, 9903
19 210193-7 BALL BEARING 627DDW, RT0700C
20 417048-9 MOTOR COVER,9404
21 819001-5 MAKITA LABEL, 9005B
22 265A48-7 TAPPING SCREW 4X18, BO4556K
23 417051-0 HANDLE COVER, 9903
24 417052-8 BELT COVER, 9903
25 252153-3 HEX NUT M6-10, 9910
26 225084-9 SYNCHRO BELT 6-330, 9903
27 241663-5 FAN 76, 9903
28 265B65-3 SCREW M6X25, 9900B
29 253707-9 F. WASHER 16, 6802BV
30 232573-7 COMP. SPRING 16, 9900B
31 266050-7 P.T. SCREW 4X30, 4304
32 931402-8 HEX NUT M8, 5037NB
33 222156-1 PULLEY 9.5-46.0, 9903
34 317273-1 GEAR COVER, 9903
35 210078-7 BALL BEARING, 2107F
36 226520-8 HELICAL GEAR 10, 9903
37 151755-1 HELICAL GEAR 39 CPL., 9903
38 852039-7 NAME PLATE, 9404
39 151748-8 FRAME COMPLETE, 9404
40 211088-7 BALL BEARING 6000DDW, 9005B
41 162217-4 DRIVING ROLLER, 9903
42 252154-1 HEX NUT M8-13, 9910
43 961052-5 RETAINING RING S-12, LS1016L
44 323932-7 TENSION ROLLER SHAFT, 9404
45 253922-5 CUP WASHER 12, 9900B
46 151754-3 TENSION ROLLER COMPLETE,9404
47 344823-9 LEVER, 9903
48 267731-6 CUP WASHER, 9910
49 265059-6 SHOULDER SCREW M4, 9910
50 416417-1 ROLLER, 9903
51 233249-9 COMPRESSION SPRING 7, 9903
52 151745-4 TENSION ROLLER ARM COMPLETE,9404
53 267746-3 CUP WASHER 17, 9903
54 233250-4 COMPRESSION SPRING 12, 9903
55 266034-5 TAPPING SCREW 4X16, LS1016L
56 344822-1 SAFETY COVER,9404
57 911116-5 P.H. SCREW M4X12, 4301BV
60 631379-4 CONTROLLER, 9903
61 151751-9 STEEL PLATE CPL.,9404
64 265A48-7 TAPPING SCREW 4X18, BO4556K
65 266034-5 TAPPING SCREW 4X16, LS1016L
500 122591-2 DUST BAG ASS'Y, 9903
501 654475-1 TERMINAL BLOCK, BO4556
502 821551-8 STACKING CASE TYPE 3 210MM
503 837653-0 INNER TRAY
504 654475-1 TERMINAL BLOCK HS7100/KP0800
505 645006-7 NOISE SUPPRESSOR 240V
506 645089-7 *NOISE SUPPRESSOR4100KB HS7611
507 654091-9 *NON INSULATED TERMINAL GD0801
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita 9404
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Makita 9404

Drawing Makita 9404

Download (261.2KB)
