Makita Spare Parts for Reciprocatng Saw JR3020

SKU: Makita JR3020
€4.26
VAT included

Makita Spare Parts for Reciprocatng Saw JR3020

We are MAKITA original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Reciprocating Saw JR3020.
Makita Spare Parts for Reciprocatng Saw JR3020
  • Makita Spare Parts for Reciprocatng Saw JR3020
  • Makita Spare Parts for Reciprocatng Saw JR3020

Makita Spare Parts for Reciprocatng Saw JR3020

SKU: Makita JR3020 Condition: New
€4.26
VAT included

Makita Spare Parts for Reciprocatng Saw JR3020

We are MAKITA original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Reciprocating Saw JR3020.
settings 82 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

76 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 256654-3 PIN 4 €3.46
3
photo_cameraImage coming soon 942101-7 SPRING WASHER 5 €1.36
4
photo_cameraImage coming soon 344095-6 SHOE PLATE, JR3020 €4.63
5
photo_cameraImage coming soon 961017-7 RING E-3 X 4305T €3.76
6
photo_cameraImage coming soon 252103-8 LOCKNUT X JR3020 €3.18
9
photo_cameraImage coming soon 232165-2 LEAF SPRING. JR3020 €1.64
10
photo_cameraImage coming soon 313075-3 BLADE CLAMP X JR3020 €8.23
11
photo_cameraImage coming soon 266090-5 HEX BOLT M5X15 €2.25
12
photo_cameraImage coming soon 421451-8 INSULATION COVER, JR3020 €25.39
13
photo_cameraImage coming soon 159614-3 GEAR HOUSING COVER, JR3020 €66.01
14
photo_cameraImage coming soon 961012-7 RETAINING RING E6 €2.17
15
photo_cameraImage coming soon 961012-7 RETAINING RING E6 €2.17
16
photo_cameraImage coming soon 213171-6 DUST SEAL 12.7, JR3020 €5.90
17
photo_cameraImage coming soon 316765-7 SLIDER SUPPORT, JR3020 €21.97
18
photo_cameraImage coming soon 231342-3 COMPRESSION SPRING 4 X JR3020 €1.40
19
photo_cameraImage coming soon 214167-0 Plane Bearing 12.7 X JR3020 €3.21
20
photo_cameraImage coming soon 168281-3 SLIDER NEW TYPE JR3020 €73.12
21
photo_cameraImage coming soon 214167-0 Plane Bearing 12.7 X JR3020 €3.21
22
photo_cameraImage coming soon 266086-6 SCREW M5X16 WITH BRAKES THREADS €1.44
23
photo_cameraImage coming soon 343980-0 PLATE B X JR3020 €3.01
24
photo_cameraImage coming soon 343983-4 ARM X JR3020 €7.69
25
photo_cameraImage coming soon 265011-4 SCREW THREAD X JR3020 €1.93
26
photo_cameraImage coming soon 343981-8 PLATE C X JR3020 €3.84
27
photo_cameraImage coming soon 251969-3 HEX SCREW M5X12XJR3020 €1.40
28
photo_cameraImage coming soon 266086-6 SCREW M5X16 WITH BRAKES THREADS €1.44
29
photo_cameraImage coming soon 341462-6 PLATE X JR3000 / V €1.40
30
photo_cameraImage coming soon 212308-2 T.N. BEARING 2035, 6920B €18.89
31
photo_cameraImage coming soon 153218-3 GEAR CPL X JR3020 €79.73
32
photo_cameraImage coming soon 211519-6 BALL BEARING 6808 X JR3020 €38.94
34
photo_cameraImage coming soon 251969-3 HEX SCREW M5X12XJR3020 €1.40
35
photo_cameraImage coming soon 268012-1 NEW PIN JR3020 €6.27
36
photo_cameraImage coming soon 272228-2 LEVER 20 JR3020 €21.97
38
photo_cameraImage coming soon 415173-0 STOPPER JR3020 €2.10
40
photo_cameraImage coming soon 343982-6 LEVER PLATE JR3020 €3.01
42
photo_cameraImage coming soon 272235-5 LEVER 50 JR3020 €3.01
43
photo_cameraImage coming soon 922201-9 CAP HD SCREW M5X8 JR3020 5PK €1.44
44
photo_cameraImage coming soon 212038-5 NEEDLE BEARING 710, JR3020 €16.72
46
Needle Bearing for Belt Saw Makita 2106W 212115-3 Needle Bearing for Belt Saw Makita 2106W €11.60
47
photo_cameraImage coming soon 321263-8 GEAR SHAFT X JR3000 / V €20.24
48
photo_cameraImage coming soon 316464-1 GEAR HOUSING, JR3020 €53.38
49
photo_cameraImage coming soon 922241-7 SCREW M5x25 €1.47
50
photo_cameraImage coming soon 911223-4 HEAD SCREW CILIND. M5X16 €1.44
51
photo_cameraImage coming soon 911211-1 SCREW M5X12 €1.36
52
Retaining Ring S12 for Power Tools Makita 961052-5 Retaining Ring S12 for Power Tools Makita €1.40
53
Ball Bearing 6001DD for Makita 9218S 211131-2 Ball Bearing 6001DD for Makita 9218S €6.29
54
photo_cameraImage coming soon 285675-8 BEARING RETAINER, JR3020 €5.90
55
photo_cameraImage coming soon 241863-7 FAN 70 €13.60
56
photo_cameraImage coming soon 516168-7 ARMATURE ASS'Y 220V. X JR3020 €108.44
57
Armature Insulation Washer for Stonecutter HK1810 - HK1800 681625-5 Armature Insulation Washer for Stonecutter HK1810 - HK1800 €2.72
58
Ball Bearing 608DDW for Jigsaw Makita 4327 210005-4 Ball Bearing 608DDW for Jigsaw Makita 4327 €5.44
59
photo_cameraImage coming soon 415174-8 SPEED CONTROL KNOB X JR3020 €4.01
60
photo_cameraImage coming soon 182578-6 HANDLE SET JR 3020 €43.44
61
photo_cameraImage coming soon 159546-4 MOTOR HOUSING €58.80
62
photo_cameraImage coming soon 194547-5 CARBON BRUSHES CB-253 X GA5021C €4.29
63
Carbon Brush Holder Cap for Hammer Makita HM1100 - HM1100C 643750-0 Carbon Brush Holder Cap for Hammer Makita HM1100 - HM1100C €2.51
65
photo_cameraImage coming soon 632461-2 SUPPORT COMPLETE JR3020 €7.69
66
photo_cameraImage coming soon 634168-6 FIELD ASS'Y, JR3020 €43.44
68
photo_cameraImage coming soon 415157-8 BAFFLE PLATE, JR3020 €4.01
69
photo_cameraImage coming soon 911251-9 HEAD SCREW CILIND. M5x30 €1.37
71
Rubber Pin for Hammer SDS-Max Makita HR4000C 263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C €1.47
72
photo_cameraImage coming soon 256221-4 PIN 3 X JR3020 €1.36
73
photo_cameraImage coming soon 233024-3 SPRING 4 X 6702DW €1.36
74
photo_cameraImage coming soon 415160-9 LOCK BUTTON X JR3020 €1.64
75
photo_cameraImage coming soon 651921-5 SWITCH SGE110CV X JR3020 €58.80
76
photo_cameraImage coming soon 256221-4 PIN 3 X JR3020 €1.36
77
photo_cameraImage coming soon 415158-6 LEVER SWITCH X JR3020 €4.98
78
photo_cameraImage coming soon 421446-1 RUBBER BLOCK (A), JR3020 €1.64
80
photo_cameraImage coming soon 911156-3 HEAD SCREW CILIND. M4x30 €1.32
81
photo_cameraImage coming soon 631149-1 TRIAC COMPL. X JR3020 €58.80
82
photo_cameraImage coming soon 415156-0 CONTROLLER CASE JR3020 €5.17
83
photo_cameraImage coming soon 421448-7 RUBBER BAND JR3020 €3.19
84
photo_cameraImage coming soon 645209-3 CAPACITOR €8.30
85
photo_cameraImage coming soon 421452-6 RUBBER PLATE X JR3020 €2.10
86
Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
87
photo_cameraImage coming soon 687124-5 CORD CLAMP MT953 €1.47
88
Power Cord Guard 10/90 for for Makita Power Tools 682505-8 Power Cord Guard 10/90 for for Makita Power Tools €3.18

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Reciprocatng Saw JR3020

We are MAKITA original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Reciprocating Saw JR3020.

In the following table, look for the model of Saw and the respective parts of the code.
Makita JR3020

Makita JR3020 Reciprocating Replacement Tool Parts
# Part Num. Description
1 256654-3 PIN 4
2 266242-8 H.S.H. BOLT M5X45, JR3020
3 942101-7 SPRING WASHER 5
4 344095-6 SHOE PLATE, JR3020
5 961017-7 STOP RING E-3, 4304, SH01 - 4305T
6 252103-8 HEX. LOCK NUT M5-8, 5007FK - JR3020
7 344096-4 SHOE SUPPORTER, JR3020
9 232165-2 LEAF SPRING. JR3020
10 313075-3 BLADE CLAMP X JR3020
11 266090-5 H.S.H.SCREW M5X15, JR3000V-T2
12 421451-8 INSULATION COVER, JR3020
13 159614-3 GEAR HOUSING COVER, JR3020
14 961012-7 STOP RING E6
15 961012-7 STOP RING E6
16 213171-6 DUST SEAL 12.7, JR3020
17 316765-7 SLIDER SUPPORT, JR3020
18 231342-3 COMPRESSION SPRING 4 X JR3020
19 214167-0 PLANE BEARING 12.7, JR3000V,T2
20 168281-3 SLIDER NEW TYPE JR3020
21 214167-0 PLANE BEARING 12.7, JR3020,T2
22 266086-6 H.S.H.BOLT M5X16,DA4031 JR3020
23 343980-0 PLATE B X JR3020
24 343983-4 ARM X JR3020
25 265011-4 BINDING HEAD SCREW M5, JR3020
26 343981-8 PLATE C X JR3020
27 251969-3 C.H. BOLT M5X12, JR3020
28 266086-6 H.S.H.BOLT M5X16,DA4031 JR3020
29 341462-6 PLATE X JR3000 / V
30 212308-2 T.N. BEARING 2035, 6920B
31 153218-3 GEAR CPL X JR3020
32 211519-6 BALL BEARING 6808 X JR3020
34 251969-3 C.H. BOLT M5X12, JR3020
35 268012-1 PIN 7 JR3020
36 272228-2 LEVER 20 JR3020
37 231249-3 COMPRESSION SPRING 5 8419B2 / HP2010 / N
38 415173-0 STOPPER JR3020
39 257106-7 RING 8 X DA390DW
40 343982-6 LEVER PLATE JR3020
41 921432-7 HEX BOLT M8X20, 5177B
42 272235-5 LEVER 50 JR3020
43 922201-9 H.S. BOLT M5X8, 4110C
44 212038-5 NEEDLE BEARING 710, JR3020
46 212115-3 N. BEARING 1216, JR3000V
47 321263-8 GEAR SHAFT, JR3000V
48 316464-1 GEAR HOUSING, JR3020
49 922241-7 P.H. SCREW M5X25, GA7911
50 911223-4 PAN HEAD SCREW M5X16, JR3020
51 911211-1 SCREW M5X12
52 961052-5 RETAINING RING S12
53 211131-2 BALL BEARING 6001DD
54 285675-8 BEARING RETAINER, JR3020
55 241863-7 FAN 70
56 516168-7 ARMATURE ASS'Y 220V. X JR3020
57 681625-5 INSULATING WASHER HK1810
58 210005-4 BALL BEARING 608 DDW
59 415174-8 SPEED CONTROL KNOB X JR3020
60 182578-6 HANDLE SET JR 3020
61 159546-4 MOTOR HOUSING
62 194547-5 CARBON BRUSH CB-253, JR3020 251/250
63 643750-0 BRUSH HOLDER CAP
65 632461-2 SUPPORT COMPLETE JR3020
66 634168-6 FIELD ASS'Y, JR3020
68 415157-8 BAFFLE PLATE, JR3020
69 911251-9 P.H. SCREW M5X30, 2030S
70 421447-9 RUBBER BLOCK (B), JR3020
71 263002-9 RUBBER PIN 4
72 256221-4 PIN 3 X JR3020
73 233024-3 COMPRESSION SPRING 4, 6702DW
74 415160-9 LOCK BUTTON X JR3020
75 651921-5 SWITCH SGE110CV X JR3020
76 256221-4 PIN 3 X JR3020
77 415158-6 SWITCH LEVER X JR3020
78 421446-1 RUBBER BLOCK (A), JR3020
80 911156-3 P.H. SCREW M4X30, 9045B
81 631149-1 TRIAC COMPL. X JR3020
82 415156-0 CONTROLLER CASE JR3020
83 421448-7 RUBBER BAND X JR3020
84 645209-3 CAPACITOR
85 421452-6 RUBBER PLATE X JR3020
86 265995-6 TAPPING SCREW 4X18, BO4556K
87 687124-5 STRAIN RELIEF, 4323K
88 682505-8 CORD GUARD 10/90, 9005B
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita JR3020
10 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

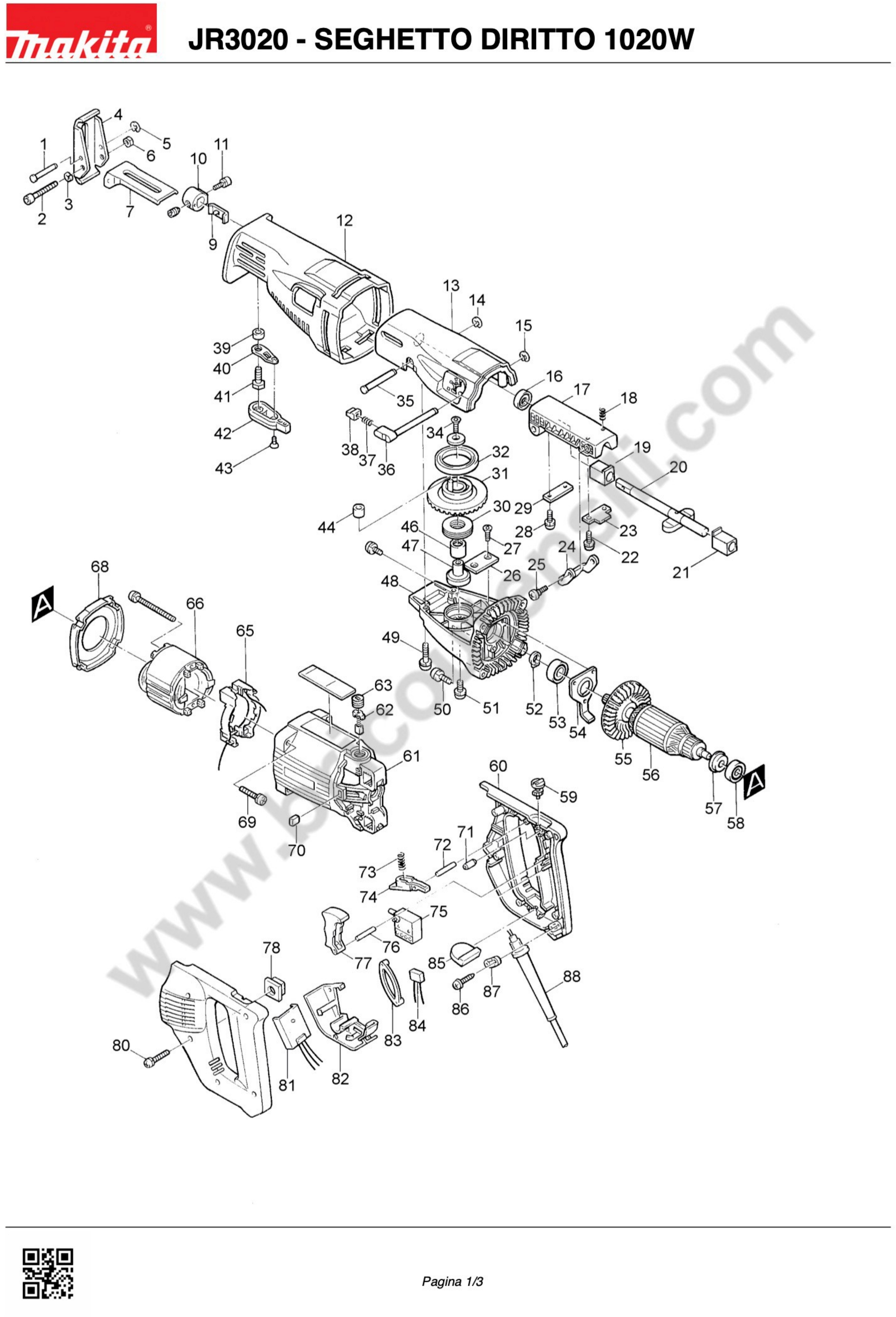

Drawing Makita JR3020

Drawing Makita JR3020

Download (296.03KB)
