Makita Spare Parts for Cordless Impact Driver DTD154

SKU: Makita DTD154
€1.47
VAT included

Makita Spare Parts for Cordless Impact Driver DTD154

MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for DTD154 Cordless Brushless 3-speed Impact Driver 18v
Makita Spare Parts for Cordless Impact Driver DTD154
  • Makita Spare Parts for Cordless Impact Driver DTD154
  • Makita Spare Parts for Cordless Impact Driver DTD154

Makita Spare Parts for Cordless Impact Driver DTD154

SKU: Makita DTD154 Condition: New
€1.47
VAT included

Makita Spare Parts for Cordless Impact Driver DTD154

MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for DTD154 Cordless Brushless 3-speed Impact Driver 18v
settings 44 spare parts

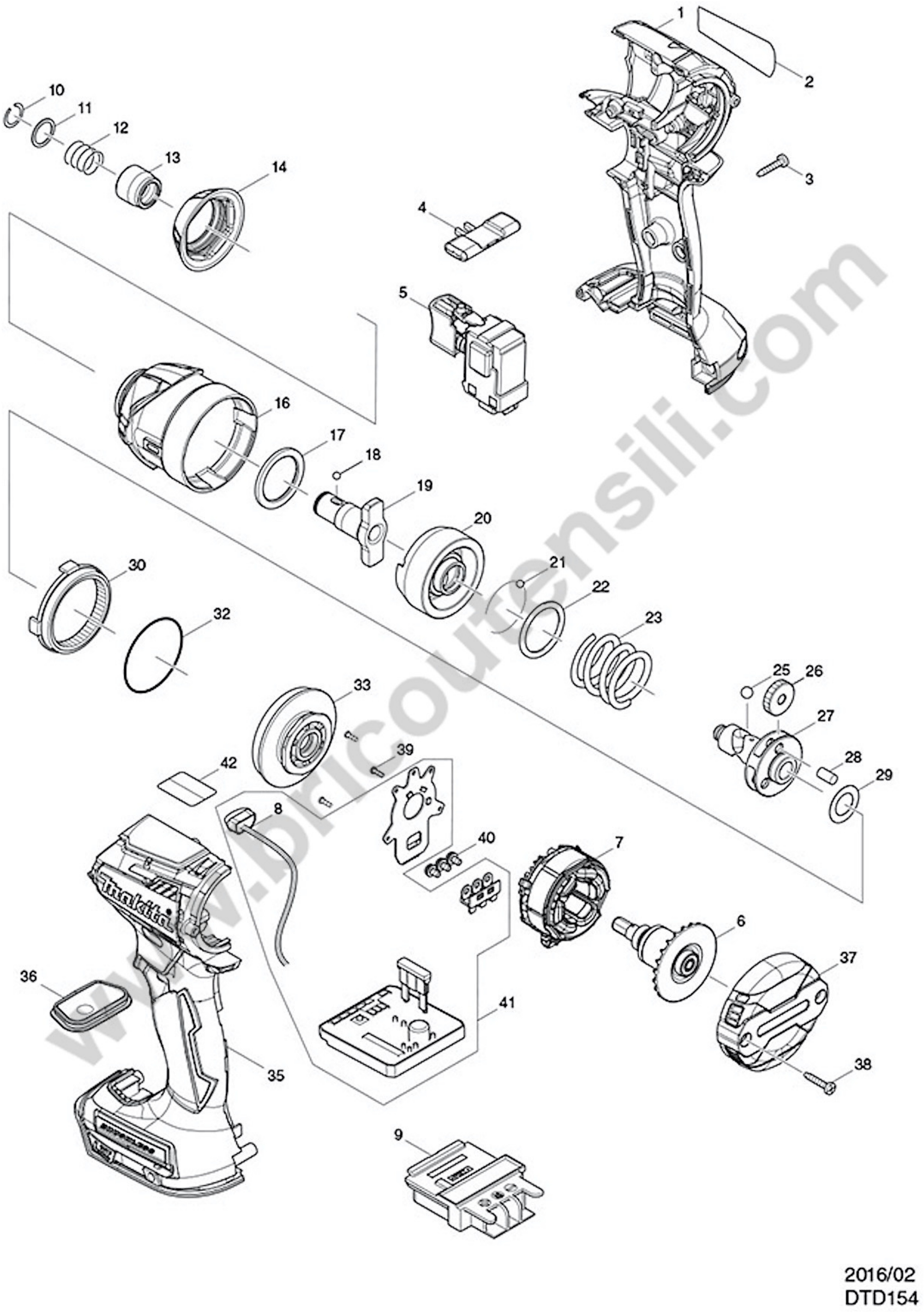

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

31 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
A04
photo_cameraImage coming soon 195584-2 DC18RC FAST CHARGER €212.60
A06
photo_cameraImage coming soon 197280-8 BATTERY BL1840B SET €251.58
A01
photo_cameraImage coming soon 266622-8 Truss Head Screw M4X12/Bap182 €1.25
A02
photo_cameraImage coming soon 346317-0 HOOK €2.21
A07
photo_cameraImage coming soon 453974-8 Makita Latch €6.66
A08
photo_cameraImage coming soon 821550-0 CONNECTOR PLASTIC CASE (TYPE2) €55.51
A09
photo_cameraImage coming soon 837670-0 Inner Tray €6.78
1
photo_cameraImage coming soon 252126-6 NUT M4-7 X BHS630 €1.47
1
photo_cameraImage coming soon 263005-3 PIN RUBBER 6 €2.49
3
photo_cameraImage coming soon 266429-2 SCREW 3X16 FOR TD0101F €1.46
5
photo_cameraImage coming soon 143975-1 SWITCH COMPLETE €22.93
6
photo_cameraImage coming soon 619408-3 Rotor €44.74
7
photo_cameraImage coming soon 629217-2 Stator €15.18
8
photo_cameraImage coming soon 620557-1 Led Circuit €7.92
9
photo_cameraImage coming soon 643860-3 TERMINAL €5.43
10
Seeger for Cordless Impact Driver Maktec MT690E - MT691E 231951-8 Seeger for Cordless Impact Driver Maktec MT690E - MT691E €1.45
11
Flat Washer for Cordless Impact Driver Maktec MT690E - MT691E 267085-1 Flat Washer for Cordless Impact Driver Maktec MT690E - MT691E €1.45
12
Compression Spring 13 for Cordless Impact Wrench Makita BTD130F 233005-7 Compression Spring 13 for Cordless Impact Wrench Makita BTD130F €1.45
13
photo_cameraImage coming soon 326072-0 Bit Sleeve €2.53
19
photo_cameraImage coming soon 326508-9 Anvil M €11.46
20
photo_cameraImage coming soon 326711-2 Hammer €19.45
21
photo_cameraImage coming soon 216001-0 BALL 3.5 €1.40
22
photo_cameraImage coming soon 267175-0 FLAT WASHER 24 6914DW €1.43
23
photo_cameraImage coming soon 234331-7 Compression Spring 24 €3.09
25
Steel Ball D. 5,6MM for Hex Collar Scraper Makita HK1800 216041-8 Steel Ball D. 5,6MM for Hex Collar Scraper Makita HK1800 €1.46
26
photo_cameraImage coming soon 227338-0 Spur Gear 22 €5.32
29
photo_cameraImage coming soon 253314-8 WASHER 15 €1.43
32
photo_cameraImage coming soon 213507-9 GASKET. 40 HR1800 / 2210/20 €2.73
33
photo_cameraImage coming soon 143976-9 Bearing Box Comp €11.46
39
photo_cameraImage coming soon 266490-9 SCREW 2X6 €1.43
40
photo_cameraImage coming soon 652069-6 M3x6 SCREW €1.43

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Cordless Impact Driver DTD154

MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for DTD154 Cordless Brushless 3-speed Impact Driver 18v

In the following table, look for the model of Cordless Impact Screwdriver and the respective parts of the code.
Makita DTD154
DTD154 Cordless Brushless 3-speed Impact Driver 18v
# Part Num. Description
1 263005-3 RUBBER PIN 6
1 252126-6 HEX LOCKING NUT M4-7 BHS630
2 852L16-1 DTD154 NAME PLATE
3 266429-2 TAPPING SCREW 3X16
4 455053-8 Change Lever
5 143975-1 Switch Comp
6 619408-3 Rotor
7 629217-2 Stator
8 620557-1 Led Circuit
9 643860-3 Terminal Dhp480/Ddf480/Dfl650
10 231951-8 Ring Spring 11 Btd/Td126/Tl064
11 267085-1 Flat Washer
12 233005-7 Compression Spring 13 Td126
13 326072-0 Bit Sleeve
14 424873-1 Bumper
16 143951-5 Hammer Case Comp
17 261155-8 Nylon Washer 24
19 326508-9 Anvil M
20 326711-2 Hammer
21 216001-0 Steel Ball 3.5 Bpj/Dtd154/Tl06
22 267175-0 Flat Washer 24 Hr1840/Hr1841F
23 234331-7 Compression Spring 24
25 216041-8 Steel Ball 5.6 Td126/Dtd154
26 227338-0 Spur Gear 22
27 326783-7 Spindle
28 268311-1 Pin 5
29 253314-8 Shim Washer 15
30 221457-4 Internal Gear 51
32 213507-9 O Ring 40
33 143976-9 Bearing Box Comp
35 252126-6 Hex Locking Nut M4-7 Mt/Td126
35 183E36-5 Housing Set
35 263005-3 Rubber Pin 6 Dur/Dhr/Dtw/Dg
37 457069-9 Rear Cover
38 266429-2 Tapping Screw 3X16 Td126/Dum
39 266490-9 Tapping Screw Pt 2X6 Djv
40 652069-6 Flat Hd Screw M3X6 Dtd170/863L
41 620564-4 Controller
A01 266622-8 Truss Head Screw M4X12/Bap182
A02 346317-0 HOOK
A03 450128-8 BATTERY COVER
A04 195584-2 FAST CHARGER
A05 197600-6 BATTERY BL1830B SET
A06 197280-8 BATTERY BL1850B SET
A07 453974-8 Latch
A08 821550-0 CONNECTOR PLASTIC CASE (TYPE2)
A09 837670-0 Inner Tray
