Makita

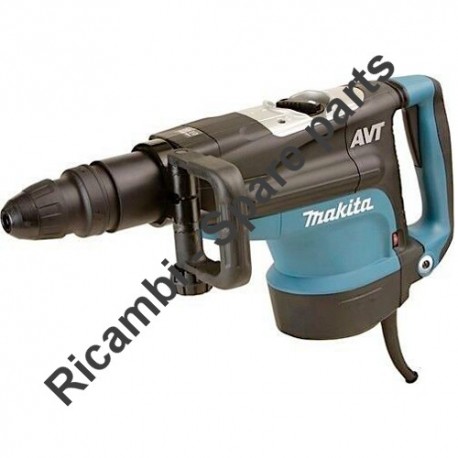

Makita Spare Parts for Rotary Hammer HR5210C

SKU: Makita HR5210C
€3.28
VAT included

Makita Spare Parts for Rotary Hammer HR5210C

We supply MAKITA original spare parts on offer at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Rotary Hammer, SDS-MAX HR5210C.
Makita Spare Parts for Rotary Hammer HR5210C
  • Makita Spare Parts for Rotary Hammer HR5210C
  • Makita Spare Parts for Rotary Hammer HR5210C
Makita

Makita Spare Parts for Rotary Hammer HR5210C

SKU: Makita HR5210C Condition: New
€3.28
VAT included

Makita Spare Parts for Rotary Hammer HR5210C

We supply MAKITA original spare parts on offer at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Rotary Hammer, SDS-MAX HR5210C.
settings 134 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
134 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 286285-4 FRONT HOOD HR4001C/4010C €3.19
2
 photo_cameraImage coming soon 233948-3 RING 25 X HR5201C €1.46
3
 photo_cameraImage coming soon 257280-1 RING 28 X HR5201C €4.51
4
 photo_cameraImage coming soon 419002-9 DISTANCE HR4001C/HR4010C €2.13
5
 photo_cameraImage coming soon 233948-3 RING 25 X HR5201C €1.46
6
 photo_cameraImage coming soon 324752-2 CHUCK RING HR5201C €19.33
7
 photo_cameraImage coming soon 419778-8 CHUCK COVER X HR5201C €2.62
9
 photo_cameraImage coming soon 310178-4 TOOL RETAINER HR5201C €7.72
10
 photo_cameraImage coming soon 345804-6 SPRING GUIDE HR5201C €2.74
11
 photo_cameraImage coming soon 233496-2 COMRESSION SPRING 49 X HR5201C €2.74
12
 photo_cameraImage coming soon 213766-5 O-RING 78 X HR5201C €2.62
13
 Makita HR5201C Barrel Complete 158175-0 Makita HR5201C Barrel Complete €17.37
14
 photo_cameraImage coming soon 158179-2 BARREL COVER COMPLETE X HR5201C €16.05
15
 photo_cameraImage coming soon 922456-6 HEX SOCKET HD BOLT M8 X 35 HR5 HR5211C HM1213C HM1203C €1.40
16
 photo_cameraImage coming soon 213492-6 O-RING 32 X HR5201C €2.62
17
 photo_cameraImage coming soon 324740-9 TOOL HOLDER A X HR5201C €97.84
18
 photo_cameraImage coming soon 345804-6 SPRING GUIDE HR5201C €2.74
19
 photo_cameraImage coming soon 419791-6 GEAR HOUSING COVER HR5201C €4.98
20
 photo_cameraImage coming soon 922148-7 SCREW M4 X 25 X HR5201C €1.42
21
 photo_cameraImage coming soon 213274-6 O-RING 18 X HR3000C €1.37
22
 Rubber Ring 25 for Hammers Makita HR4000C 213392-0 Rubber Ring 25 for Hammers Makita HR4000C €9.24
23
 Ring 20 for Demolition Hammer Makita HR4000C 213317-4 Ring 20 for Demolition Hammer Makita HR4000C €1.44
24
 photo_cameraImage coming soon 324753-0 IMPACT BOLT HR5201C €10.75
25
 photo_cameraImage coming soon 324756-4 O-RING 20 X HR5201C €6.44
26
 photo_cameraImage coming soon 424000-0 RUBBER RING 24 X HR5201C €4.98
27
 photo_cameraImage coming soon 324757-2 COLLAR SLEEVE 20 HR5201C €7.36
28
 photo_cameraImage coming soon 233949-1 O-RING 44 X HR5201C €1.36
29
 photo_cameraImage coming soon 257282-7 O-RING 47 X HR5201C €32.08
30
 photo_cameraImage coming soon 267287-9 WASHER 57 HR5201C €2.03
31
 photo_cameraImage coming soon 262122-6 URETHANE RING 57 X HR5201C €10.75
32
 photo_cameraImage coming soon 267287-9 WASHER 57 HR5201C €2.03
33
 photo_cameraImage coming soon 256265-4 PIN 10 HR5001C €3.73
34
 photo_cameraImage coming soon 324741-7 TOOL HOLDER B X HR5201C €152.66
35
 photo_cameraImage coming soon 419776-2 LOCK SLEEVE HR5201C €2.62
36
 photo_cameraImage coming soon 213654-6 O-RING 60 HR3850B / HM0810 €3.04
37
 photo_cameraImage coming soon 165459-9 RINK ARM HR5201C €21.06
38
 photo_cameraImage coming soon 419775-4 LINK ARM GUIDE HR5201C €2.03
39
 photo_cameraImage coming soon 424024-6 SEAL PLATE X HR5210C €3.01
40
 photo_cameraImage coming soon 313138-5 DRIVING SLEEVE HR5201C €23.81
41
 photo_cameraImage coming soon 419780-1 SLIDE SLEEVE X HR5201C €3.04
42
 Conrod for Rotative Demolition Hammers Makita HR5201-10-11C 451516-2 Conrod for Rotative Demolition Hammers Makita HR5201-10-11C €11.59
43
 O-Ring 35 for Demolition Hammers Makita HR 4501-10-11C 213460-9 O-Ring 35 for Demolition Hammers Makita HR 4501-10-11C €3.29
44
 Piston for Demolition Hammers SDS-MAX Makita HR5201-5210-5211C 419771-2 Piston for Demolition Hammers SDS-MAX Makita HR5201-5210-5211C €3.30
45
 Piston Pin for Rotary Hammer Makita HR5201C 268121-6 Piston Pin for Rotary Hammer Makita HR5201C €1.67
46
 O-Ring 34 for Rotary Hammer Makita HR5201C 213296-6 O-Ring 34 for Rotary Hammer Makita HR5201C €3.17
47
 Seal 36 O-R for Sanders Makita BO4565-4566 213510-0 Seal 36 O-R for Sanders Makita BO4565-4566 €3.35
48
 photo_cameraImage coming soon 331748-6 CYLINDER 40 X HR5201C €83.76
49
 O-Ring 34 for Rotary Hammer Makita HR5201C 213296-6 O-Ring 34 for Rotary Hammer Makita HR5201C €3.17
50
 photo_cameraImage coming soon 324754-8 STRIKER X HR5201C €10.75
51
 photo_cameraImage coming soon 227511-2 GEAR 33 X HR5201C €55.05
52
 photo_cameraImage coming soon 233498-8 COMPRESSION SPRING 46 X HR5201C €3.73
53
 photo_cameraImage coming soon 257281-9 O-RING 45 X HR5201C €7.36
54
 photo_cameraImage coming soon 213118-0 O-RING 12 X HR5210C €1.42
55
 photo_cameraImage coming soon 318124-1 PIPE HOLDER HR5210C €13.93
56
 photo_cameraImage coming soon 213118-0 O-RING 12 X HR5210C €1.42
57
 photo_cameraImage coming soon 419773-8 SPRING GUIDE HR5210C €1.88
58
 photo_cameraImage coming soon 233497-0 COMPRESSION SPRING 15 HR5210C €1.93
59
 photo_cameraImage coming soon 213953-6 RING 24 HR2430 €1.40
60
 photo_cameraImage coming soon 331745-2 PIPE 22 X HR5210C €4.17
61
 photo_cameraImage coming soon 213953-6 RING 24 HR2430 €1.40
62
 photo_cameraImage coming soon 324755-6 COUNTER WEIGHT X HR5210C €27.72
63
 photo_cameraImage coming soon 233497-0 COMPRESSION SPRING 15 HR5210C €1.93
64
 photo_cameraImage coming soon 419773-8 SPRING GUIDE HR5210C €1.88
65
 photo_cameraImage coming soon 213118-0 O-RING 12 X HR5210C €1.42
66
 photo_cameraImage coming soon 318124-1 PIPE HOLDER HR5210C €13.93
67
 photo_cameraImage coming soon 213118-0 O-RING 12 X HR5210C €1.42
68
 photo_cameraImage coming soon 922361-7 SCREW M6X40 X HM1303 €1.40
69
 Srew M4X14 for Hammers Makita HR4001C-HR4010C 266192-7 Srew M4X14 for Hammers Makita HR4001C-HR4010C €1.46
70
 photo_cameraImage coming soon 419020-7 LEVER HR4001C/HR4010C €5.67
71
 photo_cameraImage coming soon 233436-0 COMPRESSION SPRING 3 HR4001C/HR4010C €1.70
72
 photo_cameraImage coming soon 419777-0 LOCK BUTTON X HR5201C €2.03
73
 photo_cameraImage coming soon 450687-2 CRANK LEVER HR5201C €3.19
74
 photo_cameraImage coming soon 213534-6 RING 36 X HR5201C €1.42
75
 photo_cameraImage coming soon 233506-5 TORSION SPRING 16 X HR5201C €1.42
76
 photo_cameraImage coming soon 310207-3 LINK LEVER HR5201C €7.72
77
 photo_cameraImage coming soon 345778-1 RETAINER PLATE HR5201C €3.91
78
 photo_cameraImage coming soon 265014-8 SCREW M4 X 12 €2.13
79
 photo_cameraImage coming soon 318130-6 CRANK CAP COVER HR5201C €18.43
80
 Srew M4X14 for Hammers Makita HR4001C-HR4010C 266192-7 Srew M4X14 for Hammers Makita HR4001C-HR4010C €1.46
81
 photo_cameraImage coming soon 911133-5 SCREW M4X18 €1.46
83
 photo_cameraImage coming soon 421998-2 SEAL RING X HR5201C €2.62
84
 photo_cameraImage coming soon 345779-9 LINK PLATE X HR5201C €4.30
85
 photo_cameraImage coming soon 419781-9 LINK PLATE GUIDE HR5201C €2.62
86
 photo_cameraImage coming soon 158176-8 CRANK HOUSING COMPL. HR5210C €111.32
87
 photo_cameraImage coming soon 419008-7 FIX GUIDE HR4001C €1.42
88
 photo_cameraImage coming soon 423366-5 CUSHION PLATE X HR5201C €1.40
89
 photo_cameraImage coming soon 324739-4 CRANK SHAFT HR5201C €35.07
90
 photo_cameraImage coming soon 211418-2 BALL BEARING 6006LLU X HR4500C €16.72
91
 photo_cameraImage coming soon 254229-2 KEY 5 X HR4000C €2.03
92
 photo_cameraImage coming soon 226646-6 GEAR 47 HR5201C €21.06
93
 photo_cameraImage coming soon 227176-0 GEAR 24 HR5201C €9.61
94
 photo_cameraImage coming soon 961102-6 EXT DIN 471 CIRCLIP-22*  €2.03
95
 photo_cameraImage coming soon 253843-1 FLAT WASHER X LC1230 €2.03
96
 photo_cameraImage coming soon 421999-0 SEAL RING X HR5201C €3.04
97
 photo_cameraImage coming soon 158178-4 GEAR HOUSING COMPL. X HR5201C €55.05
98
 photo_cameraImage coming soon 922341-3 SCREW M6X25 €1.44
99
 Makita HR5201C Torque Limiter Ass'y 125374-9 Makita HR5201C Torque Limiter Ass'y €163.80
100
 photo_cameraImage coming soon 419796-6 HANDLE COVER HR5201C €19.33
101
 Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
102
 photo_cameraImage coming soon 650676-9 SWITCH TG73B-1 HR4001C €12.55
103
 photo_cameraImage coming soon 154626-1 SWITCH HOLDER HR4001C €4.08
104
 photo_cameraImage coming soon 419028-1 SWITCH LEVER HR4001C/HR4010C €2.74
107
 photo_cameraImage coming soon 266041-8 PT SCREW 5x25 €1.24
108
 photo_cameraImage coming soon 419800-1 HANDLE X HR5210C €32.28
117
 photo_cameraImage coming soon 419793-2 CRANK HOUSING COVER X HR5210C €13.93
118
 photo_cameraImage coming soon 631727-7 CONTROLLER HR5201C €60.56
119
 Srew M4X14 for Hammers Makita HR4001C-HR4010C 266192-7 Srew M4X14 for Hammers Makita HR4001C-HR4010C €1.46
120
 photo_cameraImage coming soon 638510-3 LEAD UNIT HR5201C €2.74
121
 photo_cameraImage coming soon 687169-3 STRAIN RELIEF HP1620 €1.46
122
 Srew M4X14 for Hammers Makita HR4001C-HR4010C 266192-7 Srew M4X14 for Hammers Makita HR4001C-HR4010C €1.46
123
 photo_cameraImage coming soon 419024-9 CORD CABLES BASE HR4001C €2.18
124
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
125
 Srew M4X14 for Hammers Makita HR4001C-HR4010C 266192-7 Srew M4X14 for Hammers Makita HR4001C-HR4010C €1.46
126
 Lens for Demolition Hammer Makita HR4501C 419774-6 Lens for Demolition Hammer Makita HR4501C €3.19
127
 Power Cord Protection for Angle Grinder Makita 1800-2000-2200W 682560-0 Power Cord Protection for Angle Grinder Makita 1800-2000-2200W €3.18
129
 photo_cameraImage coming soon 266041-8 PT SCREW 5x25 €1.24
130
 photo_cameraImage coming soon 419790-8 REAR COVER X HR5201C €16.23
131
 photo_cameraImage coming soon 252178-7 NUT M 8-12 X 4112HS €1.42
132
 photo_cameraImage coming soon 253165-9 FLAT WASHER 8 €1.42
133
 Fan for Rotary Hammer Makita HR4500C 240016-5 Fan for Rotary Hammer Makita HR4500C €10.36
134
 photo_cameraImage coming soon 419782-7 FAN GUIDE HR5201C €3.19
135
 Carbon Brushes Makita for Hammers HM-HR 195844-2 Carbon Brushes Makita for Hammers HM-HR €11.59
136
 photo_cameraImage coming soon 638447-4/HR CARBON BRUSHE HOLDER HR5201C €12.69
137
 photo_cameraImage coming soon 419795-8 MOTOR HOUSING X HR5201C €35.07
138
 photo_cameraImage coming soon 636303-2 STATOR FOR HR5201C €36.11
139
 photo_cameraImage coming soon 266095-5 SCREW 5x55 HR5001C €1.47
140
 photo_cameraImage coming soon 210059-1 BEARING 6000 HR2010 €11.29
141
 Armature Washer for Demolition Hammers Makita HR 4501-10-11C 681642-5 Armature Washer for Demolition Hammers Makita HR 4501-10-11C €13.30
142
 Armature for Rotary Hammers Makita HR5201C-HR5210C 516993-6 Armature for Rotary Hammers Makita HR5201C-HR5210C €131.51
143
 photo_cameraImage coming soon 267025-9 FLAT WASHER 15 6912D €1.42
144
 photo_cameraImage coming soon 211238-4 BALL BEARING 6202LLU €8.65
145
 photo_cameraImage coming soon 331596-3 SLEEVE 12 4500C €10.43
146
 Oil Seal for Demolition Hammers Makita HR 4001-2-10-11-13C 213231-4 Oil Seal for Demolition Hammers Makita HR 4001-2-10-11-13C €15.13
147
 photo_cameraImage coming soon 419788-5 BAFFLE PLATE HR5201C €3.04
148
 Srew M4X14 for Hammers Makita HR4001C-HR4010C 266192-7 Srew M4X14 for Hammers Makita HR4001C-HR4010C €1.46
149
 photo_cameraImage coming soon 419786-9 SWITCH BOX HR5201C €2.74
150
 photo_cameraImage coming soon 263027-3 RUBBER PIN 4   HM0860C €1.70
151
 Switch Makita Makita ST115A-40 651418-4 Switch Makita Makita ST115A-40 €10.80
152
 photo_cameraImage coming soon 232209-8 FLAT SPRING HM0860C €1.70
153
 photo_cameraImage coming soon 154635-0 SLIDE LEVER COMPL. HR4001C / HR4010C €7.72
154
 photo_cameraImage coming soon 419785-1 CONTROL PLATE HR5201C €3.04
999
 Service Pack for Demolition Hammer Makita HR5201C 195191-1 Service Pack for Demolition Hammer Makita HR5201C €47.24
1001
 photo_cameraImage coming soon 181573-3 BIT GREASE HR2400 €5.57
1002
 photo_cameraImage coming soon 135269-8 HANDLE "D" X HM1203C €68.84
1003
 photo_cameraImage coming soon 265726-3 SCREW M6X15 €5.24
1004
 photo_cameraImage coming soon 266163-4 CUP SQUARE NECK BOLT M6x80 €3.28
1005
 photo_cameraImage coming soon 344492-6 PLATE HR3000C/4000C/5001C/3540 €2.18
1006
 photo_cameraImage coming soon 345780-4 GRIP SPRING 82, HR5210C €7.92
1006
 photo_cameraImage coming soon 419792-4 SIDE GRIP BASE 82, HR5210C €4.12
1007
 photo_cameraImage coming soon 931302-2 NUT M6 HR4000C €1.46
1008
 photo_cameraImage coming soon 135380-6 GRIP ASS'Y, HR5210C €32.02

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Rotary Hammer HR5210C

We supply MAKITA original spare parts on offer at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Rotary Hammer, SDS-MAX HR5210C.

In the following table, look for the model of jackhammers and the respective parts of the code.
Makita HR5210C

HR5210C ROTARY HAMMER 52MM SDS-MAX
# Part Num. Description
1 286285-4 TOOL HOLDER CAP, HR4001C / 4010C
2 233948-3 RING SPRING 25, HR5210C HR5201C
3 257280-1 RING 28 X HR5201C
4 419002-9 SPACER X HR4001C / HR4010C
5 233948-3 RING SPRING 25, HR5210C HR5201C
6 324752-2 CHUCK RING, HR5210C HR5201C
7 419778-8 CHACK COVER, HR5210C HR5201C P03
8 419779-6 RELEASE COVER, HR5210C HR5201C
9 310178-4 TOOL RETAINER, HR5210C HR5201C
10 345804-6 SPRING GUIDE, HR5210C HR5201C
11 233496-2 COMPRESSION SPRING 49, HR5210C HR5201C
12 213766-5 O-RING 78, HR5210C HR5201C
13 158175-0 BARREL CPL., HR5210C HR5201C
14 158179-2 BARREL COVER CPL., HR5210C HR5201C
15 922456-6 H.S.H. BOLT M8X35, 2107F
16 213492-6 O-RING 32, HR5210C HR5201C
17 324740-9 TOOL HOLDER A, HR5210C HR5201C
18 345804-6 SPRING GUIDE, HR5210C HR5201C
19 419791-6 GEAR HOUSING COVER, HR5210C HR5201C
20 922148-7 H.S.H. BOLT M4X25, 6922NB HR5201C
21 213274-6 O RING 18, HR3000C
22 213392-0 FLUORIDE RING 25, HR4000C
23 213317-4 O RING 20, HR4000C
24 324753-0 IMPACT BOLT, HR5210C HR5201C
25 324756-4 RING 20 X HR5201C
26 424000-0 RUBBER RING 24 X HR5201C
27 324757-2 COLLAR SLEEVE 20, HR5210C HR5201C
28 233949-1 RING SPRING 44, HR5210C HR5201C
29 257282-7 RING 47 X HR5201C
30 267287-9 FLAT WASHER 57, HR5210C HR5201C
31 262122-6 URETHAN RING 57 X HR5201C
32 267287-9 FLAT WASHER 57, HR5210C HR5201C
33 256265-4 PIN 10, HR5001C HR5001C
34 324741-7 TOOL HOLDER B, HR5210C HR5201C
35 419776-2 LOCK SLEEVE, HR5210C HR5201C
36 213654-6 O RING 60, HR3851 HR3850B / HM0810
37 165459-9 RINK ARM, HR5210C HR5201C
38 419775-4 LINK ARM GUIDE, HR5210C HR5201C
39 424024-6 SEAL PLATE, HR5210C
40 313138-5 DRIVING SLEEVE, HR5210C HR5201C
41 419780-1 SLIDE SLEEVE, HR5210C HR5201C
42 451516-2 CONNECTING ROD HR5201C
43 213460-9 O RING 35, HM1500 HK / HR1800 / HM12
44 419771-2 PISTON X HR5201C
45 268121-6 PIN 12 X HR5201C
46 213296-6 O-RING 34 HR5201C
47 213510-0 O-RING 36 HR2010
48 331748-6 CYLINDER 40 X HR5201C
49 213296-6 O-RING 34 HR5201C
50 324754-8 STRIKER X HR5201C
51 227511-2 STRAIGHT BEVEL GEAR 33, HR5210C HR5201C
52 233498-8 COMPRESSION SPRING 46 X HR5201C
53 257281-9 RING 45 X HR5201C
54 213118-0 O-RING 12 X HR5210C
55 318124-1 PIPE HOLDER, HR5210C
56 213118-0 O-RING 12 X HR5210C
57 419773-8 SPRING GUIDE HR5210C
58 233497-0 COMPRESSION SPRING 15 HR5210C
59 213953-6 O-RING 24 HR2430
60 331745-2 PIPE 22 X HR5210C
61 213953-6 O-RING 24 HR2430
62 324755-6 COUNTER WEIGHT, HR5210C
63 233497-0 COMPRESSION SPRING 15 HR5210C
64 419773-8 SPRING GUIDE HR5210C
65 213118-0 O-RING 12 X HR5210C
66 318124-1 PIPE HOLDER HR5210CP15
67 213118-0 O-RING 12 X HR5210C
68 922361-7 H.S.H. BOLT M6X40, HM1303B HM1303
69 266192-7 TAPPING SCREW 4X14, 2012NB HR4001C / HR4010C
70 419020-7 CHANGE LEVER, HR4001C / HR4010C
71 233436-0 COMPRESSION SPRING 3 X HR4001C / HR4010C
72 419777-0 LOCK BUTTON, HR5210C HR5201C
73 450687-2 CRANK LEVER, HR5210C HR5201C
74 213534-6 O-RING 36 X HR5201C
75 233506-5 TORSION SPRING 16 X HR5201C
76 310207-3 LINK LEVER, HR5210C HR5201C
77 345778-1 RETAINER PLATE HR5201C
78 265014-8 P.H. SCREW M4X12, AF501
79 318130-6 CRANK CAP COVER, HR5210C HR5201C
80 266192-7 TAPPING SCREW 4X14, 2012NB HR4001C / HR4010C
81 911133-5 P.H. SCREW M4X18, N9501B
82 419789-3 CRANK CAP, HR5210C HR5201C
83 421998-2 SEAL RING X HR5201C
84 345779-9 LINK PLATE, HR5210C HR5201C
85 419781-9 LINK PLATE GUIDE, HR5210C HR5201C
86 158176-8 CRANK HOUSING CPL., HR5210C HR5210C
87 419008-7 FIX GUIDE, HR4001C
88 423366-5 CUSHION PLATE, HR5210C HR5201C
89 324739-4 CRANK SHAFT, HR5210C HR5201C
90 211418-2 BALL BEARING 6006LLU X HR4500C
91 254229-2 KEY 5 X HR4000C
92 226646-6 HELICAL GEAR 47, HR5210C HR5201C
93 227176-0 SPUR GEAR 24, HR5210C HR5201C
94 961102-6 RETAINING RING S22
95 253843-1 FLAT WASHER X LC1230
96 421999-0 SEAL RING X HR5201C
97 158178-4 GEAR HOUSING CPL X HR5201C
98 922341-3 H.S.H. BOLT M6X25, HM1100C
99 125374-9 TORQUE LIMITER ASS'Y, HR5210C HR5201C
100 419796-6 HANDLE COVER X HR5201C
101 265995-6 * TAPPING SCREW M4X18 X 6408 / 6221DW
102 650676-9 SWITCH TG73B-1 HR4001C
103 154626-1 SWITCH HOLDER HR4001C P04
104 419028-1 SWITCH LEVER X HR4001C / HR4010C
107 266041-8 TAPPING SCREW, FLANGE 5X25, 5177B
108 419800-1 HANDLE X HR5210C
111 863365-9 NAME LABEL X HR5210C
117 419793-2 CRANK HOUSING COVER, HR5210C HR5210C
118 631727-7 CONTROLLER, HR5210C HR5201C
119 266192-7 TAPPING SCREW 4 X 14 X HR4001C / HR4010C
120 638510-3 LEAD UNIT, HR5210C HR5201C
121 687169-3 STRAIN RELIEF, HP1621F HP1620
122 266192-7 TAPPING SCREW 4 X 14 X HR4001C / HR4010C
123 419024-9 CORD LAMP BASE, HR4001C HR4001C
124 265995-6 * TAPPING SCREW M4X18 X 6408 / 6221DW
125 266192-7 TAPPING SCREW 4 X 14 X HR4001C / HR4010C
126 419774-6 LENS HR5201C
127 682560-0 CORD GUARD HM1202C / 9079S P03
129 266041-8 TAPPING SCREW PT 5X25
130 419790-8 REAR COVER X HR5201C
131 252178-7 HEX NUT M 8-12 X 4112HS
132 253165-9 FLAT WASHER 8
133 240016-5 FAN HR5001C
134 419782-7 FAN GIUDE HR5201C
135 195844-2 CARBON BRUSH SET CB-175 EX CB-171
136 638447-4/HR BRUSH HOLDER UNIT, HR5210C HR5201C
137 419795-8 MOTOR HOUSING, HR5210C HR5201C
138 636303-2 FIELD HR5201C
139 266095-5 TAPPING SCREW 5 X 55 HR5001C
140 210059-1 BALL BEARING 6000 HR2010
141 681642-5 INSULATION WASHER LS1013
142 516993-6 ARMATURE ASS'Y HR5201C
143 267025-9 FLAT WASHER 15 6912D
144 211238-4 BALL BEARING 6202LLU
145 331596-3 SLEEVE 12 X HR4500C
146 213231-4 OIL SEAL X HR4500C
147 419788-5 BAFFLE PLATE, HR5210C HR5201C
148 266192-7 TAPPING SCREW 4 X 14 X HR4001C / HR4010C
149 419786-9 SWITCH BOX X HR5201C
150 263027-3 RUBBER PIN 4 X HM0860C
151 651418-4 SWITCH ST115A-40 X 9541
152 232209-8 LEAF SPRING X HM0860C
153 154635-0 SLIDE LEVER CPL., HR4001C / HR4010C
154 419785-1 CONTROL PLATE, HR5210C HR5201C
999 195191-1 HAMMER SERVICE KIT, HR5210C
1001 181573-3 BIT GREASE HR2400
1002 135269-8 SIDE HANDLE 82 ASS'Y, HM1203C
1003 265726-3 SCREW M6X14, 5177B
1004 266163-4 C.S.N.BOLT M8X80, HR4041C
1005 344492-6 PLATE, HR4002
1006 345780-4 GRIP SPRING 82, HR5210C
1006 419792-4 SIDE GRIP BASE 82, HR5210C
1007 931302-2 HEX NUT M6, HR2400
1008 135380-6 GRIP ASS'Y, HR5210C

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Makita HR5210C
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Makita HR5210C

Drawing Makita HR5210C

Download (335.09KB)

You might also like

Switch TG73-B1 for Demolition Hammer Makita HR4001C
Makita SKU: 650567-4
Switch TG73-B1 for Demolition Hammer Makita HR4001C
Switch TG73-B1 for Demolition Hammer Makita HR4001C Genuine part MAKITA, Switch TG73B-1 for Rotary Hammers HR4001C - HR4010C - HR4011C - HR4501C - HR4510C - HR4511C - HR5201C - HR5210C - HR5211C.  Part for the following products:  -...
on 7/10 Business Days Approx €20.01
Details
Switch Makita Makita ST115A-40
Makita SKU: 651418-4
Switch Makita Makita ST115A-40
Switch Makita Makita ST115A-40 Genuine parts: - JigSaws Makita 4305-4341 - Angle Grinder Makita - Sanders Random Orbital Sanders Makita - Grinders Makita straight - Breakers Makita - Rotary Hammers Makita - Nibblers Makita -...
Last items in stock €10.80
Details
Carbon Brushes Makita for Hammers HM-HR
Makita SKU: 195844-2
Carbon Brushes Makita for Hammers HM-HR
Carbon Brushes Makita for Makita Hammers HM-HR Genuine part MAKITA, Carbon Brushe Set CB-175 old CB-171 for repair Hammers and Rotary Hammers HM1101C - HM1111C - HM1203C - HR4501C - HR4510C - HR5201C - HR5201C. Part For the following...
AVAILABLE €11.59
Details
Conrod for Hammers Makita HR2800-2811F-FT
Valex s.p.a. SKU: 158282-9
Conrod for Hammers Makita HR2800-2811F-FT
Conrod for Hammers Makita HR2800-2811F-FT Genuine spare part Makita, Conrod for Rotary Hammers SDS Plus, HR2800 - HR2811F - HR2811FT Part for the following products: -  HR2800 - ROTARY HAMMER 28MM 800W -  HR2811F -...
Last items in stock €11.59
Details
Conrod for Rotative Demolition Hammers Makita HR5201-10-11C
Makita SKU: 451516-2
Conrod for Rotative Demolition Hammers Makita HR5201-10-11C
Conrod for Rotative Demolition Hammers Makita HR5201-10-11C Original spare part Makita, Conrod for SDS Max Rotative Demolition Hammers eg, HR5201C - HR5210C - HR5211C. Part for the following products: -  HR5201C - ROTARY HAMMER 52MM...
Last items in stock €11.59
Details
Seal 36 O-R for Sanders Makita BO4565-4566
Makita SKU: 213510-0
Seal 36 O-R for Sanders Makita BO4565-4566
Seal 36 O-R for Sanders Makita BO4565-4566 Genuine spare Makita, O-Ring 36 for Rotary Hammers HR5001C-5201C-5210C-5211C and Orbital Sanders Series BO4555-4556-4565-4566. Parts for the following products: - NAILER AIR HP 25-50mm -...
AVAILABLE €3.35
Details
Ring 16 O-Ring for Hammers Makita
Valex s.p.a. SKU: 213227-5
Ring 16 O-Ring for Hammers Makita
Ring 16 O-Ring for Hammers Makita Genuine spare Makita, O-Ring for Hammers SDS Plus and Stonecutter,  BHR202RFE - BHR240RFE  -  HK0500 -  HR2020 -  HR2450 -  HR2470F and compatible. Part for the following products: - Cordless rotary...
Last items in stock €4.19
Details
O-Ring 35 for Demolition Hammers Makita HR 4501-10-11C
Makita SKU: 213460-9
O-Ring 35 for Demolition Hammers Makita HR 4501-10-11C
O-Ring 35 for Demolition Hammers Makita HR 4501-10-11C Genuine spare part Makita, O-Ring 35 for SDS Max Rotary Demolition Hammers HR4501C  - HR4510C - HR4511C - HR5201C - HR5210C - HR5211C - HR5212C. Part for the following...
AVAILABLE €3.29
Details
Steel Ball 7 mm for Hammers Makita
Makita SKU: 216022-2
Steel Ball 7 mm for Hammers Makita
Steel Ball 7 mm for Hammers Makita Genuine spare part Makita, Steel Ball 7 mm diameter for Hammers SDS Plus and Cordless, BHR162RFE - BHR200SFE - BHR240RFE - BHR241RFE - BHR261DP1 - DHR263Z - HR1830 -  HR2420 - HR2611FT....
build View Spare Parts
Rubber Ring 25 for Hammers Makita HR4000C
Makita SKU: 213392-0
Rubber Ring 25 for Hammers Makita HR4000C
Rubber Ring 25 for Hammers Makita HR4000C Original spare Makita, Rubber ring 25 mm for Rotary Hammers SDS Max, HR4001C - HR 4002 - HR4003C - HR4010C - HR4011C - HR4013C - HR4500C - HR5201C - HR5210C and compatible. - Code: 213392-0
Last items in stock €9.24
Details
Carbon Brushes CB-325 for Angle Grinder Makita 9554NB
Makita SKU: 194074-2
Carbon Brushes CB-325 for Angle Grinder Makita 9554NB
Carbon Brushes CB-325 for Angle Grinder Makita 9554NB Original spare part Makita for Angle Grinder, Carbon Brushes for 9554HN - 9554HNG - 9554NB - 9555NB - 9555NB - 9557HN - 9558HN - 9564H Part for the following products: - ANGLE...
AVAILABLE €4.19
Details
Power Cord for Angle Grinder Makita 1800-2000-2200W
Makita SKU: Cavo 230
Power Cord for Angle Grinder Makita 1800-2000-2200W
Power Cord for Angle Grinder Makita 1800-2000-2200W Original spare Makita, Power cord for Angle Grinders 1800-2000-2200 Watts and compatible. Part for the following products: - For Angle Grinder Makita 230 mm - Code :
AVAILABLE €31.79
Details
Spring 21-29 for 20 mm Hammer Makita HR2020
Makita SKU: 233916-6
Spring 21-29 for 20 mm Hammer Makita HR2020
Spring 21-29 for 20 mm Hammer Makita HR2020 Original spare Makita, 21-29 Spring for 20 mm Hammerdrill SDS Plus 710 W Makita HR2020. Part for the following products: - Hammer SDS-PLUS 18MM 1830 - Hammer 24MM 750W 2450 - Hammer 720W...
AVAILABLE €3.18
Details
Ring 21 for Chuck Hammer Makita HR2020
Makita SKU: 257241-1
Ring 21 for Chuck Hammer Makita HR2020
Ring 21 for Chuck Hammer Makita HR2020 Genuine part Makita, Ring 21 for Hammers HR1830 - HR2020 - HR2230 - BHR162-202-240-241-261-262RFE - DHR164Z. Parts for the following products: - BHR162RFE - Cordless Hammer 14.4V LITHIUM BATTERY...
AVAILABLE €3.31
Details
Service Pack for Hammers Makita HR2800-2811F-2811FT
Makita SKU: 195206-4
Service Pack for Hammers Makita HR2800-2811F-2811FT
Service Pack for Hammers Makita HR2800-2811F-2811FT Genuine part Makita, Service Pack for Hammers, HR2800 - HR2811F - HR2811FT. FOR THE FOLLOWING ITEMS: -  HR2800 - ROTARY HAMMER 28MM 800W -  HR2811F - ROTARY...
AVAILABLE €18.33
Details
Armature for 28 mm Hammer Makita HR2800-HR2811F
Makita SKU: 515294-9
Armature for 28 mm Hammer Makita HR2800-HR2811F
Armature for 28 mm Hammer Makita HR2800-HR2811F Genuine parts Makita, Armature 220-240V for Hammers 28 mm SDS Plus 800 W HR2800 - HR2811F - HR2811FT. Parts for Hammers Hammers Makita: -  HR2800 - ROTARY...
Last items in stock €67.13
Details
Stator for 28 mm Hammer Makita HR2800-HR2811F
Makita SKU: 526584-5
Stator for 28 mm Hammer Makita HR2800-HR2811F
Stator for 28 mm Hammer Makita HR2800-HR2811F Genuine parts Makita, Stator (FIELD) 220-240V for Hammers 28 mm SDS Plus 800 W HR2800 - HR2811F - HR2811FT. Parts for Hammers Hammers Makita: -  HR2800 - ROTARY...
on 7/10 Business Days Approx €29.44
Details
Cover Cap Bits for Rotary Hammer MAKITA HR2020
Makita SKU: 286263-4
Cover Cap Bits for Rotary Hammer MAKITA HR2020
Cover Cap Bits for Rotary Hammer MAKITA HR2020 Original parts Makita, Cover Cap for Rotary Hammers BHR162RFE - BHR202RFE - BHR240RFE - BHR241RFE - BHR243RFE - BHR261DP1 - BHR261TDP1 - BHR262RDE - BHR262TRDE - DHR164Z - DHR165Z -...
Last items in stock €4.86
Details
Elastic Ring 19 for HAMMER Makita HR2020
Makita SKU: 233940-9
Elastic Ring 19 for HAMMER Makita HR2020
Elastic Ring 19 for HAMMER Makita HR2020 Genuine spare Makita, Elastic Ring 19 for Hammers HK1820 - HR1830 - HR2020 - HR2230 - HR2432 - HR2440 - HR2450 - HR2450F - HR2450FT - HR2450X - HR2460 - HR2470 - HR2470F - HR2470FT - HR2610T -...
AVAILABLE €1.50
Details
Armature for Rotary Hammers Makita HR5201C-HR5210C
Makita SKU: 516993-6
Armature for Rotary Hammers Makita HR5201C-HR5210C
Armature for Rotary Hammers Makita HR5201C-HR5210C Genuine spare parts Makita, Armature 220-240V for SDS-Max Rotary Hammers, HR5201C - HR5210C - HR5211C. FOR THE FOLLOWS ITEMS : -  ROTARY...
AVAILABLE €131.51
Details
Service Pack for Demolition Hammer Makita HR5201C
Makita SKU: 195191-1
Service Pack for Demolition Hammer Makita HR5201C
Service Pack for Demolition Hammer Makita HR5201C Genuine part Makita, Service Pack for Rotary Demolition Hammers SDS-Max, HR5201C - HR5210C - HR5211C Part for the following products: - HR5201C - Rotary Hammer 52MM SDS-MAX - HR5210C -...
AVAILABLE €47.24
Details
O-Ring 34 for Rotary Hammer Makita HR5201C
Makita SKU: 213296-6
O-Ring 34 for Rotary Hammer Makita HR5201C
O-Ring 34 for Rotary Hammer Makita HR5201C Genuine spare part Makita, O-Ring 34 for SDS Max Rotary Hammers HR5201C  - HR5210C - HR5211C - HR5201C Part for the following products: - HR5201C - ROTARY HAMMER 52MM SDS-MAX - HR5210C -...
AVAILABLE €3.17
Details
Piston Pin for Rotary Hammer Makita HR5201C
Valex s.p.a. SKU: 268121-6
Piston Pin for Rotary Hammer Makita HR5201C
Piston Pin for Rotary Hammer Makita HR5201C Genuine spare part Makita, Piston Pin for Rotary Demolition Hammers HM1203C - HM1213C - HM1214C - HR5201C - HR5210C - HR5211C...
Last items in stock €1.67
Details
Ring 20 for Demolition Hammer Makita HR4000C
Valex s.p.a. SKU: 213317-4
Ring 20 for Demolition Hammer Makita HR4000C
Ring 20 for Demolition Hammer Makita HR4000C Genuine spare part Makita, Ring 20 for Rotary Hammers SDS Max, HR4001C - HR 4002 - HR4003C - HR4010C - HR4011C - HR4013C Part for the following products: - Rotary Hammer Makita HR4000C -...
AVAILABLE €1.44
Details
Lens for Demolition Hammer Makita HR4501C
Makita SKU: 419774-6
Lens for Demolition Hammer Makita HR4501C
Lens for Demolition Hammer Makita HR4501C Original spare parts Makita, Lens for Demolition Rotary Hammers HR4501C - HR4510C - HR4511C Part for the following product: -  HR4501C - ROTARY HAMMER SDS-MAX 1300W - HR4510C - ROTARY HAMMER...
on 7/10 Business Days Approx €3.19
Details
Fan for Rotary Hammer Makita HR4500C
Makita SKU: 240016-5
Fan for Rotary Hammer Makita HR4500C
Fan for Rotary Hammer Makita HR4500C Genuine part Makita, Fan for Rotary Hammers SDS Max HR4500C - HR4501C - HR4510C - HR4511C - HR5001C - HR5202C. Parts for the following products:...
on 7/10 Business Days Approx. €10.36
Details
Makita HR5201C Torque Limiter Ass'y
Makita SKU: 125374-9
Makita HR5201C Torque Limiter Ass'y
Makita HR5201C Torque Limiter Ass'y Genuine spare parts Makita, Torque Limiter Ass'y for SDS-Max Rotary Hammers, HR5201C - HR5210C - HR5211C. FOR THE FOLLOWS ITEMS : -  ROTARY HAMMER 52MM SDS-MAX MAKITA HR5201C...
on 7/10 Business Days Approx. €163.80
Details
Makita HR5201C Barrel Complete
Makita SKU: 158175-0
Makita HR5201C Barrel Complete
Makita HR5201C Barrel Complete Genuine spare parts Makita, Barrel Complete for SDS-Max Rotary Hammers, HR5201C - HR5210C - HR5211C. FOR THE FOLLOWS ITEMS : -  ROTARY HAMMER 52MM SDS-MAX MAKITA HR5201C - ...
on 7/10 Business Days Approx. €17.37
Details
Comments (0)
