Makita Spare Parts for Power Planer 1805B
We have the original Spares MAKITA for

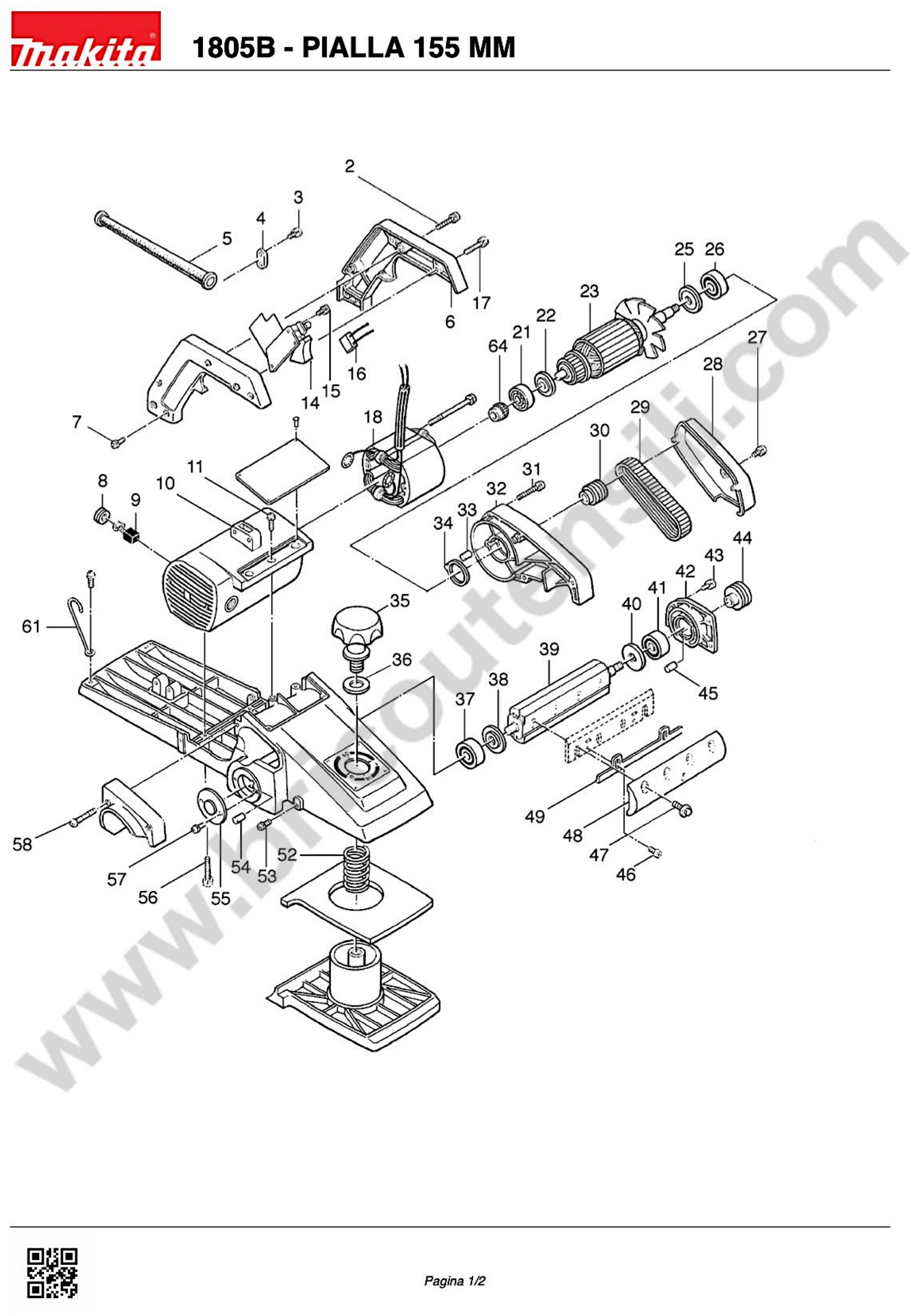

Power Planer 155 mm 1805B, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.
In the following table, look for the model of Power Planer and the respective parts of the code.
| 1805B - PIALLA 155 MM |
| # |
Part Num. |
Description |
| 2 |
911156-3 |
PAN HD SCREW M4X30 |
| 3 |
911133-5 |
PAN HD SCREW M4X18 |
| 4 |
687001-1 |
STRAIN RELIEF 4157KB/6820V |
| 5 |
682507-4 |
CABLE SLEEVE 12-200 |
| 6 |
181151-9 |
HANDLE SET 1805 / 1806B |
| 7 |
911213-7 |
PAN HEAD SCREW M5X12 5143R EBH252L |
| 8 |
643650-4 |
BRUSH HOLDER CAP CB-5/HS6100 |
| 9 |
181048-2 |
CARBON BRUSH CB-155 (TIB143) SR2100 HM1400 (CB-161) |
| 10 |
156414-2 |
MOTOR HOUSING 1805/06B |
| 11 |
911226-8 |
PAN HD SCREW M5X18 |
| 14 |
651018-0 |
SWITCH HPAHR 2-3S |
| 15 |
911103-4 |
PAN HEAD SCREW M4X6 3600H |
| 16 |
645006-7 |
NOISE SUPPRESSOR/CONDENSOR LS1013 |
| 17 |
911251-9 |
PAN HD SCREW M5X30 |
| 18 |
523025-2 |
FIELD ASSEMBLY X1805B |
| 21 |
211061-7 |
BALL BEARING 6000DD 6221DW |
| 22 |
681646-7 |
INSULATION WASHER HM1200 / 3612BR |
| 23 |
513388-4 |
ARMATURE X 1805B |
| 25 |
213102-5 |
DUST SEAL 6201-12 4157KB |
| 26 |
211106-1 |
BALL BEARING 6201LLB |
| 27 |
911206-4 |
M5X10 CYLINDRICAL HEAD SCREW |
| 28 |
343301-6 |
BELT COVER 1805B |
| 29 |
225042-5 |
BELT 6-304 1805B |
| 30 |
222007-8 |
PULLEY 6-23L 1805B |
| 31 |
911263-2 |
PAN HD SCREW M5X40 |
| 32 |
152214-8 |
BRACKET COMP 1806B 1805B |
| 33 |
263005-3 |
RUBBER PIN 6 |
| 34 |
341384-0 |
WASHER 26 1806B |
| 35 |
271249-1 |
KNOB 62 1805/1805B/1806B |
| 36 |
253004-3 |
FLAT WASHER 13 1805/06B |
| 37 |
211087-9 |
BALL BEARING 6200DDW NSK |
| 38 |
341376-9 |
WASHER 10 1805B/06B |
| 39 |
161056-9 |
DRUM 1805B |
| 40 |
341377-7 |
WASHER 12 1805B / 1911B |
| 41 |
211107-9 |
BALL BEARING 6201ZZ UC3530A 9524NB |
| 42 |
157024-8 |
DRUM HOUSING 1805B/06B |
| 43 |
911123-8 |
PAN HD SCREW M4X14 |
| 44 |
222006-0 |
V-PULLEY 6-30 1805/1805B/06B |
| 45 |
263005-3 |
RUBBER PIN 6 DUR/DHR/DTW/DG |
| 46 |
251246-3 |
PAN HD SCREW M4X5 |
| 47 |
251609-3 |
HEX HEAD M6X17 |
| 48 |
187681-8 |
DRUM PLATE 1805/B (2 PCS) |
| 49 |
342165-5 |
ADJUST PLATE 1805B (2PCS) |
| 52 |
231233-8 |
COMPRESSION SPRING 24 1805B/0 |
| 53 |
911206-4 |
PAN HD SCREW M5X10 |
| 54 |
263002-9 |
RUBBER PIN 4 GA7050/9050/5021 |
| 55 |
285011-8 |
BEARING COVER 38 1805B |
| 56 |
911256-9 |
PAN HEAD SCREW M5X35 |
| 57 |
911206-4 |
PAN HD SCREW M5X10 |
| 58 |
911156-3 |
PAN HEAD SCREW 4X30 W/CP |
| 59 |
411408-7 |
CHIP COVER 1805B |
| 60 |
156400-3 |
MAIN FRAME 1805B |
| 61 |
281007-7 |
HOLDER 1805/06B |
| 64 |
421490-8 |
RUBBER RING 26 X 1805B |
| 400 |
793013-5 |
PLANER BLADE 155 |
| 401 |
934201-7 |
WING NUT M5 |
| 402 |
123053-3 |
GUIDE RULE ASS'Y |
| 403 |
123009-6 |
BLADE GAUGE ASS'Y |
| 404 |
911218-7 |
PAN HEAD SCREW M5X14 |
| 405 |
251212-0 |
SPECIAL HD SCREW M5X13 |
| 406 |
123006-2 |
SHARPENING HOLDER ASS'Y |
| 407 |
782209-3 |
SOCKET WRENCH 9 |
| 408 |
251212-0 |
SPECIAL HD SCREW M5X13 |
| 409 |
762001-3 |
TRIANGULAR RULE |
| 410 |
783202-0 |
HEX. WRENCH 4 |
