In the following table, look for the model of Power Trimmer and the respective parts of the code.

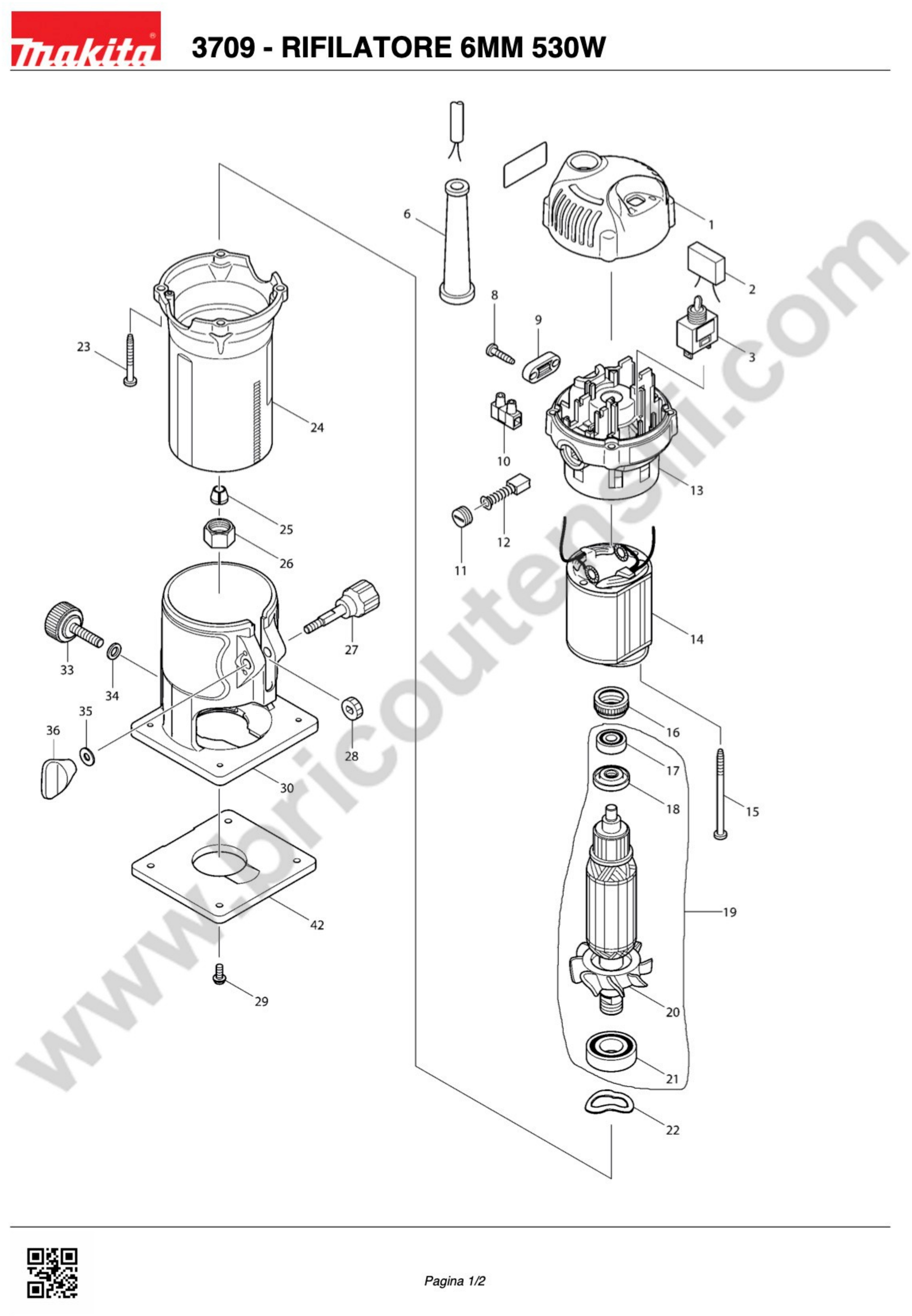

MAKITA 3709 - LAMINATE TRIMMER 6MM 530W Pag.1
|
| # |
Part Num. |
Description |
| 1 |
419137-6 |
TOP COVER, 3709 |
| 2 |
645200-1 |
NOISE SUPPRESSOR |
| 3 |
651066-9 |
SWITCH, STL115A-TB-S1 3709 |
| 6 |
682569-2 |
CORD GUARD, BO4556 |
| 8 |
266326-2 |
TAPPING SCREW PT 4X18, 5007MG |
| 9 |
687124-5 |
STRAIN RELIEF, JV0600K |
| 10 |
654532-5 |
TERMINAL BLOCK, BO4556 |
| 11 |
643550-8 |
BRUSH CAP , 9031 |
| 12 |
191940-4 |
CARBON BRUSH SET, CB-411/410 422/421 195008-8 |
| 13 |
140L18-2 |
BRACKET COMPLETE, 3709 |
| 14 |
590019-2 |
FIELD ASS'Y 220V, 3709 |
| 15 |
266340-8 |
TAPPING SCREW 4X65, GA5020 |
| 16 |
421494-0 |
LABYRINTH RUBBER RING, 19 HR2455, DA3010F |
| 17 |
210169-4 |
BALL BEARING 607LLB, BO4556 |
| 18 |
681668-7 |
RESIN WASHER, 3709 |
| 19 |
515634-1 |
ARMATURE ASS'Y 220V, 3709 |
| 20 |
241667-7 |
FAN 52, 3709 |
| 21 |
211489-9 |
BALL BEARING 6002LLUX, 3709 |
| 22 |
267785-3 |
WAVE WASHER 23, 3709 |
| 23 |
266351-3 |
TAPPING SCREW 4X35, 9557PB |
| 24 |
154668-5 |
MOTOR HOUSING COMPLETE,3709 |
| 25 |
763662-2 |
COLLET CONE 6.35, 3709 |
| 26 |
763661-4 |
COLLET NUT 6, 3709 |
| 27 |
265771-8 |
THUMB SCREW M5X33,3709 |
| 28 |
226217-9 |
SPUR GEAR 16, 3703 |
| 29 |
265142-9 |
P.H. SCREW M4X10, 3709 |
| 30 |
419138-4 |
BASE,3709 |
| 33 |
265763-7 |
SCREW M6X25, RT0700C |
| 34 |
941151-9 |
F. WASHER 6, 5007NB |
| 35 |
941101-4 |
F. WASHER 5, 5007NK |
| 36 |
252652-5 |
THUMB NUT M5,3709 |
| 42 |
410585-2 |
BASE PROTECTOR, 3709 |
| ACCESSORIES Pag.2 |
| 500 |
122703-7 |
TRIMMER GUIDE ASS'Y, 3700B |
| 501 |
122704-5 |
STRAIGHT GUIDE ASS'Y, 3700B |
| 502 |
343577-5 |
TEMPLATE GUIDE 10, 3702B |
| 503 |
781036-5 |
WRENCH 10, 3709 |
| 504 |
781037-3 |
WRENCH 17, 3709 |
| 505 |
418647-0 |
CHIP DELECTOR, 3709 |
| 506 |
733238-9 |
STRAIGHT BIT 6E, 3709 |
| 507 |
810134-9 |
CAUTION LABEL, 3709 |
