Makita Spare Parts for 260MM Table Saw 2704N

SKU: Makita 2704N Condition: New
€4.42
VAT included

Makita Spare Parts for 260MM Table Saw 2704N

We supply original MAKITA spare parts on offer at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Contractors 15 Amp 10-Inch Benchtop Table Saw 2704N.

- Dima side for precision cutting
settings 142 spare parts

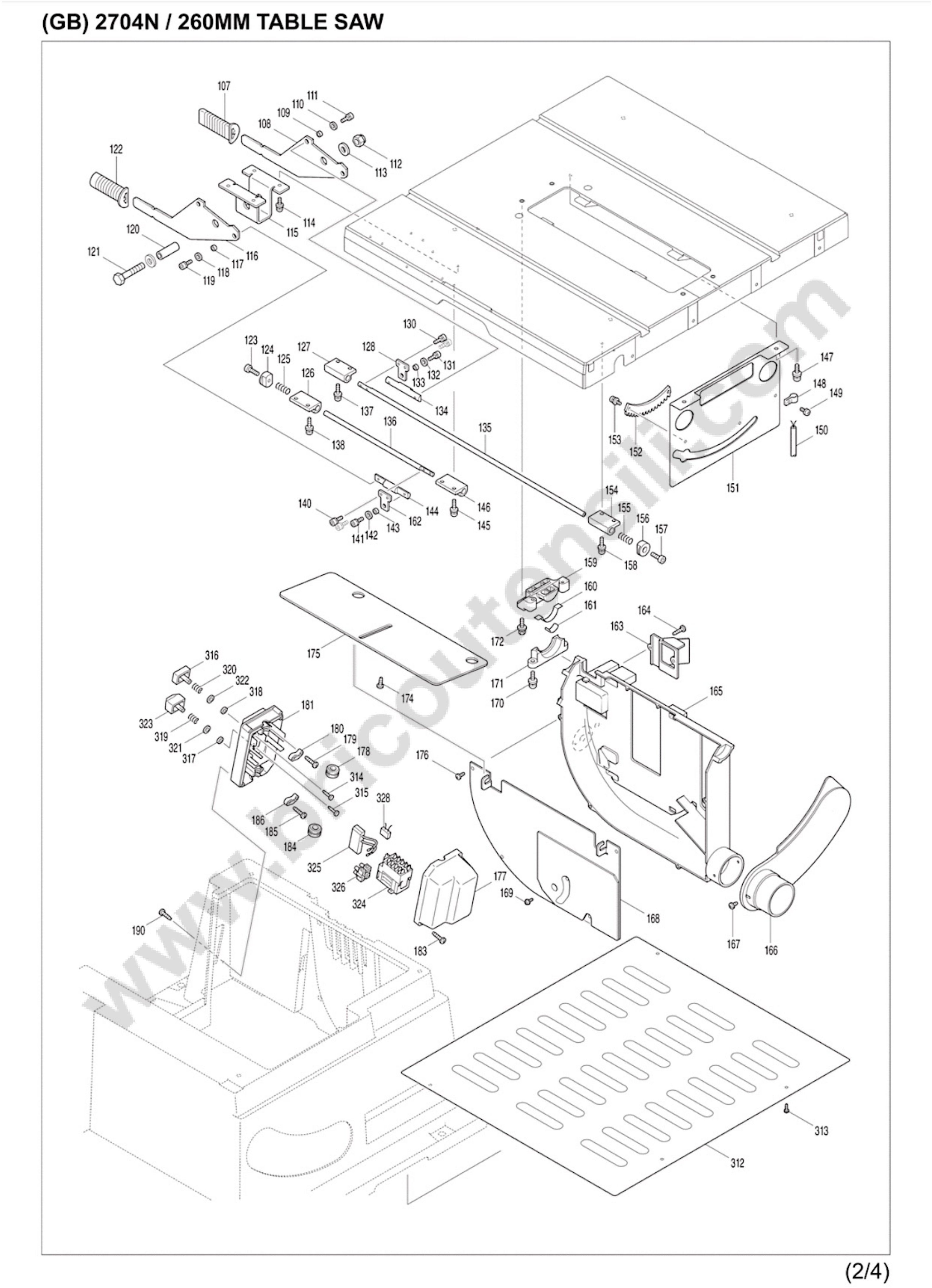

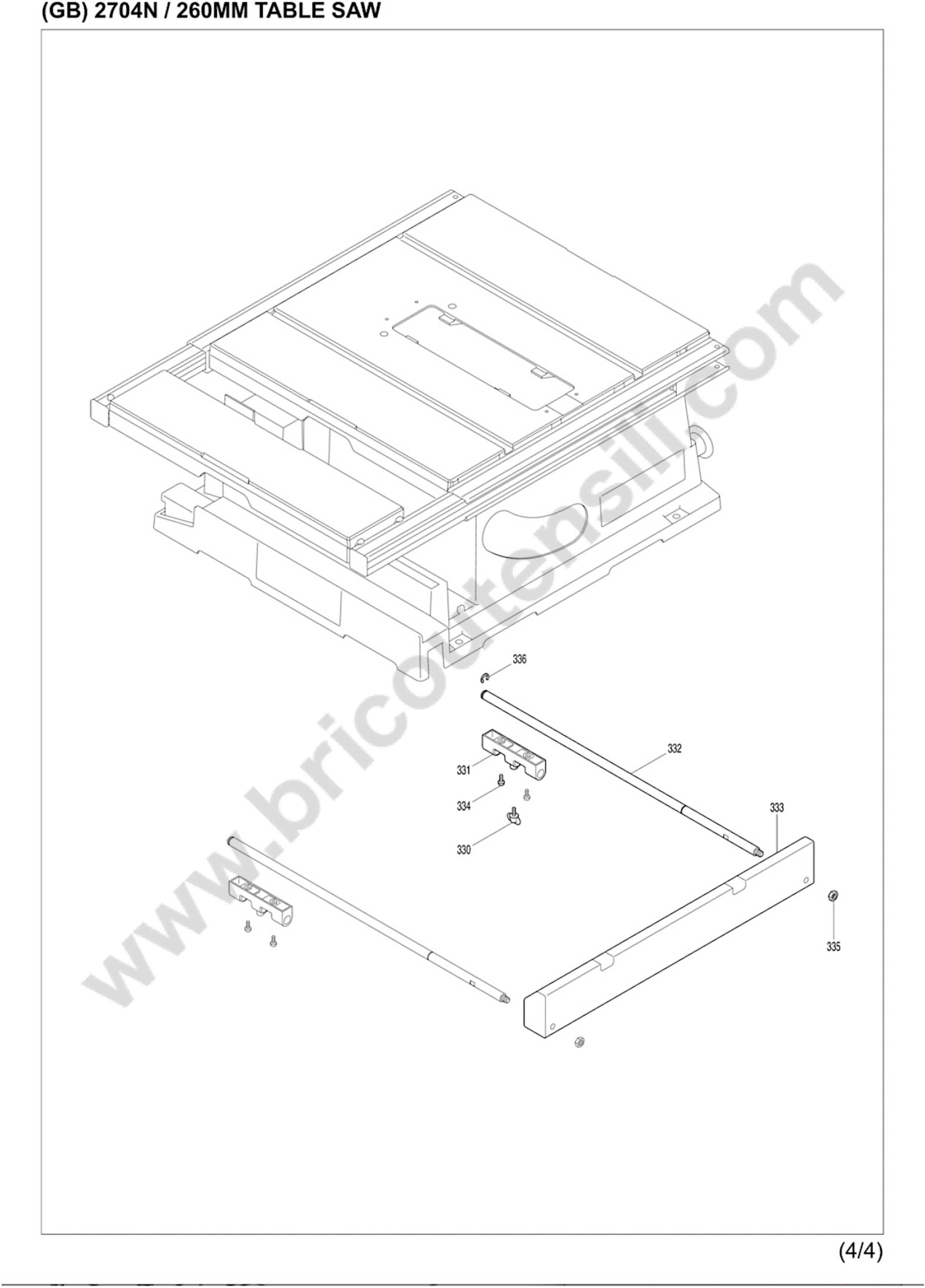

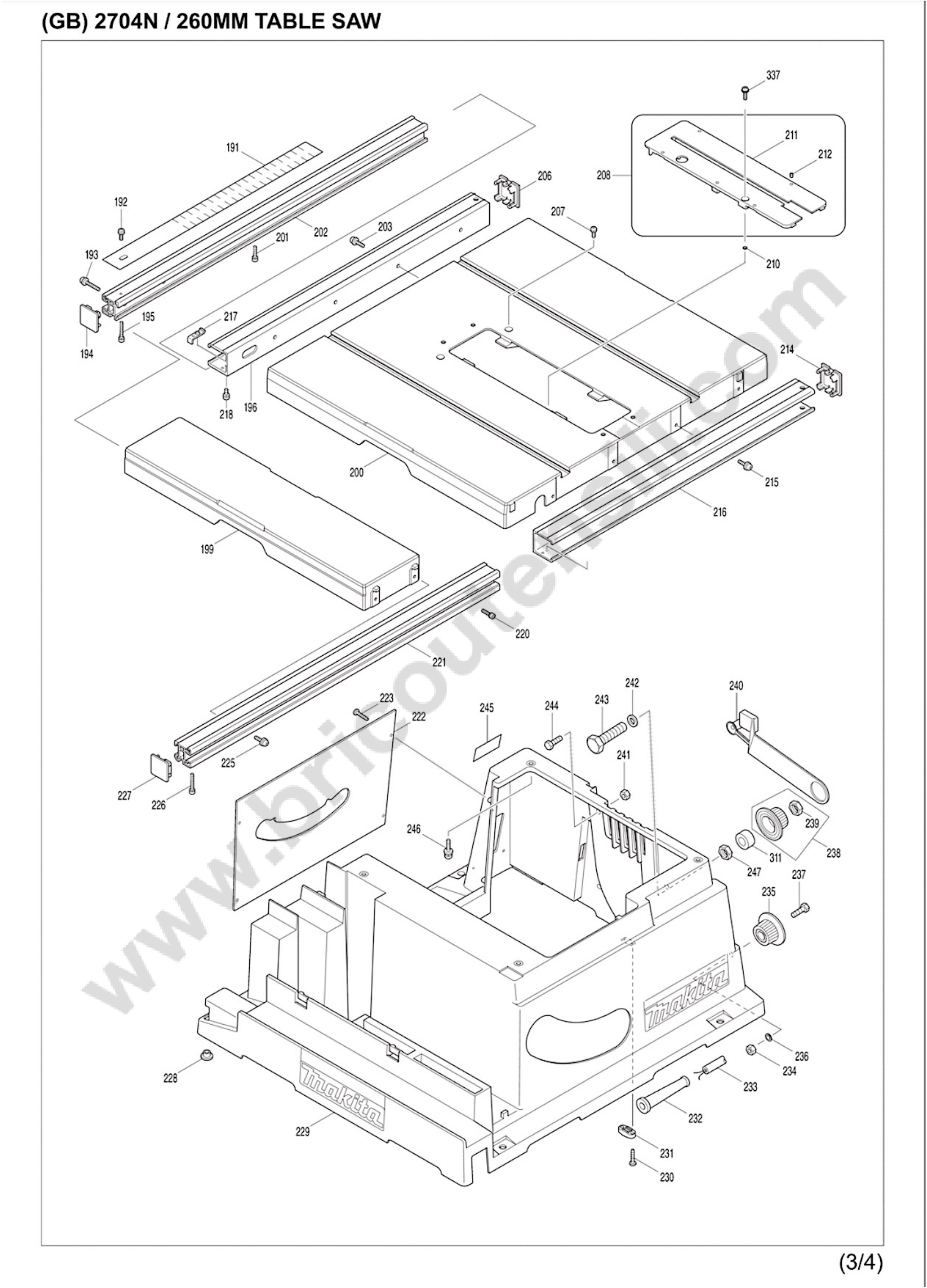

description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
142 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

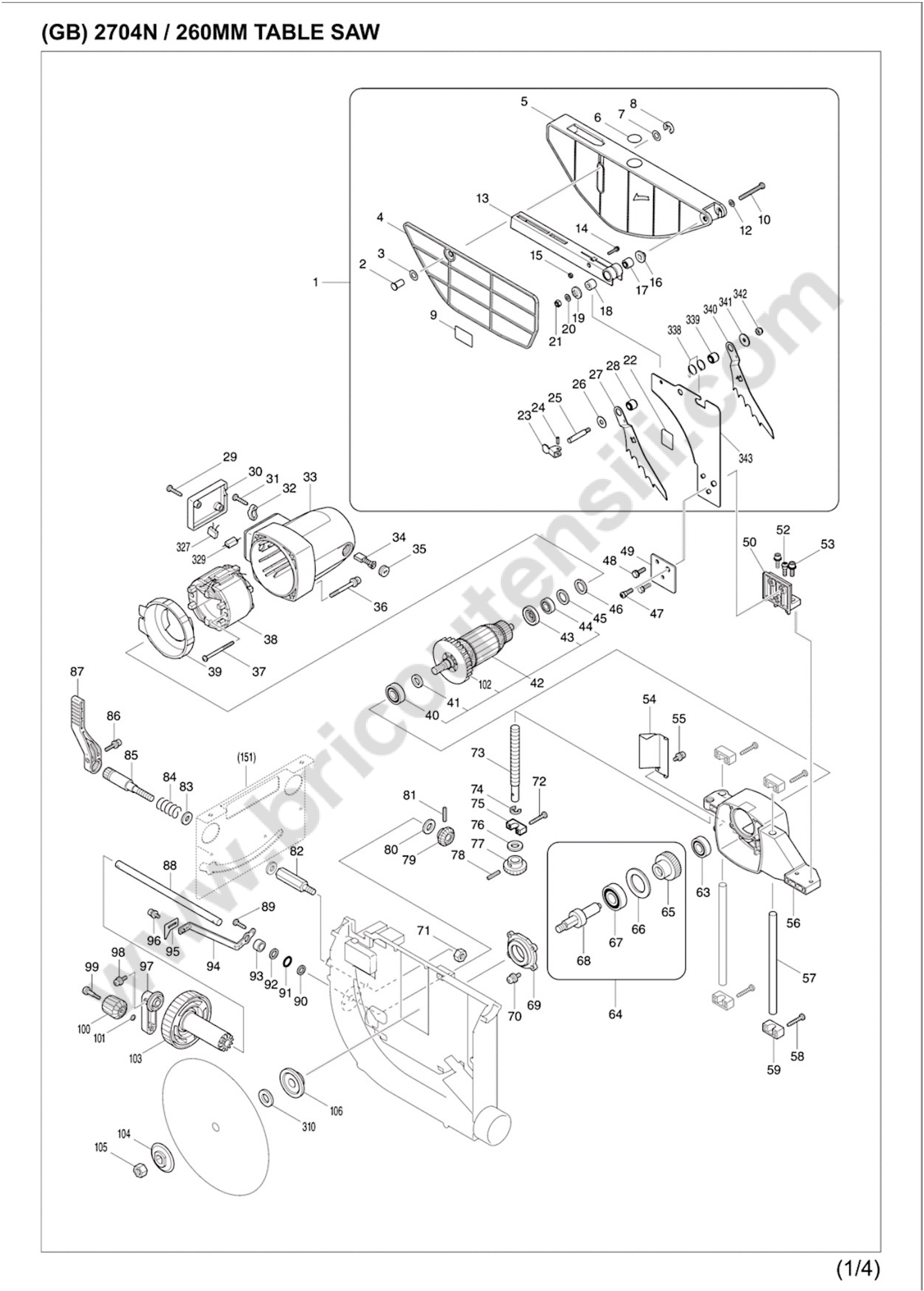

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
A08
 photo_cameraImage coming soon 122739-6 REGOLO CPL FOR 2704 €190.07
A02
 photo_cameraImage coming soon 419093-0 JOINT 2704 €3.51
A06
 photo_cameraImage coming soon 783203-8 HEX. WRENCH 5 €2.17
3
 Flat Washer 10 for 260 mm Table Saw Makita 2704 253758-2 Flat Washer 10 for 260 mm Table Saw Makita 2704 €1.43
4
 photo_cameraImage coming soon 418910-1 BOTTOM COVER FOR 2704 €12.28
7
 Flat Washer 10 for 260 mm Table Saw Makita 2704 253758-2 Flat Washer 10 for 260 mm Table Saw Makita 2704 €1.43
8
 Retaining Ring E9 for Planer Makita 1923B-N1923B 961015-1 Retaining Ring E9 for Planer Makita 1923B-N1923B €1.43
12
 photo_cameraImage coming soon 941151-9 WASHER 6 X HM1303 €3.66
15
 photo_cameraImage coming soon 931102-0 HEX NUT M4 €1.42
20
 photo_cameraImage coming soon 941151-9 WASHER 6 X HM1303 €3.66
21
 photo_cameraImage coming soon 252014-7 NUT M6-10 €2.24
23
 photo_cameraImage coming soon 345583-6 LOCK LEVER 2704 €1.67
26
 photo_cameraImage coming soon 253731-2 FLAT WASHER 8 €2.49
29
 Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
30
 photo_cameraImage coming soon 416341-8 COVER X 2702 €3.18
31
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
32
 photo_cameraImage coming soon 687054-0 STRAIN RELIEFE HM1500 €1.93
33
 photo_cameraImage coming soon 154602-5 MOTOR HOUSING 2704 €30.79
33
 photo_cameraImage coming soon 643653-8 BRUSH HOLDER 6.5-13.5 €3.31
34
 Carbon Brushes CB-153 for Miter Saws Makita LS1016-1040-1216F 181044-0 Carbon Brushes CB-153 for Miter Saws Makita LS1016-1040-1216F €9.91
35
 Carbon Brush Holder Cover for Electric Chainsaw Makita UC3041A 643650-4 Carbon Brush Holder Cover for Electric Chainsaw Makita UC3041A €2.43
36
 photo_cameraImage coming soon 911383-2 SCREW M6 X60 X 2702 €1.22
37
 photo_cameraImage coming soon 266029-8 SCREW M5X65 €3.41
37-1
 photo_cameraImage coming soon 266352-1 SCREW 5X65 MT901 €1.38
38
 photo_cameraImage coming soon 654020-2 RING TERMINAL 94 €1.40
39
 photo_cameraImage coming soon 416331-1 BAFFLE PLATE 2702 €2.58
40
 Ball Bearing 6202DD for Demolition Hammer Makita HM1800 211228-7 Ball Bearing 6202DD for Demolition Hammer Makita HM1800 €8.63
42
 photo_cameraImage coming soon 518765-5 ARMATURE 240V 2704 €68.29
43
 photo_cameraImage coming soon 681640-9 INSULATOR X 2702 €1.22
44
 photo_cameraImage coming soon 211088-7 BALL BEARING 6000-9527PB 9528PB €7.11
45
 photo_cameraImage coming soon 253198-4 FLAT WASHER 18 XJS3200 €2.17
46
 photo_cameraImage coming soon 261129-9 URETHANE WASHER 18 PER 2704 €1.67
53
 photo_cameraImage coming soon 922334-0 SCREW M6 X 20 FOR 2704 €1.67
54
 photo_cameraImage coming soon 344536-2 GEAR HOUSING PLATE 2702 €14.31
55
 photo_cameraImage coming soon 911213-7 SCREW M5X12 X 5143R €1.36
56
 photo_cameraImage coming soon 263005-3 PIN RUBBER 6 €1.32
57
 photo_cameraImage coming soon 323736-7 GUIDE BAR 2702 €14.31
58
 photo_cameraImage coming soon 266040-0 SCREW 4X25 CT €1.28
59
 photo_cameraImage coming soon 416340-0 GUIDE BAR RETAINER 2702 €1.67
63
 Ball Bearing 609 2RS for Pruning Scissor Makita 4604DW 211051-0 Ball Bearing 609 2RS for Pruning Scissor Makita 4604DW €11.19
64
 photo_cameraImage coming soon 154595-6 SPINDLE CPL 2704 €38.71
65
 photo_cameraImage coming soon 226602-6 GEAR 42 PER 2704 €14.31
66
 photo_cameraImage coming soon 267170-0 WASHER 34 X 2702 €3.18
67
 photo_cameraImage coming soon 211278-2 BALL BEARING 6203DDW RP0900/9 €9.89
68
 photo_cameraImage coming soon 324556-2 SPINDLE 2704 €10.87
69
 photo_cameraImage coming soon 316933-2 BEARING BOX 2702 €6.42
70
 photo_cameraImage coming soon 911233-1 HEAD SCREW M5X20 3600H €1.32
71
 photo_cameraImage coming soon 931502-4 HEX FULL NUT M10 €1.22
72
 photo_cameraImage coming soon 266040-0 SCREW 4X25 CT €1.28
73
 photo_cameraImage coming soon 322968-3 SCREW BAR X 2702 €14.31
74
 photo_cameraImage coming soon 961016-9 RETAINING RING E10 €1.40
75
 photo_cameraImage coming soon 416339-5 SCREW BAR RETAINER 2702 €1.67
77
 photo_cameraImage coming soon 226747-0 GEAR 2702 €14.31
79
 photo_cameraImage coming soon 226747-0 GEAR 2702 €14.31
82
 photo_cameraImage coming soon 324562-7 LOCK LEVER CONNECTOR 2704 €2.58
83
 photo_cameraImage coming soon 253024-7 WASHER 10 X LS1013 €1.33
85
 photo_cameraImage coming soon 322967-5 LOCK LEVER SHAFT 2702 €14.31
86
 photo_cameraImage coming soon 922232-8 SCREW M5X20 €1.44
87
 photo_cameraImage coming soon 272248-6 LEVER 120 PER 2704 €3.69
87
 photo_cameraImage coming soon 931202-6 NUT M5 X 4191D €1.36
88
 photo_cameraImage coming soon 324563-5 HANDLE SHAFT 2704 €2.58
89
 photo_cameraImage coming soon 266034-5 SCREW CT 4X16 €3.76
90
 photo_cameraImage coming soon 253143-9 WASHER 12 X 2702 €3.18
91
 photo_cameraImage coming soon 213107-5 O-RING 12 JR3000 / V €1.40
92
 photo_cameraImage coming soon 253052-2 WASHER 12 €1.40
94
 photo_cameraImage coming soon 345520-0 LEVER 2704 €1.67
95
 photo_cameraImage coming soon 344543-5 POINTER 2702 €1.67
97
 photo_cameraImage coming soon 271074-0 ARM 60 PER 2704 €3.69
97
 photo_cameraImage coming soon 931202-6 NUT M5 X 4191D €1.36
99
 photo_cameraImage coming soon 251382-5 SCREW M5 FOR 2704 €2.17
100
 photo_cameraImage coming soon 271423-1 KNOB 32 PER 2704 €2.17
101
 photo_cameraImage coming soon 267010-2 FLAT WASHER 5 XJS1650 €1.33
102
 photo_cameraImage coming soon 240003-4 FAN X 2702 €5.13
103
 photo_cameraImage coming soon 271073-2 HANDLE 100 2704 €5.61
105
 photo_cameraImage coming soon 252155-9 HEX NUT M12-19 X 2702 €2.17
106
 photo_cameraImage coming soon 224401-0 INNER FLANGE 53 PER 2704 €5.00
108
 photo_cameraImage coming soon 345534-9 HANDLE PLATE 2704 €5.00
109
 photo_cameraImage coming soon 257161-9 RING 4 PER 2704 €2.58
112
 photo_cameraImage coming soon 252130-5 NUT M10-17 €5.93
113
 photo_cameraImage coming soon 941251-5 FLAT WASHER 10 €1.36
114
 photo_cameraImage coming soon 911223-4 HEAD SCREW CILIND. M5X16 €1.44
115
 photo_cameraImage coming soon 345539-9 HANDLE PLATE HOLDER 2704 €3.69
116
 photo_cameraImage coming soon 345534-9 HANDLE PLATE 2704 €5.00
117
 photo_cameraImage coming soon 257161-9 RING 4 PER 2704 €2.58
118
 photo_cameraImage coming soon 941051-3 FLAT WASHER 4 €1.38
121
 photo_cameraImage coming soon 265536-8 SCREW M16x65 2704 €3.18
124
 photo_cameraImage coming soon 324559-6 HOOK RING 2704 €1.70
126
 photo_cameraImage coming soon 418655-1 ROD HOLDER 8 X LS0714FL €2.18
127
 photo_cameraImage coming soon 418655-1 ROD HOLDER 8 X LS0714FL €2.18
132
 photo_cameraImage coming soon 941051-3 FLAT WASHER 4 €1.38
133
 photo_cameraImage coming soon 257161-9 RING 4 PER 2704 €2.58
137
 photo_cameraImage coming soon 911128-8 SCREW M4x16 X HR4000C €2.74
138
 photo_cameraImage coming soon 911128-8 SCREW M4x16 X HR4000C €2.74
142
 photo_cameraImage coming soon 941051-3 FLAT WASHER 4 €1.38
143
 photo_cameraImage coming soon 257161-9 RING 4 PER 2704 €2.58
145
 photo_cameraImage coming soon 911128-8 SCREW M4x16 X HR4000C €2.74
146
 photo_cameraImage coming soon 418655-1 ROD HOLDER 8 X LS0714FL €2.18
147
 photo_cameraImage coming soon 911323-0 SCREW M6X16 X LS1013 €1.29
148
 photo_cameraImage coming soon 687049-3 CLAMP X 2702 €1.22
151
 photo_cameraImage coming soon 345628-0 PLATE 2704 €8.44
152
 photo_cameraImage coming soon 416333-7 RACK PLATE 2702 €3.18
153
 photo_cameraImage coming soon 911213-7 SCREW M5X12 X 5143R €1.36
154
 photo_cameraImage coming soon 418655-1 ROD HOLDER 8 X LS0714FL €2.18
156
 photo_cameraImage coming soon 324559-6 HOOK RING 2704 €1.70
158
 photo_cameraImage coming soon 911128-8 SCREW M4x16 X HR4000C €2.74
163
 photo_cameraImage coming soon 416439-1 GUIDE 2702 €2.17
164
 photo_cameraImage coming soon 266034-5 SCREW CT 4X16 €3.76
165
 photo_cameraImage coming soon 318253-0 FRAME 2704 €38.78
166
 photo_cameraImage coming soon 418917-7 DUST JOINT 2704 €8.44
168
 photo_cameraImage coming soon 154599-8 FRAME COVER 2704 €14.31
169
 photo_cameraImage coming soon 911114-9 SCREW M4 X 10 €1.40
170
 photo_cameraImage coming soon 911333-7 SCREW M6 X 20 X 2702 €1.36
174
 photo_cameraImage coming soon 266300-0 SCREW 4 X 18 X LS1040F €1.40
175
 photo_cameraImage coming soon 413097-4 SLIDE COVER FOR 2704 €16.33
176
 photo_cameraImage coming soon 266035-3 SCREW M5 X 12 9031 €1.40
177
 photo_cameraImage coming soon 418918-5 SWITCH BOX 2704 €5.00
179
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
180
 photo_cameraImage coming soon 687054-0 STRAIN RELIEFE HM1500 €1.93
181
 photo_cameraImage coming soon 418912-7 SWITCH SUPPORT FOR 2704 €7.23
183
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
185
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
186
 photo_cameraImage coming soon 687053-2 CLAMP cable tie €2.21
190
 Srew M4X14 for Hammers Makita HR4001C-HR4010C 266192-7 Srew M4X14 for Hammers Makita HR4001C-HR4010C €1.46
191
 photo_cameraImage coming soon 816844-6 GRADUATED PLATE FOR 2704 €2.58
194
 photo_cameraImage coming soon 418908-8 INSIDE COVER FOR 2704 €2.18
195
 photo_cameraImage coming soon 922146-1 BOLT ESAG.M4X25X4602DW €2.03
196
 photo_cameraImage coming soon 154705-5 TRACK FRONT. ESTER. FOR 2704 €28.26
199
 photo_cameraImage coming soon 317877-9 LOWER TABLE FOR 2704 €89.14
203
 photo_cameraImage coming soon 911233-1 HEAD SCREW M5X20 3600H €1.32
206
 photo_cameraImage coming soon 418907-0 EXTERNAL COVER FOR 2704 €2.58
210
 photo_cameraImage coming soon 213023-1 RING 4 X HR3000C €1.37
212
 photo_cameraImage coming soon 266264-8 SCREW M5 X 6 X BSR730 €1.36
214
 photo_cameraImage coming soon 418907-0 EXTERNAL COVER FOR 2704 €2.58
215
 photo_cameraImage coming soon 911233-1 HEAD SCREW M5X20 3600H €1.32
216
 photo_cameraImage coming soon 317867-2 RAIL POST. OUTSIDE FOR 2704 €24.42
222
 photo_cameraImage coming soon 345533-1 FRONT COVER FOR 2704 €12.28
223
 Srew M4X14 for Hammers Makita HR4001C-HR4010C 266192-7 Srew M4X14 for Hammers Makita HR4001C-HR4010C €1.46
225
 photo_cameraImage coming soon 911253-5 SCREW M 5 X 30 X JR3030T €1.42
226
 photo_cameraImage coming soon 922146-1 BOLT ESAG.M4X25X4602DW €2.03
227
 photo_cameraImage coming soon 418908-8 INSIDE COVER FOR 2704 €2.18
228
 photo_cameraImage coming soon 286212-1 HOOD 20 X LS1013 €1.29
230
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
231
 photo_cameraImage coming soon 687052-4 CLAMP cable clamp X 6408 €5.40
231
 photo_cameraImage coming soon 687053-2 CLAMP cable tie €2.21
232
 photo_cameraImage coming soon 682504-0 CORD GUARD 10/85 €3.84
232
 photo_cameraImage coming soon 682516-3 CORD ARMOR 9.3-85 €2.69
234
 photo_cameraImage coming soon 931302-2 NUT M6 HR4000C €1.46
235
 photo_cameraImage coming soon 271318-8 KNOB 37 PER 2704 €2.17
236
 photo_cameraImage coming soon 941151-9 WASHER 6 X HM1303 €3.66
237
 photo_cameraImage coming soon 921342-8 HEXAGON BOLT 6X25 €1.38
238
 photo_cameraImage coming soon 271320-1 KNOB 37 PER 2704 €5.00
239
 photo_cameraImage coming soon 252197-3 NUT M14 FOR 2704 €2.17
240
 photo_cameraImage coming soon 421926-7 SUPPORT FOR 2704 €4.30
241
 photo_cameraImage coming soon 931402-8 NUT M8 €3.18
242
 photo_cameraImage coming soon 253797-2 WASHER P.14 X HR2210 / 20 €4.43
243
 photo_cameraImage coming soon 265537-6 SCREW M14X65 FOR 2704 €7.23
310
 Ring 16 for Slide Compound Mitre Saw Makita LH1040F 257262-3 Ring 16 for Slide Compound Mitre Saw Makita LH1040F €2.13
312
 photo_cameraImage coming soon 345536-5 COVER FRAME FOR 2704 €38.78
313
 Srew M4X14 for Hammers Makita HR4001C-HR4010C 266192-7 Srew M4X14 for Hammers Makita HR4001C-HR4010C €1.46
315
 photo_cameraImage coming soon 418618-7 PIN X LH1040F €2.52
316
 photo_cameraImage coming soon 418616-1 SWITCH BUTTON ON LH1040F €3.70
317
 photo_cameraImage coming soon 443103-1 FELT RING 6 X LH1040F €1.33
318
 photo_cameraImage coming soon 443103-1 FELT RING 6 X LH1040F €1.33
319
 photo_cameraImage coming soon 231025-5 COMPRESION SPRING 8 X 8411DW €1.50
320
 photo_cameraImage coming soon 231025-5 COMPRESION SPRING 8 X 8411DW €1.50
321
 photo_cameraImage coming soon 253186-1 FLAT WASHER 7 X 420S €1.38
322
 photo_cameraImage coming soon 253186-1 FLAT WASHER 7 X 420S €1.38
323
 photo_cameraImage coming soon 418617-9 SWITCH BUTTON OFF X LH1040F €3.70
324
 Relay for Flip Over Table Saw Makita LF1000 652772-9 Relay for Flip Over Table Saw Makita LF1000 €66.83
326
 photo_cameraImage coming soon 654561-8 CLAMP X LH1040F €4.81
327
 Noise Suppressor for Cut-Off Machine Makita 2412N 645006-7 Noise Suppressor for Cut-Off Machine Makita 2412N €2.14
327
 Capacitor for Die Grinder Makita GD0801C 645089-7 Capacitor for Die Grinder Makita GD0801C €1.47
328
 photo_cameraImage coming soon 645105-5 NOISE SUPPRESSOR/CONDENSOR 64 €5.13
329
 photo_cameraImage coming soon 646049-2 Diode X JR3000VT €11.36
331
 photo_cameraImage coming soon 317879-5 SUPP. AUCTION SLIDING FOR 2704 €6.42
332
 photo_cameraImage coming soon 324564-3 AUCTION BACK FOR 2704 €8.44
333
 photo_cameraImage coming soon 345537-3 BANK BACK FOR 2704 €24.42
334
 photo_cameraImage coming soon 922221-3 Screw M5X16 X HM1303 €3.41
335
 photo_cameraImage coming soon 931502-4 HEX FULL NUT M10 €1.22
336
 photo_cameraImage coming soon 961016-9 RETAINING RING E10 €1.40
337
 photo_cameraImage coming soon 911233-1 HEAD SCREW M5X20 3600H €1.32
341
 photo_cameraImage coming soon 253010-8 FLAT WASHER 6 €1.22
342
 photo_cameraImage coming soon 252014-7 NUT M6-10 €2.24
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
108
 photo_cameraImage coming soon 345534-9 HANDLE PLATE 2704 €5.00
109
 photo_cameraImage coming soon 257161-9 RING 4 PER 2704 €2.58
112
 photo_cameraImage coming soon 252130-5 NUT M10-17 €5.93
113
 photo_cameraImage coming soon 941251-5 FLAT WASHER 10 €1.36
114
 photo_cameraImage coming soon 911223-4 HEAD SCREW CILIND. M5X16 €1.44
115
 photo_cameraImage coming soon 345539-9 HANDLE PLATE HOLDER 2704 €3.69
118
 photo_cameraImage coming soon 941051-3 FLAT WASHER 4 €1.38
121
 photo_cameraImage coming soon 265536-8 SCREW M16x65 2704 €3.18
124
 photo_cameraImage coming soon 324559-6 HOOK RING 2704 €1.70
126
 photo_cameraImage coming soon 418655-1 ROD HOLDER 8 X LS0714FL €2.18
137
 photo_cameraImage coming soon 911128-8 SCREW M4x16 X HR4000C €2.74
147
 photo_cameraImage coming soon 911323-0 SCREW M6X16 X LS1013 €1.29
148
 photo_cameraImage coming soon 687049-3 CLAMP X 2702 €1.22
152
 photo_cameraImage coming soon 416333-7 RACK PLATE 2702 €3.18
163
 photo_cameraImage coming soon 416439-1 GUIDE 2702 €2.17
165
 photo_cameraImage coming soon 318253-0 FRAME 2704 €38.78
166
 photo_cameraImage coming soon 418917-7 DUST JOINT 2704 €8.44
168
 photo_cameraImage coming soon 154599-8 FRAME COVER 2704 €14.31
169
 photo_cameraImage coming soon 911114-9 SCREW M4 X 10 €1.40
170
 photo_cameraImage coming soon 911333-7 SCREW M6 X 20 X 2702 €1.36
174
 photo_cameraImage coming soon 266300-0 SCREW 4 X 18 X LS1040F €1.40
175
 photo_cameraImage coming soon 413097-4 SLIDE COVER FOR 2704 €16.33
176
 photo_cameraImage coming soon 266035-3 SCREW M5 X 12 9031 €1.40
177
 photo_cameraImage coming soon 418918-5 SWITCH BOX 2704 €5.00
181
 photo_cameraImage coming soon 418912-7 SWITCH SUPPORT FOR 2704 €7.23
186
 photo_cameraImage coming soon 687053-2 CLAMP cable tie €2.21
190
 Srew M4X14 for Hammers Makita HR4001C-HR4010C 266192-7 Srew M4X14 for Hammers Makita HR4001C-HR4010C €1.46
312
 photo_cameraImage coming soon 345536-5 COVER FRAME FOR 2704 €38.78
315
 photo_cameraImage coming soon 418618-7 PIN X LH1040F €2.52
316
 photo_cameraImage coming soon 418616-1 SWITCH BUTTON ON LH1040F €3.70
317
 photo_cameraImage coming soon 443103-1 FELT RING 6 X LH1040F €1.33
319
 photo_cameraImage coming soon 231025-5 COMPRESION SPRING 8 X 8411DW €1.50
321
 photo_cameraImage coming soon 253186-1 FLAT WASHER 7 X 420S €1.38
323
 photo_cameraImage coming soon 418617-9 SWITCH BUTTON OFF X LH1040F €3.70
324
 Relay for Flip Over Table Saw Makita LF1000 652772-9 Relay for Flip Over Table Saw Makita LF1000 €66.83
326
 photo_cameraImage coming soon 654561-8 CLAMP X LH1040F €4.81
328
 photo_cameraImage coming soon 645105-5 NOISE SUPPRESSOR/CONDENSOR 64 €5.13
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
191
 photo_cameraImage coming soon 816844-6 GRADUATED PLATE FOR 2704 €2.58
194
 photo_cameraImage coming soon 418908-8 INSIDE COVER FOR 2704 €2.18
195
 photo_cameraImage coming soon 922146-1 BOLT ESAG.M4X25X4602DW €2.03
196
 photo_cameraImage coming soon 154705-5 TRACK FRONT. ESTER. FOR 2704 €28.26
199
 photo_cameraImage coming soon 317877-9 LOWER TABLE FOR 2704 €89.14
206
 photo_cameraImage coming soon 418907-0 EXTERNAL COVER FOR 2704 €2.58
210
 photo_cameraImage coming soon 213023-1 RING 4 X HR3000C €1.37
212
 photo_cameraImage coming soon 266264-8 SCREW M5 X 6 X BSR730 €1.36
216
 photo_cameraImage coming soon 317867-2 RAIL POST. OUTSIDE FOR 2704 €24.42
222
 photo_cameraImage coming soon 345533-1 FRONT COVER FOR 2704 €12.28
225
 photo_cameraImage coming soon 911253-5 SCREW M 5 X 30 X JR3030T €1.42
228
 photo_cameraImage coming soon 286212-1 HOOD 20 X LS1013 €1.29
231
 photo_cameraImage coming soon 687052-4 CLAMP cable clamp X 6408 €5.40
232
 photo_cameraImage coming soon 682504-0 CORD GUARD 10/85 €3.84
232
 photo_cameraImage coming soon 682516-3 CORD ARMOR 9.3-85 €2.69
234
 photo_cameraImage coming soon 931302-2 NUT M6 HR4000C €1.46
235
 photo_cameraImage coming soon 271318-8 KNOB 37 PER 2704 €2.17
237
 photo_cameraImage coming soon 921342-8 HEXAGON BOLT 6X25 €1.38
238
 photo_cameraImage coming soon 271320-1 KNOB 37 PER 2704 €5.00
239
 photo_cameraImage coming soon 252197-3 NUT M14 FOR 2704 €2.17
240
 photo_cameraImage coming soon 421926-7 SUPPORT FOR 2704 €4.30
241
 photo_cameraImage coming soon 931402-8 NUT M8 €3.18
242
 photo_cameraImage coming soon 253797-2 WASHER P.14 X HR2210 / 20 €4.43
243
 photo_cameraImage coming soon 265537-6 SCREW M14X65 FOR 2704 €7.23
Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
331
 photo_cameraImage coming soon 317879-5 SUPP. AUCTION SLIDING FOR 2704 €6.42
332
 photo_cameraImage coming soon 324564-3 AUCTION BACK FOR 2704 €8.44
333
 photo_cameraImage coming soon 345537-3 BANK BACK FOR 2704 €24.42
334
 photo_cameraImage coming soon 922221-3 Screw M5X16 X HM1303 €3.41

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for 260MM Table Saw 2704N

We supply original MAKITA spare parts on offer at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Contractors 15 Amp 10-Inch Benchtop Table Saw 2704N.

In the following table, look for the model of the Bench Saw and the respective parts of the code.

Makita 2704N Table Saw Spare Parts
2 268135-5 SHOULDER PIN 10 2704
3 253758-2 THIN HARD WASHER 10 BST220/KP
4 418910-1 *SUB COVER 2704
7 253758-2 THIN HARD WASHER 10 BST220/KP
8 961015-1 EXT E-RING JIS JE9 1902/1219&L
12 941151-9 FLAT WASHER 6 DIN125-B BHS630
14 911138-5 PAN HD SCREW M4X20 9032/LS081
15 931102-0 HEX FULL NUT M4 DUR181/ML123
20 941151-9 FLAT WASHER 6 DIN125-B BHS630
21 252014-7 NYLON INSERT NUT M6-10 LS1013
23 345583-6 LOCK LEVER 2704
24 951104-0 TENSION PIN 4-12 DIN 1481
26 253731-2 HARD WASHER 8 LS800D/DLS714
29 265995-6 PT SCREW 4X18 UH4570/55/65/55
30 416341-8 COVER 2702/2704
31 265995-6 PT SCREW 4X18 UH4570/55/65/55
32 687054-0 STRAIN RELIEF 3612C/5103R/411
33 643653-8 BRUSH HOLDER CB-5 6 . 5=13 . 5
33 154602-5 MOTOR HOUSING CO 2704
34 181044-0 CARBON BRUSH CB-153 (CB-22)/9
35 643650-4 BRUSH HOLDER CAP CB-5/HS6100
36 911383-2 PAN HEAD SCREW M6X60 LS1030
37 266029-8 PT SCREW 5X65 5703R
37-1 266352-1 TAPPING SCREW 5X65 SMA910/M90
38 654553-7 CONNECTOR 34137 4157KB
38 654020-2 TERMINAL RING FOR FIELD CB-5
39 416331-1 BAFFLE PLATE 2704/2702
40 211228-7 BALL BEARING 6202DDW BO3710/1
42 518765-5 ARMATURE 240V 2704
42 510070-6 ARMATURE 110V 2704
43 681640-9 INSULATION WASHER LS1040/F
44 211088-7 BALL BEARING 6000DDW
45 253198-4 SPECIAL WASHER 18 JS3200
46 261129-9 URETHANE WASHER 18 2704
48 921331-3 HEX BOLT M6X20 2704
53 922334-0 HEX SOCKET HD BOLT M6X20 2704
54 344536-2 GEAR HOUSING PLATE 2702/2704
55 911213-7 PAN HEAD SCREW M5X12 ER2550
56 263005-3 RUBBER PIN 6 DUR/DHR/DTW/DG
57 323736-7 GUIDE BAR 2704/2702
58 266040-0 CT SCREW M4X25
59 416340-0 GUIDE BAR RETAINER 2704/2704
63 211051-0 BALL BEARING 609LLB BUC121/12
64 154595-6 SPINDLE 2704
65 226602-6 HELICAL GEAR 42 2704
66 267170-0 FLAT WASHER 34 TW1000/2702
67 211278-2 BALL BEARING 6203DDW RP0900/9
68 324556-2 SPINDLE 2704
69 316933-2 BEARING BOX 2704/2702
70 911233-1 PAN HD SCREW M5X20 W/CP WASHER
71 931502-4 HEX FULLNUT M10 2708/LF1000
72 266040-0 CT SCREW M4X25
73 322968-3 SCREW BAR 2704/2702
74 961016-9 EXT E-RING JIS JE-10 BHR262
75 416339-5 SCREW BAR RETAINER 2702
76 941302-4 FLAT WASHER 12 DIN125-A 2704
77 226747-0 STRAIGHT BEVEL GEAR 2704/2702
78 951116-3 TENSION PIN 4-20 DIN 1481 903
79 226747-0 STRAIGHT BEVEL GEAR 2704/2702
80 941302-4 FLAT WASHER 12 DIN125-A 2704
81 951116-3 TENSION PIN 4-20 DIN 1481 903
82 324562-7 LOCK LVER CONNECTOR 2704
83 253024-7 FLAT WASHER 10 LS1013/LF1000
85 322967-5 LOCK LEVER SHAFT 2704/2702
86 922232-8 CAP HD SCREW M5X20 JS3200/CA
87 931202-6 HEX FULL NUT M5 RP0900/AN510
87 272248-6 LEVER 120 2704
88 324563-5 HANDLE SHAFT 2704
89 266034-5 CT SCREW M4X16 HS6100/DLS714
90 253143-9 NARROW WASHER 12 4110C
91 213107-5 O RING 12 JR3000/BFR540/550
92 253052-2 NARROW THIN WASHER 12 TW100D
93 214114-1 PLANE BEARING 6410
94 345520-0 STAY 2704
95 344543-5 POINTER 2704/2702
96 922103-9 CAP HD SCREW M4X6
97 271074-0 ARM 60 2704
97 931202-6 HEX FULL NUT M5 RP0900/AN510
99 251382-5 PAN HD SCREW 2704
100 271423-1 KNOB 32 2704
101 267010-2 BLUE WASHER 5 JS1660/PM7651H
102 240003-4 FAN 80 HM1317C-CB/2702/LF1000
103 271073-2 HANDLE 100 2704
105 252155-9 HEX . NUT M12-19 2704
106 224401-0 INNER FLANGE 53 2704
107 273523-3 GRIP 2704 273523-3 . A2273523-3
108 345534-9 HANDLE PLATE 2704
109 257161-9 RING 4 2704
111 922116-0 HEX SOCKET HD BOLT M4X12 2704
112 252130-5 NYLON INSERT NUT M10X17 2414B
113 941251-5 FLAT WASHER 10 DIN125-B N1923
114 911223-4 PAN HD SCREW 5X16 W/CP/DLS714
115 345539-9 HANDLE PLATE HOLDER 2704
116 345534-9 HANDLE PLATE 2704
117 257161-9 RING 4 2704
118 941051-3 FLAT WASHER 4 DIN125 - B BHX2
119 922116-0 HEX SOCKET HD BOLT M4X12 2704
120 257753-4 SLEEVE 10 2704
121 265536-8 HEX BOLT M16X65 2704
122 273523-3 GRIP 2704
123 265382-9 HEX S HD BOLT M5X20 2704
124 324559-6 HOOK RING 2704
125 233229-5 COMPRESSION SPRING 8 2704
126 418655-1 ROD HOLDER LS0714/FL/2704
127 418655-1 ROD HOLDER LS0714/FL/2704
128 345535-7 JOINT PLATE 2704
130 922116-0 HEX SOCKET HD BOLT M4X12 2704
131 922116-0 HEX SOCKET HD BOLT M4X12 2704
132 941051-3 FLAT WASHER 4 DIN125 - B BHX2
133 257161-9 RING 4 2704
134 324675-4 ROD JOINT 2704
135 324673-8 ROD R 2704
136 324674-6 ROD F 2704
137 911128-8 PAN HEAD SCREW M4X16 BHX2501
138 911128-8 PAN HEAD SCREW M4X16 BHX2501
140 922116-0 HEX SOCKET HD BOLT M4X12 2704
141 922116-0 HEX SOCKET HD BOLT M4X12 2704
142 941051-3 FLAT WASHER 4 DIN125 - B BHX2
143 257161-9 RING 4 2704
144 324675-4 ROD JOINT 2704
145 911128-8 PAN HEAD SCREW M4X16 BHX2501
146 418655-1 ROD HOLDER LS0714/FL/2704
147 911323-0 PAN HD SCREW M6X16 LS1013
148 687049-3 STRAIN RELIEF LF1000
149 251308-7 PAN HD SCREW M4X10 3703
151 345628-0 PLATE 2704/2702
152 416333-7 RACK PLATE 2704/2702
153 911213-7 PAN HEAD SCREW M5X12 ER2550
154 418655-1 ROD HOLDER LS0714/FL/2704
155 233229-5 COMPRESSION SPRING 8 2704
156 324559-6 HOOK RING 2704
157 265382-9 HEX S HD BOLT M5X20 2704
158 911128-8 PAN HEAD SCREW M4X16 BHX2501
159 318020-3 ADJUST BLOCK 2704
160 344529-9 SLIDE SEAT 2704/2702
161 232174-1 LEAF SPRING 2704
162 345535-7 JOINT PLATE 2704
163 416439-1 DUST GUIDE 2702/2704
164 266034-5 CT SCREW M4X16 HS6100/DLS714
165 318253-0 FRAME 2704
166 418917-7 DUST JOINT 2704
167 266061-2 CT SCREW M4X8 JN1601/DLS714
168 154599-8 FRAME COVER CO 2704
169 911114-9 PAN HD SCREW M4X10/DLS714
170 911333-7 PAN HD SCREW M6X20 2414B/NB
172 265460-5 *HEX HD SCREW M6X20
174 266300-0 TAPPING SCREW 4X18 LS1040F/HM
175 413097-4 SLIDE COVER 2704
176 266035-3 CT SCREW M5X12 9031
177 418918-5 SWITCH BOX 2704
179 265995-6 PT SCREW 4X18 UH4570/55/65/55
180 687054-0 STRAIN RELIEF 3612C/5103R/411
181 418912-7 SWITCH BASE 2704
183 265995-6 PT SCREW 4X18 UH4570/55/65/55
185 265995-6 PT SCREW 4X18 UH4570/55/65/55
186 687053-2 STRAIN RELIEF 110V UK360/HS61
190 266192-7 TAPPING SCREW 4X14 VC3211M
191 816844-6 INNER SCALE PLATE 2704
192 251308-7 PAN HD SCREW M4X10 3703
194 418908-8 INNER RAIL END 2704
195 922146-1 CAP HD SCREW M4X25 4300BA
196 154705-5 FRONT OUTER RAIL CO 2704
196 816843-8 OUTER SCALE PLATE 2704
199 317877-9 SUB TABLE 2704
202 158104-3 FRONT INNER RAIL 2704
203 911233-1 PAN HD SCREW M5X20 W/CP WASHE
206 418907-0 OUTER RAIL END 2704
207 265045-7 PAN HD SCREW M5X18 2704
210 213023-1 O RING 4 BPJ140/180/BURAT1827H
212 266264-8 GRUB SCREW M5X6 BPJ140/BPJ180
214 418907-0 OUTER RAIL END 2704
215 911233-1 PAN HD SCREW M5X20 W/CP WASHER
216 317867-2 REAR OUTER RAIL 2704
217 345529-2 RAIL STOPPER 2704
218 251308-7 PAN HD SCREW M4X10 3703
221 158103-5 REAR INNER RAIL 2704
222 345533-1 BASE FRONT COVER 2704
223 266192-7 TAPPING SCREW 4X14 VC3211M
225 911253-5 PAN HD SCREW M5X30 W/CP WASHER
226 922146-1 CAP HD SCREW M4X25 4300BA
227 418908-8 INNER RAIL END 2704
228 286212-1 CAP 20 LS1030/LC1230/LS800DWB
229 154608-3 BASE 2704
229 810107-2 LABEL/CAUTION 2704
229 819176-0 MAKITA LOGO PLATE 2704
230 265995-6 PT SCREW 4X18 UH4570/55/65/55
231 687052-4 STRAIN RELIEF HS7100/BO5041
231 687053-2 STRAIN RELIEF 110V UK360/HS61
232 682504-0 CORD GUARD HP1641/BO5031/HP16
232 682516-3 CORD GUARD 9 . 3-85 MT814/815
233 692527-0 LEAD WIRE HS7100/GD0801C/HP16
234 931302-2 HEX FULL NUT M6 LF1000/DST111
235 271318-8 KNOB 37 2704
236 941151-9 FLAT WASHER 6 DIN125-B BHS630
237 921342-8 HEX HD SCREW M6X25/LF1000
238 271320-1 KNOB 37 2704
239 252197-3 HEX NUT M14 2704
240 421926-7 HOLDER 2704
241 931402-8 HEX FULLNUT M8 LS1013/HR1840
242 253797-2 HARD NARROW WASHER 14 HR2210
243 265537-6 HEX BOLT M14X65 2704
244 921462-8 HEX HD SCREW M8X40 9031
246 911344-2 PAN HD SCREW M6X25 2702
310 257262-3 RING 16 LS1214/LS1013/LS1040
311 262559-7 SLEEVE 14 2704
312 345536-5 BASE UNDER COVER 2704
313 266192-7 TAPPING SCREW 4X14 VC3211M
315 418618-7 PIN LH1040/F/LF1000
316 418616-1 SWITCH BUTTON ON LH1040/F
317 443103-1 FELT RING 6 LH1040/F/LF1000
318 443103-1 FELT RING 6 LH1040/F/LF1000
319 231025-5 COMPRESSION SPRING 8 PS32TLC
320 231025-5 COMPRESSION SPRING 8 PS32TLC
321 253186-1 THIN WASHER 7 HR160D/LF1000
322 253186-1 THIN WASHER 7 HR160D/LF1000
323 418617-9 SWITCH BUTTON OFF LH1040/FLF1
324 652772-9 RELAY 305 . 232 . 01 240V LS1040
325 631612-4 SOFT START CIRCUIT 110V LS10
326 654561-8 TERMINAL BLOCK 2012NB/LH1040
327 645089-7 NOISE SUPPRESSOR GD0801C/0811
327 645006-7 NOISE SUPPRESSOR/CONDENSOR 64
328 645105-5 NOISE SUPPRESSOR/CONDENSOR 64
329 646049-2 CHOKE COIL HR2420/JR3060T/307
331 317879-5 SLIDE ROD HOLDER 2704
332 324564-3 REAR ROD 2704
333 345537-3 REAR TABLE 2704
334 922221-3 CAP HD SCREW M5X16 HM1200
335 931502-4 HEX FULLNUT M10 2708/LF1000
336 961016-9 EXT E-RING JIS JE-10 BHR262
337 911233-1 PAN HD SCREW M5X20 W/CP WASHER
341 253010-8 LARGE FLAT WSHER 6 5100BR
342 252014-7 NYLON INSERT NUT M6-10 LS1013
A02 419093-0 JOINT 2704
A04 781038-1 WRENCH 19 2704
A05 782024-5 WRENCH 13-22 2704
A06 783203-8 HEX WRENCH 5 BHS630/PC5000/01C
A07 127069-0 *ANGLE RULE ASSY 2704
A08 122739-6 RULER ASSY 2704

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Makita 2704N
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Makita 2704N

Drawing Makita 2704N

Download (1.34MB)

You might also like

Retaining Ring E9 for Planer Makita 1923B-N1923B
Makita SKU: 961015-1
Retaining Ring E9 for Planer Makita 1923B-N1923B
Retaining Ring E9 for Planer Makita 1923B-N1923B Genuine part Makita, Retaining Ring E9 6221DW for Planer N1923B - 1923b - Table Saw 2704. Parts for the following products: - Table Saw 2704 - Planer Makita N1923B - Planer Makita 1923b...
AVAILABLE €1.43
Details
Carbon Brush Holder Cover for Electric Chainsaw Makita UC3041A
Makita SKU: 643650-4
Carbon Brush Holder Cover for Electric Chainsaw Makita UC3041A
Carbon Brush Holder Cover for Electric Chainsaw Makita UC3041A Genuine parts Makita, Carbon Brush Holder Cover for Electric Chainsaws UC3041A - UC3030A - UC3530A - UC3551A - UC4030A - UC4051A - DOLMAR ES2135A  - ES2136TLC - ES2140A -...
AVAILABLE €2.43
Details
Srew M4X14 for Hammers Makita HR4001C-HR4010C
Makita SKU: 266192-7
Srew M4X14 for Hammers Makita HR4001C-HR4010C
Srew M4X14 for Hammers Makita HR4001C-HR4010C Original spare Makita, Srew M4X14 for Demolition Hammers Makita HR4001C - HR4010C Parts for the following products: - Demolition Hammer HR4001C -...
AVAILABLE €1.46
Details
Angle Rail for 260 mm Table Saw Makita 2704
Makita SKU: 317872-9
Angle Rail for 260 mm Table Saw Makita 2704
Angle Rail for 260 mm Table Saw Makita 2704 Original replacement part Makita, Angle Rail for 260 mm Table Saw Makita 2704. Part for the following products: - 260 mm Table Saw Makita 2704 - Code: 317872-9
AVAILABLE €33.30
Details
Ring 16 for Slide Compound Mitre Saw Makita LH1040F
Makita SKU: 257262-3
Ring 16 for Slide Compound Mitre Saw Makita LH1040F
Ring 16 for Slide Compound Mitre Saw Makita LH1040F Original replacement part Makita, Ring 16 for Slide Compound Mitre Saws LH1040F -  LS1013 - LS1019L - LS1040F - Table Saw 2704. Part for the following products: - 2704 - TABLE SAW...
AVAILABLE €2.13
Details
Work Table Cover for 260 mm Table Saw Makita 2704
Makita SKU: 126901-5
Work Table Cover for 260 mm Table Saw Makita 2704
Work Table Cover for 260 mm Table Saw Makita 2704 Original replacement part Makita, Work Table Cover for 260 mm Table Saw Makita 2704. Part for the following products: - 260 mm Table Saw Makita 2704 - Code: 126901-5
AVAILABLE €33.90
Details
Flat Washer 10 for 260 mm Table Saw Makita 2704
Makita SKU: 253758-2
Flat Washer 10 for 260 mm Table Saw Makita 2704
Flat Washer 10 for 260 mm Table Saw Makita 2704 Original replacement part Makita, Flat Washer 10 for 260 mm Table Saw Makita 2704. Part for the following products: - 2012 - THICKNESSER PLANER 304 - 2704 - TABLE SAW 260MM 1650W - 2704...
AVAILABLE €1.43
Details
Riving Knife Holder for Table Saw Makita 2704
Makita SKU: 317871-1
Riving Knife Holder for Table Saw Makita 2704
Riving Knife Holder for Table Saw Makita 2704 Original replacement part Makita, Riving Knife Holder for 260 mm Table Saw Makita 2704. Part for the following products: - 260 mm Table Saw Makita 2704 - Code: 317871-1
AVAILABLE €11.38
Details
Noise Suppressor for Cut-Off Machine Makita 2412N
Makita SKU: 645006-7
Noise Suppressor for Cut-Off Machine Makita 2412N
Noise Suppressor for Cut-Off Machine Makita 2412N Genuine part Makita, Capacitor Noise Suppressor 0,047μF KX2 275V for Cut-Off Machines 2412N - 2414 - 2414K. Part for the following...
Last items in stock €2.14
Details
Relay for Flip Over Table Saw Makita LF1000
Makita SKU: 652772-9
Relay for Flip Over Table Saw Makita LF1000
Relay for Flip Over Table Saw Makita LF1000 Genuine replacement part Makita, Relay 305.232.01 for Flip Over Table Saw LF1000 - 2704 - Table Saw 260MM 1650W - LH1040F - Table Saw 1650W...
Last items in stock €66.83
Details
Ball Bearing 609 2RS for Pruning Scissor Makita 4604DW
Makita SKU: 211051-0
Ball Bearing 609 2RS for Pruning Scissor Makita 4604DW
Ball Bearing 609 2RS for Pruning Scissor Makita 4604DW Genuine replacement part Makita, Ball Bearing 609 2RS for Pruning Scissor 24V 4604DW. Part for the following products: -  4604DW - PRUNING SCISSOR 24V MAKITA - Code : 211051-0
on 7/10 Business Days Approx €11.19
Details
Capacitor for Die Grinder Makita GD0801C
Makita SKU: 645089-7
Capacitor for Die Grinder Makita GD0801C
Capacitor for Die Grinder Makita GD0801C Genuine part Makita, Noise Suppressor Capacitor for Die Grinder GD0801C - GD0811C Part for the following products: -  GD0801C - DIE GRINDER 8mm7-28K...
on 7/10 Business Days Approx €1.47
Details
Comments (0)
