Makita

Makita Spare Parts for Circular Saws 5703R

SKU: Makita 5703R
€5.24
VAT included

Makita Spare Parts for Circular Saw 5703R

We have the original Spares MAKITA for Circular Saw 5703R the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Circular Saw 5703R. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Makita Spare Parts for Circular Saws 5703R
  • Makita Spare Parts for Circular Saws 5703R
  • Makita Spare Parts for Circular Saws 5703R
Makita

Makita Spare Parts for Circular Saws 5703R

SKU: Makita 5703R Condition: New
€5.24
VAT included

Makita Spare Parts for Circular Saw 5703R

We have the original Spares MAKITA for Circular Saw 5703R the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Circular Saw 5703R. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 65 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
65 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

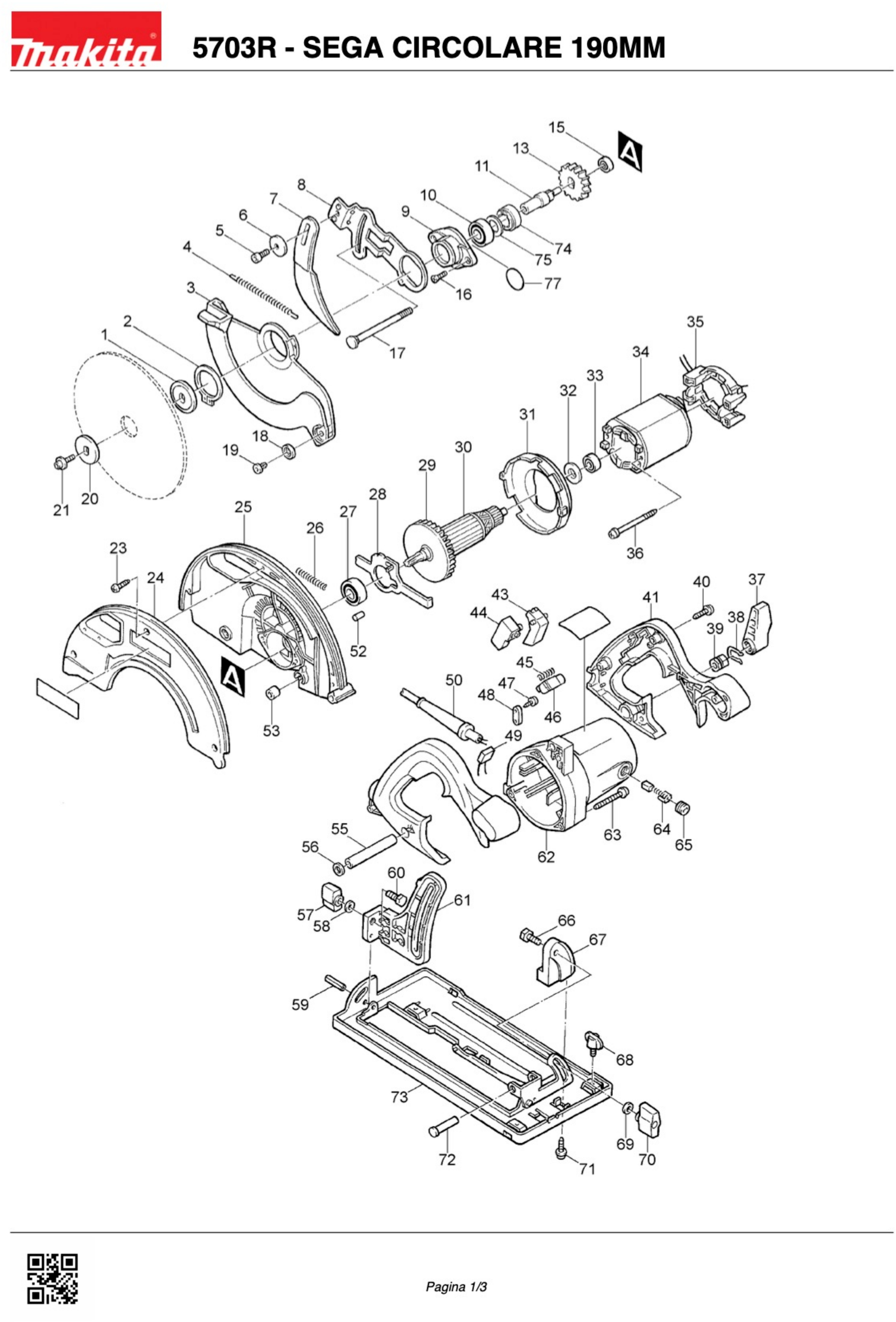

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 224339-9 INNER FLANGE 40 X 5703R - Com. Tecnica CT16-1 €4.12
2
 photo_cameraImage coming soon 961156-3 STOP RING S40 €5.24
3
 photo_cameraImage coming soon 317439-3 SAFETY COVER 5705R €32.28
5
 photo_cameraImage coming soon 922312-0 BOLT M6 X 12 €1.33
6
 photo_cameraImage coming soon 253783-3 FLAT WASHER 6 €3.18
7
 photo_cameraImage coming soon 165094-3 RIVING KNIFE 5703R €11.59
8
 photo_cameraImage coming soon 345733-3 RIVING KNIFE HOLDER €13.31
9
 photo_cameraImage coming soon 317469-4 BEARING BOX X 5703R - Com. Tecnica CT16-1 €15.18
10
 photo_cameraImage coming soon 211236-8 BEARING 6002DDW X 5705R €9.72
11
 photo_cameraImage coming soon 322922-7 SPINDLE X 5703R - Com. Tecnica CT16-1 €7.50
13
 photo_cameraImage coming soon 226473-1 HELICAL GEAR 41 5703R/5017RKB - Com. Tecnica CT16-1 €22.62
15
 Ball Bearing 608DDW for Jigsaw Makita 4327 210005-4 Ball Bearing 608DDW for Jigsaw Makita 4327 €5.16
16
 photo_cameraImage coming soon 265034-2 SCREW M5 X 16 €1.33
17
 photo_cameraImage coming soon 266019-1 BOLT M8X98 €3.67
18
 photo_cameraImage coming soon 415438-0 WASHER 20 €1.34
19
 photo_cameraImage coming soon 415437-2 PIN 6 X 5903R €1.34
20
 photo_cameraImage coming soon 224338-1 OUTER FLANGE 40 X 5703R - Com. Tecnica CT16-1 €6.81
21
 photo_cameraImage coming soon 266139-1 CAP HD SCEW M6X20 W.CAP WASHER 5603R - Com. Tecnica CT16-1 €1.69
23
 photo_cameraImage coming soon 266042-6 SCREW 4X20 X 2107FK €2.74
24
 photo_cameraImage coming soon 316576-0 BLADE CASE COVER 5703R €35.82
25
 photo_cameraImage coming soon 152545-5 BLADE CASE COMLETE 5703R - Com. Tecnica CT16-1 €67.98
26
 photo_cameraImage coming soon 233092-6 COMPRESSION SPRING 5 €3.18
27
 photo_cameraImage coming soon 211236-8 BEARING 6002DDW X 5705R €9.72
28
 photo_cameraImage coming soon 344114-8 SHAFT LOCK 5703R/5603R/5017RKB €4.12
29
 Fan 76 for Rotary Hammer Makita HR4001C 241876-8 Fan 76 for Rotary Hammer Makita HR4001C €7.77
30
 photo_cameraImage coming soon 516203-1 ARMATURE ASS'Y 240V FOR 5703R €100.54
31
 photo_cameraImage coming soon 415460-7 BAFFLE PLATE 5703R/5017RKB €3.09
32
 Armature Insulation Washer for Stonecutter HK1810 - HK1800 681625-5 Armature Insulation Washer for Stonecutter HK1810 - HK1800 €2.72
33
 Ball Bearing 608DDW for Jigsaw Makita 4327 210005-4 Ball Bearing 608DDW for Jigsaw Makita 4327 €5.16
34
 photo_cameraImage coming soon 634213-7 FIELD 240V FOR 5703R €28.57
35
 photo_cameraImage coming soon 135793-1 FIELD SUPPORT €7.92
36
 photo_cameraImage coming soon 266029-8 SCREW M5X65 €3.41
37
 photo_cameraImage coming soon 272230-5 LEVER 54 €3.77
38
 photo_cameraImage coming soon 231955-0 SPRING RETAINER 12 X 5903R €2.06
39
 photo_cameraImage coming soon 252134-7 NUT M8 €4.91
40
 photo_cameraImage coming soon 266041-8 PT SCREW 5x25 €1.24
41
 photo_cameraImage coming soon 182675-8 HANDLE SET 5703R/5603R €17.22
43
 photo_cameraImage coming soon 415439-8 LEVER SWITCH €2.99
44
 Switch for Polisher Makita SA7000 651922-3 Switch for Polisher Makita SA7000 €32.80
45
 photo_cameraImage coming soon 231230-4 SPRING COMPRESSION 4 €1.40
46
 photo_cameraImage coming soon 415440-3 LOCK BUTTON €2.57
47
 Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
48
 photo_cameraImage coming soon 687063-9 CABLE TIE X 4304T €3.18
49
 Noise Suppressor for Cut-Off Machine Makita 2412N 645006-7 Noise Suppressor for Cut-Off Machine Makita 2412N €2.14
50
 photo_cameraImage coming soon 682503-2 SLEEVE PROTECTING_COVER X HM1500 €2.69
52
 photo_cameraImage coming soon 263005-3 PIN RUBBER 6 €1.32
53
 photo_cameraImage coming soon 262511-5 RUBBER REDUCTION X HM1300 €3.18
55
 photo_cameraImage coming soon 331432-3 PIPE 9 5903R/5603R/BSR730S €3.40
56
 photo_cameraImage coming soon 941201-0 FLAT WASHER 8 €3.18
57
 photo_cameraImage coming soon 252624-0 NUT M6 €3.67
58
 photo_cameraImage coming soon 941151-9 WASHER 6 X HM1303 €3.66
60
 photo_cameraImage coming soon 921332-1 HEXAGONAL BUTTON M6X20 €1.28
61
 photo_cameraImage coming soon 316578-6 DEPTH GUIDE 5703R/5017RKB €19.45
62
 photo_cameraImage coming soon 159714-9 MOTOR HOUSING COMPLETE 5703R/5 €45.88
64
 Carbon Brushes CB-303 for Belt Sander Makita 9920X 191963-2 Carbon Brushes CB-303 for Belt Sander Makita 9920X €9.96
65
 Carbon Brush Holder Cap for Hammer Makita HM1100 - HM1100C 643750-0 Carbon Brush Holder Cap for Hammer Makita HM1100 - HM1100C €2.51
66
 photo_cameraImage coming soon 921332-1 HEXAGONAL BUTTON M6X20 €1.28
67
 photo_cameraImage coming soon 415443-7 ANGULAR PLATE GUIDE 5703R/5603 €4.77
68
 photo_cameraImage coming soon 251887-5 BUTTERFLY SCREW M6x10 €2.52
69
 photo_cameraImage coming soon 941151-9 WASHER 6 X HM1303 €3.66
70
 photo_cameraImage coming soon 252624-0 NUT M6 €3.67
71
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
72
 photo_cameraImage coming soon 256690-9 PIN 10 5703R/5603R €2.22
73
 photo_cameraImage coming soon 168267-7 BASE 5703R €59.92
74
 photo_cameraImage coming soon 285831-0 BEARING RETAINER 19-34 5703R/5 €3.18
77
 Ring 44 O-R for Circular Saws Makita 213560-5 Ring 44 O-R for Circular Saws Makita €4.19
1001
 photo_cameraImage coming soon 165108-8 GUIDE RAIL €15.92
1002
 photo_cameraImage coming soon 783203-8 HEX. WRENCH 5 €2.17
5003
 photo_cameraImage coming soon 192420-3 INTAKE ADAPTOR JOINT €3.92
5005
 photo_cameraImage coming soon 654091-9 NON INSULATED TERMINAL HM0870 HM0871-TD0101F-N910-RP0900- GA5020 - GA5021-JR-LC1230-HR2432-HM1810-SMA40 €1.40

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Circular Saws 5703R

We have the original Spares MAKITA for Circular Saw 5703R the diagram, parts list and tool repair that help you need to get your tools running like new again.

In the following table, look for the model of Circular Saw and the respective parts of the code.
Circular Saw 5703R

5703R - Corded Adjustble 190 mm Circular Saw
# Part NUm. Description
1 224339-9 INNER FLANGE 40 X 5703R - Com. Tecnica CT16-1
2 961156-3 RETAINING RING S40
3 317439-3 SAFETY COVER 5705R
4 231845-7 TENSION SPRING 4 X 5017RKB
5 922312-0 CAP HD SCREW M6X12 2414B
6 253783-3 LARGE HARD WASHER 6
7 165094-3 RIVING KNIFE 5703R
8 345733-3 RIVING KNIFE HOLDER
9 317469-4 BEARING BOX X 5703R - Com. Tecnica CT16-1
10 211236-8 BEARING 6002DDW X 5705R - Com. Tecnica CT16-1
11 322922-7 SPINDLE X 5703R - Com. Tecnica CT16-1
13 226473-1 HELICAL GEAR 41 5703R/5017RKB - Com. Tecnica CT16-1
15 210005-4 BALL BEARING 608 DDW - Com. Tecnica CT16-1
16 265034-2 C/SUNK HD SCREW M5X16
17 266019-1 CAP SQUARE NECK BOLT M8X98 590
18 415438-0 ROLLER 20 5903R/5603R/5604R
19 415437-2 ROLLER PIN 6 5903R/5603R/5604R
20 224338-1 OUTER FLANGE 40 X 5703R - Com. Tecnica CT16-1
21 266139-1 CAP HD SCEW M6X20 W.CAP WASHER 5603R - Com. Tecnica CT16-1
23 266042-6 CT SCREW M4X20 5703R - 2107FK
24 316576-0 BLADE CASE COVER 5703R
25 152545-5 BLADE CASE COMLETE 5703R - Com. Tecnica CT16-1
26 233092-6 COMPRESSION SPRING 5
27 211236-8 BALL BEARING 6002DDW GA5020/21 X 5705R
28 344114-8 SHAFT LOCK 5703R/5603R/5017RKB
29 241876-8 FAN 76 HR4000C/5017RKB/4131
30 516203-1 ARMATURE ASS'Y 240V FOR 5703R
31 415460-7 BAFFLE PLATE 5703R/5017RKB
32 681625-5 INSULATION WASHER 4157KB 9741/5603R/9 HK1810
33 210005-4 BALL BEARING 608 DDW
34 634213-7 FIELD 240V FOR 5703R
35 135793-1 FIELD SUPPORT
36 266029-8 SCREW M5X65
37 272230-5 LEVER 54 5903R/5603R/BSR730S
38 231955-0 RING SPRING 12 X 5903R
39 252134-7 NUT M8
40 266041-8 SCREW PT 5X25
41 182675-8 HANDLE SET 5703R/5603R
43 415439-8 SWITCH LEVER 5903R/5603R/5143R
44 651922-3 SWITCH TG71B PC5000 / 5001C / KP08KP0810 / C
HM1303B / HR3000C / LC1230 / 8406C / GA5021 / 4304 / 2414BNB
45 231230-4 COMPRESSION SPRING 4
46 415440-3 LOCK-OFF BUTTON 5903R/5603R/51
47 265995-6 PT SCREW 4X18 KP0810C LF1000 6408 / 6221DW
48 687063-9 STRAIN RELIEF UH4570 / 55 / 5580 / 66570 / 6580 / 3707 / 3708
2414NB 9920 / HR2400 / RP1100C 4304T
49 645006-7 NOISE SUPPRESSOR X LS1013
50 682503-2 CORD GUARD USE 682505-8 HM1500
52 263005-3 RUBBER PIN 6 RP0900 / BST220 / 21 BSS221 / LS800DWB
2414B / NB / BHP BHP343 / BHP45
53 262511-5 RUBBER SLEEVE 6 M241 5603R/04R HM1300
55 331432-3 PIPE 9 5903R/5603R/BSR730S
56 941201-0 FLAT WASHER 8
57 252624-0 NUT M6
58 941151-9 WASHER 6 X HM1303
59 951204-6 TENSION PIN6-16 DIN1481
60 921332-1 HEX HD SCREW M6X20 5703R
61 316578-6 DEPTH GUIDE 5703R/5017RKB
62 159714-9 MOTOR HOUSING COMPLETE 5703R/5
63 911276-3 CYLINDER HEAD SCREW M5X55
64 191963-2 CARBON BRUSH SET CB-303
65 643750-0 BRUSH HOLDER CAP PC5000 / 01C / GAGA5020 / 21
JR3060T / 3070CT / 9920 JR3020
66 921332-1 HEX HD SCREW M6X20 5703R
67 415443-7 ANGULAR PLATE GUIDE 5703R/5603
68 251887-5 WING SCREW M6X10 LS800D N500
69 941151-9 FLAT WASHER 6 DIN125-B BHS630
70 252624-0 *WING NUT M6 5603R
71 265995-6
 PT SCREW 4X18 UH4570/55/65/55
72 256690-9 PIN 10 5703R/5603R
73 168267-7 BASE 5703R
74 285831-0 BEARING RETAINER 19-34 5703R/5
75 267126-3 FLAT WASHER 22
77 213560-5 O RING 44 HS6100/7100/BSS500
1001 165108-8 GUIDE RAIL
1002 783203-8  ALLEN KEY HEX. WRENCH 5mm
5003 192420-3 INTAKE ADAPTOR JOINT
5005 654091-9 NON INSULATED TERMINAL HM0870 HM0871-TD0101F-N910-RP0900
- GA5020 - GA5021-JR-LC1230-HR2432-HM1810-SMA40
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita 5703R
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Makita 5703R

Drawing Makita 5703R

Download (273.31KB)

You might also like

Switch for Polisher Makita SA7000
Makita SKU: 651922-3
Switch for Polisher Makita SA7000
Switch for Polisher Makita SA7000 Genuine part Makita, Switch for Polisher SA7000 - Mitre Saw 2414B - 2414EN-NB - Planes Makita 4304 - 4304T - 4306 -  Circular Saws Makita 5017RKB - 5603R - RK - 5703R - RK - 5705RK Part for the...
Last items in stock €32.80
Details
Carbon Brush Holder Cap for Hammer Makita HM1100 - HM1100C
Makita SKU: 643750-0
Carbon Brush Holder Cap for Hammer Makita HM1100 - HM1100C
Carbon Brush Holder Cap for Hammer Makita HM1100 - HM1100C Genuine part MAKITA, Carbon Brush Holder Cap for Hammers HM1100 - HM1100C - Angle Grinder  GA6021C - GA6020 - Circular Saw 5703R. Parts for the following products: - 2107FK -...
AVAILABLE €2.51
Details
Carbon Brushes CB-303 for Belt Sander Makita 9920X
Makita SKU: 191963-2
Carbon Brushes CB-303 for Belt Sander Makita 9920X
Carbon Brushes CB-303 for Belt Sander Makita 9920X Original spare part Makita, Carbon Brushes CB-303 for Belt Sanders 9920X - 9404X - 9403 - 9902 - 9903. Part for the following products: - 2107FK - BAND SAW - 4100KB - DIAMOND SAW...
AVAILABLE €9.96
Details
Noise Suppressor for Cut-Off Machine Makita 2412N
Makita SKU: 645006-7
Noise Suppressor for Cut-Off Machine Makita 2412N
Noise Suppressor for Cut-Off Machine Makita 2412N Genuine part Makita, Capacitor Noise Suppressor 0,047μF KX2 275V for Cut-Off Machines 2412N - 2414 - 2414K. Part for the following...
Last items in stock €2.14
Details
Fan 76 for Rotary Hammer Makita HR4001C
Makita SKU: 241876-8
Fan 76 for Rotary Hammer Makita HR4001C
Fan 76 for Rotary Hammer Makita HR4001C Genuine part MAKITA, Seal Ring for Rotary Hammers HR4001C - HR4010C - HR4011C Part for the following products: -  HR4000C - ROTARY HAMMER MAKITA -  HR4001C - ROTARY HAMMER SDS-MAX 40MM  -...
on 7/10 Business Days Approx €7.77
Details
Comments (0)
