Makita

Makita Spare Parts for Jigsaw 4351FCT

SKU: Makita 4351FCT
€63.50
VAT included

Makita Spare Parts for Jigsaw 4351FCT

MAKITA Original spare parts at attractive and competitive prices on the web, we are a licensed service center with a repair service able to quickly solve the maintenance or repair any issues for Electric Jigsaw 4351FCT.
Makita Spare Parts for Jigsaw 4351FCT
  • Makita Spare Parts for Jigsaw 4351FCT
  • Makita Spare Parts for Jigsaw 4351FCT
Makita

Makita Spare Parts for Jigsaw 4351FCT

SKU: Makita 4351FCT Condition: New
€63.50
VAT included

Makita Spare Parts for Jigsaw 4351FCT

MAKITA Original spare parts at attractive and competitive prices on the web, we are a licensed service center with a repair service able to quickly solve the maintenance or repair any issues for Electric Jigsaw 4351FCT.
settings 80 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
80 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

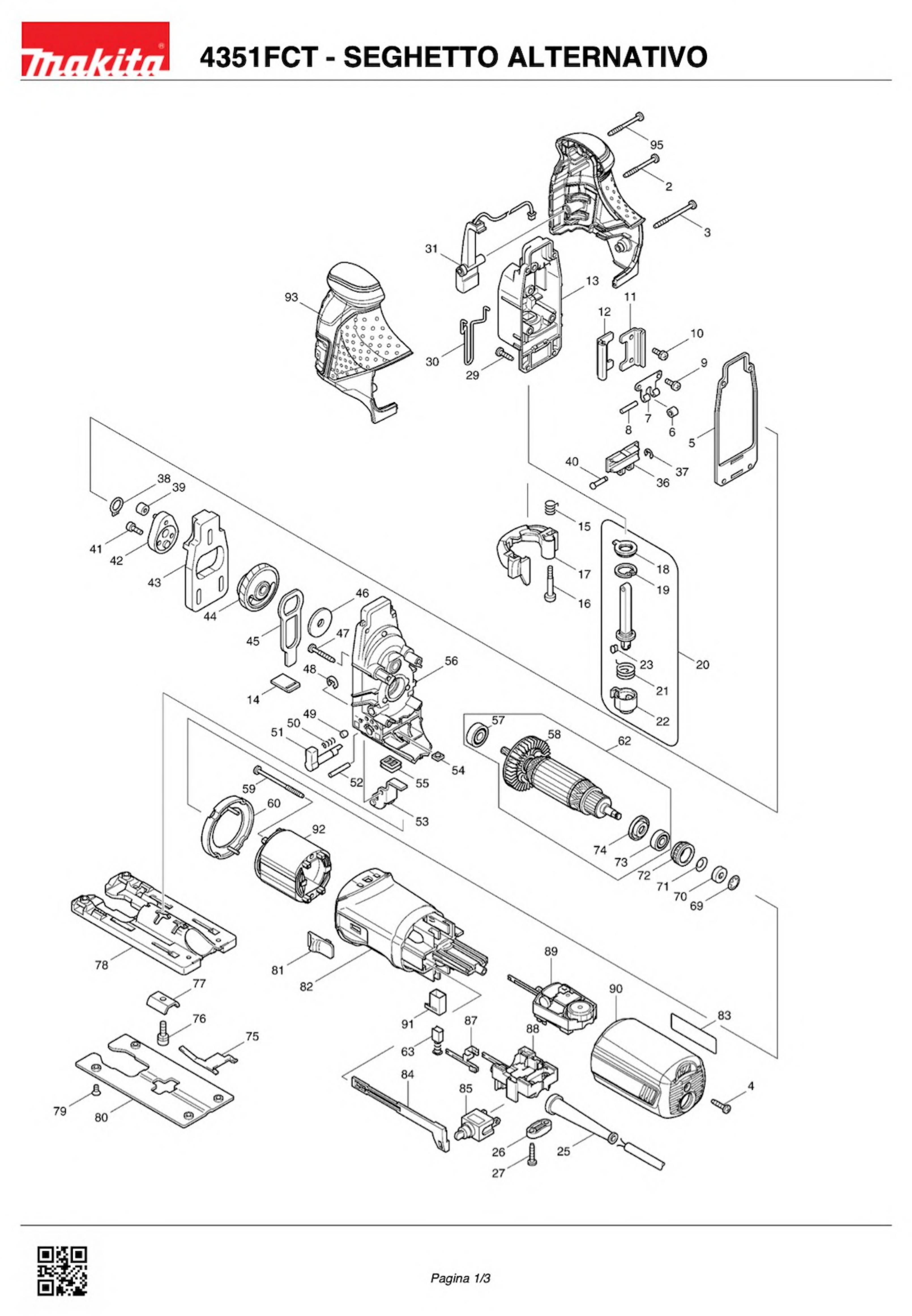

Esploso pagina 1
Pos. Item Price Buy
2
 photo_cameraImage coming soon 266048-4 VITE M 4 PER 40 PER 4334D €3.51
3
 photo_cameraImage coming soon 266091-3 SPECIAL SCREW 4 X 50 €1.32
4
 Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
5
 Packing for Jigsaw Makita 4341FCT 442138-9 Packing for Jigsaw Makita 4341FCT €1.44
6
 Plane Bearing 40 for Jigsaw Makita 4341FCT 214031-5 Plane Bearing 40 for Jigsaw Makita 4341FCT €1.38
7
 Flat Spring for Jigsaw Makita 4341FCT 232207-2 Flat Spring for Jigsaw Makita 4341FCT €1.83
8
 photo_cameraImage coming soon 256117-9 PIN X 4324 €1.40
9
 photo_cameraImage coming soon 911111-5 HEAD SCREW CILIND. M4X10 €3.76
10
 photo_cameraImage coming soon 911111-5 HEAD SCREW CILIND. M4X10 €3.76
11
 photo_cameraImage coming soon 345240-6 GUIDE FOR STRAIGHT 4341FCT €7.85
12
 photo_cameraImage coming soon 345240-6 GUIDE FOR STRAIGHT 4341FCT €7.85
13
 photo_cameraImage coming soon 153338-3 COVER GEAR BOX 4341FCT €51.97
14
 photo_cameraImage coming soon 417839-8 SEALING PLATE FOR 4341FCT €2.95
15
 Torsion Spring for Jigsaw Makita 4341FCT 231659-4 Torsion Spring for Jigsaw Makita 4341FCT €3.19
16
 photo_cameraImage coming soon 265026-1 BOLT M4 €7.85
17
 photo_cameraImage coming soon 419820-5 RELEASE BLADE BJV140R €7.69
18
 photo_cameraImage coming soon 421817-2 DUST FOR 4341FCT €3.76
19
 photo_cameraImage coming soon 962068-3 RETAINING RING R-18 FOR 4341F €3.76
20
 photo_cameraImage coming soon 135060-4 CONNECTING ROD COMPLETE 4350CT €79.75
21
 photo_cameraImage coming soon 231660-9 TORSION SPRING FOR 15 4341FCT €3.76
22
 photo_cameraImage coming soon 310136-0 Blade holder FOR 4341FCT €20.92
23
 photo_cameraImage coming soon 310135-2 PLUG FOR 4341FCT €7.85
25
 Power Cord Protection for Angle Grinder Makita 115-125 mm 682559-5 Power Cord Protection for Angle Grinder Makita 115-125 mm €2.07
26
 photo_cameraImage coming soon 687124-5 CORD CLAMP MT953 €1.47
27
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
29
 photo_cameraImage coming soon 266034-5 SCREW CT 4X16 €3.76
30
 photo_cameraImage coming soon 324233-6 PROTECTION SECURITY FOR 4341FCT €4.58
31
 photo_cameraImage coming soon 631470-8 CIRCUIT FOR LIGHT X 4341FCT €17.07
36
 photo_cameraImage coming soon 310134-4 SLEIGH FOR 4341FCT €30.56
37
 photo_cameraImage coming soon 961017-7 RING E-3 X 4305T €3.76
38
 photo_cameraImage coming soon 961004-6 RETAINING RING S8 €3.76
39
 photo_cameraImage coming soon 212092-9 NEEDLE BEARING 407 €4.43
40
 photo_cameraImage coming soon 268090-1 PLUG FOR 4 4341FCT €5.40
41
 photo_cameraImage coming soon 265353-6 SCREW M 4 X 12 X 4341FCT €3.76
42
 photo_cameraImage coming soon 153336-7 ECCENTRIC FOR 4341FCT €11.12
43
 photo_cameraImage coming soon 313108-4 PLATE FOR BALANCE 4341FCT €14.38
44
 photo_cameraImage coming soon 153335-9 GEAR CPL. FOR 4341FCT €47.06
45
 photo_cameraImage coming soon 345235-9 PLATE 4341FCT €6.21
46
 photo_cameraImage coming soon 253877-4 FLAT WASHER 8 PER4301BV €3.76
47
 photo_cameraImage coming soon 266050-7 SCREW 4X30 PT €3.76
48
 photo_cameraImage coming soon 961018-5 RETAINING RING E5 €3.76
49
 photo_cameraImage coming soon 286032-3 PLUG FOR 5 4341FCT €2.95
50
 photo_cameraImage coming soon 233139-6 COMPRESSION SPRING 4341FCT €2.95
51
 photo_cameraImage coming soon 272244-4 17 LEVER FOR 4341FCT €12.75
52
 photo_cameraImage coming soon 268063-4 PLUG FOR 4 4341FCT €3.76
53
 Complete Blade Guide for Jigsaw Makita 4341FCT 153334-1 Complete Blade Guide for Jigsaw Makita 4341FCT €31.96
54
 photo_cameraImage coming soon 252171-1 NUT PANEL M 5-8 FOR 4341FCT €3.76
55
 photo_cameraImage coming soon 421816-4 PARA POWDER FOR BLADE 4341FCT €3.76
56
 photo_cameraImage coming soon 153337-5 GEAR BOX FOR 4341FCT €86.28
57
 Ball Bearing 608DDW for Jigsaw Makita 4327 210005-4 Ball Bearing 608DDW for Jigsaw Makita 4327 €5.44
58
 photo_cameraImage coming soon 241881-5 FAN 52 6408 €7.85
59
 photo_cameraImage coming soon 266052-3 PT SCREW 4X60 €7.03
60
 photo_cameraImage coming soon 417838-0 DEFLECTOR FOR 4341FCT €3.27
62
 photo_cameraImage coming soon 517398-3 ARMATURE FOR 4341FCT €89.55
63
 Carbon Brushes Makita for Sanders BO4555-4556-4565-4566 191962-4 Carbon Brushes Makita for Sanders BO4555-4556-4565-4566 €7.53
69
 photo_cameraImage coming soon 259039-2 LOCKING 6 X 9566CV €3.76
70
 Magnet Sleeve for Angle Grinder Makita GA4540C 688117-5 Magnet Sleeve for Angle Grinder Makita GA4540C €4.20
71
 photo_cameraImage coming soon 267756-0 WAVY WASHER X BO6040 €3.76
72
 photo_cameraImage coming soon 421494-0 RUBBER 19 X 9521NB €11.93
73
 photo_cameraImage coming soon 211021-9 BEARING 607LLB €14.38
74
 Armature Washer for Angle Grinder Makita GA4530 681636-0 Armature Washer for Angle Grinder Makita GA4530 €2.34
75
 photo_cameraImage coming soon 232208-0 SPRING FLAT FOR 4341FCT €4.58
76
 photo_cameraImage coming soon 922226-3 SCREW M 5 X 18 X 4341FCT €3.76
77
 photo_cameraImage coming soon 345237-5 SHAPED PLATE FOR 4341FCT €2.95
78
 Base for Jigsaw Makita 4341FCT 317565-8 Base for Jigsaw Makita 4341FCT €31.79
79
 photo_cameraImage coming soon 912107-9 SCREW M4 x 8 €3.76
80
 Base Plate for Jigsaw Makita 4350CT 345238-3 Base Plate for Jigsaw Makita 4350CT €30.28
81
 photo_cameraImage coming soon 417840-3 SWITCH LEVER 4341FTC €1.88
82
 photo_cameraImage coming soon 419893-8 MOTOR HOUSING4351FCT €6.82
83
 photo_cameraImage coming soon 863690-8 4351FCT NAME PLATE4351FCT €1.28
84
 photo_cameraImage coming soon 417841-1 SWITCH ROD 4341FTC €1.88
85
 photo_cameraImage coming soon 651069-3 SWITCH €3.45
87
 photo_cameraImage coming soon 654223-8 TERMINAL BLOCK 4341FTC €1.88
88
 photo_cameraImage coming soon 638108-6 SWITGH BLOCK 4341FCT €9.94
89
 photo_cameraImage coming soon 631769-1 CONTROLLER4351FCT €40.29
90
 photo_cameraImage coming soon 419896-2 REAR COVER4351FCT €5.35
91
 photo_cameraImage coming soon 643975-6 BRUSH HOLDER 4341FTC €1.28
92
 photo_cameraImage coming soon 633518-2 FIELD 240V 4341FTC €14.98
93
 photo_cameraImage coming soon 188290-6 HEAD COVER SET4351FCT €12.88
95
 photo_cameraImage coming soon 266048-4 VITE M 4 PER 40 PER 4334D €3.51

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Jigsaw 4351FCT

MAKITA Original spare parts at attractive and competitive prices on the web, we are a licensed service center with a repair service able to quickly solve the maintenance or repair any issues for Electric Jigsaw 4351FCT.

In the following table, look for the model of Jogsaw and the respective parts of the code.
Makita 4351FCT
Spare Parts for Jigsaw 4351FCT
# Part Num. Description
2 266048-4 TAPPING SCREW 4*40, HR2453
3 266091-3 TAPPING SCREW 4X50, LS1040F
4 265995-6 TAPPING SCREW 4X18, 4100NH
5 442138-9 PACKING 4340FTC
6 214031-5 PLANE BEARING 4
7 232207-2 LEAF SPRING 4340FTC
8 256117-9 PIN 4, 4322
9 911111-5 PAN HEAD SCREW M4*10, M926
10 911111-5 PAN HEAD SCREW M4*10, M926
11 345240-6 LINEAR GUIDE 4340FTC
12 345240-6 LINEAR GUIDE 4340FTC
13 153338-3 GEAR HOUSING COVER COMP.
14 417839-8 SEAL PLATE 4340FTC
15 231659-4 TORSION SPRING 4340FTC
16 265026-1 PAN HEAD SCREW M4, LS1016L
17 419820-5 TOOL OPENER BJV
18 421817-2 DUST COVER 4340FTC
19 962068-3 RETAINING RING R-18
20 135060-4 ROD ASSY 4340
21 231660-9 TORSION SPRING 4340FTC
22 310136-0 BLADE HOLDER 4340FTC
23 310135-2 PUSH PIN 4340FCT
25 682559-5 CORD GUARD 8-110, 6826
26 687124-5 CORD CLAMP, MT951
27 265995-6 TAPPING SCREW 4X18, 4100NH
29 266034-5 TAPPING SCREW, CT 4x16MM
30 324233-6 SAFETY WIRE 4340FTC
31 631470-8 LED CIRCUIT 4340FTC
36 310134-4 SLIDER 4340FTC
37 961017-7 STOP RING E-3, 4304Z
38 961004-6 RETAINING RING S-8
39 212092-9 NEEDLE BEARING 407
40 268090-1 PIN 4, JV0600
41 265353-6 HEX. SOCKET HEAD BOLT M4X12, HR2610
42 153336-7 CRANK COMPLETE 4340FTC
43 313108-4 BALANCE PLATE, 4340T
44 153335-9 GEAR COMPLETE 4340FCT
45 345235-9 PUSH PLATE 4340FTC
46 253877-4 FLAT WASHER 8
47 266050-7 TAPPING SCREW, 6827
48 961018-5 STOP RING(EXT)E-5, 4304Z
49 286032-3 CAP 5 4340FTC
50 233139-6 COMP.SPRING 3 4340FTC
51 272244-4 LEVER 17, 4340T
52 268063-4 PIN 4 4340FTC
53 153334-1 RETAINER COMPLETE
54 252171-1 SQUARE NUT M5-8 4340FTC
55 421816-4 DUST SEAL 4340FTC
56 153337-5 GEAR HOUSING COMPLETE
57 210005-4 BALL BEARING 608DDW, UB1100
58 241881-5 FAN 52, 6409
59 266052-3 TAPPING SCREW, UB1101
60 417838-0 BAFFLE PLATE 4340FTC
62 517398-3 ARMATURE ASSY 240V 4340FT
63 191962-4 CARBON BRUSH CB-419
69 259039-2 SELF LOCK 6 4340FTC
70 688117-5 MAGNET SLEEVE
71 267756-0 WAVE WASHER 6
72 421494-0 LABYRINTHIAN RUBBER RING 9, 4304Z
73 211021-9 BALL BEARING 607LLB, HR2412
74 681636-0 INSULATION WASHER, MT190
75 232208-0 LEAF SRING 4340FTC
76 922226-3 HEX.SOCKET HEAD BOLT M5X18, LS1016L
77 345237-5 CRANK PLATE 4340FTC
78 317565-8 BASE 4340FTC
79 912107-9 COUNTERSUNK HEAD SCREW M4X8, 5740NB
80 345238-3 BASE PLATE 4340FCT
81 417840-3 SWITCH LEVER 4341FTC
82 419893-8 MOTOR HOUSING4351FCT
83 863690-8 4351FCT NAME PLATE4351FCT
84 417841-1 SWITCH ROD 4341FTC
85 651069-3 SWITCH
87 654223-8 TERMINAL BLOCK 4341FTC
88 638108-6 SWITGH BLOCK 4341FCT
89 631769-1 CONTROLLER4351FCT
90 419896-2 REAR COVER4351FCT
91 643975-6 BRUSH HOLDER 4341FTC
92 633518-2 FIELD 240V 4341FTC
93 188290-6 HEAD COVER SET4351FCT
95 266048-4 TAPPING SCREW 4*40, HR2453
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita 4351FCT
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita 4351FCT

Diagram Makita 4351FCT

Download (210.68KB)

You might also like

Jigsaw blade attachment Bosch - Poggi 695.00
PG Poggi s.r.l SKU: Poggi 695.00
Jigsaw blade attachment Bosch - Poggi 695.00
Jigsaw blade attachment Bosch  - Poggi 695.00 Blade particularly suitable for jigsaws with blade oscillation. High quality blade vibration, torsion and bending. HSS High Speed Steel - Blade length: 70 mm - For Cutting Metals - Gearing...
AVAILABLE €4.65
Details
Jigsaw blade Bosch attachment - Poggi 696.00
PG Poggi s.r.l SKU: N/D
Jigsaw blade Bosch attachment - Poggi 696.00
Jigsaw blade Bosch attachment - Poggi 696.00 Blade particularly suitable for jigsaws with blade oscillation. High quality blade vibration, torsion and bending. HSS High Speed ​​Steel - Blade length: 70 mm - For Cutting Metals -...
AVAILABLE €7.91
Details
Jigsaw blade Bosch attachment - Poggi 697.00
PG Poggi s.r.l SKU: Poggi 697.00
Jigsaw blade Bosch attachment - Poggi 697.00
Jigsaw blade Bosch attachment - Poggi 697.00 Blade particularly suitable for jigsaws with blade oscillation. High quality blade vibration, torsion and bending. Chrome Vanadium Steel - Blade length: 100 mm - For Cutting Wood, P.V.C -...
AVAILABLE €5.52
Details
Jigsaw blade Bosch attachment - Poggi 698.00
PG Poggi s.r.l SKU: Poggi 698.00
Jigsaw blade Bosch attachment - Poggi 698.00
Jigsaw blade Bosch attachment - Poggi 698.00 Blade particularly suitable for jigsaws with blade oscillation. High quality blade vibration, torsion and bending. Chrome Vanadium Steel - Blade length: 100 mm - For Cutting Wood, P.V.C -...
AVAILABLE €5.38
Details
Jigsaw blade Attack Black & Decker - Poggi 688.00
PG Poggi s.r.l SKU: Poggi 688.00
Jigsaw blade Attack Black & Decker - Poggi 688.00
Jigsaw blade Attack Black & Decker - Poggi 688.00 Blade particularly suitable for jigsaws with blade oscillation. High quality blade vibration, torsion and bending. Chrome Vanadium Steel - Blade length: 100 mm - To Cut Wood -...
AVAILABLE €4.65
Details
Jigsaw blade Makita attachment - Poggi 717.00
PG Poggi s.r.l SKU: Poggi 717.00
Jigsaw blade Makita attachment - Poggi 717.00
Jigsaw blade Makita attachment - Poggi 717.00 Blade particularly suitable for jigsaws with blade oscillation. High quality blade vibration, torsion and bending. Chrome Vanadium Steel - Blade length: 100 mm - To Cut Wood - Wide Teeth...
Last items in stock €8.30
Details
Jigsaw blade Makita attachment - Poggi 718.00
PG Poggi s.r.l SKU: Poggi 718.00
Jigsaw blade Makita attachment - Poggi 718.00
Jigsaw blade Makita attachment - Poggi 718.00 Blade particularly suitable for jigsaws with blade oscillation. High quality blade vibration, torsion and bending. Chrome Vanadium Steel - Blade length: 100 mm - To Cut Wood - Gearing...
Last items in stock €8.30
Details
Carbon Brushes Makita for Sanders BO4555-4556-4565-4566
Makita SKU: 191962-4
Carbon Brushes Makita for Sanders BO4555-4556-4565-4566
Carbon Brushes Makita for Sanders BO4555-4556-4565-4566 Genuine Parts Makita, Carbon Brushes for: Jigsaws 4304 - 4305 - 4306 - 4340 - 4341 - 4350 - 4351, for Drills 6310 -  6408 - 6824, for Sanders  BO4555 - 4556 - 4565 - 4566 Part...
AVAILABLE €7.53
Details
Base for Jigsaw Makita 4341FCT
Makita SKU: 317565-8
Base for Jigsaw Makita 4341FCT
Base for Jigsaw Makita 4341FCT Original spare part Makita, Rectangular aluminum Base for jigsaws 4340T - 4340CT - 4341CT - 4341FCT - 4350T - 4350CT - 4350FCT. Parts for the following products: - JIGSAW 4340CT - JIGSAW 4340FCT - JIGSAW...
Last items in stock €31.79
Details
Base Plate for Jigsaw Makita 4350CT
Makita SKU: 345238-3
Base Plate for Jigsaw Makita 4350CT
Base Plate for Jigsaw Makita 4350CT Original spare Makita, Rectangular Iron Base Plate for Jigsaws 4350CT. Parts for the following products: - Jigsaws MAKITA 4350CT - Code : 345238-3
AVAILABLE €30.28
Details
Power Cord Protection for Angle Grinder Makita 115-125 mm
Makita SKU: 682559-5
Power Cord Protection for Angle Grinder Makita 115-125 mm
Power Cord Protection for Angle Grinder Makita 115-125 mm Original spare Makita, Power cord Protection for Angle Grinders 115-125 mm. Parts for the following products: - 3706 - TRIMMING CUT - GYPSUM - 4340CT - JIGSAW - 4340FCT -...
AVAILABLE €2.07
Details
Flat Spring for Jigsaw Makita 4341FCT
Makita SKU: 232207-2
Flat Spring for Jigsaw Makita 4341FCT
Flat Spring for Jigsaw Makita 4341FCT Genuine  part Makita, Flat spring for Jigsaws 4340CT - 4340FCT - 4340T - 4341CT - 4341FCT - 4350CT - 4351CT - 4351FCT. Parts for the following products: - 4340CT - JIGSAW A BRACKET...
Last items in stock €1.83
Details
Complete Blade Guide for Jigsaw Makita 4341FCT
Makita SKU: 153334-1
Complete Blade Guide for Jigsaw Makita 4341FCT
Complete Blade Guide for Jigsaw Makita 4341FCT Original spare part Makita, Complete Blade Guide for Jigsaw 4340CT - 4340FCT - 4340T - 4341CT - 4341FCT - 4350CT - 4350FCT - 4350T - 4351CT - 4351FCT - 4351T - BJV140RFE - BJV180RFE.
AVAILABLE €31.96
Details
Armature Washer for Angle Grinder Makita GA4530
Makita SKU: 681636-0
Armature Washer for Angle Grinder Makita GA4530
Armature Washer for Angle Grinder Makita GA4530 Genuine spare Makita, Armature Protection Washer for Angle Grinders GA4530 - GA4530R - GA4534 - GA5034 - 9521NB - 9554HN - 9557HN...
AVAILABLE €2.34
Details
Torsion Spring for Jigsaw Makita 4341FCT
Makita SKU: 231659-4
Torsion Spring for Jigsaw Makita 4341FCT
Torsion Spring for Jigsaw Makita 4341FCT Genuine spare part Makita, Torsion Spring 6 for Jigsaws 4340T - 4340CT - 4340FCT - 4341CT - 4341FCT - 4350CT - 4350FCT Part for the...
AVAILABLE €3.19
Details
Plane Bearing 40 for Jigsaw Makita 4341FCT
Makita SKU: 214031-5
Plane Bearing 40 for Jigsaw Makita 4341FCT
Plane Bearing 40 for Jigsaw Makita 4341FCT Genuine spare part Makita, Plane Bearing 40 for Jigsaws 4340T - 4340CT - 4340FCT - 4341CT - 4341FCT - 4350CT - 4350FCT Part for the...
Last items in stock €1.38
Details
Ball Bearing 608DDW for Jigsaw Makita 4327
Makita SKU: 210005-4
Ball Bearing 608DDW for Jigsaw Makita 4327
Ball Bearing 608DDW for Jigsaw Makita 4327 Genuine Part Makita, Ball Bearing 608DDW for Jigsaws 4304 - 4305 - 4320 - 4322 - 4323 - 4324 - 4326 - 4327...
Last items in stock €5.44
Details
Magnet Sleeve for Angle Grinder Makita GA4540C
Makita SKU: 688117-5
Magnet Sleeve for Angle Grinder Makita GA4540C
Magnet Sleeve for Angle Grinder Makita GA4540C Genuine Replacement Part Makita, Magnet Sleeve for Angle Grinders GA4540C - GA4541C - GA5040C - GA4541C - 9561CVH -  9561CVR. Part for the following products: - 3707FC - TRIMMER 6MM 500W...
AVAILABLE €4.20
Details
Packing for Jigsaw Makita 4341FCT
Makita SKU: 442138-9
Packing for Jigsaw Makita 4341FCT
Packing for Jigsaw Makita 4341FCT Genuine replacement part Makita, Packing for Jigsaws 4341FCT - 4350CT - 4351FCT.  Part for the following products: - 4340CT - JIGSAW - 4340FCT - JIGSAW - 4340T - JIGSAW - 4341CT - JIGSAW - 4341FCT -...
Last items in stock €1.44
Details
Comments (0)
