Makita Spare Parts for Demolition Hammer HM1200K

SKU: Makita HM1200K
€38.87
VAT included

Makita Spare Parts for Demolition Hammer HM1200K

MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for HM1200K Corded 19mm (3/4'') A/f Hex Shank Demolition Hammer.

Open File PDF in this page for to see spare parts.
Makita Spare Parts for Demolition Hammer HM1200K
  • Makita Spare Parts for Demolition Hammer HM1200K
  • Makita Spare Parts for Demolition Hammer HM1200K
Makita

Makita Spare Parts for Demolition Hammer HM1200K

SKU: Makita HM1200K Condition: New
€38.87
VAT included

Makita Spare Parts for Demolition Hammer HM1200K

MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for HM1200K Corded 19mm (3/4'') A/f Hex Shank Demolition Hammer.

Open File PDF in this page for to see spare parts.
settings 79 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
79 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

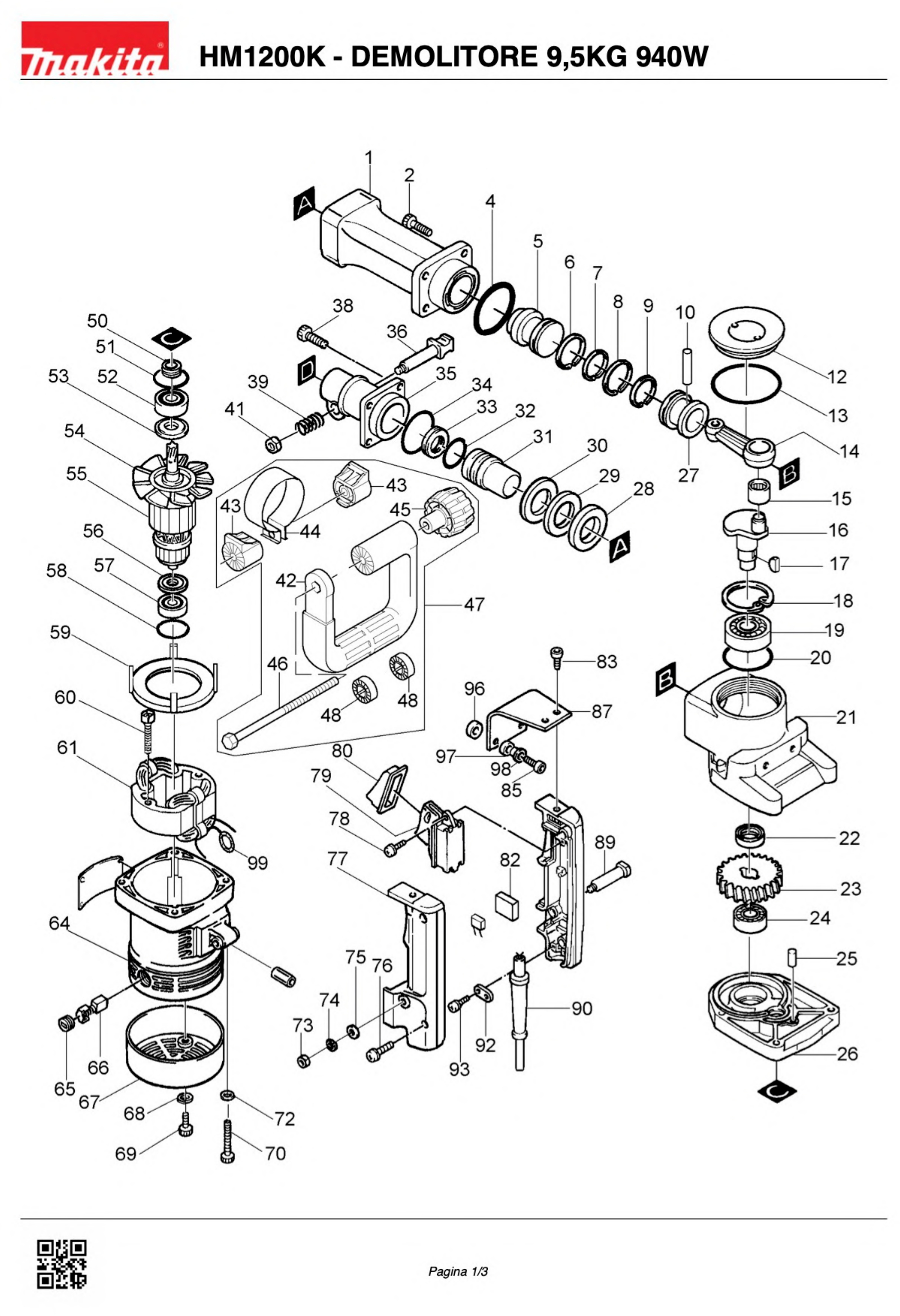

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 151310-9 BARREL CPL X HM1200 €189.97
2
 photo_cameraImage coming soon 922451-6 BOLT M8x30 €1.91
4
 Seal 56 HR 3510/20/HM12 for Rotary Hammers MAKITA HR3850-B-K 213655-4 Seal 56 HR 3510/20/HM12 for Rotary Hammers MAKITA HR3850-B-K €3.13
5
 photo_cameraImage coming soon 321732-9 STRIKER X HM1200 €28.26
6
 Piston Ring 40 for Demolition Hammer MAKITA HM1200 412049-2 Piston Ring 40 for Demolition Hammer MAKITA HM1200 €28.34
7
 photo_cameraImage coming soon 341862-0 INTERNAL RING 36 XHM1200 €7.30
10
 photo_cameraImage coming soon 256120-0 PIN 10 €5.09
12
 Crank Cap for Rotary Hammers Makita HR5000-HR5000K 414218-1 Crank Cap for Rotary Hammers Makita HR5000-HR5000K €24.78
13
 photo_cameraImage coming soon 213754-2 O-RING 71 X HM1200 €3.91
14
 photo_cameraImage coming soon 315419-3 ROD X HM1200 €34.93
15
 photo_cameraImage coming soon 212208-6 ROLLER BEARING 1516 €20.97
16
 photo_cameraImage coming soon 152180-9 XHM1200 CRANK SHAFT €43.42
17
 photo_cameraImage coming soon 254001-2 KEY CRESCENT 4 €1.44
18
 photo_cameraImage coming soon 962251-2 RETAINING RING R52 €3.06
19
 photo_cameraImage coming soon 211327-5 BALL BEARING HM1202C €13.71
20
 Seal 53 for Demolition Hammer MAKITA HM1200 213656-2 Seal 53 for Demolition Hammer MAKITA HM1200 €1.46
21
 photo_cameraImage coming soon 156863-3 BOX ROD X HM1200 €89.11
22
 photo_cameraImage coming soon 213306-9 SEALING OIL 20 XHM1200 €5.09
23
 photo_cameraImage coming soon 221701-9 GEAR 50 X HM1200 €37.92
24
 Ball Bearing 6202DD for Demolition Hammer Makita HM1800 211228-7 Ball Bearing 6202DD for Demolition Hammer Makita HM1800 €8.63
25
 photo_cameraImage coming soon 256111-1 PIN 6 €3.13
26
 photo_cameraImage coming soon 157072-7 GEAR CASE XHM1200 €53.32
27
 photo_cameraImage coming soon 321441-0 PISTON X HM1200 / HR5000K €39.00
28
 photo_cameraImage coming soon 267059-2 FLAT WASHER 32 €14.27
29
 photo_cameraImage coming soon 261069-1 NYLON WASHER 33 €8.49
30
 photo_cameraImage coming soon 253976-2 FLAT WASHER 33 €9.48
31
 photo_cameraImage coming soon 322256-8 IMPACT BOLT €52.73
32
 photo_cameraImage coming soon 213468-3 O RING 32 €1.80
33
 photo_cameraImage coming soon 213428-5 X RING - 28 NEW HR3850 €18.98
34
 Seal 50 for Hammers MAKITA HR3850-B-K 213604-1 Seal 50 for Hammers MAKITA HR3850-B-K €3.29
35
 photo_cameraImage coming soon 321932-1 TOOL HOLDER €210.37
36
 photo_cameraImage coming soon 331132-5 PIN X HR5000K €30.61
39
 photo_cameraImage coming soon 231281-7 SPRING 15 NEW HM1300 €2.48
42
 Side Handle for Demolition Hamme Makita HM1202C 417003-1 Side Handle for Demolition Hamme Makita HM1202C €20.05
43
 photo_cameraImage coming soon 416397-1 HANDLE BASE 48 €3.81
44
 photo_cameraImage coming soon 344560-5 HANDLE SPRING 48 €5.69
45
 Knob Handle M8 X for Hammer Makita HM1100-HM1100C 252640-2 Knob Handle M8 X for Hammer Makita HM1100-HM1100C €8.23
46
 photo_cameraImage coming soon 265439-6 SCREW M8X150 X HM1100C €2.82
47
 photo_cameraImage coming soon 134944-3 NEW HANDLE €33.89
48
 Side Handle Ring for Demolition Hamme Makita HM1202C 417002-3 Side Handle Ring for Demolition Hamme Makita HM1202C €2.82
50
 photo_cameraImage coming soon 331180-4 SEAL X HM1200 €6.49
51
 O-Ring 35 for Demolition Hammers Makita HR 4501-10-11C 213460-9 O-Ring 35 for Demolition Hammers Makita HR 4501-10-11C €3.29
53
 photo_cameraImage coming soon 213202-1 DUST WASHER 15 €2.48
54
 photo_cameraImage coming soon 241638-4 FAN 94 X HM1200 €9.48
55
 photo_cameraImage coming soon 514778-4 ARMATURE X HM1200 €189.97
56
 Armature Washer for Demolition Hammer Makita HR3850K 681646-7 Armature Washer for Demolition Hammer Makita HR3850K €8.71
57
 photo_cameraImage coming soon 211087-9 BALL BEARING 6200DDW €8.75
58
 Gasket 30 O-R for Cylinder Hammers Makita HR4001-2-3-10-11C 213406-5 Gasket 30 O-R for Cylinder Hammers Makita HR4001-2-3-10-11C €1.35
59
 photo_cameraImage coming soon 410163-8 BAFFLE PLATE HM1200 / HR3850 €3.81
60
 photo_cameraImage coming soon 265347-1 SCREW M5X45 €1.97
61
 photo_cameraImage coming soon 524633-2 STATOR FIELD X HM1200 / HR3850 / B €73.74
64
 photo_cameraImage coming soon 159034-1 MOTOR HOUSIND HM1200 / HR3850 / B €89.11
65
 Carbon Brush Holder Cover for Electric Chainsaw Makita UC3041A 643650-4 Carbon Brush Holder Cover for Electric Chainsaw Makita UC3041A €2.43
66
 Carbon Brushes CB-155 for Hammer Makita HM1400 181048-2 Carbon Brushes CB-155 for Hammer Makita HM1400 €13.26
67
 photo_cameraImage coming soon 284055-5 REAR COVER HM1200 / HR3850 €12.29
68
 photo_cameraImage coming soon 942101-7 SPRING WASHER 5 €1.36
69
 photo_cameraImage coming soon 922222-1 SCREW M5X16 €1.46
70
 photo_cameraImage coming soon 922371-4 HEX SCREW M6x50 €1.42
72
 photo_cameraImage coming soon 941151-9 WASHER 6 X HM1303 €3.66
73
 photo_cameraImage coming soon 252014-7 NUT M6-10 €2.24
74
 photo_cameraImage coming soon 942151-2 WASHER 6 €3.66
76
 photo_cameraImage coming soon 911243-8 SCREW M5x25 HR2010 €1.40
77
 photo_cameraImage coming soon 182077-8 HANDLE SET XHM1200 / K €34.93
78
 Srew M4X16 HM1301 for Hammers Makita HR3850-HR3850K 911129-6 Srew M4X16 HM1301 for Hammers Makita HR3850-HR3850K €1.43
79
 Switch for Demolition Hammer MAKITA HM1200 651145-3 Switch for Demolition Hammer MAKITA HM1200 €39.90
80
 Switch Dust Cover for Rotary Hammers MAKITA HR3850-B-K 421265-5 Switch Dust Cover for Rotary Hammers MAKITA HR3850-B-K €3.90
82
 Sponge for Hammers Makita M802 - HR3850B 685700-9 Sponge for Hammers Makita M802 - HR3850B €2.00
83
 photo_cameraImage coming soon 922316-2 BOLT M6 X 14 €1.25
85
 photo_cameraImage coming soon 922341-3 SCREW M6X25 €1.44
87
 photo_cameraImage coming soon 343755-7 PLATE X HM1200 €8.49
89
 Handle Shaft for Demolition Hammer Makita HM0810T 321210-9 Handle Shaft for Demolition Hammer Makita HM0810T €2.96
90
 Power Cord Guard 10/90 for for Makita Power Tools 682505-8 Power Cord Guard 10/90 for for Makita Power Tools €3.18
92
 photo_cameraImage coming soon 687001-1 CLAMP cable tie €1.47
93
 photo_cameraImage coming soon 911133-5 SCREW M4X18 €1.46
96
 photo_cameraImage coming soon 262051-3 RUBBER RING 9-6 XHR3850 €1.25
97
 photo_cameraImage coming soon 262052-1 RUBBER RING 9-3 XHR3850 €3.92
98
 photo_cameraImage coming soon 257636-8 SLEEVE 6 X HR3850 €3.92
99
 photo_cameraImage coming soon 654020-2 RING TERMINAL 94 €1.40
999
 photo_cameraImage coming soon 193279-1 HAMMER SERVICE KIT €47.93

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Demolition Hammer HM1200K

MAKITA Original spare parts

 at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for HM1200K Corded 19mm (3/4'') A/f Hex Shank Demolition Hammer.

Open File PDF in this page for to see spare parts.

In the following table, look for the model of the Hammer HM 1200K and the respective parts of the code.
Makita HM1200K

HM1200K Corded 19mm (3/4'') A/f Hex Shank Demolition Hammer
# Part Num. Description
1 151310-9 BARREL COMPLETE HM1200
2 922451-6 HEX.SOCKET SCREW M8X30, LS1013
4 213655-4 O-RING 56, 483
5 321732-9 STRIKER HM1200
6 412049-2 PISTON RING 40
7 341862-0 INNER RING 36
8 412049-2 PISTON RING 40
9 341862-0 INNER RING 36
10 256120-0 PIN 10 FOR HM1200
12 414218-1 CRANK CAP
13 213754-2 O RING 71
14 315419-3 CONNECTING ROD
15 212208-6 NEEDLE BEARING 1516
16 152180-9 ECCENTRIC SHAFT
17 254001-2 WOOD RUFF KEY 4, 4100NH
18 962251-2 RETAINING RING R-52
19 211327-5 BEARING 6304
20 213656-2 O-RING 53, HM0830
21 156863-3 CRANK HOUSING COMPLETE
22 213306-9 OIL SEAL 20, 5377MG
23 221701-9 HELICAL GEAR 50
24 211228-7 BALL BEARING 6202DDW, GA9010
25 256111-1 PIN 6
26 157072-7 GEAR HOUSING
27 321441-0 PISTON
28 267059-2 FLAT WASHER 32
29 261069-1 NYLON WASHER 33
30 253976-2 FLAT WASHER 33
31 322256-8 IMPACT BOLT
32 213468-3 O RING 32
33 213428-5 X RING 28
34 213604-1 O RING 50
35 321932-1 TOOL HOLDER
36 331132-5 TOOL RETAINER
38 922451-6 HEX.SOCKET SCREW M8X30, LS1013
39 231281-7 COMPRESSION SPRING 15
41 252046-4 HEX. NUT M8-13
42 417003-1 SIDE HANDLE
43 416397-1 HANDLE BASE 48
44 344560-5 HANDLE SPRING 48
45 252640-2 WING NUT M8 HR4000C
46 265439-6 HEX. BOLT M8X150 HR4000C HM1200
47 134944-3 NEW HANDLE
48 417002-3 SIDE HANDLE CAM
50 331180-4 SEAL
51 213460-9 O RING 35, LF1000
52 211228-7 BALL BEARING 6202DDW, GA9010
53 213202-1 DUST SEAL 15
54 241638-4 FAN 94
55 514778-4 ARMATURE ASSY HM1200
56 681646-7 INSULATION WASHER HM1800
57 211087-9 BALL BEARING 6200DDW, 9069
58 213406-5 O RING 30, HR2810
59 410163-8 BAFFLE PLATE
60 265347-1 HEX. BOLT M5X45
61 524633-2 FIELD ASSY HR3851
64 159034-1 MOTOR HOUSING
65 643650-4 HOLDER CAP *, LS1040
66 181048-2 CARBON BRUSH CB-155
67 284055-5 REAR COVER
68 942101-7 SPRING WASHER 5, 4100NH
69 922222-1 H.S.H.BOLT M5*16, HR3850
70 922371-4 HEX. SOCKET HEAD BOLT M6X
72 941151-9 WASHER 6, 5806B
73 252014-7 HEX LOCK NUT M6*10, N5900B
74 942151-2 SPRING WASHER 6, 5806B
75 941151-9 WASHER 6, 5806B
76 911243-8 PAN HEAD SCREW M5X25, DK1804
77 182077-8 HANDLE SET
78 911129-6 PAN HEAD SCREW M4X16
79 651145-3 SWITCH C3D-H-MS
80 421265-5 DUST COVER
82 685700-9 SPONGE M802/HR3850B
83 922316-2 HEX. SOCKET HEAD BOLT M6X
85 922341-3 SOCKET HEAD BOLT, 9803
87 343755-7 CUSHION PLATE
89 321210-9 HANDLE SHAFT
90 682505-8 CORD GUARD 10-90, 5806B
92 687001-1 STRAIN RELIEF B04510
93 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438
96 262051-3 RUBBER RING 9-6 XHR3850
97 262052-1 RUBBER RING 9-3 XHR3850
98 257636-8 SLEEVE 6 FOR HM0810
99 654020-2 RING TERMINAL, 4100NH
999 193279-1 HAMMER SERVICE KIT
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita HM1200K
11 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita HM1200K

Diagram Makita HM1200K

Download (269.8KB)

You might also like

Gasket 30 O-R for Cylinder Hammers Makita HR4001-2-3-10-11C
Valex s.p.a. SKU: 213406-5
Gasket 30 O-R for Cylinder Hammers Makita HR4001-2-3-10-11C
Gasket 30 O-R for Cylinder Hammers Makita HR4001-2-3-10-11C Genuine spare part Makita, O-Ring for cylinder Rotary Demolition Hammers SDS Max, HR4001C - HR4002 - HR4003C - HR4010C - HR4011C Part for the following products: - Rotary...
Last items in stock €1.35
Details
O-Ring 35 for Demolition Hammers Makita HR 4501-10-11C
Makita SKU: 213460-9
O-Ring 35 for Demolition Hammers Makita HR 4501-10-11C
O-Ring 35 for Demolition Hammers Makita HR 4501-10-11C Genuine spare part Makita, O-Ring 35 for SDS Max Rotary Demolition Hammers HR4501C  - HR4510C - HR4511C - HR5201C - HR5210C - HR5211C - HR5212C. Part for the following...
AVAILABLE €3.29
Details
Carbon Brushes CB-155 for Hammer Makita HM1400
Makita SKU: 181048-2
Carbon Brushes CB-155 for Hammer Makita HM1400
Carbon Brushes CB-155 for Hammer Makita HM1400 Makita genuine spare part, Carbon Brusches CB-155 for Hammer Breaker HM1400 Exagonal 30 mm 1240 W Part for the following products: - Hammer Breaker HM1400 Exagonal 30 mm 1240 W Technical...
AVAILABLE €13.26
Details
Seal 56 HR 3510/20/HM12 for Rotary Hammers MAKITA HR3850-B-K Sale
Makita SKU: 213655-4
Seal 56 HR 3510/20/HM12 for Rotary Hammers MAKITA HR3850-B-K
Seal 56 HR 3510/20/HM12 for Rotary Hammers MAKITA HR3850-B-K Genuine part Makita, Seal 56 HR 3510/20/HM12 for Rotary Hammers MAKITA HR3850 - HR3850B - HR3850K. For the following items: - Rotary Demolition Hammer MAKITA HR3850 - Rotary...
AVAILABLE €3.13
Details
Seal 50 for Hammers MAKITA HR3850-B-K
Makita SKU: 213604-1
Seal 50 for Hammers MAKITA HR3850-B-K
Seal 50 for Rotary Hammers MAKITA HR3850-B-K Genuine part Makita, Seal 50 - HR3850/B for Rotary Hammers MAKITA HR3850 - HR3850B - HR3850K. Part for the following products: - Demolition...
AVAILABLE €3.29
Details
Power Cord Protection 10/90 for for Makita Power Tools
Makita SKU: 682505-8
Power Cord Guard 10/90 for for Makita Power Tools
Power Cord Guard 10/90 for for Makita Power Tools Genuine part Makita, Power Cord Guard diameter 10 mm Length 90 mm for Power Tools. Parts for the following products: - 4112HS - CUTTING ANG.305MM 2400W - 4114S - CUTTING ANG.355MM...
AVAILABLE €3.18
Details
Side Handle for Demolition Hamme Makita HM1202C
Makita SKU: 417003-1
Side Handle for Demolition Hamme Makita HM1202C
Side Handle for Demolition Hammer Makita HM1202C Genuine part Makita, Side Handle for Demolition Hammer 9,3KG 1450W SDS-MAX HM1202C Parts for the following products: - Demolition Hammer Makita...
AVAILABLE €20.05
Details
Knob Handle M8 X for Hammer Makita HM1100-HM1100C
Makita SKU: 252640-2
Knob Handle M8 X for Hammer Makita HM1100-HM1100C
Knob Handle M8 X for Hammer Makita HM1100-HM1100C Genuine spare parts Makita, Knob Handle M8 X for Hammer Makita HM1100 - HM1100C - HM1101C - HM1140C - HM1200K. Parts for the following products: - HM1100 - HAMMER 1050W SDS-MAX -...
AVAILABLE €8.23
Details
Srew M4X16 HM1301 for Hammers Makita HR3850-HR3850K
Makita SKU: 911129-6
Srew M4X16 HM1301 for Hammers Makita HR3850-HR3850K
Srew M4X16 HM1301 for Hammers Makita HR3850-HR3850K Original spare Makita, Srew M4X16 HM1301 for Demolition Hammers Makita HR3850 - HR3850K Parts for the following products: - Demolition Hammer HR3850 - Demolition Hammer HR3850K -...
AVAILABLE €1.43
Details
Armature Washer for Demolition Hammer Makita HR3850K
Makita SKU: 681646-7
Armature Washer for Demolition Hammer Makita HR3850K
Armature Washer for Demolition Hammer Makita HR3850K Genuine spare part Makita, Armature Protection Washer for Demolition Hammers HM1200 - HM1200K - HM1300 - HM1303 - HM1304 - HM1800 - HM1810 - HR3850 - HR3850K Part for the following...
AVAILABLE €8.71
Details
Seal 53 for Demolition Hammer MAKITA HM1200
Makita SKU: 213656-2
Seal 53 for Demolition Hammer MAKITA HM1200
Seal 53 for Demolition Hammer MAKITA HM1200 Genuine replacement part Makita, Seal 53 Demolition Hammers HM1200 - HM1200K - HM0870C - HM0870C - HM0871C. Part for the following products: -...
AVAILABLE €1.46
Details
Sponge for Hammers Makita M802 - HR3850B
Makita SKU: 685700-9
Sponge for Hammers Makita M802 - HR3850B
Sponge for Hammers Makita M802 - HR3850B Original spare part Makita, Sponge Sheet for Hammers M802/HR3850B - HM0810 - HM1400 - HM1200. Part for the following products: - 410 - DUST COLLECTORS - 4105KB - Dustless Cutter Dry Cutting 125...
AVAILABLE €2.00
Details
Handle Shaft for Demolition Hammer Makita HM0810T
Makita SKU: 321210-9
Handle Shaft for Demolition Hammer Makita HM0810T
Handle Shaft for Demolition Hammer Makita HM0810T Genuine spare part Makita, Handle Shaft for Demolition Hammers HM0810T - HM0810B - HM1200 - HM1200K. Part for the following products: - HM0810B - DEMOLITION HAMMER 5,3KG 900W - HM0810T...
AVAILABLE €2.96
Details
Crank Cap for Rotary Hammers Makita HR5000-HR5000K
Makita SKU: 414218-1
Crank Cap for Rotary Hammers Makita HR5000-HR5000K
Crank Cap for Rotary Hammers Makita HR5000-HR5000K Genuine replacement part Makita, Crank Cap for Rotary Hammer Spline HR5000 - Rotary Hammer Hex Shank HR5000K. Part For the following items: -...
Usually Ships in: 7/10 Business Days Approx. €24.78
Details
Piston Ring 40 for Demolition Hammer MAKITA HM1200
Makita SKU: 412049-2
Piston Ring 40 for Demolition Hammer MAKITA HM1200
Piston Ring 40  for Demolition Hammer MAKITA HM1200 Genuine replacement part Makita, Piston Ring 40  for Demolition Hammer HM1200 - HM1200K. Part for the following products: -  HM1200 - DEMOLITION HAMMER 9,5KG 940W -  HM1200K -...
Last items in stock €28.34
Details
Switch for Demolition Hammer MAKITA HM1200
Makita SKU: 651145-3
Switch for Demolition Hammer MAKITA HM1200
Switch for Demolition Hammer MAKITA HM1200 Genuine replacement part Makita, Switch C3D-H-MS for Demolition Hammer HM1200 - HM1200K. Part for the following products: -  HM1200 - DEMOLITION...
AVAILABLE €39.90
Details
Comments (0)
