Makita Spare Parts for Cordless Impact Driver TD127D
We are MAKITA original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for

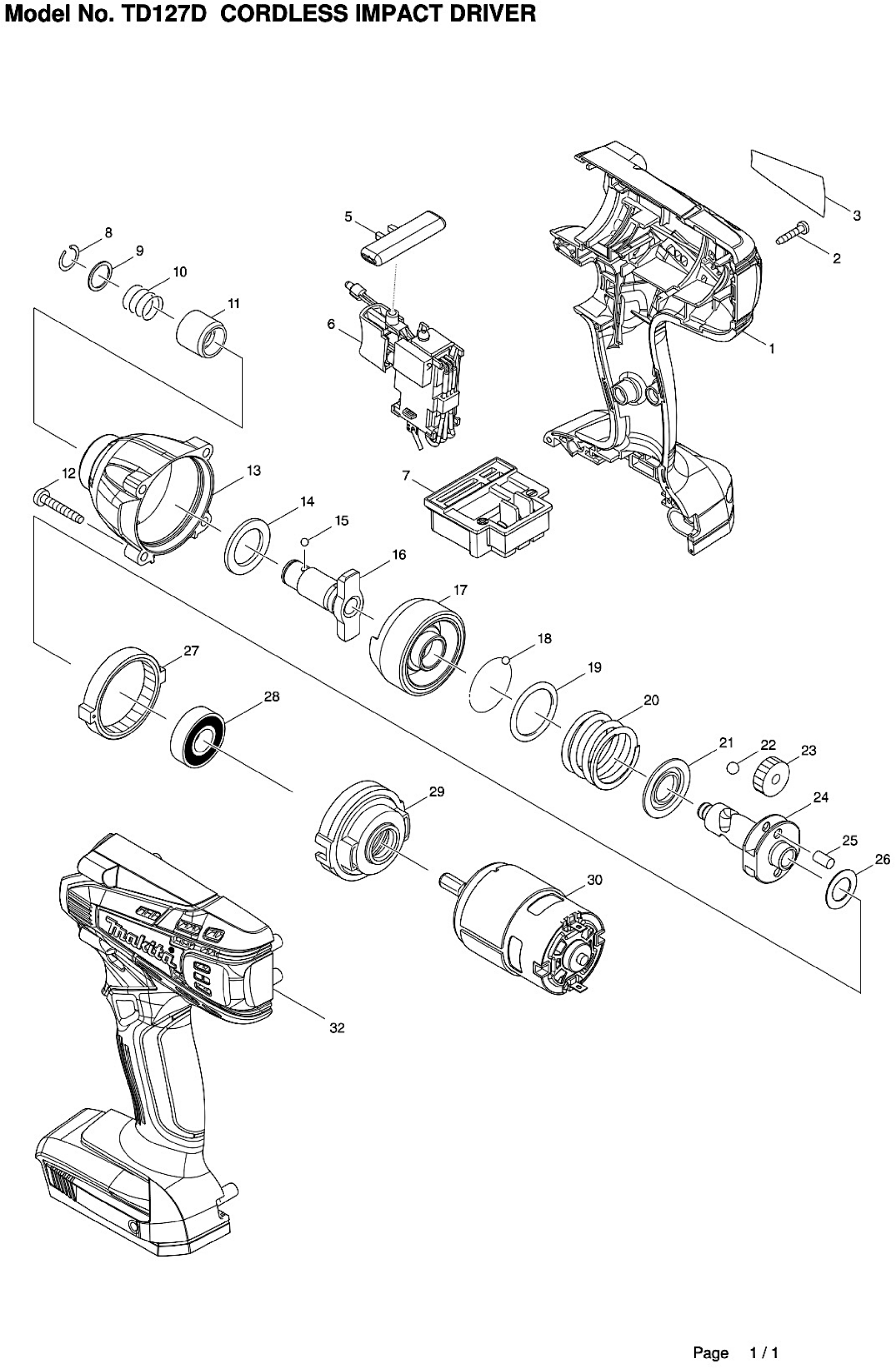

Cordless Impact Driver TD127D.In the following table, look for the model of Impact Wrench and the respective parts of the code.
| TD127D CORDLESS IMPACT DRIVER |
| # |
Part Num. |
Description |
| 1 |
187420-6 |
HOUSING SET |
| C10 |
252126-6 |
HEX. LOCKING NUT M4-7 |
| D10 |
|
INC. 32 |
| 2 |
266429-2 |
TAPPING SCREW 3X16 |
| 3 |
897581-1 |
TD127D NAME PLATE |
| 5 |
453055-8 |
F/R CHANGE LEVER |
| 6 |
632A33-9 |
SWITCH UNIT |
| 006-1 |
632J80-4 |
SWITCH UNIT |
| 7 |
643862-9 |
TERMINAL |
| 8 |
231951-8 |
RING SPRING 11 |
| 9 |
267085-1 |
FLAT WASHER 12 |
| 10 |
233005-7 |
COMPRESSION SPRING 13 |
| 11 |
324420-7 |
SLEEVE |
| 12 |
266374-1 |
TAPPING SCREW 4X25 |
| 13 |
141585-8 |
HAMMER CASE COMPLETE |
| 14 |
261151-6 |
NYLON WASHER 19 |
| 15 |
216001-0 |
STEEL BALL 3.5 |
| 015-1 |
216040-0 |
STEEL BALL 3.5 |
| 16 |
326188-1 |
ANVIL N |
| 17 |
326110-8 |
HAMMER |
| 18 |
216001-0 |
STEEL BALL 3.5 |
| 018-1 |
216040-0 |
STEEL BALL 3.5 |
| 19 |
267175-0 |
FLAT WASHER 24 |
| 20 |
233430-2 |
COMPRESSION SPRING 24 |
| 21 |
267766-7 |
CUP WASHER 14 |
| 22 |
216011-7 |
STEEL BALL 5.6 |
| 022-1 |
216041-8 |
STEEL BALL 5.6 |
| 23 |
226336-1 |
SPUR GEAR 22 |
| 023-1 |
227362-3 |
SPUR GEAR 22 |
| 24 |
326109-3 |
SPINDLE |
| 25 |
256253-1 |
PIN 5 |
| 26 |
267212-0 |
FLAT WASHER 12 |
| 27 |
227279-0 |
INTERNAL GEAR 51 |
| 28 |
210107-6 |
BALL BEARING 6001ZZ |
| 29 |
453056-6 |
INTERNAL GEAR CASE |
| 30 |
629969-5 |
DC MOTOR |
| 32 |
187420-6 |
HOUSING SET |
| C10 |
252126-6 |
HEX. LOCKING NUT M4-7 |
| D10 |
|
INC. 1 |
| A01 |
452652-7 |
BATTERY COVER |
| A02 |
452143-8 |
BATTRY CHARGER DF347D X DC18WA |
| A03 |
195454-5 |
BATTERY BL1811G SET |
| A03-1 |
196367-3 |
BATTERY BL1813G SET |
| A03-2 |
196367-3 |
BATTERY BL1813G SET |
| A03-3 |
198186-3 |
BATTERY BL1815G SET |
| A05 |
800F34-7 |
TD127DWE PLASTIC CASE LABEL |
| A06 |
824981-2 |
PLASTIC CARRYING CASE |
| C10 |
162315-4 |
LATCH |
| C20 |
452137-3 |
HANDLE |
| C30 |
452143-8 |
SHAFT |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
