Makita Spare Parts for Reciprocatng Saw JR3000V
We are MAKITA original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Reciprocating Saw JR3000V.

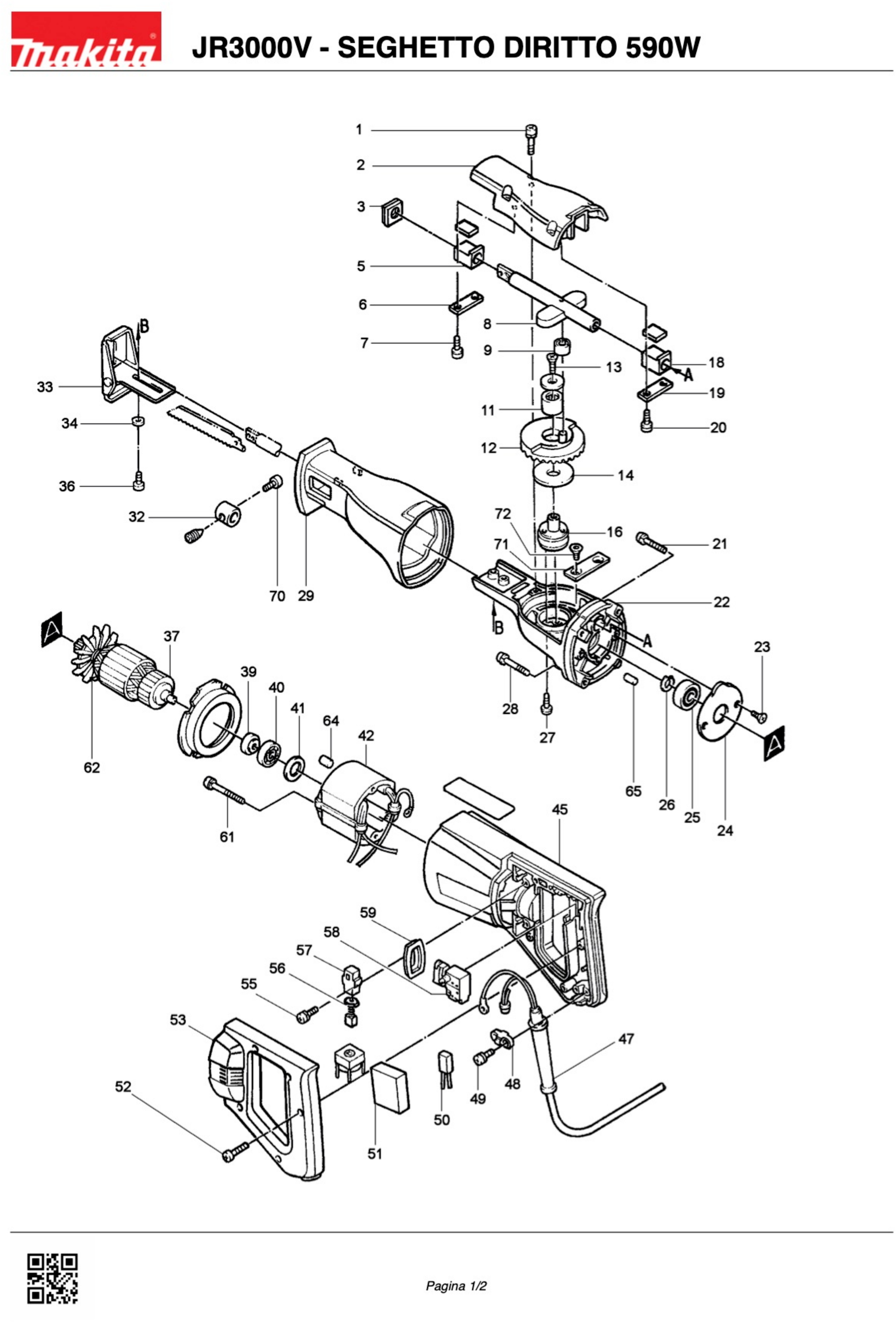

In the following table, look for the model of Saw and the respective parts of the code.
| Reciprocating Saw JR3000V 590 W |
| # |
Part Num. |
Description |
| 1 |
922241-7 |
Pan Head Screw M5X25 |
| 2 |
315084-8 |
GEAR HOUSING COVER JR3000 / V |
| 3 |
155896-5 |
SEAL X JR3000 / V |
| 5 |
214167-0 |
Plane Bearing 12.7 X JR3020 |
| 6 |
341462-6 |
PLATE X JR3000 / V |
| 7 |
911223-4 |
Pan Head Screw M5X16 M5X16 |
| 8 |
163392-9 |
SLIDER X JR3000 |
| 9 |
212959-1 |
NEEDLE BEARING 708 |
| 11 |
212115-3 |
NEEDLE BEARING 1216 |
| 12 |
133244-8 |
GEAR ASSEMBLY X JR3000 / V |
| 13 |
251969-3 |
HEX SCREW M5X12XJR3020 |
| 14 |
253805-9 |
FLAT WASHER 18XJR3000V |
| 16 |
321263-8 |
GEAR SHAFT X JR3000 / V |
| 18 |
214167-0 |
Plane Bearing 12.7 X JR3020 |
| 19 |
341462-6 |
PLATE X JR3000 / V |
| 20 |
911223-4 |
TAPPINGSCREW M5X16 |
| 21 |
911251-9 |
TAPPING SCREW M5X30 |
| 22 |
159718-1 |
GEAR BOX X JR3000V |
| 23 |
251295-0 |
COUNTERSUNK HEAD SCREW M4X14 |
| 24 |
285650-4 |
BEARING RETAINER 54 XJR3000 / V |
| 25 |
211087-9 |
BALL BEARING 6200DDW NSK |
| 26 |
961006-2 |
RETAINING RING S10 |
| 27 |
911211-1 |
SCREW M5X12 |
| 28 |
911256-9 |
SCREW M5X35 |
| 29 |
421326-1 |
PROTECTION X JR3000 / V |
| 32 |
313075-3 |
BLADE CLAMP X JR3020 |
| 33 |
163258-3 |
SHOE X JR3000 / V |
| 34 |
941101-4 |
FLAT WASHER 5 |
| 36 |
922216-6 |
Hex. Socket Head Bolt M5X14 |
| 37 |
516063-1 |
ARMATURE X JR3000 / V |
| 39 |
681613-2 |
INSULATING WASHER JN / JS32 / 4301BV |
| 40 |
211033-2 |
BALL BEARING 608SS (LLB) HR2010 |
| 41 |
253192-6 |
FLAT WASHER 14 |
| 42 |
528705-5 |
FIELD X JR3000V |
| 45 |
159482-4 |
MOTOR HOUSING XJR3000V |
| 47 |
682504-0 |
CORD GUARD 10/85 |
| 48 |
687001-1 |
STRAIN RELIEF |
| 49 |
911133-5 |
SCREW M4X18 |
| 50 |
645253-0 |
NOISE SUPPRESSOR X 6408 |
| 51 |
685718-0 |
SPONGE SHEET X JR3000V / 9035N |
| 52 |
911153-9 |
SCREW M4X28 3600H |
| 53 |
410068-2 |
HANDLE COVER X JR3000V |
| 55 |
911124-6 |
SCREW M4X14X HM1301 |
| 56 |
181026-2 |
CARBON BRUSH SET CB-55 |
| 57 |
643551-6 |
CARBON BRUSH HOLDER |
| 58 |
651256-4 |
SWITCH SGEL 106 CV 1A |
| 59 |
411852-8 |
SWITCH COVER 6802BV / JR3000 |
| 61 |
911280-2 |
SCREW M5X55 |
| 62 |
241631-8 |
FAN 66 X JR3000V |
| 64 |
263014-2 |
RUBBER PIN 4 |
| 65 |
263002-9 |
RUBBER PIN 4 |
| 70 |
266090-5 |
HEX BOLT M5X15 |
| 71 |
343981-8 |
PLATE C X JR3020 |
| 72 |
251969-3 |
HEX SCREW M5X12XJR3020 |
