Makita Spare Parts for Trimmer RT0700C
We supply original Makita spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Trimmer RT0700C.

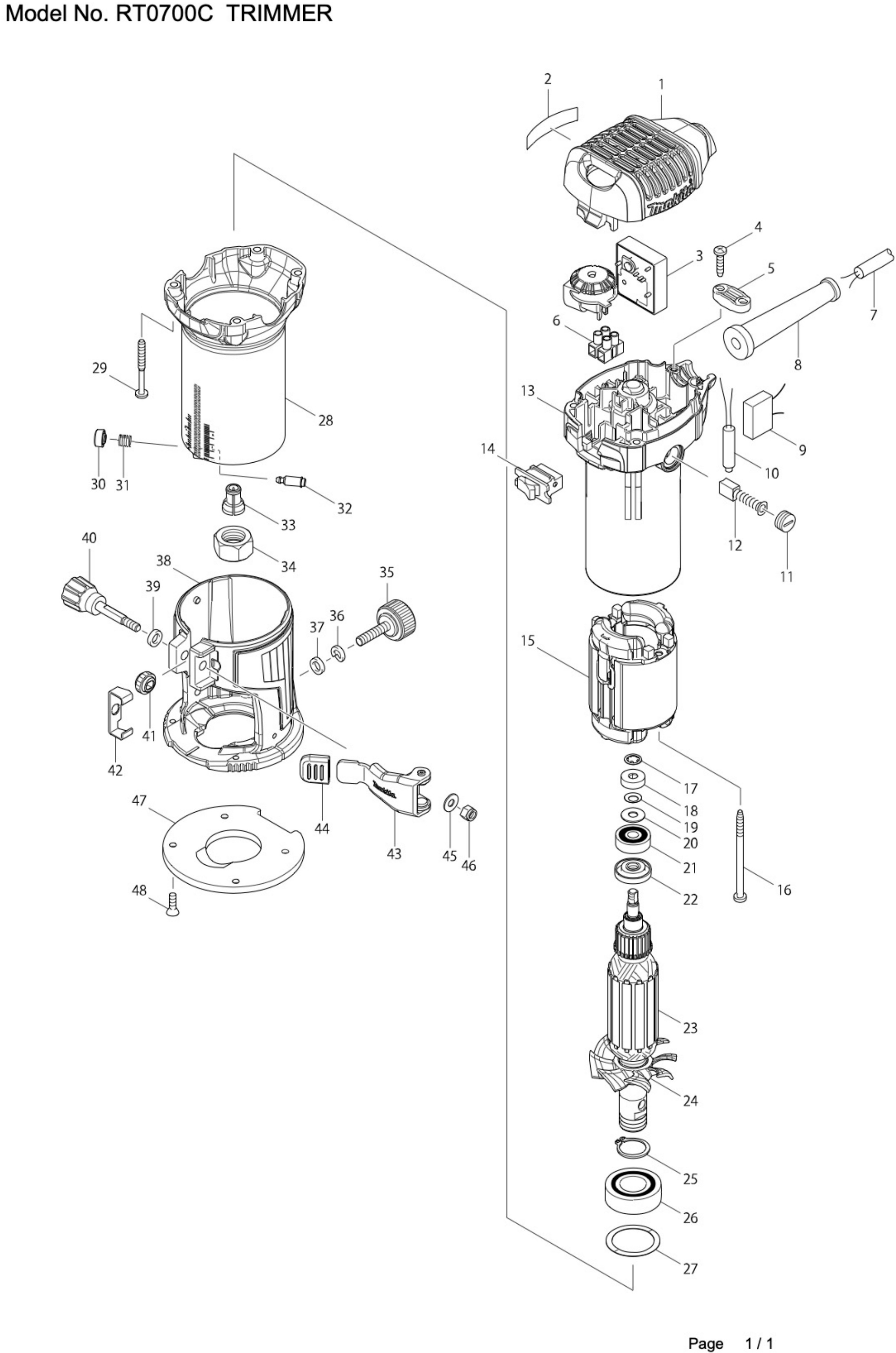

In the following table, look for the model of Power Trimmer and the respective parts of the code.
| Makita RT0700C 1-1/4 HP Compact Router Parts |
| # |
Part Num. |
Description |
| 1 |
452465-6 |
TOP COVER |
| 2 |
869668-9 |
NAME PLATE RT0700C |
| 3 |
620040-8 |
CONTROLLER |
| 4 |
266326-2 |
TAPPING SCREW 4X18 |
| 5 |
687123-7 |
STRAIN RELIEF |
| 6 |
654542-2 |
TERMINAL BLOCK 2P |
| 7 |
692021-2 |
POWER SUPPLY CORD 1.0-2-2.5 |
| 8 |
682569-2 |
CORD GUARD 8-85 |
| 11 |
643550-8 |
BRUSH HOLDER CAP 5-8 |
| 12 |
191940-4 |
CARBON BRUSH CB-411 |
| 13 |
140736-0 |
BRACKET COMPLETE |
| C10 |
643455-2 |
BRUSH HOLDER 6X9 |
| 14 |
651527-9 |
SWITCH |
| 15 |
633769-7 |
FIELD 240V RT0700C |
| 16 |
266340-8 |
TAPPING SCREW 4X65 |
| 17 |
259039-2 |
SELF LOCK 6 |
| 18 |
688117-5 |
MAGNET SLEEVE |
| 19 |
253332-6 |
THIN WASHER 6 |
| 20 |
267756-0 |
WAVE WASHER 6 |
| 21 |
210023-2 |
BALL BEARING 627DDW |
| 22 |
681668-7 |
INSULATION WASHER |
| 022-1 |
681668-7 |
INSULATION WASHER |
| 23 |
515844-0 |
ARMATURE ASS'Y 240V |
| D10 |
|
INC. 17-22,24-26 |
| 24 |
240125-0 |
FAN 55 |
| 25 |
961057-5 |
RETAINING RING S-17 |
| 26 |
210301-0 |
BALL BEARING 6003DDW |
| 27 |
253906-3 |
WAVE WASHER 26 |
| 28 |
140735-2 |
OUTER HOUSING COMPLETE |
| 29 |
266560-4 |
TAPPING SCREW 4X40 |
| 30 |
452468-0 |
PUSH BUTTON |
| 31 |
233127-3 |
COMPRESSION SPRING 7 |
| 32 |
256437-1 |
PIN 4 |
| 33 |
763637-1 |
COLLET CONE 1/4" |
| 34 |
763615-1 |
COLLET NUT |
| 35 |
265763-7 |
THUMB SCREW M6X25 |
| 36 |
942151-2 |
SPRING WASHER 6 |
| 37 |
941151-9 |
FLAT WASHER 6 |
| 38 |
140739-4 |
TRIMMER BASE COMPLETE |
| 038-1 |
142403-3 |
TRIMMER BASE COMPLETE |
| 39 |
941151-9 |
FLAT WASHER 6 |
| 40 |
265792-0 |
THUMB SCREW M5X35 |
| 41 |
227262-7 |
SPUR GEAR 16 |
| 42 |
346392-6 |
CAM PLATE |
| 43 |
163524-8 |
LOCK LEVER COMPLETE |
| 44 |
424396-9 |
RUBBER CAP |
| 45 |
941101-4 |
FLAT WASHER 5 |
| 46 |
252103-8 |
HEX. LOCK NUT M5-8 |
| 47 |
413149-1 |
BASE PROTECTOR |
| 047-1 |
454842-8 |
BASE PROTECTOR |
| 48 |
912112-6 |
COUNTERSUNK HEAD SCREW M4X10 |
| A01 |
122965-7 |
STRAIGHT GUIDE ASSEMBLY |
| C10 |
252649-4 |
THUMB NUT M6 |
| C20 |
266339-3 |
CAP SQUARE NECK BOLT M6X20 |
| C30 |
346382-9 |
GUIDE PLATE |
| A02A |
195559-1 |
DUST NOZZLE SET |
| C10 |
265774-2 |
THUMB SCREW M4X19 |
| A02B |
194733-8 |
DUST NOZZLE SET |
| C10 |
213022-3 |
O RING 3 |
| C20 |
265774-2 |
THUMB SCREW M4X19 |
| A02C |
194733-8 |
DUST NOZZLE SET |
| C10 |
213022-3 |
O RING 3 |
| C20 |
265774-2 |
THUMB SCREW M4X19 |
| A03A |
343577-5 |
TEMPLET GUIDE 10 |
| A03B |
195559-1 |
DUST NOZZLE SET |
| C10 |
265774-2 |
THUMB SCREW M4X19 |
| A03C |
195559-1 |
DUST NOZZLE SET |
| C10 |
265774-2 |
THUMB SCREW M4X19 |
| A04A |
763619-3 |
COLLET CONE 3/8" |
| A04B |
343577-5 |
TEMPLET GUIDE 10 |
| A04C |
343577-5 |
TEMPLET GUIDE 10 |
| A05A |
781011-1 |
WRENCH 22 |
| A05B |
763619-3 |
COLLET CONE 3/8" |
| A05C |
763619-3 |
COLLET CONE 3/8" |
| A06A |
781039-9 |
WRENCH 13 |
| A06B |
781011-1 |
WRENCH 22 |
| A06C |
781011-1 |
WRENCH 22 |
| A07B |
781039-9 |
WRENCH 13 |
| A07C |
781039-9 |
WRENCH 13 |
| A08B |
344364-5 |
TEMPLET GUIDE 16 |
| A08C |
344364-5 |
TEMPLET GUIDE 16 |
| A09B |
122703-7 |
TRIMMER GUIDE ASS'Y |
| C10 |
251471-6 |
FLAT HEAD SCREW M5 |
| C20 |
265135-6 |
COUNTERSUNK HEAD SCREW M4X |
| C30 |
265763-7 |
THUMB SCREW M6X25 |
| C40 |
265764-5 |
THUMB SCREW M6 |
| C50 |
317788-8 |
GUIDE HOLDER |
| C60 |
324378-0 |
ROLLER 11 |
| C70 |
341136-9 |
HOOK |
| C80 |
941151-9 |
FLAT WASHER 6 |
| A09C |
122703-7 |
TRIMMER GUIDE ASS'Y |
| C10 |
251471-6 |
FLAT HEAD SCREW M5 |
| C20 |
265135-6 |
COUNTERSUNK HEAD SCREW M4X |
| C30 |
265763-7 |
THUMB SCREW M6X25 |
| C40 |
265764-5 |
THUMB SCREW M6 |
| C50 |
317788-8 |
GUIDE HOLDER |
| C60 |
324378-0 |
ROLLER 11 |
| C70 |
341136-9 |
HOOK |
| C80 |
941151-9 |
FLAT WASHER 6 |
| A10B |
195563-0 |
PLUNGE BASE SET |
| D10 |
|
COMPO-PARTS |
| A10C |
195563-0 |
PLUNGE BASE SET |
| D10 |
|
COMPO-PARTS |
| A11B |
195561-4 |
TILT BASE SET |
| D10 |
|
COMP0-PARTS |
| A11C |
195561-4 |
TILT BASE SET |
| D10 |
|
COMP0-PARTS |
| A12B |
153489-2 |
GRIP 36 COMPLETE |
| A12C |
153489-2 |
GRIP 36 COMPLETE |
| A13B |
195564-8 |
GUIDE HOLDER SET |
| C10 |
252649-4 |
THUMB NUT M6 |
| C20 |
256850-3 |
ROD 8 |
| C30 |
266339-3 |
CAP SQUARE NECK BOLT M6X20 |
| A13C |
195564-8 |
GUIDE HOLDER SET |
| C10 |
252649-4 |
THUMB NUT M6 |
| C20 |
256850-3 |
ROD 8 |
| C30 |
266339-3 |
CAP SQUARE NECK BOLT M6X20 |
| A14B |
831327-5 |
TOOL BAG |
| A14C |
821552-6 |
CONNECTOR PLASTIC CASE (TYPE4) |
| C10 |
453974-8 |
LATCH |
| A14-1C |
821552-6 |
CONNECTOR PLASTIC CASE (TYPE4) |
| C10 |
453974-8 |
LATCH |
| A15C |
837247-1 |
TRAY |
| A16C |
801N88-5 |
RT0700CX5J INDICATION LABEL |
| A17C |
801N89-3 |
RT0700CX5J PLASTIC CASE LABEL |
| A18C |
D-30209 |
ROUTER BIT 3PCS/SET MM |
| A18-1C |
D-30215 |
ROUTER BIT 3PCS/SET INCH |
