Makita Spare Parts for Rotary Hammer HR2631F

SKU: Makita HR2631F
€19.64
VAT included

Makita Spare Parts for Rotary Hammer HR2631F

Makita genuine spare parts or replacement parts for to repair Rotary Hammer HR2631F.

3 functions: rotation, rotation + percussion, percussion
Suitable for SDS-Plus tips
Ergonomic soft grip coating
Makita Spare Parts for Rotary Hammer HR2631F
  • Makita Spare Parts for Rotary Hammer HR2631F
  • Makita Spare Parts for Rotary Hammer HR2631F
Makita

Makita Spare Parts for Rotary Hammer HR2631F

SKU: Makita HR2631F Condition: New
€19.64
VAT included

Makita Spare Parts for Rotary Hammer HR2631F

Makita genuine spare parts or replacement parts for to repair Rotary Hammer HR2631F.

3 functions: rotation, rotation + percussion, percussion
Suitable for SDS-Plus tips
Ergonomic soft grip coating
settings 95 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
95 spare parts

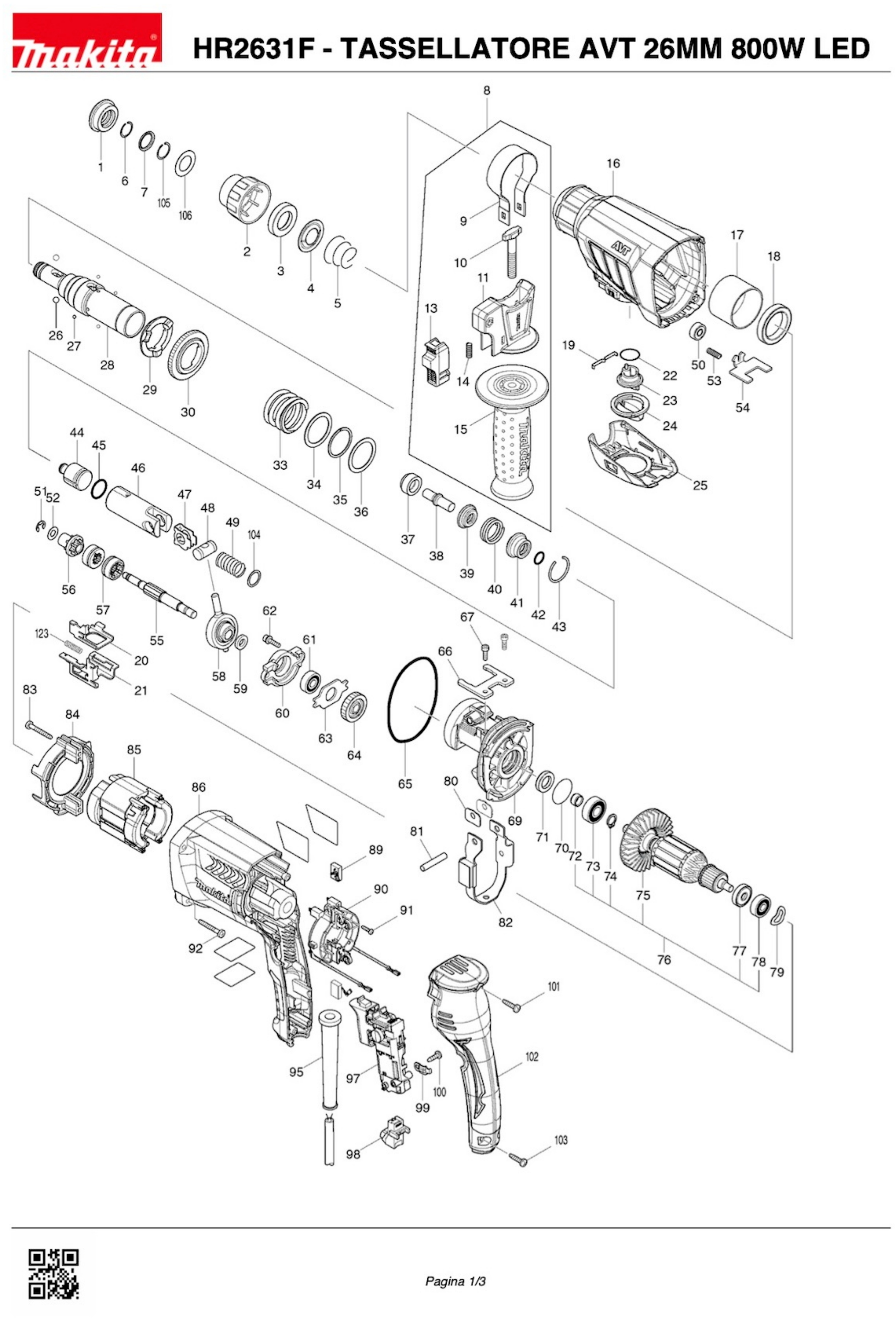

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 286288-8 CAP 35 HR2601 €1.38
2
 photo_cameraImage coming soon 455393-4 CHUCK COVER €1.25
3
 photo_cameraImage coming soon 325813-1 RING 21 HR2601 €1.90
4
 Guide Washer for Rotary Hammer Makita HR2601 346177-0 Guide Washer for Rotary Hammer Makita HR2601 €1.41
5
 Spring 21-29 for 20 mm Hammer Makita HR2020 233916-6 Spring 21-29 for 20 mm Hammer Makita HR2020 €3.18
6
 photo_cameraImage coming soon 233989-9 CIRCLIP 14 HR2601 €1.38
7
 Washer 16 for Rotary Hammers Makita HR2600-HR2601 346834-0 Washer 16 for Rotary Hammers Makita HR2600-HR2601 €1.32
8
 photo_cameraImage coming soon 122878-2 GRIP ASSEMBLY HR2601 €17.13
9
 photo_cameraImage coming soon 346181-9 GRIP SPRING 50 HR2601 €2.88
10
 photo_cameraImage coming soon 266349-0 SCREW M8x50 HR2601 €2.43
11
 photo_cameraImage coming soon 451539-0 GRIP BASE HR2601 €1.92
13
 photo_cameraImage coming soon 141765-6 LOCK BUTTON HR2630T €1.27
14
 photo_cameraImage coming soon 233360-7 COMPRESSION SPRING 4 X MT952 €1.47
15
 photo_cameraImage coming soon 154935-8 GRIP 36 HR2601 €6.84
16
 Makita Gear Housing for HR2631F 142970-8 Makita Gear Housing for HR2631F €17.90
17
 photo_cameraImage coming soon 331890-3 SLEEVE HR2601 €1.62
18
 photo_cameraImage coming soon 211294-4 BALL BEARING 6806LLU HR2601 €14.19
19
 photo_cameraImage coming soon 232286-0 SPRING PLATE HR2630T €1.27
20
 photo_cameraImage coming soon 346833-2 GEARBOX PLATE B X HR2630T €1.92
21
 photo_cameraImage coming soon 346832-4 CHANGE PLATE A X HR2630T €1.92
22
 photo_cameraImage coming soon 213278-8 RING 13 X HR2020 €1.40
23
 photo_cameraImage coming soon 455392-6 HR2630T CHANGE LEVER €1.30
24
 photo_cameraImage coming soon 455394-2 HR2630T CHANGE LEVER CAP €1.30
25
 photo_cameraImage coming soon 455391-8 COVER X HR2630T €2.47
26
 Steel Ball 7 mm for Hammers Makita 216022-2 Steel Ball 7 mm for Hammers Makita €1.47
27
 photo_cameraImage coming soon 216019-1 STEEL BALL 3 X 6960DW €1.42
28
 photo_cameraImage coming soon 142972-4 TOOL HOLDER HR2631F €32.73
29
 Flange for Hammers Makita HR2600-HR2601 332139-4 Flange for Hammers Makita HR2600-HR2601 €7.40
30
 Gear 51 for Hammer Makita HR2600 227360-7 Gear 51 for Hammer Makita HR2600 €4.50
33
 photo_cameraImage coming soon 234148-8 COMPRESSION SPRING 31 HR2601 €2.07
34
 photo_cameraImage coming soon 267153-0 WASHER 30 HR2601 €1.47
35
 photo_cameraImage coming soon 257932-4 WASHER RETAINING 30 HR2601 €3.80
36
 photo_cameraImage coming soon 267153-0 WASHER 30 HR2601 €1.47
37
 photo_cameraImage coming soon 325783-4 SOCKET 9B HR2601 €2.07
38
 photo_cameraImage coming soon 325789-2 HINGED HR2601 €1.90
39
 photo_cameraImage coming soon 325792-3 WASHER 10 HR2601 €2.07
40
 photo_cameraImage coming soon 234149-6 COMPRESSION SPRING 20 HR2601 €1.38
41
 photo_cameraImage coming soon 325793-1 RING HOLDER B HR2601 €3.10
42
 photo_cameraImage coming soon 213073-6 9 RING HR2020 €2.21
43
 photo_cameraImage coming soon 233979-2 CIRCLIP 28 HR2601 €1.38
44
 Striker for Rotary Hammer Makita HR2600 325784-2 Striker for Rotary Hammer Makita HR2600 €4.57
45
 Gasket 17,5 X HR2210/20 for Rotary Hammer Makita HR2600-HR2601 213258-4 Gasket 17,5 X HR2210/20 for Rotary Hammer Makita HR2600-HR2601 €5.87
46
 Piston Cylinder for Rotary Hammer Makita DHR242RMJ 310345-1 Piston Cylinder for Rotary Hammer Makita DHR242RMJ €12.95
47
 photo_cameraImage coming soon 346036-8 PLATE PIN BHR261D €1.38
48
 photo_cameraImage coming soon 324215-8 PISTON PIN X X HR2020 €3.31
49
 photo_cameraImage coming soon 234098-7 COMPRESSION SPRING 14 BHR261D €1.36
50
 photo_cameraImage coming soon 210137-7 BEARING 606ZZ €1.43
51
 photo_cameraImage coming soon 257336-0 RETAINING RING EXT U-6 €1.38
52
 photo_cameraImage coming soon 253186-1 FLAT WASHER 7 X 420S €1.38
53
 photo_cameraImage coming soon 233360-7 COMPRESSION SPRING 4 X MT952 €1.47
54
 photo_cameraImage coming soon 346831-6 LOCK PLATE HR2630T €1.30
55
 photo_cameraImage coming soon 326448-1 SHAFT X HR2630T €7.80
56
 photo_cameraImage coming soon 227359-2 GEAR 10 X HR2630T €17.13
57
 photo_cameraImage coming soon 332125-5 CLUTCH CAM HR2630T €7.51
58
 photo_cameraImage coming soon 219023-9 SWASH BEARING 10 10 HR2631F €28.96
59
 photo_cameraImage coming soon 257321-3 RING 8 MT870 €1.38
60
 photo_cameraImage coming soon 310344-3 BEARING BOX HR2601 €6.84
61
 photo_cameraImage coming soon 211032-4 BEARING X 1902 €5.87
62
 photo_cameraImage coming soon 266437-3 SCREW M4x16 FRENA THREAD HR4001C €3.39
63
 photo_cameraImage coming soon 285735-6 RETAINING BEARING HR2601 €1.27
64
 photo_cameraImage coming soon 227719-8 GEAR 26 HR2601 €5.37
65
 photo_cameraImage coming soon 213728-3 RING 68 X BHR261D €2.04
66
 photo_cameraImage coming soon 346222-1 PLATE HR2601 €5.37
67
 photo_cameraImage coming soon 265353-6 SCREW M 4 X 12 X 4341FCT €3.76
69
 photo_cameraImage coming soon 141573-5 INNER HOUSING X HR2631F €17.45
70
 photo_cameraImage coming soon 213407-3 SEAL 26 X 3901 €2.18
71
 photo_cameraImage coming soon 213678-2 SEAL 12 MT870 €6.84
72
 photo_cameraImage coming soon 262569-4 SOCKET 9 HR2601 €1.27
73
 photo_cameraImage coming soon 211097-6 BEARING 5604R €9.66
74
 photo_cameraImage coming soon 961006-2 RETAINING RING S10 €1.32
75
 photo_cameraImage coming soon 240121-8 FAN 65 HR2601 €1.90
76
 photo_cameraImage coming soon 515359-7 ARMATURE 240V €41.08
77
 photo_cameraImage coming soon 681670-0 INSULATION WASHER X JR180D €1.34
78
 photo_cameraImage coming soon 210023-2 9910/11 BEARING €7.16
79
 photo_cameraImage coming soon 267804-5 WAVY WASHER 15 HR2230 €1.25
80
 photo_cameraImage coming soon 346180-1 GUIDE Balancer HR2601 €1.27
81
 photo_cameraImage coming soon 256246-8 PIN 6 LS1216F €1.29
82
 photo_cameraImage coming soon 165593-5 Balancer HR2601 €7.68
83
 photo_cameraImage coming soon 266361-0 4 SCREW FOR 30 PER 9554NB €2.28
84
 photo_cameraImage coming soon 451527-7 BAFFLE HR2601 €2.95
85
 photo_cameraImage coming soon 626634-7 STATOR HR2601 €27.92
86
 photo_cameraImage coming soon 451535-8 HOUSING MOTOR HR2611FT €12.93
89
 Carbon Brushes CB-325 for Angle Grinder Makita 9554NB 194074-2 Carbon Brushes CB-325 for Angle Grinder Makita 9554NB €4.19
90
 photo_cameraImage coming soon 638655-7 BRUSHES HOLDER HR2601 €15.86
91
 photo_cameraImage coming soon 266556-5 SCREW 3X12 HR26001 €2.95
92
 photo_cameraImage coming soon 266361-0 4 SCREW FOR 30 PER 9554NB €2.28
95
 photo_cameraImage coming soon 682566-8 CORD GUARD X HR2450 €2.15
97
 photo_cameraImage coming soon 651090-2 TG853TB-3 SWITCH €29.99
98
 photo_cameraImage coming soon 631937-6 CIRCUIT LIGHT HR2611FT €8.74
99
 photo_cameraImage coming soon 687682-1 CLAMP Cable tie X JS1000 €2.95
100
 photo_cameraImage coming soon 266385-6 SCREW 4x14 GA9020 €1.44
101
 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 €1.27
102
 photo_cameraImage coming soon 451528-5 COVER HANDLE HR2601 €6.08
103
 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 €1.27
104
 photo_cameraImage coming soon 267447-3 WASHER 14 HR2601 €1.36
105
 photo_cameraImage coming soon 233992-0 CIRCLIP 15 HR2601 €1.38
106
 photo_cameraImage coming soon 267114-0 FLAT WASHER 17 X 8412DWH €1.37
123
 photo_cameraImage coming soon 234343-0 COMPRESSION SPRING 5 HR2630T €1.38
999
 photo_cameraImage coming soon 195105-0 SERVICE KIT HR2300 €25.53

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Rotary Hammer HR2631F

Makita genuine spare parts or replacement parts for to repair Rotary Hammer HR2631F.

Open PDF Diagram, check your spare part number position and then select it in the following table.
Makita HR2631F

Rotary Hammer HR2631F
# Part Num. Description
1 286288-8 CAP 35, HR2600
2 455393-4 CHUCK COVER
3 325813-1 RING 21, HR2610
4 346177-0 GUIDE WASHER, HR2610
5 233916-6 C.C. SPRING 21-29, 906020
6 233989-9 LEAF SPRING, HR2610
7 346834-0 WASHER 16 X HR2631F
8 122878-2 GRIP ASSEMBLY, HR2610
9 346181-9 GRIP SPRING 50, HR2610
10 266349-0 SQUARE BOLT M8*50, DF441D
11 451539-0 GRIP BASE, HR2610
13 141765-6 LOCK BUTTON HR2630T
14 233360-7 COMPRESSION SPRING 4, MT952
15 154935-8 HANDLE 36 HR2601
16 142970-8 GEAR HOUSING COMPLETE
17 331890-3 CUP SLEEVE, HR2610
18 211294-4 BALL BEARING 6806LLU, HR2610
19 232286-0 LEAF SPRING
20 346833-2 CHANGE PLATE B
21 346832-4 CHANGE PLATE A
22 213278-8 O-RING 17, HR2020
23 455392-6 CHANGE LEVER
24 455394-2 CHANGE LEVER CAP
25 455391-8 COVER X HR2630T
26 216022-2 STEEL BALL 7.0, HR2412
27 216019-1 STEEL BALL 3, TD020D
28 142972-4 TOOL HOLDER HR2631F
29 332139-4 DRIVING FLANGE
30 227360-7 SPUR GEAR 51, HR2610
33 234148-8 COMPRESSION SPRING 31, HR2610
34 267153-0 PLAT WASHER 30, HR2610
35 257932-4 SPIRO LOCK WASHER 30, 6922K
36 267153-0 PLAT WASHER 30, HR2610
37 325783-4 SLEEVE 9B, HR2611F
38 325789-2 IMPACT BOLT A, HR2610
39 325792-3 WASHER 10, HR2611F
40 234149-6 COMPRESSION SPRING 20, HR2610
41 325793-1 O-RING CASE B, HR2610
42 213073-6 O RING 9, HR2475
43 233979-2 RING SPRING 28, HR2020
44 325784-2 STRIKER, HR2610
45 213258-4 O RING 17.5, HR2610
46 310345-1 PISTON CYLINDER, HR2610
47 346036-8 GUIDE PLATE, HR261D
48 324215-8 PISTON JOINT, HR2020
49 234098-7 COMPRESSION SPRING 14, HR2610
50 210137-7 BALL BEARING 606ZZ
51 257336-0 STOP RING EXT U-6, BHR243
52 253186-1 FLAT WASHER, MDB10-2
53 233360-7 COMPRESSION SPRING 4, MT952
54 346831-6 LOCK PLATE
55 326448-1 CAM SHAFT
56 227359-2 SPUR GEAR 10
57 332125-5 CLUTCH CAM
58 219023-9 SWASH BEARING 10
59 257321-3 RING 8, MT870
60 310344-3 BEARING BOX, HR2610
61 211032-4 BALL BEARING 608ZZ, 5704R
62 266437-3 HEX. SOCKET HEAD BOLT M4X16, HR2610
63 285735-6 BEARING RETAINER, HR2610
64 227719-8 HELICAL GEAR 26, HR2610
65 213728-3 O-RING 68, HR261D
66 346222-1 PLATE, HR2610
67 265353-6 HEX. SOCKET HEAD BOLT M4X12, HR2610
69 141573-5 INNER HOUSING COMPLETE
70 213407-3 O RING 26, HR2475
71 213678-2 OIL SEAL 12, HR2610
72 262569-4 SLEEVE 9, HR2610
73 211097-6 BALL BEARING 6000LLB, 5806B
74 961006-2 RETAINING RING S-10, JR300VT
75 240121-8 FAN 65 HR2601
76 515359-7 ARMATURE ASSY 240V, HR2600
77 681670-0 INSULATION WASHER, HR2470
78 210023-2 BALL BEARING 627DDW, HR2453
79 267804-5 WAVE WASHER 15, HR2470
80 346180-1 WEIGHT HOLDER GUIDE, HR2610
81 256246-8 PIN MUH352, MUH352
82 165593-5 COUNTER WEIGHT, HR2610
83 266361-0 TAPPING SCREW 4*30, 9526B
84 451527-7 BAFFLE PLATE, HR2610
85 626634-7 FIELD 240V 195T, HR2600
86 451535-8 MOTOR HOUSING, HR2610
89 194074-2 CARBON BRUSH CB-325, 9553NB
90 638655-7 BRUSH HOLDER UNIT, HR2610
91 266556-5 TAPPING SCREW 3*12, HR2610
92 266361-0 TAPPING SCREW 4*30, 9526B
95 682566-8 CORD GUAUD 10-110, 6824
97 651090-2 SWITCH TG853TB-3
98 631937-6 LIGHT CIRCUIT, HR261FT
99 687682-1 CORD CLAMP, MT960
100 266385-6 TAPPING SCREW M4*14, GA9020
101 266326-2 TAPPING SCREW PT 4X18, MT951
102 451528-5 HANDLE COVER, HR2610
103 266326-2 TAPPING SCREW PT 4X18, MT951
104 267447-3 FLAT WASHER 14, HR2610
105 233992-0 RING SPRING 15
106 267114-0 FLAT WASHER 17, RP0900
123 234343-0 COMPRESSION SPRING 5
999 195105-0 HAMMER SERVICE KIT
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s MAKITA websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to MAKITA brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita HR2631F
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita HR2631F

Diagram Makita HR2631F

Download (324.61KB)

You might also like

Carbon Brushes Makita for Angle Grinders 9554-9555-9557
Makita SKU: 194074-2
Carbon Brushes Makita for Angle Grinders 9554-9555-9557
Carbon Brushes Makita for Angle Grinders 9554-9555-9557 Genuine spare part Makita,  Carbon Brushe Set CB-325 for Angle Grinders 9554HN - 9554HNG - 9554NB - 9555NB - 9557HN - 9557HNG - 9557HP - 9557NB -...
Last items in stock €4.19
Details
Steel Ball 7 mm for Hammers Makita
Makita SKU: 216022-2
Steel Ball 7 mm for Hammers Makita
Steel Ball 7 mm for Hammers Makita Genuine spare part Makita, Steel Ball 7 mm diameter for Hammers SDS Plus and Cordless, BHR162RFE - BHR200SFE - BHR240RFE - BHR241RFE - BHR261DP1 - DHR263Z - HR1830 -  HR2420 - HR2611FT....
build View Spare Parts
Spring 21-29 for 20 mm Hammer Makita HR2020
Makita SKU: 233916-6
Spring 21-29 for 20 mm Hammer Makita HR2020
Spring 21-29 for 20 mm Hammer Makita HR2020 Original spare Makita, 21-29 Spring for 20 mm Hammerdrill SDS Plus 710 W Makita HR2020. Part for the following products: - Hammer SDS-PLUS 18MM 1830 - Hammer 24MM 750W 2450 - Hammer 720W...
AVAILABLE €3.18
Details
Gear 51 for Hammer Makita HR2600
Makita SKU: 227360-7
Gear 51 for Hammer Makita HR2600
Gear 51 for Hammer Makita HR2600 Genuine spare part Makita, Gear 51 for SDS PLUS Hammers, HR2600. Part For the Following Items: - Hammer Makita HR2600 - Code : 2227360-7 ex 227232-6
Last items in stock €4.50
Details
Flange for Hammers Makita HR2600-HR2601
Makita SKU: 332139-4
Flange for Hammers Makita HR2600-HR2601
Flange for Hammers Makita HR2600-HR2601 Genuine part Makita, Flange for Hammers SDS-Plus Makita HR2600 - HR2601. Replacement for the following items: - Hammer Makita HR2600 - Hammer Makita HR2601 - Code: 332139-4
on 7/10 Business Days Approx €7.40
Details
Washer 16 for Rotary Hammers Makita HR2600-HR2601
Makita SKU: 346834-0
Washer 16 for Rotary Hammers Makita HR2600-HR2601
Washer 16 for Rotary Hammers Makita HR2600-HR2601 Genuine spare part Makita, Washer 16 for Rotary Hammers Makita HR2300 - HR2600 - HR2601 - HR2611F - HR2630 - HR2631F - BHR242RFE - DHR242RMJ Part for the following products: - HR2300 -...
AVAILABLE €1.32
Details
Piston Cylinder for Rotary Hammer Makita DHR242RMJ
Makita SKU: 310345-1
Piston Cylinder for Rotary Hammer Makita DHR242RMJ
Piston Cylinder for Rotary Hammer Makita DHR242RMJ Genuine spare part Makita, Piston Cylinder for SDS-Plus Cordless Rotary Hammers DHR242RMJ - DHR243RMJ - BHR242RFE - BHR243RFE. Parts for the following products: -  DHR242RMJ -...
on 7/10 Business Days Approx €12.95
Details
Striker for Rotary Hammer Makita HR2600
Makita SKU: 325784-2
Striker for Rotary Hammer Makita HR2600
Striker for Rotary Hammer Makita HR2600 Genuine spare part Makita, Striker for SDS-PLUS Makita HR2300 - HR2600 - HR2601 - HR2610T Part For the Following Items: -  HR2300 - ROTARY HAMMER 720W 23mm -  HR2600 - ROTARY HAMMER 800W 26mm...
on 7/10 Business Days Approx €4.57
Details
Guide Washer for Rotary Hammer Makita HR2601
Makita SKU: 346177-0
Guide Washer for Rotary Hammer Makita HR2601
Guide Washer for Rotary Hammer Makita HR2601 Genuine spare part Makita, Guide Washer for Rotary Hammers Makita HR2600 - HR2601 - HR2611F - HR2630 - HR2631F. Parts for the following products: -  HR2300 - ROTARY HAMMER SDS.+ 720W -...
on 7/10 Business Days Approx. €1.41
Details
Makita Gear Housing for HR2631F
Makita SKU: 142970-8
Makita Gear Housing for HR2631F
Makita Gear Housing for Combination Hammer HR2631F Genuine spare part Makita, Gear Housing for Combination Hammer HR2631F. Part for the following products: - Makita Combination Hammer HR2631FT - Makita Combination Hammer HR2631F...
Last items in stock €17.90
Details
Comments (0)
