Makita

Makita Spare Parts for SDS-Plus Rotary Hammer HR2410

SKU: Makita HR2410
€14.16
VAT included

Makita Spare Parts for SDS-Plus Rotary Hammer HR2410

Makita genuine spare parts or replacement parts for to repair Rotary Hammer SDS-PLUS HR2410.

Fix Your Rotary Hammer SDS-PLUS HR2410. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Makita Spare Parts for SDS-Plus Rotary Hammer HR2410
  • Makita Spare Parts for SDS-Plus Rotary Hammer HR2410
  • Makita Spare Parts for SDS-Plus Rotary Hammer HR2410
Makita

Makita Spare Parts for SDS-Plus Rotary Hammer HR2410

SKU: Makita HR2410 Condition: New
€14.16
VAT included

Makita Spare Parts for SDS-Plus Rotary Hammer HR2410

Makita genuine spare parts or replacement parts for to repair Rotary Hammer SDS-PLUS HR2410.

Fix Your Rotary Hammer SDS-PLUS HR2410. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 84 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
76 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

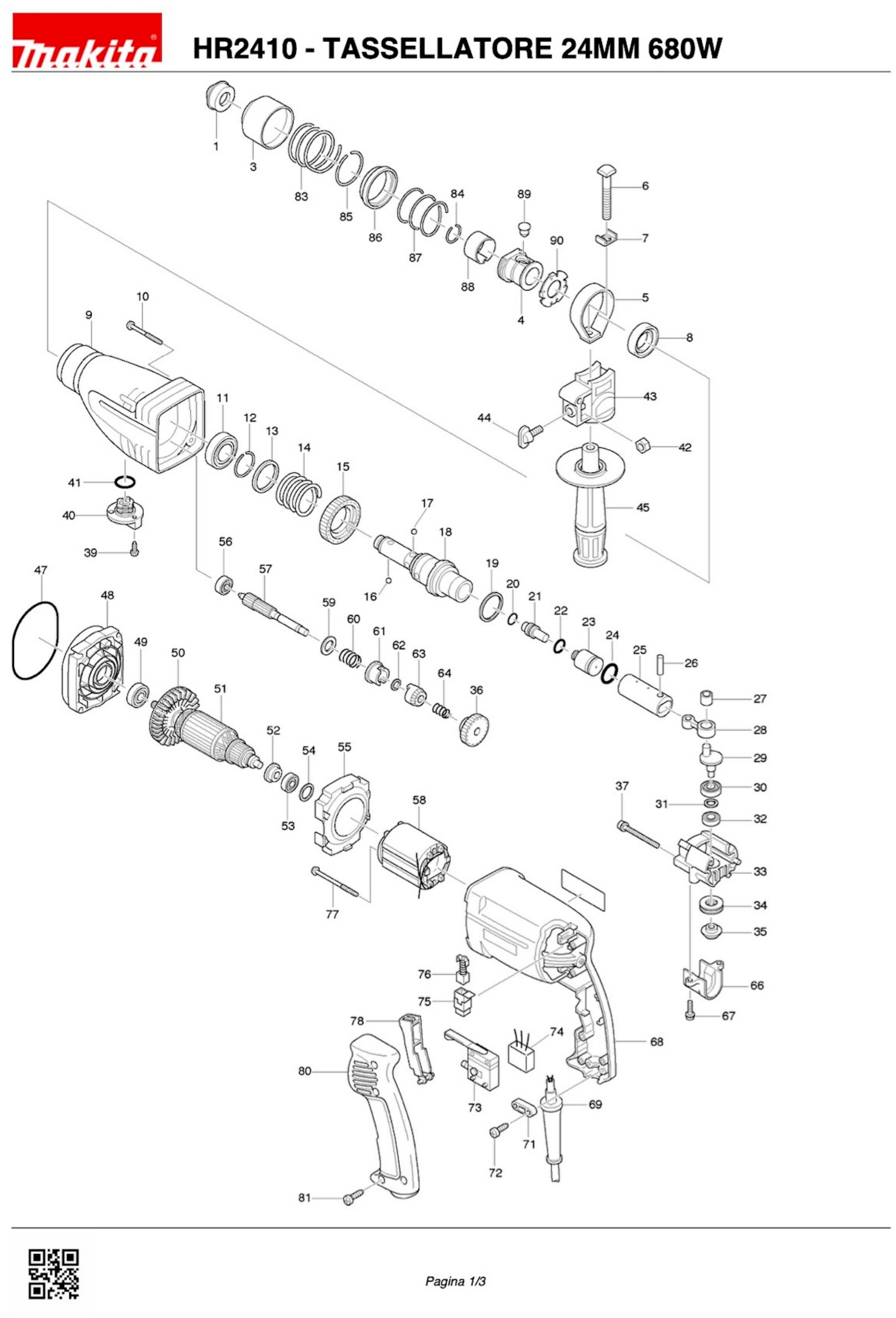

Esploso pagina 1
Pos. Item Price Buy
1
 Cap 31 for Power Scraper Makita HK0500 286265-0 Cap 31 for Power Scraper Makita HK0500 €2.02
3
 photo_cameraImage coming soon 416410-5 CHUCK COVER, HR2412 €2.68
4
 photo_cameraImage coming soon 323820-8 CHUCK RING HR2410/2420/HR3000C €18.48
5
 photo_cameraImage coming soon 344205-5 BELT HR2410 €2.84
6
 photo_cameraImage coming soon 266092-1 SQUARE BOLT M8X60 FOR HR €1.56
8
 photo_cameraImage coming soon 213313-2 SEAL OIL 20 HR2410 €9.33
9
 photo_cameraImage coming soon 150965-7 GEAR HOUSING COMPLETE, HR2410 €13.95
10
 photo_cameraImage coming soon 266069-6 PT SCREW S X 45 HR2410 €2.06
11
 photo_cameraImage coming soon 211323-3 BALL BEARING 6904 €21.53
13
 photo_cameraImage coming soon 267132-8 FLAT WASHER 29 €2.84
14
 photo_cameraImage coming soon 233109-5 COMPRESSION SPRING 29 €2.34
15
 photo_cameraImage coming soon 226290-9 SPUR GEAR 48 €29.66
16
 Steel Ball 7 mm for Hammers Makita 216022-2 Steel Ball 7 mm for Hammers Makita €1.47
17
 Steel Ball D. 5,6MM for Hex Collar Scraper Makita HK1800 216041-8 Steel Ball D. 5,6MM for Hex Collar Scraper Makita HK1800 €1.46
18
 photo_cameraImage coming soon 323822-4 TOOL HOLDER, HR2412 €55.63
19
 photo_cameraImage coming soon 267129-7 SPO-RING WASHER 27 HR2410 €5.40
20
 photo_cameraImage coming soon 213063-9 GASKET 10 X HR2000 €5.24
21
 photo_cameraImage coming soon 323818-5 IMPACT BOLT, HR2412 €2.84
22
 photo_cameraImage coming soon 213117-2 O-O-RING 11 HR2410 €7.03
23
 photo_cameraImage coming soon 322740-3 STRIKER, HR2412 €3.78
24
 Seal 16 O-R for Cylinder Stonecutter HK0500 213214-4 Seal 16 O-R for Cylinder Stonecutter HK0500 €2.51
25
 photo_cameraImage coming soon 331446-2 PISTON CYLINDER €15.82
26
 Piston Pin 6 for Rotary Hammer Makita HR2811FT 256099-5 Piston Pin 6 for Rotary Hammer Makita HR2811FT €3.09
27
 photo_cameraImage coming soon 212043-2 BALL BEARING TLA810Z HR201 €6.44
28
 photo_cameraImage coming soon 331447-0 CONNECTING RODLFY, HR2412 €7.29
29
 photo_cameraImage coming soon 322741-1 SWITH LEVER, HR2413 €12.24
30
 photo_cameraImage coming soon 211098-4 BALL BEARING 699ZZ, HR2412 €8.14
32
 photo_cameraImage coming soon 211099-2 BALL BEARING 689ZZ, HR2412 €8.14
33
 photo_cameraImage coming soon 159761-0 CRANK HOUSING COMPLETE HR2412, HR2412 €24.03
34
 photo_cameraImage coming soon 212110-3 THRUST NEEDLE BEARING 1224, HR2412 €7.29
35
 photo_cameraImage coming soon 226726-8 STRAIGHT BEVEL GEAR 12 €24.03
36
 photo_cameraImage coming soon 226434-1 HELICAL GEAR 31, HR2410 €13.95
39
 photo_cameraImage coming soon 251392-2 PAN HEAD SCREW M4 €1.41
40
 photo_cameraImage coming soon 152471-8 CHANGE LEVER COMPLETE, HR2410 €3.78
41
 photo_cameraImage coming soon 213261-5 O-RING 17X9207SPC €4.22
42
 photo_cameraImage coming soon 252156-7 NUT M5 X 4191D €1.36
43
 photo_cameraImage coming soon 415658-6 GRIP BASE, HR2410 €3.28
44
 photo_cameraImage coming soon 265720-5 SCREW M5 X 14 HR2410 €3.04
45
 photo_cameraImage coming soon 134777-6 GRIP 36 ASS'Y €10.07
47
 photo_cameraImage coming soon 213720-9 GASKET 67 €3.41
48
 photo_cameraImage coming soon 159760-2 INNER HOUSING COMPLETE, HR2410 €32.91
49
 Ball Bearing 609 2RS for Pruning Scissor Makita 4604DW 211051-0 Ball Bearing 609 2RS for Pruning Scissor Makita 4604DW €11.19
50
 photo_cameraImage coming soon 241883-1 FAN 60 €4.39
51
 photo_cameraImage coming soon 517403-6 ARMATURE ASSY 220V, HR2410 €26.25
52
 photo_cameraImage coming soon 681600-1 INSULATOR HP1020 €1.69
53
 photo_cameraImage coming soon 211021-9 BEARING 607LLB €14.38
55
 photo_cameraImage coming soon 415628-5 BAFFLE PLATE, HR2410 €2.34
56
 Bearing for Angle Grinder Makita 9524NB 211012-0 Bearing for Angle Grinder Makita 9524NB €8.23
57
 photo_cameraImage coming soon 226293-3 SPUR GEAR 10, HR2410 €29.66
58
 photo_cameraImage coming soon 633313-0 FIELD 220V, HR2412 €26.25
59
 Hard Washer 12 for Reciprocating Saw Makita JR3070CT 253744-3 Hard Washer 12 for Reciprocating Saw Makita JR3070CT €1.48
60
 photo_cameraImage coming soon 233089-5 COMPRESSION SPRING 12 €1.22
61
 photo_cameraImage coming soon 322743-7 CLUTCH CAM €15.82
63
 photo_cameraImage coming soon 226725-0 STRAIGHT BEVEL GEAR 14 €41.10
66
 photo_cameraImage coming soon 415630-8 GEAR COVER, HR2410 €2.00
67
 photo_cameraImage coming soon 911526-6 SCREW M4 X 14 X HR2420 €3.18
68
 photo_cameraImage coming soon 416970-7 MOTOR HOUSING, HR2412 €15.82
69
 photo_cameraImage coming soon 682516-3 CORD ARMOR 9.3-85 €2.69
71
 photo_cameraImage coming soon 687063-9 CABLE TIE X 4304T €3.18
72
 Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
73
 photo_cameraImage coming soon 650514-5 SWITCH TG803BLA-1, HR2410 €29.66
74
 photo_cameraImage coming soon 645253-0 CAPACITOR X 6408 €5.93
75
 photo_cameraImage coming soon 643923-5 CARBON BRUSH HOLDER  €4.09
76
 Carbon Brushes Makita for Sanders BO4555-4556-4565-4566 191962-4 Carbon Brushes Makita for Sanders BO4555-4556-4565-4566 €7.53
77
 photo_cameraImage coming soon 266052-3 PT SCREW 4X60 €7.03
78
 photo_cameraImage coming soon 415629-3 SWITCH LEVER, HR2412 €2.84
80
 photo_cameraImage coming soon 415627-7 HANDLE COVER, HR2412 €12.24
81
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
83
 Compression Spring 38 for Rotary Hammer Makita HR3000C 233203-3 Compression Spring 38 for Rotary Hammer Makita HR3000C €3.27
84
 Retaining Ring for Stonecutter Makita HK0500 231979-6 Retaining Ring for Stonecutter Makita HK0500 €4.19
85
 photo_cameraImage coming soon 231936-4 RING SPRING 30.5 HR3000C/HR200 €1.43
86
 photo_cameraImage coming soon 323819-3 SPRING GUIDE HR2410/2420//HR30 €3.74
87
 photo_cameraImage coming soon 233234-2 *COMPRESSION SPRING 35 €1.37
88
 Leaf Spring for Stonecutter Makita HK0500 232192-9 Leaf Spring for Stonecutter Makita HK0500 €4.54
89
 Pin 8 for Power Scraper Makita HK0500 256447-8 Pin 8 for Power Scraper Makita HK0500 €5.87
999
 photo_cameraImage coming soon 193388-6 HAMMER SERVICE KIT FOR HR2410/2420/2430/2431 €24.03

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for SDS-Plus Rotary Hammer HR2410

Fix Your Rotary Hammer SDS-PLUS HR2410. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of Rotary Hammer and the respective parts of the code.
Makita HR2410

SDS-Plus Rotary Hammer HR2410
# Part Num. Description
1 286265-0 CAP 31, HR2412
3 416410-5 CHUCK COVER, HR2412
4 323820-8 CHUCK RING, HR2412
5 344205-5 BELT HR2410
6 266092-1 SQUARE BOLT M8X60 FOR HR
7 267719-6 SQUARE WASHER 9, HR2412
8 213313-2 OIL SEAL 20
9 150965-7 GEAR HOUSING COMPLETE, HR2410
10 266069-6 TAPPING SCREW, UB1101
11 211323-3 BALL BEARING 6904LLU, HR2412
12 231962-3 RING SPRING 26, HR2412
13 267132-8 FLAT WASHER 29
14 233109-5 COMPRESSION SPRING 29
15 226290-9 SPUR GEAR 48
16 216022-2 STEEL BALL 7.0, HR2412
17 216041-8 STEEL BALL 5,6
18 323822-4 TOOL HOLDER, HR2412
19 267129-7 FLAT WASHER 27, HR2410
20 213063-9 O RING 10, HR2412
21 323818-5 IMPACT BOLT, HR2412
22 213117-2 O RING 11
23 322740-3 STRIKER, HR2412
24 213214-4 O RING 16
25 331446-2 PISTON CYLINDER
26 256099-5 PIN 6, HR2412
27 212043-2 NEEDLE BEARING HK 0810, 9523NB
28 331447-0 CONNECTING RODLFY, HR2412
29 322741-1 SWITH LEVER, HR2413
30 211098-4 BALL BEARING 699ZZ, HR2412
31 267130-2 FLAT WASHER 9, HR2410
32 211099-2 BALL BEARING 689ZZ, HR2412
33 159761-0 CRANK HOUSING COMPLETE HR2412, HR2412
34 212110-3 THRUST NEEDLE BEARING 1224, HR2412
35 226726-8 STRAIGHT BEVEL GEAR 12
36 226434-1 HELICAL GEAR 31, HR2410
37 911576-1 PAN HEAD SCREW M4X50, HR2412
39 251392-2 PAN HEAD SCREW M4
40 152471-8 CHANGE LEVER COMPLETE, HR2410
41 213261-5 O RING 17
42 252156-7 HEX NUT M5-8 FOR
43 415658-6 GRIP BASE, HR2410
44 265720-5 THUMB SCREW M5X14, HR2412
45 134777-6 GRIP 36 ASS'Y
47 213720-9 O RING 67, GA9050
48 159760-2 INNER HOUSING COMPLETE, HR2410
49 211051-0 BALL BEARING 609LLB, HR2412
50 241883-1 FAN 60
51 517403-6 ARMATURE ASSY 220V, HR2410
52 681600-1 INSULATION WASHER
53 211021-9 BALL BEARING 607LLB, HR2412
54 253842-3 FLAT WASHER 14, HR2410
55 415628-5 BAFFLE PLATE, HR2410
56 211012-0 BALL BEARING 606ZZ, 9523NB
57 226293-3 SPUR GEAR 10, HR2410
58 633313-0 FIELD 220V, HR2412
59 253744-3 FLAT WASHER 12, HR2410
60 233089-5 COMPRESSION SPRING, 9067
61 322743-7 CLUTCH CAM
62 267131-0 FLAT WASHER 8, HR2410
63 226725-0 STRAIGHT BEVEL GEAR 14
64 233110-0 COMPRESSION SPRING 8 HR2410/HR2430
66 415630-8 GEAR COVER, HR2410
67 911526-6 PAN HEAD SCREW M4X16WRM, HR2412
68 416970-7 MOTOR HOUSING, HR2412
69 682516-3 CORD GUARD 9.3-85, HR2410
71 687063-9 CORD CLAMP, 6410
72 265995-6 TAPPING SCREW 4X18, 4100NH
73 650514-5 SWITCH TG803BLA-1, HR2410
74 645253-0 CAPACITOR, 6410
75 643923-5 BRUSH HOLDER 6.5-9.5, HR2410
76 191962-4 CARBON BRUSH CB-419
77 266052-3 TAPPING SCREW, UB1101
78 415629-3 SWITCH LEVER, HR2412
80 415627-7 HANDLE COVER, HR2412
81 265995-6 TAPPING SCREW 4X18, 4100NH
83 233203-3 COMPRESSION SPRING, HR2412
84 231979-6 RING SPRING, HR2412
85 231936-4 RING SPRING, HR2412
86 323819-3 SPRING GUIDE, HR2412
87 233234-2 COMPRESSION SPRING, HR2412
88 232192-9 LEAF SPRING 26 FOR HK0500
89 256447-8 PIN 8 HK0500
90 344690-2 GUIDE WASHER, HR2412
999 193388-6 HAMMER SERVICE KIT FOR HR2410/2420/2430/2431
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita HR2410
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita HR2410

Diagram Makita HR2410

Download (246.57KB)

You might also like

Carbon Brushes Makita for Sanders BO4555-4556-4565-4566
Makita SKU: 191962-4
Carbon Brushes Makita for Sanders BO4555-4556-4565-4566
Carbon Brushes Makita for Sanders BO4555-4556-4565-4566 Genuine Parts Makita, Carbon Brushes for: Jigsaws 4304 - 4305 - 4306 - 4340 - 4341 - 4350 - 4351, for Drills 6310 -  6408 - 6824, for Sanders  BO4555 - 4556 - 4565 - 4566 Part...
AVAILABLE €7.53
Details
Pin 8 for Stonecutter Makita HK0500
Makita SKU: 256447-8
Pin 8 for Power Scraper Makita HK0500
Pin 8 for Power Scraper Makita HK0500 Genuine spare Makita, Steel Pin for locking sleeve Power Scraper HK 0500 - Hammers BHR - Hammers HR. Part for the following products:  -  POWER SCRAPER SDS-PLUS...
Last items in stock €5.87
Details
Steel Ball 7 mm for Hammers Makita
Makita SKU: 216022-2
Steel Ball 7 mm for Hammers Makita
Steel Ball 7 mm for Hammers Makita Genuine spare part Makita, Steel Ball 7 mm diameter for Hammers SDS Plus and Cordless, BHR162RFE - BHR200SFE - BHR240RFE - BHR241RFE - BHR261DP1 - DHR263Z - HR1830 -  HR2420 - HR2611FT....
build View Spare Parts
Bearing for Angle Grinder Makita 9524NB
Makita SKU: 211012-0
Bearing for Angle Grinder Makita 9524NB
Bearing for Angle Grinder Makita 9524NB Genuine spare Makita, Ball Bearing 606 2Z for Angle Grinder 9524NB. Part for the following products: - CIRCULAR SAW 165 MM 5604R - CIRCULAR SAW 165 MM-18V 2.2Ah Ni-MH 5621RDWBE - KEYLESS DRILL...
AVAILABLE €8.23
Details
Seal 16 O-R for Cylinder Stonecutter HK0500
Makita SKU: 213214-4
Seal 16 O-R for Cylinder Stonecutter HK0500
Seal 16 O-R for Cylinder Stonecutter HK0500 Genuine part Makita, Seal 16 O-Ring cylinder for Hammers HR1800/2000 and Stonecutter HK0500. Parts for the following products: - 8015DW - 10.8V HAMMER - 8015DW - 10.8V HAMMER - HK0500 -...
AVAILABLE €2.51
Details
Retaining Ring for Stonecutter Makita HK0500
Valex s.p.a. SKU: 231979-6
Retaining Ring for Stonecutter Makita HK0500
Retaining Ring for Stonecutter Makita HK0500 Genuine spare Makita, Retaining Ring for Stonecutter HK0500 - Rotary Hammers BHR200SF - BHR200SFE - BHR200SFEP - BHR200SJEP - BHR200WAE - HR2010 - HR2400 - HR2413 Part for the following...
AVAILABLE €4.19
Details
Leaf Spring for Stonecutter Makita HK0500
Makita SKU: 232192-9
Leaf Spring for Stonecutter Makita HK0500
Leaf Spring for Stonecutter Makita HK0500 Genuine spare part Makita, Leaf Spring for Stonecutter SDS-PLUS HK0500 Part for the following products: - HK0500 - STONECUTTER SDS-PLUS - HR160DWA - ROTARY HAMMER 16MM 12V-2,0AH - HR160DWAE -...
Last items in stock €4.54
Details
Ball Bearing 609 2RS for Pruning Scissor Makita 4604DW
Makita SKU: 211051-0
Ball Bearing 609 2RS for Pruning Scissor Makita 4604DW
Ball Bearing 609 2RS for Pruning Scissor Makita 4604DW Genuine replacement part Makita, Ball Bearing 609 2RS for Pruning Scissor 24V 4604DW. Part for the following products: -  4604DW - PRUNING SCISSOR 24V MAKITA - Code : 211051-0
on 7/10 Business Days Approx €11.19
Details
Steel Ball D. 5,6MM for Hex Collar Scraper Makita HK1800
Makita SKU: 216041-8
Steel Ball D. 5,6MM for Hex Collar Scraper Makita HK1800
Steel Ball D. 5,6MM for Hex Collar Scraper Makita HK1800 Genuine Spare Part Makita, Steel Ball D. 5,6MM for Hex Collar Power Scrapers 3,2KG 505W HK1800 - HK1810 Part for the following...
Usually Ships in: 7/10 Business Days Approx. €1.46
Details
Compression Spring 38 for Rotary Hammer Makita HR3000C
Makita SKU: 233203-3
Compression Spring 38 for Rotary Hammer Makita HR3000C
Compression Spring 38 for Rotary Hammer Makita HR3000C Genuine spare part Makita, Compression Spring 38 for SDS-PLUS Power Scraper HK0500 - Rotary Hammer HR3000C. Part for the following products: -  HK0500 - POWER SCRAPER SDS-PLUS -...
on 7/10 Business Days Approx €3.27
Details
Cap 31 for Power Scraper Makita HK0500
Makita SKU: 286265-0
Cap 31 for Power Scraper Makita HK0500
Cap 31 for Power Scraper Makita HK0500 Genuine spare part Makita, Cap 31 for SDS-PLUS Power Scraper HK0500. Part for the following products: -  HK0500 - POWER SCRAPER SDS-PLUS - Code : 286265-0
Usually Ships in: 7/10 Business Days Approx. €2.02
Details
Comments (0)
