Makita

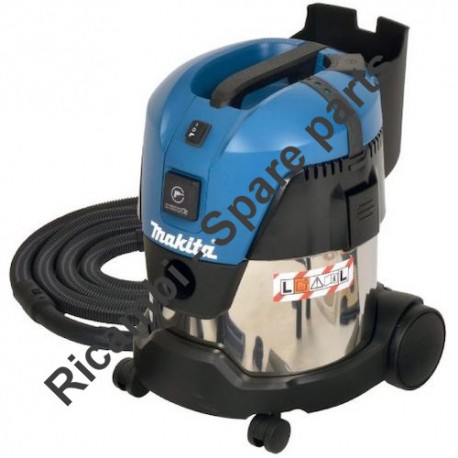

Makita Spare Parts for Vacuum Cleaner VC2012L

SKU: Makita VC2012L
€46.32
VAT included

Makita Spare Parts for Vacuum Cleaner VC2012L

We are MAKITA original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Vacuum Cleaner VC2012L.
Makita Spare Parts for Vacuum Cleaner VC2012L
  • Makita Spare Parts for Vacuum Cleaner VC2012L
  • Makita Spare Parts for Vacuum Cleaner VC2012L
Makita

Makita Spare Parts for Vacuum Cleaner VC2012L

SKU: Makita VC2012L Condition: New
€46.32
VAT included

Makita Spare Parts for Vacuum Cleaner VC2012L

We are MAKITA original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Vacuum Cleaner VC2012L.
settings 34 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
34 spare parts

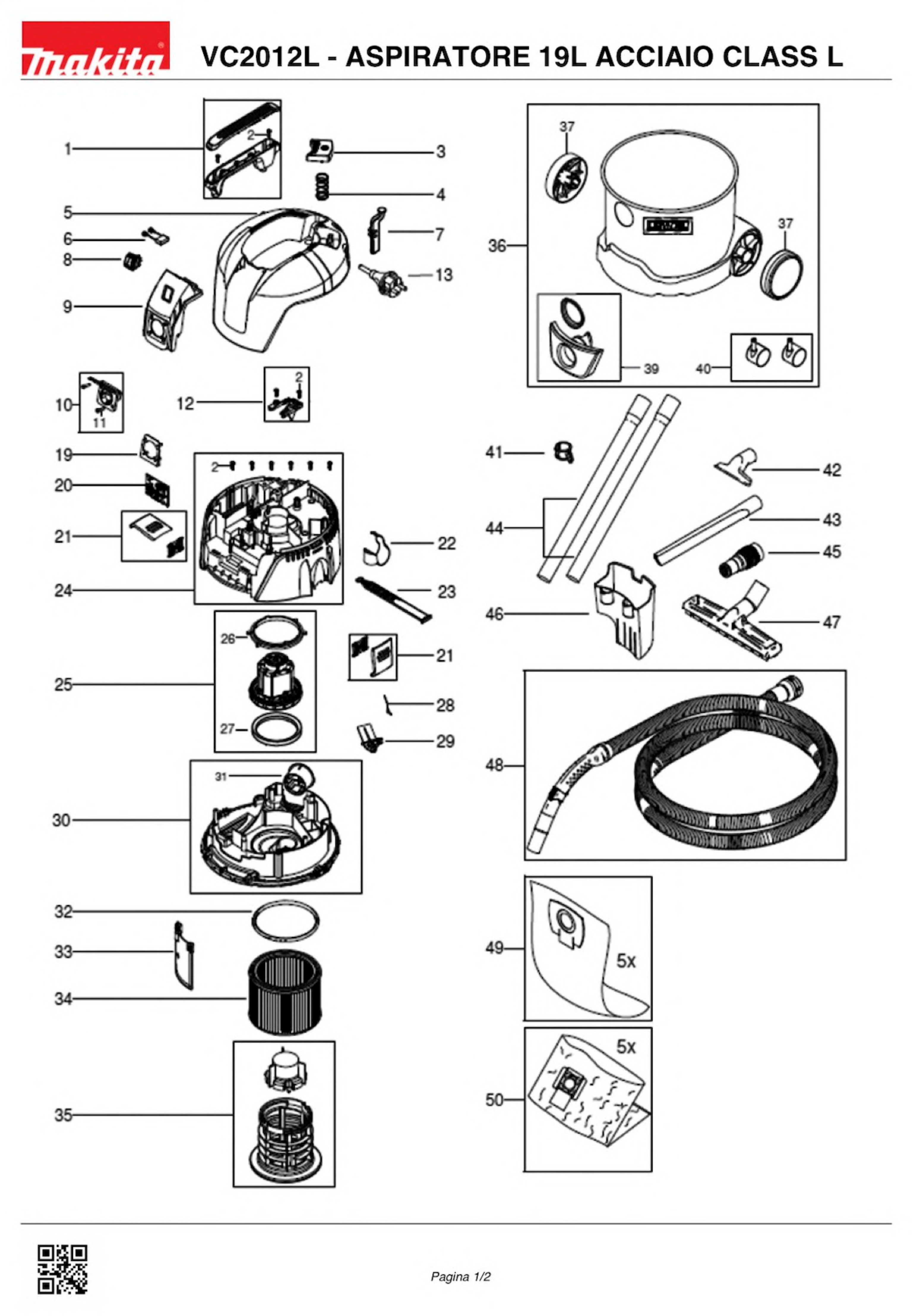

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon W107411598 UPPER HANDLE €15.82
4
 photo_cameraImage coming soon W107411345 SPRING €2.38
5
 photo_cameraImage coming soon W107411996 TOP COVER €59.92
7
 photo_cameraImage coming soon W107411600 ROD €11.97
8
 photo_cameraImage coming soon W107409135 SWITCH €26.91
10
 photo_cameraImage coming soon W302004034 PLUG POWER €42.74
13
 photo_cameraImage coming soon W107402641 ALIMENTATION CABLE €81.32
20
 Elektronic for Vacuum Cleaner Makita VC2012L W107409188 Elektronic for Vacuum Cleaner Makita VC2012L €71.79
21
 photo_cameraImage coming soon W107409130 LOCKING LEVER €20.38
23
 photo_cameraImage coming soon W107409131 RUBBER BAND €23.12
24
 photo_cameraImage coming soon W107409132 MOTOR COVER €58.80
25
 Motor 1000W for Vacuum Cleaner Makita VC3011L W107409160 Motor 1000W for Vacuum Cleaner Makita VC3011L €121.30
26
 photo_cameraImage coming soon W107409163 SEAL TOP €13.95
28
 photo_cameraImage coming soon W909100083 SPRING X 446L €4.06
29
 photo_cameraImage coming soon W107409129 BULKHEAD €10.41
30
 photo_cameraImage coming soon W107409166 ENGINE HOLDER €108.08
32
 photo_cameraImage coming soon W107409165 SEAL AIR €13.53
33
 photo_cameraImage coming soon W107409159 BAFFLE €15.82
34
 photo_cameraImage coming soon P-70219 FILTER X 446L VC3011L €50.38
35
 photo_cameraImage coming soon W107402646 FILTER HOUSING €31.15
36
 photo_cameraImage coming soon W107411998 TANK STAINLESS STEEL €128.21
37
 photo_cameraImage coming soon W107409170 D130 WHEEL €13.95
39
 photo_cameraImage coming soon W107410817 FILLER INLET €23.12
40
 photo_cameraImage coming soon W1406422500 PIVOTING WHEEL 50MM €38.51
41
 photo_cameraImage coming soon W107409979 HOLDER TUBE €8.73
42
 photo_cameraImage coming soon W14295 BRUSH €7.46
43
 photo_cameraImage coming soon W29541 CREVICE NOZZLE 36X200 €7.46
44
 photo_cameraImage coming soon P-72942 TUBE D35X520 (2 PCS) €53.45
45
 photo_cameraImage coming soon P-81745 ADAPTER €30.87
46
 photo_cameraImage coming soon W107409980 TOOL BOX €16.77
47
 photo_cameraImage coming soon W107402706 BRUSH FLOOR €21.39
48
 photo_cameraImage coming soon P-81739 D32X3500 TUBE €56.79
49
 photo_cameraImage coming soon P-72899 PACKING BAGS 5PZ. x VC3011L €47.32
50
 photo_cameraImage coming soon P-70297 BAG PROTECTION 446L VC3011L €53.45

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Vacuum Cleaner VC2012L

We are MAKITA original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Vacuum Cleaner VC2012L.

In the following table, look for the model of Vacuum Cleaner and the respective parts of the code.
Vacuum Cleaner VC2012L
Vacuum Cleaner VC2012L
# Part Num. Description
1 W107411598 UPPER HANDLE
2 W302003704 SCREW 5X18
3 W107409153 BUTTON
4 W107411345 SPRING
5 W107411996 TOP COVER
6 W107404542 CAPACITOR 0.1
7 W107411600 ROD
8 W107409135 SWITCH
9 W107411997 COVER
10 W302004034 SOCKET
11 W302004032 SCREW 3,5X18
12 W107409125 CONTACT
13 W107402641 POWER CORD
19 W302002052 SOCKET PLATE
20 W107409188 ELEKTRONIC BOARD 220-240V
21 W107409130 KIT LOCKING CLAMP
22 W107402799 TUBE SUPPORT
23 W107409131 RUBBER CLAMP
24 W107409132 MOTOR COVER
25 W107409160 1000W MOTOR
26 W107409163 UPPER GASKET
27 W107409164 LOWER GASKET
28 W909100083 SPRING X 446L
29 W107409129 FLAP
30 W107409166 ENGINE SUPPORT
31 W107409167 AIR DISCHARGE
32 W107409165 AIR FILTER GASKET
33 W107409159 DEFLECTOR
34 P-70219 FILTER X 446L VC3011L
35 W107402646 FILTER SUPPORT
36 W107411998 TANK STAINLESS STEEL
37 W107409170 WHEEL D130
39 W107410817 SUCTION INLET
40 W1406422500 WHEEL 50MM
41 W107409979 TUBE SUPPORT
42 W14295 NOZZLE UNIVERSAL
43 W29541 CREVICE NOZZLE 36X200
44 P-72942 TUBE D35X520
45 P-81745 ADAPTER
46 W107409980 TOOL BOX
47 W107402706 FLOOR BRUSH
48 P-81739 TUBE D32X3500
49 P-72899 PACK. 5PZ BAGS x VC3011L
50 P-70297 DISPOSAL DUST BAG 446L VC3011L
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita VC2012L
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita VC2012L

Diagram Makita VC2012L

Download (180.6KB)
