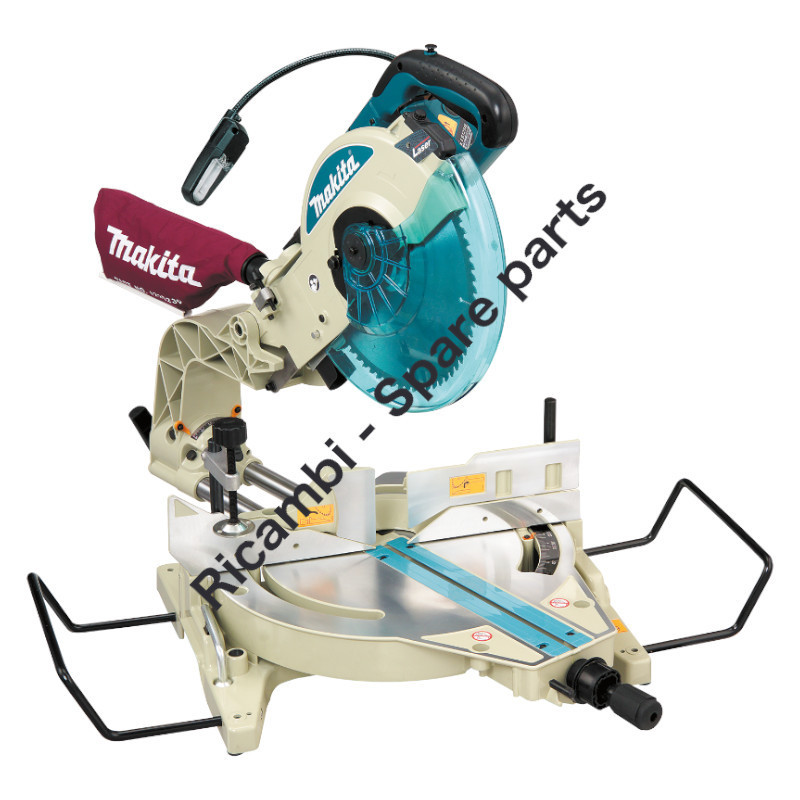

Makita Spare Parts for Table Saw LS1214F

Name: Makita Spare Parts for Table Saw LS1214F
Brand: Makita
SKU: LS1214F
Availability: InStock

SKU: LS1214F

€0.12

VAT included

Makita Spare Parts for Table Saw LS1214F

Makita genuine spare parts or replacement parts for to repair Table Saw LS1214F 305MM.

Fix Your Table Saw LS1214F. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

New
Out-of-Stock

Makita Spare Parts for Table Saw LS1214F

SKU: LS1214F Condition: New

€0.12

VAT included

Makita Spare Parts for Table Saw LS1214F

158 Spare parts

2 exploded views

Download Exploded PDF

Quantity

Out-of-Stock

SHIPPING IN: Usually Ships in 10/15 BUSINESS DAYS

MORE INFO:: [email protected]

Machine Type: Saw

Original Product Manufacturer warranty included

Technical Support Our team helps you choose

Secure and guaranteed payments

158 spare parts

Page 1 View exploded Usually Ships in 10/15 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price	Buy
1		265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW	€1.32
2	Image coming soon	416075-3 REAR COVER X LS1013	€7.67
3		265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW	€1.32
4	Image coming soon	631238-2 Controller for LS1214F Makita for saw	€89.33
5		645006-7 Noise Suppressor for Cut-Off Machine Makita 2412N	€2.03
6	Image coming soon	911373-5 PAN HD SCREW M6x50 LS1013	€1.32
7	Image coming soon	153907-0 Motor Housing for LS1214F Makita for saw	€33.57
8	Image coming soon	194985-1 CARBON BRUSH SET CB-153	€3.27
9		643650-4 Carbon Brush Holder Cover for Electric Chainsaw Makita UC3041A	€2.03
10	Image coming soon	860634-9 Model Label LS1214F Makita for saw	€1.24
11	Image coming soon	599508-4 Stator for LS1214F Makita for saw	€77.98
12	Image coming soon	266059-9 SCREW M5X75 X 9059SF	€2.65
13	Image coming soon	416264-0 Baffle for LS1214F Makita for saw	€2.50
14		211061-7 Ball Bearing 6000DD NSK for Cordless Drill Makita 6221DW	€8.63
15		681642-5 Armature Washer for Demolition Hammers Makita HR 4501-10-11C	€12.96
16	Image coming soon	516738-2 Armature for LS1214F Makita for saw	€159.53
17	Image coming soon	240001-8 FAN 80 X LS1013	€5.16
18	Image coming soon	911223-4 HEAD SCREW CILIND. M5X16	€1.32
19	Image coming soon	285686-3 BEARING RETAINER 94 LS1013	€5.16
20	Image coming soon	210210-3 Bearing 6003LLB Makita for saw	€12.96
21		961057-5 Makita Power Tools Ext DIN471 Circlip-17	€1.32
22	Image coming soon	231928-3 RING RETAINING X LS1013	€1.32
23	Image coming soon	256633-1 PIN 6 X LS1013	€2.03
24	Image coming soon	231240-1 SPRING 7	€1.32
25	Image coming soon	LC961018-5 EXT E-RING JIS JE-5	€1.32
26	Image coming soon	253804-1 WASHER 6 X LS1013	€1.32
27	Image coming soon	257461-7 RING 6	€2.65
28	Image coming soon	345419-9 Articulation Plate LS1214F Makita for saw	€6.70
29	Image coming soon	922331-6 BOLT ESAG. CUT. 6x20	€1.32
30	Image coming soon	253804-1 WASHER 6 X LS1013	€1.32
31	Image coming soon	257461-7 RING 6	€2.65
32	Image coming soon	316470-6 Spring Support for LS1214F Makita for saw	€4.87
33	Image coming soon	233424-7 Compression Spring 34 Makita for saw	€8.14
34	Image coming soon	324458-2 Pin 8 for LS1214F Makita for saw	€2.65
35	Image coming soon	418610-3 Lever Support for LS1214F Makita for saw	€5.66
36	Image coming soon	266034-5 SCREW CT 4X16	€1.32
37	Image coming soon	345855-9 Lock Lever for LS1214F Makita for saw	€4.05
38	Image coming soon	911113-1 SCREW M4X10 X LS1013	€1.32
39	Image coming soon	961012-7 RETAINING RING E6	€1.32
40	Image coming soon	324459-0 Pivot 8 for LS1214F Makita for saw	€8.63
41	Image coming soon	231633-2 SPRING TWIST 8 X LS1040F	€1.32
42	Image coming soon	421589-9 HOOD X LS1013	€2.03
43	Image coming soon	911113-1 SCREW M4X10 X LS1013	€1.32
44	Image coming soon	345417-3 Lock Plate for LS1214F Makita for saw	€1.92
45		265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW	€1.32
46	Image coming soon	125180-2 LAMP LIGHTING. X LS1040F	€70.77
47	Image coming soon	417113-4 KEY SWITCH. X BLS713	€1.32
48	Image coming soon	183842-8 Handle for LS1214F Makita for saw	€22.06
49		682505-8 Power Cord Guard 10/90 for for Makita Power Tools	€2.65
50	Image coming soon	665865-3 CABLE (NO 3)	€13.99
51	Image coming soon	687124-5 CORD CLAMP MT953	€1.32
52		265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW	€1.32
53	Image coming soon	414546-4 CAM X LS10130	€2.03
54	Image coming soon	416000-4 LEVER LOCK X LS1013	€2.65
55	Image coming soon	654575-7 TERMINAL X 5704R	€4.44
56	Image coming soon	231457-6 SPRING 3 X UH4510A / 6310A	€1.32
57		645089-7 Capacitor for Die Grinder Makita GD0801C	€1.32
58		651923-1 Switch TG70B for Electric Chainsaws Makita UC3530A - UC4030A	€12.96
59	Image coming soon	651941-9 SWITCH X LS1013	€6.00
60	Image coming soon	459017-4 SWITCH LEVER	€3.83
61		265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW	€1.32
62	Image coming soon	183842-8 Handle for LS1214F Makita for saw	€22.06
63	Image coming soon	921467-8 HEX HD SCREW M8X45	€1.32
64	Image coming soon	262003-4 RUBBER WASHER	€1.32
65	Image coming soon	911323-0 SCREW M6X16 X LS1013	€1.32
66	Image coming soon	421562-9 GRIP LS1013	€4.18
67	Image coming soon	344420-1 GRIP HOLDER LS1013	€4.87
68	Image coming soon	911323-0 SCREW M6X16 X LS1013	€1.32
69	Image coming soon	911114-9 SCREW M4 X 10	€1.32
70	Image coming soon	419277-0 JOINT SUCTION X LS1013	€2.65
71		213460-9 O-Ring 35 for Demolition Hammers Makita HR 4501-10-11C	€3.11
72	Image coming soon	911113-1 SCREW M4X10 X LS1013	€1.32
73	Image coming soon	265717-4 SCREW M6 X LS1013	€3.11
74	Image coming soon	262001-8 RING 5 X 6906 / 6905B	€3.11
75	Image coming soon	317176-9 STOPPER ARM LS1214F	€11.29
76	Image coming soon	344045-1 STOPPER ARM PLATE LS1013	€1.24
77	Image coming soon	819064-1 Makita logo label	€0.12	Not available for order
78	Image coming soon	183843-6 Blade Guard for LS1214F Makita for saw	€143.95
79	Image coming soon	345415-7 Guard Plate LS1214F Makita for saw	€1.92
80	Image coming soon	421916-0 GUARD LS1214L/LS1013	€2.03
81	Image coming soon	211031-6 BEARING 608	€5.16
82		961054-1 Makita Power Tools Ext DIN471 Circlip-14	€1.32
83	Image coming soon	226750-1 Gear 35 for LS1214F Makita for saw	€41.48
84	Image coming soon	262074-1 RUBBER RING 20 LS1013	€1.32
85	Image coming soon	267035-6 HARD WASHER 14 6805BV	€2.65
86	Image coming soon	213675-8 Ring 54 for LS1214F Makita for saw	€2.03
87	Image coming soon	316473-0 Bearing Box for LS1214F Makita for saw	€12.96
88	Image coming soon	254202-2 KEY 4	€1.32
89	Image coming soon	322989-5 Spindle for LS1214F Makita for saw	€22.06
90		211490-4 Ball Bearing 6203LLU for Makita SG150-2	€10.07
91	Image coming soon	285828-9 BEARING RETAINER 66 LS1013	€3.11
92	Image coming soon	257022-3 RING 16-25 LS1040F/2400/B	€3.11
93	Image coming soon	911223-4 HEAD SCREW CILIND. M5X16	€1.32
94	Image coming soon	224398-3 Flange 61 for LS1214F Makita for saw	€10.07
95		257262-3 Ring 16 for Slide Compound Mitre Saw Makita LH1040F	€2.03
96	Image coming soon	224398-3 Flange 61 for LS1214F Makita for saw	€10.07
97	Image coming soon	265405-3 COLLAR SCREW M10x20 LS1214F	€3.11
98	Image coming soon	344473-0 Centering Plate for LS1214F Makita for saw	€22.73
99	Image coming soon	344038-8 Center Plate Cover for LS1214F Makita for saw	€4.44
100	Image coming soon	265324-3 SCREW M8X12	€2.65
101	Image coming soon	265008-3 SCREW M5 X LS1013	€2.65
102	Image coming soon	231613-8 Torsion Spring 45 for LS1214F Makita for saw	€2.65
103	Image coming soon	450131-9 Safety Guard for LS1214F Makita for saw	€22.06
104	Image coming soon	253977-0 FLAT WASHER 6 LS0810	€2.65
105	Image coming soon	911213-7 SCREW M5X12 X 5143R	€1.32
181	Image coming soon	253791-4 Flat Washer 25 for LS1214F Makita for saw	€1.92

Page 2 View exploded Usually Ships in 10/15 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
106	Image coming soon	331428-4 TUBE 16-113	€11.29
107	Image coming soon	252105-4 NUT M8X13	€1.32
108		941201-0 FLAT WASHER 8	€1.32
109	Image coming soon	317984-8 Arm for LS1214F Makita for saw	€94.76
110	Image coming soon	322629-5 PIN RETAINING X LS1214F	€3.83
111	Image coming soon	213011-8 RING RUBBER 7 X ML900	€2.03
112	Image coming soon	687042-7 PLATE X LS1013	€1.32
113	Image coming soon	266026-4 SCREW M4 X 12	€1.32
114	Image coming soon	271601-3 SCREW X LS1030	€2.03
115	Image coming soon	251961-9 BOLT M6x10 X LS1040	€1.32
116	Image coming soon	265455-8 SCREW M8x30	€1.92
117	Image coming soon	265412-6 SCREW M8x30	€1.92
118	Image coming soon	216003-6 BALL 10 X HM1200	€1.32
119	Image coming soon	345418-1 GUIDE PLATE LS1214 LS1214F	€9.49
120	Image coming soon	231626-9 TORSION SPRING 28 LS1013/1214	€3.61
121	Image coming soon	413067-3 INDICATION PLATE LS1013	€2.03
122	Image coming soon	911114-9 SCREW M4 X 10	€1.32
123	Image coming soon	233168-9 COMPRESSION SPRING 5 LS1013	€1.32
124	Image coming soon	266131-7 HEX SOCKET HD BOLT M12xX12 LS1	€1.24
125	Image coming soon	151459-5 ARM HOLDER COMPLETE LS1013/241	€238.60
126	Image coming soon	251662-9 Screw M10 X 100 for LS1214F Makita for saw	€1.92
127	Image coming soon	911113-1 SCREW M4X10 X LS1013	€1.32
128	Image coming soon	416006-2 LEVER 100 X LS1013	€7.67
129	Image coming soon	252144-4 HEX NUT M10-17 LS1013	€5.16
130	Image coming soon	253024-7 WASHER 10 X LS1013	€1.32
131	Image coming soon	231266-3 SPRING COMPRESSION 5 LS0714FLL	€1.32
132	Image coming soon	152542-1 SQUARE ROD COMPLETE LS1013/121	€10.07
133	Image coming soon	921356-7 HEX HDSCREW M6X35 W/SP LS1013	€1.24
134	Image coming soon	153832-5 TURN BASE COMPLETE LS1013 LS1214F	€212.59
135	Image coming soon	152540-5 BEARING BOX LS1013/LS1214	€109.69
136		922451-6 BOLT M8x30	€2.03
137	Image coming soon	253852-0 WASHER 8 X LS1013	€2.65
138	Image coming soon	265442-7 SCREW M8X40 X LS1013	€1.92
139	Image coming soon	415209-5 KERF BOARD LS1013	€5.16
140	Image coming soon	266026-4 SCREW M4 X 12	€1.32
141	Image coming soon	911108-4 SCREW M4X8 X 5103R	€1.32
142	Image coming soon	252014-7 NUT M6-10	€1.32
143	Image coming soon	344463-3 SUB FENCE PLATE LS1013	€2.03
144	Image coming soon	153890-1 Upper Fence for LS1214F Makita for saw	€26.17
145	Image coming soon	265488-3 SCREW M8x30 X LH1040F	€1.32
146	Image coming soon	317757-9 Guide Fence for LS1214F Makita for saw	€41.48
147	Image coming soon	912357-6 COUNTERSUNK HEAD SCREW M6X35	€1.32
148	Image coming soon	253715-0 ROND.P.6 6510PBL / LVR / 43SB	€1.32
149	Image coming soon	251887-5 BUTTERFLY SCREW M6x10	€2.65
150	Image coming soon	266026-4 SCREW M4 X 12	€1.32
151	Image coming soon	816326-8 MITER SCALE LABEL LS1013 LS101	€10.07
152	Image coming soon	266132-5 SCREW M8X320	€7.67
153	Image coming soon	931402-8 NUT M8	€1.32
154	Image coming soon	271314-6 Knob 40 for LS1214F Makita for saw	€11.29
155		941201-0 FLAT WASHER 8	€1.32
156	Image coming soon	152541-3 KNOB 48 COMPLETE LS1013	€11.29
157	Image coming soon	421863-5 CAP LS1214/LS1013 LS1214F	€2.65
158	Image coming soon	331491-7 PIPE 9-200 X LS1013	€8.22
159	Image coming soon	421563-7 CAP 10 LS1013	€1.32
160	Image coming soon	322924-3 COIL SPRING LS1013T	€1.32
161	Image coming soon	322909-9 LOCK PIN LS1013	€11.29
162	Image coming soon	253804-1 WASHER 6 X LS1013	€1.32
163	Image coming soon	231307-5 COMPRESSION SPRING 6 LS1013	€1.32
164	Image coming soon	LC961018-5 EXT E-RING JIS JE-5	€1.32
165	Image coming soon	316899-6 PIN HOLDER LS1013	€5.16
166	Image coming soon	266034-5 SCREW CT 4X16	€1.32
167	Image coming soon	344411-2 SLIDE STOPPER LS1013	€3.11
168	Image coming soon	251267-5 SCREW M6	€1.32
169	Image coming soon	256196-7 PIN 5 LS1013	€1.32
170	Image coming soon	331493-3 TURN STOPPER LS1013	€58.76
171	Image coming soon	344412-0 STOPPER HOLDER LS1013	€6.50
172	Image coming soon	266034-5 SCREW CT 4X16	€1.32
173	Image coming soon	266026-4 SCREW M4 X 12	€1.32
174	Image coming soon	816128-2 STOP X 5103R	€2.03
175	Image coming soon	344477-2 SLIDE PLATE LS1013	€3.83
176	Image coming soon	266034-5 SCREW CT 4X16	€1.32
177	Image coming soon	232075-3 LEAF SPRING LS1013	€2.65
178	Image coming soon	251887-5 BUTTERFLY SCREW M6x10	€2.65
179	Image coming soon	153889-6 Base for LS1214F Makita for saw	€109.69
180	Image coming soon	286212-1 HOOD 20 X LS1013	€1.32
182	Image coming soon	345494-5 STOPPER LS1214/LS1013 LS1214F	€1.32

Shipping and delivery information will be available shortly.

Makita Spare Parts for Table Saw LS1214F

Makita genuine spare parts or replacement parts for to repair Table Saw LS1214F 305MM.

In the following table, look for the model of the Table Saw and the respective parts of the code.

Makita LS1214F Pag.1
#	Part Num.	Description
1	265995-6	Screw M4X18
2	416075-3	Rear Cover for LS1013
3	265995-6	Screw M4X18
4	631238-2	Controller for LS1214F
5	645006-7	Capacitor for LS1013
6	911373-5	Screw M6X50
7	153907-0	Motor Housing for LS1214F
8	194985-1	Carbon Brushes CB-153
9	643650-4	Brush Holder Cap
10	860634-9	Model Label LS1214F
11	599508-4	Stator for LS1214F
12	266059-9	Screw M5X75
13	416264-0	Baffle for LS1214F
14	211061-7	Ball Bearing 6000DD
15	681642-5	Washer for LS1013
16	516738-2	Armature for LS1214F
17	240001-8	Fan 80 for LS1013
18	911223-4	Cylindrical Head Screw M5X16
19	285686-3	Bearing Retainer for LS1013
20	210210-3	Bearing 6003LLB
21	961057-5	Retaining Ring S17
22	231928-3	Stop Ring for LS1013
23	256633-1	Pin 6 for LS1013
24	231240-1	Spring 7
25	LC961018-5	Lock Ring E-5
26	253804-1	Washer 6 for LS1013
27	257461-7	Ring 6
28	345419-9	Articulation Plate LS1214F
29	922331-6	Hex Bolt 6X20
30	253804-1	Washer 6 for LS1013
31	257461-7	Ring 6
32	316470-6	Spring Support for LS1214F
33	233424-7	Compression Spring 34
34	324458-2	Pin 8 for LS1214F
35	418610-3	Lever Support for LS1214F
36	266034-5	Screw CT 4X16
37	345855-9	Lock Lever for LS1214F
38	911113-1	Screw M4X10 for LS1013
39	961012-7	Retaining Ring E6
40	324459-0	Pivot 8 for LS1214F
41	231633-2	Torsion Spring 8
42	421589-9	Cap for LS1013
43	911113-1	Screw M4X10 for LS1013
44	345417-3	Lock Plate for LS1214F
45	265995-6	Screw M4X18
46	125180-2	Lamp Assembly for LS1040F
47	417113-4	Switch Button for BLS713
48	183842-8	Handle for LS1214F
49	682505-8	Cable Sleeve 10/90
50	665865-3	Power Supply Cable
51	687124-5	Cable Clamp MT953
52	265995-6	Screw M4X18
53	414546-4	Cam for LS10130
54	416000-4	Lock Lever for LS1013
55	654575-7	Terminal for 5704R
56	231457-6	Spring 3
57	645089-7	Capacitor
58	651923-1	Switch TG70B for 5903R
59	651941-9	Switch for LS1013
60	459017-4	Switch Lever
61	265995-6	Screw M4X18
62	183842-8	Handle for LS1214F
63	921467-8	Hex Bolt 8X45
64	262003-4	Rubber Washer for HM1400
65	911323-0	Screw M6X16 for LS1013
66	421562-9	Knob for LS1013
67	344420-1	Knob Support for LS1013
68	911323-0	Screw M6X16 for LS1013
69	911114-9	Screw M4 X 10
70	419277-0	Dust Nozzle for LS1013
71	213460-9	Gasket 35
72	911113-1	Screw M4X10 for LS1013
73	265717-4	Screw M6 for LS1013
74	262001-8	Ring 5
75	317176-9	Arm Stopper for LS1214F
76	344045-1	Plate for LS1013
77	819064-1	xxxx
78	183843-6	Blade Guard for LS1214F
79	345415-7	Guard Plate LS1214F
80	421916-0	Protection LS1013
81	211031-6	Bearing 608LLB
82	961054-1	Retaining Ring S14
83	226750-1	Gear 35 for LS1214F
84	262074-1	Ring 20 for LS1013
85	267035-6	Flat Washer 4
86	213675-8	Ring 54 for LS1214F
87	316473-0	Bearing Box for LS1214F
88	254202-2	Key 4
89	322989-5	Spindle for LS1214F
90	211490-4	Bearing 6203LLU
91	285828-9	Bearing Retainer for LS1013
92	257022-3	Ring 16
93	911223-4	Cylindrical Head Screw M5X16
94	224398-3	Flange 61 for LS1214F
95	257262-3	Ring 16 for LH1040F
96	224398-3	Flange 61 for LS1214F
97	265405-3	Flanged Screw M10X20
98	344473-0	Centering Plate for LS1214F
99	344038-8	Center Plate Cover for LS1214F
100	265324-3	Screw M8X12
101	265008-3	Screw M5 for LS1013
102	231613-8	Torsion Spring 45 for LS1214F
103	450131-9	Safety Guard for LS1214F
104	253977-0	Flat Washer 6
105	911213-7	Screw M5X12
181	253791-4	Flat Washer 25 for LS1214F
Makita LS1214F Pag.2
#	Part Num.	Description
106	331428-4	Tube 16-113 for 2414B
107	252105-4	Nut M8X13
108	941201-0	Flat Washer 8
109	317984-8	Arm for LS1214F
110	322629-5	Lock Pin for LS1214F
111	213011-8	Rubber Ring 7 for ML900
112	687042-7	Plate for LS1013
113	266026-4	Screw M4 X 12
114	271601-3	Knob for LS1030
115	251961-9	Bolt M6X10 for LS1040
116	265455-8	Screw M8X30
117	265412-6	Screw M8X30
118	216003-6	Steel Ball 10 for HM1200
119	345418-1	Plate for Arm LS1214F
120	231626-9	Spring 28 for LS1013
121	413067-3	Index Plate LS1013
122	911114-9	Screw M4 X 10
123	233168-9	Spring 5 for LS1013
124	266131-7	Screw M12X12
125	151459-5	Arm Assembly for LS1013
126	251662-9	Screw M10 X 100 for LS1214F
127	911113-1	Screw M4X10 for LS1013
128	416006-2	Lever 100 for LS1013
129	252144-4	Nut M10-17 for LS1013
130	253024-7	Washer 10 for LS1013
131	231266-3	Compression Spring 5
132	152542-1	Bracket Assembly for LS1013
133	921356-7	Screw M6X35 for LS1013
134	153832-5	Turntable for LS1214F
135	152540-5	Bearing Seat for LS1013
136	922451-6	Bolt M8X30
137	253852-0	Washer 8 for LS1013
138	265442-7	Screw M8X40 for LS1013
139	415209-5	Base Rod for LS1013
140	266026-4	Screw M4 X 12
141	911108-4	Screw M4X8 for 5103R
142	252014-7	Nut M6-10
143	344463-3	Plate for LS1013
144	153890-1	Upper Fence for LS1214F
145	265488-3	Screw M8X30 for LH1040F
146	317757-9	Guide Fence for LS1214F
147	912357-6	Flat Head Screw M6X35
148	253715-0	Flat Washer 6
149	251887-5	Thumb Screw M6X10
150	266026-4	Screw M4 X 12
151	816326-8	Adjustment Plate for LS1013
152	266132-5	Screw M8X320
153	931402-8	Nut M8 for LS1013
154	271314-6	Knob 40 for LS1214F
155	941201-0	Flat Washer 8
156	152541-3	Knob 48 Assembly for LS1013
157	421863-5	Knob Ring for LS1214F
158	331491-7	Tube 9-200 for LS1013
159	421563-7	Plug 10 for LS1013
160	322924-3	Spring for LS1013T
161	322909-9	Lock Pin for LS1013
162	253804-1	Washer 6 for LS1013
163	231307-5	Spring 6 for LS1013
164	LC961018-5	Lock Ring E-5
165	316899-6	Support Plate for LS1013
166	266034-5	Screw CT 4X16
167	344411-2	Guide for LS1013
168	251267-5	Screw M6
169	256196-7	Pin 5 for LS1013
170	331493-3	Stopper for LS1013
171	344412-0	Stopper Support
172	266034-5	Screw CT 4X16
173	266026-4	Screw M4 X 12
174	816128-2	Stopper for 5103R
175	344477-2	Plate for LS1013
176	266034-5	Screw CT 4X16
177	232075-3	Leaf Spring for LS1013
178	251887-5	Thumb Screw M6X10
179	153889-6	Base for LS1214F
180	286212-1	Cap 20 for LS1013
182	345494-5	Lock Nut for LS1214F

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference LS1214F

Data sheet

Machine Type: Saw
MORE INFO:: [email protected]
SHIPPING IN: Usually Ships in 10/15 BUSINESS DAYS

Specific References

Condition New

Download

Makita LS1214F Drawing

Download (1.04MB)

Makita SKU: JM27000039

Fix Bracket A for Table Saw Makita MLT100

Fix Bracket A for Table Saw Makita MLT100 Genuine spare part Makita, Fix Bracket A for Table Saw Makita MLT100 - MLT100N. Part for the following products: - Table Saw Makita MLT100 - Table Saw Makita MLT100N - Code: JM27000039

AVAILABLE €4.86

Cart (0)

Subcategories

Subcategories

Subcategories

Power Tools Spare Parts

Garden Spare Parts

Air Compressor Spare Parts

Protezione & Edilizia

Impianti & Utensili

Casa & Giardino

Makita Spare Parts for Table Saw LS1214F

Makita Spare Parts for Table Saw LS1214F

Makita Spare Parts for Table Saw LS1214F

Makita Spare Parts for Table Saw LS1214F

Makita Spare Parts for Table Saw LS1214F

Data sheet

Specific References

Download

Makita LS1214F Drawing

You might also like
