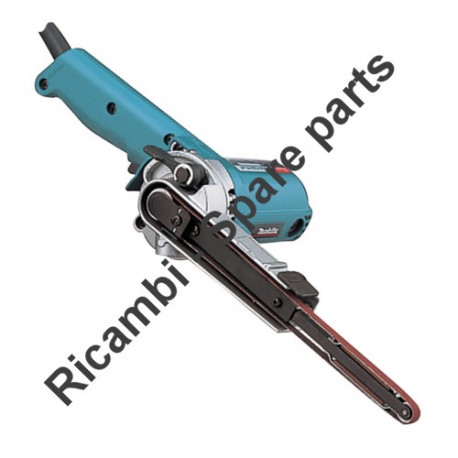

Makita

Makita Spare Parts for Belt Sander 9032

SKU: Makita 9032
€41.80
VAT included

Makita Spare Parts for Belt Sander 9032

We are MAKITA original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues fo Belt Sander 9032
Makita Spare Parts for Belt Sander 9032
  • Makita Spare Parts for Belt Sander 9032
  • Makita Spare Parts for Belt Sander 9032
Makita

Makita Spare Parts for Belt Sander 9032

SKU: Makita 9032 Condition: New
€41.80
VAT included

Makita Spare Parts for Belt Sander 9032

We are MAKITA original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues fo Belt Sander 9032
settings 25 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
25 spare parts

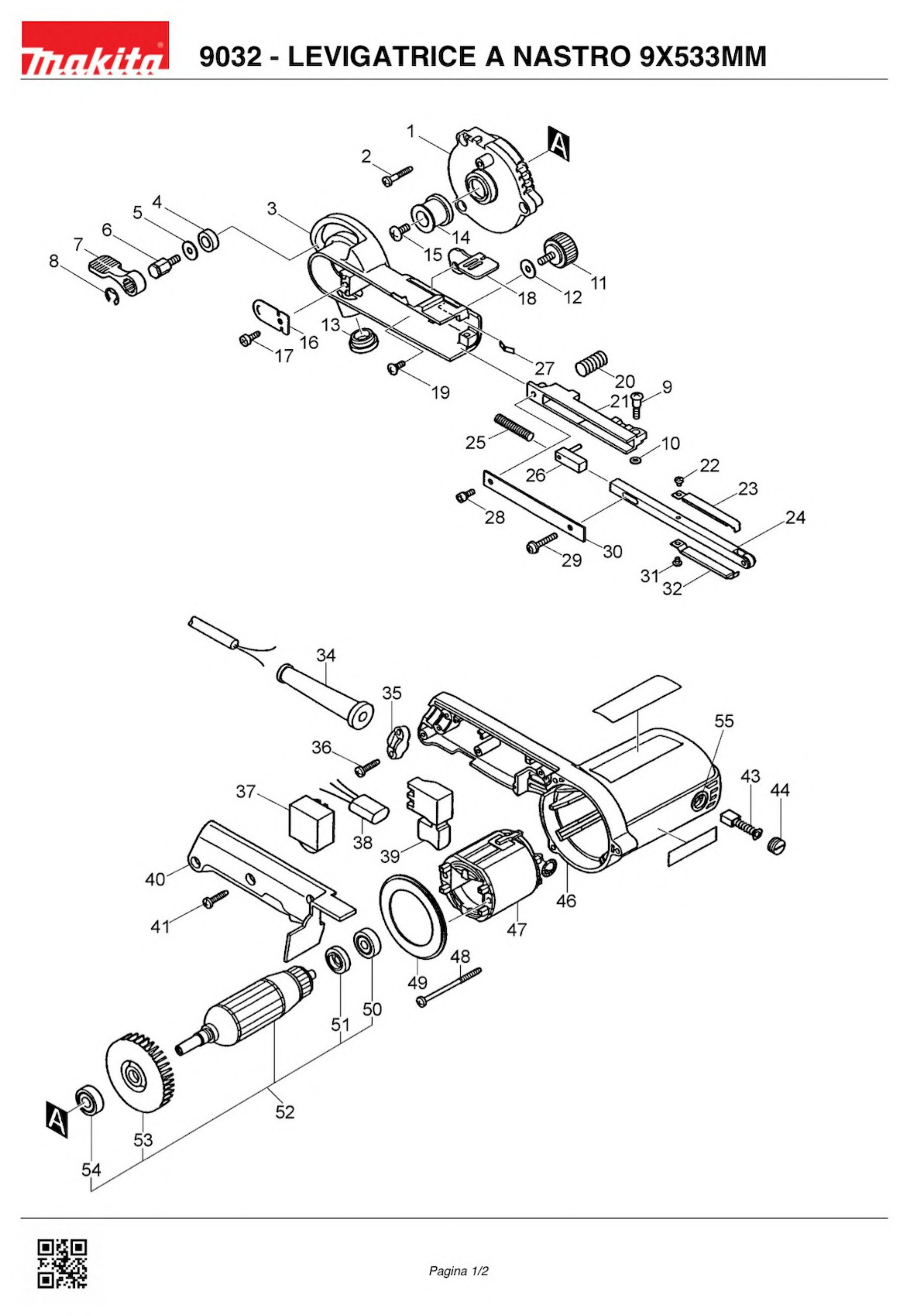

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 265999-8 4X25 SCREW €1.47
5
 photo_cameraImage coming soon 253807-5 WASHER 5 6012D / HD / 62/63 / 64DW €1.42
7
 photo_cameraImage coming soon 272229-0 LEVER 40 X 3901 €6.73
8
 photo_cameraImage coming soon 961014-3 RETAINING RING E-8 €1.46
17
 photo_cameraImage coming soon 266026-4 SCREW M4 X 12 €2.74
19
 photo_cameraImage coming soon 265028-7 SCREW M4X11 €2.62
27
 photo_cameraImage coming soon 232185-6 SPRING CROSSBOW X 1050DW €2.00
28
 photo_cameraImage coming soon 922111-0 SCREW ESAG. INC. 4X10 €1.36
29
 photo_cameraImage coming soon 911536-3 SCREW M4X20 €2.86
34
 photo_cameraImage coming soon 682502-4 CABLE SLEEVE 8/85 €4.09
35
 photo_cameraImage coming soon 687063-9 CABLE TIE X 4304T €3.18
36
 Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
37
 photo_cameraImage coming soon 631677-6 CONTROLLER 200V-240V €21.00
38
 photo_cameraImage coming soon 645209-3 CAPACITOR €8.30
39
 photo_cameraImage coming soon 651263-7 SGEL206C SWITCH €10.78
40
 photo_cameraImage coming soon 415635-8 HANDLE COVER 9031 €12.37
43
 Carbon Brushes CB-411 for Trimmer Makita 3707-3708 FC 191940-4 Carbon Brushes CB-411 for Trimmer Makita 3707-3708 FC €8.17
44
 Brush Holder Cap for Impact Wrench MAKITA TW0350 643550-8 Brush Holder Cap for Impact Wrench MAKITA TW0350 €2.00
46
 photo_cameraImage coming soon 159747-4 MOTOR HOUSING COMPLETE €54.61
48
 photo_cameraImage coming soon 266052-3 PT SCREW 4X60 €7.03
49
 photo_cameraImage coming soon 415634-0 BAFFLE PLATE €3.07
50
 photo_cameraImage coming soon 210023-2 9910/11 BEARING €7.16
51
 Armature Insulation Washer for Planer Makita N1923B 681614-0 Armature Insulation Washer for Planer Makita N1923B €2.00
53
 photo_cameraImage coming soon 241884-9 FAN 60 9031 €8.30
54
 Ball Bearing 608DDW for Jigsaw Makita 4327 210005-4 Ball Bearing 608DDW for Jigsaw Makita 4327 €5.44

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Belt Sander 9032

We are MAKITA original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues fo Belt Sander 9032

In the following table, look for the model of the Belt Sander and the respective parts of the code.
Makita 9032

Belt Sander 9032
1 317523-4 BRACKET 9032
2 265999-8 TAPPING SCREW 4*25, 6827
3 153308-2 PULLEY COVER COMPLETE
4 257249-5 RING 9 9032
5 253807-5 FLAT WASHER 5, LS0714
6 265494-8 HEX.BOLT M5X13 9032
7 272229-0 LEVER 40, 3901
8 961014-3 STOP RING E-8, SS610D
9 265090-2 PAN HEAD SCREW M4X20
10 941052-1 FLAT WASHER 4
11 265751-4 THUMB SCREW M5X13 9032
12 253807-5 FLAT WASHER 5, LS0714
13 421198-4 CAP FOR
14 317522-6 DRIVING ROLLER 9032
15 265092-8 TRUSS HEAD SCREW M5X12
16 345196-3 SAFETY COVER 9032
17 266026-4 TAPPING SCREW CT 4X12, 5806B
18 345197-1 CAM LEVER 9032
19 265028-7 PAN HEAD SCREW M4X11
20 233333-0 COMPRESSION SPRING 9032
21 317525-0 ARM HOLDER 9032
22 265040-7 PAN HEAD SCREW M3X4 9032
23 153314-7 SHOE 9 COMP. 9032
24 153310-5 COMPRESSION SPRING 6
25 233332-2 ARM TENSIONER COMP.9032
26 153312-1 LEAF SPRING, KP0800
27 232185-6 H.S.HEAD BOLT M4*10 WITH W, EBH252L
28 922111-0 PAN HEAD SCREW M4X20
29 911536-3 ARM COVER 9032
30 345195-5 PAN HEAD SCREW M3X4 9032
31 265040-7 SHOE 9 COMP. 9032
32 153314-7 CORD GUARD 8-85, 4100NH
34 682502-4 CORD CLAMP, 6410
35 687063-9 TAPPING SCREW 4X18, 4100NH
36 265995-6 CONTROLLER 200V-240V
37 631677-6 NOISE SUPPRESSOR
38 645209-3 SWITCH SGEL206C
39 651263-7 HANDLE COVER 9031
40 415635-8 TAPPING SCREW 4X18, 4100NH
41 265995-6 CARBON BRUSH CB-411
43 191940-4 HOLDER CAP 5-8, 6300L
44 643550-8 MOTOR HOUSING COMPLETE
46 159747-4 FIELD ASSY 230V 9032
47 599347-2 TAPPING SCREW, UB1101
48 266052-3 BAFFLE PLATE
49 415634-0 BALL BEARING 627DDW, HR2453
50 210023-2 INSULATION WASHER
51 681614-0 ARMATURE ASSY 230V 9032
52 517389-4 AMATURE X 9032
53 241884-9 FAN 60
54 210005-4 BALL BEARING 608DDW, UB1100
55 643932-4 BRUSH HOLDER 9032

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita 9032
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita 9032

Diagram Makita 9032

Download (176.48KB)
