Makita Spare Parts for Orbital Sander BO4560

SKU: Makita BO4560
€41.80
VAT included

Makita Spare Parts for Orbital Sander BO4560

We have the original Makita Spare Parts for Orbital Sander BO4560, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Orbital Sander BO4560. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Makita Spare Parts for Orbital Sander BO4560
  • Makita Spare Parts for Orbital Sander BO4560
  • Makita Spare Parts for Orbital Sander BO4560

Makita Spare Parts for Orbital Sander BO4560

SKU: Makita BO4560 Condition: New
€41.80
VAT included

Makita Spare Parts for Orbital Sander BO4560

We have the original Makita Spare Parts for Orbital Sander BO4560, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Orbital Sander BO4560. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 24 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

23 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 211016-2 BALL BEARING 626DD €7.03
2
photo_cameraImage coming soon 511548-2 ARMATURE X BO4540 €68.37
3
photo_cameraImage coming soon 182630-0 CASING X BO4540 €36.44
4
photo_cameraImage coming soon 593003-6 STATOR BO4540 €40.43
5
photo_cameraImage coming soon 253214-2 FLAT WASHER 9 €1.40
6
Bearing 629DD FOR Angle Grinder Makita GA4530 211092-6 Bearing 629DD FOR Angle Grinder Makita GA4530 €9.01
7
photo_cameraImage coming soon 241666-9 FAN 65 BO4540 €11.45
9
Rubber Pin for Hammer SDS-Max Makita HR4000C 263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C €1.47
10
photo_cameraImage coming soon 211087-9 BALL BEARING 6200DDW €8.75
11
Base Legs for Orbital Sanders Makita BO4563 410918-1 Base Legs for Orbital Sanders Makita BO4563 €6.55
12
photo_cameraImage coming soon 253825-3 FLAT WASHER 6 €1.40
15
Rubber Pad for Orbital Sander MAKITA BO4560 150067-9 Rubber Pad for Orbital Sander MAKITA BO4560 €26.41 Not available for order
16
photo_cameraImage coming soon 915116-7 SCREW M4X12 €1.43
17
photo_cameraImage coming soon 265872-2 SCREW M4PER50 €1.40
18
photo_cameraImage coming soon 265875-6 SCREW M4PER25 €1.40
19
photo_cameraImage coming soon 265876-4 SCREW M4PER40 €1.40
21
photo_cameraImage coming soon 911133-5 SCREW M4X18 €1.46
22
photo_cameraImage coming soon 687001-1 CLAMP cable tie €1.47
23
photo_cameraImage coming soon 651600-5 VARIABLE SPEED 'SS106A €11.45
24
Noise Suppressor for Cut-Off Machine Makita 2412N 645006-7 Noise Suppressor for Cut-Off Machine Makita 2412N €2.14
25
photo_cameraImage coming soon 682504-0 CORD GUARD 10/85 €3.84
27
Carbon Brushes Makita for Sanders BO4540-4550-4553-4554 191627-8 Carbon Brushes Makita for Sanders BO4540-4550-4553-4554 €9.91
28
Brushes Support for Orbital Sander Makita BO4901 643552-4 Brushes Support for Orbital Sander Makita BO4901 €5.02

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Orbital Sander BO4560

Fix Your Orbital Sander BO4560. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of Orbital Sander and the respective parts of the code.
Makita BO4560

Orbital Sander BO4560
# Part Num. Description
1 211016-2 BALL BEARING 626DD
2 511548-2 ARMATURE X BO4540
3 182630-0 CASING X BO4540
4 593003-6 STATOR BO4540
5 253214-2 FLAT WASHER 9
6 211092-6 BALL BEARING 629DD
7 241666-9 FAN 65 BO4540
9 263002-9 RUBBER PIN 4
10 211087-9 BALL BEARING 6200DDW NSK
11 410918-1 BASE SUPPORT X BO4563
12 253825-3 FLAT WASHER 6
13 912111-8 FLAT HEAD SCREW M4X10
15 150067-9 RUBBER PAD BO4560
16 915116-7 SCREW M4X12
17 265872-2 SCREW M4X50
18 265875-6 SCREW M4X25
19 265876-4 SCREW M4X40
21 911133-5 SCREW M4X18
22 687001-1 CABLE CLAMP
23 651600-5 SS106A SWITCH
24 645006-7 CAPACITOR X LS1013
25 682504-0 CORD GUARD 10/85
27 191627-8 CARBON BRUSH CB-64 (56.57)
28 643552-4 BRUSH HOLDER
500 SELF ADHESIVE ABRASIVE PAPER 160X87
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita BO4560
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

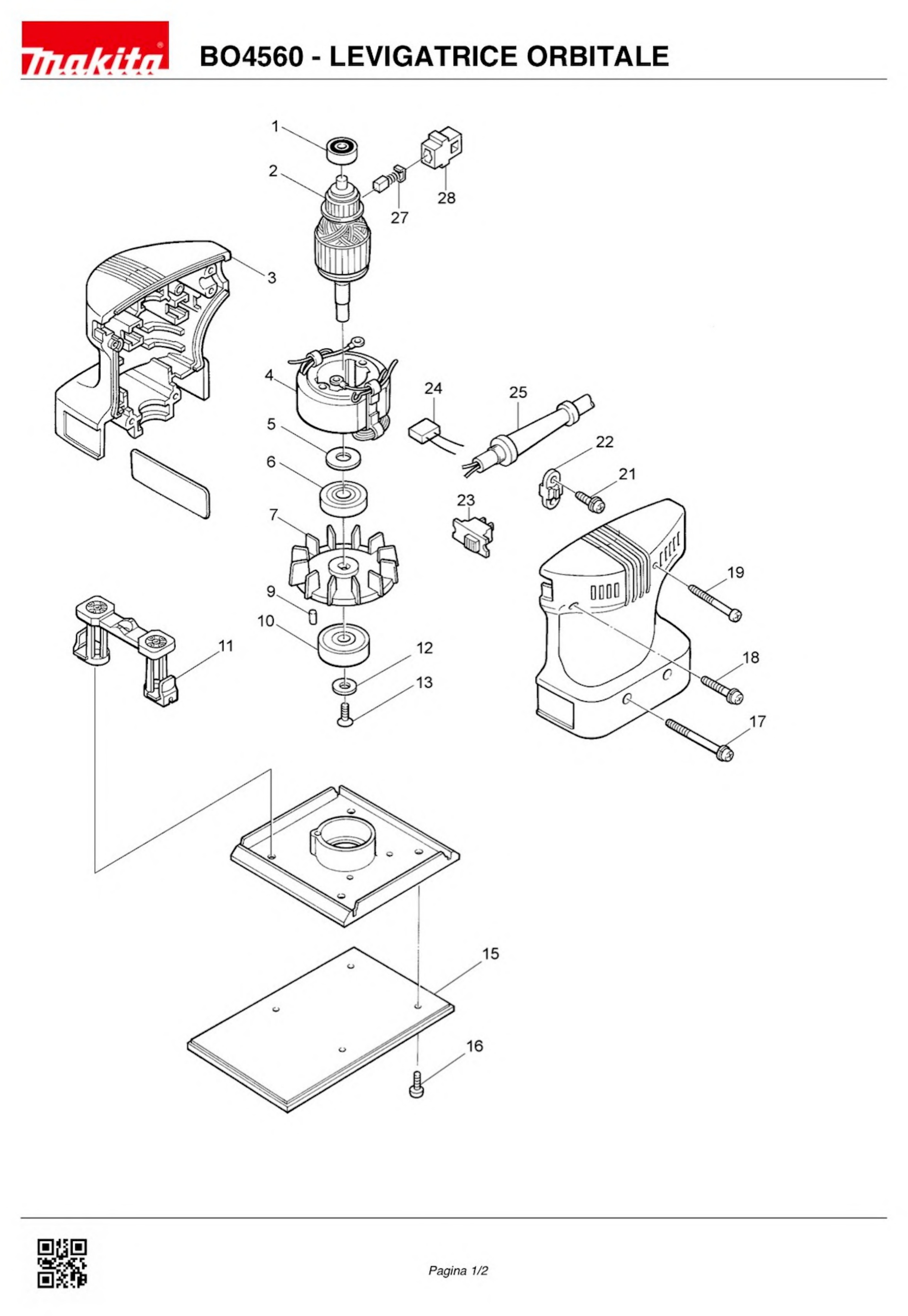

Diagram Makita BO4560

Diagram Makita BO4560

Download (145.01KB)
